Description:

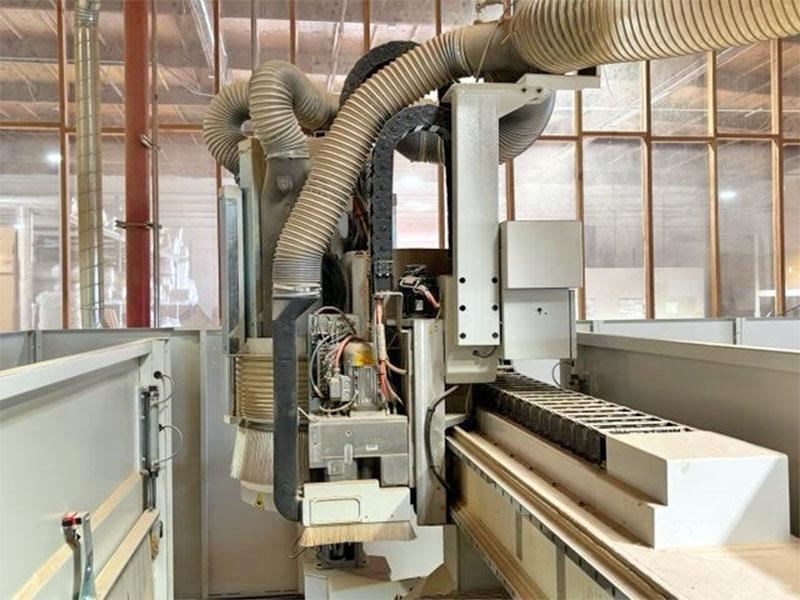

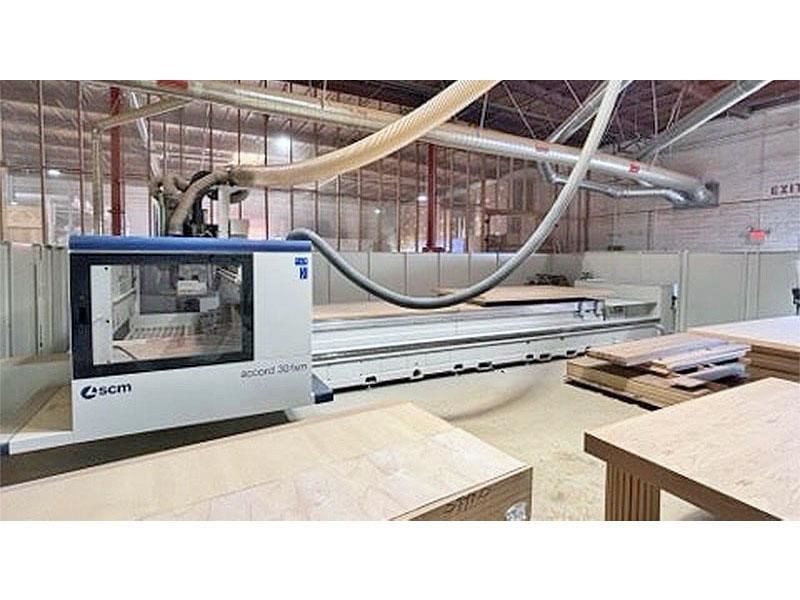

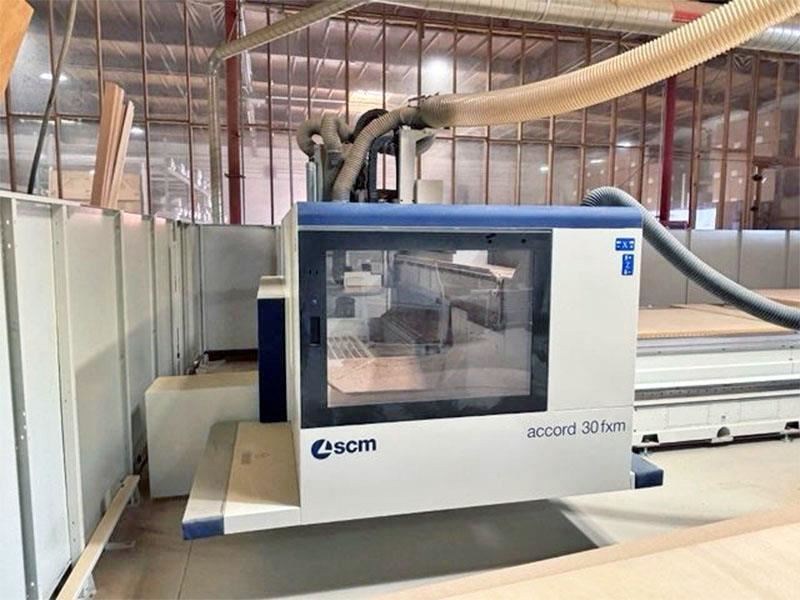

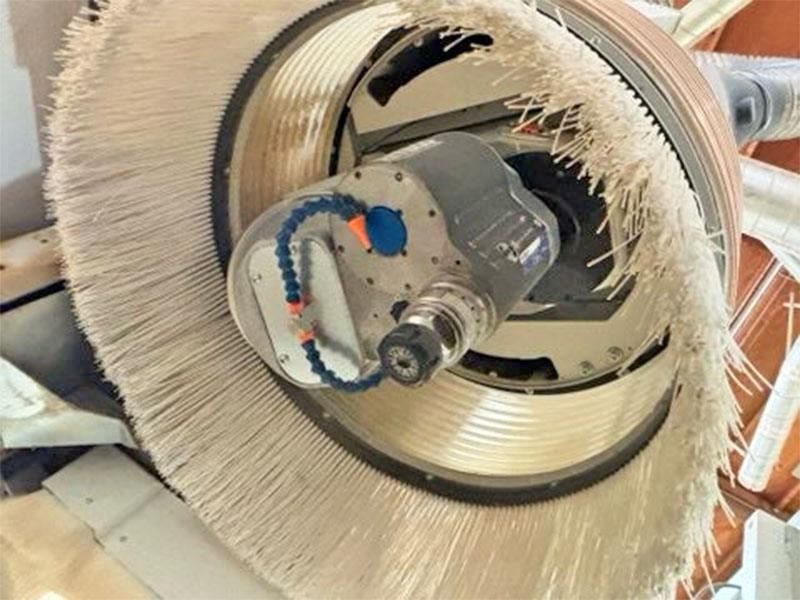

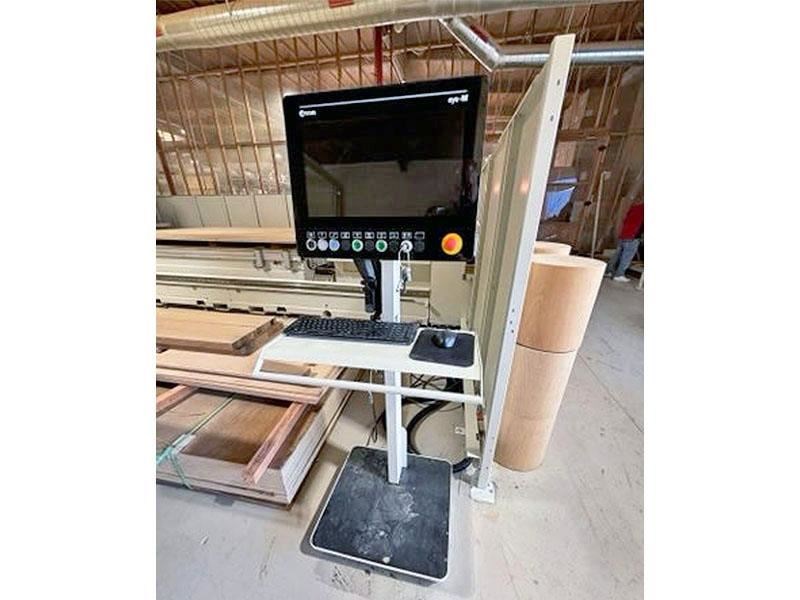

SCM Accord 30 FX-M 5-Axis CNC Router: -- Working SpecificationsTable Dimensions 12' x 5' (3,650 mm x 1,560 mm x 330 mm) or 143.7" x 61.4" x 13". -- Technical Specifications: C-axis stroke = 640°, B-axis stroke = 270°,Electro spindle with HSK F 63 quick-release tool-older, rotation speed 600 - 20,000 RPM, power max. 11 KW (15HP) from 15,000 RPM (on s1 duty) 7 kW (9 HP) from 7500 RPM (on S1 duty), 15 KW inverter (20 HP S6), automatic exhaust hood with several positions and ON-OFF by workpiece program, C-axis equipped with TTS locking system. -- Positioning Speeds Rapid traverse of x-axis = 90 m/min (295 FPM), rapid traverse of y-axis = 90 m/min (295 FPM), rapid traverse of z-axis = 30 m/min (90 FPM),Component passage 330 mm (13";) axes traverse X-Y-Z interpolating axes, Brushless motors. automatic lubrication -- Control Unit numeric control OFFICE-PC operating system using MICROSOFT Windows, 17" LCD display, hard disk 500 GB RAM memory network card. -- Operator Interface XILOG PLUS: Workpiece geometry programming by graphic editors or open editor,Automatic execution of a program or multi-concatenated programs subprograms and user macro-management, DXF files import, machining optimizer, multi-tool equipment management dynamic control of accelerations, safety devices, fixed metal bulkhead along two sides, photocells on two sides, anti-ejection bars on the machining head, access to both front and rear sides of the worktable. -- Complete with Air-conditioned electrical cabinet. PRISMA K machining head. Rapid 16 Position Tool Changer. Automatic tool touch-off probe. (2) 250 m³/Hr Vacuum Pumps. Perimeter Safety Devices -- Actual Model is SCM ACCORD 30 FX-M.
