Description:

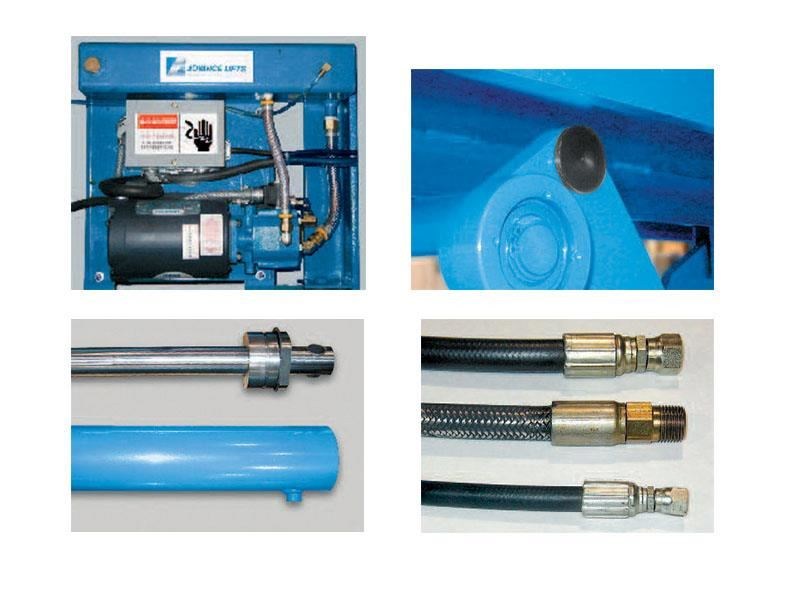

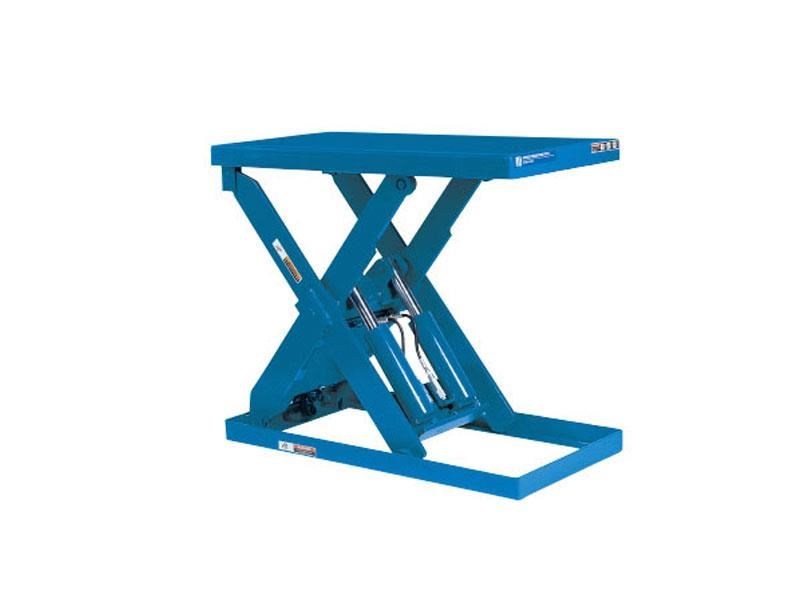

ADVANCE LIFTS P-4036 Scissor LiftThe P-Series lifts are Advance Lifts most popular series as they fit a wide array of manufacturing applications.SPECIAL FEATURES & BENEFITS: -- These units are equipped with the patented “Platform Centering Devices";, which doubles or triples lift life. -- All of the controllers are Underwriter Laboratory listed assemblies. -- These units are fully primed and finished with a baked enamel finish. -- The cylinders are machine grade with clear plastic return lines. -- All pressure hoses are double wire braid with JIC fittings. -- The reservoirs are mild steel. -- These units conform to all applicable ANSI codes.Specifications: -- 4,000 Lbs. capacity. -- Platform size 48" x 72" (Min. Platform Size: 24" x 48" Max. Platform Size: 48" x 72") -- Max. End Load Capacity 3,300 Lbs. -- Max. Side Load Capacity: 2,900 Lbs. -- Baseframe Size: 24"" x 48". -- Lowered Height: 6.5". -- Raised Height: 42.5". -- Approx. Speed Up: 27 sec. -- Internal Motor: 2 HPWarranty 10 Year Structural / 250,000 Cycles - 1 Yr Parts and Labor
