Description:

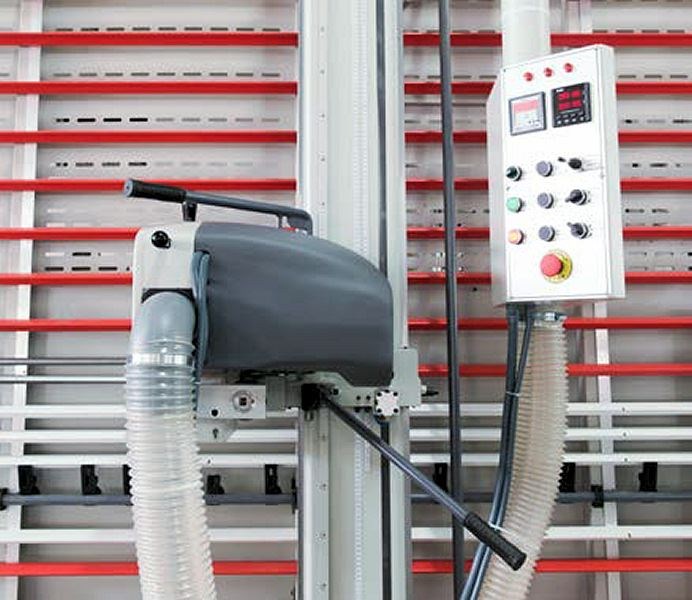

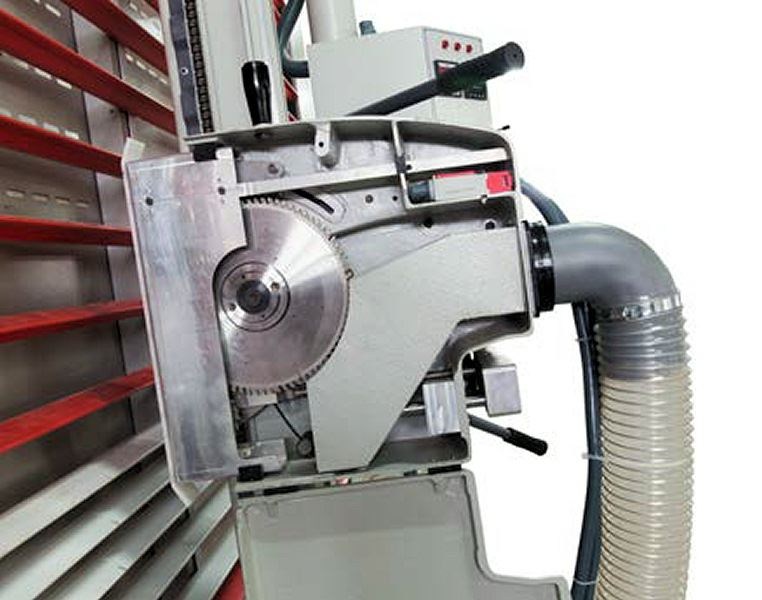

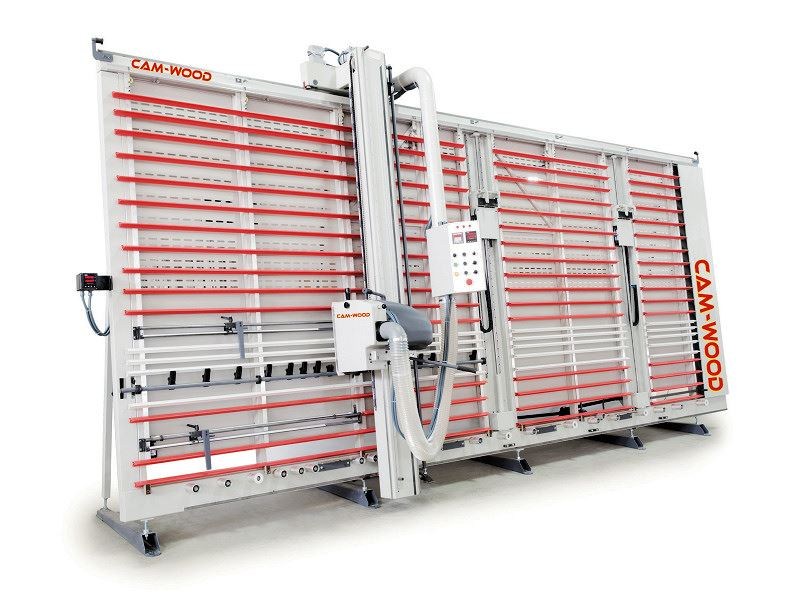

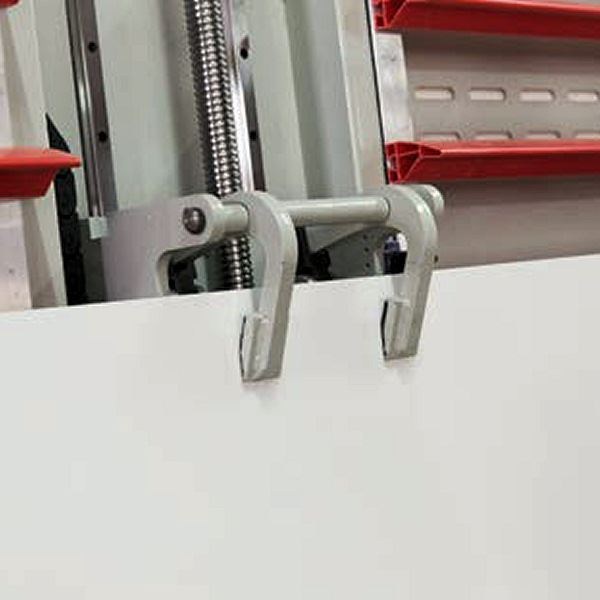

CAM-WOOD VPS PL w/Scoring & Panel Lifting Clamps (82-1/2" x 196-1/2" w/Scoring)Features: -- Panel Clamps for bottom cuts; top to Bottom cutting height is 82-1/2" (2,100 mm) without scoring and 78-3/4 (2,000 mm) with scoring; saw head w/motor rotates 90° for rip or crosscutting. -- Cutting length "rip cut from left/right" is 196-1/2" (5,000 mm); cuts single or stacked panels up to 2-23/64" (60 mm) in thickness. -- Equipped with: -- 4 HP Motor (5.5 HP available); 250 mm (10") dia. x 80-tooth x 30 mm bore main blade; separate 80 mm (3.15") x 20-tooth dia. scoring, blade belt driven at 7,800 RPM to insure clean cuts on everything from Plywood to Melamine to Hardwood. -- Features: -- 2-Motorized panel lifting clamps "grab panel on top edge" for bottom cuts (660 Lbs. lift cap.), clamps travel on (2) vertical screws for positioning of panels. -- (2) LED Readouts (1) for crosscutting at the middle of the frame and (1) for horizontal rip cuts; (2) flip-stops for crosscut measuring, one located on the bottom rail and the other on the mid height measuring rail. -- Complete with: -- Foldout shelf at the middle of the frame for small part cutting; automatically shifting material back support grid shifting away from the saw blade cutline prevents cutting into the grid support strips while rip cutting horizontally. -- Precision ground bottom edge support rollers to facilitate easy loading & positioning of the larger or heavy panels; standard inch preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- Rip gauge for repeat (same size) rip cuts and (3) adjustable preset stops; material always rests firmly against the "angled" back grid support. -- Includes: -- Spring loaded floating saw blade enclosure shoe glides over panel surface applying a holddown force while it enhances dust collection & safety by enclosing the saw blades. -- (1) Main blade; (1) scoring blade.
