Description:

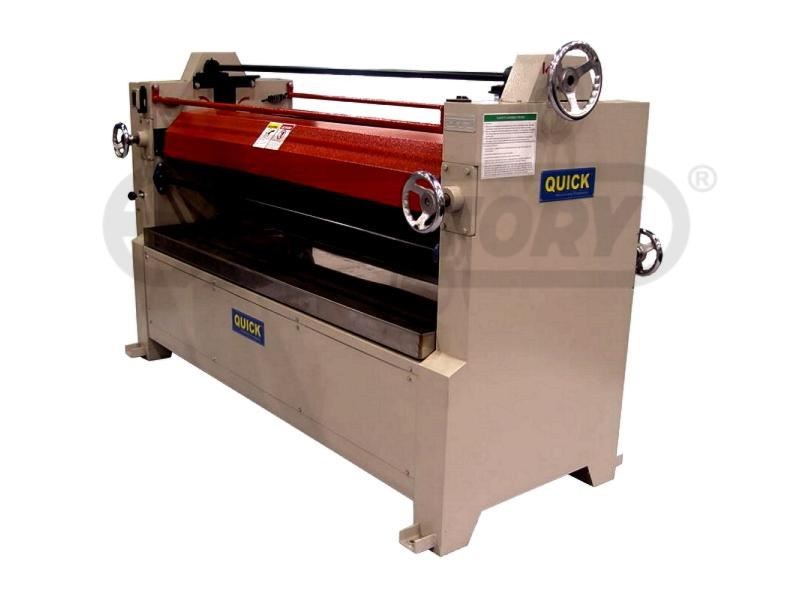

QUICK R-RCGS-2-63 Top & Bottom Glue Spreader63" wide Top and Bottom glue spreader with 0.04" - 1.75" thickness Capacity. Specifications: -- 2-Sided Roller Coater. -- Working thickness: adjustable from 0 to 45 mm (0 to 1.77"), adjustable via single hand wheel. -- Maximum material width: 1,600 mm (63"). -- (2) Application rollers, 210 mm (8.27") in diameter. -- Application roll material: SBR rubber, 60 durometer. -- Application roll grooving: 20 grooves per inch. -- Doctor roll quantity: (2). -- Doctor roll material: NBR rubber, 98 durometers. -- Doctor roll diameter: 175 mm (6.9"). -- Doctor roll grooving: none (smooth rolls). -- Drive motor power: 1.5 kW (2 HP). -- Feed rate fixed at 64 FPM. -- Voltage is 220 V, 3-phase.Includes: -- Emergency stop bars at front and back of machine. -- Stainless steel waste glue drip pan. Complete with: -- Safety stop bars and roll guard hood; all-aluminum drip pan catches clean-up water.
