Description:

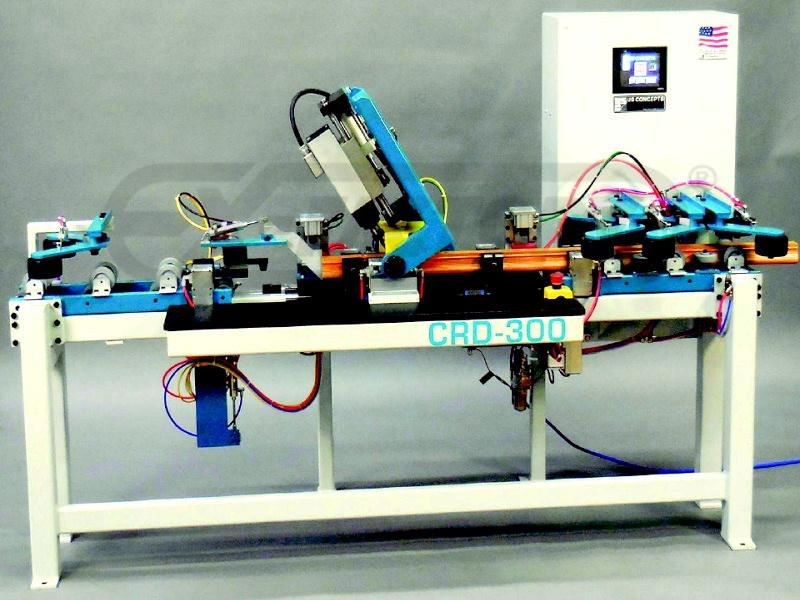

US CONCEPTS CRD-300, ...CNC Handrail Borer. Fully Automatic Model CSR-300.CNC Drill used for drilling of handrails and plates (optional) is designed to operate with speed, precision, and minimal setup time.No CNC experience is needed. All the operator has to do is enter the distance of the 1st hole to the end of rail, baluster spacing, number of holes, rake angle, insert rail (or plate), and press the Start button. -- As the machine takes over, the high-speed router motor drills the hole with plunging bit and Servo-actuator advances material until all holes are finished. -- It takes roughly (3) Sec. per hole in level or rake rail. Factory developed technology for your benefit.Standard Features & Specifications: -- Heavy Duty fabricated construction -- PLC Control with Touch-Screen input -- Automatic board advance every cycle -- 3 HP Router motor with 18,000 RPM max. speed; ER25 router bit collet (1 supplied) -- 2-3/4" Max. handrail width; 2-3/8" handrail height; Colonial 6010 standard handrail -- 2" - 16" Programmable distance to the end to 1st baluster; 2" - 6-1/2" baluster spacing -- 0° - 45° Rake AngleDimensionsOptions & Additional Features: -- 5 HP Router motor, please add ...$ 560. -- Plate drilling option (6"; to 8"; x 3/4";), add ...$ 3,240. -- Hood covering the work area, add ...$ 2,120. -- Programmable distance from end to 1st hole more than 18";, RFQ. -- Other Rail style or size, RFQ. -- ER25 Collet, add ...$ 36 -- Factory Setup and training, add ...$ 800/Day + Expenses. -- Crating, add $ 360. -- Export crating as per ISPM-15, add ...$ 1,280.The CRS-300 Automatic Handrail Drilling Machine makes a huge impact in day to day operation of stair building; cost of mistakes are down, shop labor is decreased, and productivity & quality goes up significantly.
