Description:

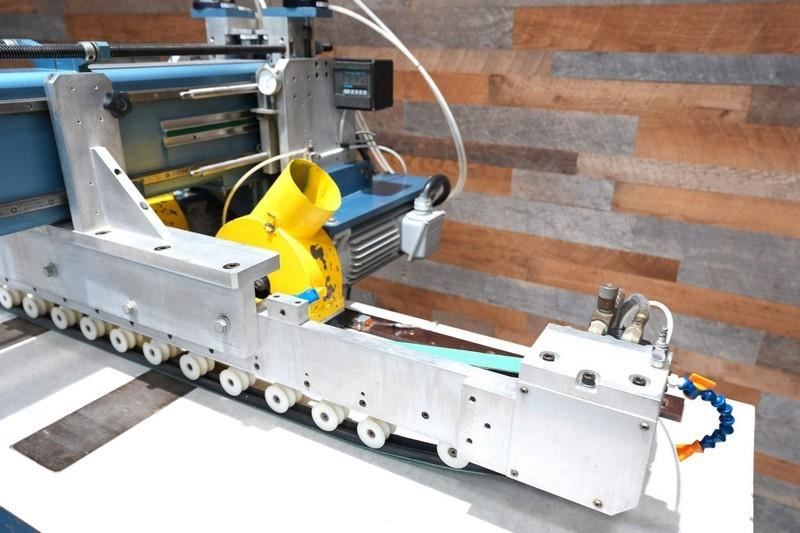

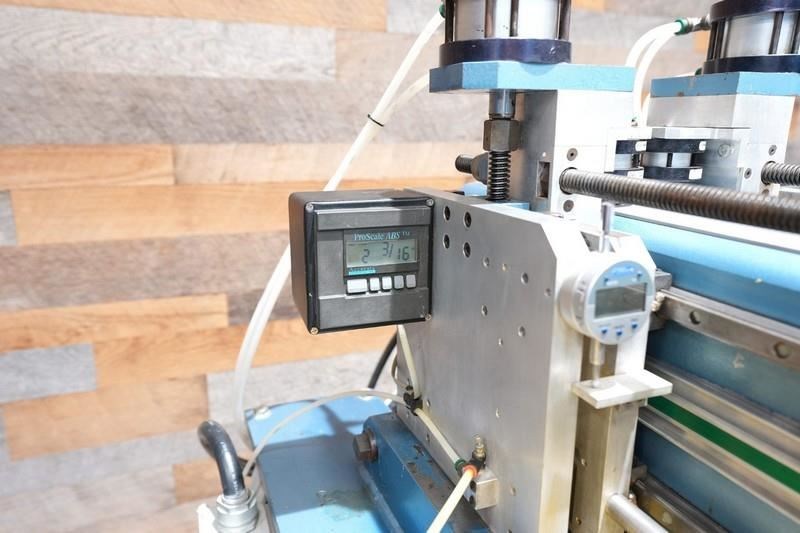

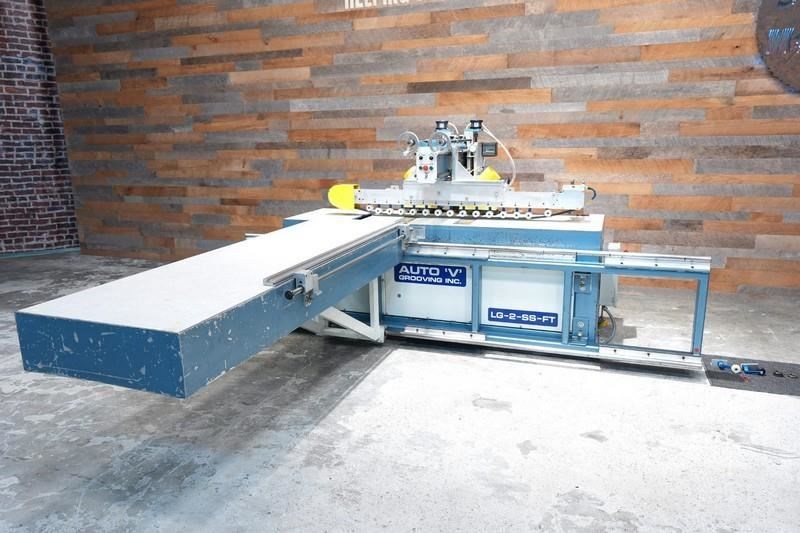

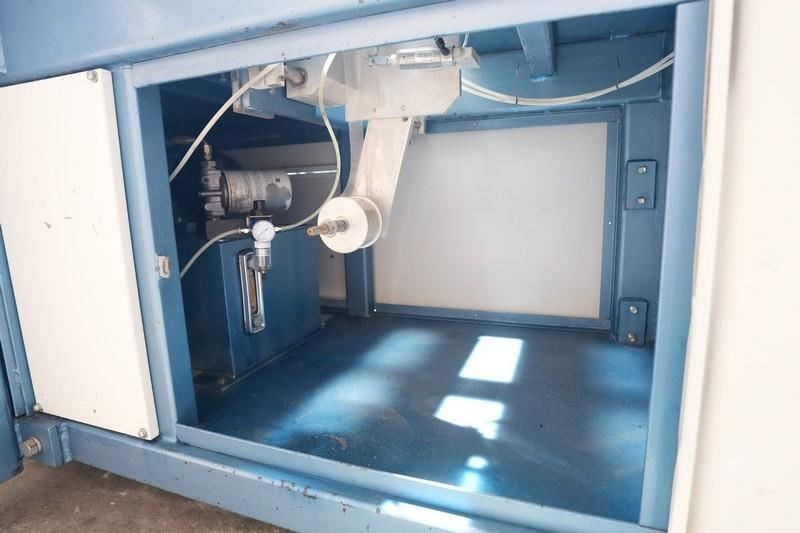

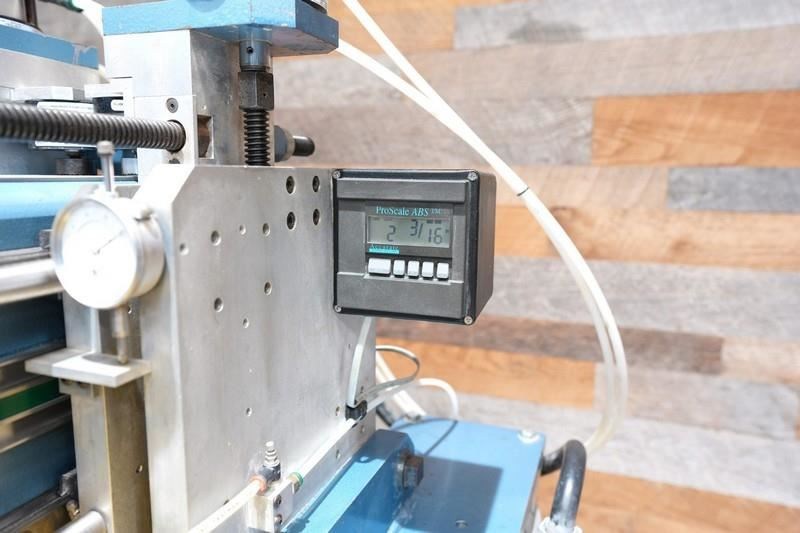

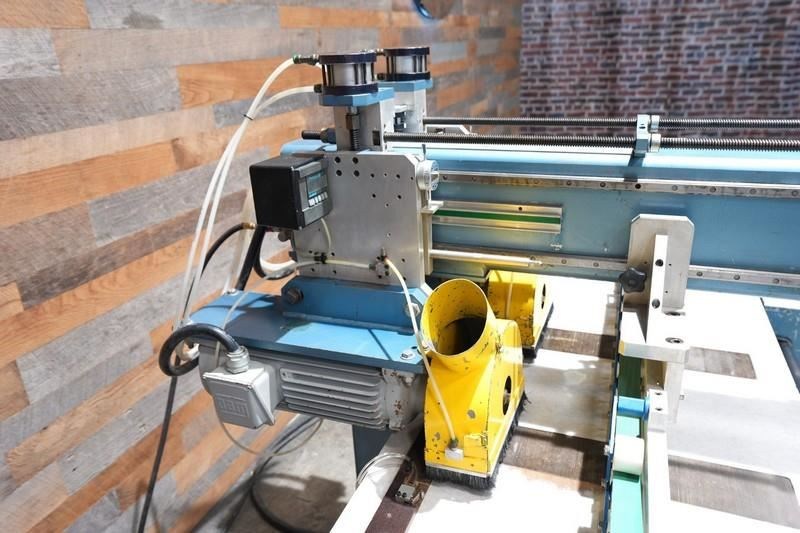

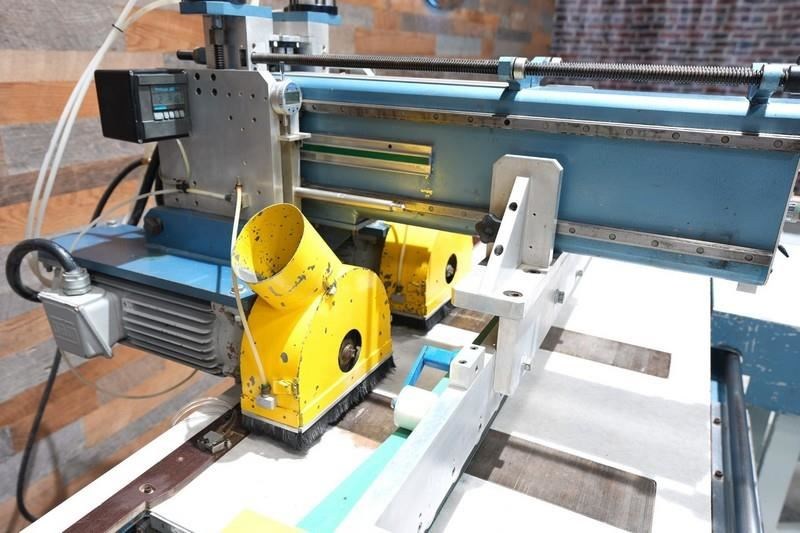

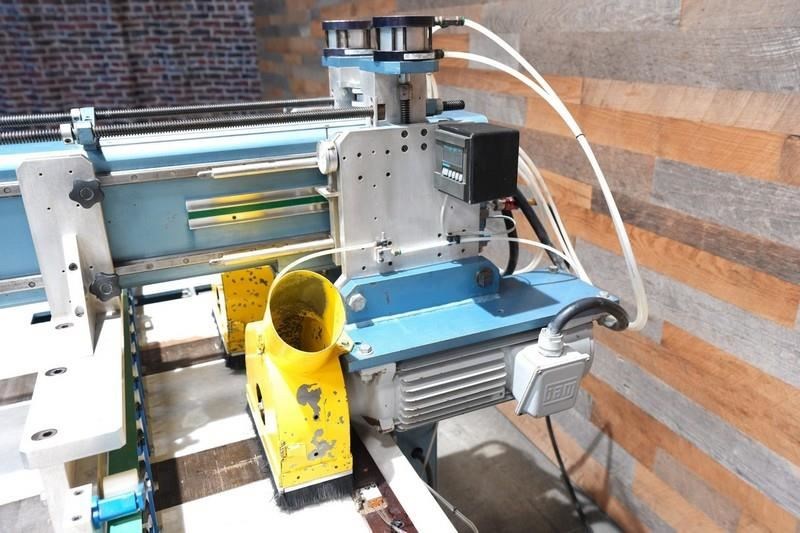

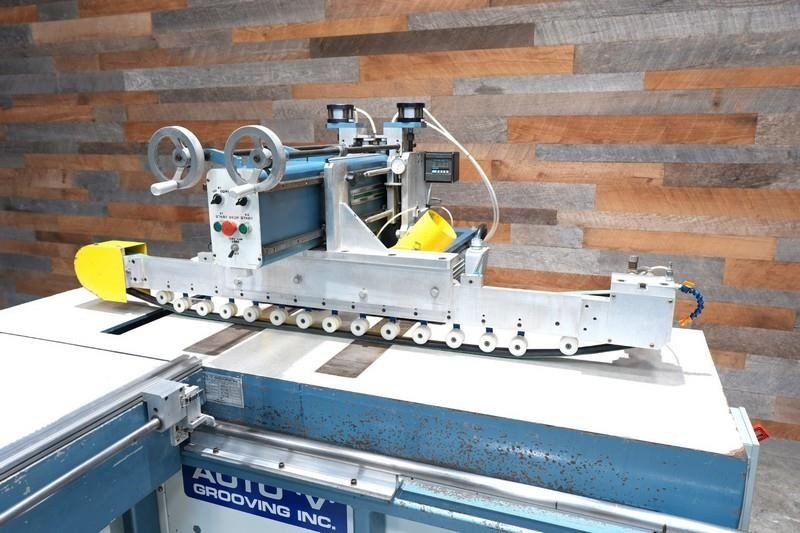

AUTO-V-GROOVE LG-2-SS-FT UNIVERSAL V-GROOVER: -- Specifications:(1) 10 HP - 3,600 RPM V-Grooving head;(1) 10 HP - 3,600 RPM Coving head on opposite side of overhead tool gantry.Both heads are positioned on vertical & horizontal linear rails & bearings for smooth, accurate adjustment. -- Working Cap:Maximum material thickness 1"; 4" min. material width; approx. 12" min. material length; 15" Max. cut from fixed fence; unlimited length of part when cross-grooving. -- Positioning:(1) 2 HP Hydraulic power unit for variable lineal feed rate from 0 - 60 FPM,Extra wide belt feeder moves workpiece on flat phenolic table; raising & lowering of feeder mechanism via manual gear drive. -- Complete with: 100" x 24" Lineal table work surface, 96" Long Cross-Grooving support table set 90° to linear feed direction; Tape applicator; Linear fence, electrical controls. -- Options Include: Auto Transformer for 240/480 v hook-up; ProScale Digital indicator. -- Actual Model is AUTO-V-GROOVE LG-2-SS-FT
