Description:

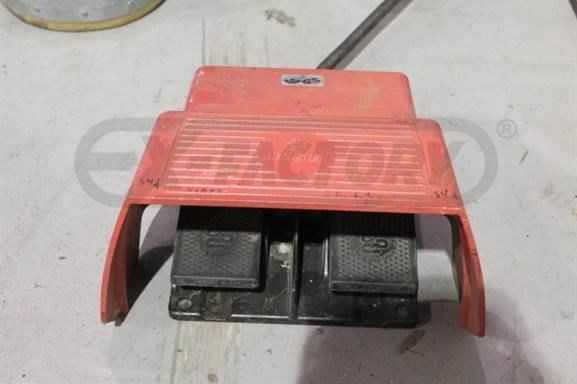

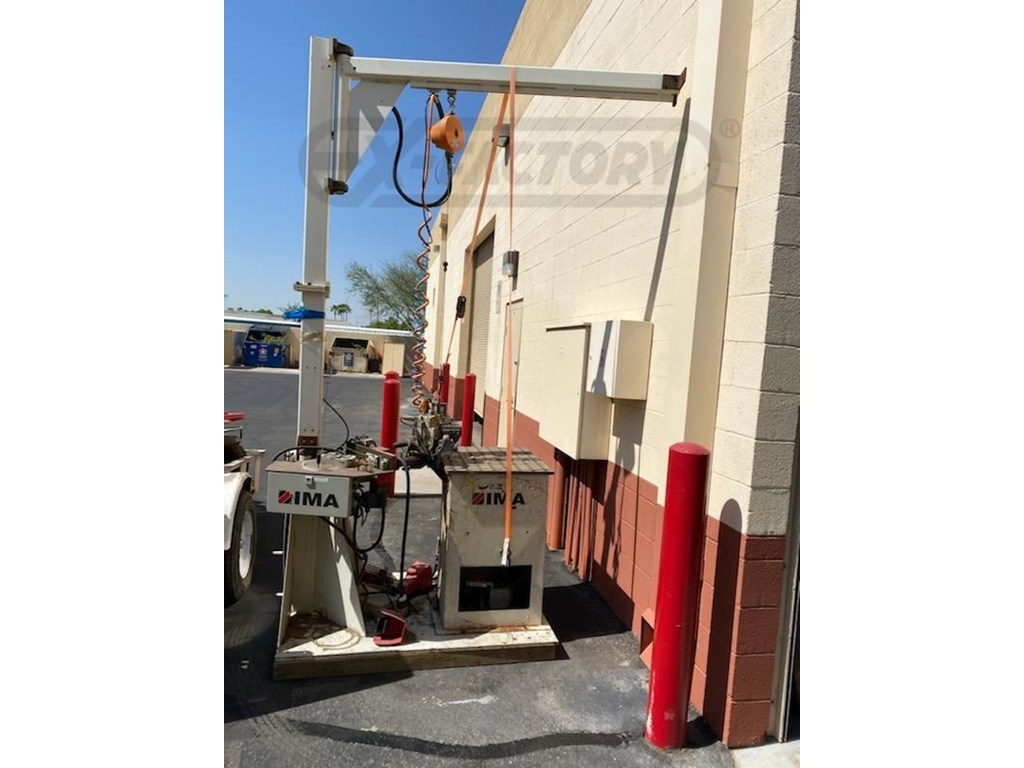

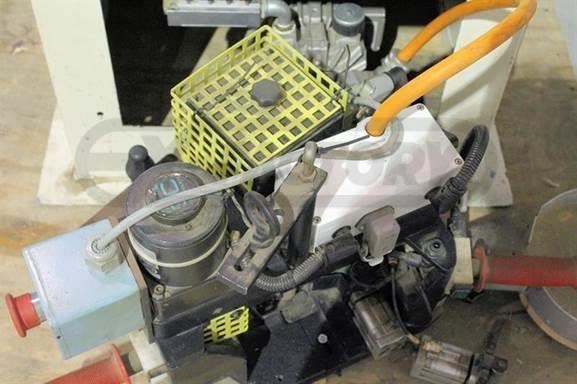

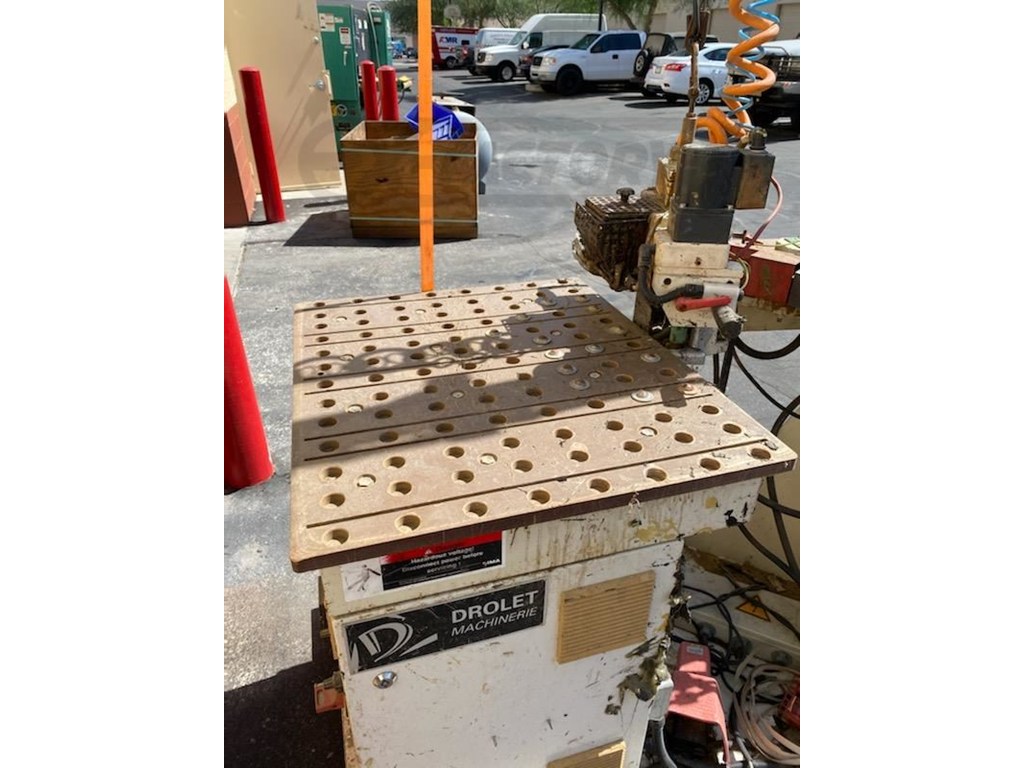

IMA - HKA EXPERT CONTOUR EDGEBANDER: Specifications: -- Manually operated Contour Edgebander. Designed for straight or curved (contour) edgebanding:0.5 - 3 mm Edgebanding thickness; 16 - 45 mm (0.63" - 1.77") panel & banding height; 23 - 45 mm (0.9" - 1.77") min. strip width; 100 mm (3.9") min. panel width; 250 mm (9.8") min. strip length. -- Equipped with: Versatile glue head that can be fixed to 1-side of the table to allow the operator to manually manipulate smaller pieces.During "fixed" mounted operation, coil material is drawn in automatically to infeed section of machine, via foot-pedal control. -- Work Table:32" (800 mm) Dia. coil dispensing table, large 813 x 914 mm (32" x 36") High-Flow Phenolic worktable surface;Pre-selection counter for edgebanding material; (1) preheating unit with 600 Watts for preheating of PVC/ABS edges -- Operating Process:Floating edgebanding head is clamped to panel to be processed, precut strip of edgebanding material is fed into glue head,Operator guides head around workpiece, glue is directly applied to precut strip of edgebanding material up to end of strip. -- Features: "Floating head (hot melt) glue pot" with 0.5 Liter cap; Guillotine knife for PVC material (within floating head). -- Complete with: &#9679 (1) 6 m³/Hr cap. vacuum pump for high-flow work table; &#9679 Jib Crane & hoist to support the edgebanding head; &#9679 Thermo-control for glue temperature; &#9679 Foot pedal control to initiate automatic cycle.
