Description:

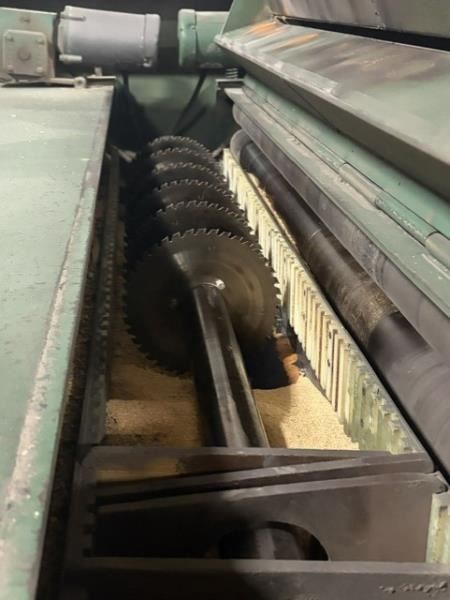

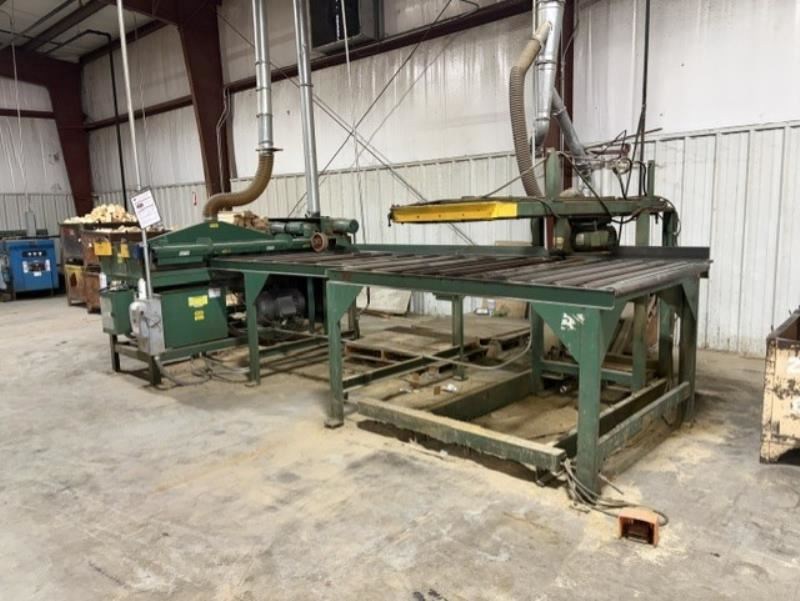

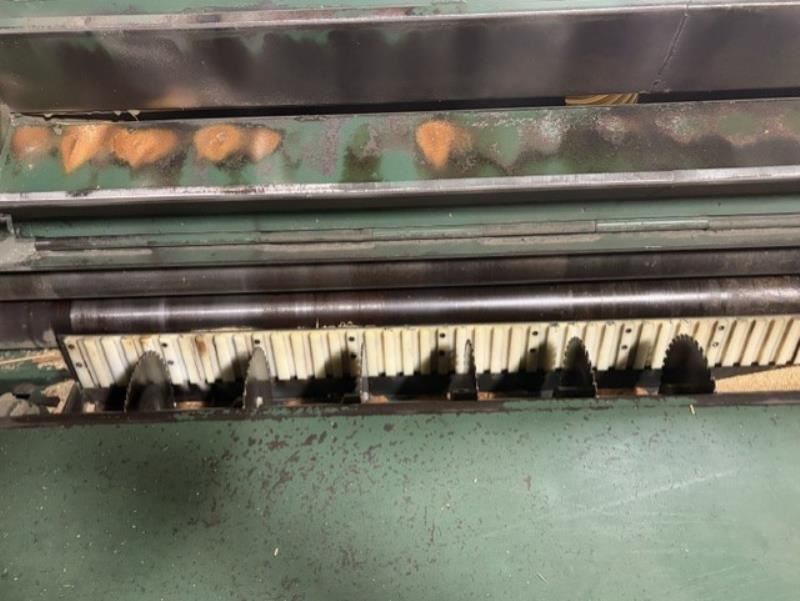

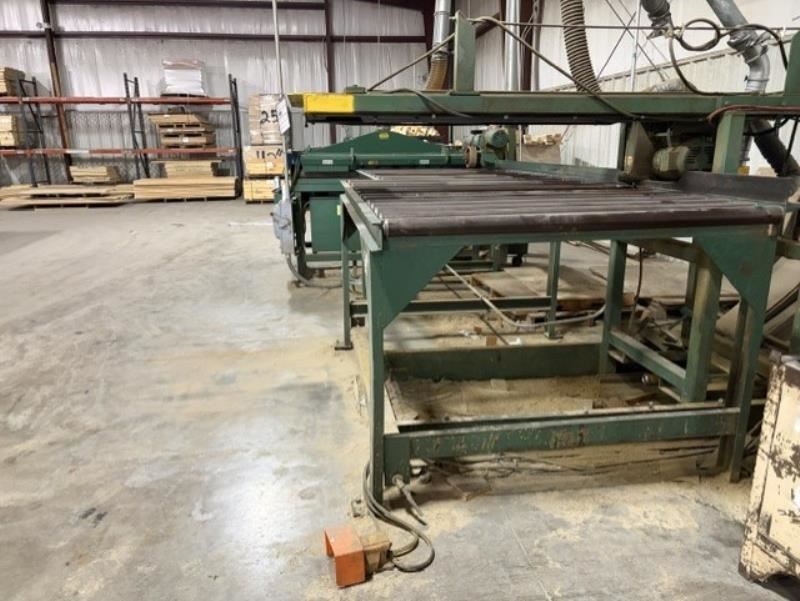

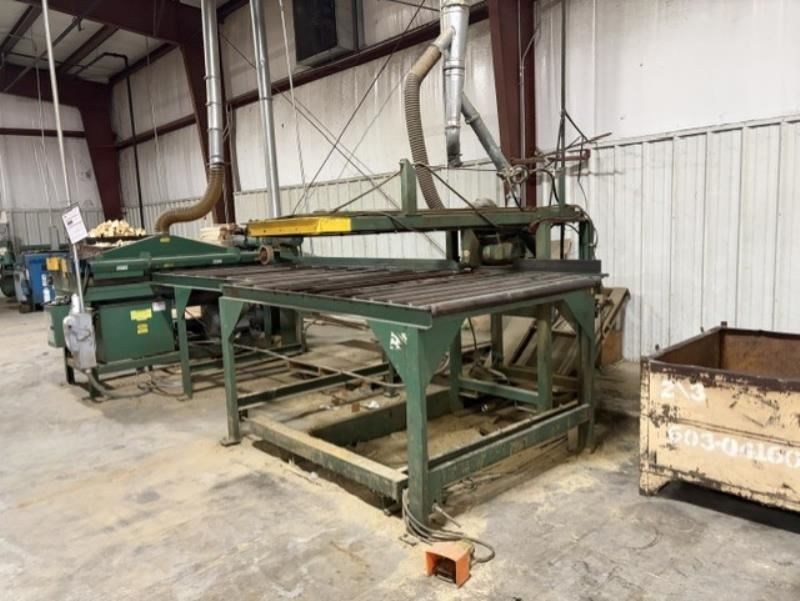

LAUDERDALE-HAMILTON 62" PIGTAIL Cross-Cut Saw: + 62" RFPR Multi-Blade Rip Saw: -- 62" PIGTAIL Cross-Cut Saw Specifications:Saw motor: 5HP, 3Ph; 5' (60") cut width; Cam lock adjustable air stop; Pneumatic saw travel drive; Powered feed wheel for ripsaw infeed assistance. -- Uses up to 12" dia x 60-tooth x 1" dia. bore saw blades; Crosscut (30" min. length); Working height: 47-1/4" (matches our panel ripper) -- 62" RFPR Multi-Blade Rip Saw Specifications:62" Max width cap. 40 HP main arbor motor; 1/8" - 1" material thickness with no adjustment needed over a 3/8" variation, 2.75" dia. arbor with 1-15/16" "Fafnir" arbor bearings. -- Positive non-marking smooth steel contact feed rollers driven from top & bottom. -- Machine uses thin kerf, up to 12" dia. x 60-tooth non-split blades. -- Variable Feed Speed up to 75 FPM; (2) 6" dia. vertical dust outlets, large strip separator box with easy access door. -- Options Include:(6) Used blades & spacers as pictured.Note: Cross-Cut & Rip a bundle of plywood in 6 minutes with two operators, 12 minutes with one, when used with our RFPR Roll Feed Panel Ripper.
