Description:

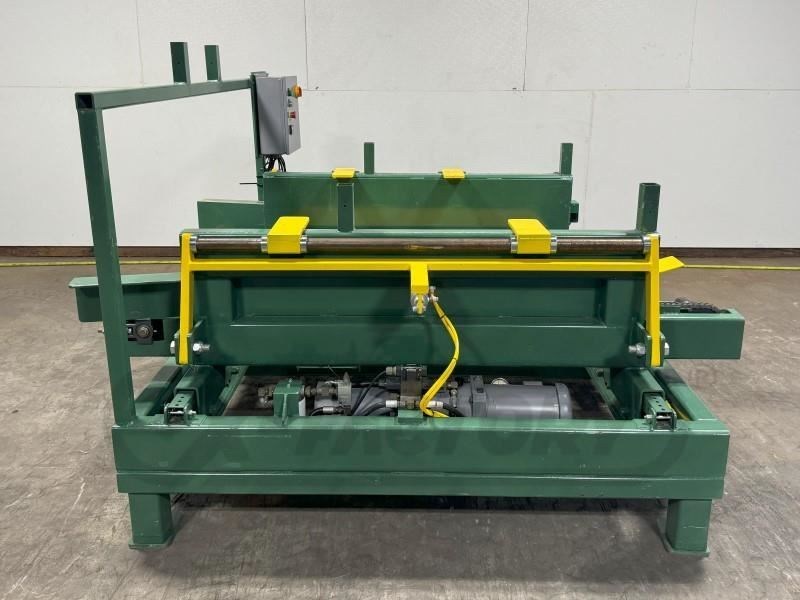

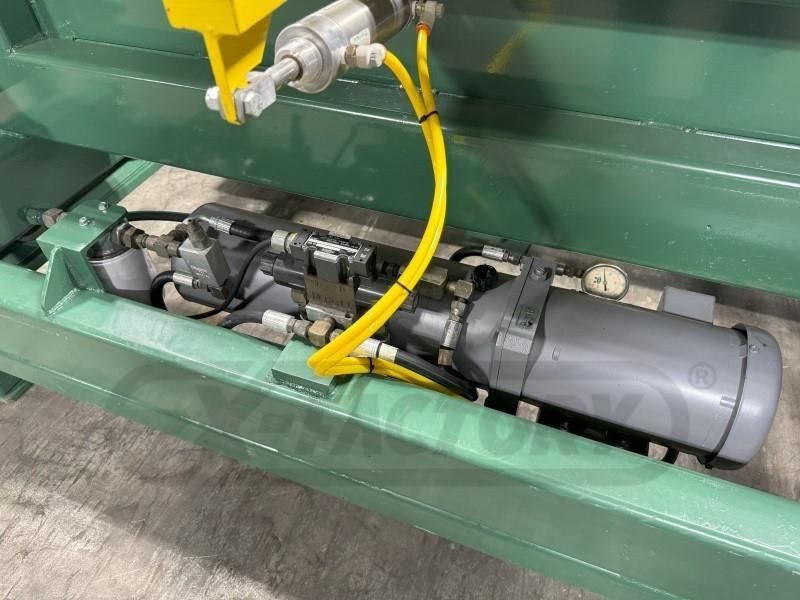

PRS H-SERIES Pallet StackerHydraulically powered, fully automatic pallet stackers.Specifications -- Adjustable pallet size capacity: 30"; x 30"; up to 60"; x 60";. -- Uses fork type clips that hold the pallets in the fork openings. -- Live in/out feed chain conveyor integrated - powered with hydraulic gear motors. -- Heavy-duty scissor lifting mechanism. -- Programmable stack count, and automatic stack eject. -- Hydraulically powered 2 HP - 3-Phase power unit. -- Fully automatic operation. -- Compressed Air is required. -- Machine footprint: 7’ x 7’, 24" top of chain conveyor -- Stacks (10) pallets per minute. (2) Units available
