Description:

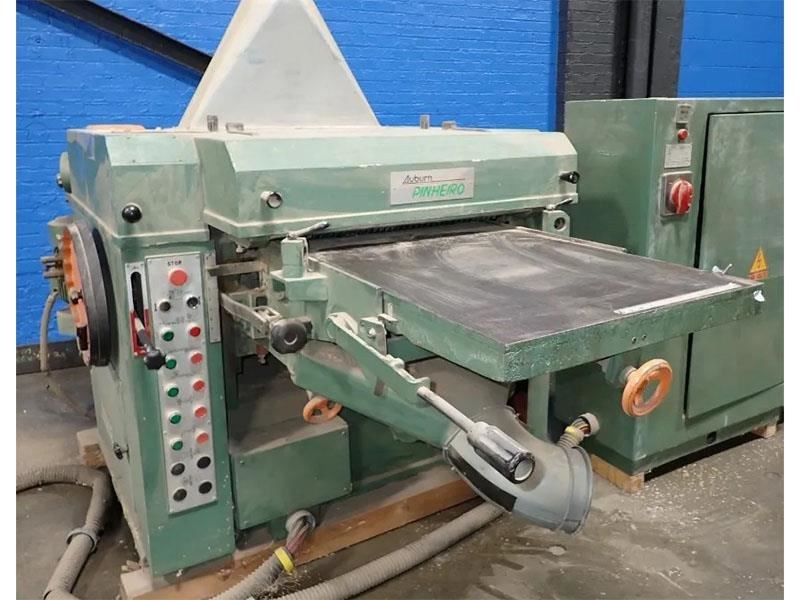

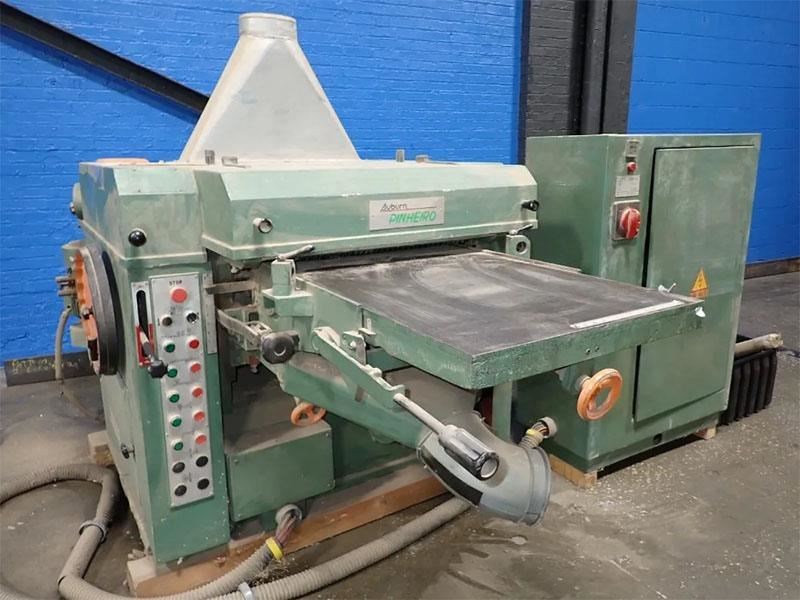

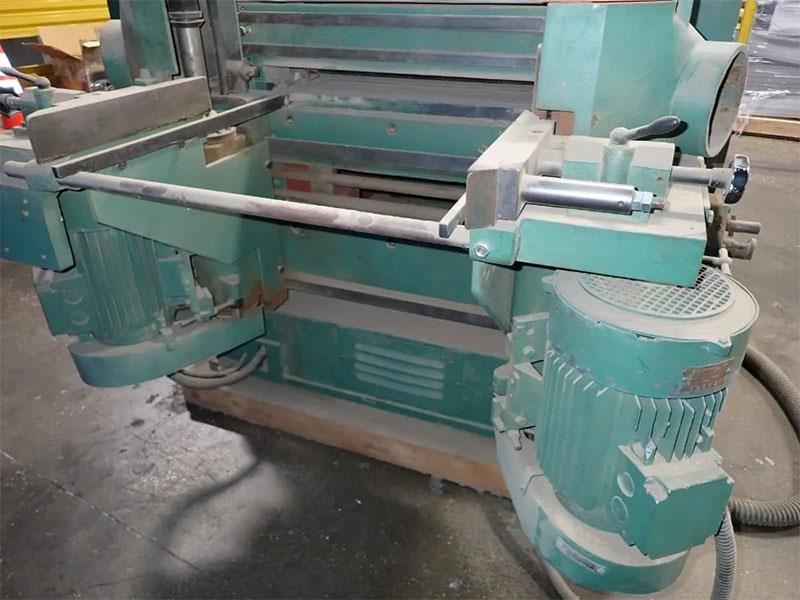

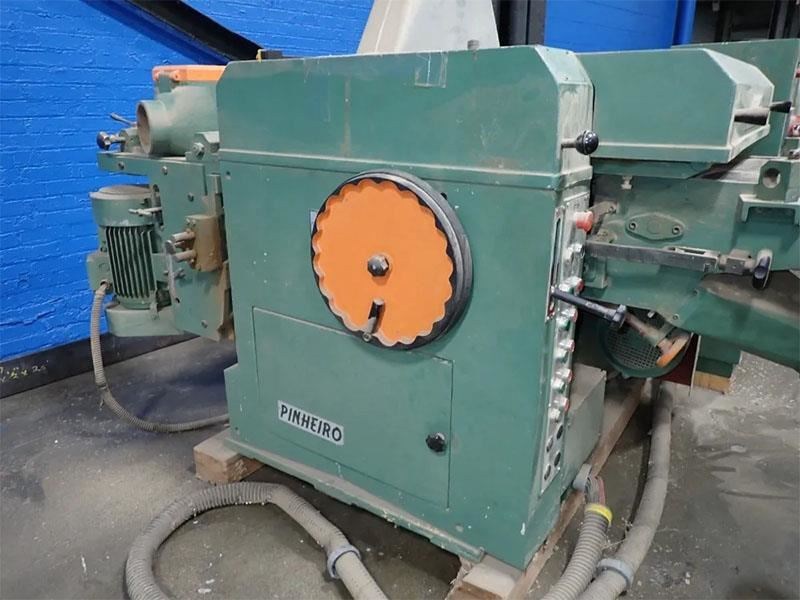

PINHEIRO MODEL MF 4-630 4-SIDED PLANER. -- 24" Planing width and 20" Molding width cap., 8" max. motorized opening via 1/2 HP motor; -- Top head 18 HP, 5" X 25", 4 knives, 5,500 RPM, Cutting circle 5 1/4", Max chip removal 3/8" -- Bottom head 12 HP motor,5" X 25", 4 knives, 5,500 RPM, Cutting circle 5 1/4", Max chip removal 3/8" -- (2) side heads (opposed) with 8" spindle capacity, 9 HP motor each., Vertical adjustment 4" -- 11/16" Max. profile depth, 5-1/2" max. tool dia., 1-13/16" spindle dia.X 8" long at 5,000 RPM; -- 4 HP feed drive, variable feed speed 10 - 100 FPM, 39" infeed bed, (6) powered feed rolls, sectional feed rolls, sectional chipbreaker, central lubrication system. Complete with: -- high speed steel knives in the top and bottom heads, and dust hoods.
