Ruvo 9715W Door Machine
704-841-2001 ext: 379
Talice Luna
Call for Price
Ruvo 9715W Door Machine
Call for Price
704-841-2001 ext: 379
Talice Luna
Overview
Make: Ruvo
Model: 9715W
Serial Number: 1398
Stock Number: DM-230084
Make: Ruvo
Model: 9715W
Serial Number: 1398
Stock Number: DM-230084
Description:

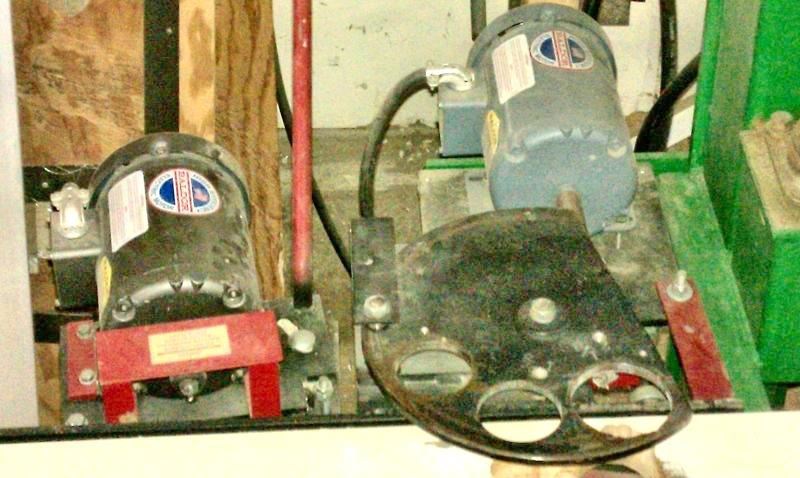

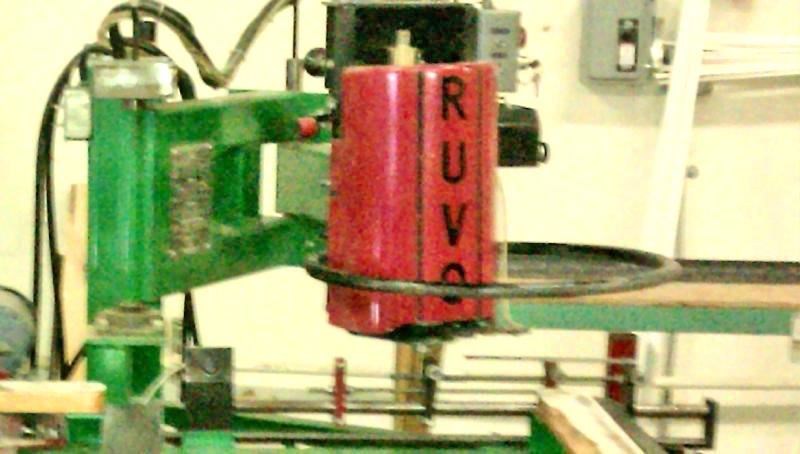

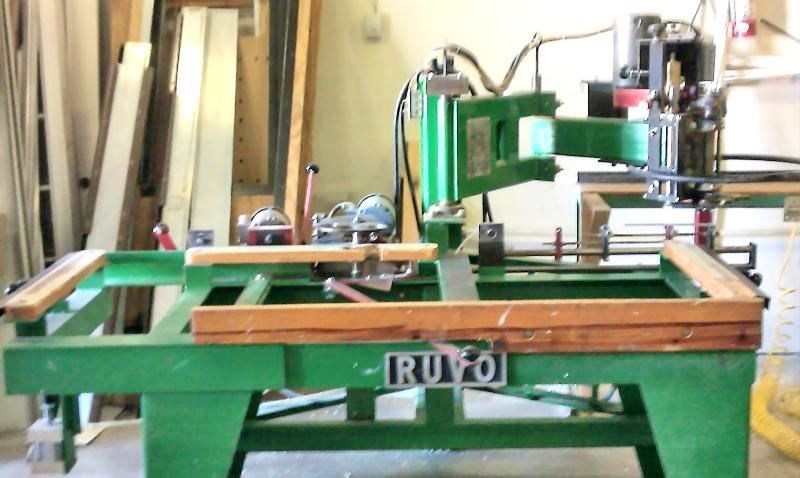

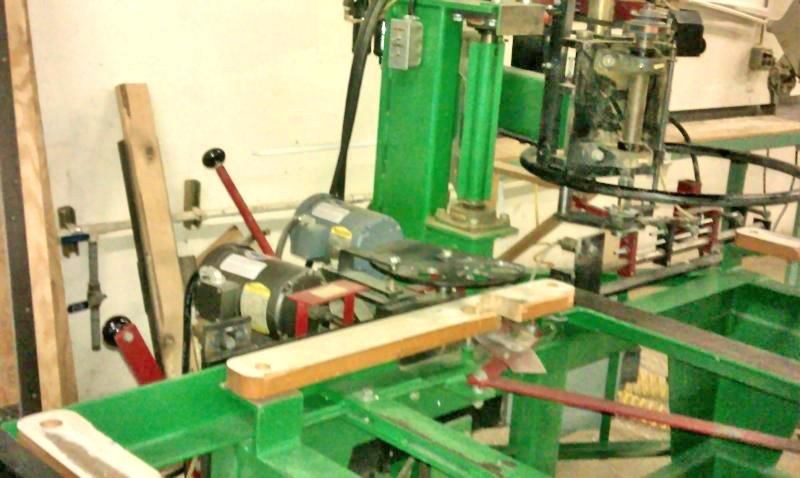

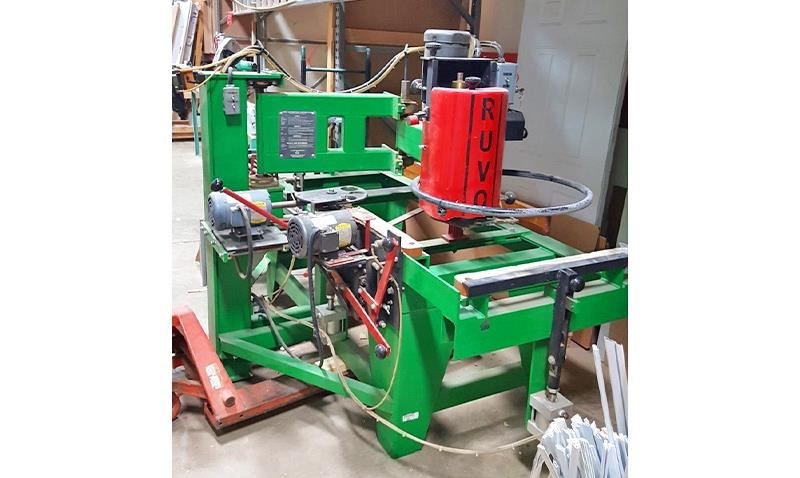

// This item is up for Auction at exfactoryauctions.com // https://bit.ly/40zDLa2 RUVO Door Lite Cutout machine Model 9715W Specifications: 7' Max. door height x 3' max. door width; max. lite sizes in 3' door 30" x 60", 24" x 64", or 20" x 66"; lock sizes 1-1/2", 1-5/8" and 2-1/8". Deadbolt sizes 1-1/2", 1-5/8" and 2-1/8"; corner radius 1/4" for both lite and faceplates; backset switch selectable for 2-3/8" or 2-3/4". "Broken Arm" design for lite cut outs in wooden doors. Machines wood or steel doors (to 16 ga.) with 3 HP cutter head, 2-speed operation with 2,400 or 4,700 RPM; (2) horizontal stations, features door length adj. and end clamps. Equipped with: Boring for lock, deadbolt, and latch, (2) Back fences, steel hole template locating pin, template clamp, end clamp cylinders, flip stop assembly on the back fence. The 9700 control box provides the operator with exceptional versatility allowing independent operations for special house orders Recommended cutter head ONSRUD 15-05 cutting bit with reverse flute (interchangeable with EKSTROM-CARLSON bit 088-1680). Ruvo's 9700 Door Lite Cutter series machines are manufactured to last under heavy use and are the finest available to steel and wood door suppliers. The heavy-duty, easily operated cantilever cutting arm is key to the model's speed and efficiency. After the lite template and door are pneumatically clamped, its arm follows the template edge as a 1/2" cutter bores through the door.
