Description:

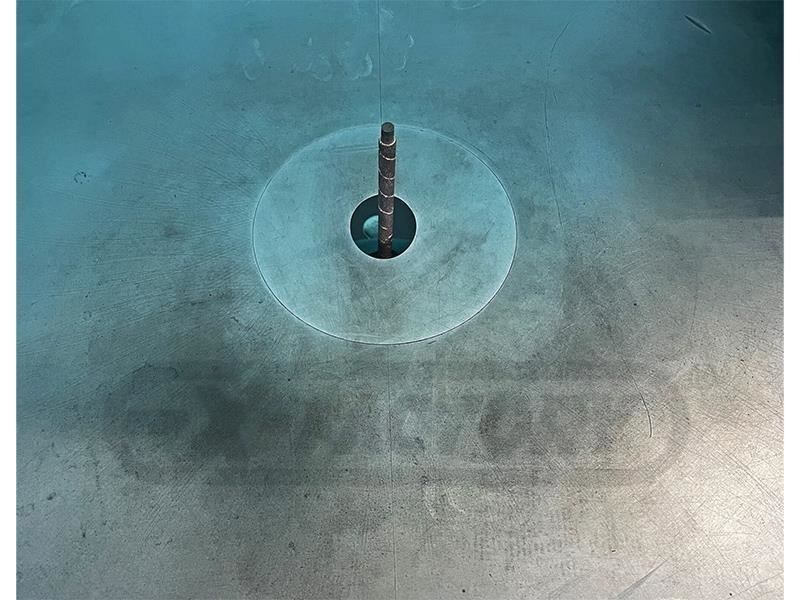

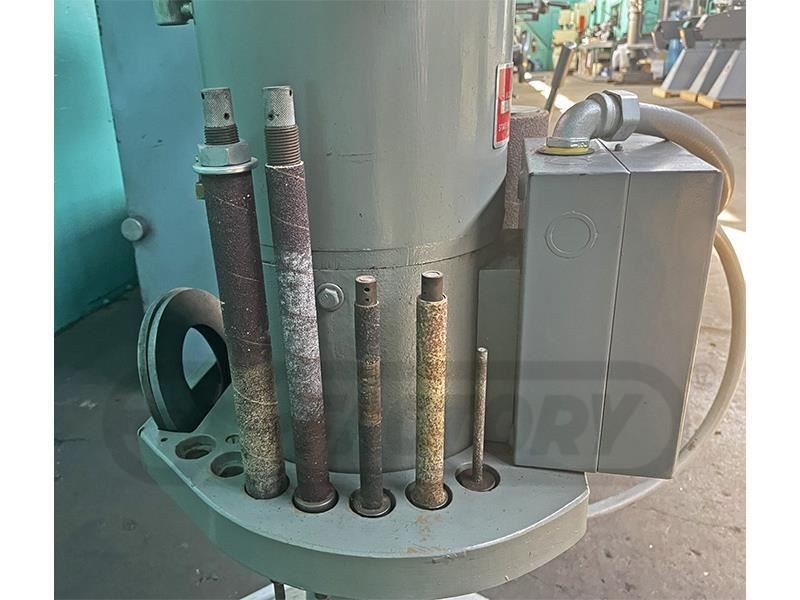

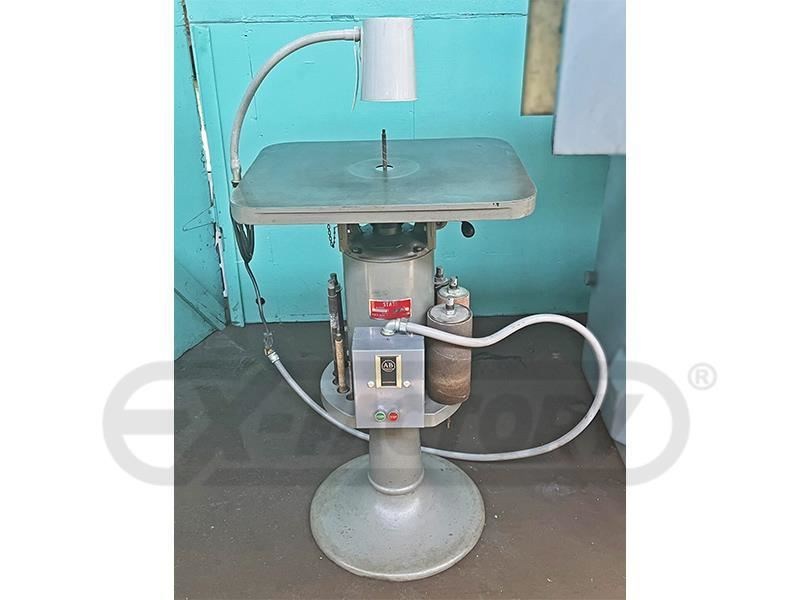

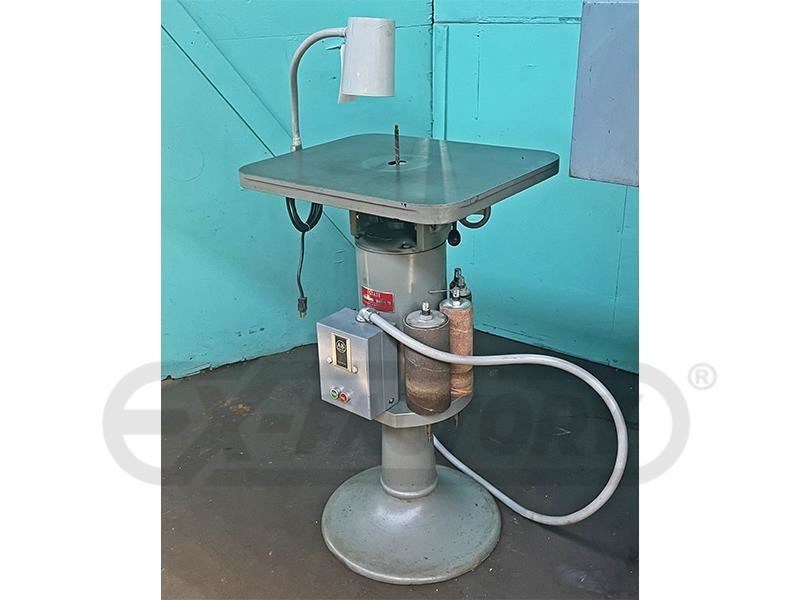

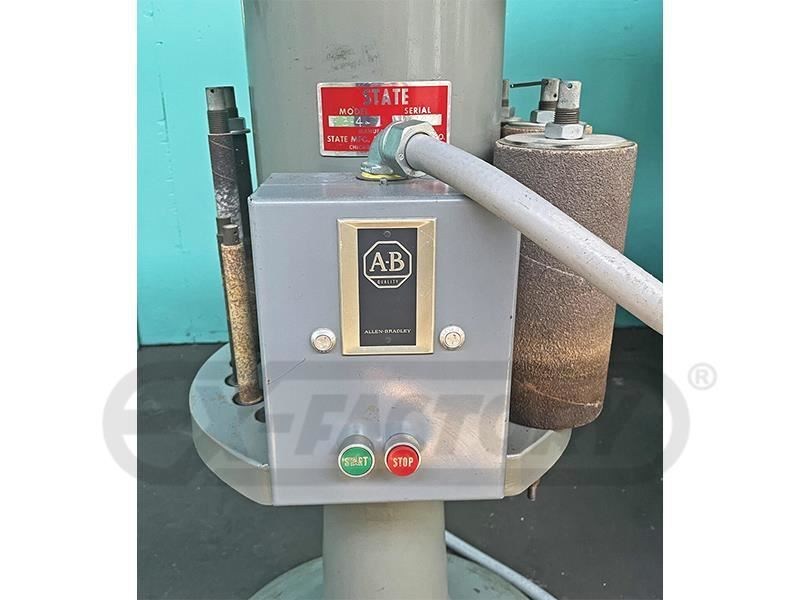

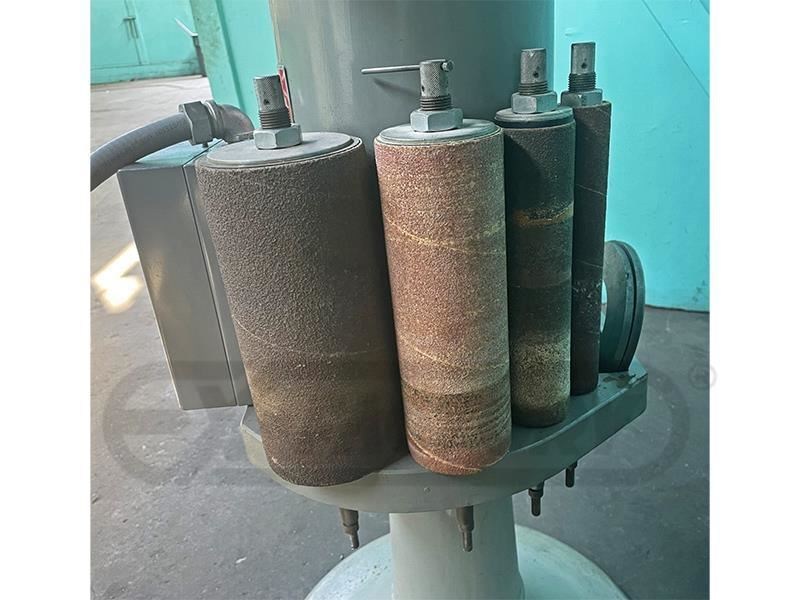

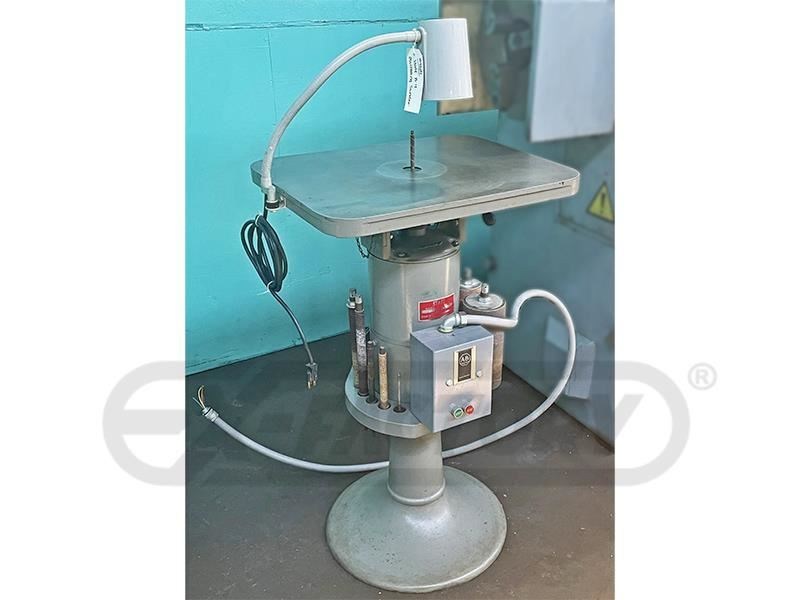

STATE - B-4, ...Oscillating Spindle SanderSpecificationsTilting table design with pedestal floor mount.Table size: 20" x 24".Table height: 40".Table tilt: 15° Up; 45° down.Spindle speed: 1,725 RPM.Vertical oscillation: 1-5/8".Oscillations/Min: 90.Lubrication: Oil bath splash. -- Heavy-Duty 1/2 HP motor; maintenance free; 1,725 RPM; TENV totally enclosed non-vented motor; rated for continuous operation; assuring long term dependable service. -- Safe operator controls; magnetic motor starter with overload protection for save installation.All controls mounted for operator convenience. -- Operator friendly handwheel tilting Engineered worm gear design allows table to be tilted 15° up & 45° down relative to spindle.Easy-to-read scale allows for accurate tilt determination before engaging locking device. A tapered pin locks the table during horizontal sanding operations. -- Safety features: Magnetic motor starter with overload protection; safety labels; well-placed ergonomic controls; 3-throat rings to minimize table-to-spindle clearance; POSITIV-LOK spindles provide safe & quick means of changing spindles. -- Recently cleaned, checked; electrical contacts cleaned; machine partially disassembled cleaned; reassembled & tightened; oil sight glass replaced.Weight: 280 Lbs.
