Description:

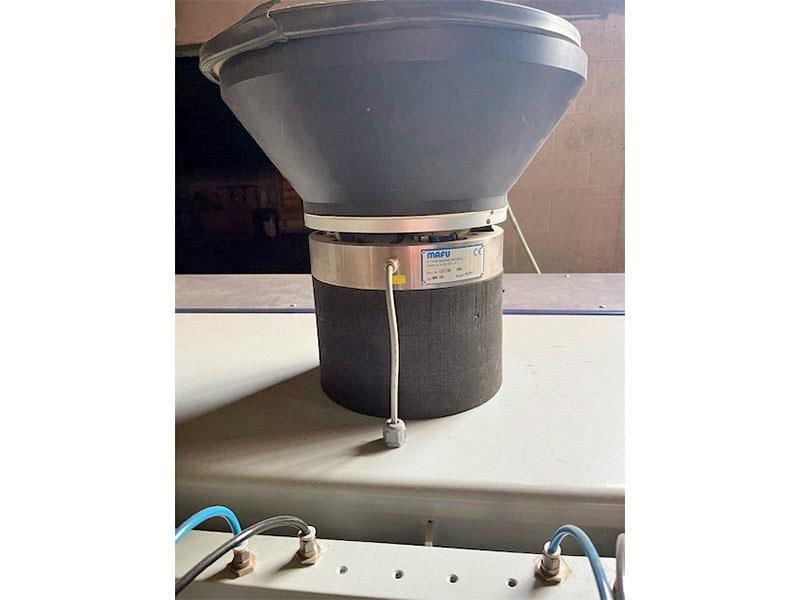

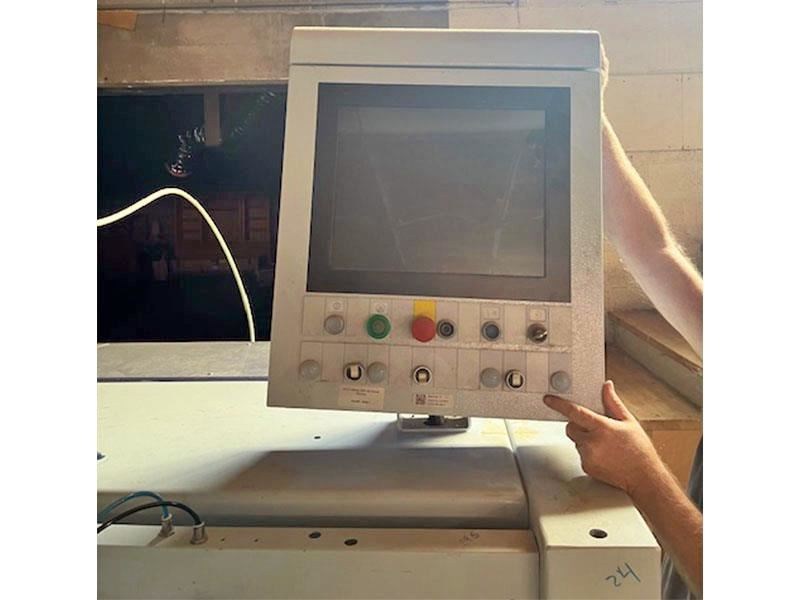

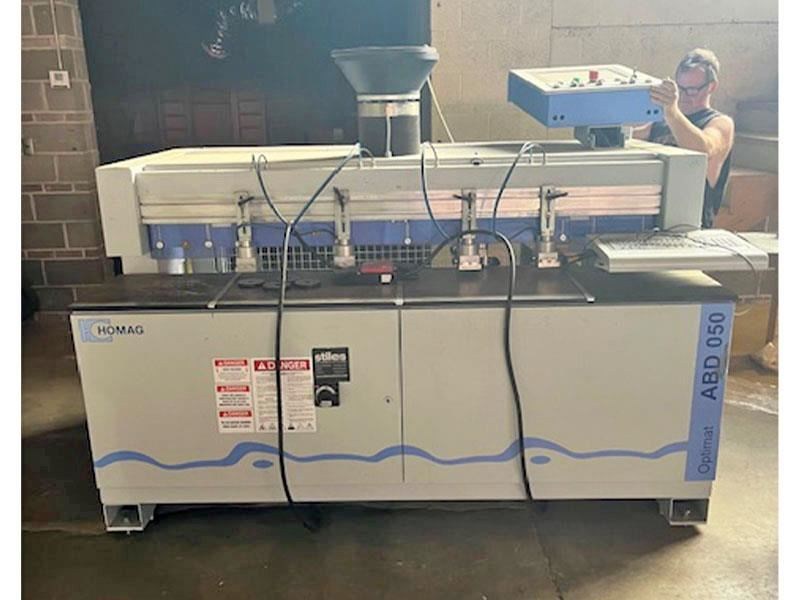

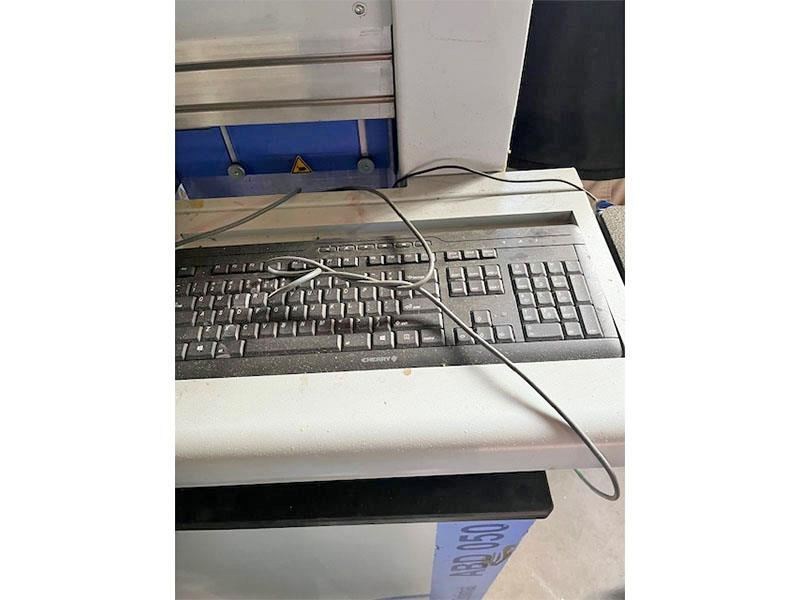

WEEKE - ABD 050: CNC Bore, Glue, & Dowel Inserter -- Specifications(1) Horizontal drilling aggregate with: (1) Individual spindle; Servo control of the "X" Axis; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working CapacityPart Size. Length: 20 mm - 1,250 mm (3/4" - 49"); width: 20 mm - 800 mm (3/4" - 31-1/2"); thickness: 10 mm - 60 mm (0.4" - 2.4").Machine is set up for: 8 mm Dia. x 30 or 35 mm long dowels -- Work Area(2) Separate working fields with: (4) Pneumatic top clamps processes up to (2) parts independently on the left-hand, right-hand, or center stops; workpieces can be loaded in (1) field while being machined in the other to allow fast production of varying parts. -- Operator InterfacePC Front-End with HOMAG Power Control PC 85T, WoodWOP 5.0 Operating System with: Graphic programming & error messaging.17" TFT Flat screen monitor; CD-RW drive; 1.44 MB floppy drive; standard keyboard & mouse.Software allows program design with: Automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- Complete with:Bar code control reader; all manuals, documentation & program disk provided with machine. -- Actual Model: WEEKE ABD 050.
