Woodlandia

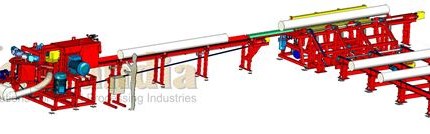

LogRipper-300 Sawmilling System with motorized in-feed, out-feed, VAC; ? Input Log Diameter Range: 125-380mm (5-15") The input opening 15x15" (380x380mm); ? Max thickness of fiber (side slab) the machine can remove: 4" (100mm) per side; ? Cants: min: 4x4" (100x100mm). Max: 10"/255mm wide, 12"/300mm height; ? Min board thickness: 1/2" (12mm) ? Lower slab thickness range: 1-3" (25-75mm); ? Number of saw-blades per spindle 0-12 (depending on desired profile & throughput); ? Feeding speed 0-50ft/min (0-15 m/min) depends on input logs diameter, species, condition of tooling, number of saw-cuts (saw-blades), input power limitations; ? Power of Motors: ? chipping/milling motors: 2 x 45KW (~2x60HP) with soft motor start; ? sawing motors: 2 x 37KW (2x50HP); ? in-feed motor: 5.5KW (7.5HP) ? out-feed rollers motor: 2 x 2.2 KW (2 x 3HP); ? Motorized Log Tuner with motorized drive working independently from the LogRipper's In-feed, allowing to improve the throughput on 10-50% by decreasing gaps between logs; ? 20 saw-blades ? 2 milling/chipping cutter heads with knives & carbide tips; ? set of bushings (spacers to install between the blades) for different sawing profiles; For more info, contact Woodlandia Corp.: +1.877.508.8777 www.Woodlandia.Ca

Woodlandia LogRipper-200 series are new generation ONE PASS ALL DONE SAWMILLs for long and short stems with diameter range from 3 to 11" (80-280mm) The sawmills of LogRipper-200 series canm mill boards and rectangular timbers up to max 6.25x8" (160x205mm). Min log length = 40" (1m) MAx log length = 21ft (6.5m ). LogRipper-200 series are ideal solution for those who wants to process tree tops and small diameter stems into valuable products such as: + pallet boards + dimensional raw-cut lumber + 4x4", 4x6", 6x6", 6x8" (100x100mm, 100x150mm, 150x150mm, 150x200mm) LogRipper-200 series revolutionary sawmill can work in 3 modes: + wood primary breakdown rip-saw + multi rip-saw + slab processor to recover lumber from slabs The machine is supplied with: + motorized in-feed & out-feed + integrated VAC system + 2 laser beams + 1 set of tooling For more info, contact Woodlandia Corp.: +1.877.508.8777 www.Woodlandia.Ca

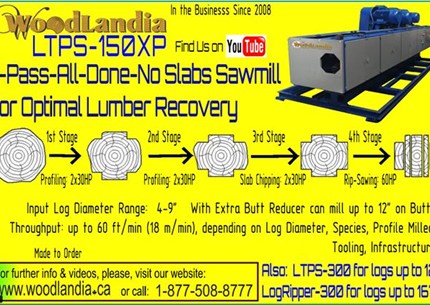

The Woodlandia LTPS-150XP Resaw that is a 1 pass and done no slab pulpwood sawmill.

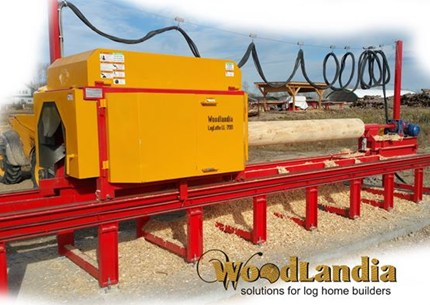

The heavy duty log lathe is intended for milling of massive raw, dry or seasoned, barked or debarked logs of different species: pine, spruce, Douglas fir, cedar, hemlock into round dowels of Swedish cope house logs The machine performs following operations: • Rough & fine round dowel milling • Swedish cope profile milling • Lateral kerfing cut Unique features of the LL-700 log lathing machine: Two cutter heads for faster log turning up to 2 times faster turning than on other lathes allowing to remove upto 8” (200mm) of wood fiber per pass max Round notch diameter: 14” (360mm) Embedded microcontroller module allows: capable to work in automatic & semi-automatic modes to minimize an operator involvement moving carriage speed optimization depending on the milling motors load The machine frame Heavy duty frame Modular frame construction with option to prolong the frame allows using of optional waste conveyor Box type moving carriage frame: allows better safety and waste control integrated 3-point log support (stay) device for better output geometry extra support device to eliminate inconsistency while milling the lateral groove Laser guiding pointers for better log placement

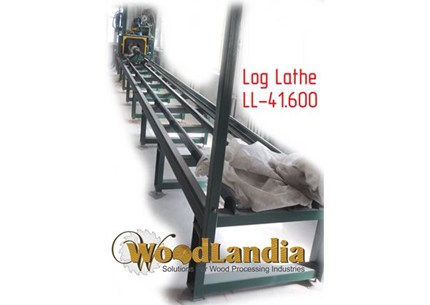

The log lathe is intended for milling of roundish or D-shape house logs of different diameters from raw, dry or seasoned, barked or debarked logs of different species: pine, spruce, Douglas fir, cedar, hemlock and other. The machine performs following operations: • Rough & fine round dowel milling • Swedish cope profile milling • D-log profile milling • Round notch milling • Lateral kerfing cut In comparission to LL-41 of previous design (2008) new machine has number of improvements. What are the improvements? Improved capabilities: max log butt diameter: 24” (600mm) max Round notch diameter: 14” (360mm) Embedded microcontroller module allows: capable to work in automatic & semi-automatic modes (like a robotic CNC machine) to minimize an operator involvement moving carriage speed optimization depending on the milling motors load Redesigned machine base frame: allows using of optional waste conveyor Redesigned moving carriage frame (box type): allows better safety and waste control integrated 3-point log support (stay) device for better output geometry extra support device to eliminate inconsistency while milling the lateral groove Redesigned tail and head stocks with reliable log lifting mechanism Redesigned control panel Laser guiding pointers for better log placement

The Woodlandia RLM-160 Log Machine is a mighty, robust, effective, and efficient solution for businesses that mill lumber or mould logs for log homes.
