VIRUTEX - EB 25: Hot Air EdgebanderFor preglued PVC, veneer and melamine laminate coil stock; 0.4 - 1.0 mm edge thickness; up to 65 mm panel thickness cap.; automatic coil & single edge strip feed.Equipped with: -- Thermostatically controlled hot air blower; 3,300 Watts for up to 500° C temperature; (2 - 3) Min heat up time. -- Guillotine type front & rear end trim (with fast speed, flying knife); top & bottom flush trims with single motor drive to cutterheads. -- Overhead belt type feeder; 15 FPM feed speed. -- Mounted on machine base with panel support table.Includes: Used tooling on the machine.

For pre-glued PVC, veneer, & melamine laminate coil stock; 0.4 - 1.2 mm edge thickness; up to 35 mm panel thickness cap., automatic coil feed. -- Equipped with: Electronically controlled temperature setting for hot air blower; 3,000 Watts for up to 650° F temperature; (1) Min heat up time. -- Guillotine type front & rear end trim (with fast speed, flying knife); top & bottom flush trims with single motor drive to cutterheads. -- Overhead belt type feeder; 16 FPM feed speed. -- Mounted on machine base with panel support table.

VITAP BLITZ CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:(1) CNC Controlled head assembly with rapid (side-to-side) traverse, assembly with boring, gluing & insertion unit, This Flexible machine is IDEAL for JIT or high production runs. -- Working Area:Useable working area "X" axis 36.2" (920 mm), "Y" axis 3.14" (80 mm), "Z" axis up to 1.57" (40 mm) material thickness with digital readouts -- BG & D Unit(1) 1 HP - 6,000 RPM horizontal drill motor; 0.47" (12 mm) Maximum drill bit dia. (1) Glue injector & (1) dowel Inserter with 1.57" (40 mm) Max. dowel lengthMachine is capable of processing dowel diameters from 6 mm dia x 25 mm long - 10 mm dia x 40 mm long dowels (currently setup for 8 mm dia dowels); -- Operator & Machine Control:CNC "Color Touch-Screen" Controller for function & simple part programming and program storage. -- Complete with: (1) 12" Dia. vibratory feed hopper, totally sealed electronically metered glue system with "Automatic" injector flushing; (1) 4.75 G (18 L) Glue tank & (1) 2.37 G (9 L) water tank;(4) Inclined vertical pneumatic hold-down clamps; Function selector control for boring only or doweling; Anti-slip table surface, Rack & pinion drive and centralized dust collection manifold.

VITAP - BLITZ: CNC Bore, Glue & Dowel Inserter -- Specifications(1) CNC Controlled head assembly with: Rapid (side-to-side) traverse; assembly with boring, gluing & insertion unit This "flexible" machine is IDEAL for JIT or high production runs. -- Working AreaUsable working area: "X" Axis 36.2" (920 mm); "Y" axis 3.14" (80 mm); "Z" axis up to 1.57" (40 mm) material thickness with digital readouts. -- BGD Unit(1) 1 HP - 6,000 RPM Horizontal drill motor; 0.47" (12 mm) max. drill bit dia.; (1) glue injector & (1) dowel Inserter with: 1.57" (40 mm) Max. dowel length.Machine capable of processing dowel diameters from: 6 mm Dia. x 25 mm long - 10 mm dia. x 40 mm long dowels (currently setup for 8 mm dia. dowels). -- Operator InterfaceCNC "Color Touchscreen" Controller for: Function & simple part programming and program storage. -- Complete with: (1) 12" Dia. vibratory feed hopper; totally sealed electronically metered glue system with: "Automatic" injector flushing; (1) 4-3/4 G (18 L) Glue Tank & (1) 2.37 G (9 L) water tank.(4) Inclined vertical pneumatic holddown clamps; function selector control for boring only or doweling; anti-slip table surface; rack & pinion drive; centralized dust collection manifold.

VITAP ALFA 21 CONSTRUCTION/LINE BORER21-Spindle boring head on 32 mm centers. -- Specifications: drills vertically from bottom up and head rotates to horizontal position for edge boring, head rotation is pneumatic with switch control. -- 2-3/4" Max. drilling depth, 2.5 HP - 2,800 RPM motor, pneumatic drill head advance with speed control; head height adjustment with mechanical digital readout; 34" x 20" table size, max. workpiece width 31-1/2". -- Equipped with: Left & right side fences for construction boring, (2) pneumatic holddown clamps, line boring fence w/flip stops, pneumatic foot pedal control, magnetic starter & overload protection, and (1) set of quick-change chucks.

VALPATO LBK-150-ST 1 Feed Through Profile SanderTECHNICAL FEATURES: An added small needle type drum sander can be fitted with drum sanding aggregates of 25, ­30, ­35,­40, ­45 ­50 mm diameters which can be used for tighter curves and smaller radius sanding requirements. Storage compartments (2 in total) are located on each machine extremities, these are easily accessible and can be used for sanding belts and various tooling storage. Sanding belt motor power: 3 Kw Abrasive head motor power: 1.5 Kw Oscillation motor power: 0.38 Kw Feed motor power: 0.75 Kw Motor power for electrical adjustment of sanding group: 0.19 Kw Machine voltage: 480/3/60 Full Load Amps @ 480V: 15A Compressed air: Not required Dust collection requirement one (1) only 6" (150mm) port: 950 CFM Sanding belt speed: 14 Mt/sec Variable speed of the belt: from 5 to 25 m/min Sanding belt dimensions: 150 x 2640 mm Height of working table: 930 mm Dimensions of front working table: 1980 x 250 mm Machine dimensions: 2500 x 900 x 1600 mm Net weight: 1000 KMAIN FEATURES: User friendly PLC touch screen control panel is accessible from 360° by the operator, the control panel is centrally located on the infeed end of the machine. Factory installed variable feed drive (VFD), enables machine to run from 5 M/Min to 25M/min (+/­ 80 ft/Min). The entire sanding plenum rise and fall is motorized, it can be adjusted vertically in height to utilise the full height/width of the sanding belt. An oiling unit ensure long life of sanding plenum rise and fall master cylinder.

VOORWOOD M 15A CNC Round End Tenoner & Mortiser for 45° Door --The "M15A" Miter Machine is designed to rapidly make mortise and tenon cuts at 0°, 45° Only, . Parts can be up to 1.5"; thick and up to 4"; wide, and of ANY length. --A primary application for this machine is for miter cabinet door frames. Parts can be quickly transferred from left to right. They are mortised on the left side of the machine and tenoned on the right. The machine can also mill the slots. --Specifications & Equipped with: -- The mortise station has (3) servo-controlled axes (X, Y, and Z) that are coordinated by the machine controller to achieve complex CNC motion. It is equipped with a collet-style router spindle for cutting. The tenon station uses the same X- and Y-servo-controlled axes as the mortise station and is configured for pneumatically actuated in-and-out movement along the Z-axis. The tenon station is equipped with a direct drive shaper spindle for cutting. -- Pneumatic clamping assemblies with non-marring urethane pads are mounted to the hold-down assembly to secure the parts during cutting and these can be adjusted to various locations over the cutting surface. -- M15 Miter Machine operator interface consists of a colored touch screen. For simplicity, the entire calibration, setup, and monitoring of the machine are accomplished using only four touchscreen displays. The program designs the depth and location of both the mortise and the tenon. When the design is complete, it is saved in a recipe format. Once this recipe is opened, the operation is as simple and boils down to feeding the substrate into the machine. -- The full-color touchscreen panel is located on the front of the machine to provide easy access for setting up or operating the machine. Clamping and shaping operations are controlled by operating lighted pushbutton switches.

VOORWOOD - A212: Feed Through Single Sided Shape & Sand. Feeds from: Right to LeftEquipped with (4) Workstations. (2) 5 HP - 6,000 RPM Shaping stations with: 1-1/4" dia. x 2-3/8" long spindles; max. cutterhead dia.: 6"; (2) 1 HP - 1,500 RPM sanding stations with: 1-1/4" dia. x 4" long spindles. -- All spindles are: 5-3/4" Horizontally & 2-1/2" vertically; preset 20° angle on all units; 1 HP feed motor with: 0 - 35 FPM Variable feed speed. -- Capacity: 5" x 5" Min. part size; 1/8" to 1-1/2" max. thickness; 1-3/4" max. profile face.Also Included. Equipment is in good working order & is still under power as noted in the video. A variety of cutters are included with the sale of machine. The return Conveyor is also included. Cutterheads & replacement knives are as seen in the photos. Also included: TURBO SAND Heads and sanding strips, as well as the owner's manual. The Return Conveyor has a single phase - 110 V roller at the top of the transfer and a 230 V - 3PH nonmarking belt. Also included: Formica top stand to catch doors returned. Machine "A212" :..........40" W x 102" L x 69" H.Conveyor: ....................44" W x 87" L x 25-1/2" H.Transfer Table: .............37" W x 41" L x 36-1/2" H.Catch Stand: ................33-1/2" W x 27" L x 24-1/4" H.Assembled Footprint: ...87" W x 144" L.

2017 - VOORWOOD - A26: Dual Spindle Coping Shaper (Unlimited Length)The "A26" Cope Shaper is designed to: Shape single or multiple parts in 1-pass. Each shaping station equipped with: Precision balanced drive motor & spindle. Counterrotating spindles: Cut against the direction of feed.This particular "A26" is outfitted with: Quick Release Sleeves for quick-change of 1-1/4″ spindles. Parts can be quickly transferred from left or right shapers for end-to-end cope cuts (for tenon joint).Both edge guide assemblies are: Removable, which allows cope cuts on parts longer than 36";.Automatic power feed has: 2-Handed cycle control for Operator safety."A26" Cope Shaper includes: Backer block to prevent blowout.Pneumatic holddown clamps with non-marring urethane pads: Mounted at each end of the transport table to secure the workpieces as close to the cutting head as possible. Bi-directional clamping ensures consistently square cuts.The Cope Shaper produces: Parts similar to most double-side Cope Shapers.This machine has very low hours, and includes Extra Tooling.Specifications & FeaturesSpindle diameter: 1-1/4″.Spindle length: 2-1/2″.Min. Shaper head dia.: 4″.Max. Shaper head dia.: 6″.Vertical head travel: 4-1/4″.(2) 5 HP Motors @ 6,100 RPM.Capable of producing: (11) Parts per minute.Capable of processing: Parts of any length.Actual Machine is a VOORWOOD Model A26-F

This item is in an Auction on exfactoryauctions.com. Go here to view item: http://exf.ac/i6h WADKIN JET-3 Single End Tenoner/End Jointer Specifications: For Windows, doors, finger jointing, & stair strings. Stock type: PAR & Moulded. Max. tenon length 120 mm (4.72"). Max. stock width 150 mm (5.91"), Max. stock length: Unlimited, Max. stock thickness: 150 mm (5.91") for Rear tables, 280 mm (11.02") for Front table, & 450 mm (17.72") for Multiple tables. Vertical table adjustment 230 mm (9.06"), Horizontal table adjustment 25 mm (0.98"). Cutterhead dia. 250 - 322 mm (9.84" - 12.68"). Cutterhead speed 3,600 RPM. Max. cutting speed 4 MPM (13 FPM), Return speed 8 MPM (26 FPM). Equipped with: (3) 7” x 27-1/2” Multi-level tables, Each with Adjustable height, Fence, & (2) with 3” Dia. Pneumatic hold-downs, Allowing machining of (3) separate pairs of parts in (1) pass or All joints of window frame/sash in (2) passes. (1) Trim/hog saw & (1) 50 mm (1.97") Dia. x 240 mm (9.45") L Stackable spindle with 7.5 kW (10 HP) - 3,420 RPM Motor, with Automatic brake.

WADKIN "GA-220" 5-Head Feed Through MoulderSpecifications: -- 5-Head, with 8-5/8" x 4-5/8" cutting capacity (220 mm x 120 mm) -- 40 mm Spindle diameter with cutterhead speed of 6,000 RPM. -- Head sequence: Bottom 10 HP, Right 7-1/2 HP, Left 7-1/2 HP, Top 15 HP, Bottom 10 HP motor. -- 2 HP variable feed speed 19 to 72 FPM, chain drive with powered in feed and out feed bed rollers. -- Currently wired for 460 Volt, 3-Phase power.

//This machine is in an Auction on exfactoryauctions.com// //Link to machine: http://exf.ac/i6c WALKER 14" Bench-Top Vertical Band Saw Specifications: Table size 17” LR x 18" FB x 20” H. Maximum height under guard 8". Equipped with: 3/4 HP - 1,725 Motor. 16” Rubber-covered spoked wheel.

WASTEQUIP ACCURATE 245-HD CompactorSpecifications: (2) Yard stationary. -- 10 HP motor. -- 6" Cylinder. -- Right feed dog house. -- 60" x 40" Feed opening. Seller states the power unit was refurbished, cylinder was repacked, sanded and painted. Loaded on your truck.

WASTEQUIP ACCURATE D-600 Vertical CompactorSpecifications: -- Feed opening: 27" x 48" -- Ram cylinder bore/rod: 4" / 2" -- Ram force: 28,300 Lbs -- Ram penetration: 18" -- Ram stroke: 16" -- Cycle time: 20 sec -- Main motor: 3 HP -- Front feed / Front pick-upFeatures: -- Hydraulic power unit -- Full indicator light -- Easy operation control switchesDesigned for limited space installation.

WEB MECAHNICAL JET 10M Jet Air Oven Supply Side complete with the following: -- 400,000 BTUH rating, 3,200 CFM forward curved blower, 5 HP motor 575 V /3 Ph /60 Cy. -- Inlet filter section HEPA 99% DOP rated, Magnehelic gauge across the filter section. -- Thermometer to show outlet temperature, Thermostat to set and control temperature design from 60° -70° C, -- Jets designed to control flow across the belts. Exhaust Side complete with the following: -- Vane axial fan set to exhaust 600 CFM,1/2 HP motor. -- Direct drive fan with motor out of air stream, external grease fittings for lubrication.Heating Module: -- Air makeup sized for 3,200 CFM, 2 HP motor, rated for 400,000 BTUH. --Fan to exhaust through 2"; pleated filter and 12"; HEPA filter, Down discharge,3 HP motor, 3,200 CFM @ 2.0"; E.S.P. -- Engineered for 90° F temperature rise, 0.4 MBTU/hr hydronic coil, features FUJI temperature selector. Conveyor: -- Robust 10-gage steel frame, Novo 40 grey belt designed for up to 90° C and with Auto tracking mechanism. -- Large size 6"; driver and idler pulleys, Support pulleys 3"; as required. -- Heavy duty NORD gear box and a 2 HP direct coupled motor. OPTIONAL (Not included in Price):IR Adder (Lamps): -- Three (3) MW IR lamps in the center of the oven, Three (3) MW IR lamps at the end of the oven, -- Heated length of lamps 54";, dual gold plated element, 3,200 watts per bulb. -- Lamps are designed to sit between the jets on the oven with lamps 8"; (200 mm) above belt and 8"; apart. - Please add ...$ 7,700Control Panel for the above (600 V - Electric) complete with: -- Line interlock, E-stop, fuses, disconnect switch, DC power supply. -- Phase angle controller to control two (2) banks of three (3) lamps. CSA approved panel. - Please add ...$ 12,100BOILER: -- One (1) RBI dominator boiler "DB 600" to supply up to 600,000 BTUH. - Please add ...$ 18,900

WEBER KSF2-1100 Wide Belt Sander (2) Heads43" Width cap.: Combination Head , Combination HeadHead Configuration:1st Head: Combination Head 15 kW.2nd Head: Combination Head 15 kW.3rd Station: Cleaning .55 KWSpecifications: -- 43" Width cap. -- Operating width: 1100 mm. -- Max. workpiece thickness: 140 mm -- Min 4 mm. -- Height adjustment: 0.75 kW; Frequency Controlled. -- Feed motor: 4 kW. -- Feed Speed 22M/Sec. -- Max. height 55 mm Equipped with & Features: -- -- Workpiece blowing off: 2.2 kW Vacuum. -- Extraction duct dia.: 1 x 150 mm and 5 x 200 mm. --Vacuum air quantity: 7,500 CFM. -- Constant Passline. -- Vacuum Feed Belt .4 KW

WEEKE VENTURE 08M CNC MACHINING CENTER (W/ATC, "C" AXIS); -- Specifications:Working Capacity "X" Axis is 127.9" (3,250 mm), "Y" axis is 49.2" (1,250 mm) for boring & 52.2" (1,325 mm) for routing, "Z" axis stroke is 7.2" (185 mm), max. material thickness 4.9" (125 mm). -- Positioning Speed: "X" & "Y" Axis 263 FPM (80 MPM, "Z" axis 66 FPM (20 MPM); The machine head travels on THK linear motion guides on all axes. -- Worktable:(6) Movable K-Table support rails w/side mounted raise-and-lower panel feeding rails, (2) vacuum pods per rail; (6) pneumatic backstops, (2) pneumatic side stops create (2) working zones.Setup assistance through the PC control display for precise rail & vacuum pod positioning. -- Boring Unit:3 HP (2.2 kW) Motor, variable speed from 1,500 - 7,500 RPM; (12) vertical "QUICK CHANGE" drill spindles, (8) spindles in "X" axis & (4) in "Y" axis.(6) Horizontal spindles with (2 + 2) in "X" axis & (1 + 1) in "Y" axis; -- Machining: (1) 12 HP (9 kW) Liquid cooled electro-spindle router with HSK F63 adaptor, w/programmable 1,250 - 24,000 RPM, constant torque from 9,000 - 24,000 RPM, RH or LH rotation; powered by a 11 KVA frequency inverter.(1) NC Controlled "C" axis for 360° horizontal processing; (18) Total ATC positions with (1) 8-position ATC tool changer plate mounted on the head for "on the fly" ATC & (1) 10-position ATC rack mounted at the RH side of the machine base. -- Operator & Machine control: WEEKE IPC "PC 85T Power Control" + Windows "XP" + WoodWOP 5.0 operating system; "Beckoff" PLC for (3) axes with linear, circular & helical interpolation.15" TFT Monitor with 2D / 3D "REAL TIME" graphics, industrial keyboard for data entry, CD R/W & 1.44 MB floppy drives, modem, USB slot, RS-232 serial interface for possible simple PC connection; all mounted in separate free-standing control panel. -- Complete with:(1) 100 m³/Hr Vacuum Pump, 2-zone safety mats (will stop machine if operator enters work area), safety fences, scrap conveyor, hand held pendant controller. -- Actual Model is WEEKE VENTURE 08 M BHC

WEEKE VANTECH 480 (BHP - 007/410): CNC Flat Table MachineWorkpiece Capacity -- Max. panel length: 3,050 mm (120"). -- Max. panel width: 1,250 mm (49"). -- Workpiece thickness: 8 – 60 mm. -- Max. workpiece weight: 50 kG (110 Lb).Drilling Unit -- Vertical drill spindles: 9. -- Horizontal drill spindles: X Direction: 2 Y Direction: 2Spindle speed: 6,000 RPMDrill spindle power: 1.5 kWRouting / Milling -- Routing spindle power: 3.5 – 4.0 kW. -- Routing spindle speed: Up to 18,000 RPM. -- Tool holder: ISO 30. -- Tool change: Manual. -- Tool rack with: (6) Tool holders.Axes & Feed -- CNC Axes: X, Y, Z. -- Positioning Accuracy: Approx. ±0.1 mm. -- Repeatability: Approx. ±0.05 mm.Clamping & Handling -- Material positioning: Pneumatic clamps. -- Reference System: Automatic panel alignment. -- Panel Support: Phenolic / aluminum Support Rails. -- (2) Vacuum Pump: BECKER - VT 300: Vacuum Pump.Type: Dry running (oilless) Rotary Vane Vacuum Pump.Rated airflow: 300 cbm/Hr.Rated airflow: 174 SCFM.Max. vacuum: 24–25 inHg.Ultimate vacuum: −850 mbar.Motor power: 6.4 – 7.5 kW (8-1/2 – 10 HP).Motor speed: 1,720 RPM (60 Hz).Voltage: 460 V.Control -- CNC Control: HOMAG / WEEKE controller. -- Programming: WoodWOP compatible. -- Interface: Industrial control panel with display.Weight: 3,100 LbsDimensions: 80'' x 150'' x 95''.

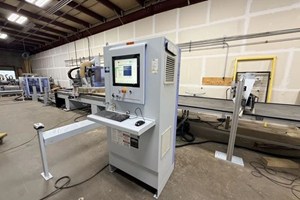

WEEKE VANTECH 512 / OPTIMAT BHP 008 - FLAT TABLE MACHINE (W/ATC/BORING + LOADING/UNLOADING): -- Specifications:5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table. -- Working Capacity: "X" Axis 156.7" (3,980 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm); max. material thickness is 3.9" (99 mm). -- Positioning Speed:"X" & "Y" Axes 315 FPM (96 MPM); "Z" axis is 82 FPM (25 MPM).The head travels via AC brushless drives & THK linear motion guides on all axes. -- WorktableUser-Friendly "S/C Tech MATRIX" grooved phenolic vacuum table for easy vacuum pod placement.(6) Pop-up pneumatic locator/positioning on the front side & (1) on the back side in "X" axis & (2) pop-up pneumatic locator/positioning pins on RHS facing side in "Y" axis.(4) Vacuum Table work zones can be used independently or together for full table area Foot pedal vacuum zone controls. -- Boring Unit1.5 kW (2 HP) Motor, with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM; -- Machining(1) 12 HP (9 kW) High speed constant duty, variable speed electro-spindle router with "HSK F 63" adaptor.Router is programmable from 1,250 - 24,000 RPM, RH or LH rotation.(1) 15-Position ATC plate located at the back side of the machine. -- Operator InterfacePC Front-End with: WEEKE "PC 85T" + "Windows XP" + WoodWOP Operating System.17" TFT Color graphic monitor; keyboard for data entry; PC 85T hand control pendant; central USB hub; Ethernet interface for LAN connection to office PC; RS-232 serial interface.BECKHOFF Programmable logic control for (3/4) axes, linear, circular & helical interpolation; the controller is contained in a separate freestanding, dust-free control cabinet that can be placed at either the LH or RH side of the machine. -- Complete with: (4) 100 m³/Hr Vacuum Pumps; safety light curtain (the machine will stop when the Operator enters the work area); safety fencing; separate control cabinet. - Manuals & Documents -- Options Include: NC Controlled Touch-Off Tool Probe, length measuring device. (1) NC controlled scissor lift/vacuum in-feed device. (1) NC controlled, powered flat belt outfeed table with Automatic Dust Control Vacuum Sweep Arm Rake system. Laser fence surround for safety -- Actual Model is: WEEKE VANTECH 512 / OPTIMAT BHP 008.

--MAKE OFFER!---VERY GOOD CONDITION-- WEEKE BHP 100/VANTAGE 480 FLAT TABLE MACHINE, with ATC, Boring, Infeed Roller & Outfeed & 4,771 Hrs. (As of 10/31/23) Specifications: 4' x 8' Bridge style gantry machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table. Working Area: 'X" axis 99.21" (2,520 mm), "Y" axis 49.21" (1,250 mm), Max. material thickness of 3.94" (100 mm). Travels: “X” axis 146.06” (3,710 mm), “Y” axis 81.30” (2,065 mm), “Z” axis 13.70” (348 mm) Routing, 8.46” (215 mm) Boring. Positioning Speed: "X" & "Y" axis Vector speed is 314 FPM (96 MPM), "Z" axis 65 FPM (20 MPM); The head travels via AC brushless drives & THK linear motion guides on all axes. Worktable: User-Friendly "S/C Tech "MATRIX" grooved phenolic vacuum table for easy vacuum pod placement. (2) Fixed LH side & (2) Fixed RH side pneumatic pop-up positioning stops. Boring Unit: (1) 3 HP (2.3 kW) Motor, variable speed for 1,500 - 7,500 RPM; (21) Independent vertical spindles with (8) in "X" axis, (9) in "Y" axis (1st Row), & (4) in "Y" axis (2nd Row). Machining: (1) 12 HP (9 kW) Air Cooled High speed constant duty Router with HSK F63 adaptor, 1,250 - 24,000 RPM, constant torque achieved at 9,000 RPM, RH or LH rotation (1) 14-Position tool changer Carousel located at the back side of the spindle carriage. Machine & Operator Control: PC Front-End with WEEKE "Power Control + Windows + WoodWOP operating system. 17" TFT Color graphic monitor, Hand-held control pendant, Foot pedal control; "BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; The controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine. Complete with: 488” W x 96” L Infeed electric/hydraulic Scissor Lift platform, with 3” x 3” Support beams on 7” Centers; 4’ L Roller track intermediate table; vacuum arm with (2) 10” dia. vacuum pads; rake off-feed System; 49” W x 10’ L x 36” H Outfeed motorized belt conveyor; BUSCH "MM 1322 A VM3" 10 HP (7.6 kW) 300 mbar Vacuum Pump; 6’ H Safety fencing. Actual model is WEEKE BHP 100/VANTAGE 480 Machine Dimensions: 292” x 202” x 96” H. Machine with Scissor Lift Dimensions: 389” x 202” x 96” H. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.
