CAM-WOOD FSM-460AX Finger Joint ShaperSingle Finger joint Shaper with 8" min. and unlimited max. block length; 4" max. block thickness, maximum timber height to feed into assembly press is 3"; 18" max. block width (horizontal joint only); 18" table working width.Equipped with: -- Shaper spindle powered by 10 HP belt drive motor with 50 mm dia. spindle turning at 5,500 RPM; 160 mm (6.3") max. dia. cutter. -- Trim-saw powered by 5 HP direct drive motor at 2,850 RPM and a 1" dia. saw spindle; swings 180 mm (7") max. blade dia. -- Table cycles 2 to 4 per Min via the hydraulic system with a 2 HP hydraulic power unit. Includes 5" dia. dust outlet.Features: -- Manual Fingerjointer performs end trimming and shaping functions on right and left end of blocks. -- Air-operated clamp holding blocks firmly in place. After the workpiece is clamped, the table feeds past the saw and shaper spindles to perform trimming and finger-joint operations; trim saw cuts blocks exactly 90° ends. -- Shaper spindle is precision-constructed for cutting fingers accurately; swings up to 6" dia. tooling. -- Spindle height adjustment is displayed on the dial readout for easy adjustment. -- Table travels on a precision linear guide for stability; table traverse driven by hydraulic power system smooth and accurate block feeding. -- Variable feed speed permits proper feed for hard or soft wood. -- Cast iron frame and table for durability.

CAM-WOOD MODEL FSG-150X Manual FINGER JOINT GLUE APPLICATOR -- Manual operation of sliding table ; Specification: -- Glue roller type -- Working width 24" maximum -- Working thickness 6" -- Glue roller drive 1/2 HP with reducer -- Standard clus height 4"

CAM-WOOD TYPE F1, MODEL FAH 8" X 30’ HORIZONTAL FULLY AUTOMATIC FINGER JOINT SYSTEM - SINGLE CHAIN TYPEMECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 150 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305mm) x 80 Tooth x 5mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180mm) x 50 Tooth x 5mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Speed: 230 FPM -- Feed Motor: (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 30 to 300 FPM (H) MECHANICAL SPECIFICATIONS: 30’ (9.3M) ASSEMBLY PRESS: --Working dimension: 1"; to 8"; wide x 0.60"; to 2 3/8"; high x up to 30’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 30 to 300 FPM --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high speed oil tank) --Cycle Speed: 1 to 8 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 20"; --A verage block cross section is 2"; x 4"; -- Chain speed at the Shaper sections is 150 lugs/Min -- Press capacity is (8) 30’ loads per minute (maximum) CAPACITY OF THE SHAPERS WHEN FINGER JOINTING 2"; X 4"; x 20" BLOCKS -- (120) Blocks per minute -- x 20"; Average infeed length -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 76,800 lineal feet per shift CAPACITY OF THE PRESS ASSEMBLING 30’ LENGTHS: -- (8) Assembled lengths per minute -- x 20’ Per minute -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 66,440 lineal feet per shift -- NOTE: If using the cutoff saw for multi-section pressin

CAM-WOOD TYPE F1, MODEL FAH 8" X 40’ AUTOMATIC HORIZONTAL FINGER JOINT SYSTEM - SINGLE CHAIN TYPE (including Feeding System from Optimizing Saw)Technical Specifications: -- Working thickness: 17 mm to 60 mm (.66" to 2 3/8") -- Working width: 25 mm to 205 mm ( 1" to 8") -- Maximum finish length: 12 Meters ( 40') -- Glue type: PVAC -- Timber moisture: 8% to 12% -- Infeed quality must be S4S with tolerance +/- 02 mm, wood need 90° right angle and straight MECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 180 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Working size: Length 150 mm to 900 mm ( 6" to 35-7/16"); Width 25 to 205 mm (1" to 8") -- Speed: 70 m/Min ( 230 FPM) -- Infeed inverter : (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: -- Working size: Thickness 17 mm to 60 mm (5/8" to 2,3/8"); Width 25 mm to 205 mm (1" to 8") --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 10 to 90 m/Min (32 to 292 FPM) (H) MECHANICAL SPECIFICATIONS: 40’ (12 M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 8"; wide x 0.60"; to 2-3/8"; high x up to 40’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 10 m to 70 m/Min (32 to 227 FPM) --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high-speed oil tank) --Cycle Speed: 1 to 6 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 500 mm (20";) --Average block cross-

CAM-WOOD TYPE F1, MODEL FAH 8" X 20’ AUTOMATIC HORIZONTAL FINGER JOINT SYSTEM - SINGLE CHAIN TYPE (including Feeding System from Optimizing saw)Technical Specifications: -- Working thickness: 17 mm to 60 mm (0.66" to 2-3/8") -- Working width: 25 mm to 205 mm ( 1" to 8") -- Maximum finish length: 6.2 Meters ( 20') -- Glue type: PVAC -- Timber moisture: 8% to 12% -- Infeed quality must be S4S with tolerance +/- 02 mm, wood need 90° right angle and straight MECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 180 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Working size: Length 150 mm to 900 mm ( 6" to 35-7/16"); Width 25 to 205 mm (1" to 8") -- Speed: 70 m/Min ( 230 FPM) -- Infeed inverter : (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: -- Working size: Thickness 17 mm to 60 mm (5/8" to 2,3/8"); Width 25 mm to 205 mm (1" to 8") --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 10 to 90 m/Min (32 to 292 FPM) (H) MECHANICAL SPECIFICATIONS: 20’ (6.2 M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 8"; wide x 0.60"; to 2-3/8"; high x up to 20’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 10 m to 70 m/Min (32 to 227 FPM) --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high-speed oil tank) --Cycle Speed: 1 to 6 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 500 mm (20";) --Average block cros

CAM-WOOD Continuous in-line Long Board Vertical Finger Joint System, Model "UCT-305"Up to 12"; Wide x 4-1/4" Thick x Unlimited Assembled Length System Specifications: -- Incoming board lengths from 39"; to 236" (1,000 mm - 6,0000 mm). -- Board widths from 2"; to 12"; (50 mm - 305 mm). -- Board thickness from 1" to 4.3"; (25 mm - 110 MM). -- Board out-feed length 40’. (could be increase with outfeed conveyor) -- Glue type to be used: PVAC. (Glue pump and applicator not included) -- Board species: SOFTWOOD and HARDWOOD. -- Board moisture content: 8% to 12%. -- Infeed board qualities: Lumber runs best on Finger Jointers when surfaced on (4) sides (S4S) (Tolerance +/- .2 mm (.008"). System prefers straight boards with 90-degree corners. UCT-305 Mechanical Specifications: -- Top infeed feed rolls powered with (2) 2HP motors. -- Bottom infeed feed rolls powered with (2) 2 HP motors. -- In-feed Inverter with (2) 7.5 HP motors. -- Auxiliary conveyor wheel with 2.6 HP servo motor. -- Top Shaper Spindle powered with a 30 HP motor. -- Bottom Shaper Spindle powered with a 30 HP motor. -- Maximum Cutterhead length, 12“(305 mm). -- Maximum Cutterhead diameter, 6.3“(160 mm). -- Typical cutter pitch, 4.0 mm. Length, 10 mm - 12 mm (Other sizes available). -- Shaper spindle moving power by 2.6 HP Servo Motor. -- In-feed speed from 32 to 295 FPM (10 ~90 m/Min). -- Outfeed cut-off saw motor, 10 HP. -- Cut-off sawblade, 24“ dia x 120 teeth (included). -- Cut-off sawblade speed, 2,850 RPM. -- Hydraulic pump power, 30 HP. -- Outfeed conveyor, (2) 2 HP drives. -- Top outfeed feed rolls powered with (2) 2 HP motors. -- Lower outfeed feed rolls powered with (2) 2HP motors. -- Out-feed Inverter with (2) 7.5 HP motors. -- Glue injection Glue Applicator for Standard PVAC glue. (glue pump not included) -- Hydraulic oil tank with 150-gal capacity (oil not included)Outfeed options: -- Outfeed roller conveyor 20'' X 8' long Additional: $ 4,890 per sectionNot included with the machine: -- Cutter heads for finger jointer (we can provide quote) -- Gluing system with pump and nozzle Optional Cross Infeed Conveyor System:Optional Automatic 20 ft Cross InfeedPower Conveyor System Working size L = 1000 MM ~ 6000 MM, W= 50 ~ 305 MM, T=25 ~ 110 MM ( Lenght 39" - 236" X Width 2" -12", Thickness: 1" to 43.3")Infeed roller Conveyor 3 HP1Cross feeding system 3 HP1Feeding speed of 15 M/min (48'/min.)Storage area width 2500 mmAdditional cost: $61,990Glue pump Option: -- Graco 1K PUR Glue SystemAdditional cost: $ 48,990NOTE: Training, installation & tooling not included TO BE PROVIDED LOCALLY -- Electric power supply to Motor Control Center -- Constant voltage (voltage deviations max.: 5%) -- Temperature range for computer control should not exceed 95°F. -- 65% Maximum relative air humidity for computer control system --Dust exhaust system: (V=30M/S at a low pressure of 12M BAR) --Compressed air connection to machinery: 7~8 KG/cm² – 8 BAR --Electrical cabli

CAM-WOOD IAT 620-100HX INVERTER DRIVEN FINGER JOINT SYSTEM 3" X 6" X 16.5 feet long medium capacity Finger Jointing SystemIncoming Block Specifications: -- Incoming block lengths from 6"; to 31.5"; -- Blocks must be at least 50% longer than their width. -- Block thickness from 1/2"; to 3" -- Block width from 1"; to 6" -- Assembled lengths from 10’ to 16’ (Options 20’ or 24’) -- For use with PVAC adhesives (glue pump and nozzle not included) -- Works equally well with soft and hardwoods. -- Moisture content from 8 to 12% -- Blocks to be surfaced on (4) sides through a Moulder or 4-sided Planer to ± 0.2 mm with 90° right angle corners.Lay-Up and Block-Staging Infeed Conveyor: -- 24" Wide x 31.5" long belt conveyor powered with 1/2 HP motors. The conveyor is controlled by the operating system. Feeds at a constant rate of 180 FPM. Block delivery is controlled by the operator and machine system criteria to feed the Shaper. The conveyor facilitates keeping the system full and productive. FSR-62I Right Hand Inverter Type Finger Joint Shaper: -- Feed table is 24" wide and accepts blocks from 6" to 31.5" long -- 5/8" to 6" width -- 1/2" to 3" thickness -- Shaper spindle is driven by a 20 HP motor and is equipped with provisions for vertical adjustment of 20 mm up and 20 mm down. Spindle diameter is 50 mm and runs at 6,600 RPM. 6.3"; (160 mm) maximum shaper cutterhead diameter (cutter head not included) -- 5 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. -- 2 HP - 2,850 RPM Scoring saw, accepts 7" dia. x 50 tooth x 5 mm blades. -- Conveyor powered by 1/2 HP motor. -- Table movement is inverter driven; powered by a 3 HP inverter motor with cycle speeds from 1 to 4 cycles per minute. Motor senses load and varies travel as needed. TC-62 Single Table Transfer Conveyor to the 2nd (Left Hand) Shaper: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeds at a constant rate of 180 FPM. FSL-62I Left Hand Inverter Type Finger Joint Shaper with Glue Extruder: -- Feed table is 24" wide and accepts blocks from 6" to 31.5" long -- 5/8" to 6" width. -- 1/2" to 4" thickness -- A 20 HP motor drives shaper spindle. Spindle diameter is 50 mm and runs at 6,600 RPM. 6.3" (160 mm) Maximum shaper cutterhead diameter (cutter head not included). -- 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. -- 2 HP motor scoring saw, running at 2,850 RPM; accepts 7" dia. x 50 tooth x 5 mm blades. -- Conveyer powered by 1/2 HP motor. -- Table movement is Inverter driven; powered by a 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses the load and varies travel as needed. Speed is controlled by system criteria. Included Injection Type Glue Applicator: -- Extrudes adhesive into the fingers without a messy runoff. 4" Comb height is standard. -- Finger pitch 4 mm, 10 - 12 mm finger length is standard equipm

CAM-WOOD FJ-17 (FM) 6" X 16' Long Semi-Automatic Finger Jointer System(4) Version possible on this model. Choose the one that suits your needsTechnical Specifications:Incoming Block Requirements: -- Incoming block lengths No Limit (Manual Loaded). Blocks must be at least 50% longer than their width. -- Block thickness from 1/2"; to 3" -- Block width from 1"; to 6" -- Assembled lengths from 8’ to maximum 16’ or (20’ Options Add Extra ...$5,675.00) or 24’ (Options Add Extra ...$11,450.00) -- For use with PVAC adhesives Glue pump is not included -- Works equally well with soft and hardwood Blocks. Moisture content from 8 to 12% -- Blocks to be surfaced (4) sides through a Moulder or 4-sided Planer to ±0.2mm with 90° right angle cornersThis semi-automatic system is offered in (4) different versionsVersion 1: -- Finger Shaper (FSM-460A) + Conveyor (RO-62) x 2 + Assembly Press (FJ-500A) The price: $82,900.001. Semi-Auto Finger Shaper Process the finger at one side 2. Manually flip/turn to the other side and make fingers again at the same shaper,3. Manual blush applied the glue,4. Semi-Automatic finger jointer press The price: $92,150.00Version2: -- Finger Shaper (FSM-460A) + Conveyor (RO-62) x 2 + Manual Gluer (FSH-150) + Assembly Press (FJ-500A) 1. Semi-Auto Finger Shaper Process the finger at one side.2. Manually flip/turn to the other side and make fingers again at the same shaper,3. Manual Glue Spreader applied the glue,4. Semi-Automatic finger jointer pressThe price: $103,250Version 3: -- Finger Shaper with Gluer (FSM-621) + Conveyor (RO-62) x 2 + Assembly Press (FJ-500A) 1. Semi-Auto Finger Shaper Process the finger at one side.2. Manually flip/turn to the other side and make fingers again at the same shaper,3. Automatic Glue Spreader applied the glue at the second finger process,4. Semi-Automatic finger jointer press The price: ...$116,600.00Version 4:Finger Shaper (FSM-460A) + RO-62 x 3 + Finger Shaper with Gluer (FSM-621) + Assembly Press (FJ-500A)1. Semi-Auto Finger Shaper Process the finger at one side.2. Push to the next (2nd) Semi-automatic finger shaper with Auto Glue Spreader and applied the glue at the other side,3. Semi-Automatic finger jointer pressThe price: ...$ 159,900Description of Each Unit:FSM-460A Semi-auto finger shaper (Air-hydraulic type) -- Working timber width (Horizontal Direction); 1"; to 6"; -- Maximum timber total width fit on working table 18"; -- Maximum working height (Vertical direction); 4"; -- Maximum timber thickness (Height feed into assembly press); 3"; -- Working timber length; No Limit (Timber length must be at least 50% longer than the timber width to be processed.) -- Trim saw/Hogging blade 180 mm x 50T x 5 mm x 1 pcs. Trim/Hogging saw speed; 2,850 RPM -- Trim/Hogging saw motor 5 HP x 1 -- Finger shaper motor; 10 HP x 1 . Finger spindle Speed; 5,500 RPM. Spindle size; 50 mm, OD of finger cutter; OD160 mm -- Table movement by pneumatic–hydraulic cylinder -- Cycle time

CAM-WOOD Continuous in-line Long Board Vertical Finger Joint System, Model "UCT-210"Up to 210 mm (8") Wide x 75 mm (2.95") Thick x Unlimited Assembled Length System Specifications: -- Incoming board lengths from 39"; to 118" (1,000 mm - 3,0000 mm). -- Board widths from 1.96"; to 8.26"; (50 mm - 210 mm). -- Board thickness from 1" to 2.95"; (25 mm - 75 MM). -- Board out-feed length unlimited (Conveyor to be quoted separately) -- Glue type to be used: PVAC. with Standard pneumatic pump and spreader included ( For different glue then PVAC Glue pump and applicator not included) -- Board species: SOFTWOOD and HARDWOOD. -- Board moisture content: 8% to 12%. -- Infeed board qualities: Lumber runs best on Finger Jointers when surfaced on (4) sides (S4S) (Tolerance +/- .2 mm (.008"). System prefers straight boards with 90-degree corners. UCT-210 Mechanical Specifications: -- Top infeed feed rolls powered with (1) 2 HP motors. -- Bottom infeed feed rolls powered with (1) 2 HP motors. -- In-feed Inverter with (1) 5 HP motors. -- Top Shaper Spindle powered with a 30 HP motor. -- Maximum Cutterhead length, 8.2“(210 mm). -- Maximum Cutterhead diameter, 7"“(180 mm). -- Typical cutter pitch, 4.0 mm. Length, 10 mm - 12 mm (Other sizes available). -- Shaper spindle moving power by 2.6 HP Servo Motor. -- In-feed speed from 32 to 195 FPM (10 ~60 m/Min). -- Outfeed cut-off saw motor, 5 HP. -- Cut-off sawblade, 14“ dia x 120 teeth (included). -- Cut-off sawblade speed, 2,850 RPM. -- Hydraulic pump power, 30 HP. -- Top outfeed feed rolls powered with (1) 2 HP motors. -- Lower outfeed feed rolls powered with (1) 2HP motors. -- Out-feed Inverter with (1) 5 HP motors. -- Glue injection Glue Applicator for Standard PVAC glue. Infeed/Outfeed options: -- Infeed power roller conveyor 6000mm (236") long Additional: $ 8390 -- Outfeed powered roller conveyor 15,000 mm (48') long Additional $ 43,890Optional Automatic 20 ft Cross InfeedPower Conveyor System Working size L = 1000 MM ~ 6000 MM, W= 50 ~ 305 MM, T=25 ~ 110 MM ( Lenght 39" - 236" X Width 2" -12", Thickness: 1" to 43.3")Infeed roller Conveyor 3 HP1Cross feeding system 3 HP1Feeding speed of 15 M/min (48'/min.)Storage area width 2500 mmAdditional cost: $61,990 -- Outfeed roller conveyor 20'' X 8' long Additional: $ 4,890 per sectionNot included with the machine: -- Cutter heads for finger jointer (we can provide quote) -- Gluing system with pump and nozzle if different then PVAC glueGlue pump Option: -- Graco 1K PUR Glue System Additional cost: $ 48,990NOTE: Training, installation & tooling not included TO BE PROVIDED LOCALLY -- Electric power supply to Motor Control Center -- Constant voltage (voltage deviations max.: 5%) -- Temperature range for computer control should not exceed 95°F. -- 65% Maximum relative air humidity for computer control system --Dust exhaust system: (V=30M/S at a low pressure of 12M BAR) --Compressed air connection to machinery: 7~8 KG/cm² – 8 BAR --Electrical c

CAM-WOOD IAH-SC Inverter Drive, End-Less Auto Finger Jointer SystemFinger jointer shaper with gluer and troughfeed press for unlimited lengthTechincal Specifications: -- Infeed timber working length(min-max) L = 300MM ~ 2500MM (11.9" - 98.4") --Timber length to be processed must be at least 50% longer than the timber width to beprocessed. -- Timber working thickness T = 15MM ~ 75MM (1/2" - 3") -- Timber working width W = 35MM ~ 255MM (1 3/8" - 10") -- Timber out-feed length L = ENDLESS -- Glue type to be used PVAC (glue pump not included) -- Timber moisture 8 ~ 12 % -- lnfeed qualities: Timber must be processed via four sides moulder machine (tolerance: ±0.2mm) and wood needs 90 degrees right angle, four planning clear, straight. FSL 6121 Inverter Type FingerShaper With Glue ApplicatorSpecifications: -- Working dimension W=620mm (24.5"). L=150mm~2500mm. (6" - 98") Thickness=15mm~75mm (1/2" - 3") -- Motor of finger spindle 20HP 1pcs -- Spindle size 50mm -- OD of finger cutter OD160 mm(without finger cutter) -- Finger spindle RPM 5500RPM -- Power of Cut-off saw 7.5HP 1pcs -- Size, cut-off saw 255mm x 100T x 5mm (with saw blade) 1pcs -- RPM, cut-off saw 4800rpm/min -- Power of scoring saw 2HP 2pcs -- Size, scoring saw 180mm x 50T x 5mm (with saw blade) 2pcs -- RPM, scoring saw 2850rpm/min -- Conveyor drive power 1/2HP 1pcs -- Table movement INVERTER system power, 3HP + 3HP inverter 1pcs -- Glue Applier injection glue spreader -- Standard glue height H=100mm (3.9") Pitch 4.0mm .157") L=10-12mm (3/8" -7/16") (special size made by optional) -- Cycle speed packing/min 1-4 times/min (TOP SPEED) -- Double cylinder clamping -- ROLLER DEVICE AT FEEDING & OUTPUT LOCATION OF SHAPERUFJ-600 Unlimited lenght Finger Joint PressSpecifications: -- Working dimension Width: 35mm-255mm (1 3/8" - 10"). Thickness: 25mm-100mm. 1" -3.9") Length : Unlimited -- Infeed speed 10M-90M / min (32.5' - 292'/min.) -- Power of upper roller 2H P 1: 10 2pcs -- Power of lower roller 2HP 1: 10 2pcs -- In-feed Inverter 5HP 2pcs -- Cut-off saw, power 7.5HP 1pcs -- Cut-off dimensions 455 x 120T x 25.4M M (with saw blade) 1pcs -- Cut-off saw, RPM 2850rpm/min -- Hydraulic power 15HP 1pcs -- Out-feed table size 2M x 3 -- Oil tank 200L -- Max. capacity without HSC 18M / min(full status)Production Capacity: -- Working time 480 MIN/SHIFT -- Finger length MADE BY ORDER -- Average infeed length at the finger jointing line 2500 MM (98") -- Average timber cross section 255X50 MM (10.2" X 2") -- Shaper max speed 4/2 TABLE/MIN; the speed will change by the working height of wood -- Number of timber pieces per shaper table(horizontal finger jointing 50X255 mm (2" X 10")) 2 PIECES -- Capacity of the press 18M/MIN (58.5'/min) -- The data is the max capacity for one-section cutting, the capacity will be amended while multi­ section cutting. -- Rate of utilization 80%CAPACITIES OF THE COMPONENTCAPACITY OF THE SHAPER -- (HORIZONTAL FINGER JOINTING for 50X255 mm

CAM-WOOD - IN-408-R, ...4' x 8' CNC Router with Automatic Rotary Tool Changer:4' x 8' Flat Table CNC Router, Perfect for your 3-axis routing applications including "Nested Base Manufacturing".Machine Bed/Base: -- The Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality; the entire frame is stress relieved and heat treated. -- The Moving Gantry Bridge travels in the X- & Y-axis via inclined toothed Helical rack & pinion on "HIWIN" 1" (25 mm) thick hardened & precision ground rectangle linear guide ways providing extra smooth movement, high-speed traverse and accurate cutting. -- The Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) dia. precision ball screw for smooth & consistent movement.CNC Control & Operator Interface: -- Industrial Grade "SYNTEC" controller with network-compatible WINDOWS PC-based front-end, color monitor, keyboard, mouse. Absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation.. -- Compatible with virtually all CAD/CAM programming software on the market. - You choose the software that best suits your needs.Working Table/Envelope: -- 51" (1,295 mm), 98" (2,489 mm), 7.75" (197 mm). -- (6) Independent vacuum zones.Axes Travel Range & Feed Speed: -- Max Traverse Speeds: 2,350 IPM -- Max Working Speed: 1,100 IPM. -- Yaskawa "AC" Servo drives & SHIMPO Gear Boxes power all axes movements.Routing & Machining: -- (1) 12 HP HSD Air cooled Router Spindle with: ISO 30 Adaptor ER-32, variable programming speeds from 6,000 to 24,000 RPM, -- (1) 12-Position ATC (automatic rotary tool changer)Complete With: -- 10 HP Vacuum Pump. -- (3) ISO 30 tool holders -- two pop up pins at X, axis & three pop up pins at Y,. -- Automatic tool offset device. -- Automatic lubrication device with filter. -- Standard MPG hand wheel -- safety light curtain and Estop -- 1-Year manufacture warrantyUtilities and Dims: -- Machine power supply is wired for 220 Volts, 60 Cy, 3-Phase, 53 Amps. -- Machine weighs approx. 3 960 Lbs. -- Machine air consumption at 90 PSI is approx. 15 CFM;Extra options not included in machine price: HSD 9-spindle vertical Drill-bank ...$7,675

CAM-WOOD - IN-510-R, ...5' x 10' CNC Router with Automatic Rotary Tool Changer:5' x 10' Flat Table CNC Router, Perfect for your 3-axis routing applications including "Nested Base Manufacturing".Machine Bed/Base: -- The Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality; the entire frame is stress relieved and heat treated. -- The Moving Gantry Bridge travels in the X- & Y-axis via inclined toothed Helical rack & pinion on "HIWIN" 1" (25 mm) thick hardened & precision ground rectangle linear guide ways providing extra smooth movement, high-speed traverse and accurate cutting. -- The Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) dia. precision ball screw for smooth & consistent movement.CNC Control & Operator Interface: -- Industrial Grade "SYNTEC" controller with network-compatible WINDOWS PC-based front-end, color monitor, keyboard, mouse. Absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation. -- Compatible with virtually all CAD/CAM programming software on the market. - You choose the software that best suits your needs.Working Table/Envelope: -- X 63" (1,600 mm), Y 126" (3,200 mm), X 7.75" (197 mm). -- (6) Independent vacuum zones.Axes Travel Range & Feed Speed: -- Max Traverse Speeds: 2,350 IPM -- Max Working Speed: 1,100 IPM. -- Yaskawa "AC" Servo drives & SHIMPO Gear Boxes power all axes movements.Routing & Machining: -- (1) 12 HP HSD Air cooled Router Spindle with: ISO 30 Adaptor ER-32, variable programming speeds from 6,000 to 24,000 RPM, -- (1) 12-Position ATC (automatic rotary tool changer)Complete With: -- 10 HP Vacuum Pump. -- (3) ISO 30 tool holders -- two pop up pins at X, axis & three pop up pins at Y. -- Automatic tool offset device. -- Automatic lubrication device with filter. -- Standard MPG hand wheel -- safety light curtain and Estop -- 1-Year manufacture warrantyUtilities and Dims: -- Machine power supply is wired for 220 Volts, 60 Cy, 3-Phase, 53 Amps. -- Machine weighs approx. 4,480 Lbs. -- Machine air consumption at 90 PSI is approx. 15 CFM;Extra options not included in machine price: HSD 9-spindle vertical Drill-bank ...$7,675 Add second 10 HP Vacuum Pump with stand ...$6,000

CAM-WOOD "PROFORMA" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.SERIES 404: $ 35,500SERIES 408: $ 37,720SERIES 510: $ 39,940Models Include (Table Sizes): 404 (4' x 4'), 408 (4' x 8'), 510 (5' x 10')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: WEIHONG NK105 G3Spindle: 9.0kW (12 Hp) Air-Cooled Spindle 6,000 - 24,000 RPMBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: Servo-Motor and DriverY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: SERIES 404: Rear Linear (6) Tools ISO30, ER32 - SERIES 408/510: Rear Linear (8) Tools ISO30, ER32Inverter: SCHNEIDER 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERWorking Size:SERIES 404: 51’’ (X) x 51’’ (Y) x 7-3/4’’ (Z)SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 404: 87’’ (X) x 74’’ (Y) x 71’’ (Z)SERIES 408: 87’’ (X) x 122’’ (Y) x 71’’ (Z)SERIES 510: 99’’ (X) x 149’’ (Y) x 71’’ (Z)Max Travel Speed: 2350 IPMMax Working Speed: 1100 IPMMachine Net Weight: SERIES 404: 3,520 lbs / SERIES 408: 3,960 lbs / SERIES 510: 4,480 lbsFeatures Include: -- Automatic (12) Tools Linear Type Auto Tool Changer Under the Bridge for Increased Productivity. -- All “Servo Motor"; Driving System: All Axes are Driven by Brush-less Type, High Torque AC Servo Motors. -- DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats Along with On-Board Conversational Applications. -- Optional CAD/CAM System can Create and Edit Part Programs Then Send to Machine for Easy Cutting. DXF Files can be Imported, Modified, and Edited from Here to Create a G-Code. -- DNC is No Longer Required as the PC Directly Stores all Part Programs in a Text Editable File. -- Machine Designed Ready for 3-D Cutting Usage and Superior Performance. -- Moving Gantry Construction for Space Saving. -- The Rigid Steel Frame Construction has been Stress-Relieved Prior to Finish Machining to Provide Repeatability and Accuracy. -- Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. -- Linear Guides and Sliding Blocks are Pre-loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse and Precision. --Th

CAM-WOOD "EXCEL" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.SERIES 408: $ 91,900SERIES 510: $ 96,900SERIES 512: $ 99,300Models Include (Table Sizes): 408 (4' x 8'), 510 (5' x 10'), 510 (5' x 12')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemAuto-Loading: Auto In-feed Loading Scissor Lift & Out-feed Conveyor TableSpindle: 9.0kW (12.8Hp) HSD Air-Cooled Spindle - 6,000-24,000 rpmBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: Servo-Motor and DriverY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: Rotary (12) Tools ISO30, ER32Inverter: 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionalDrill Bank: Includes (9) Tools HSDCAD/CAM Software: OptionalWorking Size:SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)SERIES 512: 63’’ (X) x 150’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408: 98’’ (X) x 433’’ (Y) x 71’’ (Z)SERIES 510: 110’’ (X) x 531’’ (Y) x 71’’ (Z)SERIES 512: 112’’ (X) x 603’’ (Y) x 71’’ (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408: 8,810 lbs / SERIES 510: 9,970 lbs / SERIES 512: 10,750 lbsFeatures Include: --Nesting Work for Automatic In-feed Loading w/Scissor Lift and Out-feed Unloading w/Conveyor Process. --Automatic (12) Tool Rotary Type Auto-Tool Changer for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by Brush-less Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --DNC is no longer required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress Relieved Prior to Finished Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse a

CAM-WOOD "DYNAMIC" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.SERIES 408: $ 60,090SERIES 510: $ 63,800SERIES 512: $ 65,080Models Include (Table Sizes): 408 (4' x 8'), 510 (5' x 10'), 510 (5' x 12')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemSpindle: 9.0kW (12.8Hp) HSD Air-Cooled Spindle - 6,000 - 24,000 rpmBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: YASKAWA Servo Drive and MotorY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: Rotary (12) Tools ISO30, ER32Inverter: 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionalDrill Bank: Includes (9) Tools HSDCAD/CAM Software: OptionalWorking Size:SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)SERIES 512: 63’’ (X) x 150’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408: 87’’ (X) x 122’’ (Y) x 71’’ (Z)SERIES 510: 99’’ (X) x 149’’ (Y) x 71’’ (Z)SERIES 512: 99’’ (X) x 173’’ (Y) x 71’’ (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408: 3,960 lbs / SERIES 510: 4,480 lbs / SERIES 512: 4,970 lbsFeatures Include: --Automatic (12) Tool Rotary Type Auto-Tool Changer for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by Brush-Less Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --Optional CAD/CAM System can Create and Edit Part Programs then Send to Machine for Easy Cutting. DXF Files can be Imported, Modified and Edited from here to Create a G-Code. --DNC is no Longer Required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress-Relieved Prior to Finish Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Trav

CAM-WOOD "PROFORMA LN" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.SERIES 408 LN: $ 43,300SERIES 510 LN : $ 46,600Models Include (Table Sizes): 408 LN (4' x 8'), 510 LN (5' x 10')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemSpindle: 9.0kW (12 Hp) Air-Cooled Spindle 6,000 - 24,000 RPMBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: Lead-Shine Servo Drive and MotorY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: SERIES Linear (12) Tools ISO30, ER32Inverter: SCHNEIDER 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionDrill Bank: Optional (9) Tool HSDCAD/CAM Software: OptionWorking Size:SERIES 408 LN: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510 LN: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408 LN: 122’’ (X) x 87’’ (Y) x 71’’ (Z)SERIES 510 LN: 99’’ (X) x 149’’ (Y) x 71 (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408 LN: 3,960 lbs / SERIES 510 LN: 4,480 lbsFeatures Include: --Automatic (12) Tools Linear Type Auto Tool Changer under the Bridge for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by a Brushless Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --Optional CAD/CAM System can Create and Edit Part Programs then Send to Machine for Easy Cutting. DXF Files can be Imported, Modified and Edited from Here to Create a G-Code. --DNC is no longer Required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress Relieved Prior to Finish Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse and Precision. --The X & Y Axis are Equipped with a Precision Rack & Pinion Driving System. The Z Axis Utilizes a Ball Screw Assembly Complete with the Pre-Loaded and

CASADEI ALA 23 EDGEBANDER WITH CORNER ROUNDING0.4 - 15 mm (1/2") Edge cap., panel thickness 10 to 60 mm (.39" to 2.36"). Minimum panel length 120 mm (4-3/4") and 55 mm (2-1/8") minimum width. Equipped with: -- Quick heat-up glue system,(approx. 12 Min) 1.5 Kg glue pot capacity. -- Pressure roll section with (3) rolls - one driven. Pneumatic cut-off guillotine.Workstations: -- Double end trim, chamfers 0° - 15° -- Top & bottom flush/radius trim, bevels 0° - 15°. -- Double motor Corner Rounding station -- Top & bottom scraping for 3 mm radius, -- Top & bottom buffing (0.25 HP - 2,800 RPM motors).NOTE: Seller states that the buffing unit appears to have an electrical issue and is not currently being used by the current owner";Actual Model: "ALA 23 R"

CASADEI FLEXA 17 Edgebander with Pre-Mill --÷Good versatile machine for small shop use, with fairly simple adjustments. --Specifications:0.4 mm - 3 mm Max. edge thickness cap., (0.5 mm to 3 mm for solid strip edge thickness ). 8 mm - 50 mm (0.3" - 1.97") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 80 mm wide x 140 mm long (3.15" x 5.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine. --Equipped with: --Teflon coated glue pot w/fast (10 - 12) Min heat-up time; 1 Kg. capacity. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled pressure section with (3) pressure rollers; 1st drive, (2) idle. --Work stations: -- Premilling unit with 3 HP - 8,300 RPM High Frequency motors. -- Single motor, double end trimming saw unit with (1) 0.25 HP - 12,000 RPM High Frequency motor. -- Cutting group moves on rounded ways made of hardened steel, to guarantee high precision and reliability; cutting movement from the top of the panel is synchronized by the PLC control. -- Top & Bottom Trim station with (2) 0.45 HP - 12,000 RPM High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutterhead position by mechanical digital readouts, quick release (electrical & mechanical). -- Includes (2) 3 mm radius cutters. -- Top & Bottom 3 mm scrape station -- Top & Bottom Buffing unit with (2) 0.20 HP - 1,400 RPM motors. -- Fixed feed speed 23 FPM.

CASADEI FLEXA 27 RMA8 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:FLEXA 27 RMA8: CA1297 Standard equipment: Electrical data: E-Stop on main control panel: 230 V – 3 Ph – 60 Hz. 37 Amps. -- Equipped with:CA2074 Anti-adhesive Unit “RA"; to avoid glue deposits on top & and bottom surfaces. -- Kit for “NESTING"; processing. -- CA4048 Spray Mist Device for edge finishing improves panel. -- Cleaning and polishing of the applied edge. -- Welded Steel Frame & Steel pressure beam with 2 rows rubber rollers. -- Feed chain with industrial high grip rubber. -- Chain on hardened steel guides. -- Guides consist of one circular and one flat. -- Manual adjustment of the pressure beam w/ readout. -- Automatic pos. of the working units w/ reference to panel. -- Mechanical digital indicators for panel thickness. -- High Frequency Motors w/ Inverter. -- Centralized dust extraction. -- Adjustable panel support rollers. -- Sound enclosure & lockable switch cabinet -- Working Units:Glue pot and edge processing magazine. -- 2-Motor end trimming Unit. 0-15 deg. -- 2- Motor Top and bottom trimming unit. -- Edge scraping unit for 3mm. -- CA5695 Glue Scraping Unit “GS/K2". -- CA9360 Brushing/ Buffing Unit “BFK";. -- Machine Features:• Guided by a chain for accurate feeding and long lasting perfection • Thick, Steel top pressure beam complete with two rows of rubber coated wheels.• Robust panel support which can be extended according to the size of the parts MEGA 120 Controller• Ergonomic positioning• 4";Graphic Display w/ multi language selection • Glue temp. control w/ temp • Unit operation and feed track start/ stop• Digital readouts • Parameter/ setting control • On board diagnostics • Partial and absolute statistical info: # of pieces worked, edge used and feeding information Pre-milling unit • Two cutter heads with automatic timing • Independent high frequency motors with Stock removal determined by infeed fence with digital display • Timed blower to clean the machined surface • Diamond tools 2.4 hp each. Tools D=100mm H=49mm Max stock removal is H=45mm / 55mm • ²Nesting Kit Allows processing of predrilled parts • 3 contacting rollers on Trimming Unit •, Edge Scraping Unit • Rubber coated copy wheel for end trimming unit • Anti- Adhesive Unit RA • Perfect cleaning of the panel • Prevents glue from sticking to the top and bottom surfaces GP-200 • Two Pressure rollers (1 large, 1 flat) • Teflon coated glue pot• Automatic glue temperature regulator to reduce glue temperature if machine is not in use to reduce glue heat time• Automatic recovery of glue • Automatic loader for strips •2.4 kW. 3.3 HP Power. 1.5 Kg Capacity End Trimming Unit IK/200 • 2 Independent high frequency motors w/blades • Pneumatic tilting of the saw blade 0 – 15deg. from control panel • Units slide on THK guideways • Mounted to the base for vibration free machining• 12,000 RPM and .3 hp each. Trimming Unit “TT/K"

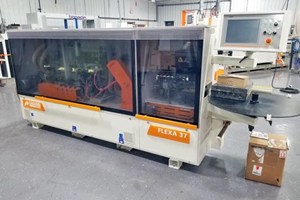

CASADEI/SCM FLEXA 37 EDGEBANDER WITH CORNER ROUNDINGEdge material thickness 0.4 - 3 mm coil & 6 mm (1/4") strips ~ min/max panel thickness 8 - 60 mm (0.31 - 2.36") ~ min. panel width, 80 mm (3.1") and 140 mm (5.5") min. length.Equipped with: Automatic coil & strip feed magazine, with Heavy Duty 3 mm PVC cap. guillotine. Gluing Unit "GP-300", teflon coated quick change glue tank, approx. 10 minute heat-up time, programmable temperature control w/timer if machine idles to prevent glue overheating/burning.Side Pressure Unit: 3-roll pressure unit w/1st roller power driven via clutch with pneumatic in & out positioning, (2) idler rollers.Workstations: -- End Trimming: -- Front & rear end trim (2 x 0.3 HP - 12,000 RPM motor ea.), with pneumatic tilting feature (0° - 15°) from control panel.Top & Bottom Trimming. -- Combination flush/bevel/radius trimming (2 x 0.65 HP - 12,000 RPM ea. motor). tilts from 0 - 25°. Pneumatic 3 position pre-sets programmable from control panel. -- Corner Rounding station. -- Top & Bottom PVC Scraper for up to 3 mm radius. Programmable, pneumatic exclusion on/off. --Top & bottom buffing unit (2 x 0.2 HP - 1,400 RPM motor each), Tlting range 8°
