LHI 6,000 # Scissor LiftSimple Design, Low Cost, High Performance w/ Off-The-Shelf Parts so you can keep it running years from now Specification: -- 6,000 Lbs weight capacity. -- 48" x 96" Smooth steel platform. -- Lowered height 9-1/2" raised height 49". -- Travel speed: 1/2" per second up -- Foot pedal control.Available Options: -- Automatic Down Indexing -- Automatic Up Indexing -- Automatic Up/Down Indexing

MORBIDELLI UNIFLEX HP 1.1 CNC MACHINING CENTER (2-HEAD): -- Specifications:Flexible "TOP & BOTTOM" Machining Center that uses an innovative panel handling system. -- Positioning SpeedsThe "UNIFLEX" can reach positioning speeds of: 130 MPM in "X" Axis; 80 MPM in "Y" axis; 50 MPM in "Z" axis with total safety, providing an unmatched working capacity. -- Working DimensionsMax. worktable part size for: "X" axis is 118" (3,000 mm); "Y" axis is 51" (1,300 mm) "Z" axis max. part thickness 3.1" (80 mm).Min. worktable part size for: "X" Axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness 0.157" (4 mm). -- Worktable:Automatic LH infeed air table with gripper clamps; automatic RH outfeed transfer conveyor with belts; both infeed & outfeed are considered Robot ready. -- Boring Units:(1) Top mounted boring block: 4.2 HP (3 kW); variable speed from 1,500 - 6,000 RPM; (48) vertical spindles: 24-Spindles in "X axis & 24-spindles in "Y" axis; (6) horizontal spindles with: (2+2) in "X" axis & (1+1) in "Y" axis; (1) 4.2 HP (3 kW) - 9,000 RPM, NC controlled 0°-90° "X/Y" Grooving Saw, max. 120 mm dia. blade.(1) Bottom mounted boring block: 4.2 HP (3 kW); variable speed from 1,500 - 6,000 RPM; (48) vertical spindles: 24-Spindles in "X axis & 24-spindles in "Y" axis; (6) horizontal spindles with: (2 + 2) in "X" axis & (1 + 1) in "Y" axis; (1) 4.2 HP (3 kW) - 9,000 RPM, NC controlled 0°-90° "X/Y" Grooving Saw, max. 120 mm dia. blade. -- Machining:(1) Top mounted 10 HP (7.5 kW) electro-spindle with: HSK D-50 Adaptor; "ERC 32" tool holders & RC-32 collets, 1,500 - 24,000 RPM.(1) Bottom mounted 10 HP (7.5 kW) electro-spindle HSK D-50 adaptors, "ERC 32" tool holders & RC-32 collets; 1,500 - 24,000 RPM. -- Operator Interface:PC Front-End with: "XYLOG PLUS" + Windows environment Operating system; 20 GB hard drive; 17" TFT monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; (1) 1.44 MB floppy drive; (1) CD ROM drive; all mounted in separate control console. -- Operating System:"XYLOG PLUS" Offers Real time multitask processing; programs can be transferred via diskette or downloaded by wire. -- Complete with: Pneumatic part clamping devices; sound enclosure; safety mats. -- Operating features: Machine can work the panel from above & below at the same time and can produce (2) identical or mirrored panels per cycle with no difficulty.The "UNIFLEX" can machine porous materials since the pieces are held with grippers, directly managed by the numerical control; it can even process small pieces and carry out "through" machining.(4) Operating modes at each cycle, it can change automatically from: Top machining to bottom machining, to top & bottom machining together, either on (1 or 2) stacked panels. -- Actual model is MORBIDELLI UNIFLEX HP.

MORBIDELLI - CX 100: CNC Machining Center (Vertical) -- SpecificationsFlexible "Vertical" Machining Center reaches movement speeds of: 229 FPM (70 MPM) in "X" axis; 131 FPM (40 MPM) in "Y" axis; 98 FPM (30 MPM) in "Z" axis with: Total safety. -- Working CapacityMax. part size for: "X" Axis is 120" (3,050 mm); "Y" axis 35.4" (900 mm); max. part thickness: 2.3" (60 mm). - Min part size for: "X" Axis is 7.8" (200 mm); "Y" axis 1.96" (50 mm); min. part thickness of 0.31" (8 mm); automatic infeed & outfeed from the LH side. -- Boring UnitBoring block with: 3 HP (2.2 kW) Motors; variable speed: Up to 8,000 RPM with: (12) Independent spindles: (7) In "X" axis; (5) in "Y" axis. - (6) Horizontal spindles with: (2 + 2) in "X" axis; (1 + 1) in "Y" axis. - (1) "X" Axis: Grooving saw; variable speed up to: 10,000 RPM; 125 mm max saw blade diameter. -- Machining(1) 7.4 HP (5.5 kW) Router with: ISO 30 Adaptor. - Variable speed from: 1,000 - 24,000 RPM. -- Operator InterfacePC Frontend. SCM "XILOG MAESTRO" + Windows Operating System with 3D graphics. Includes: 17" TFT Monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 Serial ports; USB ports. Ethernet Connection. Real time multitask processing; programs can be transferred via: Diskette or downloading by wire is possible. -- Complete with:Handheld pendent control; (2) pneumatic part clamping devices; auto. lubrication system; sound enclosure & safety devices. -- Actual Model is: SCM MORBIDELLI CX 100

MORBIDELLI - CX 220: CNC Machining Center (Vertical) with (2) NC Controlled "Split Heads" -- Specifications• HSK63F Electrospindle.• 6-Position tool holders.• (S1/S6) 6.6/7.5 kW (9/10.2 HP).• Constant motor power from: 12,000 - 18,000 RPM.• Automatic lubrication.• Autotransformer.• Drilling on (5) faces.• "EYE-M" PC Controller.• 21-1/2" LCD Color display.Drill Head #1• Vertical spindles: 21.• Horizontal spindles in X direction: 6.• Horizontal spindles in Y direction: 4.• Integrated blade in X axis: Ø 125 mm.• Max. saw blade thickness: 6 mm.• Motor power: 2.2 kW (3 HP).Drill Head #2• Vertical spindles: 13.• Horizontal spindles in X direction: 6.• Horizontal spindles in Y direction: 2.• Integrated blade in X axis: Ø 125 mm.• Max. saw blade thickness: 6 mm.• Motor power 2.2 kW ((3 HP).• Actual Model: MORBIDELLI CX 220.

MORBIDELLI - N 100 15: Flat Table Machine with ATC, Boring -- Specifications:• 5' x 12' Worktable• 13 HP (S6) air cooled electro spindle with HSK F 63 quick release tool holder• 1,500 to 24,000 RPM inverter-controlled spindle speed• Aluminum solid worktable that can nest full sheets or be used for routing smaller components• 14-Position tool changer mounted to side of machine• (12) Vertical drills: (7) in X axis and (5) in Y axis• X/Y maximum positioning speeds is 35 meters/min (115 feet/min)• Z axis stroke 250 mm (9.84")• Maximum panel passage 150 mm (5.90")• (2) 300 m³/H vacuum pumps• Mobile console with 17" LCD display with Windows 7 operating system• XILOG PLUS Operator Interface and Xilog Maestro Cad Cam free form software with labeling. 7" color universal remote-control pendant allows for the effective management of all machine functions from movement of controlled axes in manual jog mode to loading and execution of a program. Fitted with a USB port which allows for a quick load and setup of new programs. Air-Conditioned electrical cabinet.• Safety bumpers on both sides of the mobile unit allows for safe movement while saving space by eliminating caging around the machine. • Electronic tool detecting length (touch probe) allows for detecting tool length without running a test program• Dust Collection: (1) 200 mm (7.87") on router (1570 cfm)• Operating air pressure with 3/4" ID hose 7 ATM (102 psi)• Autotransformer allows choice of 208/230 or 460 volt 3 phase operation

MORBIDELLI - AUTHOR 330: Flat Table Machine (w/ATC/Boring) -- Specifications4' x 10' Stationary extruded aluminum "MATRIX" table for "Nested Base" manufacturing. -- Work Area"X" Axis: 113.85" (2,892 mm); "Y" axis: 50.78" (1,290 mm); "Z" axis stroke: 11" (280 mm); max material thickness: 4.7" (120 mm). -- NOTE: When using the "Rake System," 4' x 8' is the max. panel size. -- Positioning Speed"X" Axis: 262 FPM (80 MPM); "Y" axis: 148 FPM (45 MPM); "Z" axis: 74 FPM (22.5 MPM). -- Closed loop AC Servo drive system with: Recirculating ground ball screw in the "X", "Y" & "Z" axes; all axes ride on precision prism linear guideways. -- WorktableAluminum grid "MATRIX" vacuum table machined with: Square grid pattern for fixturing parts; grid pattern allows use of vacuum pods or closed cell rope gasket material and use of spoil boards. -- (2) Independent working areas; external pop-up reference pins located on the sides & back of the table for positioning parts. -- Boring Unit2 HP (1.5 kW) - 4,000 RPM Motor; (12) independent vertical boring spindles: (7) Spindles in "X" axis & (5) spindles in "Y" axis. -- Machining (1) 10 HP (7.5 kW) "Power 2000" Electrospindle w/lifetime lubrication; HSK F63 adaptor; spindle speeds from: 900 - 18,000 RPM. -- (1) 12-Position "Rapid-12" traveling ATC tool plate for "on the fly" ATC. -- Operator InterfacePC Front-End with: NUM 1040 + Xilog III + Windows Operating System. -- 12" High resolution CRT, ergonomic keypad; 1.44 MB & CD ROM disk drives; (2) serial ports: RS-232 & RS-242. -- All housed in air-conditioned cabinet with: KELVIN Air-Conditioner. -- Complete with:(2) 300 cbm/Hr Vacuum pumps; emergency stop rope; Safety "Bump-Stop" system; Handheld pendant control. -- Options IncludedNesting Rake & off feed table to increase machine/Operator output. -- "SOUTHWORTH" Lift Table; roller conveyor section to bridge safety barrier. -- (1) 10 HP (7.5 kW); 460 V; 3 Cy DUSTEK 3-bag Dust Collector. -- Actual model: MORBIDELLI AUTHOR 330 NBR

MTB BDV-1200 SHREDDER --Specifications Per Manufacture's Information --ROTOR Length: 1200 mm (47.2 INCH) Diameter: 416 mm (16.4 INCH) -- 150hp 460 volts -- The unique features of our BDR shredders allow for the most efficient size reduction of difficult material types at the lowest operating costs on the market -- Includes Stand and Hopper

MULTICAM APEX 3R with 5' X 10' Table and ATC:60" x 120" Fixed table, moving gantry machine in a front-to-back configuration with a multi-zone vacuum table supported by a 20 HP vacuum blower system. -- Equipped with:(1) 10 HP "HSD" spindle with 8-position static tool changer, variable speed by inverter up to 24,000 RPM. -- Full table coverage:X- & Y-axis, rack & pinion gantry drive with brushless Servo motors using integrated 25 mm linear roller bearing rack system, 8" Z-axis travel via lead screw drive. 1,000 IPM Max. cutting feed, 1,700 IPM max. rapid traverse rate on X- & Y-axis. -- Control:The MULTICAM CNC controller Is a stand-alone RISC/DSP system. The controller includes a keypad interface with hot keys for repetitious functions and DNC access to host computer. Memory for instant job replay, 32-bit processor, 12 MB RAM & 2 MB flash memory, interprets HPGL and M & G codes, RS-232 interface for PC communication. -- Includes:(20 HP) Vacuum blower for hold-down, assorted collets and tool-holder will be included.

MULTICAM APEX 3R with 4' X 8' Table and ATC:48" x 96" Fixed table, moving gantry machine in a front-to-back configuration with a 4-zone vacuum table supported by a 20 HP Republic vacuum blower system. -- Equipped with:(1) 13.4 HP "HSD" spindle with HSK F63 adaptor. (1) 6-position static tool changer, variable speed by inverter up to 24,000 RPM. -- 4 Zone Pneumatic Table:X- & Y-axis, rack & pinion gantry drive with brushless Servo motors using integrated 25 mm linear roller bearing rack system, 6" Z-axis clearance via lead screw drive. 1,000 IPM Max. cutting feed, 1,700 IPM max. rapid traverse rate on X- & Y-axis. -- Control:The MULTICAM Pendant Programmable Controller, PC, is a stand-alone RISC/DSP system. The controller includes a keypad interface with hot keys for repetitious functions and DNC access to host computer. Memory for instant job replay, 32-bit processor, 12 MB RAM & 2 MB flash memory, interprets HPGL and M & G codes, RS-232 interface for PC communication. -- Includes:Surface Probe and Auto Calibration Sensor; Laser Pointer System; Dual Knife System (Electric Oscillating and Quick Change); K31 Multi-Tool Cutting Head; K41Knife Cutting Head; (1) 20 HP Republic vacuum blower for hold-down, (6) collets and tool-holder will be included.

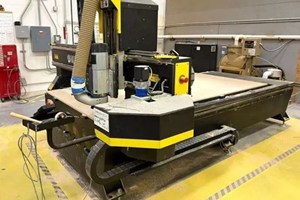

MULTICAM 5000 SERIES 5-204-R 60" x 120" (5'x10') with ATC:• Working Table (approx.): 61" x 122" (5' x 10')• Table Surface: Phenolic w/ Grid Pattern• Pneumatic pop-up pins• 4 zone vacuum table• Repeatability: 1/1000th Inch• CNC Controls: MultiCam EZ Control w/ Pendant• Tool changer Positions: 12• HSD ES789L, 15KW/20HP Spindle• Spindle Speed: 24,000 RPM (Standard)• Additional 8 position bar type tool changer• Z-Axis Clearance: 8"• Helical Rack & Pinion on X, Y Axis• Ball Screw on Z-Axis• Cut Speed: 1,800 IPM• Rapid Traverse: 3,000 IPM• Dekker 25 HP Vacuum pump• 480v, 3Phase Transformer• Machine Size (approx.): 156" x 118" x 96"• Control Cabinet (approx.): 67" x 16" x 55"• Machine Weight (approx.) 11,000 lbs.

MURPHY-RODGERS MRJ-610-122 Pulse Jet Dust Collector with Rotary Air Lock and Transfer Fan.Specifications: -- 8,500 CFM approx. @ 9 to 1 air to cloth ratio baghouse dust collector with (60) 10-feet long filters; total cloth area of 943 sq. ft. -- Filter Cleaning: Continuous Self-cleaning Using Compressed Air. -- Main Fan: 30 HP top-mounted blower motor. with approx 18" dia. inlet. --System includes: Relay/Transfer fan, steel structure support stand, low height as waste is transferred by fan, safety ladder/platform, top safety railing, and approx. 16" Rotary Air Lock.Actual model is MRJ 610 -122.

MURPHY-RODGERS MRZ 17/16L Interior/Open 6 Bag Dust Collector with Auger and Rotary Air Lock General specs: Approx. 7,600 CFM @ 8" SP. (6) top filter bags @ 24" dia. by 72" long. (6) bottom disposable plastic dust storage bags. -- Fan/Motor: 25 HP BALDOR TEFC motor direct driven fan with electrical starter. 17" diameter inlet, with lifting hooks. The bag collector motor is brand new and has never been powered on or fired up. -- Comes with: Main approx. 17" dia trunk line, shut-off, and Quick clamp removal for filter and plastic bags. -- All steel construction with rugged support legs. Air Deflectors allows operator to adjust the air flow and amount of waste evenly into the 6 waste bags. -- Note: NFPA 664 (Fire Code) states that a max. of 5,000 CFM is limit allowed for indoor enclosure-less dust collectors.

//This machine is in an Auction on exfactoryauctions.com// //Link to machine: http://exf.ac/i5y 15 HP Fan motor, free-standing interior/exterior unit rated @ 3,900 CFM. Equipped with: (48) Filter bags having a total of 352 sq. ft. of cloth filter area in a fabricated steel enclosure; 12" dia. inlet. Magnetic starter; rotary air lock, estimated weight: 3,500 Lbs. Unit stands 13.5' tall when fully assembled, but with the legs and muffler removed, it can easily be transported on an open 5'x10' trailer. Machine State: Still in place, but disconnected NOTE: The above specs are taken from literature and considered accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

MURPHY-RODGERS HEC-216-S/10 33,000 CFM Continuous Duty Automatic Self-Cleaning Pulse Jet Baghouse Dust Collector Equipped with: (216) 5" Dia. x 10' L Cloth filter bags for a total of 2,827 sq/ff. of filter area. (2) 42-1/2" W x 68" H & (2) 40-1/2" x 68" H Top access doors. (3) Front & (2) side 27" W x 54" H Filter access doors. (2) Square cone bottom hoppers, Each with, 25" x 25" Discharge openings. System utilizes (2) 4-1/2’ x 6’ x 4’ H Waste containers (NOT included). CHICAGO 100 HP - 1,780 RPM Roof-mounted blower, with 41” Dia. inlet. Motorized dampers for winter & summer modes. Winter mode: Directs air back into building, reducing heat loss. Summer mode: Directs air outside, cooling building. Electrical controls (as pictured). Complete with: Spare Filter Bags. NOTE: Installed Used in 2016 with "New" 100 HP motor, new bearings in blower & "New" spring mounts. NOTE: Variable Frequency Drive needs to be replaced. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

NANXING MJK1132F1 Sliding Table Saw w/Motorized Raise/Lower/Tilt & Programmable Rip FenceUp, down, and tilting of the main saw and scoring saw blades are controlled electrically by simply pressing buttons. The rip fence enables movement to the required position by inputting a number on a user-friendly touchscreenSpecifications & Features: -- 3,100 mm (122") Cutting length w/scoring; 126" x 16" Anodized sliding table that locks in any position for easy loading. -- Saw blade moves up or down, tilting and fence movement driven by electric servo motor. -- Scoring unit for clean, accurate chip-free cutting, ready for edge banding. Equipped with: -- 7.5 HP Main saw motor; 45° tilting (30 mm) main saw arbor; 13.77" (350 mm) main blade dia.; 3,800/5,200 RPM; -- 4" Max. material thickness at 90°; 2-3/4" at 45°. -- 1.5 HP Scoring saw motor, 4.72" dia. scoring blade; 9,000 RPM. -- Extendable crosscut fence with (2) flip stops, w/digital readout. -- Miter fence; articulating overarm protection guard; outboard and rear extension tables.

NASH 50-72 Spindle Sander(10) Spindles, 72" chucking cap., 3/8" - 6" dia. range;Specifications: -- 2-1/4" Dia. main arbor with long keys for driving head & tailstock wheels. -- Variable spindle speeds from 700 - 3,000 RPM, 7.5 HP spindle motor, 2 HP feed & oscillation rack motor, variable oscillating speed (60 - 120) strokes/Min, oscillating stroke adjustable up to 2" in length. -- (5) 72" Sanding racks, self-adjusting & oscillating. -- Equipped with: Overhead mounted dust hood, push-button control panel; production rate of (10 - 30) pieces/Min. -- Includes: brushes and sandpaper

NASH - 50-72: Spindle Sander -- (10) Spindles; 72" chucking. -- Cap., 3/8" - 6" dia. range; 2-1/4" dia. main arbor with long keys for driving head & tailstock wheels. -- Variable spindle speeds: 700 - 3,000 RPM; 7.5 HP spindle motor. -- 2 HP Feed & oscillation sanding rack motor; 60" max. sanding cap. with: (5) Sanding racks, self-adjusting and oscillating. -- Variable oscillating speed: (60 - 120) Strokes/Min; oscillating stroke adjustable up to 2" in length.Equipped with: -- Overhead mounted dust hood., -- Push-button control panel; production rate of (10 - 30) pieces/Min.

NEDERMAN S-1000 BAG FILTER Dust Collector. The NEDERMAN S-Series Baghouse Dust Collector is quick to install and easy to operate. It's the ideal solution for a smaller shop or single work-cell operation.Specifications: -- With a 10 HP motor and a 5,000 CFM @ 7" WG and 360 Sq/ft of filter media. -- 10 HP - 1,750 RPM TEFC Motor, (24) Beane material filter bags and magnetic starter. -- Features: Easy installation, typically (1) hour; quiet operation, (3) waste discharge points. Inlet opening 16". Available in 208/230/460 V, 60 Cy, 3 Ph. Must specify Voltage at time of orderAvailable option:- Aluminum Impeller: - 45 Gallon Drum Discharge - Single Drum (3 REQUIRED)- 230 Gallon Dump Bin: Available spare parts:- Filter Bag (24 Filters)- Plastic Bags (Roll of 90 - 8 mil thickness) - 500mm Clamp (bags, barrels, and bin)

NEDERMAN S-500 BAG HOUSE DUST COLLECTOR. -- Open Bag house designed for interior application; 5 HP TEFC material fan motor, 1,750 RPM; free standing 2,000 CFM open frame bag house, 162 sq. ft. of filter area via (16) beane material filter bags; 7.5" W.G. static pressure. -- Bottom discharge into (2) plastic waste collection bag. -- Includes: Side-mounted blower assembly with support legs; (2) quick disconnect clamps for the plastic bags. Starter motor with push buttons. Option:42 Gallons Drum Discharge, Single Drum (2 REQUIRED FOR COMPLETE S-500)

NEDERMAN S-750 BAG FILTER Dust Collector. The NEDERMAN S-Series Baghouse Dust Collector is quick to install and easy to operate. With a 7.5 HP motor and a 4,500 CFM @ 6" WG it's the ideal solution for the small shop or single work-cell operation. -- Specifications: 7.5 HP - 1,750 RPM TEFC Motor, (24) Beane material filter bags and magnetic starter. -- Features: 243 Sq/ft of filter media, easy installation, typically (1) hour; quiet operation, (3) waste discharge points. Inlet opening 11". -- Available in 208/230 or 480 V, 60 Cy, 3 Ph. Must specify voltage at the time of orderAvailable options:42 Gallons Drum Discharge - Single Drum (3 REQUIRED)230 Gallon Dump Bin
