CAM-WOOD TX-P330X FRONT LOAD AUTOMATIC PANEL SAW: "High Production Saw" -- Specifications: 126" (3,200 mm) Max. rip cut cap. & 126" (3,200 mm) max. pull-back front/back; 15 HP (11.2 kW) saw blades motor, 1" dia. arbors,3-1/8" (82.5 mm) max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM,180 mm (7") scoring blade at 6,000 RPM blade speed. -- Positioning Speed:2 HP Saw carriage drive motor, variable cutting speed from 16 - 150 FPM (5 - 46 MPM), return speed of 100 FPM (30 MPM). -- Pusher/Gripper Fence: Programmable rear material push/gripper fence with AC servo drive, 1 HP pusher motor, rack & pinion drive, 16 - 80 FPM (5 - 24 MPM) speed. -- Operator & Machine Control:PC Controller with touch-screen to program cutting patterns or individual line cutting operation, graphic displays, self-diagnostics, machine parameter list; touch-screen keypad for data entry. -- Complete with: TX-ATASA automatic side alignment device, (3) Bakelite covered front support tables and fully covered rear table; (optional air flotation tables available at additional cost)(4) Dust collector outlets, (1) on each end of the saw base, (1) on the right side at cut-line height, and (1) on the right-hand side on top of the pressure beam. -- Available Options: (3) TX-PFT AIR FLOATING TABLES = $3,690.00 additional cost. (1) TX-P3SB THIRD JUMP SCORING UNIT = $4,290.00 additional cost. (1) PC BASE CONTROL (Optional with OPTIMIZE SOFTWARE) = $4,890.00

CAM-WOOD TX-P3200SAX Sliding Table Panel Saw w/Motorized Raise & Lower.Heavy-duty construction, vibration-free operation. Easy to set up and quickly adjusts. High accuracy, free movement sliding table without wear resistance.Specially designed double rollers carriage made by aluminum profile. Stable, torsion-free cross slides with easy running swinging arm.Features: -- 126" Cutting length w/scoring; 126" x 17" Anodized sliding table that locks in any position for easy loading. -- Motorized Saw blade up or down movement by 1/4 HP electric servo motor; tilting by manual handle wheel. -- Scoring unit for clean, accurate chip-free cutting, ready for edge banding. Specifications: -- 7.5 HP Main saw motor; 45° tilting (30 mm) main saw arbor; 14" Main blade dia.; 3,000/4,000 & 5,600 RPM arbor speed. -- 5.3" Max. material thickness at 90°; 3.1" at 45°. -- 1 HP Scoring saw motor, 5" dia. scoring blade; 8,000 RPM. -- Equipped with: 49" Max. ripping cap.; micro-adjustable rip fence and extendable crosscut fence to 10' with (2) flip stops. -- Articulating overarm protection guard; outboard and rear extension tables. -- Includes: Saw Blade(s), Maintenance Tools, Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD TX-P3200PL Sliding Table Saw w/Motorized Raise/Lower/Tilt & Programmable Rip FenceHeavy-duty construction, vibration-free operation. Easy to set up and quickly adjusts. High accuracy, free movement sliding table without wear resistance.Specially designed double rollers carriage made by aluminum profile. Stable, torsion-free cross slides with easy running swinging arm.Specifications & Features: -- 126" Cutting length w/scoring; 126" x 16" Anodized sliding table that locks in any position for easy loading. -- Saw blade moves up or down, tilting and fence movement driven by 1/4 HP electric servo motor. -- Scoring unit for clean, accurate chip-free cutting, ready for edge banding. Equipped with: -- 9 HP Main saw motor; 45° tilting (34 mm) main saw arbor; 15-3/4" Main blade dia.; 4,000/5,600 RPM; -- 5.3" Max. material thickness at 90°; 3.1" at 45°. -- 1 HP Scoring saw motor, 5" scoring blade; 8,000 RPM. -- 49" Max. ripping cap.; (200) memory program control for the rip fence, saw blade height and tilting angle via touch control screen for convenient operations; -- Extendable crosscut fence to 10' with (2) flip stops. -- Articulating overarm protection guard; outboard and rear extension tables.

CAM-WOOD - VPS I +, ...Vertical Panel Saw (216" x 74"), Vertical-Horizontal Digital Readouts Top to Bottom cutting height is 74", 70" horizontal cutting height; saw head w/motor rotates 90° for rip or crosscutting; cutting length 216"; cuts single or stacked panels up to 60 mm (2.36") in thickness.Standard features: -- 4.0 HP Motor (5.5 HP Option) with a 250 mm (10") dia. 80-tooth main saw blade. -- Auto-shifting material back support grid; shifting away from the saw blade cut line, prevents cutting into the grid support strips while rip cutting horizontally. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Repeat Rip Gauge for duplicating multiple horizontal cuts. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: Vertical-Horizontal Digital Readouts; (1) 250 mm (10") dia. 80-teeth, 30 mm bore main blade.Optional: -- Scoring unit with (3.15") dia. scoring blade, belt driven at 7,800 RPM; single-screw adjustment for side-to-side and depth.

CAM-WOOD TX-E8V Automatic Vertical Panel SawSpecifications: -- 98-1/2" Cutting length (cuts vertically top to bottom), adjustable depth of cut up to 2-3/8", 12" blade dia. with 1" dia. bore, single blade scoring; 5 HP main motor.Equipped with: -- Manually positioned pusher fence with grippers; precision ground guide rod, made from medium carbon steel coated with hard chrome, provides smooth and accurate travel. -- (3) Cutting modes: Standard, trim & cutoff to permit clean burrs, repeat cutting mode; heavy gauge base frame & table rest is welded from cold rolling steel plate, offering rugged construction. -- The uniform holding pressure through the entire pressure beam is achieved through a linkage mechanism, ensuring synchronized cylinder actuation on both sides. Flexible saw stroke adjustment enables the operator to select the desired stroke either full way or run out panel return depending on the panel length to be cut, this reduces considerable cycle time. Complete with: -- Fence made of cast iron and the surface precision ground is fitted with a flip-over stop for convenient repetitive cutting; saw carriage runs with bronze wheel, which is CNC lathe precision machined or accurate concentrically producing fine smooth surface cut; the guide rods, hard chrome-plated, provides rigid support for saw carriage; the ripping accuracy is guaranteed. -- 1 HP drive, variable speed saw carriage, cuts 16 - 98 FPM; return speed 98 FPM. Includes: -- Dust chute is covered with a split rubber to form a totally enclosed dust collection system, and fully prevents the hose from being broken resulting from its fatigue. -- Sectional dust guard not only acts as a surrounding saw blade guard but also fully prevents sawdust from spraying out of the machine.

CAM-WOOD TX-P12AAT FRONT LOAD AUTOMATIC PANEL SAW: -- Specifications: 149.6" (3,800 mm) Max. rip cut cap. & 149.6" (3,800 mm) max. pull-back front/back; 10 HP (7.45 kW) saw blades motor, 1" dia. arbors,4" (101 mm) max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM,160 mm (6.3") scoring blade at 6,000 RPM blade speed. -- Positioning Speed:2 HP Saw carriage drive motor, variable cutting speed from 16 - 98 FPM (5 - 30 MPM), return speed of 98 FPM (30 MPM). -- Pusher Fence: Programmable rear material push fence with servo drive, made of square tubular steel bar.0.5 HP pusher motor, rack & pinion drive, 16 - 49 FPM (5 - 15 MPM) speed. -- Operator & Machine Control:PC Controller with touch-pad to program cutting patterns or individual line cutting operation, graphic displays, self-diagnostics, machine parameter list; touch-screen keypad for data entry. -- Complete with: (3) Bakelite covered front support tables and fully covered rear table; (optional air flotation tables available at additional cost)(4) Dust collector outlets, (1) on each end of the saw base, (1) on the right side at cut-line height, and (1) on the right-hand side on top of the pressure beam. -- Available Options: (1) TX-ATSA AUTO SIDE ALIGNMENT DEVICE = $2,300.00 additional cost. (3) TX-PFT AIR FLOATING TABLES = $3,690.00 additional cost. -- Actual Model is CAM-WOOD TX-P12AAT

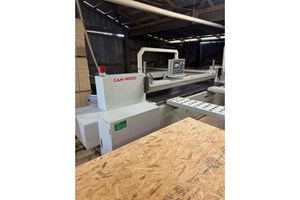

CAM-WOOD TX-P10AAT FRONT LOAD AUTOMATIC PANEL SAW: Shop Saw -- Specifications: 128" (3,250 mm) Max. rip cut cap. & 128" (3,250 mm) max. pull-back front/back; 15 HP (11.45 kW) saw blades motor, 1" dia. arbors,4" (101 mm) max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM,160 mm (6.3") scoring blade at 6,000 RPM blade speed. -- Positioning Speed:2 HP Saw carriage drive motor, variable cutting speed from 16 - 98 FPM (5 - 30 MPM), return speed of 98 FPM (30 MPM). -- Pusher Fence: Programmable rear material push fence with servo drive, made of square tubular steel bar;0.5 HP pusher motor, rack & pinion drive, 16 - 49 FPM (5 - 15 MPM) speed. -- Operator & Machine Control:PC Controller with touch-screen to program cutting patterns or individual line cutting operation, graphic displays, self-diagnostics, machine parameter list; touch-screen keypad for data entry. -- Complete with: (3) Bakelite covered front support tables and fully covered rear table; (optional air flotation tables available at additional cost)(4) Dust collector outlets, (1) on each end of the saw base, (1) on the right side at cut-line height, and (1) on the right-hand side on top of the pressure beam. --

CAM-WOOD SET-86TS SJC Double End Tenoner, 6 HeadsCapacity & Style: -- Max. 98" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Single-post machine, single "dual-track" base, right side fixed, left side movable. -- Motorized opening with LED indicator.Each side equipped with: -- Top scoring head, 2 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade -- Top trim head, 10 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade. -- Cope shaping head, 7.5 HP - 7,200 RPM motor, (150 mm) 5 7/8" long X 1" diameter arbor, 6" to 8" max. dia. cutter head -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads, and dogs at 6" center. -- Spring-loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross-transfer system with transfer line 4' X 8' transfer table with rollers (additional $61,125). -- Hopper feed magazine (additional $4,990). -- 42" Infeed extension (additional $5,620) -- Pneumatic jump control on scoring or shaping unit. -- Sound enclosure (additional $ 8,620) -- Electric motor brake -- Central supportNote: Pictures are showing the machine with several options included

CAM-WOOD SET-46TS 6 Heads 48" Double End Tenoner: Soring, trimming and shapingCapacity: -- Max. 48" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Motorized opening with LED indicator; -- Single-post machine, single "dual-track" base, right side fixed, left side movable.Each side equipped -- Front of post: Bottom scoring unit, 2 HP - 3,600 RPM motor, 1" dia. arbor & up to 10" blade; -- Top trim head, 3 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade; (saw blade included) -- Back of post: Vertical shaping head, 5 HP - 7,200 RPM motor, 5-7/8" (150 mm) long & 1" dia. arbor, 8" max. dia. cutter-head. -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads and dogs at 6" center, --Spring loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional $ 61,125) -- Hopper feed magazine (additional )Extended infeed 42" (additional $5,625) -- Sound enclosure additional $ 8,625 -- Pneumatic jump control on scoring or shaping unit -- Same machine with 8' opening

CAM-WOOD SET-56SAT 6-Head Double End Tenoner (Not Feed Through)Capacity: -- Length of cut: 12" to 60" (opening). -- Max. width of cut: 24" (cross cut). -- Max. clamping thickness: 4-1/2". -- Saw blade dia. 8" to 12"; saw arbor dia. 1"; saw blade speed 3,400 RPM; saw head swivels 180 degrees. -- Moulder (Shaper) spindle: 1" Dia. x 5" long; spindle speed 6,000 RPM; spindle swivels 180 degrees. -- Vertical travel: 17" vertical. -- Carriage (table) travel (front/back): 24".Equipped with: -- Saw motors: (4), each 2 HP motors (1 top & bottom each side). -- Shaper spindles: (2), each 3 HP motors (1 each side). -- Powered length setting: 1/2 HP motor (machine opening).Features: -- With the double end miter saw set-up, you can cut-off stock faster or consider a double end miter saw combined with moulding (shaper) head. It lets you cut and machine stock and moulding pattern in a single feed, saves time, space and cost. -- Air-operated vertical clamps hold sticks firmly in place. After the work piece is clamped, table start to feed, performs trimming and shaping operations. -- Trim saw allows to cut stock accurately with a clean cut. -- Moulding (Shaper) spindle mounted at the rear of saw head enables the machine to perform edge moulding after stock is cut off. -- The entire cutting cycle, cut-off, shaping/tenon or mortise is automatically operated in a single pass of stock feeding. -- The material Clamping table travels on a precision linear motion guide for stability. -- The table traverse is motorized, ensuring very stable, smooth workpiece feeding. -- Material transport thru machine powered by variable speed inverter drive for 10 to 20 Sec per cycle -- Variable feed speed permits proper feed selection for hard or soft wood materials. -- Large hand-wheel to adjust depth of cut. -- All controls are grouped in a control panel. -- Industrial motors for optimal cutting results.Machine Stations: -- 1: Top & Bottom Trim Saws powered by (4) 2 HP saw arbor motors for trimming to length. -- 2: Shaper spindles powered by (2) 2 HP spindle motors for applying tenons and grooves. -- Floor space requirement: 94" X 40" X 54" high. -- Cycle time: 10 to 20 Sec per cycle.Available option at additional cost: -- Auto Outfeed device -- Return conveyor

CAM-WOOD SET-88DET-SHJCJC 8-Head, 96" Double End Tenoner -- Suitable for mass production of woodworking task for double-end cutting, tenoning, grooving, profiling and sanding -- Scoring, Hogger/Saw, Jump Shaper, Jump Shaper: Total (4) stations on both sides. -- A solid, powerful machine great for Heavy-Duty production.Capacity: -- The specially designed numeric controller allows quick setting of sizes, for the tolerance within 0.004";. -- Variable speed, through feed, wide rubber pad chain, spring-loaded dogs at 8" center conveyor for the best finish selections. -- Heavy-duty pressure rolls at top of wide width conveyor to hold the material tight to prevent sliding during the cutting process. -- Shaper heads can be moved up & down, forward & backward. -- Max. 96" working capacity, min. 12"; max. 3-1/8" opening, 24" load area in front of hold-downs. -- The automatic high-speed through feed device allows for perfect finishing at speeds ranging from 20 - 66 FPM. -- Motorized opening with LED indicator.Each side equipped -- Top Scoring saw unit , 2 HP - 3,600 RPM motor, 1" dia. arbor & up to 8" blade -- Hogging/ Trim saw tiltable unit, 5 HP - 3,600 RPM motor, 1" arbor and up to 10" blade. -- Jump Shape/coping head unit, 7.5. HP - 4,500-7,000 RPM motor, 40mm dia. arbor for 6" to 8" cutter head. -- Jump Shape/coping head unit, 7.5 HP - 4,500-7,000 RPM motor, 40 mm dia. arbor for 6" to 8" cutter head -- Variable feed speed from 20 - 66 FPM, 2 HP motor, steel feed chains with plastic anti-slip pads and dogs at 16" center. -- Spring-loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Not Included -- Hopper feed magazine $3,960) -- Extended infeed 42" in front of hold-down belt $4,900) -- Sound enclosure $ 8,900Floor space : 8.5' X 9' X 6', weight 10,500 Lbs

CAM-WOOD SET-810SHJCR , Double End Tenoner with Sanding12-Head Double End Tenoner, suitable for mass production in a woodworking factory, processing double end cutting, tenoning, grooving, moulding, and sanding.Features: -- Automatic high-speed through feed device allows for perfect finishing at speeds ranging from 20 - 75 FPM. -- In addition to the double-end cutting, all the settings and other processing can also be executed with high accuracy. -- Since the machine is so versatile, we believe it will be one of the most satisfactory machines for bulk production lumber-processing factories. -- The specially designed numeric controller allows quick setting of length sizes for tolerance within 0.004". -- The numeric control system provides highly accurate settings, and a special memory retains all settings, even if there is a power failure. -- Variable speed, through feed, wide rubber pads with spring-loaded dogs located at 16" center distance with conveyor speed for the best finish selections. -- Heavy-duty powered pressure rolls at top of the wide width conveyor holds the material tight to prevent sliding during the cutting and sanding process. -- Shaper head can be moved up & down, forward & backward. -- Workstations are powered by industrial motors for full power cutting and utilizing the entire sanding capacity range. -- Two sanding heads can use brush, flap wheel or profile disc for fine finish with one pass. -- Trim saws and sanding heads can be tilted for different angular setup. -- Heavy cast iron base for durability and heavy duty usage.Specifications: -- Thickness: ½" to 4" -- Length: 10" to 96" -- Miter Saw Blade: 10" x 30 mm Dia. -- Grooving Saw Blade: 8" x 1" Dia. -- Shaper Cutter: 6" - 10" x 30 mm Dia. -- Feed Speed: Variable, 20 ~ 75 FPM -- Trim Saw 3 HP x 2, 3,450 RPM -- Hogging Saw 10 HP x 2, 3,450 RPM -- Jump Shaper 10 HP x 2, 4,500 to 7,000 RPM -- Shaper 10 HP x 2 4,500 to 7,000 RPM -- Belt Sanding 3 HP x 2, 0-1500 RPM -- Brush Sanding 3 HP x 2 with 30 mm arbor 0-1500 RPM -- Feeding 3 HP x 1 -- Width (Opening) Setting 1 HP x 1 Option: -- Sound enclosure ...$ 8,800

CAM-WOOD "PROFORMA" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.Models Include (Table Sizes): 404 (4' x 4'), 408 (4' x 8'), 510 (5' x 10')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: WEIHONG NK105 G3Spindle: 9.0kW (12 Hp) Air-Cooled Spindle 6,000 - 24,000 RPMBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: Servo-Motor and DriverY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: SERIES 404: Rear Linear (6) Tools ISO30, ER32 - SERIES 408/510: Rear Linear (8) Tools ISO30, ER32Inverter: SCHNEIDER 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERWorking Size:SERIES 404: 51’’ (X) x 51’’ (Y) x 7-3/4’’ (Z)SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 404: 87’’ (X) x 74’’ (Y) x 71’’ (Z)SERIES 408: 87’’ (X) x 122’’ (Y) x 71’’ (Z)SERIES 510: 99’’ (X) x 149’’ (Y) x 71’’ (Z)Max Travel Speed: 2350 IPMMax Working Speed: 1100 IPMMachine Net Weight: SERIES 404: 3,520 lbs / SERIES 408: 3,960 lbs / SERIES 510: 4,480 lbsFeatures Include: -- Automatic (12) Tools Linear Type Auto Tool Changer Under the Bridge for Increased Productivity. -- All “Servo Motor"; Driving System: All Axes are Driven by Brush-less Type, High Torque AC Servo Motors. -- DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats Along with On-Board Conversational Applications. -- Optional CAD/CAM System can Create and Edit Part Programs Then Send to Machine for Easy Cutting. DXF Files can be Imported, Modified, and Edited from Here to Create a G-Code. -- DNC is No Longer Required as the PC Directly Stores all Part Programs in a Text Editable File. -- Machine Designed Ready for 3-D Cutting Usage and Superior Performance. -- Moving Gantry Construction for Space Saving. -- The Rigid Steel Frame Construction has been Stress-Relieved Prior to Finish Machining to Provide Repeatability and Accuracy. -- Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. -- Linear Guides and Sliding Blocks are Pre-loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse and Precision. --The X & Y Axis are Equipped with a Precision Rack & Pinion Dri

CAM-WOOD "EXCEL" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.Models Include (Table Sizes): 408 (4' x 8'), 510 (5' x 10'), 510 (5' x 12')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemAuto-Loading: Auto In-feed Loading Scissor Lift & Out-feed Conveyor TableSpindle: 9.0kW (12.8Hp) HSD Air-Cooled Spindle - 6,000-24,000 rpmBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: Servo-Motor and DriverY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: Rotary (12) Tools ISO30, ER32Inverter: 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionalDrill Bank: Includes (9) Tools HSDCAD/CAM Software: OptionalWorking Size:SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)SERIES 512: 63’’ (X) x 150’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408: 98’’ (X) x 433’’ (Y) x 71’’ (Z)SERIES 510: 110’’ (X) x 531’’ (Y) x 71’’ (Z)SERIES 512: 112’’ (X) x 603’’ (Y) x 71’’ (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408: 8,810 lbs / SERIES 510: 9,970 lbs / SERIES 512: 10,750 lbsFeatures Include: --Nesting Work for Automatic In-feed Loading w/Scissor Lift and Out-feed Unloading w/Conveyor Process. --Automatic (12) Tool Rotary Type Auto-Tool Changer for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by Brush-less Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --DNC is no longer required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress Relieved Prior to Finished Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse and Precision. --The X & Y Axis are Equipped with a Precisio

CAM-WOOD "DYNAMIC" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.Models Include (Table Sizes): 408 (4' x 8'), 510 (5' x 10'), 510 (5' x 12') - Please call for current pricing!General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemSpindle: 9.0kW (12.8Hp) HSD Air-Cooled Spindle - 6,000 - 24,000 rpmBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: YASKAWA Servo Drive and MotorY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: Rotary (12) Tools ISO30, ER32Inverter: 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionalDrill Bank: Includes (9) Tools HSDCAD/CAM Software: OptionalWorking Size:SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)SERIES 512: 63’’ (X) x 150’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408: 87’’ (X) x 122’’ (Y) x 71’’ (Z)SERIES 510: 99’’ (X) x 149’’ (Y) x 71’’ (Z)SERIES 512: 99’’ (X) x 173’’ (Y) x 71’’ (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408: 3,960 lbs / SERIES 510: 4,480 lbs / SERIES 512: 4,970 lbsFeatures Include: --Automatic (12) Tool Rotary Type Auto-Tool Changer for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by Brush-Less Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --Optional CAD/CAM System can Create and Edit Part Programs then Send to Machine for Easy Cutting. DXF Files can be Imported, Modified and Edited from here to Create a G-Code. --DNC is no Longer Required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress-Relieved Prior to Finish Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse and Precision. --Th

CAM-WOOD "PROFORMA LN" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.SERIES 408 LN: $ 43,300SERIES 510 LN : $ 46,600Models Include (Table Sizes): 408 LN (4' x 8'), 510 LN (5' x 10')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemSpindle: 9.0kW (12 Hp) Air-Cooled Spindle 6,000 - 24,000 RPMBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: Lead-Shine Servo Drive and MotorY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: SERIES Linear (12) Tools ISO30, ER32Inverter: SCHNEIDER 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionDrill Bank: Optional (9) Tool HSDCAD/CAM Software: OptionWorking Size:SERIES 408 LN: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510 LN: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408 LN: 122’’ (X) x 87’’ (Y) x 71’’ (Z)SERIES 510 LN: 99’’ (X) x 149’’ (Y) x 71 (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408 LN: 3,960 lbs / SERIES 510 LN: 4,480 lbsFeatures Include: --Automatic (12) Tools Linear Type Auto Tool Changer under the Bridge for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by a Brushless Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --Optional CAD/CAM System can Create and Edit Part Programs then Send to Machine for Easy Cutting. DXF Files can be Imported, Modified and Edited from Here to Create a G-Code. --DNC is no longer Required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress Relieved Prior to Finish Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse and Precision. --The X & Y Axis are Equipped with a Precision Rack & Pinion Driving System. The Z Axis Utilizes a Ball Screw Assembly Complete with the Pre-Loaded and

CAM-WOOD AC-5080X Piston Air CompressorCompact unit with a 5 HP induction motor.Features & Specifications: -- 18 CFM @ 90 PSI, Splash lubricated cast iron 2-stage pump. -- Automatic start/stop operation. -- 80-Gal. vertical tank that meets the ASME standards. -- Manual tank drain & pressure gauge. -- Deep finned after-cooler. -- Fully enclosed belt guard and ON/OFF pressure switch. -- Deep finned cylinder head for cooling and replaceable air filter/silencer. -- Durable painted finish for years of service under the worst conditions.

CAM-WOOD AC-100120 Piston Air CompressorHeavy Duty unit with a 10 HP induction motor.Features & Specifications: -- 34.2 CFM @ 90 PSI, Splash lubricated cast iron 2-stage pump. -- Automatic start/stop operation. -- 120-Gal. horizontal tank that meets the ASME standards. -- Manual tank drain & pressure gauge. -- Deep finned after-cooler. -- Fully enclosed belt guard and ON/OFF pressure switch. -- Deep finned cylinder head for cooling and replaceable air filter/silencer. -- Durable painted finish for years of service under the worst conditions.

CAM-WOOD BR-2132 Boring Machine21-Spindle boring head on 32 mm centers with position indicator.Features & Specifications: -- Stops in 0° & 90° with pneumatically assisted positioning in vertical & horizontal. -- 0" - 3" Adjustable drilling depth with speed control. -- Head height fine adjustment with mechanical digital readout. -- 2 HP - 3,400 RPM Motor. -- Cast iron 37-1/2" x 19-1/4" table with side fences for mirror-image. -- Line boring fence with repeat stops. -- Foot actuated pneumatic clamps & drill cycle.Complete with: Magnetic starter, overload protection. -- Optional: Quick-change chucks $28.00 ea.

CAM-WOOD BR-OO42BX DOUBLE ROW LINE BORERHeavy Double Head Line Borer with (2) 21-spindle heads; 32 mm spindle spacing.Specifications: -- Drilling from the bottom up and with 5-1/2" - 23-1/2" distance between rows. -- Drilling vertically from the bottom allows the chips to drop down falling out of the holes. -- Drilling depth of up to 3" max., takes only seconds to set. -- (2) 2 HP - 3,400 RPM motors; spindles with steel gears & high quality bearings. -- Easy repetition by (2) air index pins for continuous line drilling, left and right roller track supports extend up to 400 mm (15-3/4") for larger panels.Features and Includes: -- 120" Back fence with (4) repeat "flip" stops; includes 27-3/4" (704 mm) fence for quick positioning of flip stops. -- (6) Pneumatic holddowns to automatically actuate when the drill cycle begins. -- (42) "Quick Change" chucks for easy tool change. -- Magnetic motor controls and 1/4" air regulator with filter and oiler; 100 PSI required air pressure.
