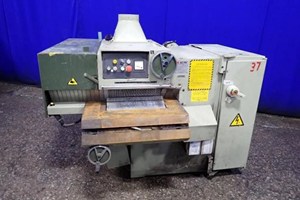

SCM M3 Multi-Blade Dip Chain Gang Rip SawSpecifications: -- 300 mm (11.81") Width cap. -- 110 mm (4.33") Max. depth of cut. -- 8-3/4" Throat depth. -- 390 mm (15.35") Min. stock length. -- 200 - 350 mm (7.87" - 13.78") Blade diameter. -- Arbor dia. 70 mm (2.76"). -- Table size 750 x 1,530 x 750 mm H (29-1/2" x 60.24" x 29-1/2" H). -- Blade speed 4,200 RPM. -- Feed speeds 6 - 48 MPM (19 - 157 FPM).Equipped with: -- 44 kW (60 HP) - 3,554 RPM Blade motor. -- Variable speed drive feed chain motor. (2) Upper infeed & (2) Upper outfeed 4" Dia. rollers, Automatic chain lubrication. -- Top & bottom anti-kickback fingers. -- Main dust hood, with 200 mm (7.87") Dia. outlet. -- 40"; x 2-3/4"; H Adjustable infeed fence. -- Motor load meter.Note: Some spec's need to be verified

SCMI SIGMA PRIMA 50 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: Working cap:149.6" (3,800 mm) Max. rip cut cap. 125.9" (3,200 mm) pusher stroke; 1.96" (50 mm) max. saw blade projection; 12 HP (9 kW) main saw motor (3,900 RPM); 2 HP (1.5 kW) scoring saw motor (6,300 RPM).Main blade diameter: 11.8" (300 mm), Main blade arbor diameter: 80 mm; Scoring blade diameter: 6.37" (160 mm), Scoring blade arbor diameter: 55 mmAutomatic exclusion of scoring unit when motor is in off position. -- Saw carriageFeed speed 0 - 327 FPM (0 - 100 MPM), return speed 327 FPM (100 MPM),Automatic saw carriage lubrication, balanced on hardened cylindrical guides; external score saw adjustment, THK guides for vertical saw movement. -- Pusher Fence:Feed Speed 0 -230 FPM (0 - 70 MPM) forward speed, 230 FPM (70 MPM) reverse speed;Programmable rear fence with (7) material gripper clamps, rack & pinion movement,Grippers fit into a slotted pressure beam for positive material control during the final cut. -- Operator & Machine Control:PC front-end with: SCM Real time "WinCut" + Windows "7 Professional" operating system; Pentium 300 MHz, 6.4 GB hard drive, 64 MB RAM,17" color super VGA flat screen monitor, on-screen diagnostics & production reports; (2) serial ports & (1) parallel port, spacing available for networking cards. "Cutty" optimization software is included which allows: 30 lines per program, 300 max number of pieces per line, and 3 cutting levels. -- Complete with:Side alignment device: Min. part width 2.36"; Max. part width 48"; Rear support rails with rollers;(1) Front fixed air table 98" x 24" (2,500 x 609 mm), (2) Adjustable air tables 59" x 24" (1,500 x 609 mm).Plastic safety guards; emergency stop bar; enclosed cutting area; triple dust collector outlet. -- Actual model is SCMI SIGMA PRIMA 50.

SCM TOP 35 BORING MACHINE(35) Spindles on 32 mm centers, pivoting boring head, drills vertically from the top and horizontally from the rear,Specifications: -- 0° - 90° Motorized tilting of the head, can be locked at any angle between; max. panel width 1.280 mm. -- (2) 6 HP - 2,800 RPM Motor; quick boring depth setting with (6) depth stops on revolving turret, viscous damper for smooth drilling & through boring. -- Designed with: Lead screw w/veneer scale for head displacement setup.Complete with: -- Back fence w/flip stops, plus fence extension with (4) mechanical reference stops, (4) pneumatic hold-downs; 33" worktable height.

SCM - OLIMPIC K 201 HFA, ...Automatic Compact Edgebander with: 3 mm Max. coiled edgebanding thickness & High Frequency motorsSpecifications: -- Edgebanding thickness cap. (for both coil & strip): 0.4 - 3 mm (0.02" - 0.19"). -- Min. panel length for coiled edges (min. width 200 mm) 140 mm (5.51"). -- Min. panel width for coiled edges: 65 mm (2.56"). -- Panel thickness: 8 - 40 mm (0.31" - 1.57"). -- Feed speed:9 MPM (29 FPM).Equipped with: -- Automatic adjustment of all units when panel thickness is changed. -- 20" Dia. coil table. -- Automatic coil feed magazine; manual strip feed. -- Teflon-coated glue pot. -- 1.2 mm (0.05") Cap. guillotine. -- Eye-level control with: GEFRAN "1000" LED Temperature controller. -- Adjustable feet.Workstations: -- Single-motor end trimming unit with: (1) 0.19 kW (1/4 HP) - 12,000 RPM High-frequency motor & copying device. -- Top & bottom flush trimming unit with: (2) 0.35 kW (1/2 HP) - 12,000 RPM high-frequency motors, and front & vertical copying devices.

SCM - PRATIX S-12-B: Flat Table Machine (w/ATC/Boring) -- SpecificationsSingle 4' x 8' traveling "Bridge Gantry" and stationary aluminum dual-vacuum table with: "MATRIX" square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil-boards for "nested base machining".Part location pop-up pins mounted on the table perimeter. -- Working field:"X" Axis is 98" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 5.9" (150 mm). -- Positioning Speed:"X" & "Y" Axis 115 FPM (35 MPM), "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra-large precision profile linear guideways. -- Boring Unit:3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) spindles in "X" axis & (2) spindles in "Y" axis. -- Machining:(1) 9 HP (6.7 kW) Air-cooled electrospindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 7-Position ATC tool rack mounted to the machine base RH side. -- Operator & Machine Control:PC Front-End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally Equipped with:Onboard mini-CAD with built-in programming for writing: Circles, ellipses & angles with only a few keystrokes.Onboard cycle optimization, onboard calculator, mirror-imaging, and repeat imaging. -- Complete with:(2) 150 cbm Vacuum Pumps; safety enclosure around the spindle carriage. Tool length measuring device.(1) Universal remote Pendant; 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program. The pendant is fitted with a USB port to allow quick load & setup of new programs.Safety "bump-stop" bumpers; emergency stop rope, doc's & manuals. --Actual Model: SCM PRATIX S-12-B

SCMI Compact 22/S 4-Head Moulder4-Head (B-R-L-T), working cap. 8-5/8" x 4-11/16". -- Head sequence: Bottom 5.5 HP motor, right/left 7.5 HP motor and top 5.5 HP motor. -- Spindle dia. 35 mm with cutterhead speed of 6,000 RPM. Variable feed speed 14 to 72 FPM with a 2 HP motor. -- Complete with: 2M (6'6") Infeed straightening table, sound insulation hood, dust hoods, and Owner's Manual.

SCM PRATIX S-15-B FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:Single 5' x 12' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with a MATRIX square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".(8) Part location pop-up pins mounted on the table perimeter. -- Working field:"X" Axis is 145.11" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 4" (100 mm). -- Positioning Speed:"X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways. -- Boring Unit:3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) in "X" axis & (2) in "Y" axis. -- Machining:(1) 9 HP (6.7 kW) Air-cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 14-Position ATC tool rack mounted to the machine base. -- Operator & Machine Control:PC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers: Incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally equipped with:Onboard mini-CAD with built-in programming for writing circles, ellipses & angles with only a few keystrokes; Onboard cycle optimization, onboard calculator, mirror-imaging, and repeat imaging. -- Complete with:(1) 300 m³/Hr Vacuum Pump; external transformer 208/230/480 Volt; safety enclosure around the spindle carriage; tool length probe sensor; manual centralized lubrication.Includes: (1) Universal Remote Pendant, 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program.The pendant is fitted with a USB port to allow quick load & setup of new programs; safety "bump-stop" bumpers; emergency stop rope & manuals. -- Actual Model is SCM - PRATIX S-15-B.

SCM TECNOMAX - SC/4 WS, ...8-1/2' Sliding Table SawSpecifications: -- Max. depth of cut with 315 mm (12.40"); dia. blade: 100 mm (3.94") at 90°; 70 mm (2.76") at 45°. -- Main saw: 3.6 kW (4.82 HP) Motor; blade dia. 315 mm (12.40"); arbor tilt 0° - 45°; blade speed 4,000 RPM. -- Scoring saw: Blade dia. 100 mm (3.94").Equipped with: -- 11-1/2"; x 102"; x 35-1/2"; H Aluminum sliding table; 840 mm (33.07") LR fixed table. -- Manual raise, lower & tilt. -- Mechanical digital tilt indicator.Complete with: -- 39-1/4"; L x 3-1/2"; H Rip fence with: 51" Cutting width cap. & cam locking. -- 650 x 1,100 mm (29.59" x 43.32") Squaring frame with: Crosscut fence; 1,800 mm (70.87") cutting cap.; (2) flip stops & siding outrigger support.NOTE: Saw is deinstalled as pictured in Photo #2. - Photo #1 shows Seller's other Saw, which is also available to purchase (EXF # PS-011935). Both Saws are one serial number apart. Seller confirms that all machine components are present.

SCM SI 350 N - 10-1/2', ...Sliding Table SawSpecifications: -- Cutting length 3,200 mm (126"); max. depth of cut: 118 mm (4.65") at 90°; 81 mm (3.19") at 45°. -- Main saw: 6.6 kW (9 HP) Motor; blade dia. 250 - 350 mm (9.84" - 13.78"); arbor dia. 1"; arbor tilt 0° - 45°; blade speed 4,000 RPM. -- Scoring saw: 0.75 kW (1 HP) Motor; max. blade dia. 120 mm (4.72"); arbor dia. 20 mm (3/4"); blade speed 8,500 RPM; external scoring blade adjustments.Equipped with: -- 14-1/4"; x 126"; x 35-1/2"; H Aluminum sliding table; 630 mm (24.80") x 1,040 mm (40.94") Fixed table. -- 2-Position table lock mechanism; manual raise, lower & tilt. -- Mechanical digital tilt indicator. -- Pivoting blade guard with dust outlet.Complete with: -- 47-1/4"; L x 3-1/2"; H Rip Fence with: 67" Cutting width cap. -- Crosscut Fence with: 84" Cutting cap.; (2) flip stops & Sliding outrigger support.

SCMI SI 16 W Sliding Table Panel SawSpecifications: -- 126" Cap. with scoring, 9 HP main and 1 HP scoring motors; tilting arbor 0° - 45°, 5-1/2" depth of cut with 15-3/4" blade dia.; 3,200 - 4,500 & 6,000 RPM arbor speed; 59" max. width to rip fence. -- Complete with: -- Telescoping crosscut fence with (2) large flip stops, mechanical work holddown attachment, 2-position sliding table lock and push button magnetic controls.

SCM TECNOMAX SC/4 WS 8-1/2' Sliding Table SawSpecifications: -- Max. depth of cut with 315 mm (12.40") Dia. blade: 100 mm (3.94") at 90°, 70 mm (2.76") at 45°. -- Main saw: 3.6 kW (4.82 HP) Motor, Blade dia. 315 mm (12.40"), Arbor tilt 0° - 45°, Blade speed 4,000 RPM. -- Scoring saw: Blade dia. 100 mm (3.94").Equipped with: -- 11-1/2"; x 102"; x 35-1/2"; H Aluminum sliding table, 840 mm (33.07") LR Fixed table. -- Manual raise, lower & tilt. -- Mechanical digital tilt indicator.Complete with: -- 39-1/4"; L x 3-1/2"; H Rip fence, with 51" Cutting width cap. & Cam-locking. -- 650 x 1,100 mm (29.59" x 43.32") Squaring frame, with Crosscut fence with 1,800 mm (70.87") Cutting cap., (2) Flip stops & Sliding outrigger support.Actual model is SC/4 WS-N.

SCM MINIMAX - FORMULA S1, ...Sliding Table SawSpecifications: -- 120" Cap. with: Scoring; 9 HP main motor & belt driven scoring blade; -- Manual tilting of the arbor 0° - 45°; Manual raise-and-lower of the main blade; -- 50" crosscut capacity with a movable fence.Features: -- "Easy-Set" scoring adjustment; heavy cast iron trunnion; 12" main saw blade dia. with 1" Arbor, 110 mm scoring blade dia.; -- Max. cutting height 3-1/2" at 90° & 2-3/4" at 45°; 1-speed arbor; 8,000 RPM on scoring blade. -- Complete with: 4" Main dust extraction outlet, miter fence & crosscut fence assembly with (2) flip stops.

SCMI OLIMPIC K230R EVO EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (0.3" to 1.96"), minimum part width 60mm (2.36"), minimum part length 160mm (6.30").Minimum distance between panels: 559 mm (22";), 29.5 FPM (98 MPM) Fixed feed speed, 1.0 HP (0.75 kW) feed drive.Pre-milling station: (2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized. -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue.Digital thermostat adjustment for temperature control. pneumatic guillotine, heating time approx. 8-10 min.3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazineWorkstations:2-Motor front & rear End Trimming (0.5 HP - 12,000 RPM ea. motor.), tilts 0° - 15°, end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes(0.5 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. -- Top & bottom scraping unit w/manual positioning. -- Top & bottom buffing unit (0.25 HP - 3,000 RPM motors), tilts up to 12°. Operator & Machine Control:Orion 1 Plus controller, located at the infeed of the machine. It is capable of operating all the work units via soft touch buttons.It pneumatically tilt’s the end trim unit from the control panel, it eliminates the use of micro switches, as well as control the temperature of the glue.The control is tilted slightly upward for a more ergonomically friendly position for the operator. -- Actual Model is SCM OLIMPIC K230R EVO.

SCM OLIMPIC K 360ERT HP COMPACT EDGEBANDER (W/PRE-MILL & CORNER ROUNDING):Specifications: -- Edge Capacity, 0.4 to 6 mm (0.016to 1/4") for strip feeding. -- Panel Capacity, min. width 65 mm and 140 mm min. length, (2-3/8" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped With: -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning. -- Pre-Milling Station, RT-VP: Spindles 2 x 2.0 HP, 19,000 RPM, (1) with PLC controlled jump action and diamond cutter heads. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Manual digital positioning, (3) pressure rollers, first larger, Teflon coated and powered. Workstations: -- End Trimming Station: Front & rear 2 x 0.25 HP, 12,000 RPM motors mounted on THK guides, swivels 0° - 15°, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings, flush/bevel/radius trimming, 2 x 0.7 HP - 12.000 RPM motors with precision digital indicators for quick setup. -- Profile Scraping Unit "RAS/V": Top/Bottom, manual pre-set up with digital indicators. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Buffing Unit: Top/bottom, 2 x 0.25 HP - 2,800 RPM motors, tilting up to 12°. Controls: -- Orion 1 Plus Controller, fixed at in-feed of machine. with "Touch Screen" control with soft keys, graphics and LCD display panel. It handles most machine set-up functions and workstations. Complete With & Features: -- Feed-speed, 36 FPM fixed, 1 x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam, full sound enclosure cover and outboard panel support. -- Actual Model is SCM OLIMPIC K 360ERT HP

SCMI OLIMPIC K 800 T-FR2 EDGEBANDER EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): Specifications: -- Edge Capacity, 0.4 to 8 mm (0.016 to 5/16") for strip feeding. -- Panel Capacity, min. width 65 mm and 140 mm min. length, (2-3/8" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With: -- Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 3.0 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations: -- End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit: Top/Bottom, 2 x 1.0 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "RC-V": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that my be lost during the edge scraping process.Operator Interface: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 36/52 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all trimming units. -- Electronic, programmable hold-down pressure beam positioning, lighted safety/sound enclosure cover and outboard panel support. -- Actual Model: OLIMPIC K 800 T-FR2

SCM STARTECH CN - CNC MULTI SPINDLE DRILLINGFeatures: -- Easy Motion Work Table -- 7" Touchscreen -- (7) Independent Vertical Boring SpindlesSpecifications: -- Maximum Panel Dimensions X-Y-Z (3050mm x 800mm x 50mm), Minimum Panel Dimensions X-Y-Z (300 mm X 90 mm x 10 mm) -- Drilling/Grooving working area: 0mm x 800 mm/0mm x 800 mm ÷X-Axis Stroke: 750 mm÷X-Y maximum axis speed: 25m/Min. -- Vertical Spindles: 7 (4X-4Y one of them is shared) Horizontal Spindles: (along Y-axis): 2 (1+1) -- Horizontal Spindles: (along X axis): -- 1 Fixed Integrated Blade (cutting into direction): X Blade Diameter: 100 mm Maximum Blade Thickness: 5 mm -- Motor Power: 3 HP (2.2 kW) Spindle Rotation Speed: 3350 RPM÷Blade Rotation Speed: 4300 RPM -- Electrical Supply: 230 Volt (60 Hz) Installed Motor Power: 4.5 KVAHigh-performance numeric controlled (NC) Drilling Machine engineered for full-production woodworking shops and craftsmen. The Startech CN drilling head's seven (7) independent vertical spindles, the spindle and blade in the “X"; axis, and the possibility of drilling in the “Y"; axis make it both flexible and ideal for batch furniture productions. This machine allows the operator unparalleled flexibility for tailored products without the need of operator intervention for the worktable and machine set-up according to the panel dimensions.

SCMI OLIMPIC S1000 T-ERL EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) -- Specifications:Edge Capacity, 0.4 to 15 mm (0.016 to 5/8") for strip feeding. -- Panel Capacity, min. width 50 mm and 140 mm min. length, (2.0" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With:&#9679 Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 5.25 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning and Diamond Cutter-heads. -- Anti-Adhesive Spraying System: Top/Bottom, positioned prior to the Pre-Milling Unit, it prevents glue buildup on the work-piece surfaces. It consists of (2) independent spray nozzles, and a tank for anti-adhesive liquids. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station, Vc/1000: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations:&#9679 End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit, Rsp: Top/Bottom, 2 x 1.5 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit, Ri/S: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit, Round-K: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. Comes with (2) pre-set pneumatic positions to allow to go from thick to thin pvc automatically. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "Rca/2c": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that my be lost during the edge scraping process.Controls: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 40/60 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all

SCM OLIMPIC K230-EVO SINGLE SIDED EDGEBANDERSpecifications: --0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (3/8" to 1-15/15"), minimum part width 110mm (4.33"), minimum part length 160mm (6.30"). -- Equipped with: -- 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue, digital thermostat adjustment for temperature control. pneumatic guillotine, 3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine --Workstations: --÷Double motor front & rear (0.4 HP - 12,000 RPM motor ea.), tilts 0° - 15°, end trimmers mounted on 45° THK guide. --Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes (0.7 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. --Top & bottom scraping unit w/pneumatic positioning from the control panel. -- Top & bottom buffing unit (0.25 HP - 2,800 RPM motors). 29.5FPM Fixed feed speed, 0.75 HP feed drive.

TIMESAVERS 252-4-IC, ... Wide Belt Sander, 4-Head.4-Head, 51" cap. - Great sander for solid wood and veneer panels equipped with (2) Contact rolls and (2) Air platens. Head Configuration1st Head: Rubber covered contact roll, 9-1/2" dia. 60 - 70 Durometer, 40 HP motor.2nd Head: Rubber covered contact roll, 9-1/2" dia. 50-60 Durometer, 30 HP Motor.3rd and 4th Head: Finishing platens, 2-1/2" wide "Veneer Saver" inflateable platens with adjustable timers for leading and trailing edges, 20 HP motor each head.Specifications: -- 38" Constant pass line height of Vacuum conveyor with suction fan and motor bed assembly for veneer and solid wood sanding. -- Adjustable air floating infeed and outfeed hold down shoes. -- 52" x 103" abrasive belts with "POSI-TRAK" electronic tracking.Equipped with & Features: -- Motorized part thickness adjustment with mechanical digital readout. -- Auto part thickness set-up, 0" - 6" opening. -- Hydraulic feed belt operation of 15 - 45 FPM via 7-1/2 HP hydraulic pack. -- 4-Motor load meters, controls mounted on belt loading side. -- Disc brakes on sanding head motors. -- 30" Infeed load area.

TIMESAVER 337-2 Wide Belt Sander, (2) Heads36" Width cap., Drum, Combination HeadHead Configurations:1st Head: 11-1/2" Dia. spiral grooved rubber contact roll 40 HP motor.2nd Head: Combination Head, Drum with Platen 30 HP motor. Specifications -- 37" x 75" Abrasive belts with pneumatic tracking. -- 2 HP feed drive; Variable feed speed from 20 - 60 FPM.Equipped with & Features -- Infeed & outfeed spring loaded holddown rolls on both heads. -- Motorized thickness adjustment with indicator, -- 0" - 6" opening. -- Infeed safety stop -- Adjustable shoes before and after each head. -- Controls mounted on belt loading side, --Sanding head motors with air caliper disc brakes, and motor load meters.
