BIESSE ROVER K 1532 CNC MACHINING CENTER (W/ATC & "C" AXIS): -- Specifications:"BRIDGE GANTRY" machine with a working field in "X" axis 126" (3,200 mm), "Y" axis 61" (1,560 mm), max. material thickness 6" (165 mm). -- Positioning speed:"X" Axis 279 FPM (85 MPM), "Y" Axis 196 FPM (60 MPM), "Z" axis 65 FPM (20 MPM). -- Work Table:(8) "ATS" Panels supports with lifting rails for heavy pieces; (4) "ATS" vacuum pods with universal clamping systems on each panel support.BIESSE "Set Up Assist" & digital readouts for pod & rail placement.(2) Independent working areas with (8) pneumatic back stops, (2) pneumatic side stops & (2) pneumatic central stops. -- Boring Unit:4 HP (3 kW) motor with variable speed from 1,500 - 7,500 RPM;"BL 30" Boring head with (20) "Quick Change" independent vertical spindles, (9) spindles in "X" axis & (11) spindles in "Y" axis;(8) Horizontal boring spindles with (2+2) in "X" axis & (2+2) in "Y" axis;(1) "X" axis grooving saw with 120 mm dia. blade. -- Machining:(1) 17 HP (12.6 kW) electro-spindle router with HSK F63 adaptor, variable speed from 3,000 - 24,000 RPM.Motorized dust deflector shield & 6-position adjustable dust suction hood,(1) NC controlled "C" axis for 360° horizontal processing.(1) 16-position ATC tool plate mounted on board the "X" axis at the rear of the machine. -- Operator & Machine Control:PC Front End with Biesse "BH 660" + Biesse "bSolid" + Windows "7 WRT" operating system,15" Flat screen monitor, full standard keyboard & mouse, 1.44MB & CD ROM disk drives for data entry,RS 232 & USB ports, Ethernet connection, specific function controls & internet trouble shooting capabilities.Electronics are mounted in an air conditioning & dust free environment control cabinet. -- Biesse "bSolid" is a 2D/3D Cad/Cam software program that supports the performance of any machining operation thanks to vertical modules designed for specific manufacturing processes.Planning with "bSolid" takes just a few clicks & has endless possibilities; "Real-Time" simulation allows the operator to visualize the piece prior to processing, it provides virtual prototyping of the piece to avoid collisions & ensures optimal machine performance. -- Complete with:(1) 250 m³/Hr Vacuum pump; Hand-held "Remote Control" pendant for immediate operator control; LED bar with (5) colors that show the machine's status in "Real-Time".Safety fences, safety bumpers, safety photocells & safety mats; scrap conveyor; original documentation + user & maintenance manuals, wiring diagrams and operation of Numerical Control. -- Actual Model is BIESSE ROVER K 1532 G VS2

BIESSE SKIPPER 100 L CNC MACHINING CENTER (2-HEAD): -- Specifications:Flexible "Top & Bottom" Machining Center that uses an innovative panel handling system. -- Workable part size:"X" axis is 118" (3,000 mm), "Y" axis is 39.4" (1,000 mm), max. part thickness of 2.4" (60 mm).Min. workable part size in "X" axis is 3.5" (90 mm), "Y" axis is 2.7" (70 mm), "Z" axis is .3" (8 mm). -- Worktable:Automatic LH infeed transfer conveyor with belts & rollers, Automatic RH outfeed transfer conveyor with belts & rollers; infeed/outfeed table is "robot ready". -- Positioning Speed:"X" Axis is 394 FPM (120 MPM), "Y" axis 295 FPM (MPM), "Z" axis is 98 FPM (30 MPM). -- Boring units: (1) Top mounted boring block, 4.2 HP (3 kW), 4,000 RPM; (29) vertical spindles, (17) spindles in "X" axis & (12) spindles in "Y" axis; -- (10) Horizontal spindles, (4+4) spindles in "X" axis & (1+1) horizontal spindles in "Y" axis; -- (1) "X" axis grooving saw with 2.2 HP (1.7 kW) motor - 5,000 RPM, 150 mm dia blade. -- (1) Bottom mounted boring block, 4.2 HP (3 kW), 4,000 RPM, (29) vertical spindles, (17) spindles in "X" axis & (12) spindles in "Y" axis; -- (10) Horizontal spindles, (4+4) spindles in "X" axis & (1+1) horizontal spindles in "Y" axis; -- (1) "X" axis grooving saw with 2.2 HP (1.7 kW) motor - 5,000 RPM, 150 mm dia blade. -- Machining:(1) Top mounted 4.8 HP (3.5 kW) electro spindle, 7,000 - 18,000 RPM with RH/LH rotation; HSK D-50 adaptors for manual push button "quick-tool" change, ERC-32 tool holders & RC-32 collets. -- (1) Bottom mounted 4.8 HP (3.5 kW) electro spindle, 7,000 - 18,000 RPM with RH/LH rotation; HSK D-50 adaptors for manual push button "quick-tool" change, ERC-32 tool holders & RC-32 collets. -- Operator Interface: PC Front-End with BIESSE "NC 1000" + Windows "Biesse Work" Operating System; 15" color monitor; international keyboard with soft-touch keypad & industrial mouse.RS-232 serial ports for possible down-loading from an office PC, USB ports; (1) 48x CD ROM drive; all mounted in a separate control console with a built-in 1,500 W air conditioner for constant temperature & dust-free environment. -- Complete with:Universal transformer for voltages from 200 - 600 volts, 50/60 Hz, 3-Phase; automatic lubrication system for guides & ways; sound enclosure and complete set of safety fences/devices; machine docs & manuals. -- Options include:"BiesseWORKS Advanced" Office version with: (2) Hardware keys; pneumatic part clamping with motorized infeed & outfeed transfer conveyors; Software Disclaimer: EX-FACTORY INC. Offers NO warranty or support, written or implied concerning any/all "optional" or "additional" manufacturer or 3rd party software supplied with this machine. All software related issues including relicensing fees/requirements/functionality & training is ultimately the sole responsibility of the "Buyer".Note : Tear down and loading not included

BIESSE AKRON 1440 SINGLE SIDE EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + with "AIR FORCE" PUR & EVA TECHNOLOGY: -- Specifications: Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material."AirForce" emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. That layer is activated and bonds the banding to the panel fibers. This technology allows changes based on banding colors without any setup.Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important. In addition, it features a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Working Capacity: -- Min. panel height: 10 mm; Max. panel height: 60 mm; Height of edgebanding material: 14 - 64 mm; Thickness of edgebanding material in rolls: 0.4 - 3 mm; Thickness of edgebanding in strips: 0.4 - 10 mm.Min. panel protrusion from the track: 25 mm; Panel length: 140 - 3200 mm; Min. panel width (with length 140 mm): 85 mm; Min. panel width (with length 250 mm): 50 mm.Multi-Feed speed 8-12-15 &18 MPM.Glue & Pressure Section: -- Infrared lamp IRL 700; Gluing unit Quickmelt QM 703 EVA melting glue. Special glue container for PU glue; Additional glue container for EVA gluing unit with melting device.Additionally equipped with the AirForce "VC-710", High pressure, hot air system to reactivate special pre-coated edge material (commonly referred to as laser edge.Automatic edge feed; Cutter knife; Pressure zone with 1-Drive & 2 pressure rollers.Working Units: -- Pre-milling unit with 2 x 0,8 kW, 12000 RPM motors, front/rear inclination 0° -15°. -- RT 02; Gluing, edge feeding, and pressing unit VC-511. -- End trimming unit with 2 x 0,8 kW, 12000 RPM, front/rear, inclination 0° -15°. -- Fine trimming unit 2 × 0,6 kW, 12000 RPM top/bottom. -- (2) Multifunction Corner Rounding unit, 0,65 kW each, for Corner Rounding, Straight Work pieces, Post and Soft-Forming 90° -180° degrees. -- Edge scraper unit; -- Glue scraper unit; -- Buffing unit 2 × 0,37 kW motors. Machine Features: -- Belt pressure beam. The top presser comprises a rubber belt with a stain-proof coating. The thrust exercised on the panel is provided by springs housed on techno polymer connecting rods. -- Auto adjustment of in feed fence. -- Automatic track lubrication system with dynamic track absorption. -- Manual infeed system for narrow pieces. -- One coil automatic edge feeding. -- Hybrid gluing head for granulated EVA and Polyurethane glue. -- Pre-Melter TM10 for Polyurethane glue in cartridges. On-demand top-loading pre-melter for PUR glues. -- Adaptive infra-red lamp to heat up the panel side before the glue application, in order to optimize the adhesion process. -- Independent pneumatic exclusion of the top/bottom fine trimming unit. Operator & Machine Control: -- Biesse, Windows-based "

BIESSE AKRON 440 AX EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications Material infeed for strips & coiled edge material like: PVC, ABS, veneer, and solid wood. -- Edge & Workpiece Capacity: 0.4 - 3 mm (0.016 - 0.12") Edge; 10 - 60 mm (0.39 - 2.36") panel thickness; 140 mm (5-1/2") min. panel length, and 85 mm (3.3") min. width. -- Working Units:Premilling Station: (2) 3 kW (4 HP) - 150 Hz, 9,000 RPM Motors; equipped with: Panel blow off device; SIKO digital counters for adjustments. -- EVA Gluing Unit: Edge Feeding & Pressing Unit; automatic loading of tape in rolls and strips; quick-change glue pot system. -- Pressure Section: (1) Large 150 mm dia. driven; (5) idle pressure rollers. -- Feed Speeds: Operating feed speeds: 12 & 18 MPM (39 & 60 FPM). -- Workstations: Double motor End Trim; tiltable from 0° - 15°; each motor: 0.8 kW (1 HP) - 12,000 RPM; sliding in a slicing motion on a 45° precision guide bar with oversized bearing blocks. -- Top & Bottom Trimming: (2) Motors, 0.65 kW (0.87 HP) each; "Pro-Nesting" copiers; cutters: R=2 mm. -- Fine Trim/Corner Rounding Unit: (2) Motors; each 0.65 kW (0.87 HP) - 12,000 RPM; motors carry out Corner Rounding and Top & Bottom Trimming on panel edge with: PVC, ABS, etc. material; wood edge banding up to 3 mm max. edge thickness. -- Top & Bottom Flat Glue Scrapper: To remove potential glue squeeze out. -- Buffing Station: Top & Bottom; (2) motors; each 0.37 kW (0.5 HP) - 2,800 RPM. -- Operator Interface:Operator Control Panel; "HDI" high definition touchscreen control; Windows XP-based. -- User-friendly graphic user interface with: Diagnostic and assisted maintenance. -- USB and Ethernet port; 1.44 MB floppy drive, automatic or manual startup. -- Complete with:High frequency motors (200 Hz): Padded sound enclosure. -- Top pressure beam with staggered double row holddown wheels mounted on ball bearings. -- Actual Model: BIESSE AKRON 440 AX

BIESSE - ARTECH LEVIA 330, ...3-Head Wide Belt Sander43" Width cap. Drum, Drum, and Combination Head.Head Configuration: -- 1st Head: Rubber covered Contact Roll, 6" dia., 25 HP motor. -- 2nd Head: Steel Contact Roll, 6" dia., 25 HP motor. -- 3rd Head: Combination head with a rubber-covered Contact Roll and Finishing Platen.NOTE: There are (2) 25 HP motors; one drives the 1st head and the 2nd drives the other (2) heads.Specifications: -- 44" x 85" Abrasive belts, electronic abrasive belt tracking; all contact rolls with pneumatic seclusion; Head #3 with air belt cleaner. -- EASY PRO "2000 C" Processor with (200) programs, touchscreen for control of Sander functions, thickness opening, feed speed, sequential startup, contact roll seclusion, and abrasive belt cleaner. -- Conveyor belt feed, 11 - 66 FPM variable feed speed, 2 HP feed drive with inverter control. -- 1/8" - 7-7/8" Motorized thickness adjustment with LED readout; automatic part thickness setup.Equipped with & Features; -- Automatic conveyor belt tracking. -- Infeed & outfeed shoes or rubber-covered holddown rolls, infeed panel "over thickness" sensor. -- Electronic brakes on both sanding head motors. -- Infeed emergency stop, 3-roll infeed extension, and motor load meter.

BIESSE ROXYL 6.0 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + "AIR FORCE" PUR/EVA GLUING TECHNOLOGY: Features: -- Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material."AirForce" emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. That layer is activated and bonds the banding to the panel fibers.This technology allows changes based on banding colors without any setup. Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important. -- In addition, it features a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Specifications: -- Edgebanding Capacity: Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12"); panel thickness from 10 - 60 mm (0.39 - 2.36"), workpiece width min. of 85 mm (3.34"); workpiece length min. 140 mm (5.51"); feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). -- Machine Controls: "Roxyl-Matic" Automated machine setup, MS/Windows XP Operating System, floppy drive, and 4 GB HD; USB port, keyboard, and mouse interface. -- Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without the necessity to write a program.Machine In-Feed Configuration: -- Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning. -- Edge Magazine: Automatic for processing coiled and strip edgebanding material + a (2) position vertical Coil Magazine Cart. -- Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.Gluing System: -- EVA (Hot Melt) "QM-705": Quick premelting granulate with glue roller applicator to cover conventional edgebanding material. -- AirForce "VC-710": High pressure, hot air system to reactivate special precoated edge material (commonly referred to as laser edge).Workstations: -- End Trimming Unit "IT90-S": Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-100": Top/Bottom pre- or flush trimming motors -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled, (4) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-positioning of motors by pneumatic air cylinders. -- Anti-Adhesive "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to workpiece's surfaces. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner a

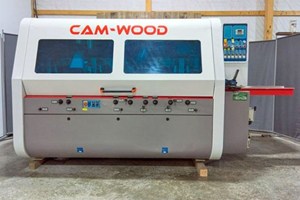

CAM-WOOD SM-623-HS 6-Head High-Speed Trough Feed Moulder(6)-Heads (B-R-L-T-T-B), working cap. 9" x 6-1/4".Specifications: -- Max/Min working width 9-3/4" -- Max/Min thickness 6-1/4" - 5/16" -- Minimum length 9-1/2" -- Head sequence: Bottom 10 HP, right 10 HP, left 10 HP, top 15 HP, top 15 HP and bottom 15 HP motor. -- Spindle dia. 40 mm (or by request) with cutterhead speed of 6,200 RPM. -- Feed works: Inverter driven, 10 HP feed system with feed speeds of 20 - 260 FPM. -- Infeed table 2 M (6'6"), chromed tables, and fences. Side pressure roller mounted at the infeed. Features and complete with: -- SM-237-DG where the last bottom spindle can be used for cutter head or saws with inverter RPM control -- HMI Touch Screen Control for all the head positions -- Automatic setting from 2nd to 6th heads, (2) axis positions and thickness control by servo control movement -- 200 sets of memory (Extendable) -- Feed speeds ranging from 20' ~ 260' per minute are standard specifications. -- Hard chrome-plated table for maximum wear resistance. -- Full enclosure safety hood reduces noise and completely prevents chips from splashing. -- Anti-impact plate for over-width and over-thickness protection. -- Oversize top and bottom rollers run synchronized, ensuring smooth feeding. -- FRP plastic steel safety guard features maximum durability and is impact resistance. -- The three independent section pneumatic pressures for the infeed rollers, in-process rollers, and outfeed rollers canbe set with individual pressure allowing for consistent feeding results and outstanding effect. -- The smooth initial feeding of the stock is achieved by the independently powered infeed rollers. -- Exclusively designed template inserted pressure plate suits various stock thicknesses and profile variations. -- A special pressure plate with table feeding roller design, provides smooth and precise cutting of dry and wetwood, reducing the possibility of material jams. -- All control levers for the spindles are located at the front of the machine for convenient adjustment. -- Vertical spindle adjustment up to 80 mm, allows fitting several tools on the vertical spindle, eliminating troublesome cutter change. -- Separate adjustment of the vertical spindle and insert table permits the table to be positioned extremely close to the cutterhead for added cutting stability. -- An individual motor drives each spindle and is separately mounted to eliminate spindle chattering during high-speed running. -- Centralized lubrication system Available options: -- Automatic jointer head for all (6) heads add ...$ 58,500 -- Siko encoder with digital display for all axis add ...$ 4,200 per head -- Automatic lateral chain feeder P.O.R.

CAM-WOOD SM-732 HS 7-Heads High-Speed Trough Feed Moulder(7) Heads (B-R-L-T-T- T-B), working cap. 111 13/16" x 6-1/4"".Specifications: -- Max/Min working width 11 13/16" - 3/4" -- Max/Min thickness 6 1/4" - 5/16" -- Minimum length 9-1/2" -- Head sequence: Bottom 20 HP, right 15 HP, left 15 HP, top 20 HP, top 20 HP, top 15 HP and bottom 15 HP motor. -- All Horizontal spindles have outboard bearings -- Spindle dia. 50 mm with cutterhead speed of 6,000 RPM. -- All spindles are equipped with mechanical digital readouts, "Dual mechanical" readouts on the left and top spindles. Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven 15 HP feed system with feed speeds of 20 - 260 FPM. -- Infeed table 2M (6'6"), chromed tables, and fences. Side pressure roller mounted at infeed. Features and complete with: -- PNEUMATIC LOAD INFEED SIDE PRESSUREWhile high speed feeding, the side pressure on infeed table ensures every timber close to the fence even under different width. It's convenient to adjust quickly. --OVER HEiGHT PROTECTIONIn case workpiece exceeds the rated maximum height, it will be restricted by the over height protection device provided at the workpiece infeed end. -- HYDRAULIC OUT-BOARD BEARING SUPPORT TOP AND BOTTOM SPINDLESpecially designed hydraulic supports on the top and bottom spindles assure maximum stability while performing high speed and heavy duty machining. -- PNEUMATIC LOAD SIDE PRESSURE WHEELS The front side air pressure wheel on left vertical spindle fully eliminates problem when feeding short or narrow stock not smoothly. The pressure plate is easy and quickly to adjust. -- PNEUMATIC LOAD TOP PRESSURE PLATEThe front pressure plate for top spindle is available to apply an air loading device ensuring maximum stability while performing high speed cutting -- CENTERAL LUBRICATION POINTThe lubrication point are located at the centralized plate for convenience. -- POWERED INFEED TABLE ROLLER The roller in the infeed table is powered, providing a smooth feeding effect for feed stock. -- VERTICAL SPINDLE AXIAL ADJUSTMENT UP TO 60MMIt allows fitting several tools on the vertical spindle, eliminating troublesome cutter change. The 60mm spindle adjustment provides full utilization for a single cutter. -- CENTRALIZED PRESSURE ADJUSTMENT• All pressure regulations for the entire pneumatic system are centralized at the front of the machine for added convenience in pressure adjustment, and sectional pressure adjustments for all pressure rollers ensure consistent pressure.• Clear numerical indicators are provided to correspond directly to the pneumatic mechanisms on the machine, allowing operators to make adjustments based on different processing requirementsAvailable options: -- Automatic Jointer for all (6) heads add: ...$45,600 -- Digital (electronic) display for X and Y axis for each head add $ 3,200 /per head -- NC Automatic positioning control sys

CAM-WOOD SM-3006 Push Feed Moulder4" x 6" 3-Side Planer, Moulder; Our most cost effective small to medium shop size Push-Feed Moulder.Equipped with & Features: -- If you try to run your short runs of special moulding at lower prices, this machine could be your answer. -- Solidly built with cast and steel plate construction, this is one moulder that will give you a foot up on the competition at an affordable price. -- Precision cast and steel plate construction to ensure a smooth finished product. Two vertical and one 1-1/4" horizontal spindle driven by individual industrial motor allowing smooth cutting on three surfaces simultaneously. -- Alloy steel spindle for durability usage. -- Two power infeed rollers feed the material to push previous pieces through moulding process then comes out from the end. -- (2) Belts driving at each spindle for maximum cutting power. -- Top and side pressure hold down to ensure smooth finish. -- Industrial full power motor for maximum cutting capacity. -- Precision sealed long-life bearings. -- Heavy cast iron frames and table for durability usage.Specifications: -- Table Size 47" L x 10" W. -- Moulding Capacity (Max.) 6" W x 5" H, Capacity (Min.) ¼" W x ½" H. -- Top Spindle Size 35 mm x 6" long. -- Side Spindle Size 1¼" x 3½" long. -- Spindle Travel 3", Spindle Speed 7000 RPM. -- Max. Cutter dia. 5". -- Spindle Motor (Top) 5 HP, (side) spindle motors 3 HP each. -- Feed Motor ½ HP and Feed Speed 10 ~ 56 FPM. -- Dust Hood 4" x 4". -- (2) Top Pressure Rollers and (3) Side Pressure Rollers.Overall Dimensions & Weight: -- 51" L x 43" W x 41" H. -- N.W. 1210 Lbs, G.W. 1550 Lbs.

CAM-WOOD WS-DA3760 Wide Belt Sander, (2) HeadsWith the two-head wide belt sander, you can accurately, and heavily sand your stock with the first drum head, and with the second combination head, you can give an unlimited fine finish.Application: -- Rugged heavy-duty sheet metal construction designed for durability usage. -- Powerful industrial motors drive sanding and auto infeed smoothly. -- Infeed and outfeed have spring-loaded hold-down rollers to ensure positive feeding without sanding marks. -- Combination platen & drum sanding head for best sanding choice such as: --With the platen up, the sander functions as a drum-only machine, for sanding with a 40 ~ 100 grit belt. -- With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180. -- With the platen down (below the drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.Head Configuration:1st Head : 20 HP Drum2nd Head : 15 HP Combination HeadSpecifications: -- Max. Working Width 37" Max. -- Working Thickness 5". -- Min Working Length 12½". -- Sanding Belt Dimensions (W x L) 37" x 60". -- Dust Collection Hood (Dia x Holes) 6" x 2. -- Main Motors 20 and 15 HP. -- Conveyor bed Feed Motor 2 HP. --Table Raising / Lowering Motor 1/2 HP -- Variable Feed Speed 20 - 80 FPM. -- Working Air Pressure 6 CFM. -- Exhaust Volume Require 2,400 CFM. -- N.W. weight 5,100 Lbs.Equipped with and Features: -- Sanding platen with a quick release and lock down design for easy removal or loading of graphite platen. -- Computerized thickness adjustment control with accurate digital readout; key in the size desired and automatic table movement for sanding thickness within 0.005"; accuracy -- Large size diameter contact drum is dynamically balanced, rubber-covered spiral grooves designed to provide considerable advantages for the effective removal of material. -- Special rubber feed belt for safe non-slipping, transporting the workpieces. -- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by an electric eye sensor, which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end of the top roller of the sandpaper for quick stop in case of belt breakage. -- The main table is designed with the convenient leveling adjustment which ensures greater stability with excellent tolerance providing a variable from 0"; ~ 5"; range sanding thickness. -- (4) Heavy-duty jackscrews power conveyor table elevation.

CAM-WOOD WS-DA4375X DUAL HEAD WIDE BELT SANDERWith the two-head wide belt sander, you can accurately, heavily sand your stock with the first drum head, and with the second combination head, you can give an unlimited fine finish.Application: -- Rugged heavy-duty sheet metal construction designed for durability usage. -- Powerful industrial motors drive sanding and auto infeed smoothly. -- Infeed and outfeed have spring-loaded hold-down rollers to ensure positive feeding without sanding marks. -- Combination platen & drum sanding head for best sanding choice such as: --With the platen up, the sander functions as a drum only machine, for sanding with a 40 ~ 100 grit belt. -- With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180. -- With the platen down (below drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.Head Configuration:1st Head : 30 HP Drum2nd Head : 20 HP Combination HeadSpecifications: -- Max. Working Width 43" Max. -- Max. Working Thickness 5". -- Min Working Length 12½". -- Sanding Belt Dimensions (W x L) 43" x 75". -- Dust Collection Hood (Dia x Holes) 6" x 2. -- Main Motors 30 and 20 HP. -- Conveyor bed Feed Motor 3 HP. --Table Raising / Lowering Motor 1/2 HP -- Variable Feed Speed 20 - 80 FPM. -- Working Air Pressure 6 CFM. -- Exhaust Volume Require 3,800 CFM. -- N.W. weight 6,160 Lbs.Equipped with and Features: -- Sanding platen with a quick release and lock down design for easy removal or loading of graphite platen. -- Computerized thickness adjustment control with accurate digital readout; key in the size desired and automatic table movement for sanding thickness within 0.005"; accuracy -- Large size diameter contact drum is dynamically balanced, rubber covered spiral grooves designed to provide considerable advantages for the effective removal of material. -- Special rubber feed belt for safe non-slipping, transporting the workpieces. -- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by an electric eye sensor, which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end of the top roller of the sandpaper for quick stop in case of belt breakage. -- Main table designed with the convenient leveling adjustment which ensures greater stability with excellent tolerance providing a variable from 0"; ~ 5"; range sanding thickness. -- (4) Heavy-duty jackscrews power conveyor table elevation.

CAM-WOOD WS-DA2560 Wide Belt Sander, (2) HeadsWith the two-head 25" width capacity wide belt sander, you can accurately, and heavily sand your stock with the first drum head and with the second combination head you can give an unlimited fine finish. -- Rugged heavy-duty sheet metal construction designed for durability usage -- Powerful industrial motors drive sanding and auto infeed smoothly. -- Infeed and outfeed are spring-loaded hold-down rollers to ensure positive feeding without sanding marks. -- Combination platen & drum sanding head for best sanding choice such as: -- With the platen up, the sander functions as a drum-only machine, for sanding with a 40 ~ 100 grit belt. -- With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180. -- With the platen down (below the drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.Head Configuration1st Head : 15 HP Drum2nd Head : 10 HP Combination HeadSpecifications: -- Max. Working Width 25" Max. -- Working Thickness 5" -- Min Working Length 12½" -- Sanding Belt Dimensions (W x L) 25" x 60" -- Dust Collection Hood (Dia x Holes) 5" x 2 -- Main Motor 15, 10 HP; -- Feed Motor 2 HP -- Table Raising / Lowering Motor ½ HP -- Var. Feed Speed (FPM) 20 ~ 80 20 -- Working Air Pressure 6 CFM -- Exhaust Volume Require 1800 CFM -- N.W. 4400 Lbs - G.W. 5000 LbsEquipped with and Features -- Sanding platen with a quick release and lock down design for easy removal or loading of graphite platen. -- Computerized thickness adjustment control with accurate digital readout; key in the size desired and automatic table movement for sanding thickness within 0.005"; accuracy. -- Large-size diameter contact drum is dynamically balanced, rubber-covered spiral grooves designed to provide considerable advantages for the effective removal of material. -- Special rubber feed belt for safe non-slipping, transporting the workpieces. -- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by an electric eye sensor, which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end of the top roller of the sandpaper for quick stop in case of belt breakage. -- The main table is designed with a convenient leveling adjustment which ensures greater stability with excellent tolerance providing a variable range from 0"; ~ 5"; sanding thickness. -- (4) Heavy-duty jack screws power conveyor table elevation.

CAM-WOOD SM-156A Feed Through Moulder;6-Head (B-R-L-T-T-B), working cap. 6" x 4".Specifications: -- Head sequence: Bottom 5 HP, right 4 HP, left 4 HP, top 10 top, top 5 HP and bottom 5 HP motor. -- Spindle diameter 40 mm with cutterhead speed of 6,000 RPM; spindles equipped with mechanical readouts for axial and radial adjustments. -- 4 HP Feed Motor variable speed 16- 65 FPM; carden drive system. -- 1.2 M (4'0") Infeed table with lateral side pressure roller mounted at table infeed. Manual table lubrication pump. -- Dust collection Min. 3,500 CFM -- Air requirement 90 psi. -- 150 AMPs. at 220 V. -- Machine dimensions , length & width 137"; long, x 54"; Width x 68"; High

CAM-WOOD SM-545 HS 5-Heads High-Speed Trough Feed /Planer/Moulder(5) Heads (B-R-L-T-T), working cap. 450 mm X 160 mm (17-7" x 6-1/4").Specifications: -- Max/Min working width 17.7" - 3/4" -- Max/Min thickness 6 1/4" - 5/16" -- Minimum length 9-1/2" -- Head sequence: Bottom 15 HP, right 15 HP, left 15 HP, top 20 HP, and top or bottom 20 HP . -- All Horizontal spindles have outboard bearings -- Spindle dia. 50 mm with cutterhead speed of 6,200 RPM. -- All spindles are equipped with mechanical digital readouts, "Dual mechanical" readouts on the left and top spindles. Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven 15 HP feed system with feed speeds of 20 - 260 FPM. -- Infeed table 2M (6'6"), chromed tables, and fences. Side pressure roller mounted at infeed. Features and complete with: -- Feed speeds ranging from 20' ~ 260' per minute are a standard feature. -- The full safety enclosure also works as a chip guard and helps to reduce noise. -- Table surface is hard chrome-plated for maximum wear resistance. -- All manually adjusted turning parts are housed in dry bearings for oil-free lubrication. -- One piece cast iron machine frame and table is especially normalization heat treated for maximum stability and rigidity. -- Fence adjustment is quickly accomplished by a quick-setting lever. -- The three independent section pneumatic pressure for the infeed rollers, in-process rollers and outfeed rollers can be set with individual pressure allowing for consistent feeding results and outstanding effect. -- All control levers for the spindles are located at the front of the machine for convenient adjustment. -- Each spindle is provided with a mechanical digital readout, giving accurate adjustment. -- Vertical spindle adjustment up to 80 mm, allows fitting several tools on the vertical spindle, eliminating troublesome cutter change. -- Separate adjustment of vertical spindle and insert table permits the table to be positioned extremely close to the cutterheads for added cutting stability. -- An individual motor drives each spindle and is separately mounted to eliminate spindle chattering during high-speed running. -- Centralized lubrication system Available options: -- Digital (electronic) display for X and Y axis for each head add $ 3,200 /per head -- NC Automatic positioning control system. This option consists of motorized adjustment of the head control from the main screen of the machine.This option include: -- 15" HMI (1000 memory setting), -- Servo motor positioning, Simple and easy to operate. -- Width and thickness quickly & auto set-up -- Tools management system -- Lateral chain feeder (quoted with customer material specifications)

CAM-WOOD EGS-108 Oscillating Edge Sander with End Sanding Kit.Features & Specifications: -- 6" Wide x 108" long abrasive belt. -- 6" x 40" Graphite covered platen. -- 3 HP Single-phase motor w/magnetic switch. -- 6" Diameter drive pulley. -- 7-3/4" x 37" Front table with a 6" vertical adjustment. -- End table for radius work with a 6" vertical adjustment. -- Heavy laminated tables, fabricated steel base and swing-away dust hood.

CAM-WOOD EGS-948 Oscillating Edge Sander with End Table.Features: -- Sandpaper automatically oscillates up & down so it will not overheat to get longer life usage and better finish result. -- 13" x 18" End table mounted at left side of the machine to use as contour sanding. -- Heavy gauge sheet metal cabinets stand and table for heavy work. -- The height of front & back table is adjustable by 5". -- Easily adjustable belt tension device. -- Twin main working tables can be tilted up to 45° reducing material burning and promotes longer belt life. -- The graphite pad lubricates the sanding belt and allows the belt to run cooler and smoother. -- All sealed long-life ball bearings and rubber contact motor pulley. -- Several typical profile blocks can be used for the edge profile sander. -- Powerful industrial motor for durability usage. -- Overload protect magnetic switch.Specifications: -- Sanding Belt Size: 9" x 142". -- Main Working Table (2 Units) 10-1/2"; x 48";. -- Side Working Table: 13"; x 17";. -- Belt Linear Speed: 3,230 FPM. -- Belt Drive Motor: 7-1/2 HP, 3 Ph. -- Oscillating Motor: Belt drive motor. -- Net Weight. 1,260 Lbs

CAM-WOOD EGS-636 Oscillating Edge Sander with End Table.Features & Specifications:Sandpaper automatically oscillates up & down so it will not overheat to get longer life usage and better finish result. -- 13" x 18" End table mounted at left side of the machine to use as contour sanding. -- Heavy gauge sheet metal cabinets stand and table for heavy work. -- The height of front & back table is adjustable for 5". -- Easily adjustable belt tension device. -- Twin main working tables can be tilted up to 45 degrees reducing material burning and promotes longer belt life. -- The graphite pad lubricates the sanding belt and allows the belt to run cooler and smoother. -- All sealed long-life ball bearings and rubber contact motor pulley. -- Several typical profile blocks can be used for the edge profile sander. -- Powerful 5Sandpaper automatically oscillates up & down so it will not overheat to get longer life usage and better finish result. -- Several typical profile blocks can be used for the edge profile sander. -- Powerful industrial 5 HP motor for durability usage. -- Overload protect magnetic switch. -- 6" x 117" Belt size with a Working size of 6" x 36". -- Machine weight 760 Lbs.

CAM-WOOD A-2560 Single Head, Wide Belt Sander;Features & Specifications: -- 24" Width cap. - sanding head with a rubber covered contact roll and adjustable finishing platen, 10 HP motor. -- 25" x 60" Abrasive belts, pneumatic abrasive belt tensioning. -- 0" - 5" Feed through bed adjustment, 0.5 HP motor power elevation for thickness opening. -- Variable conveyor feed speed from 17 - 51 FPM, 1 HP feed motor. -- 5" Max. working thickness, 7" min. working length, -- Double Infeed & outfeed spring loaded holddown rolls.Complete with: -- Magnetic controls, 6" dia. dust collection hood, and safety shutoff. - 1,500 CFM Dust collection required. Optional: 10 HP Single Phase motor

CAM-WOOD A-3775 Single Head Wide Belt SanderSpecifications: -- 36" Width cap. - Combination Sanding head with rubber-covered contact roll and adjustable finishing platen. 20 HP main drive motor. -- 37" X 75" Abrasive belts, pneumatic abrasive belt tensioning. -- 0" - 5" Feed through bed adjustment, Digital thickness set-up via 0.5 HP motor power elevation for thickness opening. -- Variable conveyor feed speed from 20 to 60 FPM, 2 HP feed motor. -- 5" Max. working thickness, 7" min. working length, -- Double Infeed & outfeed spring loaded holddown rolls.Complete with: -- Magnetic controls, 6" dia. dust collection hood, and safety shutoff. - 1,500 CFM Dust collection required.

CAM-WOOD M5412-SCX Tenoner & End Matching MachineTenoning/Coping machine for straight or miter material. Great machine for miter door production or stile and rail stock. Equipped with: -- 6" High stackable spindle by pneumatic up & down with (3) different stops; easily and accurately setup for each cutter position.One shaper head at each side of the table. -- Table moves from right to left by variable speed Pneumatic-Hydraulic power to achieve the full cutting power. -- Twin table moves in and out separated for tongue and groove, end-match application. -- Twin heavy-duty pneumatic pistons hold down the work pieces tightly to the table during the cutting process.Features: -- Rigid construction on the heavy sheet metal frame, cast iron table & base for durability usage. -- Heavy duty industrial motor is suitable for heavy-duty cutting under full load. -- Linear guide rails and bearings let the operator move the table smoothly. -- Cast iron fence locks in the table groove to finish 45° cut easily. -- Automatic cycle function, just place the material against the stops, the machine will automatically clamp, move in for shaping/tenoning, come out and release the hold down.
