--This machine is in Auction @ https://exfactoryauctions.com/Detail/FD-230117/event/A122024$1. --Low starting bid! Equipped with: 1st & 2nd Heads: Each with 2” W Cross brush belts, 2.5 kW (3.35 HP) - 1,690 RPM Motor, Rotating belt on vertical axis supports series of pads with abrasive paper, Pads are adjustable to vary angle of contact on panel during rotation of belt, Pads with abrasive strip makes contact with workpieces from both sides as it rotates. (3) 2” Dia. Rubberized hold-down rolls, (1) before and after each cross brush belt head. 3rd & 4th Heads: Each with 62” L x 16” Dia. Brush Roll & 2.5 kW (3.35 HP) - 1,140 RPM Motor, & Horizontal angle adjustment. 2-5/8” dia x 7/8” w swivel rubber wheels before each brush roll head. (1) 2” Dia. Rubberized hold-down roll after last brush roll head. 53-1/2” W x 12’ L Vacuum feed belt, with 2.64 kW (3-1/2 HP) - 1,695 RPM Motor, Holes on 1-1/2” W & 2” L Centers, 2-1/2” Dia. Rubber-covered infeed & outfeed rolls, Motorized adjustment with Digital readout with LED Display. Control motor load meters. Complete with: Instruction Manual.

COSTA KH2 CCCT 1350 Wide Belt Sander, (4) Heads52" Width cap. Drum, Drum, Drum, PlatenHead Configuration:1st Head: Steel contact roll, 9-7/8" dia, 45 HP motor;2nd Head: Rubber covered contact roll, 9-7/8" dia, 45 HP motor.3rd Head: Rubber covered contact roll, 9-7/8" dia. 60 shore, 30 HP motor.4th Head: Finishing Platen, 23 HPSpecifications: -- 53" x 103" Abrasive belts, air blast abrasive belt cleaning, pneumatic belt tensioning with electronic tracking. -- Controls with PLC processor, -- Pneumatic grit compensation with 4-position stops. -- Variable feed speed conveyor with inverter control 16 - 82 FPM.Equipped with & Features -- a Vacuum conveyor bed assembly with a 5.5 HP suction fan and motor. -- Infeed & outfeed spring loaded hold down shoes on all heads. -- Powered raise & lower conveyor bed with LED readout and motor load meters.

COSTA - K7 CCCT 650: 4-Head Wide Belt Sander; working width: 650 mm (25.6"); constant pass line conveyor height.Excellent Veneer & Solid Wood Sander with: (3) Contact Rollers and (1) platen.Head Configuration -- 1st Head: Steel contact roller; 250 mm (9-7/8") diameter; driven by 37 kW (50 HP) motor. - Abrasive belt speed 24 MPS (78 FPS). -- 2nd Head: Rubber-covered contact roller; 250 mm (9-7/8") diameter; Shore hardness 70; driven by 30 kW (40 HP) motor. - Abrasive belt speed 18 MPS (59 FPS). -- 3rd Head: Rubber-covered contact roller; 250 mm (9-7/8") diameter; Shore hardness 70; driven by 22 kW (30 HP) motor. - Abrasive belt speed 18 MPS (59 FPS). -- 3rd Head: Segmented finishing platen, electronically controlled narrow segments conform to panel width & length for thin veneer sanding; driven by 11 kW (15 HP) motor. - Abrasive belt speed: Infinitely variable 3 - 16 MPS (30 - 52 FPS). -- Sanding Belt Info: Abrasive belt; air blast abrasive belt cleaning; pneumatic belt tensioning with: Electronic tracking on all heads. - Grit set system for abrasive belt grit compensation. -- At Outfeed: Brush Roller 180 mm (7"); driven by 1.1 kW (1.5 HP) motor. Equipped with: -- PLC Processor controls with touchscreen; integrated control cabinet. -- Feed System & Conveyor Bed Min./max. working height: 3 - 160 mm (1/8" - 6-5/16"). Variable feed speed conveyor with: Inverter control 4 - 20 MPM (13 - 65 FPM). Constant Pass Line at: 920 mm From floor (36"). Vacuum conveyor bed assembly. Infeed & outfeed spring loaded holddown shoes on all heads. Powered raise & lower of conveyor bed with LED readout.Also included: About ...$15,000 of sanding belt.

COSTA LEVIGATRICI WD7-CCCC-600 Steel Plate & Part GrinderSpecifications: -- Max. finishing width 23.64" -- Max. thickness of mild steel 6.3" -- Number of grinding heads (4) -- Motors (1 & 2) 30 HP -- Motors (2 and 3) 20 HP -- Machine weight 14,700 LbsEquipped with: -- Schneider Magelis control with display -- (4) Load meters -- Variable speed heavy duty pass-through conveyor & exit metal roller conveyor -- Coolant system with paper filtration -- Manuals

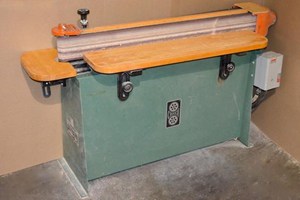

CROUCH 205-6 6" W x 50" Face Double-Sided Edge SanderSpecifications: -- Graphite-coated platen length 50". -- Belt size 6" W x 132" L.Equipped with: -- 6-Way Front table adjustment: Up-&-down, In-&-out, & Seesaw tilt. -- 3 HP - 1,725 RPM Motor. -- Rubber-covered aluminum direct-drive pulley. -- -- Ridgid tracking.

CROUCH - 81-70 ...Edge Sander (Non-Oscillating)5 HP Direct drive motor; 6" x 144" abrasive belt size; (1) 8" x 56" Platen.Equipped with: -- (1) 12" x 56" Adjustable side table and (1) 15" x 28" end table.Tables adjust vertically 5" and laterally 2-1/2". -- 8" Dia. rubber covered drive pulley and 4" dia. aluminum idle pulley.

DMC - UNISAND 2000-M2, ...Wide Belt Sander (2) Heads -- 53" Width cap. Drum, Platen.Head Configuration: --1st Head: 11" dia. (300 mm) Rubber-Covered Contac; (2) speeds or inverter adjustable 20 - 25 HP; Varied RPM. --2nd Head: Combination head with drum and graphite covered 2-1/2" finishing platen; 25 HP.Specifications: -- 54"x 103" Abrasive belts with electronic tracking. -- Shoe & Roller Holddowns. -- "Hydra 35" Computor controlled; set-up functions with keypad and LCD screen. -- Conveyor belt feed with variable feed speed from 11 - 60 FPM; 6.4 HP feed drive. -- Vacuum conveyor bed with: 7.5 HP Motor and suction fan. -- Automatic conveyor belt tensioning & tracking. -- Motorized part thickness opening with: LED Readout; 1/8" - 4" max. opening; automatic part thickness set-up sensor. Equipped with & Features: -- Infeed safety stop, outfeed emergency stop, motor load meters.2-Roll infeed conveyor extension; high efficiency dust extraction.

DMC - EuroSystem SY-TC 1350, ...Heavy-Duty 4-Head Wide Belt Sander53" Width cap. Drum, Drum, and Drum; Segmented Platen.Specification; -- Max. workpiece width: 53". -- Workpiece thickness: 0.32" - 6.8".Head Configuration & Feed: -- 1st Sanding Unit: 10"; Diameter grooved steel contact drum; 60 HP motor. -- 2nd Sanding Unit: 10"; Grooved rubber covered drum, 27 HP motor. -- 3rd Sanding Unit: 10"; Grooved rubber covered drum; 20 HP Motor. -- 4th Sanding Unit: Electronic segmented platen; 35 HP motor. -- Belt size of 53" x 103". -- Feed Motor: 5 HP, Variable feed speed. -- Vacuum Bed. -- Constant Pass Line.Equipped with & Features: -- Power Panel Touchscreen Control. -- Shoe type holddowns. -- Amp meters for all Sanding Units.

D M C - UNISAND 135, ...3-Head Wide Belt Veneer & Finishing Sander. -- General Data:3-Head, 51" (1,300 mm) nominal width cap.; motorized part thickness opening with LED readout; 1/8" to 4" max. - Head sequence: Cross belt, rubber-covered Drum, Pad. Head Configuration/Specs: -- 1st Head: Cross belt with: EPICS 44 Segmented electronically controlled air platen; 2-speed abrasive belt; approx. 36/72 FPM (11/22 MPS) linear speed; driven by 19 & 24 HP motors; 6" wide x 238" (6,050 mm) long abrasive belt. Inside synchronized Chevron belt, approx. 228" (5,800 mm) long.Pad unit with pneumatic cylinders: Each acting on a high absorption felt strip; working pressure controlled via control panel. HYDRA Belt: 2' Electronic control with oscillating blower for cleaning. -- 2nd Head: Rubber-covered 45-durometer steel roll, 9.8" (250 mm) dia. with: 18 HP 2-speed motor, 52" x 103" (4,055 mm) long oscillating abrasive belt with electronic tracking; air blast abrasive belt cleaner. Belt runs approx. 3,550 FPM (18 MPS) linear speed; adjustment & indicator of working position. -- 3rd Head: Flexible Sanding Platen with: EPICS 44 Segmented electronically controlled air platens; 3-speed 24 HP motors; 52" x 103" (4,055 MM) long abrasive oscillating belt with electronic tracking, timed oscillating air blast abrasive belt cleaner.Pad unit composed of: Pneumatic cylinders, each acting on a high absorption felt strip. Working pressure controlled vial control panel. Special rails allowing a quick change of graphite cloth on pad. Interchangeable system to modify the hardness, stiffness, and profile of the contact surface. Controller: -- DMC "HYDRA 30" Upgraded computer with: Working position display modes mounted in a separate control cabinet; automatic thickness device reads and adjusts feet table height, motor load meters. Transport Belt Drive: -- Variable feed speed of 16 to 82 FPM, conveyor feed drive, infeed & outfeed holddown pinch rolls on all heads; infeed hand safety stop, outfeed emergency stop; high efficiency dust extraction and separate control console with monitor, keypad, etc. Also included: -- Cleaning brush head at machine discharge. -- High pressure vacuum blower. -- Dust manifold. -- Extended outfeed table.

DMCTC 1350-M2-RP Orbital Sander (2) Heads --53" Width cap. Drum, Combination Head --Head Configuration --1st Head:10" Dia. helical grooved rubber covered calibrating roller, 26 kw (34 HP) motor. --2nd Head: Rubber covered contact roller with finishing platen 18 kw ( 28.5 HP) motor. --Specifications --Working width 1350 mm --Max thickness 170 mm --Belt size both heads 1370 mm X 2620 mm --Feed speeds variable from 3.5 -18 m/min. Feed motor 2.2 kw ( 3 HP) motor --Equipped With --Electronic sanding belt oscillation --Exhaust hoods with 4 outlets --Motor safety switch for main motor --Power rise and fall --Panel cleaning brush --Sander dim. L 2600 mm X W 2400 mm X H 2550 mm --Weight 2900 kg. --There is a crack in the plastic housing but it does not affect the functionality of the machine.

DMC UNISAND K (3) Bottom and (3)Top heads wide belt sander. --, 43" max. width. - Bottom Head sequence : 1st Head Contact roll, approx.18.5 KW motor- 2nd Bottom Head Contact roll, 2rd Bottom head, Combination head with roll and platen , approx.15 KW 2-speed motor, belt speed 118 m/sec. -- Bottom panel brush. -- Top Heads: 1st Top Head: Rubber covered contact roll approx. 18.5 KW motor, 2 speed, belt speed 9/18 M/Sec. adjustable contact roll with pneumatic grit adjustment. 2nd and 3rd Top Head: Combination head with Rubber covered contact roll and polishing platen, approx. 18.5 KW HP motor, adjustable contact roll with pneumatic grit adjustment.Top panel brush. -- 44"x 103" abrasive belts with electronic tracking; computer controlled set-up functions with key pad and LCD screen. -- Vacuum Conveyor feed belt with variable feed speed from 11 - 60 FPM, approx. 7.5 KW HP feed drive, automatic conveyor belt tensioning & tracking. -- Infeed & outfeed holddown pinch rolls on all heads, motorized part thickness opening with LED readout, 1/8" - 4" max opening, automatic part thickness set-up sensor. -- Complete with: Infeed safety stop, outfeed emergency stop, motor load meters, high efficiency dust extraction and control console with monitor. -- Actual model USK1350-IM3 + USK1350

SCM DMC 90 RCS 135 2 Head 53 inch Wide Belt Sander 53" Width cap, Steel Drum, Combination HeadHead configuration1st Head: Steel Drum 36 HP Motor, 9" Diameter 2nd Head: Combination head 65 shore drum and solid wood platen, 30 HP Motor, 7" Dia. drumSpecifications: -- 54" x 103" Abrasive belts with electronic tracking. -- Shoe & Roller Holddowns. -- "Hydra 35" Computer controlled; set-up functions with a keypad and LCD screen. -- Conveyor belt feed with variable feed speed from 11 - 60 FPM; 6.4 HP feed drive. -- Vacuum conveyor bed with 7.5 HP Motor and suction fan. -- Automatic conveyor belt tensioning & tracking. -- Motorized part thickness opening with LED Readout; 1/8" - 4" max. opening; automatic part thickness set-up sensor. Equipped with & Features: -- Infeed safety stop, outfeed emergency stop, -- Motor load meters. -- 2-Roll infeed conveyor extension; -- High-efficiency dust extraction.NOTE: Specs have to be verified

DMC UNISAND K 1100 Wide belt sander4-Head, 43" (1,100 mm) max. width cap. Head sequence: (3) Contact rolls and (1) Combi with roller and segmented platen.Heads configuration: -- 1st Head: Helical grooved steel contact roll, 10" dia., 48 HP motor. -- 2nd Head: Helically grooved rubber covered contact roll, 12-1/2" dia. and 65-Shore covering hardness, 35 HP motor. -- 3rd Head: Helically grooved rubber covered contact roll, 12-1/2" dia. 45-Shore covering hardness, 30 HP motor. -- 4th Head: Combi head with roller covered with rubber, 30 shore and Finishing sanding pad unit , 30 HP 2-speed motor with segmented pads pneumatically controlled -- All heads use 44" x 103" (to be confirmed) abrasive belts and are equipped with electronic tracking, automatic tensioning, automatic emergency breaking, and oscillating sanding belt cleaners.Controls: -- "HYDRA V-PAD" 10" Touch-screen computer for setup functions, color LCD Display, allows operator to setup/recall part thickness, -- Conveyor feed speed (3.5 - 18 MPM), -- Abrasive belt direction, and reversible speed setting of 4th head. -- Conveyor belt feed with inverter control, feed speeds from 11 - 60 FPM, 5.5 HP feed drive; -- Infeed & outfeed holddown pinch rolls on all heads, automatic part thickness setup with the moving feed belt, -- 2-speed motorized part thickness adjustment, 1/8" - 6" max. opening; -- Infeed & outfeed motorized conveyor extension rollers, automatic part thickness setup sensor. Complete with: -- Safety stop at infeed, -- Anti-kickback device, -- Infeed & outfeed emergency stops, -- Motor load meters, i -- Infeed & outfeed idle rollers, -- High efficiency dust extraction, and control console with monitor.Note: (spare parts not installed) New feed belt , new front pressure roller, new front pressure bar and several new small parts for approx $15,000 of value +11 boxes (approx 5 belts/ box) sanding belts 100 grit, 120 grit, 180 grit and 220 grit.

D M C EUROSAND L ERL 1350 M4 ...53" Wide Belt Sander with (4) Sanding Heads: 1,350 mm (53") Max. working width, equipped with (3) Contact Rolls, and (1) "Superfinishing" Segmented Platen Head.Head Configuration: -- 1st Head: Steel Contact Roller, spirally grooved, 250 mm (9.8") diameter; 26 kW (35 HP) motor. Pneumatically operated grit compensation. -- 2nd Head: Rubber Contact Roller, spirally grooved, approx. 85° Shore hardness, 250 mm ( 9.8") diameter; 22 kW (30 HP) motor. Pneumatically operated grit compensation. -- 3rd Head: Rubber Contact Roller, spirally grooved, approx. 45° Shore hardness, 250 mm ( 9.8") diameter. 3-speed motor 12 / 15 / 17 kW (16 / 20 / 23 HP). Pneumatically operated grit compensation. -- 4th Head: "Superfinishing" Segmented Polishing Platen with inner Chevron belt. With "PE 45 EPICS" (Electronic Pad Independent Control Stroke) - electronically controlled, segmented pressure pad with (45) pneumatically activated segments, each 30 mm (1.2") wide. The EPICS-system allows imperfections in the panel of up to 2 mm (1/16"). Driven by 2-speed motor 15 / 18 kW (20 / 25 HP) motor. -- 5th Position: (2) Oscillating Air Jet blowers for panel cleaning.All heads use abrasive belt size 2,620 x 1,370 mm (103" x 54"), and are equipped with electronic abrasive belt tracking, and pneumatic belt tensioning. Feed System with 900 mm (35-7/16") Constant pass line: -- Vacuum bed assembly to ensure flatness of parts and feeding of small & lacquered panels. -- Variable feed speed 4 - 19 m/Min (13 - 62 FPM), with 7,5 kW (10 HP) feed motor. -- Motorized thickness opening 4 to 170 mm (3/16" - 6.7") and Automatic thickness adjustment. -- Pneumatically operated conveyor belt tracking. Holddown shoes for the first three heads, rubberized rollers in the platen area.Machine Management System: -- Front-mounted control console with B&E "HYDRA V-PAD" 17" colour touch-screen monitor. NC-computer control and management of all machine functions. Storage capacity for (120) different sanding programs. -- Sanding heads with computer setup and adjustment, light indication of panel movement, thickness, and features maintenance indicator.Complete with: Roller table extensions front & back (28" each), Emergency stops front & back, Load meters, oversized parts and infeed protection. Includes dust extraction manifold. CE Compliant - Approx. weight 11,000 Lbs (5,000 kG)Actual model is D M C EUROSAND L ERL 1350 M4 ... Wide Belt Sander with (4) Sanding HeadsSander Dimensions: 160" x 80" x 90" H.Blowers Dimensions: 39" x 24" x 66" H.

DURAMAC - DUR52-2, ...2-Head Wide Belt Sander2-Head Wide Belt Sander with: Drum, combi-head, and brush cleaner. -- Max. working width: 52". -- Max. working thickness: 6". -- 23" Infeed load space. -- 50" Wide rubber conveyor belt size. -- 1st Head: Grooved rubber contact sanding drum; 40 HP, 230 Volt - 3-phase drive motor. -- 2nd Head: Combination contact drum & polishing platen; 30 HP, 230 Volt - 3-phase drive motor. -- Spring-loaded pinch rollers. -- Electronic belt tracking, pneumatic belt tensioning. -- (1) Rear top outfeed panel brush cleaning head, 0.5 HP, 230 Volt - 3-phase drive motor. -- Power raise & lower of worktable. -- Inverter driven feed works drive motor for variable speeds, 0 to 60 FPM. -- Front operator control station; motor ammeters. -- TOSHIBA Feedworks inverter. -- "DP-626S" electronic digital readout for setting table heightAlso Available: -- Transformer for 600 Volt operation, 112.5 KVA.

EKSTROM / CARLSON - 18, ...Pump Sander Pump Sander with: (2) 1" Dia. horizontal spindle; 2 HP - 1,200 RPM enclosed motor; mounted on heavy cast iron pedestal. -- Complete with: Push button magnetic controls & starter; 4" dust collection port.

EMC MERCURY 1350 3WRK Abrasive Planer / Wide Belt Sander with (3) Heads; Planer Head, Contact Roller, and Combination Head.Useful working width 1,350 mm (53"). Working thickness min./max. 3 - 170 mm (1/8" - 6-11/16"). The machines uses abrasive belts 2,620 x 1,370 mm (103" x 54") for longer life of the sanding belts.Head configuration:1st Head: Planer Head "W" -- Cutter head knives diameter 140 mm (5-1/2"). -- Shaft for helicoidal position knives with (380) Interchangeable knives with 4 cutting edges, 14 x 14 x 2 mm. -- Sectioned pressure bars in 20 independent segments. -- Anti kickback protection made of 72 independent elements. -- On-Off pneumatic cylinder for planer. group in working position. -- Working pressure adjustment. -- Motor power: 15 kW (20 HP). -- Automatic Star-delta starter. -- Speed rotation: 32 m/Sec (115 FPS). -- Soft starter for slow starting2nd Head: Steel Roller "R", Belts dimensions: 2,620 x 1,370 mm (103" x 54"). -- Roller diameter: 180 mm (7"), spirally grooved. -- Electronic motorized roller pressure adjustment "Grit-set system". -- On-Off selector switch control for roller. -- Constant control to any position with accuracy 0.02 mm. -- Rotation: Against feed (clockwise). -- Motor power: 11 kW (15 HP) with Automatic star-delta starter. -- Abrasive Belt cutting speed: 18 m/Sec (59 FPS). -- Timing oscillating cleaning abrasive belt blower located at the bottom 3rd Head: COMBINATION Unit "K", Belt dimensions: 2,620 x 1,370 mm (103" x 54"). -- Roller diameter: 140 mm (5-1/2"). -- Roller rubber hardness 45 Shore, Constant control to any position with accuracy 0.02 mm. -- On-Off selector switch control for 3rd roller including pneumatic piston -- Pneumatic Aluminum PAD , lamina 40 mm, On-Off. -- Quick changing system, extractable blade with felt, rubber and graphite. -- Rotation: Against feed (clockwise). -- Motor power: 11 kW (15 HP) with automatic star-delta starter. Abrasive Belt cutting speed:18 m/Sec (59 FPS).Feed system: -- Idle table rollers support in infeed and outfeed. -- Rubber covered presser rollers, grooved. -- Variable feed belt speed, adjustable from 3 to 17 m/Min (9.8 - 55 FPM) Inverter Controlled. -- Automatic feed belt centering device. General Machine Features: -- Large diameter screws on machined guides with columns and pistons. -- Independent main motors. -- Analog ammeters, for each motor, on main control cabinet. -- Electronic motorized grit set system, control from touch screen for each (head) working group. Electronic programmable color TOUCH SCREEN display, 7" wide -- PLC with micro-processor of latest generation, modular and expandable. -- Connection USB, RS232, Ethernet 10/100/1000. -- Memory capacity: 100 working programs or more. -- Graphic synoptic to facilitate programming.Software facilities: -- Automatic motor sequence starting. -- Command, programming and display for all electronic pad functions. -- Command, programming and display for thickn

EMC GIANT 1350 2WR Abrasive Planer with (2) Heads, Planer Head and RollerTop of the line Heavy Duty Abrasive Planer from EMC. The series of GIANT machines are available in many configurations. Abrasive Planer has a helicoidal head with insert tooling.Useful working width 1,350 mm (53"). Working thickness min/max mm 3 - 170 (1/8" - 6-5/8").Head configuration: 1st Head: Planer Head "W" -- Cutter head knifes diameter 180 mm. -- Shaft for helicoidal position knifes with (512) Interchangeable knifes with 4 cutting edges, 14 x 14 x 2 mm. -- Sectioned pressure bars in 24 independent segments. -- Anti kickback protection made of 72 independent elements. -- On-Off pneumatic cylinder for planer group in working position. Working pressure adjustment. Motor power 30 kW (40 HP), Star-delta starterSpeed rotation: 35 m/Sec (115 FPS).2nd Head: Roller "R" Belts dimensions: 3,250 x 1,370 mm (128" x 54"). -- Roller diameter: 320 mm (12-5/8"). -- Roller rubber hardness 45 Shore. Constant control to any position with accuracy 0.02 mm. -- On-Off pneumatic piston, controlled from the electrical panel. -- Rotation: Against feed (clockwise). -- Motor power: 22 kW (30 HP) Automatic star-delta starter. Rotating cutting speed: 21 m/Sec (99 FPS). Blower for the roller unit.Feed system: -- Constant pass line, 900 mm (35.4") from floor (In line machine). -- Vacuum bed, 4 kW (5,5 HP) for hold down of smaller parts, mounted inside of the machine base. -- Idle table rollers support in infeed and outfeed. -- Rubber covered presser rollers, grooved. -- Variable feed belt speed, adjustable from 3 to 20 m/Min (9.8 - 65.6 FPM). Inverter Controlled. -- Large diameter screws on machined guides with columns and pistons. -- Automatic feed belt centering device.General Machine Features: -- Independent main motors. -- Analog ammeters, for each motor, on main control cabinet. -- Electronic motorized grit set system, control from touch screen for each working group.Electronic programmable color TOUCH SCREEN display, 7" widePLC with micro-processor of latest generation, modular and expandableConnection USB, RS232, Ethernet 10/100/1000Memory capacity: 100 working programs or moreGraphic synoptic to facilitate programmingSoftware facilities: -- Automatic motor sequence starting. -- Command, programming and display for all electronic pad functions. -- Command, programming and display for thickness. -- Command, programming and display for feeding. -- Command, programming and display for all inverters. -- Command, programming and display for selected groups. -- Command, programming and display for blowers, including compressed air saving function. -- Display report and reset of alarms (self diagnostic) with memory records.Options Included: -- Vacuum bed, 4 kW (5,5 HP) for hold down of smaller parts, mounted inside of the machine base. -- Rotating blowers for part and feed belt cleaning. -- LED light inside the machine. -- Telemetry for remote computer assistance

EMC GIANT 1350 3WRF Abrasive Planer with (3) Heads, Planer Head, Roller and Superfinishing PadTop of the line Heavy Duty Abrasive Planer from EMC. The series of GIANT machines are available in many configurations. Abrasive Planer has a helicoidal head with insert tooling.Useful working width 1,350 mm (53"). Working thickness min/max mm 3 - 170 (1/8" - 6-5/8"). Head configuration:1st Head: Planer Head "W" -- Cutter head knives diameter 180 mm (7-1/16"). -- Shaft for helicoidal position knives with (512) Interchangeable knifes with 4 cutting edges, 14 x 14 x 2 mm. -- Sectioned pressure bars in 24 independent segments. -- Anti kickback protection made of 72 independent elements. -- On-Off pneumatic cylinder for planer group in working position. Working pressure adjustment. -- Motor power 30 kW (40 HP), Star-delta starter.Speed rotation: 35 m/Sec (115 FPS).2nd Head: Roller "R" Belts dimensions: 3,250 x 1,370 mm (128" x 54"). -- Roller diameter: 250 mm (9-13/16"). -- Roller rubber hardness 60-65 Shore. Constant control to any position with accuracy 0.02 mm. -- On-Off pneumatic piston, controlled from the electrical panel. -- "Grit-set system". -- Rotation: Against feed (clockwise). -- Motor power: 22 kW (30 HP) Automatic star-delta starter. Rotating cutting speed: 21 m/Sec (99 FPS). Blower for the roller unit.3rd Head: SUPERFINISHING PAD "F" Electronic PAD segmented in (75) sections. -- Belts dimensions: 3,250 x 1.370 mm (127-15/16" x 54"). -- Width of a single element (section): 18 mm (11/16"). -- APC - Automatic Programmable Control and setting of the air pressure. -- Electronic motorized roller pressure adjustment "grit-set system". -- Rotation: Against feed (clockwise). -- Timed oscillating abrasive belt "air jets" cleaning. -- Motor power: 18,5 kW (25 HP) with electronic inverter variable abrasive belt speed 3 to 18 m/Sec (9.8 - 59 FPS).Feed system: -- Constant pass line, 900 mm (35.4") from floor (In line machine). -- Vacuum bed, 4 kW (5,5 HP) for hold down of smaller parts, mounted inside of the machine base. -- Idle table rollers support in infeed and outfeed. -- Rubber covered presser rollers, grooved. -- Variable feed belt speed, adjustable from 3 to 20 m/Min (9.8 - 65.6 FPM). Inverter Controlled. -- Large diameter screws on machined guides with columns and pistons. -- Automatic feed belt centering device.General Machine Features: -- Independent main motors. -- Analog ammeters, for each motor, on main control cabinet. -- Electronic motorized grit set system, control from touch screen for each working group.Electronic programmable color TOUCH SCREEN display, 7" widePLC with micro-processor of latest generation, modular and expandableConnection USB, RS232, Ethernet 10/100/1000Memory capacity: 100 working programs or moreGraphic synoptic to facilitate programmingSoftware facilities: -- Automatic motor sequence starting. -- Command, programming and display for all electronic pad functions. -- Command, program

EMC FLEXY 1350 3WRK Abrasive Planer / Wide Belt Sander with (3) Heads; Knife Head, Roller, Combination Head Roller/Pad.Useful working width 1,350 mm (53"). Working thickness min./max. 3 - 190 mm (1/8" - 7-1/2").Head configuration: 1st Head: Knife Planer Head "W" -- Cutter head knives diameter 140 mm (5-1/2"). -- Shaft for helicoidal position knives with (380) Interchangeable knifes with 4 cutting edges, 14 x 14 x 2 mm. -- Sectioned pressure bars in 24 independent segments. -- Anti kickback protection made of 70 independent elements. -- On-Off pneumatic cylinder for planer. group in working position. -- Working pressure adjustment. -- Motor power 15 kW (20 HP). -- Automatic Star-delta starter. -- Speed rotation: 35 m/Sec (115 FPS).2nd Head: Steel Roller "R", Belts dimensions: 2,620 x 1,370 mm (103" x 54"). -- Roller diameter: 250 mm (10"), spirally grooved. -- Electronic motorized roller pressure adjustment "Grit-set system". -- Constant control to any position with accuracy 0.02 mm. -- Rotation: Against feed (clockwise). -- Motor power 15 kW (20 HP). -- Automatic star-delta starter. -- Abrasive Belt cutting speed: 18 m/Sec (59 FPS). -- Air Jet Blower for abrasive belt cleaning.3rd Head: Combination Head "K", Belt dimensions: 2,620 x 1,370 mm (103" x 54"). -- 3° roller diameter mm 150, Roller rubber covered, hardness 45 shores, Roller pressure adjustment control and "grit-set system" -- ON-OFF selector switch control for 3° roller, including pneumatic piston -- PNEUMATIC aluminum pad, lamina 40 mm, ON-OFF -- Quick changing system; extractable blade with felt, rubber and graphite -- Abrasive belt motor power 15kW (20hp) • Soft starter for slow starting 15kW• Rotating cutting speed 18 m/sec. -- Air Jet Blower for abrasive belt cleaning.Feed system:Constant pass line, 900 mm (35.4") from floor -- Idle table rollers support in infeed and outfeed. -- Rubber covered presser rollers, grooved. -- Variable feed belt speed, adjustable from 3 to 18 m/Min (9.8 - 59 FPM) Inverter Controlled. -- Large diameter screws on machined guides with columns and pistons. -- Automatic feed belt centering device.General Machine Features: -- Independent main motors. -- Analog ammeters, for each motor, on main control cabinet. -- Electronic motorized grit set system, control from touch screen for each (head) working group. Electronic programmable color Touch Screen display, 10" wide -- PLC with micro-processor of latest generation, modular and expandable. -- Connection USB, RS232, Ethernet 10/100/1000. -- Memory capacity: 100 working programs or more. -- Graphic synoptic to facilitate programming.Software facilities: -- Automatic motor sequence starting. -- Command, programming and display for all electronic pad functions. -- Command, programming and display for thickness. -- Command, programming and display for feeding. -- Command, programming and display for all inverters. -- Command, programming and display for selected groups
