LHI RFPR ROLL FEED PANEL RIPPER - "BUILT TO ORDER SYSTEM" with the following equipment: -- Ripsaw: -- 72" Arbor - 50 HP arbore motor and 14 to 80 FPM Variable Speed Feed Rate (4-speed programmable via VFD) -- (8) Polyurethane Feed Rollers -- Arranged for 10" dia. blades to rip panel thickness from 1/8" to 1-1/2"; -- Single Point Thickness Adjustment -- Quick-Change Arbor Kit Additional Arbor Setup Including: -- (1) Arbor Cart, (1) Blade Box, (1) Arbor Shaft, (1 set) Bearings, (1) Arbor Sheave, and (1) Throat Plate Rack Automatic Infeed System: -- 4,500 Lbs. Capacity Hydraulic Scissors Lift with (4) loading ramps to feed and align 4’ x 8’ sheets into Panel Saw -- 110VAC/1PH Scissors Lift power unit -- Auto-Cycling Rake Feeder -- 6’ Line-Up Conveyor With Power Pinch WheelOutfeed Scissors Lift: -- 4,500 Lb. Capacity Hydraulic Scissors Lift with 4' x 8' top, (3) support ramps/cross-bars to allow fork access -- 110VAC / 1Phase power unit -- Auto Down Indexing -- Auxiliary Foot Pedal Control Blades, Collars and Throat Plates: 10" x 40T x 4 3/16 Bore, TGC, $105 eachBlade Collars: 3-15/16" ID x 4.18" bore x 1.25" wide, $135 eachAluminum Throat Plates, $35 each TERMS AND CONDITIONS: -- Delivery: 16-18 Week ESTIMATED delivery date assumes your order is received within one week of date of this quotation. -- A 5% Tooling & Steel Surcharge to be added to the machinery price when the total is known -- Installation technical assistance, $125/hr. plus travel time and expenses (if required) -- Customer responsible for own rigging -- Quote assumes customer will deliver material for testing (if required) -- Warranty: 1-year mechanical parts (electrical controls excluded) -- FOB: Shannon, MS 38868. ESTIMATED SHIPPING DATE: 16 TO 18-WEEKS --The delivery date is quoted as “estimated"; because the equipment manufactured is built to our customer's specifications. This estimate is made under the assumption that there will be no interruptions of labor, material shortages, or any environmental or other unforeseen circumstances. -- LHI is not responsible for any installation or production costs resulting from actual delivery dates which exceed the quoted estimated delivery dates. Accurate dates for the delivery will not be available until the equipment is in the manufacturing phase. If there are custom features for the quoted equipment then accurate delivery dates will be available when testing is complete. Please consult with the factory for updates to the expected delivery date.NOTE: PRICING DOES NOT REFLECT FACTORY'S 10% MATERIALS SURCHARGE

LHI PIGTAIL Crosscut saw with conveyor and air stopSpecifications -- 62" Cut width --Saw motor 5 HP -- 14 FT gravity conveyor cutting surface -- Cam Lock adjustable stop -- Power feed wheel for rip saw infeed assist -- Blade dia. 12"Equipped with and Features -- 4,500 lb lift with loading ramps 1 HP, 30" X 72" platform -- 4,500 lb Outfeed lift with 3 ramps, 48" X 96" Platform, Auto down indexing -- 10" X 40T X 4-3/16" , 30 Blades -- 3-15/16" ID x 4.18" bore x 1.25" wide 30 collars -- 32 Throat Plates

LHI 72" RFPR Wide Arbor Roll Feed Gang Panel Ripper with Custom 5' x 16' Automated Infeed -- Specifications: -- Panel Ripper with 30 HP Arbor Motor; 1/8" min. to 1-1/4" max. material thickness and 72" cutting width. -- Machine configured for arbor removal from the right side of the Saw when facing the Saw's Infeed (opposite of standard) -- Electricals arranged for 600-volt/60-cycle/3-Phase operation -- 10" Dia. blade design will cut thru max. 1-1/4" thickness; -- 3-15/16" dia. arbor with 72" of usable width cutting capacity, min. panel length 30". -- 1-15/16" FAFNIR arbor bearings; with (8) steel feed rollers on 6" centers; fixed feed speed of 80 FPM -- 47-1/4" working (passline) height -- (1) Arbor Cart is included -- (2) 4" Dia. dust collection ports on top and (1) 8" dust collection port on bottom. Recommended 1,500 CFM Includes the Following Optional Items: -- 5-Strand powered Chain Deck; 12' long; arranged to feed 5' x 16' packages onto the Scissors Lift. Complete with controls for forward, reverse, and jog. -- 5-Sections of Gravity Rollers on Scissors Lift Deck -- 8,000 lbs. Infeed Tandem Scissors Lift with 5' x 17' Deck and 2-HP, 3-Phase Motor. Lift includes a backstop for initial alignment at the Rake Feeder -- (8) Polyurethane Feed Rollers on 6" centers -- Variable Feed Speeds from 10 to 80 FPM. -- Rake Feeder for 16' long panels -- Auto-cycle for Rake Feeder. -- 6' Line Up Conveyor with Fence and Powered Pinch Roll Included Tooling: -- (36) Standard Saw Collars for Ripping -- (72) Standard 10" Sawblades for Ripping (Includes a spare set) -- (37) Standard Throat Plates for RippingQuick Setup Kit Included, Contains the Following -- Belt guide -- Belt Tensioner -- Hydraulic Arbor LockAdditional Arbor Setup Included. Contains the Following: -- Includes cart, blade box, arbor, bearing, sheave, throat plate rack, and(6) throat plates -- Blade Box -- Arbor -- Bearings -- Sheave -- Throat Plate Rack -- (6) Throat Plates SYSTEM TOTAL ............….……$174,495 7% ($12,214) materials surcharge on $174,495 = $186,709

LHI 72" RFPR Wide Arbor Roll Feed Gang Panel Ripper with Custom 5' x 16' Automated Infeed -- Specifications: -- 30 HP Arbor Motor; 1/8" min. to 1-1/4" max. material thickness and 72" cutting width. -- 10" Dia. blade design cuts thru max. 2" thickness; -- 3-15/16" dia. arbor with 72" of usable width cutting capacity, min. panel length 30". -- 1-15/16" FAFNIR arbor bearings; with (8) steel feed rollers on 6" centers; fixed feed speed of 80 FPM -- 47-1/4" working height -- (1) Arbor Cart is included -- (2) 4" Dia. dust collection ports on top and (1) 8" dust collection port on bottom. Recommended 1,500 CFM Includes the Following Optional Items: -- 5-Strand powered Chain Deck; 12' long; arranged to feed 5' x 16' packages onto the Scissors Lift. Complete with controls for forward, reverse, and jog. -- 5-Sections of Gravity Rollers on Scissors Lift Deck -- 8,000 lbs. Infeed Tandem Scissors Lift with 5' x 17' Deck and 2-HP, 3-Phase Motor. Lift includes a backstop for initial alignment at the Rake Feeder -- (8) Polyurethane Rollers on 6" centers -- Variable Feed Speeds from 10 to 80 FPM. -- Rake Feeder for 16' long panels -- Auto-cycle for Rake Feeder. -- 6' Line Up Conveyor with Fence and Powered Pinch Roll Included Tooling: -- (36) Standard Saw Collars for Ripping -- (72) Standard 10" Sawblades for Ripping (Includes a spare set) -- (37) Standard Throat Plates for RippingQuick Setup Kit Included, Contains the Following -- Belt guide -- Belt Tensioner -- Hydraulic Arbor LockAdditional Arbor Setup Included. Contains the Following: -- Arbor Cart -- Cart -- Blade Box -- Arbor -- Bearings -- Sheave -- Throat Plate Rack -- (6) Throat Plates PRICE REFLECTS FACTORY'S 7% MATERIALS SURCHARGE ON $156,995, OR $10,990

LHI MODEL RFPR AUTOMATED PANEL RIP SYSTEM --Arranged for up to 5/8"; Thick x 52"; Wide x 18’ Long Panels as follows: AUTOIMATIC INFEED SYSTEM, INCLUDES: --Rake Feeder for up to 18’ Long Sheets --Automated Feed Cycle Controls --Turnkey Controls, Plug it in and Run --1 HP, 3-Phase, 460-Volt Operation 6’ ALIGNMENT CONVEYOR, INCLUDES: --Gravity Roller Frame with 60"; Wide Rollers --Alignment Fence --Spring Loaded “Feather"; to Keep Sheets Tight to the Alignment Fence --Powered Feed Wheel to Push Sheets into the Ripsaw --2 HP, 3-Phase, 460-Volt Operation TANDEM INFEED SCISSORS LIFT --8,000 LBS. Capacity --30"; x 204"; Platform With 62"; Rails Mounted Across the Lift for Fork Lift Entry. Rails are Evenly Spaced Down the Length of the Lift --62"; x 204"; Useable Deck Size. --Automatically Raised and Lowered by Signals from the Sheet Feeder --2 HP, 3-Phase, 460-Volt Operation TANDEM OUTFEED SCISSORS LIFT --8,000 LBS. Capacity --30"; x 204"; Platform With 62"; Long Rails Mounted Across the Lift for Fork Lift Entry. Rails are Evenly Spaced Down the Length of the Lift --62"; x 204"; Useable Deck Size. --Automatically Lowers by Signals from Auto-Down Index Control Unit --2 HP, 3-Phase, 460-Volt Operation --OPTIONAL: 4-Sided “Accordion Skirts"; for each Tandem Lift Table, add $2.650 per lift RFPR" ROLL FEED PANEL GANG RIP SAW --50 HP Main Arbor Motor --1/8" Min. To 1-1/4" Max. Material Thickness x 72" Cutting Width --10" Dia Blade Design; 3-15/16" Dia. Arbor with 72" of Usable Width Cutting Capacity --Min. Panel Length 30". --1-15/16" FAFNIR Arbor Bearings --(8) Polyurethane Feed Rollers on 6" Centers --Variable Feed Speeds Via VFD --(1) Quick Blade Change-Out Kit --(1) Additional Arbor Cart --(2) 4" Dia. Dust Collection Ports on Top and (1) 8" Dust Collection Port on Bottom. Total Recommended 1,500 CFM. TOOLING: --(20) Saw Collars, Mount Directly to the Arbor with a Set Screw --(20) Saw Blades Configured for Clean Cuts on Your Panels

LHI RFPR-72/16 "HEAVY DUTY" MULTI-BLADE PANEL RIP SAW (W/LOADING/UNLOADING): -- Specifications (1) 30 HP Main arbor motor for 1" min. - 5" max. material thickness;16" Dia max. blade capacity with 1.25" minimum spacing between the blades;Minimum panel length 30" with 72" of usable width cutting capacity.3-15/16" Dia. arbor with 1-15/16" precision arbor bearings;Positive powered steel contact feed rollers with (8) adjustable Polyurethane drive rollers;Variable feed speed to max 80 FPM.Available Options Include:Single point height adjustment for materials from 1" to 5" thickness using customer supplied 16" dia blades(note: Ripping widths can never be less than one-half the material thickness).(1) "Quick Change" arbor cart trolley and blade box for QC set ups.(12) Saw collars to attach the customer supplied 16" dia. diamond blades to the arbors(1) In-feed Scissors Lift with auto cycle controls(1) In-feed 6' conveyor with alignment fence and powered assist feed(1) Auto sheet feeder with auto cycle controls(1) Out-feed Scissors Lift with 4 x 8 roller top.Installation technical assistance for $125/Hr plus travel time and expenses, payable upon competition of services. NOTE:Quote is valid for 30-days;Quoted price is FOB, Factory;Customer is responsible for off-rigging cost at their facility;Customer is responsible for spotting the machine to its final resting place with adequate floor foundationCustomer is responsible for adequate electric, air & dust control supply upon technician's request:Warranty: 1-yr mechanical parts (electrical controls excluded);Delivery to Customer's facility is approx 17 weeks from receipt of funds;Quote assumes customer will deliver material for testing & run-off procedures (if required);NOTE: PRICING DOES NOT REFLECT FACTORY'S 10% MATERIALS SURCHARGE

LHI RFPR 72/12 "HEAVY DUTY" MULTI-BLADE PANEL SAWSpecifications -- (1) 50 HP main arbor motor for 1/8" min. - 2" max. material thickness; 12" Dia max. blade capacity with 1.25" minimum spacing between the blades; Minimum panel length 30" & 72" of usable width cutting capacity. -- 3-15/16" Dia. arbor with 1-15/16" precision arbor bearings; positive powered steel contact feed rollers with (8) Polyurethane drive rollers; variable feed speed to max 80 FPM. -- (1) "Quick Change" arbor cart trolley and blade box for 9 1/2" cutsOn average this machine will cut a bundle (42 sheets) of 3/4" Plywood. LVL, PB, MDF or OSB into narrow strips in 4 minutes or less.Available Options: -- Blade Box Arbor Cart and Trolley $ 12,590.00 each -- Arbor Carts modifications to accept 12" dia. blades $ 700.00 each -- Single Point Height Adjustment $ 6,000.00 each -- "Quick Change" set up kit (includes belt guide, belt tensioner, and hydraulic arbor lock) $ 3,695.00 each -- Tandem 8000# capacity infeed Scissors Lift, 2 HP, 3 Phase, 230/460 Volt, 31" x 192" platform and cross bars for fork truck entry $ 14,495.00 each -- Tandem 8000# capacity outfeed Scissors Lift, 2 HP, 3 Phase, 230/460 Volt with 48" x 192" platform and beveled crossbars for fork truck entry and auto down indexing $ 16,390.00 eachTooling Cost: -- Carbide Tip Blades 12" x 40T x 4 3/16 bore with TCG and 3 pin holes $ 125.00 each -- Saw Blade Tooling Collars $ 125.00 each -- Actual Model is LAUDERDALE-HAMILTON RFPR "HEAVY DUTY" 12 Panel Rip SawNOTE: PRICING DOES NOT REFLECT FACTORY'S 7% MATERIALS SURCHARGE

LHI 96" x 60" ANGULAR TYPE RIP & CROSS-CUT SYSTEM: Specifications: -- Automatic Angular Rip & Crosscut 5-Position System; max. panel size of 8' (96") long x 5' (60") wide x 1" - 4" thick; 1.25" minimum spacing between the blades; variable feed speed from 0 - 150 FPM. This system will process a unit of material in approx. (7) Min. -- Pos. # 1: LHI Automatic Staging/Infeed/Transfer & Panel Rake Feeding System: 10' (120") Long, powered 3-chain staging conveyor; (2) units can be preloaded while (1) unit is in process. Automatic up-indexing 4,500 Lbs capacity Scissors Lift with auto. rake infeed system: infeed rake system designed with a thin material device that can automatically load material as thin a 1/8". -- Pos. # 2: LHI "72": 72" Arbor length designed for panels up to max. of 5' (60") wide, min. panel length 30"; 40 HP main arbor motor; 1/8" min. - 1" max. material thickness with no adjustment needed over a 3/8" thickness variation. 2-3/4" Dia. arbor with 1-15/16" "Fafnir" arbor bearings; positive non-marking steel contact feed rollers with (optional) poly-covering, driven from top & bottom. Includes: (6) blade collars; (2) 6" dia. vertical dust outlets with an easy access strip separator box. -- Pos. # 3: LHI Cross-Transfer System: Transfer conveyor with panel hold-down & chain drive system to change direction 90° & automatically feed LHI 102". -- Pos. # 4: LHI "102": 102" Arbor length designed for panels up to max. 8' (96") long; 30 HP main arbor motor; 1/8" min. - 1" max. material thickness with no adjustment needed over a 3/8" thickness variation; 2-3/4" dia. arbor with 1-15/16" "Fafnir" arbor bearings. Positive non-marking steel contact feed rollers with (optional) poly-covering, driven from top & bottom. Includes: (6) blade collars; (2) 6" dia vertical dust outlets with an easy access strip separator box. -- Pos. # 5: LHI Stacking & Outfeed Transfer System: Auto. down-indexing 4,500 Lbs cap. Scissor Lift; (4) adjustable alignment posts & (4) bin separators to keep processed stacks square. 98' (96") Long outfeed gravity conveyor.Operating System: -- (1) LHI ALLEN-BRADLEY "Inter-Link" PLC for simple single-operator management of the entire system from (1) central control.NOTE: ...Attached description & pictures are for INFO purposes only; ...a NEW System can be modified to your exact specifications!NOTE: PRICING DOES NOT REFLECT FACTORY'S 10% MATERIALS SURCHARGE

LHI RFPR-72/10 MULTI-BLADE PANEL SAW: Specifications: -- 40 HP main arbor motor; 1/8" min. - 1-1/4" max. material thickness; 10" dia blade with 1.25" minimum spacing between the blades; -- 3-15/16" Dia. arbor with 72" of usable width cutting capacity, min. panel length 30"; -- 1-15/16" precision arbor bearings; positive powered steel contact feed rollers; -- Fixed feed speed of 80 FPM. Blades & collars: -- Thin kerf 10" dia x 40-tooth x 4.18" bore non-split blades with quick & easy setup for fast blade positioning/removal (blades not included). -- Blades & collars are sold separately & not included in the machine price; 10" dia. x 40-tooth thin kerf blades, please add ...$ 105 ea.;1.25" wide x 4.18" bore blade collars, add ...$ 145 each. Complete with: -- (2) 4" dia dust collection ports on top and (1) 8" dust collection port on bottom. Total recommended 2,200 CFM -- Actual Model is LHI RFPR-72/10 Roll Feed Panel Saw. Available Options at additional cost: -- 110 V Infeed Scissor Lift with foot pedal controls or automatic up-indexing; 110 V Outfeed Scissor Lift with automatic down-indexing;Assortment of blade thicknesses & diameters; Split blade & collar system; Additional Options Depending on application: -- Main motor power from 30 - 75 HP; 4" Max. cutting height (requires 75 HP motor); -- Variable feed speed; Non-marking Polyurethane contact feed rollers; -- Additional arbors; "QUICK CHANGE" arbor system (see video); -- "Pigtail" quick change Crosscut Saw System.Many more tooling & configuration options available upon requestThis machine will cut a bundle (42 sheets) of 3/4" Plywood. PB, MDF or OSB into narrow strips in (4) minutes or less.NOTE: PRICING DOES NOT REFLECT FACTORY'S 7% MATERIALS SURCHARGE

LHI RFPR 102/10 MULTI-BLADE PANEL SAW: with 102" of usable width cutting capacity. Specifications: -- (1) 40 HP main arbor motor for 1/8" min. - 4-1/4" max. material thickness; min. panel length 30"; 102" of usable width cutting capacity. -- 12" Dia max. blade capacity; 1.25" minimum spacing between the blades; -- 3-15/16" Dia. arbor with 1-15/16" precision arbor bearings; -- Positive powered steel contact feed rollers with (8) Polyurethane drive rollers; fixed feed speed of 80 FPM. -- Includes (6) arbor collars - blades not included. -- Complete with:(2) 4" dia dust collection ports on top and (1) 8" dust collection port on bottom. Total recommended 2,200 CFM.Available Options: -- Blade Box & "Quick Change" Arbor Cart and Trolley $12,590.00 each -- Arbor Carts modifications to accept 12" dia. blades $700.00 each -- Single Point Height Adjustment $ 6,000.00 each -- "Quick Change" set up kit (includes belt guide, belt tensioner, and hydraulic arbor lock) $3,695.00 each -- Tandem 8000# capacity infeed Scissors Lift, 2 HP, 3 Phase, 230/460 Volt, 31" x 192" platform and cross bars for fork truck entry $14,495.00 each -- Tandem 8000# capacity outfeed Scissors Lift, 2 HP, 3 Phase, 230/460 Volt with 48" x 192" platform and beveled crossbars for fork truck entry and auto down indexing $16,390.00 each -- Drag Chain Feeder Conveyor - Roller conveyor transfers sheets to in-feed of saw and dog chains align and start the sheets into the saw feed rolls. Recommended with 102" wide machines, $18,800 Tooling Cost: -- Carbide Tip Blades 10" dia. x 40-tooth thin kerf blades $125.00 each -- Saw Blade Tooling Collars $125.00 eachOn average this machine will cut a bundle (42 sheets) of 3/4" Plywood. LVL, PB, MDF or OSB into narrow strips in 4 minutes or less.NOTE: PRICING DOES NOT REFLECT FACTORY'S 10% MATERIALS SURCHARGE

LHI 4,500 # Scissor LiftSimple Design, Low Cost, High Performance w/ Off-The-Shelf Parts so you can keep it running years from now Specification: -- 4,500 Lbs weight capacity. -- 48" x 96" Smooth steel platform. -- Lowered height 9-1/2" raised height 49". -- Travel speed: 1/2" per second up -- Foot pedal control.Available Options: -- Automatic Down Indexing -- Automatic Up Indexing -- Automatic Up/Down Indexing

LHI 6,000 # Scissor LiftSimple Design, Low Cost, High Performance w/ Off-The-Shelf Parts so you can keep it running years from now Specification: -- 6,000 Lbs weight capacity. -- 48" x 96" Smooth steel platform. -- Lowered height 9-1/2" raised height 49". -- Travel speed: 1/2" per second up -- Foot pedal control.Includes: Auto-indexing UPAvailable Options: -- Automatic Down Indexing -- Automatic Up Indexing -- Automatic Up/Down Indexing

LHI AUTOMATIC RAKE FEEDER with the following equipment: -- Panel Feeder with up to 18' Long x 5' Wide x 1" Thick Sheet Capacity (with 4' min. sheet length) -- Feeder loads from right side when viewed from the End of the Scissors Lift -- Auto-cycle for Rake Feeder -- 6' Line-Up conveyor with Fence & Powered Pinch Wheel -- 8000 Lbs. Tandem Scissors Lift with 5' x 17' top, 600-Volt, 3-phase, 2 HP motor -- 5-Section Gravity Rollers on Scissors Lifts -- 12' Powered 5 Strand Chain Conveyor Feeds Tilt Lift w/forward/ reverse, jog controls -- Wired for 600-Volt/3-Phase/60-Cycle Operation (other voltages available) -- Arranged for Customer Provided MultiScore Panel Ripper with right side arbor loading

LIGMATECH ZHR 01 RETURN CONVEYOR for RH FEED Edgebander (i.e. Brandt, OTT) & LH RETURN to the operator.FunctionAfter panels come off a through-feed machines feed-track, they are transported via (4) powered take-up belt onto a 90° transfer section and returned back to the operator.Specifications: -- Working Length, 12" - 98" (300 - 2,500 mm) max., working width 5.9" - 40" (150 - 800 mm) max., panel thickness 0.3" - 1.6" (8 - 40 mm) max. and 100 Lbs (45 kg) max. weight. -- Variable Feed-Speed, 26 - 138 FPM (8 - 42 MPM); Approx. total length of 30'; (4) 18" pickup arms, spaced 7", 8" & 14", take product from the edgebander and transport it to cross transfer conveyor section. -- Cross Transfer Section, 43-1/2" x 83", transfers material and drops it 2-1/2" onto roller transfer section, 43-1/2" x 83", which transfers material to a powered 40" x 150" flat-belt conveyor, which transfers material to a gravity roller conveyor, 40 x 72", with 2-1/2" x 35" plastic coated rollers to be received by the operator. -- Total Length of Return Conveyor is 25'. -- Actual Model is LIGMATECH ZHR 01-R-055.

LIGMATECH ZHR 01 RETURN CONVEYOR for RH FEED Edgebander (e.g. Brandt, OTT) & LH RETURN to the operator.FunctionAfter panels come off a through-feed machines feed-track, they are transported via (4) powered take-up belt onto a 90° transfer section and returned back to the operator.Specifications: -- Working Length, 12" - 98" (300 - 2,500 mm) max., working width 5.9" - 40" (150 - 800 mm) max., panel thickness 0.3" - 1.6" (8 - 40 mm) max. and 100 Lbs (45 kg) max. weight. -- Variable Feed-Speed, 26 - 138 FPM (8 - 42 MPM); Approx. total length of 30'; (4) 1/2"; W x 18" L Pickup arms, spaced 7", 8" & 14", take product from the edgebander and transport it to cross transfer conveyor section. -- Cross Transfer Section, 42-1/2" x 83" x 38-1/4"; H, transfers material and drops it 2-1/2" onto roller transfer section, 42-1/2" x 83" x 35-3/4"; H, which transfers material to a powered 31-1/2" x 17-1/2’ L x 34"; H flat-belt conveyor, which transfers material to a gravity roller conveyor, 35"; W x 6-1/2’ L x 32-1/2"; H, with 2-3/8"; Dia. Roller on 3-1/8"; Centers to be received by the operator.Actual Model is LIGMATECH ZHR 01-R-055 & used with a BRANDT AMBITION 1870 (aka KDF870) Edgebander.

LIGNA 8X40 Multi-Blade Edger/Gang Saw. 40" Wide by 8" high opening. Specifications: -- Bottom saw edger with (5) blades. Powered by a 125 HP TEFC motor. -- Features stacked air cylinder setworks with independent shifting on (3) blades. -- Infeed table with pop-up chains and fence, outfeed rollcase. -- Includes: Powered infeed and outfeed steel roll conveyors.

Dust Collection Pipe (Snap Ring type Pipe)Quantity - Diameter - Length Description(2) 22" - 12" - 38" Branch.(1) 24" - 12" - 38" Branch.Many loose Snap Rings in the tote.(1) 25" - 59" Pipe.(4) 22" - 59" Pipe.(2) 24" - 59" Pipe.(1) 24" x 22" x 6" 21"; Reducer with branch.(1) 22" x 20" x 12" 33"; Reducer with branch.(1) 11" x 10" x 10" 29"; Reducer with branch.(1) 12" Auto gate.(18) 10" - 59" Pipe.(2) 9" - 59" Pipe.(1) 11" - 59" Pipe.(4) 12" - 59" Pipe.(1) 22" - 29" Pipe.(1) 20" - 50" Elbow.(1) 20" x 16" x 12" - 33" Reducer with branch.(1) 24" x 24" x 10" - 29" Branch.(1) 24" x 24" x 6" - 24" Branch.(1) 16" x 12" x 7" x 7" - 45" Reducer with branch.(1) 22" x 22" x 6" - 20" Branch.(7) 12" - 59" Pipe.(4) 14" - 59" Pipe.(1) 16" - 43" Pipe adj.(18) 8" - 59" Pipe.(68) 6" - 59" Pipe.(10) 3" - 59" Pipe.(2) 8" - 32" Pipe.(32) 8", 9", 10", 11" - 59" Pipe.(46) 5" - 59" Pipe.(8) 7" - 59" Pipe.(39) 4" - 59" Pipe.(1) 14" x 12" x 6" - 21" Reducer & branch.(1) 14" x 14" x 6" - 21" Branch.(20) 3", 4", 5", 6" - Various pipe. (1) 6" x 6" x 6" - 21" Branch.(1) 10" x 10" x 4" - 17" Reducer.(1) 10" x 7" x 7" - 23" Reducer.(1) 10" x 9" x 4" - 17" Reducer & branch.(1) 10" x 7" x 7" - 23" Reducer & branch.(1) 10" x 7" 9" Reducer(5) 10" - 18" 90° Elbows.(20) 5" - 8" 90° Elbows.(7) 7" - 8" 90° Elbows.(23) 6" - 8" 90° Elbows.(20) 8" - 20" 90° Elbows(4) 5" - 6" Saddle.(1) 7" x 4" x 4" - 19" Reducer & branch.(2) 8" x 7" x 6" - 21" Reducer & branch.(1) 7" x 6" x 4" - 17" Reducer & branch.(1) 11" x 11" x 9" - 31" Branch.(1) 12" x 8" x 8" - 19" Reducer & branch.(1) 7" x 6" x 5" - 19" Reducer & branch.(1) 11" x 10" x 4" - 17" Reducer & branch.(1) 14" - 39" - 90° Elbows.(1) 9" - 20" 90° Elbows.(2) 10" - 16" 90° Elbows.(1) 7" 22" Pipe.(1) 10" x 10" x 4" - 17" Branch.(2) 10" x 8" x 6" - 21" Reducer & branch.(1) 14" - 39" 90° Elbow.(1) 9" - 20" 90° Elbow.(2) 10" - 16" 90° Elbows.(1) 7" - 22" Pipe.(1) 10" x 10" x 4" - 17" Branch.(2) 10" x 8" x 6" - 21" Reducer & branch.(1) 8" x 8" x 6" - 23" Branch.(1) 12" x 10" x 6' - 21" Reducer & branch.(1) 8" x 6" x 4" - 18" Reducer & branch.(28) 4", 5", 6", 7", 8", 9", 10", 14" Misc.(1) 14" x 11" x 6", 6" 42" Reducer & branches.(1) 8" x 7" x 6" - 21" Reducer & branch.(1) 12" x 7" x 7" - 34" Reducer & branch.(1) 12" x 11" x 4" - 17" Reducer & branch.(1) 5" x 5" x 5" - 17" Branch.(1) Batch 50' - 24" Straight pipe.(1) Batch various 24" - 90° elbow.(1) Batch various 24" - 45° elbow.(1) Batch 150' - 12" Straight pipe.(1) Batch various 12" various fitting.

MAC 120-MCF-572 High Capacity Baghouse Dust Collection system with Rotary Air Lock (RAL) and Medium-pressure Controlled air cleaning dust Filter (MCF). -- Baghouse Capacity: 50,000 CFM @ 7.2:1 Air-to-cloth ratio (ACR), approx. 6,921 sq-ft of filter area based on (572) Filter bags; 120" long x 5" dia. -- Equipped with: (1) AIR TECH size 402, BISW, Backward Inclined Air Handling Fan, Class IV, with 40" inlet, ground-mounted on unitary base, flanged inlet box & outlet. For prior application fan operating point (RPM/SP) is set up for about 41,526 CFM @ 12" WG at 1566 RPM, drawing 119 BHP. the fan is equipped with a variable volume damper on discharge. Fan range is about 40,000 - 55,000 CFM. Powered by a TOSHIBA 150 HP TEFC, 444T, 1800 RPM motor packaged with a belt drive -- Bag Cleaning: Mac "Never-Miss" Cleaning System with rotating arm, diaphragm valve for pulse cleaning Approx. 3 HP positive displacement (PD) pump for bag cleaning at only 7- 9 PSIG. 1 HP direct drive gear motor for distribution arm, integral manifold/surge tank, pneumatically controlled firing mechanism activating the diaphragm valves/nozzles. When cleaning arm & bag segments are correctly aligned air nozzles fire directly into bags without wasted cleaning air. -- Includes: MAC FS24x24 AIRLOCK Rotary Air Lock (RAL) with approx. 2 HP SYNCROGEAR MODULE gear motor; sprinkler package; 60° Cone-shaped hopper attached to MAC at bottom of cone. -- Features: Floor-standing Electrical controls (excluding shared controls) with MOTORTRONICS Solid State AC Softstart for main 150 HP motor. -- Additional Features: Explosion vents. Summer/Winter diverter and return air ductwork. Support structure. Caged access ladder from ground Service Platform and to the top plenum. -- Baghouse constructed of 7 gauge carbon steel containment; one piece body all welded construction, 180" (15') diameter shell panelized unit, walk-in plenum for maintenance and bag replacement. -- MAC design features: MCF 4HVP Pump package. MCF Medium-pressure air requires less HP and yet offers high dust and air collecting efficiency with unmatched baghouse cleaning at lower operating cost. MCF pulses each bag the same number of times with the same amount of air. (Unlike some competitors which clean the inside rows of bags more often than necessary thus wasting energy, causes uneven pressure drop, and bag wear). -- (2) of these identical units are installed per photos, one only is available based on Owner/buyer agreement and price point. Material handling fan/drive is not included and is assumed to stay with the remaining filter unit. -- Overall dimensions: 580.5" high x178.5" square frame with an estimated weight of filter unit (less structure and accessories) 31,000 Lbs. -- Professional dismantling/rigging, truck loading and transportation are available at extra cost. -- NOTE: Per photo #1 on the Ex-Factory website the unit for sale is on the right-hand side. The left-hand unit is not easily accessible.

MAC/SCHENCK 144-RPT-252 STYLE III Baghouse Filter System with Pulse Jet Cleaning and Rotary Air Lock (RAL) discharge.RPT Filters (Rectangular Pulse Top-Removal) Rectangular top removal bodied filter unit designed to handle high air volumes. • Bags are removed vertically from the top clean section. Walk-in plenum so the filter media replacement and maintenance can occur in an enclosure for inclimate weather. -- Baghouse Capacity: 4,770 sq. ft. of cloth consisting of (252) bags, 144" long 16 Oz P84 Top Load bags and bright wire cages. Depending on your application, for example at an air-to-cloth ratio of 3.14:1 it can develop 15,000 CFM. -- Equipped with: (1) PHELPS FAN, Material Handling, WRM-380 CCW-TAU HD ARR. 8 with A-36 inlet flange Performance at 15,000 ACFM & 15" SPWG, 1780 RPM, 315°F, 0.050 #/cu. ft..500' elev. Direct drive MOTOR IS NOT INCLUDED but was designed for 75 HP, 1800 RPM,, 365T. Fan was connected in a negative pressure configuration, flanged inlet & outlet. -- Bag Cleaning; Requires 33 SCFM of clean, dry air at 90-100 PSIG. -- Complete with: Auger on bottom of hopper feeding Rotary Air Lock (RAL) with approx. 1.5 HP gearmotor at 22 RPM.; (3) Rupture style explosion vents.. -- Features: Equipped for High Temperature (400°F) bags Special equipment includes VITON Diaphragm valves, copper line (in lieu of polyflo tubing)high temperature air header connections and hi-temp purge pipe compression on couplings. (2) 2" NPT couplings with plugs are included in the plenum section for future addition of sprinkler/deluge system. -- Filter unit constructed of carbon steel containment with 3/8" x 4" reinforcing ribs. 34" diam. high entry inlet and top outlet. -- Includes: Nema 4 Timer Board and solenoid valve enclosure. Each require 110/60 Hz power supply. Filter has (2) solenoid valve enclosures. -- Dimensions: 492" overall height (ground to top), 156" square sides. Separates into (3) sections: Top Plenum, filter section and bottom hopper/support steel. -- Dismantling/rigging is included. Please inquire for transport to your location.. -- NOTE: Extra high Stainless Steel stack is available if you want it.

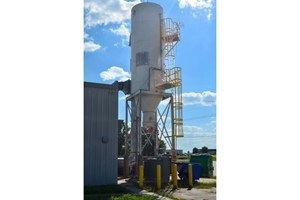

MACDONALD STEEL 65 ST Dust Collector System with Shaker filter cleaning, Rotary Air Lock, and 18' dia. housing. -- Specifications: Capacity for 65,000 CFM, 18' dia. shell, with 8,199 sq-ft. of filter area for an air-to-cloth ratio of 7.7:1. T-150 polyester bags 14 oz. with a 30 - 40 CFM.@ 1/2" WG permeability. -- Current Fan configuration: System 1: Fan inlet of 33" at 32,500 CFM; System 2: .Future capacity for a second fan as per System 1. Return air duct is 42" x 72". -- Filter Cleaning: Top mounted electrically operated & timed mechanical shaker, approx. 2 HP motor which will automatically operate on all shutdowns. -- Equipped with: MACDONALD 18" Rotary Air Lock (RAL) with bottom eductor/T-section for connection to a relay/transfer fan (not included.). -- Complete with Fire Damper, Summer/Winter Damper with Silencer, Explosion doors, safety ladders, and access platform. -- Features: 13" MH/HT 20 HP Transfer/Transport fan -- Overall height is currently 57'-3" with 12' clearance under RAL. Weight of filter with structural steel is 29,000 Lbs plus fan is about 3,000 Lbs. -- Shell panelized construction (made of separable panels allowing for road/Hwy travel).Professional rigging, loading and transportation are available at extra cost; quote upon request.
