SCM S 630 PLANER WITH TERSA HEADSpecifications: -- 24" Width cap.; 12 HP main motor, 2 HP feed motor; 4-3/4" dia. with reversible knife TERSA Planer Head rotates @ 4,500 RPM; -- 1/8" - 11-3/4" Thickness opening via motorized bed with LED readout for fine adjustment. -- Max. depth of cut 5/16"; 10" min. length of work piece; variable infeed speed from 20 - 56 FPM.Equipped with: -- 20-3/4" x 39" Cast iron table, sectional chip breaker, sectional grooved infeed & solid outfeed rollers, adjustable bed rollers. -- neoprene out feed rollersComplete with: -- Magnetic starter and dust hood w/6" dia. dust outlet.Owner states: Condition- like new 24" thickness planer- third owner in a one man shop. Machine has seen very few hours of operation.

SCM PRATIX S-15-B FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:Single 5' x 12' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with a MATRIX square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".(8) Part location pop-up pins mounted on the table perimeter. -- Working field:"X" Axis is 145.11" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 4" (100 mm). -- Positioning Speed:"X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways. -- Boring Unit:3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) in "X" axis & (2) in "Y" axis. -- Machining:(1) 9 HP (6.7 kW) Air-cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 14-Position ATC tool rack mounted to the machine base. -- Operator & Machine Control:PC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers: Incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally equipped with:Onboard mini-CAD with built-in programming for writing circles, ellipses & angles with only a few keystrokes; Onboard cycle optimization, onboard calculator, mirror-imaging, and repeat imaging. -- Complete with:(1) 300 m³/Hr Vacuum Pump; external transformer 208/230/480 Volt; safety enclosure around the spindle carriage; tool length probe sensor; manual centralized lubrication.Includes: (1) Universal Remote Pendant, 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program.The pendant is fitted with a USB port to allow quick load & setup of new programs; safety "bump-stop" bumpers; emergency stop rope & manuals. -- Actual Model is SCM - PRATIX S-15-B.

SCM TECNOMAX - SC/4 WS, ...8-1/2' Sliding Table SawSpecifications: -- Max. depth of cut with 315 mm (12.40"); dia. blade: 100 mm (3.94") at 90°; 70 mm (2.76") at 45°. -- Main saw: 3.6 kW (4.82 HP) Motor; blade dia. 315 mm (12.40"); arbor tilt 0° - 45°; blade speed 4,000 RPM. -- Scoring saw: Blade dia. 100 mm (3.94").Equipped with: -- 11-1/2"; x 102"; x 35-1/2"; H Aluminum sliding table; 840 mm (33.07") LR fixed table. -- Manual raise, lower & tilt. -- Mechanical digital tilt indicator.Complete with: -- 39-1/4"; L x 3-1/2"; H Rip fence with: 51" Cutting width cap. & cam locking. -- 650 x 1,100 mm (29.59" x 43.32") Squaring frame with: Crosscut fence; 1,800 mm (70.87") cutting cap.; (2) flip stops & siding outrigger support.NOTE: Saw is deinstalled as pictured in Photo #2. - Photo #1 shows Seller's other Saw, which is also available to purchase (EXF # PS-011935). Both Saws are one serial number apart. Seller confirms that all machine components are present.

SCM SI 350 N - 10-1/2', ...Sliding Table SawSpecifications: -- Cutting length 3,200 mm (126"); max. depth of cut: 118 mm (4.65") at 90°; 81 mm (3.19") at 45°. -- Main saw: 6.6 kW (9 HP) Motor; blade dia. 250 - 350 mm (9.84" - 13.78"); arbor dia. 1"; arbor tilt 0° - 45°; blade speed 4,000 RPM. -- Scoring saw: 0.75 kW (1 HP) Motor; max. blade dia. 120 mm (4.72"); arbor dia. 20 mm (3/4"); blade speed 8,500 RPM; external scoring blade adjustments.Equipped with: -- 14-1/4"; x 126"; x 35-1/2"; H Aluminum sliding table; 630 mm (24.80") x 1,040 mm (40.94") Fixed table. -- 2-Position table lock mechanism; manual raise, lower & tilt. -- Mechanical digital tilt indicator. -- Pivoting blade guard with dust outlet.Complete with: -- 47-1/4"; L x 3-1/2"; H Rip Fence with: 67" Cutting width cap. -- Crosscut Fence with: 84" Cutting cap.; (2) flip stops & Sliding outrigger support.

SCM TECNOMAX SC/4 WS 8-1/2' Sliding Table SawSpecifications: -- Max. depth of cut with 315 mm (12.40") Dia. blade: 100 mm (3.94") at 90°, 70 mm (2.76") at 45°. -- Main saw: 3.6 kW (4.82 HP) Motor, Blade dia. 315 mm (12.40"), Arbor tilt 0° - 45°, Blade speed 4,000 RPM. -- Scoring saw: Blade dia. 100 mm (3.94").Equipped with: -- 11-1/2"; x 102"; x 35-1/2"; H Aluminum sliding table, 840 mm (33.07") LR Fixed table. -- Manual raise, lower & tilt. -- Mechanical digital tilt indicator.Complete with: -- 39-1/4"; L x 3-1/2"; H Rip fence, with 51" Cutting width cap. & Cam-locking. -- 650 x 1,100 mm (29.59" x 43.32") Squaring frame, with Crosscut fence with 1,800 mm (70.87") Cutting cap., (2) Flip stops & Sliding outrigger support.Actual model is SC/4 WS-N.

SCM MINIMAX - FORMULA S1, ...Sliding Table SawSpecifications: -- 120" Cap. with: Scoring; 9 HP main motor & belt driven scoring blade; -- Manual tilting of the arbor 0° - 45°; Manual raise-and-lower of the main blade; -- 50" crosscut capacity with a movable fence.Features: -- "Easy-Set" scoring adjustment; heavy cast iron trunnion; 12" main saw blade dia. with 1" Arbor, 110 mm scoring blade dia.; -- Max. cutting height 3-1/2" at 90° & 2-3/4" at 45°; 1-speed arbor; 8,000 RPM on scoring blade. -- Complete with: 4" Main dust extraction outlet, miter fence & crosscut fence assembly with (2) flip stops.

SCM M3 Multi-Blade Dip Chain Gang Rip SawSpecifications: -- 300 mm (11.81") Width cap. -- 110 mm (4.33") Max. depth of cut. -- 8-3/4" Throat depth. -- 390 mm (15.35") Min. stock length. -- 200 - 350 mm (7.87" - 13.78") Blade diameter. -- Arbor dia. 70 mm (2.76"). -- Table size 750 x 1,530 x 750 mm H (29-1/2" x 60.24" x 29-1/2" H). -- Blade speed 4,200 RPM. -- Feed speeds 6 - 48 MPM (19 - 157 FPM).Equipped with: -- 44 kW (60 HP) - 3,554 RPM Blade motor. -- Variable speed drive feed chain motor. (2) Upper infeed & (2) Upper outfeed 4" Dia. rollers, Automatic chain lubrication. -- Top & bottom anti-kickback fingers. -- Main dust hood, with 200 mm (7.87") Dia. outlet. -- 40"; x 2-3/4"; H Adjustable infeed fence. -- Motor load meter.Note: Some spec's need to be verified

SCMI - M-2: Dip Chain Gang Rip SawSpecifications -- 7-7/8" Width cap.; 36 HP - 3,600 RPM belt driven arbor (pulls 42 amps); dip chain feed. -- 70 mm Dia. arbor for 11-3/4" to 13-3/4" dia. saw blades; 4-1/2" max. depth of cut; 23-1/2" throat depth; 14" min. stock length. -- 1.8 HP Variable feed motor; 30 - 150 FPM.Equipped with & Features -- Automatic chain lubrication. -- 64" x 35" table. -- (2) Upper infeed & (2) upper outfeed rollers at 4" in dia., top & bottom. -- Anti-kickback fingers. -- Dust hood with: 7" dia. outlet. -- Long infeed adjustable fence. -- Motor load meter.NOTE: Includes extra spacers and sleeves.

SCM - K 203 F: Edgebander0.4 to 5 mm Max. edge cap. for strip feeding; 1/8" (3 mm) for coil feeding; 60 mm min. panel width; 160 mm min. panel length; panel thickness: 10 - 50 mm. Equipped with: -- Teflon coated glue pot (heat-up time 10 - 15 min.); automatic strip &coil feed magazine; 3 mm cap. guillotine; 3-roll pressure unit w/pneumatic control.Workstations -- Double motor front & rear-end trim mounted on: THK Guideways (0.4 HP - 12,000 RPM motor ea.); tilts 0° - 15° from the control panel with: (2) Preset positions. -- Top & Bottom flush & bevel trims with: Quick release mount & plug-in motors for quick tooling changes; 0.7 HP - 12.000 RPM motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Top & Bottom scraping unit with: Pneumatic positioning from the control panel; Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors. -- 36 FPM Fixed feed speed; 0.75 HP feed drive.Includes Microprocessor for line control (store up to 50 preset programs); control panel at eye level for ease of programming; full cover sound enclosure.Features. Mechanical digital readouts for setup adjustments; frequency inverter; outboard panel support.

SCM - SI 400 NOVA: Sliding Table Panel SawSpecifications & Features -- 126" Stroke with scoring; telescoping crosscut fence with panel support; back squaring fence: (2) Flip-stops; 3/4" dado capacity. -- Max. cutting height: 3-3/4" at 90°; 2-3/4" at 45°; 51" rip cut cap. with movable fence; "EZ Dial" adjustable split scoring blade assembly. -- 35" x 21" Main fixed table.Equipped with: -- 9 HP Main blade motor; 1 HP scoring blade motor; tilting arbor 0° - 45°; 300 mm (11.8") main saw blade dia.; 1" main blade arbor; 4,000 RPM. -- 100 mm (3.9") scoring blade dia.; 3/4" scoring blade arbor; 8,000 RPM; 2-position table lock mechanism. Complete with: -- "EZ Dial" adjustable split scoring blade assembly: Simply turn the dial to adjust the width of the score. This system eliminates the need for shims and is fully adjustable in 0.1 mm increments. -- Handwheels in front for lifting & tilting of saw blades; blade guard on riving knife with dust outlet. Includes: 120 mm Main dust collection outlet.

SCM - B5L: Edgebander3/4" Edge thickness cap.; panel thickness 7/16" - 2-5/16"; min. panel width 2-1/2"; min. length 6". Equipped with: -- Pre-heated infeed fence; automatic feed magazine for strip or coil stock; glue pot unit with dual thermostat; 3 mm PVC cap. guillotine; (1) large driven & (4) idle roller pressure rollers; gluing unit and pressure section tilt 0° to 6°. Workstations -- Double motor end trim; tilt: 0° to 15°; 1 HP - 8,500 RPM motors. -- Top & Bottom trimming; bevels 0° - 45°; 3-1/2 HP - 12,000 RPM motors. -- Top & Bottom Fine/Radius Trimming: Tilts 0° - 45°; 2-1/2 HP - 12,000 RPM motors. -- Top & Bottom buffing; 0.5 HP - 3,000 RPM motors. -- Dual feed speed: 32 & 48 FPM with: 3-1/2/5-1/2 HP feed drive. Complete with: Sound enclosure; outboard panel support; used tooling.

SCMI - OLIMPIC K 560 R HP: Edgebander (w/Premill & Corner Rounding) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel Capacity:Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station: (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect Teflon glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station: Front & rear: (2) 0.5 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit: Eliminates any excess glue. -- Buffing Unit: Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control -- "STARTOUCH" Controller with: 21-1/2" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled; adjustable top holddown pressure beam. -- Auto. panel spacer to eliminate premature loading -- Anti-adhesive spray. -- Full sound enclosure cover and outboard panel support. -- THIS MACHINE IS FULL SERVO CONTROLLED. -- Actual Model: SCM - OLIMPIC K 560 R HP

SCM - ACTION TF 2500: Case Clamp (Automatic Feed Through) -- Specifications Max. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31.5") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 250 mm (9.8") depth. -- Working table height: 600 mm (23.6"). -- Max. Vertical pressing force: 1,500 kG (3,300 Lbs). Max. Side pressing force: 1,200 kG (2,640 Lbs).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator does is place the box onto the powered infeed belt to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC to program cycles. -- Rack & Pinion system; Brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM ACTION TF 2500

SCM - ACTION FL 2500: Case Camp (Semi-Automatic) -- SpecificationsMax. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31-1/2") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 150 mm (5.9") depth. -- Working height: 508 mm (20"). -- Vertical pressing force: 15 kN (3,372 Lbs).Features -- Full top & bottom platen for: Maximizing pressing PSI on the box. -- Rack & Pinion guides: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine finds the size of the box; Operator only opens the Clamp to a size larger than the box to be clamped. -- Vertical & horizontal pressure: Adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by: Infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: CPC Software to program cycles. -- Rack & Pinion system, brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM CPC ACTION FL 2500

SCMI Sandya 3S/ RCS 37" double head wide belt sander37" width cap. Drum, Combination Head1st head: 4.5" diameter steel contact drum with manual grit set2nd head: 4.5" rubber drum with 2" wide soft platenSpecifications -- 30HP 230v 3ph drive -- Delta soft start motor controls -- Electrical requirements: 91amps -- Anti-dubbing control of platen rise-fall to protect leading and trailing edges of panels -- Variable speed conveyor by inverter 12-60 fpm with digital display for working height -- Automatic thickness set up -- 6.6" max thickness capacityEquipped with & Features -- Automatic conveyor belt tracking (pneumatic cylinder) -- Two platens, soft (for veneer), semi-stiff (solid wood) -- 50 durometer conveyor belt -- 2 roller infeed and outfeed roller tables -- 4 Top and bottom fastened jack screws -- Manual adjustment of contact roller and platen positions1800 CFMTwo (2) 5" dust ports

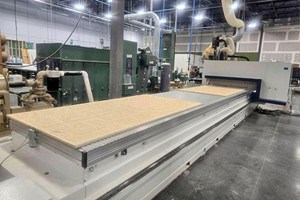

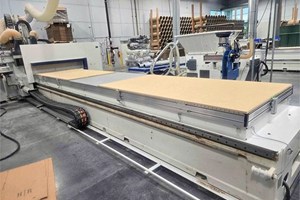

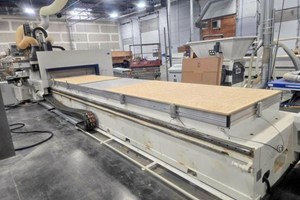

SCM ROUTECH RECORD 130 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:4' x 10' Single Table machine: stationary extruded aluminum table is machined with a square grid pattern for fixturing parts,Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining". -- Working field:"X" axis 120" (3,048 mm), “Y"; axis 49.2"; (1,250 mm, "Z" axis stroke is 12" (305 mm). -- Positioning speed:"X" axis 260 FPM (80 MPM), "Y" axis 180 FPM (55 MPM), "Z" axis 82 FPM (25 MPM).Closed loop AC Servo drive system driving precision ground ball screws, all axes ride on extra large precision profile linear guideways. -- Boring Unit:(12) vertical spindles, (7) in "X" axis & (5) in "Y" axis;(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis. -- Machining:(1) 10 HP (7.5 kW) "Power 2000" Electro spindle w/lifetime lubrication & HSK F63 adaptor, spindle speeds from 6,000 - 18,000 RPM;(1) 12-position ATC tool plate mounted on the head for "on the fly" ATC. -- Operator & Machine Control:PC Front end with XILOG Plus + WINDOWS operating system; "NUM 1000" PLC featuring (3) axes simultaneous control,15" high resolution CRT; 1.2 GB Hard drive, ergonomic industrial keyboard & mouse; 1.44MB floppy disk drive; serial ports for RS-232; all housed in a separate dust free cabinet -- Complete with:(1) 12 HP "BECKER" vacuum pump; safety BUMP stop. -- Actual Model is SCMI ROUTECH RECORD 130-121.

SCMI ROUTECH RECORD 125 N FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Single Table machine: stationary extruded aluminum table is machined with a square grid pattern for fixturing parts,Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining". -- Working field:"X" axis 125" (3,175 mm), “Y"; axis 60"; (1,524 mm) , "Z" axis stroke is 12" (305 mm). -- Positioning speed:"X" axis 260 FPM (80 MPM), "Y" axis 180 FPM (55 MPM), "Z" axis 82 FPM (25 MPM);Closed loop AC Servo drive system driving precision ground ball screws, all axes ride on extra large precision profile linear guideways. -- Boring Unit:(12) Independent vertical spindles, (7) in "X" axis & (5) in "Y" axis;(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis. -- Machining:(1) 15 HP (11.2 kW) Liquid Cooled "Power 2000" Electro spindle w/lifetime lubrication & HSK F63 adaptor, spindle speeds from 6,000 - 18,000 RPM;(1) 12-position ATC tool plate mounted on the head for "on the fly" ATC. -- Operator & Machine Control:PC Front end with "ESA-GV Kavara6" + WINDOWS operating system; "NUM 1000" PLC featuring (3) axes simultaneous control,15" high resolution CRT; 1.2 GB Hard drive, ergonomic industrial keyboard & mouse; 1.44MB floppy disk drive; serial ports for RS-232; all housed in a separate dust free cabinet -- Complete with:(1) 250 m³/Hr + (1) 100 m³/Hr vacuum pump; Pressure safety mats. -- Actual Model is SCMI Routech Record 125 N.

SCMI ROUTECH RECORD 125 N FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Single Table machine: stationary extruded aluminum table is machined with a square grid pattern for fixturing parts,Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining". -- Working field:"X" axis 125" (3,175 mm), “Y"; axis 60"; (1,524 mm) , "Z" axis stroke is 12" (305 mm). -- Positioning speed:"X" axis 260 FPM (80 MPM), "Y" axis 180 FPM (55 MPM), "Z" axis 82 FPM (25 MPM);Closed loop AC Servo drive system driving precision ground ball screws, all axes ride on extra large precision profile linear guideways. -- Boring Unit:(12) Independent vertical spindles, (7) in "X" axis & (5) in "Y" axis;(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis. -- Machining:(1) 15 HP (11.2 kW) Liquid Cooled "Power 2000" Electro spindle w/lifetime lubrication & HSK F63 adaptor, spindle speeds from 6,000 - 18,000 RPM;(1) 12-position ATC tool plate mounted on the head for "on the fly" ATC. -- Operator & Machine Control:PC Front end with "ESA-GV Kavara6" + WINDOWS operating system; "NUM 1000" PLC featuring (3) axes simultaneous control,15" high resolution CRT; 1.2 GB Hard drive, ergonomic industrial keyboard & mouse; 1.44MB floppy disk drive; serial ports for RS-232; all housed in a separate dust free cabinet -- Complete with:(1) 250 m³/Hr + (1) 100 m³/Hr vacuum pump; Pressure safety mats. -- Actual Model is SCMI Routech Record 125 N.

//This machine is in an Auction on exfactoryauctions.com// //Link to machine: http://exf.ac/i6d SECO SK-20BS 20" Vertical Band Saw Specifications: Actual throat 18-1/4". Table size 22-3/4” LR x 20-1/4" FB, with 45° Tilt. Max. height under guard 12". Blade length 155", Blade width 1". Wheel speed 800 RPM. Equipped with: 3 HP - 3,450 RPM Motor. 20” Rubber-covered cast aluminum wheels. Complete with: Work light.

SELCO - EB 120: CNC Frontload Panel SawSpecifications -- 14.4' 4,400 mm) Overall cutting length & 4.7" (120 mm) max. saw blade projection; 18 HP main & 2.4 HP scoring motor; modular roller rear machine table; side aligning device; (2) longitudinal aligners to accurately position the book of panels on the rear saw table prior to cutting. -- Variable saw carriage travel speed: 0 - 328 FPM; electronically controlled overhead program fence; rack & pinion driven; forward speed 196 FPM; return speed 196 FPM.Equipped with: -- (6) Clamps (open up to 122 mm), of which (3) are closely spaced in crosscut area and the other (3) are at equal distance in rip cut area. -- AC Servo Motor drives on both: Saw carriage and pusher fence. Operator & Machine Control: -- The front-end controlled by PC: Color monitor integrated into a high-tech-look Operator control panel (which displays cutting dimensions and patterns); panel has virtually unlimited: Cutting pattern storage capacity; self-diagnostic. Data can be input by keyboard or downloaded directly from the office PC. Complete with: -- 2,300 mm Long crosscut fence stroke (side to side); (2) side/crosscut aligners. -- (3) Front mounted air float tables with: Rounded front for moving panel from rip to crosscut position (24" x 79" each). -- Rear of machine partially enclosed for safety.
