LOEWER DENIBBING SANDER4-Head, 53" width cap., great Denibbing Sander -- The patented combination of rollers and rotating / oscillating discs makes the Perfection BBDD sanding machine the ideal finishing solution for entry doors, cabinet doors, drawer fronts, sheet foods, shutters, face frames, furniture and much more. -- The LOWER DMBBDD sanding machine is the ideal solution for all sanding applications including whitewood, stain and sealer coats(including UV). The work piece first passes under two large counter rotating spiral hubs, then under eleven rotating discs that oscillate from left to right. This provides very uniform edge breading in whitewood sanding and eliminates most (if not all) hand sanding of the sealer coat. -- The patented combination of roller and rotating discs provides very uniform sanding across the entire work piece, even into deep profiles without loosing detail. -- SPECIFICATIONS OF MACHINE --Thickness of work piece Min: 10mm (1/2")-- Max: 80mm (3") --Feed belt width Max:1350mm (53") --Feed belt motor 1.5 KW (3Hp) 3-15 M/min (10-50 Ft/min) --Top sanding roller 2.2KW (3Hp) 25-300 O/min (RPM) --Disc Rotation 2.2KW (3Hp) 25-300 O/min (RPM) --Disc Oscillation ).37KW (0.5) 10-60 O/min (RPM) --Vacuum motor 7.5KW (10Hp) --Machine weight 1,800 kg -- Approximate Machine dimensions based on similar machine W:2000mm (6'7")/ L:2780mm (9'2")/ H:6'11")

LOEWER DISC MASTER 3DBB Denibbing Sander with (2) Sanding Stations, 53" Width Capacity:53" Width cap. Denibbing Sander with a patented combination of rollers and rotating/oscillating discs make the LOEWER Discmaster 3DBB Sanding Machine the ideal finishing solution for entry doors, cabinet doors, drawer fronts, sheet goods, shutters, face frames, furniture and much more. -- Ideal solution for all sanding applications including whitewood, stain and sealer coats (including UV). -- Operation: The workpiece first passes under (16) rotating discs with abrasive brush loadings and then under (2) large counter-rotating spiral brush roller type hubs,Head Configuration: -- 1st Unit: (16) Rotating discs 250 mm (10") diameter each with (24) keyways 75 mm (3") long that oscillate from left to right; provides very uniform edge breading in whitewood sanding and eliminates most (if not all) hand sanding of the sealer coat. The discs are variable speed from 50 - 300 RPM by frequency inverter. Eccentric orbital disc movement (patent pending). Separate height adjustment of the disc station to run discs only or brush rollers only or everything together. Digital display to show the height of the discs. -- 2nd Unit: (2) - 400 mm 16" dia. rotating brushes sanding rollers powered by 2.2 kW gear motor with external coolers. -- Variable spindle speed 14 - 300 RPM adjusted by frequency inverter on each spindle and separately adjustable. The first drum rotates with the feed and the second rotates against the feed. Includes a panel blow-off station. -- The patented combination of rollers and rotating discs provides very uniform sanding across the entire workpiece, even into deep profiles without losing detail. Specifications: -- Disc oscillation by 0.37 kW (0.5 HP) motor, (0 - 60 Cycles/Min). -- Min. part thickness 4 mm (3/16") and max. 4"; -- Vacuum bed with 7.5 kW (10 HP) motor; Vacuum blower outlet on side of the machine has 200 mm outlet. -- Variable vacuum bed conveyor feed speed from 3 - 15 m/Min (8 - 50FPM). -- Pneumatic belt centering system. -- Fixed bed height for installation in a line. -- Separate variable speed adjustment for disc & roller. -- Antistatic brush strip device. -- Control panel Left Side-mounted. -- Emergency stop pull cords at both infeed and outfeed. -- Dust extraction outlets 3 x 80 mm (3.2") 4 x 140 mm (5.6") and 1 x 200 mm (8").Equipped with: -- PLC Touch-screen control: Simple & user-friendly "TOUCH SCREEN" PLC control with color monitor; PLC storage capacity for up to (25) individual sanding programs; -- the PLC control interface also allows for easy machine connection to a flat-line, tow-line or hanging-ling finishing system.

Dust Collection Pipe (Snap Ring Type Pipe)Quantity - Diameter - Length Description(2) 22" - 12" - 38" Branch.(1) 24" - 12" - 38" Branch.Many loose Snap Rings in the tote.(1) 25" - 59" Pipe.(4) 22" - 59" Pipe.(2) 24" - 59" Pipe.(1) 24" x 22" x 6" 21"; Reducer with branch.(1) 22" x 20" x 12" 33"; Reducer with branch.(1) 11" x 10" x 10" 29"; Reducer with branch.(1) 12" Auto gate.(18) 10" - 59" Pipe.(2) 9" - 59" Pipe.(1) 11" - 59" Pipe.(4) 12" - 59" Pipe.(1) 22" - 29" Pipe.(1) 20" - 50" Elbow.(1) 20" x 16" x 12" - 33" Reducer with branch.(1) 24" x 24" x 10" - 29" Branch.(1) 24" x 24" x 6" - 24" Branch.(1) 16" x 12" x 7" x 7" - 45" Reducer with branch.(1) 22" x 22" x 6" - 20" Branch.(7) 12" - 59" Pipe.(4) 14" - 59" Pipe.(1) 16" - 43" Pipe adj.(18) 8" - 59" Pipe.(68) 6" - 59" Pipe.(10) 3" - 59" Pipe.(2) 8" - 32" Pipe.(32) 8", 9", 10", 11" - 59" Pipe.(46) 5" - 59" Pipe.(8) 7" - 59" Pipe.(39) 4" - 59" Pipe.(1) 14" x 12" x 6" - 21" Reducer & branch.(1) 14" x 14" x 6" - 21" Branch.(20) 3", 4", 5", 6" - Various pipe.(1) 6" x 6" x 6" - 21" Branch.(1) 10" x 10" x 4" - 17" Reducer.(1) 10" x 7" x 7" - 23" Reducer.(1) 10" x 9" x 4" - 17" Reducer & branch.(1) 10" x 7" x 7" - 23" Reducer & branch.(1) 10" x 7" 9" Reducer(5) 10" - 18" 90° Elbows.(20) 5" - 8" 90° Elbows.(7) 7" - 8" 90° Elbows.(23) 6" - 8" 90° Elbows.(20) 8" - 20" 90° Elbows(4) 5" - 6" Saddle.(1) 7" x 4" x 4" - 19" Reducer & branch.(2) 8" x 7" x 6" - 21" Reducer & branch.(1) 7" x 6" x 4" - 17" Reducer & branch.(1) 11" x 11" x 9" - 31" Branch.(1) 12" x 8" x 8" - 19" Reducer & branch.(1) 7" x 6" x 5" - 19" Reducer & branch.(1) 11" x 10" x 4" - 17" Reducer & branch.(1) 14" - 39" - 90° Elbows.(1) 9" - 20" 90° Elbows.(2) 10" - 16" 90° Elbows.(1) 7" 22" Pipe.(1) 10" x 10" x 4" - 17" Branch.(2) 10" x 8" x 6" - 21" Reducer & branch.(1) 14" - 39" 90° Elbow.(1) 9" - 20" 90° Elbow.(2) 10" - 16" 90° Elbows.(1) 7" - 22" Pipe.(1) 10" x 10" x 4" - 17" Branch.(2) 10" x 8" x 6" - 21" Reducer & branch.(1) 8" x 8" x 6" - 23" Branch.(1) 12" x 10" x 6' - 21" Reducer & branch.(1) 8" x 6" x 4" - 18" Reducer & branch.(28) 4", 5", 6", 7", 8", 9", 10", 14" Misc.(1) 14" x 11" x 6", 6" 42" Reducer & branches.(1) 8" x 7" x 6" - 21" Reducer & branch.(1) 12" x 7" x 7" - 34" Reducer & branch.(1) 12" x 11" x 4" - 17" Reducer & branch.(1) 5" x 5" x 5" - 17" Branch.(1) Batch 50' - 24" Straight pipe.(1) Batch various 24" - 90° elbow.(1) Batch various 24" - 45° elbow.(1) Batch 150' - 12" Straight pipe.(1) Batch various 12" various fitting.

PROFILEMATIC 503 PROFILE SANDER3-Head feed through, sands from top at adjustable angles narrow moulding type parts as well profiled edges on panels.Equipped with: -- (3) Top VPS vibrating air-loaded sanding units, 0.5 HP vibrating motor ea., sanding heads have (2) pneumatic cylinders for sanding pressure control and oscillate with 1/2" stroke on dust-protected round guides, variable vibration speed from 200 - 1,800 RPM; adjustment range of 120ø to conform to profile, equipped with air shower to clean workpiece & sandpaper automatically. -- Part transport is achieved by a 4-1/2" wide linatex coated conveyor belt system, "quick adjustment" holddown wheels & fence system, variable feed speed 0 - 35 FPM powered by a 0.25 HP DC gear drive (forward & reverse feed mode). -- Each sanding head with its own controls for manual raise & lower, pressure control and vibrating speed. Profile width approx. 1/2" min. to 4" max., material feed through thickness up to 5"; support fences for up to 10" moulding width.

PROFILEMATIC - BF-400: Solid Surface Sand/Buff -- FeaturesPatented Rotary Orbital Sanding/Buffing System. For sanding & buffing solid surface countertops up to 10' long x 40" wide; with or without sink bowls or cove backsplashes to a matt finish in approx. (3) minutes. -- Quickly programmed. Speed of the top through the machine; speed of the randomly orbiting sanding heads; stroke distance of the sanding heads. -- Operator places the workpiece on a feed through Conveyor System; top automatically feeds through the machine and is sanded with different grades of sandpaper or buffing material and exits the machine as a finished product. -- SpecificationsMaterial Width: 40″; material length: Unlimited; material thickness: 12″ +/-; (3) Sanding Stations; (18) sanding heads; sanding pad type: PSA. -- Equipped with(45) 5″ Diameter Sanding Discs; Infeed & Outfeed Conveyors; ALLEN-BRADLEY "PanelView 300" Controller. -- Actual model: PROFILEMATIC - SURFACE MASTER BF-400 & Made in the USA!

4-Station Profile ShaperSpecifications: -- 6" Chain drive with non-marking rubber top pads traveling on a hardened and ground precision dia. 5/8" round rods, Top pressure beam driven, Heavy duty fabricated transporter frame, Forward and reverse mode and block mode for creating sanding tools -- Precision X & Y axis mounting stands, 60° rotating tilt on mounting stands with positive lock, Independent activation control at each station, Adjustable infeed fence system, All dust hoods and guards, 2 HP AC variable speed gear drive 5 to 60' per min.Workstation 1: 3.5 HP TEFC Saw Arbor Motor, 1" Dia. Spindle, Dust Hoods with 4" outlet, Mounted on precision X & Y slides Workstation 2 & 3 - Belt Sanding Unit: 2 HP AC motor drive, Air belt tension system, Independent belt tracking system, Air activated sanding pad with touch control, 2" sanding belt width, Guards and Dust hoods with 4" outlet Workstation 4 - Wheel Sanding Unit: 3" HP variable speed (0-3,400 RPM) AC TEFC drive motor, 1" or 1.25" arbor 3.5" long, Dust Hood with 4" dia. outlet, Mounted on precision X & Y slidesSPECIAL NOTE: Needs New PLC or wire for traditional controlsNOTE: Above specs are taken from literature and thought to be accurate.

PROGRESS PMC-264 Stroke SanderSpecifications: -- 8' x 30" Sliding table (on ball bearing steel rollers), 30" table travel; -- Manually operated stroker pad travels on ball bearings; large hand wheel for manual raise-and-lower of table for up to 24" vertical opening -- 5 HP - 1,750 RPM TEFC main motor. -- (2) 10" Dia. pulleys x 6-1/4" face, drive pulley rubber covered; -- 6" Wide x 264" long abrasive belt, abrasive belt speed 4,300 SFPM. -

PROGRESSIVE - Model SB/D 31, ...Dip Chain Gang Rip Saw.Specifications: -- 31" Cap. arbor with: Pneumatic arbor lock, 14" max. dia. tooling, -- 5" max. motorized thickness adjustment; 22" min. length for glue joint accuracy, 6" throat depth to fence side of blade. -- (1) 31-1/2" Saw sleeve with: Double-keys arranged for 3-1/8" bore saw blades. -- Equipped with: 75 HP - 3,600 RPM TEFC -- Direct drive motor, arbor with disc brake & load meter; 2-3/16" dia. turned, ground & polished saw arbor with outboard bearing; motorized vertical adjustment of arbor. -- Feed & chain: 34" Wide feed bed, -- 5 HP variable feed drive, feed speed from 30 - 150 FPM; adjustable jam protection. -- Dip bed carried on 2-1/2" pitch hardened double V-chain, extruded structural aluminum feed bed slats with replaceable Equipped with & Features -- "Safety Orange" polyurethane inserts; oil mist lubrication for extended chain life. -- (2) Infeed & (2) outfeed 4" dia. air loaded overhead pressure rolls; full width air loaded laminated bed holddown plate at saw arbor with +/- 1/4" thickness variation with pressure adjustment -- Pressure rolls & bed plate unit with manual height adjustment. -- Anti-kickback Finger System with: (1) Lower & (2) upper on infeed, (1) upper between feed rolls, and (1) upper assembly on outfeed. -- 5" Dia. dust outlet on upper infeed & 8" dia. dust outlet in upper outfeed; control panel mounted on infeed; saw sleeve and spacers. Note: Includes One Sleeve with a Collection of Spacers -- Owner's Manual Included -- Machine can be purchased As Is with a condition report (available on request), or you have it gone through ( As Is will be at a reduced price )

PTR - 7200HD-8: Vertical Baler -- 20 HP Motor. -- 8"; Cylinder. -- Average Cycle Time: 34 Seconds. -- Bale Size: 72"; x 42"; x 48";. -- Bale Weight: 1,800 – 2,000 Lbs. -- Working Pressure: 3,100 PSI. -- Relief Pressure: 3,400 PSI. -- Working Force: 155,825 Lbs. -- Relief Force: 170,897 Lbs. -- Nor Ram Pressure: 51.5 PSI. -- Max Ram Pressure; 56.5 PSI. -- Shipping Weight: 10,000 Lbs.

PTR - 7200HD-8: Vertical Baler -- 20 HP Motor. -- 8"; Cylinder. -- Average Cycle Time: 34 Seconds. -- Bale Size: 72"; x 42"; x 48";. -- Bale Weight: 1,800 – 2,000 Lbs. -- Working Pressure: 3,100 PSI. -- Relief Pressure: 3,400 PSI. -- Working Force: 155,825 Lbs. -- Relief Force: 170,897 lbs. -- Nor Ram Pressure: 51.5 PSI. -- Max Ram Pressure; 56.5 PSI. --Shipping Weight: 10,000 Lbs.

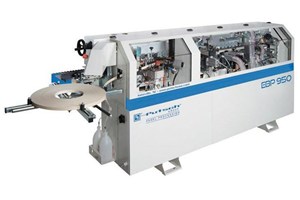

CASADEI (PUTSCH-Branded) EBP-950 PMCR Automatic Edgebander, New, Never Used, with Pre-Mill & Corner RoundingSpecifications: -- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual feed. -- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), & Min. panel length 110 mm (4.33"). -- Feed speed 9 MPM (29 FPM).Equipped with: -- Pre-Mill Unit, with (2) 0.75 kW (1 HP) - 12,000 RPM - 200 Hz Motors, Counter-rotation, (2) 60 mm Dia. x 52 mm H (2.36"; Dia. x 2.05"; H) Diamond cutterheads, Max. milling adjustment 2 mm (0.08"), & Dedicated extraction system with Blower. -- Anti-Adherence Spray Unit. -- Infrared lamp. -- PURE (PUR & EVA) Hot melt gluing system, with Teflon-coated glue pot with (6) 1,315 W Heating elements with (4) in Glue pot, (1) in Turret & (1) in Glue spreading roller, Thermostatic glue control, Automatic standby & Temperature display, and Automatic glue drainage. -- Pneumatically-operated guillotine. -- Pressure section, with (1) Large driven & (2) Small idler rollers. -- Feed chain, with Scratch resistant, non-slip rubber pads. -- Top pressure beam, with (2) Rows of rubber rollers. -- Safety enclosure. -- PLC Control, with ETOUCH 7" Backlit LCD touchscreen display, 99-Program Storage, & Diagnostics.Workstations: -- Front & Rear End Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, & (2) 80 mm (3.15";) Knives. -- Top & Bottom Flush/Bevel/Radius Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutters with Disposable knives, 2 - 3 mm (0.08" - 0.012") Radii, & 15° Bevel. -- Corner Rounding Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, 50 mm (1.97";) Diamond cutterheads, 50 mm (1.97";) Vertical/Horizontal copiers for profiling straight, curved, & beveled edges, & PLC-selectable front, rear, or complete panel processing. -- Edge Scraping Unit, with 2 mm (0.08";) Cutters, -- Top & Bottom Glue Scraping Unit, with 120 mm (4.72";) Vertical disc copier. -- Top & Bottom Buffing Unit, with (2) 0.13 kW (0.17 HP) - 1,400 RPM Motors. -- Polishing Spray Unit, PLC-Controlled, with (2) Sprayers.NOTE: Sold "As Is" Without Warranty!

CASADEI (PUTSCH-Branded) EBP-950 PMCR Automatic Edgebander, New, Never Used, with Pre-Mill & Corner RoundingSpecifications: -- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual feed. -- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), & Min. panel length 110 mm (4.33"). -- Feed speed 9 MPM (29 FPM).Equipped with: -- Pre-Mill Unit, with (2) 0.75 kW (1 HP) - 12,000 RPM - 200 Hz Motors, Counter-rotation, (2) 60 mm Dia. x 52 mm H (2.36"; Dia. x 2.05"; H) Diamond cutter-heads, Max. milling adjustment 2 mm (0.08"), & Dedicated extraction system with Blower. -- Anti-Adherence Spray Unit. -- Infrared lamp. -- FLEX Interchangeable gluing system, with Teflon-coated glue pot with (6) 1,315 W Heating elements with (4) in Glue pot, (1) in Turret & (1) in Glue spreading roller, Thermostatic glue control, Automatic standby & Temperature display, and Automatic glue drainage. -- Pneumatically-operated guillotine. -- Pressure section, with (1) Large driven & (2) Small idler rollers. -- Feed chain, with Scratch resistant, non-slip rubber pads. -- Top pressure beam, with (2) Rows of rubber rollers. -- Safety enclosure. -- PLC Control, with ETOUCH 7" Backlit LCD touchscreen display, 99-Program Storage, & Diagnostics.Workstations: -- Front & Rear End Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, & (2) 80 mm (3.15";) Knives. -- Top & Bottom Flush/Bevel/Radius Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutters with Disposable knives, 2 - 3 mm (0.08" - 0.012") Radii, & 15° Bevel. -- Corner Rounding Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, 50 mm (1.97";) Diamond cutter-heads, 50 mm (1.97";) Vertical/Horizontal copiers for profiling straight, curved, & beveled edges, & PLC-selectable front, rear, or complete panel processing. -- Edge Scraping Unit, with 2 mm (0.08";) Cutters, -- Top & Bottom Glue Scraping Unit, with 120 mm (4.72";) Vertical disc copier. -- Top & Bottom Buffing Unit, with (2) 0.13 kW (0.17 HP) - 1,400 RPM Motors. -- Polishing Spray Unit, PLC-Controlled, with (2) Sprayers.NOTE: Sold "As Is" Without Warranty!

CASADEI (PUTSCH-Branded) EBP-950 PMCR Automatic Edgebander, New, Never Used, with Pre-Mill & Corner RoundingSpecifications: -- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual feed. -- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), & Min. panel length 110 mm (4.33"). -- Feed speed 9 MPM (29 FPM).Equipped with: -- Pre-Mill Unit, with (2) 0.75 kW (1 HP) - 12,000 RPM - 200 Hz Motors, Counter-rotation, (2) 60 mm Dia. x 52 mm H (2.36"; Dia. x 2.05"; H) Diamond cutterheads, Max. milling adjustment 2 mm (0.08"), & Dedicated extraction system with Blower. -- Anti-Adherence Spray Unit. -- Infrared lamp. -- FLEX Interchangeable gluing system, with Teflon-coated glue pot with (6) 1,315 W Heating elements with (4) in Glue pot, (1) in Turret & (1) in Glue spreading roller, Thermostatic glue control, Automatic standby & Temperature display, and Automatic glue drainage. -- Pneumatically operated guillotine. -- Pressure section, with (1) Large driven & (2) Small idler rollers. -- Feed chain, with Scratch resistant, non-slip rubber pads. -- Top pressure beam, with (2) Rows of rubber rollers. -- Safety enclosure. -- PLC Control, with ETOUCH 7" Backlit LCD touchscreen display, 99-Program Storage, & Diagnostics.Workstations: -- Front & Rear End Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, & (2) 80 mm (3.15";) Knives. -- Top & Bottom Flush/Bevel/Radius Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutters with Disposable knives, 2 - 3 mm (0.08" - 0.012") Radii, & 15° Bevel. -- Corner Rounding Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motor, 50 mm (1.97";) Diamond cutterheads, 50 mm (1.97";) Vertical/Horizontal copiers for profiling straight, curved, & beveled edges, & PLC-selectable front, rear, or complete panel processing. -- Edge Scraping Unit, with 2 mm (0.08";) Cutters, -- Top & Bottom Glue Scraping Unit, with 120 mm (4.72";) Vertical disc copier. -- Top & Bottom Buffing Unit, with (2) 0.13 kW (0.17 HP) - 1,400 RPM Motors. -- Polishing Spray Unit, PLC-Controlled, with (2) Sprayers.NOTE: Sold "As Is" Without Warranty!

CASADEI (PUTSCH-Branded) EBP-950 EdgebanderSpecifications: -- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual feed. -- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), & Min. panel length 110 mm (4.33"). -- Feed speed 9 MPM (29 FPM).Equipped with: -- Teflon-coated glue pot with (6) 1,315 W Heating elements with (4) in Glue pot, (1) in Turret & (1) in Glue spreading roller, Thermostatic glue control, and Automatic standby & Temperature display. -- Pneumatically-operated guillotine. -- Pressure section, with (1) Large driven & (2) Small idler rollers. -- Feed chain, with Scratch resistant, non-slip rubber pads. -- Top pressure beam, with (2) Rows of rubber rollers. -- Safety enclosure. -- PLC Control, with ETOUCH 7" Backlit LCD touchscreen display, 99-Program Storage, & Diagnostics.Workstations: -- Top & Bottom Flush/Bevel/Radius Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutters with Disposable R1/R2 3"; Knives, 2 - 3 mm (0.08" - 0.012") Radii, & 15° Bevel. -- Edge Scraping Unit, with 2 mm (0.08";) Cutters.NOTE: Sold "As Is" Without Warranty!

PUTSCH-MENICONI KOPERNIC 4,200 x 2,200 mm CNC Vertical Machining Center, New with Parts Warranty, ATC, & C-AxisSpecifications: -- Working area X-Axis 4,200mm (165.35";), Y-Axis 2,220 mm (86.61";), & Z-Axis 100 mm (3.94";). -- Min. panel size 300 x 300 mm (11.81"; x 11.81";). -- Positioning speed: X-Axis 45 MPM (147 FPM), Y-Axis 30 MPM (98 FPM), & Z-Axis 15 MPM (49 FPM).Equipped with: -- Inclined Bakelite working table, with 20° Angle with respect to vertical, (12) Independently controlled vacuum zones with Solenoid valves with EtherCAT module & Digital vacuum pressure switch, and (10) Horizontal, (1) Left vertical & (1) Right vertical retractable pneumatic stops. -- Rack & pinion drive system on X & Y-Axes, with Automatic guide lubrication. -- Brushless motors, with EtherCAT Bus drives on All axes. -- Air pressure regulator, with digital pressure gauge. Machining: -- HSD 8 kW (10-3/4 HP) - 24,000 RPM ISO30 Air-cooled electro-spindle, with ER32 20 mm (0.79";) Chuck, High frequency inverter, & Variable spindle speeds to 24,000 RPM. -- CNC-Controlled C-Axis with 360° Rotation. -- Pneumatically actuated suction hood. -- 12-Position Automatic tool changer, with Automatic preset zero tool length probe.Control: -- OSAI “OPEN SMART CNC Control, with 21-1/2"; Display, EtherCAT Bus, USB & Ethernet ports, & MICROSOFT “WINDOWS 10"; Operating system. -- Remote pendant control.Complete with: -- Electrical Cabinet Cooling System. -- BECKER 6.6 kW (8.85 HP) 250 m³/h Vacuum Pump, with inverter for vacuum pressure adjustment from control. -- (6) ISO 30 Tool holders & (6) ER32 Clamps. -- 90° Grooving Cutter & HSD Shank for C-Axis Aggregate. -- 80 mm (3.15";) Cutter for shaving spoil board.Options available at additional cost: -- 150 mm (5.91";) Dia. Circular Tools for C-Axis Aggregate. -- 135° V-Grooving Cutter. -- Z48 Saw Blade.

CASADEI (PUTSCH-Branded) EBP-950 PMVR Edgebander, New, Never Used, with Pre-Mill & Vertical RoundingSpecifications: -- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual feed. -- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), & Min. panel length 110 mm (4.33"). -- Feed speed 9 MPM (29 FPM).Equipped with: -- Pre-Mill Unit, with (2) 0.75 kW (1 HP) - 12,000 RPM - 200 Hz Motors, Counter-rotation, (2) 60 mm Dia. x 52 mm H (2.36"; Dia. x 2.05"; H) Diamond cutterheads, Max. milling adjustment 2 mm (0.08"), & Dedicated extraction system with Blower. -- Teflon-coated glue pot with (6) 1,315 W Heating elements with (4) in Glue pot, (1) in Turret & (1) in Glue spreading roller, Thermostatic glue control, and Automatic standby & Temperature display. -- Pneumatically-operated guillotine. -- Pressure section, with (1) Large driven & (2) Small idler rollers. -- Feed chain, with Scratch resistant, non-slip rubber pads. -- Top pressure beam, with (2) Rows of rubber rollers. -- Safety enclosure. -- PLC Control, with ETOUCH 7" Backlit LCD touchscreen display, 99-Program Storage, & Diagnostics.Workstations: -- Vertical Rounding End Trim Unit, with Diamond Cutterhead & PLC-selectable front, rear, or complete panel processing. -- Top & Bottom Flush/Bevel/Radius Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutters with Disposable R1/R2 3"; Knives, 2 - 3 mm (0.08" - 0.012") Radii, & 15° Bevel. -- Edge Scraping Unit, with 2 mm (0.08";) Cutters, -- Top & Bottom Glue Scraping Unit, with 120 mm (4.72";) Vertical disc copier. -- Top and bottom buffing. -- Anti-Adherence Spray Unit. NOTE: Sold "As Is" Without Warranty!

CASADEI (PUTSCH-Branded) EBP-950 EdgebanderSpecifications: -- Edgebanding thickness: 0.4 - 3 mm (0.02" - 0.12") Coil, 0.4 - 5 mm (0.02" - 0.20") Strip with Manual feed. -- Panel thickness 8 - 45 mm (0.31" - 1.77"), Min. panel width 95 mm (3.74"), & Min. panel length 110 mm (4.33"). -- Feed speed 9 MPM (29 FPM).Equipped with: -- Teflon-coated glue pot with (6) 1,315 W Heating elements with (4) in Glue pot, (1) in Turret & (1) in Glue spreading roller, Thermostatic glue control, and Automatic standby & Temperature display. -- Pneumatically-operated guillotine. -- Pressure section, with (1) Large driven & (2) Small idler rollers. -- Feed chain, with Scratch resistant, non-slip rubber pads. -- Top pressure beam, with (2) Rows of rubber rollers. -- Safety enclosure. -- PLC Control, with ETOUCH 7" Backlit LCD touchscreen display, 99-Program Storage, & Diagnostics.Workstations: -- Top & Bottom Flush/Bevel/Radius Trim Unit, with 0.22 kW (1/3 HP) - 12,000 RPM - 200 Hz Motors, 75 mm (2.95") Dia. Cutters with Disposable R1/R2 3"; Knives, 2 - 3 mm (0.08" - 0.012") Radii, & 15° Bevel. -- Edge Scraping Unit, with 2 mm (0.08";) Cutters.NOTE: Sold "As Is" Without Warranty!

QUICK CRFR-12 Panel and Door ClampThe QUICK Clamp Rack’s moderate cost, ultra high-quality clamps, super-strong frame and efficient use of floor space makes it the ideal gluing station for the small to mid-sized cabinet shop, furniture manufacturer or millwork producer.Includes: -- 12' width capacity, 6-row (3 rows on each side) Clamp Rack with (24) heavy-duty, zinc-plated, hand-tightened clamps. -- Clamps are 40" opening (32" opening is available), with 3.5" high x 4.75" wide jaws, with 1° inward draft.Standard Features: -- Standard features include a super heavy-duty frame with 4" x 4" structural tubing cross beams, 4" x 6" structural tubing legs, and 4" x 4" structural tubing feet. -- Two-position feet can be configured for one-sided or two-sided Rack operation. -- All tubing ends are angled and/or closed for maximum strength and proper aesthetics. -- High-quality urethane finish. -- Clamps are exceptionally heavy-duty, with full box frame construction, and feature quick-release rear jaws and long, smooth handles for maximum ease of use.

QUICK CRFT-08 Clamp Rack The QUICK Clamp Rack’s moderate cost, ultra high-quality clamps, super-strong frame and efficient use of floor space makes it the ideal gluing station for the small to mid-sized cabinet shop, furniture manufacturer or millwork producer.Includes: -- 8' width capacity, 6-row (3 rows on each side) Clamp Rack with (16) heavy-duty, zinc-plated, hand-tightened clamps. Clamps are 40" opening (32" opening is available), with 3.5" high x 4.75" wide jaws, with 1° inward draft.Standard Features: -- Standard features include super heavy-duty frame with 4" x 4" structural tubing cross beams, 4" x 6" structural tubing legs, and 4" x 4" structural tubing feet. -- Two-position feet can be configured for one-sided or two-sided Rack operation. -- All tubing ends are angled and/or closed for maximum strength and proper aesthetics. -- High-quality urethane finish. -- Clamps are exceptionally heavy-duty, with full box frame construction, and feature quick-release rear jaws and long, smooth handles for maximum ease-of-use.

1' x 10' pressing capacity via (10) 1' x 1' platens. Pod Press produces 78,000 lbs. total platen force (7,800 lbs. per platen) at 120 PSI supply air pressure; suitable for lighter-duty (high-pressure laminates to composite substrates) and heavier-duty (wood veneering) applications. 40" fixed daylight; vertical structural frame members and hinged containment fences arrangement for end-loading and side loading the press. -- Horizontally-adjustable vertical containment fences keep laminated material from sliding while under pressure. (10) 10"" maximum diameter air pods with 5" stroke; each air pod with separate hand-operated air valve; each air pod / platen activates individually. Main air valve controls all "activated" air pods at once; various pods are controlled together, or each pod can be controlled separately. -- NOTE: Special Press configuration for use in stile and rail entry and passage door operations.
