Equipment For Sale

Orbital Sander Line 2004 DMC Unisand 2000 Timesavers Model 252-4C

DMC - EuroSystem SY-TC 1350, ...Heavy-Duty 4-Head Wide Belt Sander53" Width cap. Drum, Drum, and Drum; Segmented Platen.Specification; -- Max. workpiece width: 53". -- Workpiece thickness: 0.32" - 6.8".Head Configuration & Feed: -- 1st Sanding Unit: 10"; Diameter grooved steel contact drum; 60 HP motor. -- 2nd Sanding Unit: 10"; Grooved rubber covered drum, 27 HP motor. -- 3rd Sanding Unit: 10"; Grooved rubber covered drum; 20 HP Motor. -- 4th Sanding Unit: Electronic segmented platen; 35 HP motor. -- Belt size of 53" x 103". -- Feed Motor: 5 HP, Variable feed speed. -- Vacuum Bed. -- Constant Pass Line.Equipped with & Features: -- Power Panel Touchscreen Control. -- Shoe type holddowns. -- Amp meters for all Sanding Units.

DMC UNISAND K 1100 Wide belt sander4-Head, 43" (1,100 mm) max. width cap. Head sequence: (3) Contact rolls and (1) Combi with roller and segmented platen.Heads configuration: -- 1st Head: Helical grooved steel contact roll, 10" dia., 48 HP motor. -- 2nd Head: Helically grooved rubber covered contact roll, 12-1/2" dia. and 65-Shore covering hardness, 35 HP motor. -- 3rd Head: Helically grooved rubber covered contact roll, 12-1/2" dia. 45-Shore covering hardness, 30 HP motor. -- 4th Head: Combi head with roller covered with rubber, 30 shore and Finishing sanding pad unit , 30 HP 2-speed motor with segmented pads pneumatically controlled -- All heads use 44" x 103" (to be confirmed) abrasive belts and are equipped with electronic tracking, automatic tensioning, automatic emergency breaking, and oscillating sanding belt cleaners.Controls: -- "HYDRA V-PAD" 10" Touch-screen computer for setup functions, color LCD Display, allows operator to setup/recall part thickness, -- Conveyor feed speed (3.5 - 18 MPM), -- Abrasive belt direction, and reversible speed setting of 4th head. -- Conveyor belt feed with inverter control, feed speeds from 11 - 60 FPM, 5.5 HP feed drive; -- Infeed & outfeed holddown pinch rolls on all heads, automatic part thickness setup with the moving feed belt, -- 2-speed motorized part thickness adjustment, 1/8" - 6" max. opening; -- Infeed & outfeed motorized conveyor extension rollers, automatic part thickness setup sensor. Complete with: -- Safety stop at infeed, -- Anti-kickback device, -- Infeed & outfeed emergency stops, -- Motor load meters, i -- Infeed & outfeed idle rollers, -- High efficiency dust extraction, and control console with monitor.Note: (spare parts not installed) New feed belt , new front pressure roller, new front pressure bar and several new small parts for approx $15,000 of value +11 boxes (approx 5 belts/ box) sanding belts 100 grit, 120 grit, 180 grit and 220 grit.

SCM DMC 90 RCS 135 2 Head 53 inch Wide Belt Sander 53" Width cap, Steel Drum, Combination HeadHead configuration1st Head: Steel Drum 36 HP Motor, 9" Diameter 2nd Head: Combination head 65 shore drum and solid wood platen, 30 HP Motor, 7" Dia. drumSpecifications: -- 54" x 103" Abrasive belts with electronic tracking. -- Shoe & Roller Holddowns. -- "Hydra 35" Computer controlled; set-up functions with a keypad and LCD screen. -- Conveyor belt feed with variable feed speed from 11 - 60 FPM; 6.4 HP feed drive. -- Vacuum conveyor bed with 7.5 HP Motor and suction fan. -- Automatic conveyor belt tensioning & tracking. -- Motorized part thickness opening with LED Readout; 1/8" - 4" max. opening; automatic part thickness set-up sensor. Equipped with & Features: -- Infeed safety stop, outfeed emergency stop, -- Motor load meters. -- 2-Roll infeed conveyor extension; -- High-efficiency dust extraction.NOTE: Specs have to be verified

D M C - UNISAND 135, ...3-Head Wide Belt Veneer & Finishing Sander. -- General Data:3-Head, 51" (1,300 mm) nominal width cap.; motorized part thickness opening with LED readout; 1/8" to 4" max. - Head sequence: Cross belt, rubber-covered Drum, Pad. Head Configuration/Specs: -- 1st Head: Cross belt with: EPICS 44 Segmented electronically controlled air platen; 2-speed abrasive belt; approx. 36/72 FPM (11/22 MPS) linear speed; driven by 19 & 24 HP motors; 6" wide x 238" (6,050 mm) long abrasive belt. Inside synchronized Chevron belt, approx. 228" (5,800 mm) long.Pad unit with pneumatic cylinders: Each acting on a high absorption felt strip; working pressure controlled via control panel. HYDRA Belt: 2' Electronic control with oscillating blower for cleaning. -- 2nd Head: Rubber-covered 45-durometer steel roll, 9.8" (250 mm) dia. with: 18 HP 2-speed motor, 52" x 103" (4,055 mm) long oscillating abrasive belt with electronic tracking; air blast abrasive belt cleaner. Belt runs approx. 3,550 FPM (18 MPS) linear speed; adjustment & indicator of working position. -- 3rd Head: Flexible Sanding Platen with: EPICS 44 Segmented electronically controlled air platens; 3-speed 24 HP motors; 52" x 103" (4,055 MM) long abrasive oscillating belt with electronic tracking, timed oscillating air blast abrasive belt cleaner.Pad unit composed of: Pneumatic cylinders, each acting on a high absorption felt strip. Working pressure controlled vial control panel. Special rails allowing a quick change of graphite cloth on pad. Interchangeable system to modify the hardness, stiffness, and profile of the contact surface. Controller: -- DMC "HYDRA 30" Upgraded computer with: Working position display modes mounted in a separate control cabinet; automatic thickness device reads and adjusts feet table height, motor load meters. Transport Belt Drive: -- Variable feed speed of 16 to 82 FPM, conveyor feed drive, infeed & outfeed holddown pinch rolls on all heads; infeed hand safety stop, outfeed emergency stop; high efficiency dust extraction and separate control console with monitor, keypad, etc. Also included: -- Cleaning brush head at machine discharge. -- High pressure vacuum blower. -- Dust manifold. -- Extended outfeed table.

DMCTC 1350-M2-RP Orbital Sander (2) Heads --53" Width cap. Drum, Combination Head --Head Configuration --1st Head:10" Dia. helical grooved rubber covered calibrating roller, 26 kw (34 HP) motor. --2nd Head: Rubber covered contact roller with finishing platen 18 kw ( 28.5 HP) motor. --Specifications --Working width 1350 mm --Max thickness 170 mm --Belt size both heads 1370 mm X 2620 mm --Feed speeds variable from 3.5 -18 m/min. Feed motor 2.2 kw ( 3 HP) motor --Equipped With --Electronic sanding belt oscillation --Exhaust hoods with 4 outlets --Motor safety switch for main motor --Power rise and fall --Panel cleaning brush --Sander dim. L 2600 mm X W 2400 mm X H 2550 mm --Weight 2900 kg. --There is a crack in the plastic housing but it does not affect the functionality of the machine.

156" long x 60" wide x 80" high (3) vertical pneumatic Clamping bars (7) clamps that can be placed horizontal or vertical on perforated surface

This unit has been in storage for some time and will need some TLC.

DANCKAERT - 44 , ...ResawAir Strain 44"; x 5"; Bandsaw.Features & Specifications: -- McDONOUGH Center Split Feed Works. -- Wheel is supported on both sides - not cantilevered. -- Pressured guides. -- McDONOUGH Infeed Rolls. -- Max. Cut: 14";. -- New Dynamic brake. -- 60 & 100 HP. -- Control Cabinet (has battery backup and resistors to prevent spikes). -- Infeed & outfeed systems are the same. -- 24 ft. Long Camel Back chain (has air bags that are controlled by photo cell to raise & lower and index 1-board at a time). -- Max. length of lumber: 24 ft.From Seller: "The machine has a new VFDD 100 HP and a new WEG Severe Service 60 HP motor. All new hydraulic motors, caramel back chain, and roll cases."NOTE: Needs hydraulic unit.

(5) Danfoss VLT-5000 VFD 50Hp Max

3/4 HP 1725 rpm motor 115/208/230 volt single phase approx. 12” x 30” table Jacobs chuck approx. 3/4” footpedal Assorted fixtures and tooling as pictured.

Approximately 225 Linear feet of floor mounted monorail track (See attached layout drawing) , center link chain with 2-wheel trolleys at 32" on center, encased in 3" channel iron; outside rails with gravity rapid wheels at 8" on center, 3 1/2" channel iron legs 21" high, 54" on center. Includes: Motor drive, controls and (40) 32" X 72" metal pallets.SOME OF THESE SPEC ARE GENERIC BUT OVERALL REPRESENTATION OF THE LINE IS CORRECT.

Grinder feeds a holding tank, which the material is automatic metered and feed to the furnace. Feed is temperature controlled.

Custom-Built DEIMCO Through Feed Sprayer with a BLASDEL IR Preheat Tunnel that is available MARCH of 2023. Until then, the System can be seen in operation. -- Line was designed to preheat Fiber Cement board prior to painting and is followed by a Single-Arm Reciprocating Sprayer with 4-Spray Gun cap. Spray Guns not included.SEE ATTACHED VIDEO FOR A GOOD LOOK AT THE LINE's OPERATION!Built in 2019, the System was used for approx. (2) years; current owner changed their process and no longer requires the equipment.Oven width cap.: 60" Wide, 1-3/4" part height cap.; overall Oven dimension: 84" Wide x 12-1/2' long x 55" high, excluding the Blower & Stack. Line/Conveyor: Variable speed drive, 18.5 FPM to 26 FPM; Reciprocator operates up to 260 FPM and set by the HMI. 2-Zone Oven: -- Zone 1: (2) Upper left side wall/ceiling mounted; 18" x 60" emitters. -- Zone 2: (2) Right upper side wall/ceiling mounted 18" x 60" emitters; 8" clearance between emitters & rolls. Heaters: Natural gas using 7" WC; 480 Volt preheat; TC, FM, flange frame. - Gas Ratings: 360,000 BTUH Max. input ; 100,000 BTUH standby input; Air Exhaust on infeed & Injection Blower on outfeed. Electrical ratings: 26.6 Amps, 480 V - 3 Phase, 60 Hz.Exhaust: 980 CFM, 1 HP Motor.Control Panel: 60 AMP Disconnect switch, ALLEN-BRADLEY "Panel View Plus HM", IEC contactor & High Temp PID exhaust.NOTE: (25) New replacement conveyor rollers & (40) reconditioned rollers for IR Tunnel.DIEMCO Sprayer complete with: (1) Reciprocating Arm holds (4) guns and reads the leading & trailing edge to turn on & off the guns as the parts feed through; best to run full width loads through Sprayer; Overspray funnels into buckets.Spray Guns turn on & off based on the part leading & trailing edge; read by a light curtain on the infeed end.Dims: GFS Spray Cabin: 13' Deep x 8-1/2' wide x 9' high surround the reciprocating arm. - Filter & Exhaust Section: 13' Wide x 3' Deep x 10' High.

DEIMCO MFM-98 ACRYLIC COATING FINISHING SYSTEM: Drying Oven for the purpose of baking and drying the acrylic finish onto lumber and panel products. -- Specifications:3"; dia. x 21.625" long Rollers on 12"; centers; Infeed: 16' long In-feed Conveyor, 10' long Transfer Conveyor, 12' long Oven Conveyor: -- Operator & Machine Control:Built with Allen Bradley/Honeywell Components, MFM Serial: 1177, Voltage: 460V/60 Hz/25 Amp, Air: 1"; NPT 90PSIG. -- Complete With:Electrically Heated Oven; 8 Cool Down Fans; 2 - Hydraulic Lift Tables; Panel Machine with Hydraulic Pump; 15’ Flash Off Conveyor; 40’ Cool Down Conveyor Includes the following for (two) flood coat machines, Conveyor System, Arbors, Paint Pump, Hydraulic Pump, Hydraulic Lift Table -- Complete Over-all Foot Print 175’ long x 50’ wide

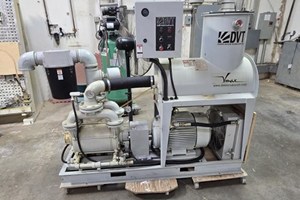

DEKKER VMAX 40 HP VACUUM PUMP (LIQUID RING): 40 HP Oil sealed, liquid ring, compact motor mounted Vacuum Pump System; 550 CFM; max. 29" Hg. -- Heavy-Duty ConstructionCompact design, small footprint. -- Direct Drive with:Low speed (1,750 RPM) Air cooled design &low operating noise level eliminates the use of V-belts, resulting in very low maintenance and zero downtime over the full vacuum range without overheating.

DEKKER VMAX 40 HP VACUUM PUMP (LIQUID RING): 40 HP Oil sealed, liquid ring, compact motor mounted Vacuum Pump System; 550 CFM; max. 29" Hg. -- Heavy-Duty ConstructionCompact design, small footprint, patented, high efficiency "DX-5" separator eliminates oil carry over concerns; Engineered for continuous operation. -- Extended lifeSeal-fluid is not used as a lubricant.Change interval is not critical, resulting in a minimum of (10,000) Hrs. of continuous operation.Sturdy bearing pedestal mounts to standard NEMA, C-face motor. -- Direct Drive and with:Low speed (1,750 RPM) eliminates the use of V-belts, resulting in very low maintenance and zero downtime.Over the full vacuum range without overheating. Air cooled design and low operating noise level.

LOCATED IN ALLENWOOD, PA

Deloupe Log Trailer w/ Serco 7000 Loader

DELTA RC-51 PLANER20" x 9" Cap., 7.5 HP motor, 4-knife cutterhead, power raise-and-lower adjustment and fine adjustment thru a convenient hand wheel; variable feed speed 16 - 28 FPM; equipped with sectional chipbreakers, adjustable bed & dual outfeed rollers. Actual model 22460
