Clamp Carriers For Sale

BIESSE COSMO CASE CLAMP (SEMI-AUTOMATIC): -- Specifications:Working Height 11.8" - 51" (300 - 1300 mm), Working Length 11.8" - 98" (300 - 2500 mm), Working Depth 5.5" - 27.5" (140 - 700mm), 20" (500 mm) working height off floor.Motorized horizontal & vertical beams move simultaneously or individually at 13 FPM (4 MPM). -- Clamping:Vertical & horizontal interlocking pressure walls, each with (8) individual beams, move parallel and square to the clamp frame's side wall.Operator control panel built into left side of clamp. -- Features:Manual switch setting w/LED readout for input of cabinet sizes, switches for 3-level pressure setting (70% - 85% & 100%), cycle timer, and function buttons & control lights.Max. pressure 3,300 Lbs per pressure beam, adjustable pressure sensor stops beam at preset pressure, timer opens clamp automatically.

BIESSE COSMO CASE CLAMP (SEMI-AUTOMATIC) -- Specifications:Working Height: 11.8" - 51" (300 - 1300 mm); working length: 11.8" - 98" (300 - 2500 mm); working depth 5-1/2" - 27-1/2" (140 - 700 mm); 20" (500 mm) working height off floor.Motorized horizontal & vertical beams move simultaneously or individually at 13 FPM (4 MPM). -- Clamping:Vertical & horizontal interlocking pressure walls; each with: (8) Individual beams; move parallel and square to the clamp frame's side wall. -- Operator Interface:BIESSE "Cosmo" mobile control stand: After placing the item of furniture on the worktable, the cycle starts and without tooling, the vertical and horizontal presser surfaces move towards the item and presses it for the length of time programmed on the timer. -- Complete with:Manual switch setting w/LED readout for input of cabinet sizes; switches for 3-level pressure setting (70% - 85% & 100%); cycle timer; function buttons & control lights. User's & maintenance manual, Electrical diagrams, & Spare parts catalog.Max. pressure 3,300 Lbs per pressure beam; adjustable pressure sensor stops beam at a preset pressure; timer opens clamp automatically. -- Actual Model is BIESSE COSMO

CAM-WOOD CM3636NA-BX Box / Drawer PinnerBox Nailing Assembler is designed to automatically nail / fasten 4 or 5 pcs with bottom, PB, MDF, solid wood boxes or draw togetherFeatures: Complete cycle to square, clamp and nail / fastens different size and style boxes or drawing, maximum 36"; x 36";. -- Fast and easy operation, 600 to 1,100 units per shift.. -- High Quality and safe processing, automatically senses the materiel and automatic nailing at settled pitch. -- Automatic shutting staples from top to bottom by detecting sensor. -- Clamps from both width & length direction with adjustable clamp pressure for differentthickness or material. Specifications: -- Maximum working capacity 36"; L x 36" W. -- Minimum working capacity 7" L x 7"; W. -- Maximum working height 10", minimum working height 3";. -- Panel thickness 5/8"; tor 3/4". -- Building frame 0 to5 degrees tilted to back side. -- Standard staple gun Senco SNTSLS20 x 4 units (other guns will be optional). -- Staple size 1-1/4"; length, ¼"; crown. -- Automatic shutting staples space distance 1"; (adjustable pitch by 1";). -- Minimum pneumatic required 90 psiOther sizes available with special order.

CAM-WOOD CC-388PA Clamp Carrier (8 Sections)8-Section Pneumatic Clamp Carrier with 98" length capacity.Equipped with: -- (6) Heavy Duty zinc plated clamps per section (48 clamps total). -- 40" Opening on clamps. -- Jaw sizes of clamps are 3-1/2" with inward draft. -- Pneumatic overhead panel flattener. -- Pneumatic clamp tightener and 1/2 HP electric motor rotation.Standard features: -- Large I-beam frame & legs for max. rigidity and durability. -- Heavy-duty zinc-plated clamp with huge 3/4" diameter jack bolt for super strength. -- Powerful caterpillar chain drive for clamp rotation. -- Select switch control for auto or manual mode.Includes: -- Clamp tightener with pneumatic wrench for rapid tightening and loosening of clamp. -- Pneumatic panel flattener to hold panels flat while clamps are tightened.Versatile and reliable Edge Gluing Machine for Solid Wood gluing, including laminate board, parquet, flat stock, table top, core block, truck flooring, turnings, chair seat, legs, spindle blanks, stair tread, and many others.

CAM-WOOD CC-4108PA Clamp Carrier (8 Sections)8-Section Pneumatic Clamp Carrier with 125" length capacity.Equipped with: -- (8) Heavy Duty zinc plated clamps per section (64 clamps total). -- 50" Opening on clamps. -- Jaw sizes of clamps are 3-1/2" with inward draft. -- Pneumatic overhead panel flattener. -- Pneumatic clamp tightener and 1/2 HP electric motor rotation.Standard features: -- Large I-beam frame & legs for max. rigidity and durability. -- Heavy-duty zinc-plated clamp with huge 3/4" diameter jack bolt for super strength. -- Powerful caterpillar chain drive for clamp rotation. -- Select switch control for auto or manual mode.Versatile and reliable Edge Gluing Machine for Solid Wood gluing, including laminate board, parquet, flat stock, tabletop, core block, truck flooring, turnings, chair seat, legs, spindle blanks, stair tread, and many others.

CARLSON CD PINNER PLUS Cabinet Door Clamp & Pinner; 30" Wide x 48" High max. Capability. The ProMax Cabinet Door Pinner is an affordable system that squares, clamps and fastens a variety of cabinet door styles and sizes. This machine is designed to handle stile widths between 1-1/4" and 3-1/2" in 1/8" increments and any rail widths. Standard product minimum: approximately 7" wide X 6" tall for 2" stile and rail cabinet doors. Standard product maximum: approximately 30" wide X 60" tall for 2" stile and rail cabinet doors.General Specifications: -- Standard joy stick operation allows quick and accurate size adjustments. -- The frame is ergonomically designed at an angle for easy placement of sub-assembled door parts and fast removal of the finished product. -- Operating controls are simple and convenient to minimize training time. -- Machine functions are air powered with programmable electrical controls for accurate and reliable operation.Includes: -- Air motor drive system. -- Standard clamp pads. -- Cope & Stick door fastening. -- Spare tool assembly. -- Size upgrade - Height 60". -- Miter capability. -- Safety light curtain. Features: -- Heavy duty frame, low maintenance, powered size adjustments, precision linear bearings, overhead mar-proof clamping, programmable controller.

COMIL CF-2000 CASE CLAMP (AUTO FEED THRU):Automatically self-adjusting Feed-Through Clamp with: Pneumatic clamping pressure & electronic self-setting of clamping units according to cabinet size; cycle of machine can be timed to interlink with Production line.Working Capacity: -- Carcass length: 11.8" - 98.4" (300 - 2,500 mm); carcass height: 11.8" - 48" (300 - 1,220 mm); carcass depth (width) 11.8" - 39.8" (300 - 1,000 mm). -- Infeed/ through-feed conveyor belt at 19.7" (500 mm) floor height & variable feed speed from 24 - 123 FPM (7 - 37 MPM).Equipped with: -- (3) Horizontal clamping units. -- (1) Top vertical clamping beam operated by (3) pneumatic (double-acting) cylinders.Operator & Machine Control: -- Built-in operating control console with controller; LED readouts for programming of cycle time & pressure control.

COMIL - XPRESS: Case Clamp (Automatic Feed Through)Specifications -- Working width: 180 - 760 mm (7.09" - 29.92"). -- Working length: 250 - 2,500 mm (9.84" - 98.43"). -- Working height: 250 - 1,300 mm (9.84" - 51.18"). -- Working table height: 500 mm (19.69"). -- Conveyor speed: 35 MPM (114 FPM). -- Beam speed: 18 MPM (59 FPM); horizontal: 20 MPM (65 FPM); Vertical (Combined). -- Beam pressure: 1,800 kG Horizontal (3,968 Lbs); 2,000 kG vertical (4,409 Lbs).Equipped with: -- Motorized belt conveyor: 31"; W x 17’ L x 26-1/2"; H. -- (2) Vertical beams with: Ball screw drive; each with: (3) Pressure bars; 0.37 kW (1/2 HP) - 2,750 RPM motor; rack & pinion drive. -- Top beam with: 2.9 kW (4 HP) - 1,500 RPM AC Servo motor and rack & pinion drive. -- Length & height Sensors. -- BIESSE "NC 400" CNC Control with: 6" Color LCD display.Complete with: -- 3' x 12' Pressure-Sensitive Safety Mat.NOTE-1: Infeed & Outfeed Conveyors NOT included.NOTE-2: Machine is currently being fed by 600 V, and Seller states there is a built-in Multi-Tap Transformer converting to 400 V.

COMIL CF-2000 JUNIOR ... Automatic Feed Through Case Clamp; - 28" Feed Through CapacityAutomatically self-adjusting Feed Through Clamp with pneumatic clamping pressure & electronic self-setting of clamping units according to cabinet size; cycle of machine can be timed to interlink with production line.Specifications:In-feed & thru-feed conveyor belt (feed speed 24 - 123 FPM) at 19.7" floor height. Max. feed through opening 28", max. length 100", max. height 48".Clamping System:(3) Horizontal clamping units, (1) top vertical clamping beam operated by (3) pneumatic (double acting) cylinders.Controls:Built-in operating control console with controller with LED readouts, for programming of cycle time & pressure control.Comes With:20 ft Motorized out feed conveyor - original COMIL

DOUCET DRAWER MASTER DWM-36 36" Universal Drawer Box Assembly Clamp Specifications: Assembles drawers with Standard Finger-Type Dovetails, Sliding-Type Dovetails, Bored & Doweled Drawers, and Tongue & dado box joints. Cap. 10" H x 24" W x 36" L. Equipped with: Fixed left jaw, Manually adjustable right jaw, with Rapid set jaw opening. Double-acting pneumatic cylinders. 2-Hand push-button operation. “Quick” Mode & "Progressive Compression" mode, Operates as a jog button to allow for easy fitting of bottom panel in lateral grooves. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

DOUCET - 16-SECTION: Clamp Carrier (Hydraulic)Specifications -- (16) Sections; 8-1/2' width. -- (6) Clamps per section; (86) clamps total. -- 32" Clamp opening (rapid change) with: 2-1/2" High jaws.Complete with: -- 5 HP Hydraulic power pack and motor for rotation. -- Hydraulic clamp tightening. -- Pneumatic overhead panel flattener.NOTE: Tear down included!

DOUCET 12-SECTION Clamp Carrier (Hydraulic)Specifications: -- (12) Sections, 8-1/2' width, -- (9) Clamps per section (108) clamps total, -- 36" Clamp opening (rapid change) with 2-1/2" high jaws.Complete with: -- 5 HP hydraulic power pack and motor for rotation -- Hydraulic clamp tightening; -- Pneumatic overhead panel flattener.Note: Tear down not included

DOUCET - 16-Section: Clamp Carrier; 16-1/2' Wide(16) Sections with: 16-1/2' wide usable clamping width.Complete with: -- (12) Clamps per section (total of 192 clamps). -- 48" Opening clamps: 3-1/2" High x 4-1/2" jaw width. -- (1) Pneumatic panel flattener. -- Heavy-Duty, 5 HP hydraulic pump for rotation drive. -- (1) Hydraulic torque wrench clamp tightener.Actual model: SRH-16-16.5-19+2-48RNOTE: Tear-down not included.

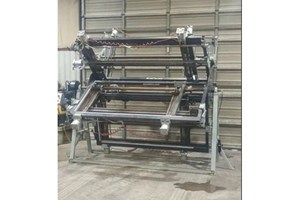

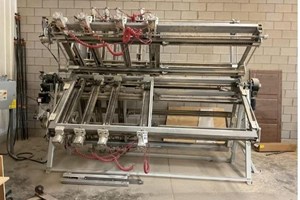

DOUCET - RDM2: Door Master Rotary Door Clamp with (5) StationsMax. cap. of 30" x 96" per squaring assembly. -- Features: Double door clamp design; allows clamping & squaring multiple doors at one time or large doors up to 96" L. -- Machine offers: Precise & accurate squaring of stile & rail cabinet doors; with the rotating design, you can achieve high production.Equipped with: -- (5) Rotating pneumatic sections. Each section with pneumatic squaring assembly: (2) Horizontal; (4) vertical clamps. -- Push button control for: Rotation with Heavy-Duty 575 - 3-phase gearmotor drive. -- Made of 100% welded tubular steel construction.Actual model is: DOUCET "RMD2-5-30-96".

DOUCET SDM-M-30-72 Frame and Cabinet Door ClampDesigned for quick and accurate clamping & squaring of miter and regular cabinet doors.Specifications: -- 5-1/2" x 12-1/2" Min. door size, 30" x 72" max. door size. -- (1) Fixed vertical clamp, (2) mobile vertical clamps on roller bearings for effortless positioning. -- (1) Mobile horizontal clamp with a unique "gas spring" assisted lever for effortless centering; pressure is distributed with 4' dia. air cylinders. -- "Progressive Flow" clamping system @ 80 PSI; 675 Lbs of clamping pressure per clamp; operator working height adjustment.

DOUCET SDM Door Clamp (Cope and Stick)Door Master Model SDM is a Door Clamp for Cope and Stick Doors (90°). The SDM is suitable for the assembly of drawer fronts, as well as of a large pantry doors.Specifications: -- 5-1/2" x 12-1/2" Min. door size, 30" x 72" max. door size; 3-position pneumatic valve operates clamp in open, pre-clamping, & clamping modes. -- Equipped with: (3) Clamps: (2) Vertical (1) fixed, (1) mobile, (1) mobile horizontal. Mobile cylinders ride on roller bearings for effortless positioning, corner adjustment made easy by push button action. -- Actual DOUCET p/n SDM-1-30-72.

DOUCET - DRAWER MASTER DWM-36: 36" Universal Drawer Box Assembly ClampSpecifications -- Assembles drawers with: Standard finger-type dovetails; sliding-type dovetails; bored & doweled drawers; tongue & dado box joints. -- Capacity: 10" H x 24" W x 36" L.Equipped with: -- Fixed left jaw, manually adjustable right jaw; Rapid set jaw opening. -- Double-acting pneumatic cylinders. -- 2-Hand push button operation. -- “Quick"; Mode & "Progressive Compression" mode; operates as a jog button to allow for easy fitting of bottom panel in lateral grooves.

DOUCET SRM-6 6-Section Clamp Carrier;Specifications: -- (6) Sections; 8.5' wide usable clamping width -- (8) Clamps per section (total of approx 48 clamps).with quick attach system -- 32" Opening clamps, 2-1/2" high x 4" jaw width. Complete with: -- Pneumatic panel flattener, -- 5 HP hydraulic pump for rotation drive, -- Hydraulic clamp tightener.Note: Actual model SRM-6-8.5-48-32-RTear down not included

DOUCET - 8-SECTION, ...Clamp Carrier (Hydraulic). -- (8) Sections, 8-1/2' width. -- (8) Clamps per section, (64) clamps total. -- 42" Clamp opening (rapid change) with 2-1/2" high jaws. Complete with: -- (1) Pneumatic fence w/manual valve. -- 5 HP Hydraulic power pack and motor for rotation. -- Hydraulic clamp tightening; mounted on rail. -- Pneumatic overhead panel flattener.Actual model is: SRH 08-8.5-64-42R.Note: Tear down and loading not included.

GANNOMAT CONCEPT 70 PRIMUS CASE CLAMP (SEMI-AUTOMATIC) -- Specifications:Multipurpose Case Clamp with: Interlocking vertical & horizontal pressure beams; specially designed to save time and labor.Working Capacity: -- Length: Min. 6" (150 mm) & max. 98.4" (2,500 mm); Height min. 6" (150 mm) & max. 51" (1,300 mm); Depth min. 6" (150 mm) 27.5" (700 mm). -- Clamping pressure is applied across the entire vertical & horizontal beams for clamping of case goods, drawers, etc. -- Adjustable clamping cycle time: 0 – 30 minutes (changeable to seconds and hours) with automatic opening. Operator Interface: -- SIGMA "TEH Etek DCT281" Display with: LCD Display; soft touch keypad for the following functions: Manual operation, (6) programs for (8) motion sequences, clamping, pressure regulation, workpiece count, clamping time, etc. -- Actual model is GANNOMAT CONCEPT 70 PRIMUS 721.
