Wood Finishing For Sale

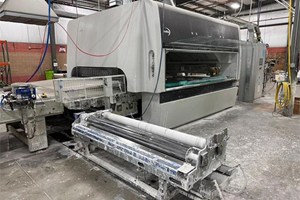

Cefla Roctre/D Reciprocating 2 Head Spray Machine 1600 mm wide spray area.

Cefla Roctre/D Reciprocating 2 Head Spray Machine 1600 mm wide spray area.

CEFLA 5 Ft. Wide Single Lamp UV OvenGreat for handing those "extra wide" Panels!Features: -- UV-R Super Focus: This configuration is suitable for reducing the heating effect of the lamps on artifacts sensitive to high temperatures (e.g. resinous wood). -- The particular shape of the lamp parabolas focuses the UV ray beam at the same point of the panel, allowing to reduce significantly reducing the number of lamps needed to dry the paint and avoiding the dispersion of rays, also guaranteeing significant savings in terms of space and energy consumption. -- This configuration can be integrated with the "SMART-THICK" system for adjusting the thickness of the pieces in line, usually on roller application lines.UV-R SP: Allows the cross-linking of the paint applied even on the edges of the pieces, thanks to the use of inclined lamps and a greater energy impact of the lamps themselves on the edges.UV-R: Equipped with an electronic system for regulating the power of each lamp; it also allows you to automatically activate the energy-saving function by checking the presence of material under each lamp.The Electrical Panel is integrated into the machine body and does not require additional spaces in the line layout.

CEFLA - Spraybotic/MD Spraying, ... Automatic Spray Finishing SystemComplete CEFLA - SPRAYBOTIC RE5 Spray Line that has undergone a Very Complete refurbishing when it was reinstalled in its current location. Reinstall includes: Replacement of all motors with new ones, feed belt, and all air and fluid lines; completely repainted to "look like a new machine". Since it was restored, machine has had light usage.Line includes: -- POS-1 Loading Belt Conveyor: Loading capacity of 5,500 mm. -- POS-2 CEFLA SPRAYBOTIC Spraying Robot: Includes continuous CFB Conveying System; lacquer recovery by counterrotating rollers. -- Spray gun arm with: 5-Axis movement, electronically controlled. Parts are read by an electronic sensing system consisting of (208) photodiodes, which tell the control how to spray each part as it sits on the belt inside the cabin. -- For Robotic spraying, the "charge" of parts loads in, the belt stops, and the Sprayer executes to a spray pattern as programmed. -- This machine also operates as a feed-through reciprocating machine when that process is called for. -- Sprayer setup: (2) Lacquer feeds, overspray collection & recovery using a 4-roll belt cleaning trolley. The cabin is pressurized to maintain a positive pressure inside. Exhaust air is filtered through a dry filter system. -- Controls include: Operator interface program on PC controlling spray functions and speeds; PC Operating system Windows NT4.0. -- In-process gun maintenance is handled by a retractable brush gun cleaning device to keep the tip clean. -- (2) KREMLIN Pumps and (4) guns for topside and (1) gun for side edge are included. -- Y-Stroke: 3,500 mm. -- X-Stroke: 1,300 mm. -- Z-Stroke: 300 mm. -- Gun rotation: 360° +/- 45°. -- Gun inclination adjustable: +90° to -30°. -- PO-3: Belted conveyor. -- POS-4: Type "VN 3/3500/190/36" Hot Air Vertical belt oven with (3) chambers. -- Flash-Off Section: 2nd & 3rd Sections Drying areas with auto temp control; 4th Section cooling area. -- (36) Motorized belt trays with auto-positioning. Installed thermal power 144,000 kCal/hr. -- POS-5: 6- Belt-style exit conveyors 6 m long each for a total length of 12 m. -- Natural Gas Boiler System included for oven heating.

CEFLA TNS 3650/RBT BELT CONVEYOR146"L x 60" belt conveyor. 0.75 kW motorNOTE: Will need a new belt, not included in the price.

CEFLA TRC 2000 POWERED ROLLER CONVEYOR72"L x 60"W rubberized roller conveyor with .75kw motor

CEFLA TRC 2500 ROLLER CONVEYOR105"L x 60"W Rubberized roller conveyor with a .75kw motor

CEFLA TN 3207/RBT 126" X 55" Belt conveyorConveyor size: 126" X 55"Motor: 0.55 kW

CEFLA TR3500/CT RUBBER ROLLER CONVEYOR48" infeed/outfeed power conveyor, 140" long, rubber roller conveyor.

CEFLA KLEENSPRAY 12 Reciprocating Spray Line;The "Kleenspray 12" Reciprocating Automatic Spraying system is mainly based on the use of a closed continuous CFB belt conveying the panels to & through the spray area. The design has many advanced mechanical solutions to allow considerable advantages.KLEENSPRAY Technical Features: -- Non pressurized spray cabin, "Paper Belt Overspray Capturing" lacquer system; microprocessor unit for spraying operation control. -- 5-Edge coating, 51" max. width, 76" long spray enclosure. -- Gun Carrier: Reciprocating-type linear Gun Carrier with (4) guns; includes (1) station with "(4) guns, stainless steel material handling pumps", clamps & brackets for free height and angle settings. -- Supporting trolleys driven by toothed timing belts with brushless motor with electronic control, reciprocating slider, automatic reversal of gun angle on each stroke to cover panel edges, with variable speed; (3) lacquer feeding circuits. -- Light barrier gun control: Photo cell sensors send material size to the programmable controller which opens and closes the guns. -- Conveyor System: "Paper Roll" continuous collection belt with rollup collection paper area, with long life and easily removable infeed roller section with electronic reading barrier consisting of (60) photo diodes and outfeed roller. -- Booth Enclosure: Made of sandwich paneling with glazed elements; port for access to the spray guns units. The machine is particularly suitable for the application of waterborne drying lacquers; these products assure minimum environmental impact. Please Note: (4) Spray guns & (2) pumps are included.Line Includes. -- VENJACOB Oven following the KLEENSPRAY. 600V/3/50-60 Hz. 230Vac/24Vdc. Control Voltage Max capacity 25 KW. Nominal Load 40 Amps.Year of Construction 2001. S/N 20104593 -- BURKLE UV Curing oven following the oven. Type TRUV2. (2) UV Lamp. Electrical 600/480V/360 Hz Control Voltage 24 Vdc. Nominal Power 49.5 HP.Nominal Current 99.8 Amps. S/n 010458-01. -- Pumps and pneumatic components. -- The panel cleaner shown at the start of the line is NOT INCLUDED.

2019 CEFLA, model ROC 3 D. Reciprocating Spray Machine:This sprayer can easily run at 30 feet per minute Machine consists of --a tilt-able up infeed belt conveyor with the Electronic Reading bar located over the entire width, this bar reads the parts as they enter the machine which controls the Gun spray pattern. --Parts are fed through the spray cabin by means of a Patented continuous CFB belt conveying system. --Sprayer is equipped with (2) two roll Overspray recovery systems. Belt cleaning is done by means of a counter-rotating roller's with scraper and belt cleaning unit. The rollers are fitted on the "cleaning" trolley which is pulled out from under the machine longitudinally by manual control. Motorized outfeed belt conveyor, tilt-able up to make access to the cleaning trolley easy. -- (2) Oscillating arms equipped to accept a maximum of (8) guns, driven by a Brushless motor's, the PLC in the control panel automatically triggers the guns based on thier size and location on the belt. -- This sprayer has (2) two separate lacquer feeding circuits and a pressurized cabin with both incoming air filtration and exhaust filtration. -- Air is pulled in from (2) air intake ducts (positioned between guns) above the slanted perforated top panels, perforations help to reduce turbulence -- Large front viewing window/access panel.

CEFLA EASY 2000D Reciprocating Feed Through Sprayer and Vertical Oven Finishing Line:This line is still in operation with the original owners, it have never run full time, there are weeks when it is 1 day per week. It is recommended with a line of this age to do a full recondition prior to or as it is being installed. If that is not possible, it is still running and can be seen that way. CEFLA Complete 52" (1,300 mm) Finishing Line with: SORBINI Panel Cleaner, "EASY D 2000 W" Reciprocating Sprayer, Conveyor(s), and CEFLA Hot Water Vertical Oven. The line is composed of the following:001) Belt conveyor CEFLA "TN 2500"002) Panel cleaning / brushing machine SORBINI "VS 33"003) Automatic spraying machine CEFLA "EASY 2000 DRY SYSTEM" with pressurized cabin004) Transfer conveyor005) CEFLA PIEFFE PF2 VL/6 7500 pass through oven006) Vertical Oven, (3) chambers with belts CEFLA "VN 2000"007) Unloading Conveyors

CHEN SAN FUNG SD-100 Denibbing Sander --39" Width cap.; (1) head with (6) 0.5 HP counter rotating arbors mounted on a central rotating drive assembly with (20) blades per spindle, variable assembly rotation from 2 - 20 RPM. -- Each arbor/spindle is equipped with abrasive fladder disc type brush media, variable arbor speed from 300 - 1,200 RPM. -- Conveyor belt feed with vacuum holdown, variable feed speed from 6 to 39 FPM with 2 HP drive. -- Infeed & outfeed holddown pinch rolls, 0" to 4" motorized part thickness with working width from 6" to 39" part size opening with mechanical readout. -- Complete with: Controls on belt loading side, RPM readouts for spindle speed, magnetic starters, 7" dust collection outlet and optional 15 HP vacuum turbine motor.

CML NEW FINISHING TOWER/6 Multi Level Oven System: This type of oven is very flexible thanks to the FIFO (First In / First Out) operation and the possibility to adjust the stay time using more or less belt trays.It is particularly suitable to help the evaporation of the volatile components contained in UV curable paints, or to carry out a first degree of drying of conventional paints in an 'out of dust' environment. - Its technical characteristics also make this system extremely suitable for drying or curing materialDescription of the Standard Equipment & Specifications: -- Overall dimensions: 7,650 x 3,300 mm x 3,250 mm height (25’ x 11’ x 10.67’ H). -- Weight: 4.000 kG (8,819 Lbs)Multiple Floors Dryer, mod. TOWER/6 Paint Coated parts (panels components) are transported on (6) belt conveyor trays, moving vertically up/down, having a length of 6,500 mm (256") each. This practical length makes it possible to load "two panels charges" having a length of 3,000 mm. (9.85 feet) each. -- Max. weight supported by every belt tray level: 115 kG (253.5 Lbs). -- Max. allowed thickness 50 mm (1.97 inches) -- Speed controlled by inverter at belt travel steps of 3.250 mm (127.9") or in continuous model. -- Vertical movement on (4) pre-tensioned chains controlled by motor with gearbox. -- Cabinet made of structural carbon steel profiles and pre-painted insulated panels, complete with entry door and windows. -- Ventilation by means of laminar air distribution among the floors. Average air speed 2 m/Sec (6.56 feet/Sec) - (100% of the air volume is taken from the outside and exhausted to the outside). -- Air supply unit complete with centrifugal fan taking the air from the outside of the building, complete with heat exchanger to be supplied with hot water, with temperature adjustment system and double set of pocket filters. -- Air ductworks between air supply and exhaust fans and distribution boxes (plenum) is included. -- Ready to be connected to emergency system to stop the line -- Curing Tunnel operating functions controlled by SCHNEIDER PLC via electronic keypad input. -- Separate electrical cabinet in IP 55 execution - IP 55 motors -- Manufactured according to CE Standards and covered by a (12) Months or 2,000 Operating Hours Warranty for defective parts or materialOther Dims, Operation & Utilities: -- Dimensions of the electrical switchboard: 800 x 600 x 2,000 mm (2.7’ x 1,97’ x 6,56’) -- Total power: kW 10,5 -- Compressed air:: lt/Min 20 (5.29 gal/Min) -- Exhausted air volume: m³/Hr 7.500 (264,860 feet³/Hr) -- Supply air volume: m³/Hr 7.500 (264,860 feet³/Hr) -- Thermal power: Kcal/h 125.000 (326,000 BTU/Hr), - AIR In/Out: 50°C (122°F)

144L X 120"D X 144"H (25) Filter Screens (4) 12" X 48", (4) 4-tube light panels(1) Exhaust Fan 1HP 120V

In stock and ready to ship! Coral EuroDry Paint Booth - 3500-11771 CFM - 5'-16' Wide

D M C FINESAND 130 2PO WIDE BELT (50" - 90", 2-HEAD): -- Specifications:Orbital Pad Sander, designed for cross-grain scratch removal on style & rail frames; with (2) Orbital Platens & (1) Brush. -- Working Capacity: Width 51", height/opening 1/8" - 4-5/8", motorized part thickness adjustment with digital readout, (4) screw jacks rise & fall. -- Sanding Heads: (2) 10" Wide Platen heads with rubber surface for elimination of abrasive belt cross-grain scratches. Dual orbital action heads with (1) high speed orbit on sanding pad, powered by 5.5 HP motor, and a secondary "low RPM" orbit on head assembly (1.5 HP motor), superimposed over the high-speed orbit for fast cutting action. -- Rotating Cleaning brush on outfeed side. Abrasive material for Sanding Heads is 18" x 52" in size. -- Feed Conveyor: Variable feed speed from 6 - 40 FPM, inverter controlled by 5.5 HP motor; vacuum conveyor bed with 15 HP blower motor. -- Complete With: - Digital height readout. - Infeed and outfeed rubber coated hold-down rolls. - Infeed hand safety stop bar, emergency e-stop. - Star-Delta motor starter. - (2) Dial indicator motor load meters.

Approximatley 225 Linear feet of floor mounted monorail track (See attached layout drawing) , center link chain with 2-wheel trolleys at 32" on center, encased in 3" channel iron; outside rails with gravity rapid wheels at 8" on center, 3 1/2" channel iron legs 21" high, 54" on center. Includes: Motor drive, controls and (40) 32" X 72" metal pallets.SOME OF THESE SPEC ARE GENERIC BUT OVERALL REPRESENTATION OF THE LINE IS CORRECT.

Custom-Built DEIMCO Through Feed Sprayer with a BLASDEL IR Preheat Tunnel that is available MARCH of 2023. Until then, the System can be seen in operation. -- Line was designed to preheat Fiber Cement board prior to painting and is followed by a Single-Arm Reciprocating Sprayer with 4-Spray Gun cap. Spray Guns not included.SEE ATTACHED VIDEO FOR A GOOD LOOK AT THE LINE's OPERATION!Built in 2019, the System was used for approx. (2) years; current owner changed their process and no longer requires the equipment.Oven width cap.: 60" Wide, 1-3/4" part height cap.; overall Oven dimension: 84" Wide x 12-1/2' long x 55" high, excluding the Blower & Stack. Line/Conveyor: Variable speed drive, 18.5 FPM to 26 FPM; Reciprocator operates up to 260 FPM and set by the HMI. 2-Zone Oven: -- Zone 1: (2) Upper left side wall/ceiling mounted; 18" x 60" emitters. -- Zone 2: (2) Right upper side wall/ceiling mounted 18" x 60" emitters; 8" clearance between emitters & rolls. Heaters: Natural gas using 7" WC; 480 Volt preheat; TC, FM, flange frame. - Gas Ratings: 360,000 BTUH Max. input ; 100,000 BTUH standby input; Air Exhaust on infeed & Injection Blower on outfeed. Electrical ratings: 26.6 Amps, 480 V - 3 Phase, 60 Hz.Exhaust: 980 CFM, 1 HP Motor.Control Panel: 60 AMP Disconnect switch, ALLEN-BRADLEY "Panel View Plus HM", IEC contactor & High Temp PID exhaust.NOTE: (25) New replacement conveyor rollers & (40) reconditioned rollers for IR Tunnel.DIEMCO Sprayer complete with: (1) Reciprocating Arm holds (4) guns and reads the leading & trailing edge to turn on & off the guns as the parts feed through; best to run full width loads through Sprayer; Overspray funnels into buckets.Spray Guns turn on & off based on the part leading & trailing edge; read by a light curtain on the infeed end.Dims: GFS Spray Cabin: 13' Deep x 8-1/2' wide x 9' high surround the reciprocating arm. - Filter & Exhaust Section: 13' Wide x 3' Deep x 10' High.

DEIMCO MFM-98 ACRYLIC COATING FINISHING SYSTEM: -- Specifications:Drying Oven for the purpose of baking and drying the acrylic finish onto lumber and panel products. 3"; dia. x 21.625" long Rollers on 12"; centers; Infeed: 16' long In-feed Conveyor, 10' long Transfer Conveyor, 12' long Oven Conveyor: DEIMCO MFM-98 ACRYLIC COATING FINISHING SYSTEM: -- Specifications:Drying Oven for the purpose of baking and drying the acrylic finish onto lumber and panel products. 3"; dia. x 21.625" long Rollers on 12"; centers; Infeed: -- Operator & Machine Control:Built with Allen Bradley/Honeywell Components, MFM Serial: 1177, Voltage: 460V/60 Hz/25 Amp, Air: 1"; NPT 90PSIG -- Complete With:Electrically Heated Oven; 8 Cool Down Fans; 2 - Hydraulic Lift Tables; Panel Machine with Hydraulic Pump; 15’ Flash Off Conveyor; 40’ Cool Down Conveyor Includes the following for (two) flood coat machines, Conveyor System, Arbors, Paint Pump, Hydraulic Pump, Hydraulic Lift Table -- Options Complete Over-all Foot Print 175’ long x 50’ wide
