Shapers For Sale

--In auction: https://exfactoryauctions.com/Detail/SA-231010/event/A122024$1 --No Reserve!-- RYE R 72 2-Spindle Automatic Rotary Copy Shaper Specifications: Cutting circle cap. 24" - 80", Max. square cap. 56", Max. rectangular shape cap. 71" x 35-1/2", & Max. length capacity 50". Table size 68" Dia. x 40-1/2" H. Table speeds 0.3 - 3 RPM. Spindle speed 9,000 RPM. Equipped with: (2) 1-1/8” Dia. High frequency floating spindles, with Frequency changer. 6-1/2” Dia. Center clamp plate.

RYE R 72 2-Spindle Automatic Rotary Copy ShaperSpecifications: -- Cutting circle cap. 24" - 80", Max. square cap. 56", Max. rectangular shape cap. 71" x 35-1/2", & Max. length capacity 50". -- Table size 68" Dia. x 40-1/2" H. -- Table speeds 0.3 - 3 RPM. -- Spindle speed 9,000 RPM. Equipped with: -- (2) 1-1/8"; Dia. High frequency floating spindles, with Frequency changer. -- 6-1/2"; Dia. Center clamp plate.

SCMI T-130 Shaper -TL Tenoning Table Version w/STEFF 2048 FeederSpecifications: 1-1/4" Dia. spindle and a full set of throat plates, 9 HP belt drive motor with (5) spindle speeds of 3,000 - 4,500 - 6,000 - 7,000 & 10,000 RPM; -- 6" Max. cap. under nut; (5) table insert rings, 13-1/2" max. insert opening. -- 47" x 28-1/2" Cast Iron sliding table w/slot for miter gauge.Complete with: Reverse rotation switch, digital height readout, adjustable fence assembly, miter gauge, dust hood with 4" pipe connection. --Mechanical spindle brake, spindle locking foot pedal, TL tenoning table for tenoning-profiling.Includes: STEFF "2048"POWER FEEDER (230 V / 3 Phase), Operating Manual.

SCM Minimax T-50 Tilting Spindle Shaper -- Specifications: -- 1-1/4" Dia. interchangeable spindle tilts -5° to +45°, -- 6.6 HP motor; 3-1/2" cap. under nut, (4) spindle speeds of 1,700 - 4,000 - 7,000 & 9,000 RPM. -- Table size 18" x 43" with adjustable side extension tables; 3" - 5" - 7" & 8" table insert openings -- 4-1/2" max. spindle height above table -- 2" max. tooling retraction under table with 7" max. tooling dia.; working height 37".Equipped with: Outrigger Sliding Table, micro-adjustable fence, spindle lock, magnetic starter w/overload protection, reversing switch, and 4-3/4" dia. dust outlet. Includes: Several New Cutter-heads

SCM T 160 TILTING SPINDLE SHAPER9 HP Main motor, (5) speeds of 2,900 - 4,400 - 6,000 - 7,800 & 10,000 RPM (..but currently with single speed 6,000 RPM pully only!); 1-1/4" dia. interchangeable spindle, 7" spindle length with 4-3/4" motorized vertical spindle adjustment, 9" max. height above table. -- Features: 0° - 45° Motorized tilting, degree tilt gauge, spindle height gauge; max. insert opening 16-1/2", and 39" x 40" table size. -- Complete with: Adjustable fence, mechanical spindle brake & lock, dust hood & reversing switch; NOTE: 3-ROLL FEEDER IS NOT INCLUDED

STEGHERR - BOF, ...Through Feed Arch MoulderAutomatically feeds arched or curved parts for profiling or sanding. Feeds & contours parts with a radius of 6" or more and a max. material height of 3-1/4". Specifications: -- Feeds & contours parts with a radius of 6" or more and a max. material height of 3-1/4". -- (1) 1-1/4" Horizontal spindle at 5.5 HP - 7,500 or 1,500 RPM for sanding. -- 5" - 6-1/4" Tool dia., 4" spindle length capacity. -- 0.33 HP Feed motor, forward & reverse variable feed speed from 3 - 26 FPM. -- Flexible mounted 5-roller system guides and feeds workpiece. -- Simple setup allows for rapid changeover of different widths, no changeover required when machining same profile onto variety of arch radii. -- Complete with: Overhead hood assembly and dust outlet.Machine is currently wired for 220 Volt / 3 Phase power.

TEGLE & SONNER - Shaper: Single Spindle -- This machine is a tank of a shaper with: 5 HP Motor. -- Features: Foot brake for the main spindle. -- Spindle size: 1"; 5-1/2" under the nut.

UNIQUE 250 Raised Panel Door Machine General Specs: -- 7.5 HP belt driven spindle at 7,800 RPM, 1-1/4" x 5-3/4" stackable multi-cutter spindle to mill stile, rail, & raised panel profiles.Specifications: -- 1-1/4" Spindle, stackable cutter spindle with push button indexing to significantly reduce setup time as each station is pre-set and adjustable. -- Moveable 12" x 66" rolling table w/pneumatic 66" hold-down bar, 2-way linear bearing movement for straight or cathedral top doors up to 58" long stroke. -- Currently wired for 575 Volt / 3-PhaseIncludes: -- Some tools

UNIQUE 250 GT2 Automatic Raised Panel Door ShaperMachine to manufacture raised panel cabinet doors with (1) Operator in (2) MinutesSpecifications: -- One Piece Welded Frame is precision machined. -- Variable Speed Direct Drive 10 H.P. Shaper Motor. -- 5" of vertical stack height, capable of stacking up to (3) cutters. -- Three (3) Position Turret for quick change over between profiles. -- The change from one cutter to another is achieved via a select switch for each operation. -- Three-position pneumatic stop system positions automatically when cutters are selected -- Easy to read positioning scale allows for accurate centering of Arched panel and rail. -- Free-floating table w/pneumatic holddown has a 2-way linear movement for straight or cathedral top doors up to 55" long. -- Highly visible guards, protective clamp bar & poly-carbonate shield keep the operator protected.Complete with: -- One set of tooling included. Set includes Unique 410 cope / rail cutters and 460 panel cutter with back cutter. Also includes one template (998800) -- Please call for other options.OPTIONAL - XS Model - with 5 Position CutterIncludes extended 8" spindle, 5 positions for 5 tools5 Position quick-change turret stop, and a heavy duty stop system that allows for additional cutters.Includes the following Cutters - Raised Panel (460 cove profile) + Cope/Rail (410 bead profile) + Cope/Rail (shaker profile)

UNIQUE - 2700: Door Shaper; CNC NC Controlled Machining Center for: Raised panel doors. Motor: 7-1/2 HP Belt driven. CNC Controlled 5" stackable vertical spindle (max. 4-tools per stack). Max clamping thickness: 2-1/2". 6" Max cutterhead diameter. "X" Axis of spindle: Travels 81" on (2) THK rails with Ball Screw Movement. "Y" Axis with: 5" Travel on THK Rails with 5" Max Work Piece Overhang "Z" Axis with: 5" Max. travel on THK rails. Windows™ Based Computer with: Large touchscreen. Unique's Windows™ Based "Raised Panel Door" software. Electronic brake on spindles. (2) 5" Dia. outlets for dust collection. Owners Manuel included. Dimensions: 69" L x 139" W x 69" H. Weight: 3,000 Lbs. No tooling included unless otherwise specified. NOTE: Machine needs to be serviced & recommissioned.

UNIQUE 2753 Arch Shaper with Sanding HeadThe Unique Model 2753 Is A Single End Machine Designed For High Quality, High Production, Cabinet And Passage Door Arching Of Top Rails And Panels. Its Two Counter-Rotating Spindle Motors are Easily Programmed For Multiple Cuts With Hogging And Finishing Cutters To Eliminate Tear-Our And Extend Tool Life. A Sanding Station Provides A Multi-Pass Sanding Finish On Arched Door Panel Profiles. Unique “ArchPro"; Software Guarantees High-Speed Measuring And Fully Dynamic Programming Abilities.• Shaper Motor: (2) 10 HP Himmel Direct Drive , 440V - 39.2A, 3PH Motor• 5" Stack Height • Compressed Air Requirements: 90 PSI - 2 CFM• Dust Collection: (2) 5" Diameter 1200 CFM each (1) 4" Diameter 800 CFM each• Work Height: 3’6"• Machine Footprint: 113" Width X 78" DepthIncludes - Safety Mats, Dust Collection Manifold, and Owner's Manual

UNIQUE 2700 CNC CNC Door ShaperCNC Controlled Machining Center for Raised Panel Doors.Equipped with: -- (1) CNC controlled 5" stackable vertical spindle (max. 4 tools per stack), 7.5 HP belt driven; max. clamping thickness 2-1/2" and 6" max. cutter head diameter. -- "X" Axis of spindle travels 81" on (2) THK rails with ball screw movement, "Y" axis with 5" travel on THK rails with 5" max. workpiece overhang, "Z" axis with 5" max. travel on THK rails.Features: -- Windows based PC computer with large touch screen menu for quick set-up, new door or custom door stiles can be programed in minutes, automatic operation from one style and size of door to the next, straight raised panels & widths of stile or rail and end tenoning work the same. -- Electronic sensors measure the length of the part to be cut allowing for various width panels or rails to be shaped consecutively, once a door is pre-programmed it can be re-called.Complete with: Electronic brake on spindles, (2) 5" dia. outlets for dust collection and UNIQUE's Windows based "Raised Panel Door" Software. .

US CONCEPTS FAS-LX 6" Arch Moulder Equipped with two (2) axis spindle adjustment and spindle tilt in order to easily and accurately match the cutter to the moulding profile. -- The spindle adjustment and floating feed make cutting circular, elliptical, and straight casing and crowns a breeze. -- The Floating feed system is user friendly and easy to set up. -- The Spindle can be adjusted from Horizontal to 52° to insure the proper cut on the parts you need!MACHINE DETAILS:Cutting width: 6"Spindle motor HP: 7.5Spindle diameter: 1-1/4"Cutter Major Dia. (recommended): 6"Max. Material Height: 4"Spindle speed - RPM: 6200Forward-Reverse controls for spindle and feed: YesTable: steel w/insertTable size: 36" X 24"Floating feed system: YesNumber of powered feed rollers: 5Adjustable feed speed - FPM: 0 - 30Up-down & In-Out adjustment: YesAdjustment display: SikoSpindle tilt: 52 deg.Dust outlet dia.: 6"

US CONCEPTS FAS-HD "Arch Type" ShaperSpecifications: -- Universal arch moulder, equipped with two (2) axis spindle adjustment and spindle tilt in order to easily and accurately match the cutter to the moulding profile. -- The spindle adjustment and floating feed make cutting circular, elliptical, and straight casing and crowns a breeze.Cutting width: 8"Spindle motor HP: 10Spindle diameter: 1-1/2"Cutter Major Dia. (recommended): 7.5"Max. Material Height: 4"Spindle speed - RPM: 6200Forward-Reverse controls for spindle and feed: YesTable: Cast IronTable size: 48" X 30"Floating feed system: YesNumber of powered feed rollers: 7Adjustable feed speed - FPM: 0 - 30Up-down & In-Out adjustment: YesAdjustment display: SikoSpindle tilt: 52 deg.Centering Fork Assembly: 4"Dust outlet dia.: 6"Weight : 2,400 lbs.

US CONCEPTS CHB 12 HauncherThe CHB-12 Hauncher-Notcher is designed to notch along the edge of the board or across the end.Typical applications: Box joints, finger joints, bee boxes, hinge notches, coping, profiling in furniture and window industries, decorative cuts, beaded frame cabinets, toe kick notches, etc. Equipped with: a 40 mm horizontal spindle that moves up hydraulically past the table with the clamped material. -- A backup board in the table and climb cut ensure the clean-cut, even on cross grain. -- Material air clamps and spindle motion are actuated by a foot switch. Specifications: -- Spindle Dia. 40 mm, Spindle Length 12". (Also available in 16" & 20" capacities) supported on both ends; -- Max. Cutter Dia. 10" (254 mm); max. Cutting Depth 2-1/2" (64 mm); max. Material Stacking Height 8" (200 mm). -- Spindle Speed 4,300 or 6,200 RPM; Feed Speed (Air/Oil) 0 - 25 FPM; 15 HP motor; Dust Outlet 2 x 6" (150 mm).Complete with: -- (2) Air Clamps, Back Fence, Side Pivot stop, and Stop Bar. -- Table Size 36" x 16"; Machine Weight 1,650 Lbs (750 kG). -- OPTIONS: Electric; 20 or 25 HP motor; Additional Air Clamps; Additional Side Stop; Center Fence mounted to the Table; Horizontal Clamps; Extended Stop Bar. -- Other Options: Fixture for 45° Cut (Mitered cabinet Doors or Stretcher Bars).

US CONCEPTS CHB-16 HauncherThe CHB-16 Hauncher-Notcher is designed to notch along the edge of the board or across the end.Typical applications: Box joints, finger joints, bee boxes, hinge notches, coping, profiling in furniture and window industries, decorative cuts, beaded frame cabinets, toe kick notches, etc. Equipped with: a 40 mm horizontal spindle that moves up hydraulically past the table with the clamped material. -- A backup board in the table and climb cut ensure the clean-cut, even on cross grain. -- Material air clamps and spindle motion are actuated by a foot switch. Specifications: -- Spindle Dia. 40 mm, Spindle Length 16". (Also available in 20" capacity) supported on both ends; -- Max. Cutter Dia. 10" (254 mm); max. Cutting Depth 2-1/2" (64 mm); max. Material Stacking Height 8" (200 mm). -- Spindle Speed 4,300 or 6,200 RPM; Feed Speed (Air/Oil) 0 - 25 FPM; 15 HP motor; Dust Outlet 2 x 6" (150 mm).Complete with: -- (2) Air Clamps, Back Fence, Side Pivot stop, and Stop Bar. -- Table Size 42" x 16"; Machine Weight 1,650 Lbs (750 kG). -- OPTIONS: Electric; 20 or 25 HP motor; Additional Air Clamps; Additional Side Stop; Center Fence mounted to the Table; Horizontal Clamps; Extended Stop Bar. -- Other Options: Fixture for 45° Cut (Mitered cabinet Doors or Stretcher Bars).

2020 - VOORWOOD - A26: Dual Spindle Coping Shaper (Unlimited Length)The "A26" Cope Shaper is designed to: Shape single or multiple parts in 1-pass. Each shaping station equipped with: Precision balanced drive motor & spindle. Counterrotating spindles: Cut against the direction of feed.This particular "A26" is outfitted with: Optional HSK quick-change 1-1/4″ spindles. Parts can be quickly transferred from left or right shapers for end-to-end cope cuts (for tenon joint).Both edge guide assemblies are: Removable, which allows cope cuts on parts longer than 36";.Automatic power feed has: 2-Handed cycle control for Operator safety."A26" Cope Shaper includes: Backer block to prevent blowout.Pneumatic holddown clamps with non-marring urethane pads: Mounted at each end of the transport table to secure the workpieces as close to the cutting head as possible. Bi-directional clamping ensures consistently square cuts.The Cope Shaper produces: Parts similar to most double-side Cope Shapers.Specifications & FeaturesSpindle diameter: 1-1/4″.Spindle length: 2-1/2″.Min. Shaper head dia.: 4″.Max. Shaper head dia.: 6″.Vertical head travel: 4-1/4″.(2) 7-1/2 HP Motors @ 6,100 RPM.Capable of producing: (11) Parts per minute.Capable of processing: Parts of any length.

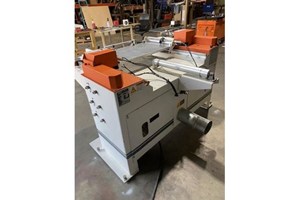

2017 - VOORWOOD - A26: Dual Spindle Coping Shaper (Unlimited Length)The "A26" Cope Shaper is designed to: Shape single or multiple parts in 1-pass. Each shaping station equipped with: Precision balanced drive motor & spindle. Counterrotating spindles: Cut against the direction of feed.This particular "A26" is outfitted with: Quick Release Sleeves for quick-change of 1-1/4″ spindles. Parts can be quickly transferred from left or right shapers for end-to-end cope cuts (for tenon joint).Both edge guide assemblies are: Removable, which allows cope cuts on parts longer than 36";.Automatic power feed has: 2-Handed cycle control for Operator safety."A26" Cope Shaper includes: Backer block to prevent blowout.Pneumatic holddown clamps with non-marring urethane pads: Mounted at each end of the transport table to secure the workpieces as close to the cutting head as possible. Bi-directional clamping ensures consistently square cuts.The Cope Shaper produces: Parts similar to most double-side Cope Shapers.This machine has very low hours, and includes Extra Tooling.Specifications & FeaturesSpindle diameter: 1-1/4″.Spindle length: 2-1/2″.Min. Shaper head dia.: 4″.Max. Shaper head dia.: 6″.Vertical head travel: 4-1/4″.(2) 5 HP Motors @ 6,100 RPM.Capable of producing: (11) Parts per minute.Capable of processing: Parts of any length.Actual Machine is a VOORWOOD Model A26-F

220v 3 phase 2hp motor Controls work, motor runs and spindle turns Spindle raising mechanism has pin sheared in bevel gear. Includes overarm casting & mobile base.
