pallet Equipment For Sale

480v | Setup for Stringers | Can be converted to Block Pallets

2005 | Stringer Feeder | 480v | Board Hoppers | Great Running Condition

2021 | 480V | Produces up to 800 Stringers Per Hour

2024 2hd GoFast Notcher. Located in GA. #C958

TWIN NXL Pneumatic Notcher - (2) 12” Diameter X 9” Wide Index-able Notching Heads - 0"- 2-1/2" Tall Notch Capacity - Up to 6” Material Width, 4” Material Height (Other Heights Available), Up to 112” Material Length (longer available) - Production: Up to 1750 Stringers Per Hour - Center boot quick adjust from 14” to 18” Wide via Hand Crank - Center boot adjustable from 10" to 22" Wide via with additional setup - Can optionally be used as a single head notcher for other center boot widths - Dual 2" Bore Tie Rod Air Cylinders for Clamps & Table - Heavy Duty 3/8” Thick Steel Table Top - Twin Top Clamps - 1-1/4" Linear Bearing Slide Assemblies - Air System Includes: Dual Hand Safety Controls, Lockout Valve, and Regulator - Operating Height: 37” - Dimensions: 120” L, 60” W, 51” H - Approx. Weight: 2650 lbs - (2) 20 HP Arbor Motors (230/480/3/60 TEFC) - Completely Pre-wired for 230V, Motor Starters with Start/ Stop Buttons and Circuit Overload Protection - Panel Face Mounted Rotary Disconnect - Panel Location: Lower Left Side - 96 FLA Will need dust chutes if not using with waste conveyor

- (2) 10” Diameter Steel Brushes (Side Sweeping) - 3/8- 2.5" Tall, 2- 6-1/4” Wide, 18” Minimum Length Capacity - Self Contained 5 GPM System - 10 Gallon Hydraulic Fluid Reservoir - Variable Belt Speed 0-700 FPM - Machined Eccentric Press Cam Board Knocker - Adjustable Feed Belt Height: 27”- 36” - Exit Pinch Roller Height: 34” - 5 HP Motor (230/480/3/60 TEFC) - Completely Pre-wired for 230V, Motor Starters with Start/ Stop Buttons and Circuit Overload Protection - 13.4 FLA -Dimensions: 90” L, 29” W, 59” H - Weight: 1400 lbs

Line shaft ready with a return belt. 2 small hydraulic units installed plus a sizer inline. Good condition.

Board Deduster

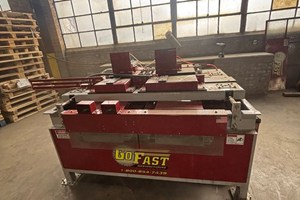

Go Fast 2NXL Double Head Notcher Very Good Condition 480V 3PH 60HZ

RESAW-RM6X6 6x6 Master Return Resaw - ¼” – 6” Tall Cut Height, 6” Wide, Unlimited Length Capacity - 4” Dust Connection (No dust collector required) - Heavy Duty 2-7/16” Blade Arbors and Bearings - 20” Band Wheels - Air Tensioned Blade Mechanism - Powered Belt Return w/ Adjustable Height Sheer Plate - Top Mounted Powered Tire Hold Down Wheel - Self- contained Hydraulic System: Adjustable Infeed Speed (0-150 ft/ min) - Easy Crank for Adjustable Blade Position - 3” Right Side Fences - Feed Belt Height: 34” -1" Blade - 10 HP Motor (220/1/60 TEFC) - Completely Prewired for 220V Single Phase - Motor Starters with Start/ Stop Buttons and Circuit Overload Protection - Mounted at Operators Station - 39 FLA -Dimensions: 132” L, 96” W, 53” H - Approx. Weight: 1840 lbs

6x8 Resaw - ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity - 4” Dust Connection (No dust collector required) - Heavy Duty 2-7/16” Blade Arbors and Bearings - 20” Band Wheels - Air Tensioned Blade Mechanism - Operator Return Table - Self- contained Hydraulic System: Adjustable Infeed Speed (0-150 ft/ min) - Easy Crank for Adjustable Blade Position - 3” Right Side Fences - Feed Belt Height: 34” -Dimensions: 84” L, 90” W, 48” H - Approx. Weight: 1400 lbs 6x8 Slave Resaw - ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity - 4” Dust Connection (No dust collector required) - Heavy Duty 2-7/16” Blade Arbors and Bearings - 20” Band Wheels - Air Tensioned Blade Mechanism - Self- contained Hydraulic System Runs off First Saw - Easy Crank for Adjustable Blade Position - 3” Right Side Fences - Feed Belt Height: 34” -Dimensions: 60” L, 90” W, 48” H - Approx. Weight: 1340 lbs - (2) 10 HP Motors (220/1/60 TEFC) 2 HEAD Resaw Control Panel - 220V Line Voltage (Single Phase) - 16" Tall X 16" Wide Enclosure (UL Type 1,3R,4,12) - 120V Control Voltage - Service disconnect in panel door - (2) 10HP 220V Motor starters, breaker w/OL - (2) Start/ Stop buttons for each motor w/ legend plates (Head 1, Head 2) - (1) Emergency Stop Button w/ legend plate- Completely for 220V, Pre-wired Motor Starters with Start/ Stop Buttons and Circuit Overload Protection 5' Roller Case Section with Adjustable Legs - 16ga Rollers - 2 Leg Sets with Braces - Height Adjustable from 26" to 32" - Galvanized Finish (Not Painted)

Used -like new,2024 UpSTAK Board Stacker machine for sale. Includes unscrambler, 7.5HP Motor, 15 layers per minute package, 7' Outfeed, and HMI controls. Wired for 480V. READY TO SHIP. CLICK ON VIDEO TO SEE MACHINE UP CLOSE.

3 Head | 6x8 Resaw Model | 480V

New April 2024 - Very low use Go Fast board deduster w/ side brushes, debur and board knocker, D3 Series 6" wide 1/4 - 2 1/2" thick boards, 5 HP 480 V (3) phase, 5 HP variable feed hydraulic self-contained, So new packing slip still attached, Ref #204, Contact Jackie Kittrell 931-698-3342

2NXL Notcher, never used -480V -Standard Teeth -Dust Chutes -Startup Kit with new teeth TWIN NXL Pneumatic Notcher - (2) 12” Diameter X 9” Wide Index-able Notching Heads - 0"- 2-1/2" Tall Notch Capacity - Up to 6” Material Width, 4” Material Height (Other Heights Available), Up to 112” Material Length (longer available) - Production: Up to 1750 Stringers Per Hour - Center boot quick adjust from 14” to 18” Wide via Hand Crank - Center boot adjustable from 12.5" to 19.5" Wide via with additional setup - Can optionally be used as a single head notcher for other center boot widths - Dual 2" Bore Tie Rod Air Cylinders for Clamps & Table - Heavy Duty 3/8” Thick Steel Table Top - Twin Top Clamps - 1-1/4" Linear Bearing Slide Assemblies - Air System Includes: Dual Hand Safety Controls, Lockout Valve, and Regulator - Operating Height: 37” - Dimensions: 120” L, 60” W, 51” H - Approx. Weight: 2980 lbs

Used NXL Notcher -230V 3PH -Dust Chutes -Standard Teeth NXL Pneumatic Notcher - 12” Diameter X 9” Wide Index-able Notching Heads - 0" - 2-1/2" Tall Notch Capacity - Up to 6” Material Width, 4” Material Height, Up to 60” Material Width (longer available) - Production: Up to 800 Stringers Per Hour - Top Hold Down Clamp - Dual 2" Bore Tie Rod Air Cylinders for Clamps & Table - Heavy Duty 3/8” Thick Steel Table Top - 1-1/4" Linear Bearing Slide Assemblies - Air System Includes: Dual Hand Safety Controls, Lockout Valve, and Regulator - Operating Height: 37” - Dimensions: 60” L, 90” W, 50” H - Weight: 2000 lbs

10HP Notchers available with 3 phase or single phase motors. Great for notching NEW wood stringers. The design is compact, low maintenance, and easy to operate. Notches up to 72" long material, extension kits are available. Profile Technology cutting heads. Units are typically in-stock. Manufactured in New London, WI. Dust Collection is recommended, but not required.

PRICE REDUCED 6x6 Master Return Resaw - ¼” – 6” Tall Cut Height, 6” Wide, Unlimited Length Capacity - 4” Dust Connection (No dust collector required) - Heavy Duty 2-7/16” Blade Arbors and Bearings - 20” Band Wheels - Air Tensioned Blade Mechanism - Powered Belt Return w/ Adjustable Height Sheer Plate - Top Mounted Powered Tire Hold Down Wheel - Self- contained Hydraulic System: Adjustable Infeed Speed (0-150 ft/ min) - Easy Crank for Adjustable Blade Position - 3” Right Side Fences - Feed Belt Height: 34” -Dimensions: 132” L, 96” W, 53” H - Approx. Weight: 1840 lbs 6x8 Slave Resaw - ¼” – 6” Tall Cut Height, 8” Wide, Unlimited Length Capacity - 4” Dust Connection (No dust collector required) - Heavy Duty 2-7/16” Blade Arbors and Bearings - 20” Band Wheels - Air Tensioned Blade Mechanism - Self- contained Hydraulic System Runs off First Saw - Easy Crank for Adjustable Blade Position - Top Mounted Powered Tire Hold Down Wheel - 3” Right Side Fences - Feed Belt Height: 34” -Dimensions: 60” L, 90” W, 48” H - Approx. Weight: 1340 lbs Additional options included: -Air holdover -6” fence -1.25” blade and guides - (2) 15 HP Motors (230/480/3/60 TEFC) 2 HEAD Resaw Control Panel - 480V Line Voltage Location: Salem, MO

GO FAST DD79 DEDUSTER High Speed Board Deduster 230V 3Ph

NXL-M Single Head Notcher. 20HP motor, can notch 4 stringers at a time. Notches new or recycled material. Equipped with a pop-up guard. Table floats on linear bearings and takes minimal effort for the operator to move.
