Description:

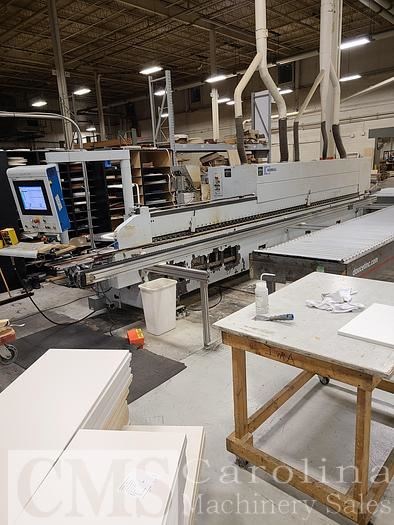

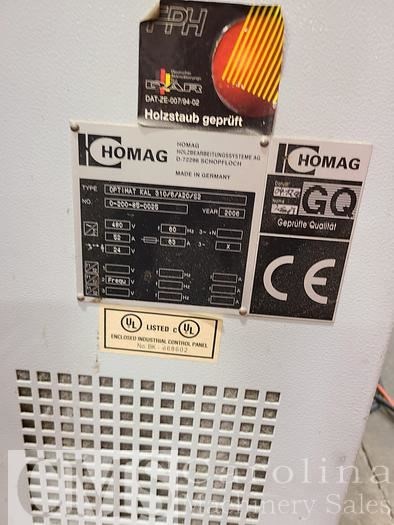

Homag KAL 310 NOT INCLUDING THE RETURN Year of MFG 2006 Control voltage 24 V total connected load 50A recommended fuse 28kW nominal current pprox.. 39A Dust extraction air velocity (min.) 28 m/sec (91.84 ft/sec) air volume 4090 m3/hr (2407 cfm) static pressure 250 mm/ws (9.84”/ws) CompressedAir connection size ¾” pressure required 7 bar (100 psi) consumption / volume 705 sl/min (24.89 cfm) Foundation requirements according to layout drawing # 5-236-01-0360 Electrical equipment installed according to UL regulations. Voltage supplied must not fluctuate in excess of+/- 5% of its stated value. Voltage must be balanced phase-to-phase and phase-to-ground. Note: The stated values are only applicable to the machine as specified. Adding or deleting optional equipment may change service connection requirements. In case ofvariations in technical specifications and capacities between the base machine and working units, the specifications and capacities given for the working units are to be considered correct. Conditions offloor at installation site must adhere to foundation plan. Adjustable lnfeed Fence Homag Unit #0005 • with digital mechanical counter Pre-Milling Unit Homag Unit #3481 HOMAG KAL 525 • with two (2) motors 3 kW, 150 cycle, 9000 rpm • for max. tool diameter of 125 mm (4-15/16") • equipped with trimming column • two (2) horizontal and cross slides with spindle adjustment • electro-pneumatic horizontal jump movement of first motor • two (2) dust extraction hoods • air jet for panel cleaning • with two (2) DIA jointing heads 125 x 35 x 30 mm(4-15/16" x 1-3/8" x 1-1/8"), DKN, z = 2 x 3 • max. workpiece thickness 30 mm (1-1/8") • electronic frequency inverter for control of motor speed and braking Noise Protection Stepped Homag Unit #0424 • for pre-trimming unit • allows for inlay of long strips • centralized dust extraction port Panel Pre-Heater Homag Unit #2325 • quartz lamp for heating substrate edge before glue application • for improved edge quality and optimum bonding QA 34 Quick Melt Gluing Unit Homag Unit #2123 • specially designed by Ho mag - the original innovator of the quick melt syste • lower reservoir unit is designed with only seven (7) wearing parts, which allows for ease of adjustment and reduces maintenance costs • ideally suited for quick heat-up time and color changes • one bolt secures lower unit to drive mechanism • special coupling eliminates alignment of universal drive joint • digitally displayed thermostat for both upper and lower unit, along with heated glue roller allow for excellent control of temperature for optimum bonding results • individual adjustment for front and rear glue gates • upper reservoir for glue granules • glue roller diameter 34 mm (1-11/32") • lower melting unit equipped with automatic control of glue level Glue Roller Drive Homag Unit #2141 • eliminates glue charring on glue roller • lengthens pot life of glue during idle running time o
