Description:

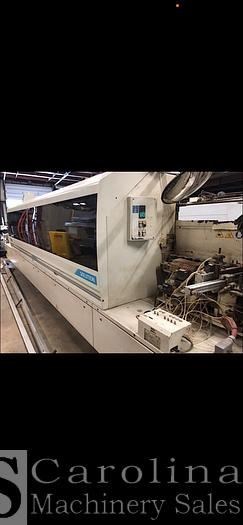

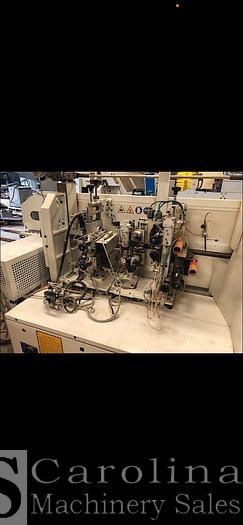

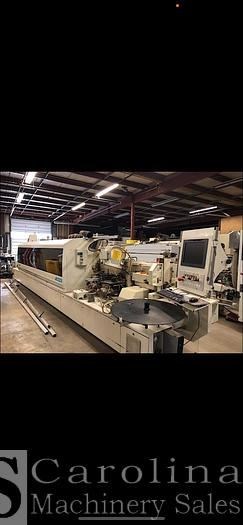

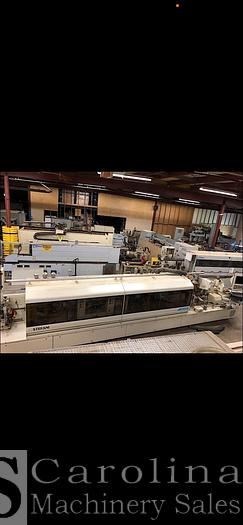

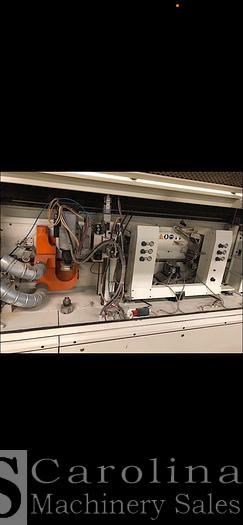

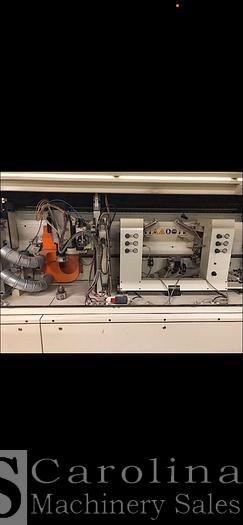

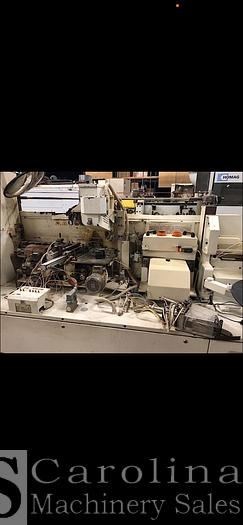

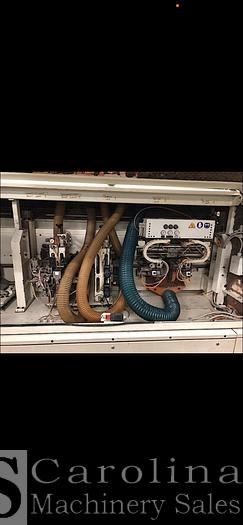

STEFANI SOLUTION 8600 CNC EDGEBANDER CNC HORIZONTAL & VERTICAL POSITIONING, STANDARD STATIONS, PRE-MILL, ROUGH & FINE TRIM STATIONS, CORNER ROUNDING, MX80 HSK MILLING UNIT, RAS/S & RCA/2C SCRAPING UNIT, SP/F TOP & BOTTOM BUFFING EDGEBANDING THICKNESS: 0.4MM – 22MM PVC & ABS IN COIL OR STRIPS HPL STRIPS SOLID WOOD UP TO 22MM PANEL HEIGHT: 10 - 60MM (3/8” MIN – 2 3/8” MAX) MINIMUM PANEL LENGTH: 140MM (5 1/2”) MINIMUM PANEL DIMENSIONS: WITH MANUAL IN-FEED LENGTH WISE : WIDTH X LENGTH90 X 220 MM (3 1/2" X 8 3/4") CROSS WISE : WIDTH X LENGTH 220 X 135 MM (8 34" X 5 3/8") FEED SPEED: 12 - 25 M/MIN (40 - 82 FT/MIN) MINIMUM DISTANCE BETWEEN PANELS: 650MM (25 1/2”) (32” WITH CORNER ROUNDING) MACHINE WORKING HEIGHT: 950MM – 970MM (37.4” – 38.2”)
