Description:

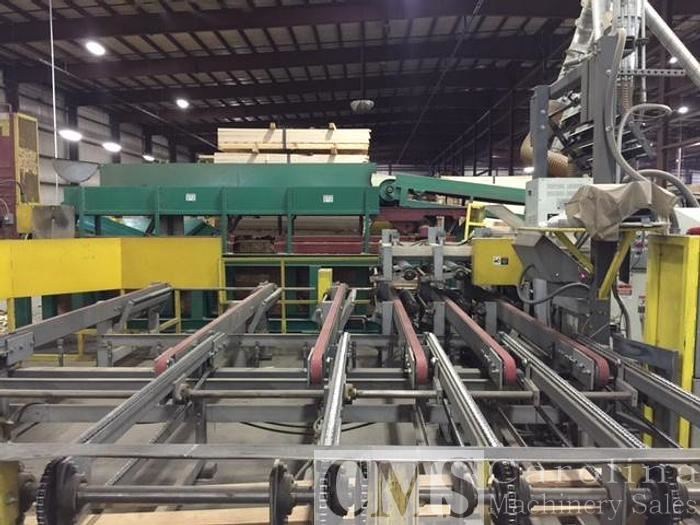

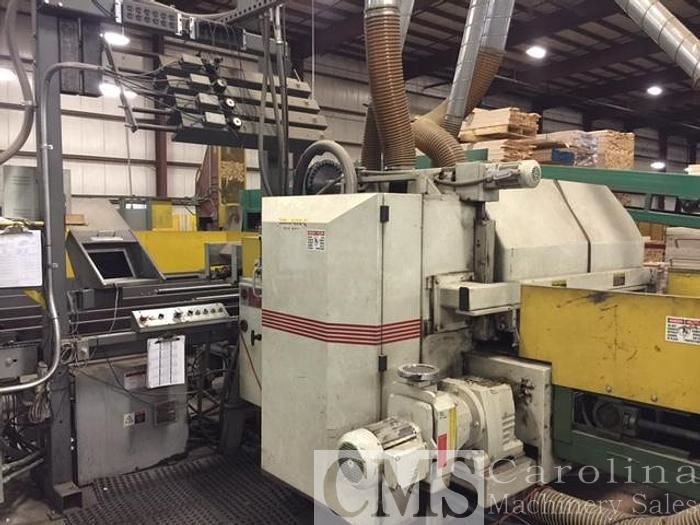

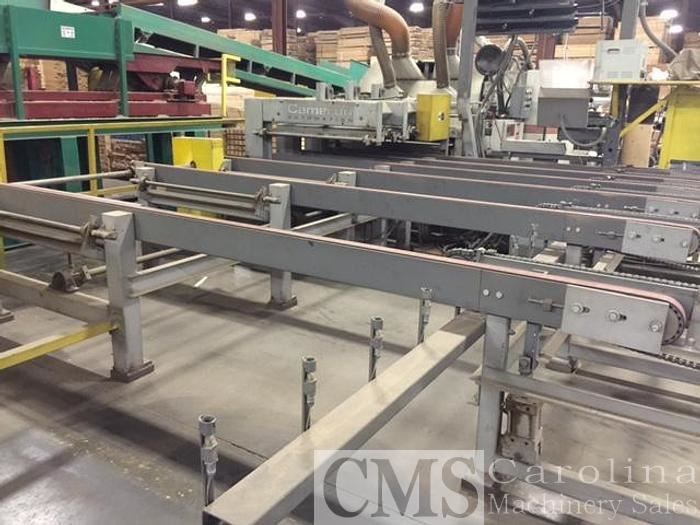

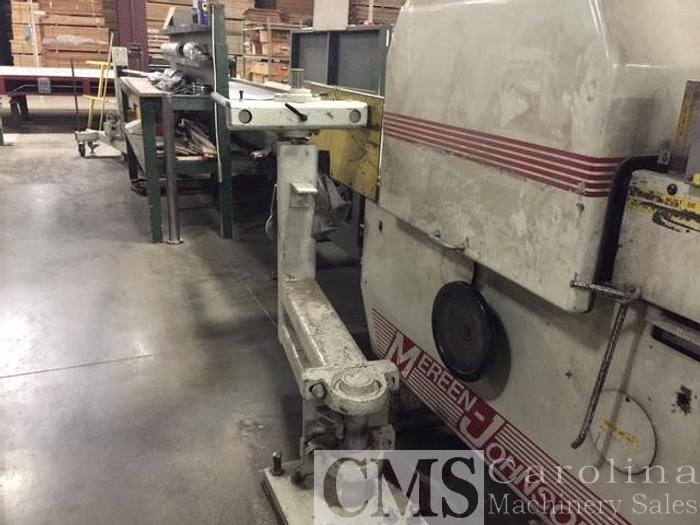

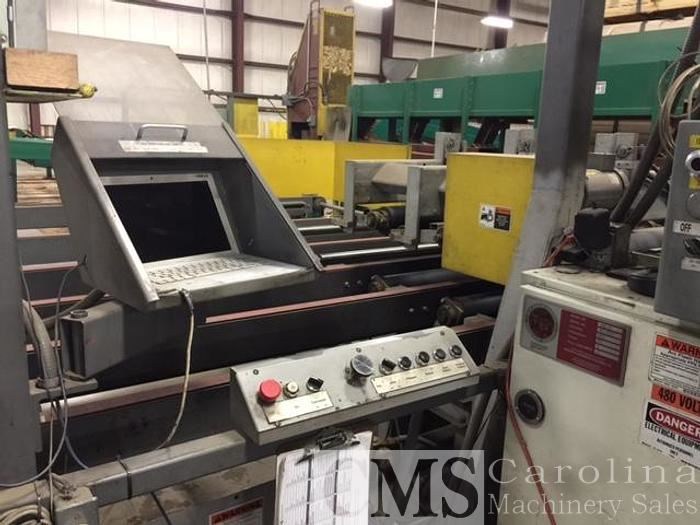

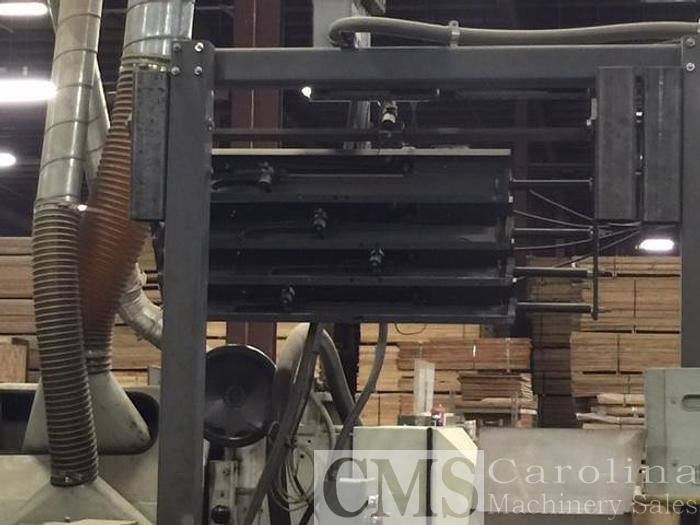

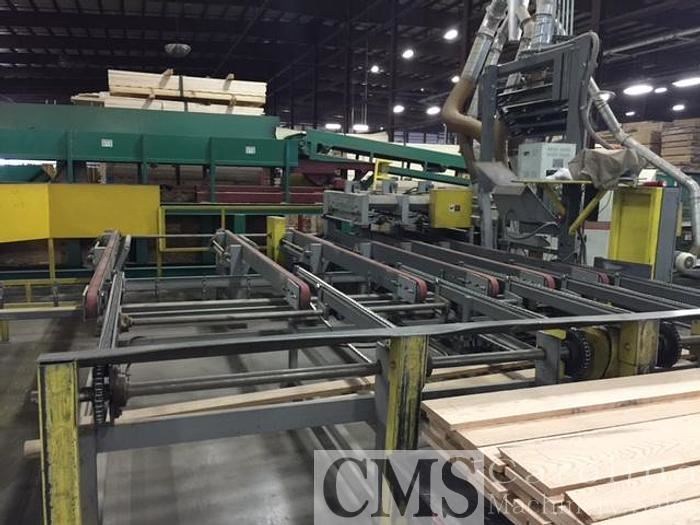

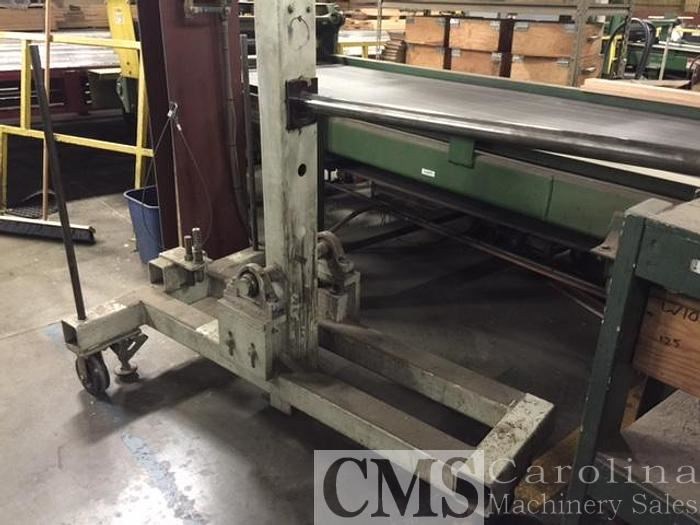

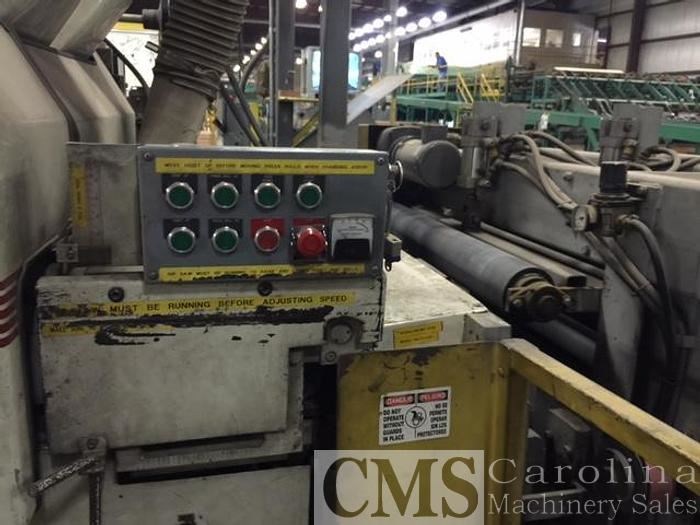

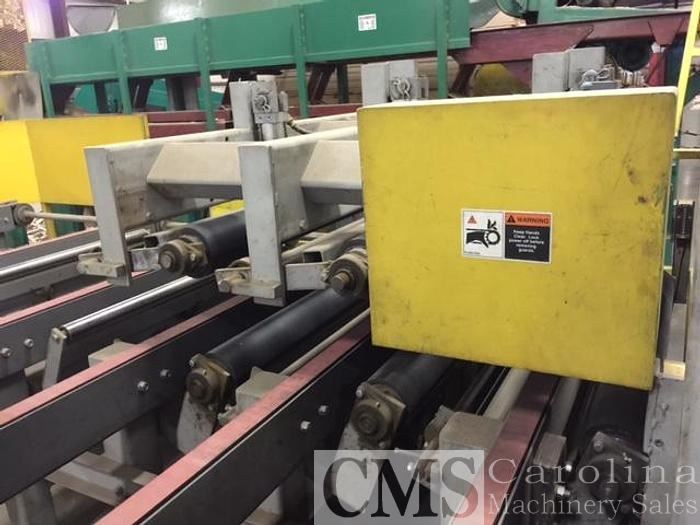

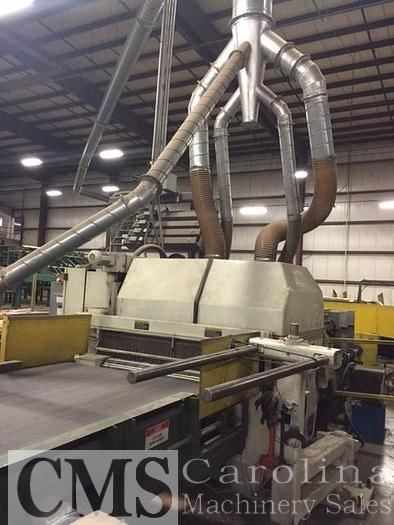

Mereen-Johnson Model 441-DC Gang Rip Saw Capacity: Arbor space 41” Arbor Drive: 75 HP 3600 RPM TEFC motor Feed Drive: HP TEFC variable speed direct; 45’ to 225’ feet per minute Hold Downs & Bed Plate: Four 5” dia. Air loaded high yield idle press rolls Saw Sleeve: One 41” capacity sleeve Dust Collection: Four upper dust pick-ups: two (2) 8” dia., two(2) 4” dia., one lower 4”dia. Pick-up:(requires total 4820 CFM @ 5,000 feet per minute) Swing Arm & Tip-Up Cart: One floor mounted dual shaft swing arm and one tip-up saw sleeve set-up cart Electrical: Arranged for 3 phase, 60 cycle, 460V Cameron Automated Opti-Rip Model #34F-M1 System: Manufacture Year: (2004) Complete with length measurement Tally System 5 infeed belt and chains for feeding a Gang Rip saw up to 41” wide 16 width sensors 3 sets of pinch rolls for short stock 1 fixed & 4 movable laser lights This system feed for 4’ to 16’ max lumber length It feeds from operator right to left Wired 220V; If 440V required, a transformer will be needed
