TERCO NORTHSTAR 10-8 Spindle Carver.8-Spindle Carver with 10" center-to-center chuck spacing. -- (2) 0.5 HP - 3,450 RPM spindle motor direct "belt drives" spindles for 11,000 RPM rotation. -- 36" Long carving cap, with optional length extensions up to 72". -- Manual rotation for round parts. -- Operator manually traces the pattern details of the master with copying stylus. -- Capable of doing both base relief (flat backed) and 360° full round carving. -- Includes: (1) Set roughing bits, (2) sets finishing bits, tools, and manual.

THERMWOOD C67 5-AXIS CNC ROUTER (5x10): -- Specifications:5' Wide x 10' deep moving table design.Head travel & rotation: X-Axis (table travel) = 124", Y-axis (gantry travel) = 62", Z-axis= 36", rotational axis = 360°, tilt axis = 270°. -- Equipped with: (1) 12 HP "HSD" "Liquid Cooled" Electro-Spindle; programmable variable speed from 3,000 - 24,000 RPM, LH/RH rotation. -- Operator Interface: THERMWOOD Series "91000 Super Control" controller, with hand held programmer & programmable spindle speed option.Air conditioned, standalone control cabinet. Compatible with major CAD/CAM and offline CNC programming systems. -- Options Include: Electromagnets for work-holding metal parts. Transformer. Machine has been customized to use MQL coolant for purposes of drilling and light machining aluminum. Programmable spindle speed.

TIMESAVERS 2331-04-334 DUAL HEAD DENIBBING SANDER2-Head, 42" width capacity Sanding / Denibbing system. -- (2) 5" Wide platens featuring a "dual" action head with a high-speed orbital movement and combined back & forth oscillation to remove abrasive belt cross-grain scratches; platens designed with a quick change system for abrasive material. -- (1) Nylon abrasive impregnated (150 grit) Cleaning / De-Nibbing brush, 10" dia., drive unit for brush rotation, brush wear adjustment via jack screws. -- Vacuum holddown conveyor system with variable feed speed 5 - 15 FPM. -- Double infeed and outfeed holddown pinch rollers. -- Power raising and lowering of the conveyor bed with AUTO-SET feature, 0" to 6" part thickness capacity. (4) DUFF-NORTON acme screw jacks under conveyor bed, 36" infeed conveyor area.....below in the comments see what the current owner says:

WEEKE BHC 350 4/10 CNC MACHINING CENTER: Specifications: -- Working cap.:"X" axis: 3,750 mm (147.6"), "Y" axis: 1,250 mm (49.2"), 80 mm (3.1") max. material thickness. -- Positioning Speed: "X" axis is 196 FPM (60 MPM), "Y" axis 164 FPM (50 MPM) & "Z" axis 66 FPM (20 MPM). The heads travels on THK linear motion guides on all axes. -- Worktable: (6) Moveable support rails, raise-and-lower panel feeding rails, (3) matrix style vacuum pods per rail.(6) Pneumatic backstops, (6) Pneumatic front stops, (2) movable pneumatic side stops, and the dual central zero-stop creates (2) working zones. -- Boring Unit:(1) 3.5 HP, 1,500 - 7,000 RPM Motor; equipped with (24) independent vertical spindles with (16) spindles in "X" axis & (8) spindles in "Y" axis.(4) Horizontal spindles with (1+1) in the "X" axis & (1+1) in "Y" axis;(1) "X" axis grooving saw for max. 100 mm dia. blade, 2,000 - 7,000 RPM. -- Machining:(1) 8 HP HSK F63 Liquid cooled electro-spindle powered by KEB frequency inverter, programmable from 1,200 - 18,000 RPM (constant torque from 9,000 - 18,000 RPM), RH or LH rotation. -- Operator & Machine Control:IPC control with "WEEKE MCC" + Windows "XP" + WoodWOP 5.0 operating system; 15" high resolution color graphic monitor, standard keyboard & mouse for data entry, 1.44MB floppy disk drive, CD ROM drive.EtherNET interface for possible LAN connection to office PC, RS-232 serial interface for simple PC connection; all mounted in separate free-standing control cabinet.WoodWOP allows for the machine to be programmed off-line with the same intuitive icon driven software that the operator has on the machine controller."BECKHOFF" programmable logic control (PLC) operating system for (3) axes; linear, circular & helical interpolation. -- Complete with:(1) 100 m³/Hr Vacuum pump, man-height safety enclosure around rear & sides of machine, 2-zone safety mats (will stop machine if operator enters work area). Actual Model is WEEKE BHC 350 4/10 .

--MAKE OFFER!---VERY GOOD CONDITION-- WEEKE BHP 100/VANTAGE 480 FLAT TABLE MACHINE, with ATC, Boring, Infeed Roller & Outfeed & 4,771 Hrs. (As of 10/31/23) Specifications: 4' x 8' Bridge style gantry machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table. Working Area: 'X" axis 99.21" (2,520 mm), "Y" axis 49.21" (1,250 mm), Max. material thickness of 3.94" (100 mm). Travels: “X” axis 146.06” (3,710 mm), “Y” axis 81.30” (2,065 mm), “Z” axis 13.70” (348 mm) Routing, 8.46” (215 mm) Boring. Positioning Speed: "X" & "Y" axis Vector speed is 314 FPM (96 MPM), "Z" axis 65 FPM (20 MPM); The head travels via AC brushless drives & THK linear motion guides on all axes. Worktable: User-Friendly "S/C Tech "MATRIX" grooved phenolic vacuum table for easy vacuum pod placement. (2) Fixed LH side & (2) Fixed RH side pneumatic pop-up positioning stops. Boring Unit: (1) 3 HP (2.3 kW) Motor, variable speed for 1,500 - 7,500 RPM; (21) Independent vertical spindles with (8) in "X" axis, (9) in "Y" axis (1st Row), & (4) in "Y" axis (2nd Row). Machining: (1) 12 HP (9 kW) Air Cooled High speed constant duty Router with HSK F63 adaptor, 1,250 - 24,000 RPM, constant torque achieved at 9,000 RPM, RH or LH rotation (1) 14-Position tool changer Carousel located at the back side of the spindle carriage. Machine & Operator Control: PC Front-End with WEEKE "Power Control + Windows + WoodWOP operating system. 17" TFT Color graphic monitor, Hand-held control pendant, Foot pedal control; "BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; The controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine. Complete with: 488” W x 96” L Infeed electric/hydraulic Scissor Lift platform, with 3” x 3” Support beams on 7” Centers; 4’ L Roller track intermediate table; vacuum arm with (2) 10” dia. vacuum pads; rake off-feed System; 49” W x 10’ L x 36” H Outfeed motorized belt conveyor; BUSCH "MM 1322 A VM3" 10 HP (7.6 kW) 300 mbar Vacuum Pump; 6’ H Safety fencing. Actual model is WEEKE BHP 100/VANTAGE 480 Machine Dimensions: 292” x 202” x 96” H. Machine with Scissor Lift Dimensions: 389” x 202” x 96” H. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

WEEKE - BHX 050: CNC Machining Center (Vertical) -- Specifications Flexible "Vertical" Machining Center: Uses less than 5 sq/m of valuable floor space; includes an innovative Panel Handling System. -- Working CapacityMax. workable part size for: "X" Axis: 98.4" (2,500 mm); "Y" axis 33.4" (850 mm); max. part thickness 2.4" (60 mm).Min. worktable part size for: "X" Axis: 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning Speed"BHX 050" Reaches movement speeds of: 164 FPM (50 MPM) in "X" & "Y" axes; 50 FPM (15 MPM) in "Z" axis with total safety; provides an unmatched working capacity. -- Boring Unit(1) 3 HP (2.3 kW) Variable speed from: 1,500 - 7,500 RPM Motor; (8) independent vertical spindles with: (4) Spindles in "X" axis; (4) spindles in "Y" axis.(3) Horizontal Spindles with: (1 + 1) in "X axis; (1) spindle in "Y" axis.Boring block has: QUICK-CHANGE Spindle system. -- Operator & Machine ControlWEEKE "POWER CONTROL" + Windows + WoodWOP 6.0 + Operating System; "IntelCore 2 DUO" Processor.17" TFT Monitor; international keyboard; soft touch keypad; industrial mouse; RS-232 serial ports; USB ports; (1) 1.44 MB floppy disk drive; (1) CD RW drive; modem; Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure; complete set of safety devices.Options include:&#9679 (1) "X" Axis grooving saw: 9,000 RPM; saw blade dia. 100 mm.&#9679 (1) 5 HP (3.6 kW) Electrospindle router with: Hydraulic "QUICK-CHANGE" tool system; "ETP 25" tool holders; variable speed from 6,000 - 18,000 RPM. &#9679 Voltage transformer: 600 Volts operation. -- Actual Model: WEEKE BHX 050.

WEEKE - BHX 050: CNC Machining Center (Vertical) -- SpecificationsFlexible "Vertical" Machining Center that uses less than 5 meter² of valuable floor space in addition to an innovative Panel Handling System. -- Working Cap.:Max. workable part size for: "X" Axis: 98.4" (2,500 mm); "Y" axis: 33.4" (850 mm); max. part thickness: 2.4" (60 mm). -- Min. worktable part size for: "X" Axis: 7.8" (200 mm); "Y" axis: 2.7" (70 mm); min. part thickness of: 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning Speed:The BHX 050 reaches movement speeds of: 164 FPM (50 MPM) in "X" & "Y" axis; 50 FPM (15 MPM) in "Z" axis with total safety; provides an unmatched working capacity. -- Boring Unit(1) 2.4 HP (1.8 kW); Variable speed from: 1,500 - 7,500 RPM motor; (8) independent spindles with: (4) Spindles in "X" axis & (4) spindles in "Y" axis. -- (6) Horizontal spindles with: (2 + 2) In "X" axis; (1 + 1) in "Y" axis. -- Boring block has "QUICK CHANGE" Spindle System. -- Operator InterfaceWEEKE "POWER CONTROL" + Windows + WoodWOP 5.0 + Operating System; "IntelCore 2 DUO" Processor. -- 17" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports; USB ports; (1) 1.44 MB floppy disk drive; (1) CD RW drive; modem; Ethernet connection. -- Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure; complete set of safety devices. -- Options Include:&#9679 (1) "X" Axis grooving saw with: 9,000 RPM Motor; max. saw blade dia. 100 mm. &#9679 (1) 7 HP (5 kW) Electrospindle router with: Hydraulic "QUICK CHANGE" tool system & "ETP 25" tool holders; variable speed from 6,000 - 18,000 RPM. -- Actual Model is WEEKE BHX 050

WEEKE - BHX 055: CNC Boring Machine (P to P Vertical) -- SpecificationsFlexible "Vertical" Machining Center that uses less than 5 sq/m of valuable floor space in addition to an innovative panel handling system. -- Working Cap.:Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm), max. part thickness 2.4" (60 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning SpeedThe "BHX 055" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety - providing an unmatched working capacity. -- Boring Unit:(1) 3 HP (2.3 kW) Variable speed from 1,500 - 7,500 RPM motor; (13) independent spindles with: (8) Spindles in "X" axis & (5) spindles in "Y" axis.(4) Horizontal spindles with: (1 + 1) in "X" Axis & (1 + 1) in "Y" axis.Boring block with "Quick Change" vertical spindle system. -- Operator & Machine Control:WEEKE "Power Control PC 85" + Windows + WoodWOP 6.0 Operating System; Intel Core "2 DUO" Processor.17" TFT Monitor: International keyboard, soft touch keypad & industrial mouse; RS-232 serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive: modem, Ethernet connection.Real time multitask processing: Programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure; complete set of safety devices. -- Options Include:(1) "X" Axis grooving saw, 9,000 RPM, max. saw blade dia. 100 mm.

WEEKE VENTURE 106M (BMG 111) CNC MACHINING CENTER (W/ATC/BORING): -- Specifications: Working Capacity: "X" Axis is 123.2" (3,130 mm); "Y" axis is 61.02" (1,554 mm); "Z" axis stroke is 7.2" (185 mm); max. material thickness 5.9" (150 mm). -- Positioning Speed: "X" & "Y" Axis travel speed of 262 FPM (80 MPM); "Z" axis travel speed of 66 FPM (20 MPM).The machine head travels on THK linear motion guides on all axes. -- Worktable:(6) Movable K-Table support rails with: Side mounted raise-and-lower panel feeding rails; (2) vacuum pods per rail.(6) Pneumatic backstops; (2) pneumatic side stops create (2) working zones.Laser Positing System setup assistance for precise rail & vacuum pod positioning. -- Boring Unit:3 HP (2.3 kW) Motor; variable speed from 1,500 - 7,500 RPM; (12) vertical "QUICK-CHANGE" drill spindles: (7) Spindles in "X" axis & (5) in "Y" axis.(6) Horizontal spindles with: (2 + 2) In "X" axis & (1 + 1) in "Y" axis. -- Machining: (1) 12 HP (9 kW) Air-Cooled electro-spindle router with: HSK F63 Adaptor with: Programmable 1,250 - 24,000 RPM; constant torque from 9,000 - 24,000 RPM; RH or LH rotation; powered by a frequency inverter.(1) 8-Position ATC magazine located at the RH side of the machine. -- Operator & Machine Control: WEEKE IPC "PC 85 Power Control" + Windows "XP" + WoodWOP 6.1 Operating System; INTEL Core2 Duo Processor; "BECKOFF" PLC for (3) axes with: Linear, circular, & helical interpolation.17" TFT Monitor with: 2D / 3D "REAL-TIME" graphics; industrial keyboard; mouse for data entry.(1) SATA Hard drive; 160 GB; central USB front side bus connection; Ethernet connection 10/100 Mbit; all mounted in separate free-standing Control Panel. -- Complete with:(1) 84 m³/Hr Vacuum Pump: 3-Zone safety mats (will stop machine if operator enters the active work area); safety fences; scrap conveyor; handheld pendant controller. -- Actual Model is: WEEKE VENTURE 106M / BMG 111.

WEEKE BP 80 CNC MACHINING CENTER: -- Specifications: X-Axis 122.6 (3,105 mm); Y-axis 40.3" (1,020 mm); Z-axis stroke is 5.3" (135 mm); max. material thickness 3.9" (100 mm). -- Positioning Speed:X-Axis is 213 FPM ((65 MPM); Y-axis 164 FPM ((50 MPM) & Z-axis is 49 FPM (15 MPM); head travels on THK linear ways on all axes. -- Worktable:(6) Movable support rails with: (2) Square matrix vacuum cups ea.; (6) pneumatic backstops & (2) pneumatic side stops creating (2) working zones. -- Boring Unit:2 HP (1.5 kW) Motor; (11) independent vertical spindles: (6) in X-Axis & (5) in Y-axis; (6) horizontal spindles with (1 + 1) in X-axis & (1 + 1) in Y-axis; (1) X-axis grooving saw with 100 mm dia. blade. -- Machining:(2) 7.5 HP (5.6 kW) High speed routers with: "Hydro-Grip" Spindle & EPT 25 adaptors, 6,000 - 18,000 RPM; controlled by frequency inverter. (One of the router spindles is not operational & needs rebuilding.) -- Operator & Machine Control:PC Front-End with: HOMATIC + Windows + WoodWOP 4.0 Operating System; NUM PLC for (3) axes; linear, circular & helical interpolation;15" monitor; keyboard for data entry; floppy disk drive; 40 MB hard drive,;32-bit processors; RS-232 port for possible connection to office PC; all mounted in separate free-standing control cabinet. -- Complete with:(1) 40 cbm/Hr Vacuum Pump; safety mats. -- Actual model is: WEEKE - BP 80

WEEKE BHX 200-25 OPTIMAT CNC MACHINING CENTER (VERTICAL): + PANEL RETURN SYSTEM + CLAMEX-P PROCESSING: -- Specifications: Flexible "Vertical" Machining Center that uses less than 10 sq/m of valuable floor space in addition to an innovative Panel Handling System. -- Working Cap.:Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 49.2" (1,250 mm) max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 13.8" (350 mm); "Y" axis 2.36" (60 mm); min. part thickness of 0.31" (8 mm) automatic infeed & outfeed. -- Positioning Speed:The BHX 200 can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axes & 50 FPM (15 MPM) in "Z" axis with total safety; provides an unmatched working capacity. -- Boring Unit:(1) 3 HP (2.3 kW) Motor, variable speed from 1,500 - 7,500 RPM; (15) independent spindles with: (9) Spindles in "X" axis & (6) spindles in "Y" axis.(10) Horizontal spindles with: (3 + 3) in "X" axis & (2 + 2) in "Y" axis; boring block has "QUICK CHANGE" spindle system. -- Operator & Machine Control:WEEKE "POWERTOUCH" + Windows "7"+ WoodWOP Operating System; "i5" Processor.21.5" HD multitouch Wide Screen Display Monitor; soft-touch keypad & USB connection; Digital Field Bus System; RS-232 Serial ports, Ethernet connection.Real-time multitask processing; programs can be transferred via USB or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure; complete set of safety devices. -- Options Include:(1) NC Controlled 0° - 90° "X/Y" Grooving Saw for max. 125 mm dia. x 5 mm thick blade.(1) 13.4 HP (10 kW) Air-Cooled electrospindle router with HSK F3 adaptor; variable speed from 1,500 - 24,000 RPM.(1) 4-Position ATC tool rack mounted on the side of the machine base.(1) "CLAMEX-P Connecting Hardware Processing System; ...watch the Literature Video @ 3:45!(1) NC Controlled Panel Return System; ...watch the Literature Video @ 4:30! -- Actual Model is: WEEKE - BHX 200-25 OPTIMAT

WEEKE BHX 050 CNC MACHINING CENTER (VERTICAL): -- Specifications: Flexible "Vertical" Machining Center that uses less than 5 sq/m of valuable floor space, in addition to an innovative Panel Handling System. -- Working Cap.:Max. workable part size for "X" axis is 98.4" (2,500 mm); "Y" axis 33.4" (850 mm); max. part thickness 2.4" (60 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning Speed:The "BHX 050" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axes & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring Unit:(1) 3 HP (2.3 kW), Variable speed from 1,500 - 7,500 RPM motor, (8) independent vertical spindles with: (4) spindles in "X" axis & (4) spindles in "Y" axis.(3) Horizontal Spindles with (1+1) in "X axis & (1) spindle in "Y" axis.Boring block has QUICK-CHANGE spindle system. -- Operator & Machine Control:WEEKE "POWER CONTROL" + Windows + WoodWOP 6.0 + Operating System; "IntelCore 2 DUO" Processor.17" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:&#9679 (1) "X" Axis grooving saw; 9,000 RPM, saw blade dia. 100 mm. &#9679 (1) 7 HP (5 kW) Electro-spindle router with hydraulic "QUICK-CHANGE" tool system & "ETP 25" tool holders; variable speed from 6,000 - 18,000 RPM. -- Actual Model is WEEKE BHX 050.

WEEKE BHX 050 CNC MACHINING CENTER (VERTICAL): -- Specifications: Flexible "Vertical" Machining Center that uses less than 5 sq/m of valuable floor space, in addition to an innovative Panel Handling System. -- Working Cap.:Max. workable part size for "X" axis is 98.4" (2,500 mm); "Y" axis 33.4" (850 mm); max. part thickness 2.4" (60 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning Speed:The "BHX 050" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axes & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring Unit:(1) 3 HP (2.3 kW), Variable speed from 1,500 - 7,500 RPM motor, (6) independent spindles with: (4) spindles in "X" axis & (2) spindles in "Y" axis.Boring block has QUICK-CHANGE spindle system. -- Operator & Machine Control:WEEKE "POWER CONTROL" + Windows + WoodWOP 5.0 + Operating System; "IntelCore 2 DUO" Processor.17" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:&#9679 Max. workable part size for "X" axis is 120" (3,050 mm. &#9679 (1) "X" Axis grooving saw; 9,000 RPM, saw blade dia. 100 mm. &#9679 (1) 7 HP (5 kW) Electrospindle router with hydraulic "QUICK-CHANGE" tool system & "ETP 25" tool holders; variable speed from 6,000 - 18,000 RPM. -- Actual Model is WEEKE - BHX 050.

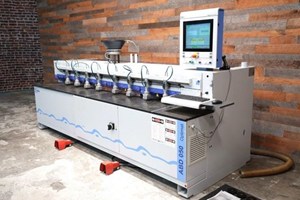

WEEKE - ABD 260: CNC Bore Glue & Inserter -- SpecificationsDesigned for small or large capacity horizontal drilling, gluing and dowel insertion; built on Heavy-Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.Support Table with: Left & right side stop & rear stop bar; center stop pneumatically activated.(8) Clamping cylinders; manually adjustable; automatic central lubrication. -- Working Capacity. Material size from: 20 mm - 2,800 mm (3/4" - 110-1/4") long; 100 mm - 800 mm (3.9" - 31-1/2") wide; 10 mm - 80 mm (0.4" - 3-1/2") thick.Machine is set up for 8 mm Dia. x 30 mm or 35 mm long dowels (additional dowel sizes are optional). -- Horizontal Drilling and Dowelling Aggregate with: (3) Individual spindles on 32 mm centers; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Vertical 3-Spindle Drilling Unit with: (3) Individual selectable spindles at: 32 mm Spacing; adjustable in "Y" direction from 0 - 50 mm; min. workpiece width: 100 mm. -- (2) Separate Stations process: (2) Parts independently on the left-hand or right-hand stops or (1) large piece as required with no additional setup; work can be loaded in: (1) Field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface Power Control PC Front-End with: Microsoft Windows based control + WEEKE "PC85T" + "WoodWOP" Operating System with Graphic programming & error messaging.17" TFT Flat screen monitor: CD-RW Drive, 1.44 MB floppy drive; standard keyboard & mouse.Software allows program design with: Automatic mirror image by use of an active center stop located 1,380 mm (54.3") from zero. -- Includes: All manuals, documentation, and program disk provided with machine.

WEEKE ABD 100 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications(1) Horizontal drilling aggregate with: (1) Individual spindle; (1) glue & dowel injector with glue flow control; (1) 23" dia. x 4" D vibrating hopper dowel feeder. -- Working Capacity: Material size from: 20 mm - 1,250 mm (3/4" - 49") long; 50 mm - 800 mm (1.9" - 31-1/2") wide; 10 mm - 60 mm 0.4" - 2.4") thick.Machine is set up for: 8 mm Dia. x 30 or 35 mm long dowels (additional dowel sizes are optional). -- (2) Separate working fields with: (4) 2-3/4"; LR x 3"; FB Pneumatic top clamps; can process up to (4) parts independently on the: Left-hand, right-hand, or center stops; work can be loaded in (1) field while it is being machined in the other to allow fast production of varying parts. -- Operator InterfacePC Front-end with: Windows XP + WEEKE "WoodWOP 5.0" Operating System with graphic programming & error messaging; USB front side bus; 17" TFT flat screen monitor; CD-RW drive; modem; standard keyboard; mouse.Software allows program design with automatic mirror image by use of an active center stop located: 600 mm (23.6") from zero. -- WEEKE "ABD 100": Designed for small or large capacity horizontal drilling, gluing and dowel insertion; built on a Heavy-Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.

WEEKE ABD 100 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:(1) Horizontal drilling aggregate with (1) individual spindle; (1) glue & dowel injector with glue flow control; (1) 23" Dia. x 4" D vibrating hopper dowel feeder. -- Working Capacity: Material size from 20 mm - 1,250 mm (.75" - 49") long, 50 mm - 800 mm (1.9" - 31.5") wide, 10 mm - 60 mm (.4" - 2.4") thick. Machine is set up for 8 mm dia. x 30 or 35 mm long dowels (additional dowel sizes are optional). -- (2) Separate working fields with (4) 2-3/4"; LR x 3"; FB pneumatic top clamps can process up to (4) parts independently on the left-hand, right-hand or center-stops; work can be loaded in (1) field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface:PC Front-end with Windows XP + Weeke "WoodWOP 5.0" operating system with graphic programming & error messaging; USB front side bus, 17" TFT flat screen monitor, CD-RW drive, Modem, standard keyboard & mouse.Software allows program design with automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- WEEKE "ABD 100" is designed for small or large capacity horizontal drilling, gluing and dowel insertion; built on a Heavy Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector. -- Complete with: HAND-HELD PRODUCTS "ADAPTUS 5.0 3800G04E" Handheld Barcode Reader.

WEEKE - ABD 050: CNC Bore, Glue, & Dowel Inserter -- Specifications(1) Horizontal drilling aggregate with: (1) Individual spindle; Servo control of the "X" Axis; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working CapacityPart Size. Length: 20 mm - 1,250 mm (3/4" - 49"); width: 20 mm - 800 mm (3/4" - 31-1/2"); thickness: 10 mm - 60 mm (0.4" - 2.4").Machine is set up for: 8 mm Dia. x 30 or 35 mm long dowels -- Work Area(2) Separate working fields with: (4) Pneumatic top clamps processes up to (2) parts independently on the left-hand, right-hand, or center stops; workpieces can be loaded in (1) field while being machined in the other to allow fast production of varying parts. -- Operator InterfacePC Front-End with HOMAG Power Control PC 85T, WoodWOP 5.0 Operating System with: Graphic programming & error messaging.17" TFT Flat screen monitor; CD-RW drive; 1.44 MB floppy drive; standard keyboard & mouse.Software allows program design with: Automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- Complete with:Bar code control reader; all manuals, documentation & program disk provided with machine. -- Actual Model: WEEKE ABD 050.

WEEKE BHC 555 OPTIMAT CNC MACHINING CENTER (W/ATC/BORING/"C"AXIS): -- Specifications:Working Capacity:"X" Axis 167" (4,250 mm), "Y" axis 59" (1,500 mm), "Z" axis stroke is 14.6" (370 mm), max material thickness 6.6" (170 mm) when routing & 4" (100 mm) when using all other units. -- Positioning Speed:"X" axis is 263 FPM (80 MPM), Y-axis 197 FPM (60 MPM), Z-axis 65 FPM (20 MPM). -- Worktable:(8) Movable "K-Table" support rails with (6) side mounted raise-and-lower panel feeding rails; LED light bar positioning assistance;(3) Matrix vacuum pods per support, rubber seals in the matrix of the vacuum pod makes it possible to hold 50 mm wide strips. (8) Pneumatic back stops for large panels, (8) pneumatic front stops for small (narrow) panels, (2) movable pneumatic side stops that create (2) working zones. -- Boring unit:3.5 HP (2.7 kW) motor with variable programmable spindle speed from 1,500 -7,500 RPM, "Quick Change" tooling.(23) Independent vertical spindles, (15) spindles in "X" axis & (8) in "Y" axis(6) Horizontal spindles with (2+2) spindles in "X" axis & (1+1) in "Y" axis;(1) "X" Axis grooving saw with 100 mm dia. saw blade cap, 2 HP (1.5 kW) variable speed motor from 2,000 -7,500 RPM. -- Machining units:(1) 12 HP (9 kW) liquid cooled Electro spindle with HSK F63 adaptor, variable speed from 1,200 - 24,000 RPM & constant torque from 9,000 RPM, RH & LH rotation;(1) NC controlled "C" axis for 360° horizontal processing.(16) Total ATC positions with (1) 8-position ATC tool plate magazines mounted on the head for "on the fly" ATC & (1) 8-position ATC tool plate magazines mounted at the back of the machine.The machining unit is controlled by a "KEB" solid state frequency inverter, the inverter output is programmable through the control. -- Operator Interface:Weeke IPC "MMC Control" + Windows "XP" + "WOODWOP 5.0" operating system; "Beckhoff" programmable logic (PLC) to ensure high-speed precision for axes, linear, circular & helical interpolation15" High resolution TFT color graphic monitor, industrial keyboard for data entry; 20.0 GB hard drive, 128 MB of RAM1.44MB Floppy & CD ROM drive,EtherNET interface for LAN connection to office PC is possible; report generation software included; post processor for DXF file conversion is includedRS-232 serial interface & USB ports for simple PC connection; all mounted in separate free-standing control cabinet. -- Complete with:(1) 100 m³/Hr Vacuum pump; scrap conveyor; safety mats & safety fencing; original docs/manuals. -- Actual Model is WEEKE BHC 555 OPTIMAT

WEEKE ABD 050/28 CNC BORE. GLUE & DOWEL INSERTER: -- SpecificationsDesigned for small or large capacity horizontal drilling, gluing and dowel insertion; built on Heavy-Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.Support Table with: Left & right side stop & rear stop bar; center stop pneumatically activated.(8) Clamping cylinders; manually adjustable; automatic central lubrication. -- Working Capacity. Material size from: 20 mm - 2,800 mm (0.78" - 110.2") long; 100 mm - 800 mm (3.9" - 31-1/2") wide; 10 mm - 80 mm (0.4" - 3-1/2") thick.Machine is set up for 8 mm Dia. x 30 mm or 35 mm long dowels (additional dowel sizes are optional). -- Horizontal Drilling and Dowelling Aggregate with: (1) Individual spindle; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- (2) Separate Stations process: (2) Parts independently on the left-hand or right-hand stops or (1) large piece as required with no additional setup; work can be loaded in: (1) Field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface Power Control PC Front-End with: Microsoft Windows based control + WEEKE "PC85T" + "WoodWOP" Operating System with Graphic programming & error messaging.17" TFT Flat screen monitor: CD-RW Drive, 1.44 MB floppy drive; standard keyboard & mouse.Software allows program design with: Automatic mirror image by use of an active center stop located 1,380 mm (54.3") from zero. -- Includes: All manuals, documentation, and program disk provided with machine.

WEIMA WL-6 Low Noise Vertical Hopper Waste Grinder Specifications: -- Low noise hopper-fed grinder with a 10" dia X 31.5" long rotor and a 24HP drive package that includes a 2-sided flared hopper. -- Vertical 1.3 cubic yard hopper with 31.5" x 39.2" (800 mm x 900 mm) opening. Equipped with: -- (21) Recessed concave cutters with low clearance over the rotor to extend cutter life, protect the bolts, and reduce machine wear. -- Rotor operates at 80 - 100 RPM with outputs ranging from 1,000 - 34,000 Lb/Hr depending on screen size and material.Includes: -- Control panel.
