SCMI - K201 HFE: Single Sided Edgebander1/8" Max. edge cap.; 1-1/2" max. panel thickness; semiautomatic strip & coil feed magazine (manual single strip feed); Teflon coated glue pot w/fast 8-Minute heat up time; 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim; 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors; 25 FPM fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

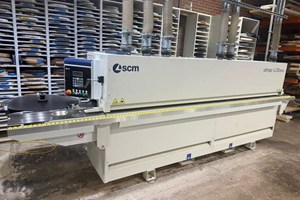

SCM - OLIMPIC K230R EVO: Edgebander (w/Premilling) -- Specifications0.4mm to 3mm Edge thickness; panel thickness 8 mm to 50 mm (0.3" to 1.96"); minimum part width 60mm (2.36"); minimum part length 160 mm (6.30").Minimum distance between panels: 559 mm (22";); 29-1/2 FPM (98 MPM) Fixed feed speed; 1.0 HP (0.75 kW) feed drive.Premilling Station(2) 2.0 HP (1.5 kW) Motors to rectify/clean panels already sized. -- Adjustable infeed fence: Manually preset with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 kG TEFLON Coated glue pot; glue roller application system complete with: Automatic recycling device for unused glue.Digital thermostat adjustment for temperature control; pneumatic guillotine; heating time approx. (8 - 10) Min.3-Roll pressure unit with: Pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine.Workstations2-Motor front & rear End Trimming (1/2 HP - 12,000 RPM ea. motor.); tilts 0° - 15°; end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with: Quick release mount and plug-in motors for quick tooling changes.0.5 HP - 12.000 RPM Motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Top & bottom scraping unit with: Manual positioning. -- Top & bottom buffing unit (1/4 HP - 3,000 RPM motors); tilts up to 12°. Operator & Machine Control"ORION 1 Plus" Controller: Located at the infeed of the machine; capable of operating all the work units via soft touch buttons.It pneumatically tilts the end trim unit from the Control Panel; eliminates the use of micro switches, as well as controls the temperature of the glue.Control is tilted slightly upward for a more ergonomically friendly position for the Operator. -- Actual Model is: SCM OLIMPIC K230R EVO

SCM - OLIMPIC K230ERT EVO: Edgebander (w/Premilling & Corner Rounding) -- Specifications0.4mm to 3mm Edge thickness; panel thickness 8 mm to 50 mm (0.3" to 1.96"); minimum part width 60mm (2.36"); minimum part length 160 mm (6.30").Minimum distance between panels: 559 mm (22";); 29-1/2 FPM (98 MPM) Fixed feed speed; 1.0 HP (0.75 kW) feed drive.Premilling Station RT-VP(2) 2.0 HP (1.5 kW) Motors to rectify/clean panels already sized. -- Adjustable infeed fence: Manually preset with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 kG TEFLON Coated glue pot; glue roller application system complete with: Automatic recycling device for unused glue.Digital thermostat adjustment for temperature control; pneumatic guillotine; heating time approx. (8 - 10) Min.3-Roll pressure unit with: Pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine.Workstations2-Motor front & rear End Trimming (1/2 HP - 12,000 RPM ea. motor.); tilts 0° - 15°; end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with: Quick release mount and plug-in motors for quick tooling changes.0.5 HP - 12.000 RPM Motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Corner Rounding Unit from .5 to 3mm. -- Top & bottom scraping unit with: Manual positioning. -- RC-V Top & bottom Glue Scraping Unit -- Top & bottom buffing unit (1/4 HP - 3,000 RPM motors); tilts up to 12°. Operator & Machine Control"ORION 1 Plus" Controller: Located at the infeed of the machine; capable of operating all the work units via soft touch buttons.It pneumatically tilts the end trim unit from the Control Panel; eliminates the use of micro switches, as well as controls the temperature of the glue.Control is tilted slightly upward for a more ergonomically friendly position for the Operator. -- Actual Model is: SCM OLIMPIC K230ERT EVO

SCMI - OLIMPIC K 360: Compact Edgebander with PremillingSpecifications -- Edge Capacity: 0.3 - 3 mm (0.012 to 0.118") For coiled edges (0.3 - 6 mm for strips with 6 x 60 mm kit included). - Coil holder-plate dia.: 780 mm (31"). -- Panel Capacity: Min. width: 90 mm & 140 mm Min. length (3-1/2" and 5-1/2").Panel thickness. Min./max.: 8 - 50 mm (3/8" - 2") to max. 60 mm (2.4" with 6 x 60 kit included).Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station: RT-VP. Spindles 2 x 2.0 HP - 19,000 RPM; (1) with; PLC Controlled jump action & diamond cutterheads. -- Automatic Strip & Coil Feed Magazine. For straight edges & 3 mm guillotine for coils. -- Gluing Station. For EVA (Hot Melt) with: TEFLON Coated glue tank; quick disconnect to change glue tanks fast if needed; heat up time approx. 10 Min; includes: 1.5 kG Glue pot instead of standard. -- Pressure Section. Manual digital positioning: (3) Pressure rollers; 1st larger TEFLON coated & powered. Workstations -- End Trimming Station - K2: Front & rear 2 x 1/2 HP (included extra); 2,000 RPM motors mounted on: THK guides; swivels 0° - 15°; rapid setup between: Straight & angled cutting with the automatic swivel cylinder.Automatic positioning for: (3) Cutting modes: Straight, chamfered, and radiusing of thick edges. -- Top & Bottom Trimming Unit: R-K. Remote (via control panel) pneumatic positioning for: (3) Settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12,000 RPM motors with: Precision digital indicators for quick setup. -- Top & Bottom Profile Scraping Unit: Manual preset up with: Digital indicators; large dia. copy wheels for: Max. accuracy & pneumatic in/out positioning. -- Buffing Unit - SP-V. Top/bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°; cleaning & polishing of edges.Controls -- Orion 1 Plus Controller. Fixed at infeed of machine with: Soft keys; graphics; 4" LCD display panel. Handles most machine setup functions & workstations. Machine automation by: PLC Function & encoder positioned in the panel feed track pinion. Diagnostics for: Quick solution to many errors. Process statistics data, i.e.: No. of pieces/edges and track feeding.Features & Complete with: -- Feedspeed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units; manual adjustable holddown pressure beam; full sound enclosure cover & outboard panel support. -- Overall dimensions:3,600 mm (142") x 900 mm (36") x 1,600 mm (63"); weight approx.: 997 kG (2,200 Lbs). -- Owner states: Several motors/groups replaced recently as routine maintenance. -- UL/CSA Approved version; has "Ontario Hydro Special Inspection" approval sticker. --Actual Model: OLIMPIC K 360 T-ER1

SCM - OLIMPIC K 360: Compact EdgebanderSpecifications -- Edge capacity: 0.4 to 6 mm (0.016to 1/4") For strip feeding. -- Panel capacity: Min. width 65 mm & 140 mm min. length; 2-3/8" & 5-1/2". Panel thickness min./max.: 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: TEFLON Coated glue tank & quick disconnect to change glue tanks fast if needed. Heat-up time approx.: 10 Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers, 1st larger & TEFLON coated & powered. Workstations -- End Trimming Station: Front & rear: 2 x 0.25 HP - 12,000 RPM Motors mounted on: THK Guides; swivels 0° - 15°; rapid set up between straight and angled cutting with: An automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel); pneumatic positioning for: (3) Settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Buffing Unit: Top/bottom, (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Controls -- "ORION 1 Plus" Controller; fixed at infeed of machine with: soft keys; graphics; 4" LCD display panel. It handles most machine setup functions and workstations. Complete with & Features -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP Feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover & outboard panel support.Condition: ATFS

SCM - OLIMPIC K360 ERT HP: Compact Edgebander (w/Premill & Corner Rounding)Specifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width 65 mm & 140 mm min. length (2-3/8" & 5-1/2"); panel thickness: Min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP - 19,000 RPM. -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers: First larger; Teflon coated & powered. Workstations -- End Trimming Station. Front & rear: (2) x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting. -- Trimming Unit. Flush/Bevel/Radius: Top/Bottom with pneumatic positioning for (3) settings; Flush/bevel/radius trimming: (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Corner Rounding Unit. "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit. "RAS/V": Top/Bottom, manual preset up with digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit. Top/bottom: (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Operator Interface -- ORION "1 Plus" Controller. Fixed at infeed of machine with: "Touch Screen" control; softkeys; graphics; LCD display panel.Complete with & Features -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam; full sound enclosure cover; outboard panel support. -- Actual Model: SCM OLIMPIC K360 ERT HP

SCM OLIMPIC K 360 COMPACT EDGEBANDER WITH PRE-MILLING Specifications: -- Edge Capacity: 0.4 - 6 mm (0.016" - 1/4") for strip feeding. -- Panel Capacity: Min. width: 65 mm; min. length: 140 mm min. length (2-3/8" and 5-1/2"). - Panel thickness: Min./max.: 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- 2-Head Pre-milling station model (2.5 HP - 19,000 RPM motors ea.). -- Adjustable infeed fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP 19,000 RPM; (1) PLC controlled jump action and diamond cutterheads. -- Automatic strip & coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat up time approx.: 10 Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers; 1st larger Teflon coated and powered. Workstations: -- End Trimming Station - Front & rear: (2) x 1/4 HP - 12,000 RPM motors mounted on THK guides; swivels 0° - 15°; rapid set up between straight & angled cutting with the automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings: Flush. bevel, radius trimming; (2) x 0.7 HP - 12.000 RPM motors: Precision digital indicators for quick set up. -- Profile Scraping Unit "RAS/V": Top/Bottom; manual preset up with digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Buffing Unit: Top/Bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Complete with & Features: -- Feed speed: 36 FPM fixed; (1) x 2.0 HP Feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support.Condition: ATFS

SCM - OLIMPIC K360 ERT HP SERVO: Compact Edgebander (w/Premill & Corner Rounding)Specifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width 65 mm & 140 mm min. length (2-3/8" & 5-1/2"); panel thickness: Min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP - 19,000 RPM; (1) with PLC controlled jump action & diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers: First larger; Teflon coated & powered. Workstations -- End Trimming Station. Front & rear: (2) x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with: Automatic swivel cylinder. -- Trimming Unit. Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings; Flush/bevel/radius trimming: (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Corner Rounding Unit. "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit. "RAS/V": Top/Bottom, manual preset up with digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit. Top/bottom: (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Operator Interface -- ORION "1 Plus" Controller. Fixed at infeed of machine with: "Touch Screen" control; softkeys; graphics; LCD display panel; handles most machine setup functions & workstations. Complete with & Features -- Servo-Controlled Electronic Axes. The HP Servo model allows: Electronic positioning of key stations through the touchscreen. This reduces setup time dramatically when switching between: 1 mm PVC; 3 mm PVC; Wood edging; different panel thicknesses. For a custom cabinet shop running mixed jobs daily, the Servo package can easily: Save 15 – 30 minutes of setup time per day compared with manually adjusted machines. -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support. -- Actual Model: SCM OLIMPIC K360 ERT HP SERVO

SCM - OLIMPIC K 560 R HP SERVO: Edgebander (w/Premill) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel CapacityMin. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station. (2) 2.0 HP (1.5 kW) Motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect TEFLON glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section. Manual digital positioning: TEFLON Coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station. Front & rear: (2) 1/2 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: Flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit. Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit. Eliminates any excess glue. -- Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control -- "STARTOUCH" Controller with: 21-1/2" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- SERVO Controlled; adjustable top holddown pressure beam. -- Auto. panel spacer to eliminate premature loading. -- Antiadhesive spray. -- Full sound enclosure cover; outboard panel support. -- This machine is: FULL SERVO Controlled. -- Actual Model: SCM - OLIMPIC K 560 R HP

UHLING - HP-3000: Case Clamp (Single-Bay) -- SpecificationsClamping capacity: 55" L x 96" H x 24" D; Large enough for multiple boxes; offers versatility, quick 30-Sec setup or changeover. -- Pressure Elements:(4) Dual air pod pressure bars that are pneumatically activated; counterweight balanced: Just position them effortlessly and let go; counterweight will keep them in place; no need to secure them! -- Air Pod Stroke3-1/2" Stroke of air pod with: 0 - 120 PSI Pressure adjustment. -- Vertical BeamMoves easily on roller bearings; pneumatic carriage locks with: (4) Small air cylinders from (1) control point. -- Operator Control PanelMounted on vertical beam so it is always where it is needed; single lever lock-or-unlock control & front/rear pressure selection. -- Counter SupportBy solid laminated panel opposite to pressure bars. -- Actual Model is: UHLING/Rousseau HP-3000

UHLING - HP-3000: Case Clamp (Single-Bay) + Optional Top Clamp w/extensions; -- SpecificationsClamping Capacity: 55" L x 96" H x 24" D; Large enough for multiple boxes. Offers: Versatility; quick 30-Sec setup or changeover. -- Pressure Elements -- (4) Dual AirPods pressure bars that are pneumatically activated; counterweight balanced; position them effortlessly & let go. (3) Counterweights keep them in place; no need to secure them! -- AirPods Stroke3-1/2" Stroke of AirPods with: 0 - 120 PSI Pressure adjustment. -- Vertical Beam. Moves easily on roller bearings with: Pneumatic carriage locks; (4) small air cylinders from (1) control point. -- Operator Control Panel: Mounted on vertical beam so it is always where it is needed; single lever lock-or-unlock control; front/rear pressure selection. -- Counter Support: By solid laminated panel opposite to pressure bars. -- Options Include: (1) Top Clamp w/extensions as pictured.

UHLING - HP-3000: Case Clamp (Single Bay) -- SpecificationsClamping cap.: 55" L x 96" H x 24" D; large enough for multiple boxes; offers versatility, quick 30-Sec setup or changeover. -- Pressure Elements(4) Dual air pod pressure bars are: Pneumatically activated; counterweight balanced: Just position them effortlessly and let go; counterweight will keep them in place; no need to secure them! -- Air Pod Stroke3-1/2" Stroke of air pod with: 0 - 120 PSI Pressure adjustment. -- Vertical BeamMoves easily on roller bearings; pneumatic carriage locks with: (4) Small air cylinders from (1) control point. -- Operator Control PanelMounted on vertical beam so it is always where it is needed; single lever lock-or-unlock control & front/rear pressure selection. -- CountersupportSolid laminated panel opposite to pressure bars. -- Actual Model: UHLING/Rousseau - HP-3000

UHLING HP-4000 ... is a versatile, quick and easy-to-use Case Clamp.Specifications: -- 100" x 50" x 24" Clamping cap. that's UHLING's most versatile Clamp ever. -- (3) Counterweight balanced, fully adjustable horizontal dual air pod pressure bars and (2) vertical, easy adjustable dual air pod pressure bars. -- 3-1/2" Stroke with individual controls for each air pod pair. -- Roller bearing mounted carriage with pneumatic locks (considered to be the fastest 2-axis Clamp on the market). -- Single lever lock-or-unlock control and front/rear pressure selection. -- Solid panel counter support that is opposite the pressure bars. -- Easy access operator's control panel that's mounted on the vertical beam. -- Approximately (30) Sec or less changeover time. -- Options: Additional dual pod pressure bar assembly for vertical or horizontal.

UNIMAK GS140-S Single Sided Hot Melt Glue Laminator4-Foot Wide Hot Melt Glue Spreader for PUR and other Hot Melt Adhesives. Panel Types: MDF, Particleboard, door spar, XPS and Polystyrene sandwich panels. All kinds of panels where adhesive application is required.Glue Types: Polyurethane Hotmelt (PUR) glue. Unfilled EVA.Pressure Sensitive Foil Types: As roll material - PVC, P.P., finish foils and CPL foils. As sheet Stock - Veneer, PVC, laminate, acrylic sheets and door surfaces. Working Speed : 5 - 25 m/Min (16.4 - 82 FPM).Technical Specifications: -- Max. External Working Temperature: 180 ° C (365° F), Chromed Roller. -- Working Width: 200 - 1,400 mm (7-7/8" - 55"). -- Board Thickness: 4 - 210 mm (1/8" - 2-1/4"). -- Upper Spreader Roller - 240 mm (9-1/2") diameter, Silicone Coated. -- Upper Dosing Roller: 215 mm (8-1/2") dia., Chromed. -- Lower Transport Roller: 240 mm (9-1/2") diam., Silicone coated. -- Total Power: 15 kWMelter and Hose are not Included, they are optional and can be quoted separately or purchased locally.

UNIMAK 160-S 5-Foot Wide Single-Sided Hot Melt Glue Spreader for Hot Melt Glue including PURHot Melt Glue Spreader for PUR and other Hot Melt Adhesives. Panel Types: MDF, particleboard, door spar, XPS, and polystyrene sandwich panels. All kinds of panels that adhesive application is required.Glue Types: Polyurethane hot melt (PUR) glue. Unfilled EVA,Pressure Sensitive Foil Types: As roll: PVC, P.P., finish foils and CPL foils As sheet Stock: Veneer, PVC, laminate, acrylic plates and door surfacesWorking Speed: 5 - 25 meter/Min (16.4 - 82 FPM)Technical Specifications: -- Max. External Working Temperature: 180 ° C (365° F) - chromed roller. -- Working Width: 200 - 1,600 mm (7-7/8" - 63"). -- Board Thickness: 4 - 40 mm (1/8" - 1-5/8"). -- Upper Spreader Roller, Silicone Coated and Ø 240 MM (9-1/2"). -- Upper Dosing Roller: Ø 215 MM – Chromed (8-1/2"). -- Lower Transport Roller: Ø 240 MM – Silicone coated. -- Total Power: 15 kWMelter and Hose are not Included, they are optional and can be quoted separately.

UNIQUE - 110: T-Moulding ApplicatorSpecifications -- Table size: 32"; x 48"; x 35"; H.Machine Dimensions: 48" x 32" x 38" H.Machine with Pallet Dimensions: 48" x 40" x 43" H.

UNIQUE 250 Raised Panel Door Machine General Specs: -- 7.5 HP belt driven spindle at 7,800 RPM, 1-1/4" x 5-3/4" stackable multi-cutter spindle to mill stile, rail, & raised panel profiles.Specifications: -- 1-1/4" Spindle, stackable cutter spindle with push button indexing to significantly reduce setup time as each station is pre-set and adjustable. -- Moveable 12" x 66" rolling table w/pneumatic 66" hold-down bar, 2-way linear bearing movement for straight or cathedral top doors up to 58" long stroke. -- Currently wired for 575 Volt / 3-PhaseIncludes: -- Some tools

UNIQUE 250 GT2 Automatic Raised Panel Door ShaperMachine to manufacture raised panel cabinet doors with (1) Operator in (2) MinutesSpecifications: -- One Piece Welded Frame is precision machined. -- Variable Speed Direct Drive 10 H.P. Shaper Motor. -- 5" of vertical stack height, capable of stacking up to (3) cutters. -- Three (3) Position Turret for quick change over between profiles. -- The change from one cutter to another is achieved via a select switch for each operation. -- Three-position pneumatic stop system positions automatically when cutters are selected -- Easy to read positioning scale allows for accurate centering of Arched panel and rail. -- Free-floating table w/pneumatic holddown has a 2-way linear movement for straight or cathedral top doors up to 55" long. -- Highly visible guards, protective clamp bar & poly-carbonate shield keep the operator protected.Complete with: -- One set of tooling included. Set includes Unique 410 cope / rail cutters and 460 panel cutter with back cutter. Also includes one template (998800) -- Please call for other options.OPTIONAL - XS Model - with 5 Position CutterIncludes extended 8" spindle, 5 positions for 5 tools5 Position quick-change turret stop, and a heavy duty stop system that allows for additional cutters.Includes the following Cutters - Raised Panel (460 cove profile) + Cope/Rail (410 bead profile) + Cope/Rail (shaker profile)

UNIQUE 2700 CNC CNC Door ShaperCNC Controlled Machining Center for Raised Panel Doors.Equipped with: -- (1) CNC controlled 5" stackable vertical spindle (max. 4 tools per stack), 7.5 HP belt driven; max. clamping thickness 2-1/2" and 6" max. cutter head diameter. -- "X" Axis of spindle travels 81" on (2) THK rails with ball screw movement, "Y" axis with 5" travel on THK rails with 5" max. workpiece overhang, "Z" axis with 5" max. travel on THK rails.Features: -- Windows based PC computer with large touch screen menu for quick set-up, new door or custom door stiles can be programed in minutes, automatic operation from one style and size of door to the next, straight raised panels & widths of stile or rail and end tenoning work the same. -- Electronic sensors measure the length of the part to be cut allowing for various width panels or rails to be shaped consecutively, once a door is pre-programmed it can be re-called.Complete with: Electronic brake on spindles, (2) 5" dia. outlets for dust collection and UNIQUE's Windows based "Raised Panel Door" Software. .

UNIQUE - 2700: Door Shaper; CNC NC Controlled Machining Center for: Raised panel doors. Motor: 7-1/2 HP Belt driven. CNC Controlled 5" stackable vertical spindle (max. 4-tools per stack). Max clamping thickness: 2-1/2". 6" Max cutterhead diameter. "X" Axis of spindle: Travels 81" on (2) THK rails with Ball Screw Movement. "Y" Axis with: 5" Travel on THK Rails with 5" Max Work Piece Overhang "Z" Axis with: 5" Max. travel on THK rails. Windows™ Based Computer with: Large touchscreen. Unique's Windows™ Based "Raised Panel Door" software. Electronic brake on spindles. (2) 5" Dia. outlets for dust collection. Owners Manuel included. Dimensions: 69" L x 139" W x 69" H. Weight: 3,000 Lbs. No tooling included unless otherwise specified. NOTE: Machine needs to be serviced & recommissioned.
