QUICK 20 Section Heavy Duty Pneumatic Clamp Carrier: -- Clamp Carrier: (20) Sections with 8-1/2' width cap., (6) heavy duty zinc plated clamps per section (120 clamps total), 44" opening on clamps (other lengths available). -- Clamps jaws are 3-1/2" high x 4-3/4" wide with 1° inward draft to keep stock securely held down. Clamps use 3/4" dia. full-length screws; corrosion resistant, zinc plated, full box frame. -- For face gluing, Rocking Plates available as optional equipment. -- Equipped with: Panel Flattener with easy to use controls. -- Pneumatic Clamp Tightener; 3,000 RPM air wrench is 5 to 10 times faster than competitive tighteners; two-handed, trigger activated tightener is more confidence inspiring than the old ergonomically awkward "swing-style" clamp tighteners. Fast tightening and full-length clamp screws eliminate need for manual adjustment of rear clamp jaws. -- Electric Motor Rotation: Push button, automatic cycle with indexing. Automatic Rotation Cycle includes entire sequence; reverse rotation, front-rest out, forward rotation, front-rest in, and lay clamps on front rest. Perfectly! Every time! -- Complete with & Includes: Foot levelers, coiled air lines, flexible conduit for electric wires, automatic air line oiler, high quality urethane finish coating, and tool box with spare parts & tools.NOTE: 20 Section machine can produce up to (500) panels per shift!

QUICK 6-Section Clamp Carrier with 16-1/2' width capacity6-Section Pneumatic Clamp Carrier with 16-1/2' width cap. -- (12) Heavy Duty zinc plated clamps per section (72 clamps total); 52" opening on clamps. -- Jaw size of clamps are 3-1/2" high x 4-3/4" wide, with 1° inward draft.Equipped with: -- Pneumatic overhead panel flattener 16-1/2' wide. -- Pneumatic clamp tightener -- Semi-automatic rotation via electric motor drive; -- Separate buttons for Front Rest Out, Rotate Reverse, Rotate Forward, and Front Rest In. -- Flexible conduit for electric wires.Features & Includes: -- Automatic air line oiler; -- High quality urethane finish coating. -- Toolbox with spare parts & tools.Floor space requirement: 236" W X 131"D X 148" H

QUICK 6-SECTION, 10'-1/2' Wide Pneumatic "Standard" Clamp Carrier: 6-Section Clamp typically produces (144) high quality edge glued panels per day (3 panels per section x 6 sections x 8 hours). Equipped with: -- (6) Sections with (8) clamps per section and 10-1/2' width capacity. -- (48) Clamps with 38" opening and 2-1/2" high x 4-3/4" wide jaws with 1° inward draft. Clamps use 3/4" dia. full-length screws; corrosion resistant, zinc plated, full box frame. Features: -- Semi-automatic electric motor drive. -- Pneumatic Panel Flattener for 10-1/2' wide Carrier with easy to use controls. -- Pneumatic Clamp Tightener with 3,000 RPM air wrench is (5 -10) times faster than competitive tighteners; 2-handed, trigger activated tightener is more confidence inspiring than the older, ergonomically awkward "swing-style" clamp tighteners. -- Fast tightening and full-length clamp screws eliminate need for manual adjustment of rear clamp jaws. Complete with: -- Foot levelers, coiled air lines, flexible conduit for electric wires, automatic air line oiler, high quality Urethane finish coating, and tool box with spare parts & tools. -- NOTE: Clamp Carrier can be expanded to (14) or (20) sections at a later time. 14-Section Clamp will produce (300) panels per shift; 20-Section machine, (500) panels per shift.

QUICK 20 Section Automatic Clamp Carrier: -- Clamp Carrier: (20) Sections with 8-1/2' width cap., (6) heavy duty zinc plated clamps per section (120 clamps total), 32" opening on clamps (other lengths available). -- Clamps jaws are 3-1/2" high x 4-3/4" wide with 1° inward draft to keep stock securely held down. Clamps use 3/4" dia. full-length screws; corrosion resistant, zinc plated, full box frame. -- For face gluing, Rocking Plates available as optional equipment. -- Equipped with: -- Fully Automatic Hydraulic Clamp Tightener with adjustable torque limiter, integral Pneumatic Panel Flatteners and Electric Motor Drive with fully Automatic Carrier Rotation Cycle. Two control panels maximize ease-of use. Rack and pinion carriage traverse system is solid and quietFeatures: -- The QUICK Automatic Clamp Carrier is the ideal labor-saving device for the high-production furniture or cabinet manufacturer. The Automatic Clamp Carrier cuts labor costs in half by allowing the Clamp Carrier operator to perform other tasks (such as applying glue to stock, etc.) while the machine automatically flattens panels, tightens clamps, rotates, and loosens clamps. -- After loading wood into a section of clamps, the operator presses the "Auto Tighten" button. The hydraulic Automatic Carriage then traverses from left to right, flattening panels and tightening clamps that it finds along the way. When the Carriage reaches the right end of its traverse, the machine performs an automatic rotation cycle, which brings the next section of clamps down to the operator’s position. The Carriage then traverses from right to left, loosening clamps that it finds along the way. -- The Fully Automatic Clamp Carrier can also be used in manual or semi-automatic modes, by pressing buttons on the Control Panels. -- Complete with & Includes: -- Foot levelers, coiled air lines, flexible conduit for electric wires, automatic air line oiler, high quality urethane finish coating, and tool box with spare parts & tools.NOTE: 20 Section machine can produce up to (500) panels per shift!

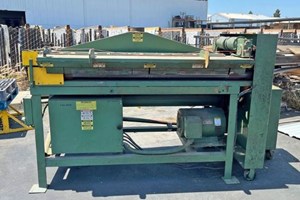

AUTO-V-GROOVE AVG-48 MFT UNIVERSAL V-GROOVER: -- Specifications:(1) Head automatic cross & linear V-Groover, 48" max. material width on cross-groove,Unlimited length for linear grooving, 1-1/4" max. material thickness. -- Features:(1) 10 HP - 3,600 RPM Motor, 30 mm dia. belt driven precision cutter arbor, 3-1/4" max. cutter width.2 HP Hydraulic feed motor for infinitely variable crosscut feed speed from 0 - 50 FPM & 0 - 60 FPM for linear feeding.Heavy-duty double belt feeder assembly for linear grooving. -- Includes: Adjustable pneumatic material hold-down bar.(1) 84" x 24" Main table, (1) 20" x 58" auxiliary table, (1) large 96" long floating table on rails. -- Complete with: Automatic tape applicator (12" max. dia. tape roll), manual quick crank tape applicator positioning system. -- Options Include: An assortment of V-Groove cutters as pictured.Actual Model is AUTO-V-GROOVE AVG-48-M/FT.

AUTOQUIP 48S60 SCISSOR LIFT.6,000 Lbs Cap., electro-hydraulic operation. -- With 48" x 96" smooth steel platform. -- 7" Lowered height, 48" travel to raised height of 55"; internally mounted 1.5 HP Super Torque TENV motor, 2-cylinder design, (33) Sec travel time up-or-down. -- Complete with: Guarded foot pedal control, velocity fuse on cylinders, and maintenance locks on base frame. -- Unit is painted AQ black; .Options: Up to 48" x 96" smooth steel platform, guarded foot pedal control, accordion skirt. .

AUTOQUIP 36S40 Scissor Lift.4,000 Lbs Cap., Electro-hydraulic operation. -- 36" x 60" smooth steel platform . Base frame is 24" x 48". -- 6.5" Lowered height, 17 Sec travel speed to a raised height of 42.5"; Internally mounted 1.5 HP Super Torque motor, 1-cylinder design. -- Complete with: Optional guarded foot control, velocity fuse on cylinder, and maintenance locks on base frame.

AUTOQUIP 48S40 Scissor Lift.4,000 Lbs Cap., Electro-hydraulic operation. -- 48" x 96" Smooth steel platform. Base frame 24" x 64". -- 7" Lowered height, 48" travel to raised height of 55"; internally mounted 1.5 HP Super Torque TENV motor, 1-cylinder design. -- Complete with: Hand held up/down push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on base frame. -- Options: Up to 48" x 96" smooth steel platform, guarded foot pedal control, accordion skirt. -- AUTOQUIP Series 35, Surface mounted lift. Unit is painted AQ Black;

AUTOQUIP 36S25 Scissor Lift. 2,500 Lbs Capacity and 48" x 48" Platform with 24" x 48" base frame. -- 12-Second travel time. -- 6-1/2" Lowered height. -- 36" Travel to raised height of 42-1/2". -- Electro-hydraulic, 1-Cylinder design. -- Internally mounted Super Torque 1.5 HP TENV motor with prewired motor starter. -- 24 Volt Control transformer, -- 10' Straight SO cord with hand held up/down 24 V push button. -- 10' SO Power cord. -- Options: Foot pedal control, oversized platform up to a max. of 48" x 72".

AUTOQUIP 48S25 Scissor Lift.2,500 Lbs, Electro-hydraulic, 24" x 64" standard platform and 24" x 64" base frame. -- 7" Lowered height, 48" travel to raised height of 55"; .75 HP TENV motor, 1-cylinder design. -- Complete with: Hand held push button control with 10' cord. -- Options: Max. platform size up to 48" x 96", foot pedal control, accordion skirt ask for pricing.(Standard specs)

AUTOQUIP 60S60 Scissor Lift.6,000 Lbs. Cap., electro-hydraulic operation. -- Large 48" x 120" smooth steel platform. Base frame 32" x 87". -- 8" Lowered height, 60" travel to raised height of 68"; internally mounted 1.5 HP Super Torque TENV motor, 2-cylinder design, (44) Sec travel time up-or-down. -- Complete with: Hand held up/down push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on baseframe. -- Options: Up to 60" x 120" smooth steel platform, guarded foot pedal control, accordion skirt. -- Autoquip Series 35, Surface mounted lift. Unit is painted AQ black;

AUTOQUIP 60S100 Scissor Lift10,000 Lbs Cap., electro-hydraulic operation. -- Included: Optional 48" x 120" smooth steel platform and guarded foot pedal control. Base frame 32" x 87". -- 12" Lowered height, 60" travel to raised height of 72"; internally mounted 5 HP Super Torque TENV motor, 2.8 GPM, 2-cylinder design, (36) Sec travel time up-or-down. -- Complete with: Wall mount up/down push button control with 20' cord (pre-wired), velocity fuses on cylinders, and maintenance locks on baseframe. -- Options: Up to 60" x 120" smooth steel platform, guarded foot pedal control, accordion skirt. -- Autoquip Series 35, Surface mounted lift. Unit is painted AQ black;

AUTOQUIP 36S60 Scissor Lift;6,000 Lbs Capacity and electro-hydraulic operation. -- 36" x 60" Smooth steel platform. Base frame is 24" x 48". -- 6.5" Lowered height, 25 Sec travel speed to a raised height of 42.5"; Internally mounted 1.5 HP Super Torque motor, 2-cylinder design. -- Complete with: Hand held control pendant.Autoquip Series 35, Surface mounted lift.

AUTOQUIP 48S80 SCISSOR LIFT.8,000 Lbs Cap., electro-hydraulic operation. -- Standard 24" x 64" smooth steel platform. -- 7.5" Lowered height, 48" travel to raised height of 55.5"; internally mounted 1.5 HP Super Torque TENV motor, 2-cylinder design, (33) Sec travel time up-or-down. -- Complete with: Hand held up/down push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on baseframe. -- Options: Up to 48" x 96" smooth steel platform, guarded foot pedal control, accordion skirt. -- Autoquip Series 35, Surface mounted lift. Unit is painted AQ black;

AUTOQUIP 60S25 Scissor Lift.2,500 Lbs. Cap., electro-hydraulic operation. -- Standard 32" x 87" smooth steel platform. Base frame 32" x 87". -- 8" Lowered height, 60" travel to raised height of 68"; internally mounted 1.5 HP Super Torque TENV motor, 2-cylinder design, (44) Sec travel time up-or-down. -- Complete with: Hand held, push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on baseframe. -- Options: Up to 60" x 120" smooth steel platform, guarded foot pedal control, accordion skirt. -- Autoquip Series 35, Surface mounted lift. Unit is painted AQ black;

AUTOQUIP 60S40 Scissor Lift.4,000 Lbs. Cap., electro-hydraulic operation. -- Standard 32" x 87" smooth steel platform. Base frame 32" x 87". -- 8" Lowered height, 60" travel to raised height of 68"; internally mounted 1.5 HP Super Torque TENV motor, 2-cylinder design, (44) Sec travel time up-or-down. -- Complete with: Hand held up/down push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on baseframe. -- Options: Up to 60" x 120" smooth steel platform, guarded foot pedal control, accordion skirt. -- Autoquip Series 35, Surface mounted lift. Unit is painted AQ black;

AUTOQUIP 36S40 DL Double Long Scissor Lift.4,000 Lbs. max. cap. with 48" x 120" smooth steel platform top. -- 36" Travel with a 6.5" lowered height and a 42.5" raised height; (25) Sec up and down speed. Base frame 24" x 98". -- Power unit with 1.5 HP Super Torque Motor, 208-230-460V - 3 Ph - 60 Cy, fan-cooled, Intermittent (2 minute) duty. -- Polyethylene hydraulic fluid reservoir with a capacity of 5 gallons. Supply voltage must be specified. -- Complete with; Hand held up/down push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on baseframe, -- Option; Guarded foot pedal control.. NOTE: Surface mounted lift. Unit is painted AQ black;

AUTOQUIP 48S40 DL Double Long Scissor Lift.4,000 Lbs. max. cap. with 48" x 144" smooth steel platform top. -- 48" Travel with a 7" lowered height and a 55" raised height; (32) Sec up and down speed. Base frame 24" x 130". -- Power unit with 1.5 HP Super Torque Motor, 208-230-460V - 3 Ph - 60 Cy, fan-cooled, Intermittent (2 minute) duty. -- Polyethylene hydraulic fluid reservoir with a capacity of 5 gallons. Supply voltage must be specified. -- Complete with; Hand held up/down push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on baseframe, -- Option; Guarded foot pedal control.. NOTE: Surface mounted lift. Unit is painted AQ black;

AUTOQUIP 36S128 DL Double Long Scissor Lift.12,800 Lbs. max. cap. with standard 24" x 98" smooth steel platform top. -- 36" Travel with a 7-1/4" height and 43-1/4" raised height; (35) Sec up and down speed. Base frame 24" x 98". -- Power unit with 5 HP remote Super Torque Motor, 240/480 V, 3-Ph, fan-cooled, Intermittent (2 minute) duty. -- Polyethylene hydraulic fluid reservoir with a capacity of 5 gallons. Supply voltage must be specified. -- Complete with; -- Hand held up/down push button control with 10' cord, velocity fuse on cylinder, and maintenance locks on baseframe, -- Options; Guarded foot pedal control, Accordion skirt, larger platforms available. NOTE: Surface mounted lift. Unit is painted AQ black; Pricing subject to change.

AYEN SKB-50 Construction Hole Boring Machine for 32 MM System Boring; -- 50-Spindles total in (2) swivel heads with (25) spindles each, drills vertically from top & horizontally from rear, drills at any angle between 0° - 90° with a positive stop at 45°. -- Equipped with: 50-Spindle swivel head assembly converts quickly into (2) 25-spindle heads for double line boring, 5 1/8" min. distance between heads when line boring. -- Features: 3 HP - 3,450 RPM gear box motor, 39" panel width cap. with a 30-1/4" drilling width. -- Complete with: (2) 39" Fences with flip stops, (3) pneumatic quick-set hold-down clamps, quick fence setting gage, foot pedal control for drilling cycle / head positioning.
