HOLYTEK - KL-36PC, ...2-Head Sander 2-Head Planer Sander 36" with planer head & combination head.Description: -- Planing Head (P): 6'' Dia. made of steel with spiral design for heavy stock removal. 228 TCT Tips: 15 x 15 x 2.5 mm; each disposed on (6) rows. Each knife has: (4) Usable cutting edges; easy access to planing head for tips rotation or replacement. -- Precise dial indicator showing the exact positioning of the sanding pad; quiet & smooth oscillation! Pneumatic oscillation system controlled electronically by an infrared system, which is not affected by dust. -- Combination Head: (1) Drum & (1) sanding pad (C) for superior quality of finishing. Sanding belt with: 120 or 150 Grit; allows finishing sanding in a single pass. -- Elevation Table: (4) Screws. -- Infeed roller table extension: 15-3/4". -- Outfeed roller table: 15-3/4" with (2) Rollers. -- Centralized Control Panel with: Electronic digital readout (Metric or Imperial) for elevation; precise positioning at the elevation requested. -- Ammeter indicating: Electrical intensity on the spiral cutterhead and the combination head motors. -- Electrical box with: CSA Approved electrical components ensuring maximum dependability and an outstanding long-lasting performance.Specifications -- Spiral cutterhead motor: 20 HP - 600 V; 60 Hz - 3 Ph. -- Combination head motor: 15 HP - 600 V; 60 Hz - 3 Ph. -- Table elevation motor: 1/4 HP - 600 V; 60 Hz - 3 Ph. -- Feed motor: 2 HP - 600 V; 60 Hz - 3 Ph. -- Spiral cutterhead dia.: 6''. -- TCT Tips dim.: 15 x 15 x 2 mm (228); (6) rows. -- Max. working width: 36". -- Min. working length: 12". -- Max. working thickness: 5". -- Sanding belt dim.: 37" x 75". -- Dust hoods dia.: 4'' x 2 & 5" x 2. -- Machine dim.: 71" L x 76" W x 77'' H. -- Net weight: 1,450 kG or 3,190 Lbs.

HOLYTEK HP-11P Horizontal Resaw -- Hydraulic Feeding conveyor, hydraulic pump with 3 HP motor -- Main saw motor 20 hp. Specifications: -- Working width capacity 12“ (300 mm) -- Variable Feed Speed 0- 17 m/min (0 to 55 FPM) -- Thickness capacity 4mm to 125 mm (.11/8" to 4.92") -- Conveyor tilting 0 ° to 7° -- Electroni display of cutting height -- Blade Capacity 4270 X 25 X 0.89 mm. -- Wheels Diameter 725 mm -- Return conveyor on machine top

HOLYTEK SS-512 TS Shaper with Tilting Spindle, and Power FeederSpecifications: -- 1-1/4" Interchangeable spindle, 7.5 HP motor with (5) spindle speed settings of 3,000 - 4,000 - 6,000 - 8,000, & 10,000 RPM. -- Approx. 6" max. cap. under nut, 31" x 39" cast iron table. -- Insert ring diameters 2.8", 4/3", 6" and 8". -- Tilting spindle +10° and -45° -- Vertical movement of the spindle 7" -- sliding tableComplete with: -- Reverse rotation switch, adjustable fence assembly, and dust hood. -- 3-Roll Power Feeder

HOLYTEK - HRS-12TK, ...Straight Line Rip SawSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.

Holytek 37DA Wide Belt Sander (2) Heads37" Width cap Drum, Combination Head1st Head: 7" Dia. spiral grooved rubber covered contact roller, 20 HP motor;2nd Head: Combination sanding head with 5" dia. spiral grooved rubber covered contact roll & 2" wide polishing platen, 15 HP motor.Specifications -- Abrasive belt size of 37" x 60" -- Pneumatic belt tensioning and electronic abrasive belt tracking -- 12" min. working length. -- 2 HP Conveyor belt motor, -- Variable feed speed from 13 - 52 FPM,Equipped with & Features -- Infeed & outfeed rubber covered holddown rolls; -- 0" - 4" motorized thickness adjustment by 0.5 HP motor. -- Safety stop bar, emergency rail stop across the front of conveyor -- Motor load meters.

HOLYTEK - HRS-12TK, ...Straight Line Rip SawSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.

HOLYTEK - GES 920 RK: Wide Belt Sander(2) Heads; drum and combination head. -- 2-Head; 36" width cap. -- 1st Head: Heavy-Duty rubber covered contact drum; 15 HP motor. -- 2nd Head: Combination head with 6" dia. contact roll; 20 HP motor. -- 2 HP Feed motor; 16 - 55 FPM variable feed speed. -- 37" x 75" Abrasive belts; electronic oscillating belt system. -- Motorized table elevation with: 0.25 HP Motor; max. height: 125 mm (4.9").Equipped with: -- Digital readout and infeed & outfeed spring loaded holddown rolls.

HOLYTEK - YRT 100: Round End Tenoner -- Twin positioning tables with: Traversing single cutterhead design; fully automatic work cycle; tables alternate into the cutting cycle for continuous operation; rotational movement of cutterhead is externally adjusted. Capacity: -- Width of tenon: 0" - 3.9" Plus both radii; thickness of tenon: 1/8" - 1-3/16"; depth of tenon: 3/8" - 1-3/4"; 1/4" - 3-1/2" with special tooling. Specifications: -- Belt driven cutterhead, 3 HP - 6,000 RPM spindle; 1 HP motor with variable rotational movement of cutterhead; straight, simple or compound angles are easily adjusted with tables. -- (2) 14" x 9" Tilting tables: 0° - 15° Up, 0° - 30° down, and 0° - 20° to the side; each table with: Pivoting fences & miter gauges, vertical height adjustment. -- Overhead pneumatic holddowns. -- Production rate approx.: (13) Pieces per Min.

HOLZ-HER - 1270: Automatic Panel Saw w/Supercut Scoring75" x 169" Cap.; 4 HP motor; 2" depth of cut; 220 mm (8-5/8") dia. saw blade at 6,640 RPM.Features: -- Saw head traverses automatically when rip or crosscutting and returns to starting position; (2) cycle lengths for long or short panels. -- 36 & 72 FPM Saw carriage travel speed; 0.75 HP feed drive. -- Automatically moving back grid w/interlocks. Complete with: -- Rip gauge with: (3) Cam settings. -- (2) Gauging bars throughout frame length with: (2) Flip stops. -- Bottom rollers for easy movement of larger panels.Includes: -- Spare Blades.

HOLZ-HER - ACCURA 1556 4.0 PREMIUM: Edgebander (with Premill & Corner Rounding) + GLU-JET EVA & PUR Gluing TechnologySPECIFICATIONS -- Working CapacityEdge thickness: Min./max. 0.4 - 3 mm (0.02 - 0.12") for coiled material; 15 mm (0.59") 1/2" + max. for strips.Panel thickness: 8 - 60 mm (0.315" - 2.36"); Workpiece width min. 60 mm (2.36"); workpiece length min. 140 mm (5-1/2"); feed speed: 10 - 20 MPM (33 - 66 FPM).Machine Infeed Configuration -- Premilling Station "1802": 2 x 1.2kW (1.6 HP) - 12,000 RPM motors; diamond cutterheads with: ProLock quick clamping system. Quick-Lock adjustable infeed fence with digital indicator. -- Edge Magazine "1901": For coil & strip processing; utilizing motion detector to ensure: Accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System"; edge guide equipped with: Automatic guillotine lockout for safety; 3° approach angle allows easy feeding of solid wood edges. -- Pressure Section "DW 701" with: (1) Large driven (synchronized with feed speed) roller & (2) cantered idle rollers; adjustable by handwheel & scale. -- GLUING SYSTEM "GJ 301" (Glue Jet). Processes: "EVA" or "PUR" Glue in Cartridge or Granulate Form; granulate requires an "optional" hopper. Upper glue line height positioning is set automatically with holddown beam setting; heat up time to ready stage: Takes only (2 - 3) minutes!Additionally equipped with: "iTRONIC" Adaptive pressure & glue quantity control for intelligent automation. Includes: Adaptive trimming blade; automatic glue quantity control; adaptive pressure unit control; automatic cleaning routine; remaining glue quantity indicator.Workstations: -- End Trimming Unit "KA 702": Front & rear 2 x 0.45 kW (0.6 HP) - 9,000 RPM motor each: uni-point swivel-axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel); "PCS" programmable pneumatic changeover from flush to bevel. -- Flush Trimming Unit: Top & bottom flush 15 mm unit; (2) x 0.65 kW (0.88 HP) - 12,000 RPM; each motor. -- Fine/Bevel/Radius Combination Trimming Unit "FR 701": Radius 2 mm trimming; Servo controlled; (2) @ Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.88 HP) - 12,000 RPM each motor.Uni-Point Design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position; pneumatic air cylinder for in/out pre-positioning of trimming motor. -- Corner Rounding Unit "FF 701": (4) Motors; 0.22 kW (0.30 HP) - 9000 RPM; up to 3 mm edge thickness; workpiece thickness; Min./max.: 12 - 60 mm (0.473 - 2.362"); max. feed speed: 10 MPM (33 FMP). -- Profile Scraping Unit "ZK 501": Top/Bottom; Servo motor controlled/programmable knife position; vertical copy wheel adjustment with: Quick setting spindle.For PVC edges: Reversible insert carbide knives, equipped with: air jet blowers & chip collector box. -- Glue Scraping Unit " FK":

HOLZ-HER - ARTEA 1020: Edgebander (w/Premilling) + "GLU JET" EVA/PUR Gluing Technology -- SpecificationsFeatures: HOLZ-HER Patented Dual "GLU-JET" EVA & PUR Zero Joint Technology System.Working capacity: Min./max. 0.4 - 5 mm edge cap; 8 - 50 mm panel thickness; min. panel length 160 mm; feed speed: 9 MPM (29.5 FPM) single speed.Equipped with: -- Premilling. (2) Vertical spindles; counterrotating; manually adjustable infeed fence. -- HOLZ-HER "GLU JET": Cartridge System & flat glue nozzle applicator; glue heatup time: (2 - 3) minutes max! -- Pressure Section with: (1) Large dia. drive roller; (1) pneumatic pressure controlled idle rollers; horizontal adjustment w/digital indicator. -- Automatic Edge Magazine: For coil & strip feed.Workstations -- End Trimming Unit: Single-motor end trims; travels on 45° slides; tilt from 0° to 15°. -- Multifunction Trimming Unit: Top & Bottom trim station for: Flush/bevel/radius with digital readouts. -- Profile Scraping Unit: Top & Bottom radius scraping unit with mechanical digital readouts positioning. -- Flat Scraping Unit: Top & Bottom flat glue/finish scrapers. -- Buffing Unit: Top & Bottom. Operator Interface 15" Flat "Touchscreen" control. Programs can be easily created and recalled at will.The graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the Operator: Status of the unit & the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program. Complete with: -- Safety/Sound Hood over all workstations; fixed panel support outrigger; manually adjustable holddown beam. -- Original factory documentation; used tooling on the machine. -- Actual Model:: HOLZ-HER ARTEA 1020.

HOLZ-HER DYNESTIC 7532 FLAT TABLE MACHINE (W/LOADING, UNLOADING) -- Specifications:5' x 10' Phenolic MATRIX Table for "Nested Base" Manufacturing. -- Working Area:"X" Axis 1122" (3,100 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 4.72" (120 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing";(4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (13) independent vertical boring spindles with (5+4) spindles in the "X" axis & (4+2) spindles in the "Y" axis;(4) Horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. -- Machining unit: (1) 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 14-position ATC tool plate for "on the fly" ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" V 7Basic Bundle + Windows operating system Intel Core i5-6600; 17" Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(1) 25 HP BECKER Vacuum Pump; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Options Include:(1) NC Controlled infeed Scissor Lift table with vacuum loading; (1) Rake system; (1) Outfeed table with vacuum sweeping system; Manual label printer at the outfeed table. Actual Model is HOLZ-HER DYNESTIC 7532.

HOLZ-HER - LYNX 7511 FT: Flat Table Machine (w/ATC/Boring) -- Specifications5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field"X" Axis 120" (3,050 mm); "Y" axis 62" (1,575 mm); "Z" axis stroke is 16-1/2" (419 mm); max material thickness 7" (180 mm). -- Positioning Speed"X" & "Y" Axis 230 FPM (70 MPM); "Z" axis is 65 FPM (20 MPM). -- WorktableFlat Table designed for: "Nested Base Manufacturing" with: (3) "Y" Axis pneumatically controlled reference stop pins. -- Boring Unit2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with: (6) Spindles in the "X" axis & (4) spindles in the "Y" axis. -- Machining(1) 15 HP (11 kW) Electrospindle Router; HSK F63 adaptor; 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine ControlPC Front-End with HOLZ-HER "CAMPUS" + Windows Operating System; 17" Color monitor; continuous graphical and barcode interface.BAUMULLER - PLC for: (3/4) Axes simultaneous control; feed rate & spindle speed override & axis movement. -- Complete with:(1) 250 Cbm/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model: HOLZ-HER - LYNX 7511 FT.

HOLZ-HER - DYNESTIC 7505 10.5 Push: CNC Flat Table Machine (w/Rake/Offloading) -- Specifications5' x 10-1/2' Phenolic MATRIX Table for: "Nested Base" Manufacturing. -- Working Area:"X" Axis 122" (3,100 mm); "Y" axis 62.2" (1,580 mm); "Z" axis stroke 12.4" (317 mm). -- Positioning Speed"X" & "Y" Axis 230 FPM (70 MPM); "Z" axis is 65 FPM (20 MPM). -- WorktableFlat table designed for "Nested Base Manufacturing".(4) Pneumatically controlled reference stop pins with: (3) In "Y" axis; (1) in "X" axis. -- Boring Unit2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM.(10) Independent vertical boring spindles with: (6) spindles in the "X" axis & (4) spindles in the "Y" axis;(2) Horizontal spindles with: (1 + 1) In "X" axis; (1) "X" axis Saw for max. 120 mm dia. blade. -- Machining Unit(1) 10.7 HP (8 kW) Electrospindle Router with: HSK F63 adaptor; 1,000 - 24,000 RPM.(1) 6-Position Linear ATC tool rack mounted to the machine base. -- Operator InterfacePC Front-End with: HOLZ-HER "CAMPUS V7" Operating system; 17" color monitor; standard keyboard; mouse; USB slots for data entry; (3) axes simultaneous control; feed rate & spindle speed override & axis movement.CAMPUS/NC Hops offers: "Real Time" 2D or 3D graphics; Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(2) 140 m³/Hr BECKER Vacuum Pumps with ECOVac Intelligent Vacuum that: Automatically turns on/off vacuum units in reference to required static negative pressure; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. - Perimeter safety devices & fencing. -- Options Include: Pusher/rake offload system with: 5' x 12' Gravity roller conveyor with casters. Vacuum evacuation port for dust extraction & Spoil board from below. -- Actual Model: HOLZ-HER DYNESTIC 7505 10.5 PUSH

HOLZ-HER - Sector 1254: Panel Processing & Dust Collection System. Complete Panel Processing & Dust Collection System. Ideal for professional woodworking and cabinet shops. Less than 100) hours of use. -- 1. HOLZ-HER "1254" Vertical Panel Saw: Heavy-Duty steel/aluminum grid support system. Vertical & horizontal precision cuts. Integrated dust port for clean operation. Ideal for sheet goods: MDF, plywood, laminates. -- 2. HOLZ-HER "SuperCut Plus" Lift & Feed System. -- 3. ONEIDA AIR SYSTEMS Cyclone Dust Collector.

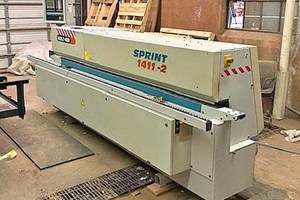

HOLZ-HER 1411-2 EDGEBANDERCartridge glue system, 5 mm edge thickness cap. (up to 13 mm w/optional tooling), automatic magazine coil & strips, 3 mm PVC cap. pneumatic guillotine for coil cutoff, 1-3/4" max. panel thickness, and 7" min. panel length. Pressure section with (1) large dia. drive roller & (1) idle roller.Workstations: -- "1918" Double motor end trim (tilting 0° - 10°), 0.5 HP - 18,000 RPM motor ea.; -- "1942" top & bottom flush trim, chamfer 0° - 15° (0.8 HP - 18,000 RPM motor ea.); -- "1942" top & bottom radius trim (0.8 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF). -- Top & bottom buffing unit, tilting cap. 0° - 5°, w/plunge control cap. (0.2 HP - 1,400 RPM motors ea.). -- Feed speed 36 FPM.Complete with: PLC (Programable Logic Conrtol) for easy setup and program storage, fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging.Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM.Complete with: -- Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

HOLZ-HER - PRO-MASTER 7122 K 4X: CNC Machining Center (w/ATC/Boring/"C" Axis) -- SpecificationsWorking capacity: "X" Axis 142" (3,607 mm); "Y" axis is 59" (1,500 mm); "Z" axis stroke is 22.2" (565 mm); max. material thickness: 8.26" (210 mm) from the top of the vacuum pod. -- Positioning Speed: "X" Axis is 393 FPM (120 MPM); "Y" axis is 328 FPM (100 MPM), "Z" axis 82 FPM (25 MPM)."X" Axis travels on high precision prismatic STAR guides & ground helical rack; "Y" & "Z" axes travel via hardened ground ball screw. -- Worktable(6) Support rails; (2) adjustable vacuum pods per rail.Laser positioning system for quick positioning of pods; with value input from Controller according to part size and machining required.(6) Pneumatic pin stops located in the rear of the machine; (6) pneumatic pin stops located in the front of the machine.(2) Side stops & (2) central stops for mirror imaging; (2) independent working areas.Stops can be fitted with "quick fit" mushroom clamps for clamping of small or awkward shaped parts. -- Boring Head:4 HP (3 kW) Motor; variable spindle speed from 1,000 - 6,800 RPM; (18) independent vertical boring spindles with: (12) Spindles in "X" axis & (6) spindles in "Y" axis.(6) Horizontal spindles with: (2 + 2) in "X" Axis & (1 + 1) in the "Y" axis.(1) "X" Axis grooving saw for max 120 mm dia. blade. The boring head is arranged to accommodate (2) operating units. -- Machining Units(1) 13 HP (9.7 kW) Vertically mounted liquid cooled electro-spindle with: HSK 63F Adaptor; inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM.(1) NC Controlled "C" axis for 360° horizontal processing.(1) 18-Position ride-along rotary tool changer plate for "on the fly" ATC.Max. tool dia. 85 mm (if fully loaded) or 200 mm (with free spaces). -- Operator & Machine Control: SIEMENS PC Front-End + "CAMPUS" + Windows "7" Operating System with 3D simulation.15" Color monitor; standard PC Keyboard & mouse; CD-ROM drive. - Card ports: (1) AGP, (1) PCI, and (1) ISA; (2) serial ports & (2) parallel ports; (2) PS/2 ports & (4) USB ports; (2) PCI Bus-Master IDE ports; (3) Com 905B-Combo fast Ethernet cards.Hand-held pendant for remote control start/stop of working cycle, speed control, reset function, etc."CAMPUS" is user-friendly CNC software with office and machine license; extensive 3D simulation module as standard feature; integrated CAD module and versatile macros for easy programming. -- Complete with:(1) 100 cbm/Hr Vacuum Pump; tool length "Touch Off" Probe; emergency stop rope & pressure sensitive safety mats that will instantly place machine in "pause cycle" when stepped on.Sound absorbing protective head enclosure with: Debris curtain around bottom edge. -- Actual Model is: HOLZ-HER - PRO-MASTER 7122 K 4X

HOLZ-HER - ARCUS 1335: Edgebander (w/Premilling) -- Specifications Edgebanding cap. edge thickness: Min./max. 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 6 - 60 mm (0.236 - 2.362").Workpiece width min.:60 mm (2.36"); workpiece length: min. 160 mm (6.29"); variable feed speed: 10 - 18 MPM (33 - 59 FPM).Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine: Small 3° feed angle thanks to nozzle design with easy feeding of coils; strips up to 3 mm & solid wood edging up to 15 mm (5/8"). Exclusive "Tractor-Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety. -- 3 mm Guillotine: For up to 3 mm coiled & strip materials. -- Gluing Section: HOLZ-HER Patented cartridge system with unrivaled properties with: 95% Less energy consumption & 70% shorter heat up time of 205° Celsius in just 3-1/2 minutes.Changing glue types takes just a minute and no special tools are required for glue and color. All that is changed is the cartridge. The time-consuming cleaning procedure of the glue pot, previously essential, is no longer necessary. The patented HOLZ-HER Cartridge System is a practical solution. -- Pressure Section: (1) Large & (3) cantered driven pressure rollers for perfect glued joints.Workstations: -- Front & Rear End Trimming: (2) 0.35 kW (0.5 HP) - 9,000 RPM each motor for edge thicknesses up to 20 mm. -- Multifunction Top & Bottom Trimming Unit Manual adjustment: (2) x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual in/out pre-positioning of trimming motor. -- Top & Bottom Fine Trimming Unit Manual Adjustment: 2 x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual positioning of fine trimming motors. -- Top & Bottom Profile Scraping Unit: For PVC edges.Reversible insert carbide knives. -- Top & Bottom Glue Scraping Unit: Flat, top/bottom, ball bearing guided. -- Top & Bottom Buffing Station: Top & bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter; 1,440 RPM wheel rotation.Operator Interface: -- HOLZ-HER "Edge Control" Electronically controlled setup processes with ...100% repetition accuracy.Flat Screen 8.4" VGA Color Monitor: Dustproof soft key input panel surface; programs can be easily created and recalled at will; graphic interface makes programming easy.Icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed; Edgebander can be operated manually when required, without the necessity to write a program. Programmable Logic Control (PLC) for Pre-milling: Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.
