Mereen-Johnson 424 Gang Rip sawSpecifications -- 24" Arbor cap., -- 14" max. dia. tooling, -- 3-1/2" max. manual thickness adjustment, -- 14" min. length for glue joint accuracy and 22" min. for busting only, -- 6" throat. Equipped with and Features: -- 75 HP - 3,600 RPM TEFC Direct drive motor, -- 2-3/16" dia. arbor with disc brake, -- Load meter and slip-off outboard bearing. -- Feed & chain: 3 HP Variable feed speed 30 to 170 FPM, -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain -- "Quad Life" hardened dip cams -- Extruded structural aluminum feed bed slats with replaceable steel-backed rubber insert strips --, Automatic chain oiler. -- (4) 3" Dia. air-loaded overhead pressure rolls; full-width spring-loaded overhead bed plate, -- Pressure rolls and bed plate unit with scale & pointer thickness reference; -- Anti-kickback finger system with (1) lower & (2) upper on infeed. -- Sound enclosure, -- (2) Upper dust hoods (1) 10" & (1) 5" dia., and (1) lower 4" dia. hood, -- Requires 3,820 CFM;Also included: -- (7) Lasers with mounting rack -- (2) additional arbor and lots of spacers

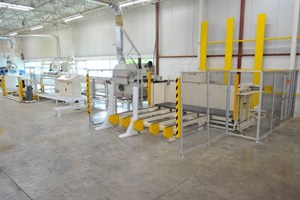

Complete MEREEN-JOHNSON/CHOICE MACHINERY GROUP 431-DC-1/C1210 - C1260 Gang Rip Saw LineOverall Specifications: -- Panel width 24" - 27". -- Panel length 36" - 109". -- Panel thickness 1/2" - 1-1/8".Consisting of the following machines as late as 2022: -- 2022 CHOICE MACHINERY GROUP C1210 7-1/2’ W x 7’ L x 18-1/2"; H 5-Chain Transfer Deck Conveyor, S/N 1048, with Distance between chains (Left-to-right) 22";, 22";, 21"; - 24";, 16"; - 19";, 1/2 HP - 1,720 RPM TEFC Motor, & (2) 6"; W x 55"; H Back stops. -- 2022 CHOICE MACHINERY GROUP C1220 31" Capacity Automatic Unstacker/Panel Feeder, S/N 1049, with Unstacker platform with Raised height 52" & Lowered height 18", (4) 125"; L x 3-3/4"; Dia. Motorized rollers on 9-1/2" Centers, Safety light curtain, & 5 HP Hydraulic unit, and Automatic panel feeder with Chain-driven pusher & 3/4 HP - 1,710 RPM TEFC Motor. -- MEREEN-JOHNSON 431-DC-1 Dip Chain Gang Rip Saw, S/N MJ-6837 (Approximately 2003), with 7,564 Hrs., Arbor cap. 31", Max. blade dia. 14", Max. thickness 3-1/2", Min. length: 29" for Glue joint accuracy & 22" for Busting, Throat 6", Variable feed speeds 30 - 170 FPM, with 75 HP - 3,600 RPM TEFC Direct drive arbor motor with Disc brake, Load meter & Arbor lockout for access door; "POSI-FEED" Dip bed with 5" Pitch Hardened double-V chain, "QUAD LIFE" Hardened dip cams, 2-3/8" x 14"; Extruded structural aluminum feed bed slats with 1-3/4"; Replaceable steel-backed rubber insert strips, Automatic chain lubrication with Low-level shutoff, & 5 HP Feed motor with Adjustable jam protection; (4) 3" Dia. Air-loaded overhead pressure rolls, Full width spring-loaded overhead bed plate, Motorized thickness adjustment, Anti-kickback finger system with (1) Lower & (2) Upper on infeed & (1) Upper on outfeed, Complete with Spare arbor with (11) Blades. -- 2022 CHOICE MACHINERY GROUP C1230 Motorized Belt Conveyor, S/N 1050, with 3/4 HP - 1,710 RPM TEFC Motor. -- 2022 CHOICE MACHINERY GROUP C1240 Dual Reel Automatic Strapper/Stacker, S/N 1051, with SOUTHWORTH 4,000 Lb. Cap. Electric/hydraulic scissor lift platform with 3.3 HP Hydraulic unit, & Safety light curtain. -- 2022 CHOICE MACHINERY GROUP C1250 Tilt Unit, S/N 1052, with 5 HP Hydraulic unit & Motorized rollers with 1/2 HP - 1,720 RPM TEFC Motor. -- 2022 CHOICE MACHINERY GROUP C1260 Motorized Roller Conveyor, S/N 1053, with End stop. -- 2022 CHOICE MACHINERY GROUP C12XX Control Console, with S/N 1054, with SCHNEIDER "MAGELIS" Touchscreen control, Operating manual, & Steel bar grating operator platform.VIDEO NOTE: The original operator was not available to run this line, so it was run in manual mode, which is considerably slower than automatic mode. As a result, the video playback speed has been doubled for the convenience of viewing.

MEREEN-JOHNSON - 431DC: Gang Rip SawSpecifications -- 31" Arbor width cap.; 14" max. dia. tooling; 3-1/2" max thickness. -- Motorized thickness adjustment. -- 29" Min. length for glue joint accuracy; 22" min. for busting only; 6" throat. -- 75 HP - 3,600 RPM TEFC Direct drive motor. -- Arbor with: Disc brake & load meter. -- Arbor lockout on the access door.Equipped with & Features: -- Feed, Chain & Holddown. -- 5 HP Variable feed speed: 30 - 150 FPM With adjustable jam protection. -- MEREEN-JOHNSON "Posi-Feed" dip bed: Carried on 5" pitch hardened double-V chain. --"Quad Life" hardened dip cams. -- Extruded structural aluminum feed bed slats with: Replaceable steel backed rubber insert strips. -- Automatic chain oiler with low-level shutoff. -- (4) 3" Dia. air loaded overhead pressure rolls. -- Full width spring loaded overhead bed plate. -- Pressure rolls & bed plate unit with: Powered adjustment; scale & pointer for thickness reference. -- Anti-kickback Finger System with: (1) Lower & (2) upper on infeed; (1) upper assembly on outfeed.

MEREEN-JOHNSON - 431DC, ...Gang Rip Saw: Specifications: -- 31" Arbor width cap., 14" max. dia. tooling, 3-1/2" max thickness. -- Motorized thickness adjustment. -- 29" Min. length for glue joint accuracy and 22" min. for busting only; 6" throat. -- 75 HP - 3,600 RPM TEFC direct drive motor. -- Arbor with disc brake & load meter. -- Arbor lockout on the access door.Equipped with & Features: -- Feed, Chain & Holddown. -- 5 HP Variable feed speed 30 - 150 FPM with adjustable jam protection. -- MEREEN-JOHNSON "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain. --"Quad Life" hardened dip cams. -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips. -- Automatic chain oiler with low-level shutoff. -- (4) 3" Dia. air loaded overhead pressure rolls. -- Full width spring loaded overhead bed plate. -- Pressure rolls & bed plate unit with powered adjustment; scale & pointer for thickness reference; -- Antikickback Finger System with: (1) Lower & (2) Upper on Infeed; (1) upper assembly on outfeed.

Mereen-Johnson 424 DCS Short Stock Gang Rip sawSpecifications -- 24" Arbor cap., -- 14" max. dia. tooling, -- 3-1/2" max. manual thickness adjustment, -- 14" min. length for glue joint accuracy and 22" min. for busting only, -- 6" throat. Equipped with and Features -- 75 HP - 3,600 RPM TEFC Direct drive motor, -- 2-3/16" dia. arbor with disc brake, -- load meter and slip-off outboard bearing. -- Feed & chain: 3 HP Variable feed speed 30 to 170 FPM, -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain -- "Quad Life" hardened dip cams -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips --, Automatic chain oiler. -- (4) 3" Dia. air loaded overhead pressure rolls; full width spring loaded overhead bed plate, -- Pressure rolls and bed plate unit with scale & pointer thickness reference; -- Anti-kickback finger system with (1) lower & (2) upper on infeed. -- Sound enclosure, -- (2) Upper dust hoods (1) 10" & (1) 5" dia. and (1) lower 4" dia. hood, -- Requires 3,820 CFM;NOTE: Laser Rack with 10 Lasers

MEREEN-JOHNSON - 431DC, ...Gang Rip Saw: Specifications: -- 31" Arbor width cap., 14" max. dia. tooling, 3-1/2" max thickness. -- Motorized thickness adjustment. -- 29" Min. length for glue joint accuracy and 22" min. for busting only; 6" throat. -- 75 HP - 3,600 RPM TEFC direct drive motor. -- Arbor with disc brake & load meter. -- Arbor lockout on the access door.Equipped with & Features: -- Feed, Chain & Holddown. -- 5 HP Variable feed speed 30 - 150 FPM with adjustable jam protection. -- MEREEN-JOHNSON "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain. --"Quad Life" hardened dip cams. -- Extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips. -- Automatic chain oiler with low-level shutoff. -- (4) 3" Dia. air loaded overhead pressure rolls. -- Full width spring loaded overhead bed plate. -- Pressure rolls & bed plate unit with powered adjustment; scale & pointer for thickness reference; -- Antikickback Finger System with: (1) Lower & (2) Upper on Infeed; (1) upper assembly on outfeed.

MEREEN-JOHNSON Model 524-DDCSR 2+4 Double Arbor Gang Rip SawSPECIFICATIONS: -- First Arbor Arranged with Two (2) Independently Adjustable Select Saw Assemblies for Mounting Hogging Blades -- Second Arbor with Four (4) Independently Adjustable Select Saw Assemblies -- Arbor Space 24" -- Thickness Capacity to 1-3/4" with 12" Tooling and 2-3/4" Using 14" Tooling -- Minimum Length 30"Equipped with & Features -- Two (2) M-J Direct Drive Motors 75 HP Each -- Feed Motor 7.5 HP TEFC, 30' to 235' rate with Frequency Inverter Speed Control -- Saw Set Up for Second Party Optimizing System.

MIDWEST AUTOMATION GS 214 Top and Bottom Glue Spreader53" Cap., top & bottom opposed glue applicator rolls, max. 3" opening, 40" pass-line height, 7-3/4" dia. grooved rubber spreading rolls. -- Rolls fitted with Teflon end seals and water tight bearings, upper elevator opening by single hand wheel on left with dial indicator; dual hand wheel opening glue film thickness adjustment. -- Galvanized collection tank; 54 FPM feed speed, top & bottom direct drive, 1.5 HP direct drive motors. -- Complete with: (2) Protection safety guards at roller in- & outfeed with safety interlocks, complies with UL & CE safety standards.

Designed for curved casings, crowns, circles, ellipses and straight mouldings. -- Working dimensions: 6" wide x 7" thickness capacity. -- Spindle diameter 1-1/4" with cutterhead speed of 6,000 RPM. 6-1/2" max. cutting circle in horizontal position, 6" max. cutting circle tilted. -- Feed motor 7.5 HP variable speed 0 - 30 FPM. -- Tilting of spindle head 0° - 52°. -- Includes: Hand wheel for spindle height & tilt adjustment, mechanically adjustable fence for accurate and easy positioning. Axial adjustment. Floating work table 30" x 23". -- Linear tracking system guides the work piece smoothly and directly under the cutterhead, while keeping the workpiece flat. -- Includes (1) 4" dia. corrugated cutterhead. Operating video and manual, spare parts list and (1) year warranty. -- Additional options: Proscale digital readout for height and tilt setting .... add $900.00 for each.

Automatically feeds, shapes & ejects Rosette blocks in sizes from 2-1/2" - 5" max. square blocks; 1.5 HP motor belt drives 2-7/8" spindle cutterhead @ 7,500 RPM. -- Operation: Adjustable hopper feed to side of spindle automatically indexes Rosette blocks under cutterhead up against a corner-V holding fixture with overhead spring fingers, cutterhead advances and machines Rosette, then automatically ejects block to front (hydraulic position of block and air eject cylinder). -- Features: Cutterhead equipped for standard 16°/60° corrugated back 1/4" thick knives to be ground at 0° hook angle. -- Produces up to (500) Rosettes/Hr; Rosette profiles can be ground on any profile grinder for infinitely variable design possibilities; table top unit may include base.

Horizontal Tilting Multi-Moulder with Verical Router System designed for curved casings, crowns, circles, ellipses and straight mouldings. -- Equipped with: (1) 1-1/4" Diameter Spindle, 6" max. width x 7" max. thickness cap., 7.5 HP spindle motor, 6,000 RPM spindle with reverse rotation, 6-1/2" max. cutting circle horizontal, 6" max. cutting circle tilted, 0° - 52° horizontal tilting arbor, hand wheel spindle height & spindle tilt adjustment. -- Variable feed speed from 0 - 30 FPM, DC feed feed motor; hand wheel adjustable thickness opening, 34" x 30" table, independently adjustable feed rollers, and mechanically adjusted fence. -- 3.25 HP, 5-speed Porter Cable router with 1/2" shank included. This allows easy insert & Channels on both straight and curved mouldings. -- Designed to use standard 4" dia. 2-knife cutterhead for 16°/60° 1/4" corrugated back knives, (1) supplied; includes operating manual & video, parts list and covered by (1) year warranty. -- Optional: ProScale digital readouts for height and tilt settings, please add $900 for each, or for the Optional 8’’ spindle and aluminum Cutter-head, please add $3,550

MINNESOTA 24-8 Multi-Spindle Carving Machine.Specifications: -- Spindles/Capacity: (24) Spindles, 8" between centers & 72" length capacity. -- Motors: (12) 0.75 HP motors with (1) motor driving (2) spindles via flat belt. -- Features: Manual table elevation, motorized stock rotation, non-indexable head. -- Comes with: (2) Sets of carving tools (one medium and one fine). -- Includes: Tables for flat carving - to be confirmed (?).

MIZAR- 16" BLADES" Alligator Shear - IN STOCK -- Blade Length: 15,75 in (400 mm) -- Cutting Speed: 8-9 cuts/min. -- Cutting Force: 221.000 Lbs -- Pressure: 160 bars -- Motor: 7,5 kW -- Width: 36 in Length: 71 in Height: 59 in -- Weight: 2750 Lbs -- Electrical Components: Siemens -- 1 Year Warranty

MIZAR - 24" Blades: Alligator Shear - IN STOCK READY TO SHIP -- Blade Length: 24" (600 mm) -- Cutting Speed: (8 - 9) Cuts/Min. -- Motor: 7.5 kW. -- Width: 36"; length: 71"; Height: 59". -- Weight: 2,750 Lbs. -- Electrical Components: SIEMENS. -- 1-Year Warranty.

MOLDOW 184 MXN-324 Expandable Baghouse - 18 Total Modules with (4) Inlet Sections. Specifications. -- 72,000 CFM modular/expandable unit, currently with (14) Filter sections @ 5,000 CFM per section (24 bags per section). -- Approx 336 filter (8.6" dia. by 120" long) , 9,300 sq. ft. of total filter media, 7.75:1 air to cloth ratio Shell is under negative pressure allowing a high efficiency clean air fan.. -- Main Fan: Air Handling IAP A600 SWSI, Class IV, S/N 26862-1 rated at 90,000 CFM @ 1321 RPM, 16.0/20.3" SP & 290/308 BHP. Fan is A - Airfoil type wheel & is non-overloading powered by MARATHON "445Ta" belt driven TEFC 300 HP motor.. Currently fan inlet is connected with a 30" pipe. Regenerative Filter Cleaning: -- Each row of filter bags is cleaned continuously during operation by use of a regeneration carriage/trolley rides along top of filter bank) with a 4 KW (5.3 HP) high-pressure fan that sends air from the clean-air chamber back through the filter bags using nozzle pipes.Bags are fitted with an inner spring bracing. Special bag design reduces air velocity which increases air and dust loading considerably. -- Equipped with: Built-in bottom drag link chain which brings dust to one end where it is discharged through approx. 9" x 30" Rotary Air Lock (RAL). Currently a transfer fan moves dust to storage bin.. Summer/Winter Diverter/Abort Gate connected on outlet/return air line.Comes with: -- Relay Fan, IAP 911 RBO, to pneumatically convey collected dust at discharge of RAL. -- Platform with safety railings and ladder to access regeneration cabinet (return air plenum). -- Support frame, and exterior ductwork. Single heavy sheet metal flanged rectangular return air pipe. Overall Dimensions: -- 45' Long by 12'-9" wide by 28.5' high (5.5' hopper to ground, 8' high hopper and 15' top section). -- Professional dismantling, rigging, transport and installation is available upon request.

OLIVER 4045 12" PROFESSIONAL TABLE SAW, with 36" FenceHeavy-duty cast iron table precision ground for accuracy; rugged machine frame construction provides maximum stability and reduced vibration.Specifications: -- 12" Blade capacity and 0° - 45° tilting arbor with digital read-out. -- 7.5 HP Motor at 3,450 RPM. -- Complete with: 52" rip fence capacity that will handle most of your work. -- 48" x 52" Cast iron table. -- Blade guard, miter gauge, push-button controls. -- Parts list & operation manual.

OLIVER 4016 10" Table Saw, 5 HP, 3-Ph w/36" Rail Specifications: -- 5 HP motor; poly V-belt drive system with belts that run smoother and with less vibration, giving you the highest quality cut available. -- Top it all off with with OLIVER'S Optimus square tube fence and a digital blade angle readout system and you've got a saw that tears it up with accuracy and in style! -- Model 4016.004 5 HP, 220V. 3-Phase.

OLIVER 6910 Oscillating Spindle SanderPedestal style Spindle Sander constructed for rugged use .Specifications: -- 2 HP Motor drives and is connected through a flexible coupling, and can be installed or removed without disturbing the drive mechanism. -- Spindle speed 1,725 RPM, Oscillation speed 75 Cy/Min with 1-1/2" stroke length. -- Spindle quill runs in precision ball bearings, oscillated by a heavy duty worm & gear mechanism running in a bath of oil. -- (10) Spindle sizes provided: 1/4 x 5", 3/8 x 6", 1/2 x 6", 5/8 x 6", 3/4 x 9", 1 x 9", 1 1/2 x 9", 2 x 9", 3 x 9" and 4 x 9"; 100 grit abrasive sanding sleeve with each spindle. -- Large 24" x 24" precision ground cast iron table mounted on large trunnions that can be tilted 45° down and 30° up by use of a convenient handwheel. -- Complete with: Pedestal style stand.

OLIVER 4705 SHAPER 5 HP, 1-PH or 7.5 HP, 3-PHSpecifications and Features: -- Massive cast iron precision-ground table provides a solid work surface. -- Cast-iron base provides a steady platform. -- 3/4"; and 1-1/4"; interchangeable spindles are included for added versatility. -- Three spindle speeds allow more choices to produce a better finish. -- Reversing the spindle gives more options for each setup. -- Innovative dovetail design accurately raises and lowers the spindle. -- Fence is independent and features micro adjustments for quick set-up. -- Top-mounted control panel includes a digital readout for spindle height. -- Large hand wheel for quick spindle height adjustment. -- Magnetic controls, with an emergency off switch for safer operation. -- Includes miter gauge. -- Spindle Speeds: 5,000, 7,000, and 10,000 RPM. -- Maximum Tool Diameter: 7"; Below Table, 8"; Above Table. -- Spindle Diameter: 1-1/4"; and 3/4"; Interchangeable. -- Vertical Spindle Travel: 4". -- Table Height: 36-1/2". T-Slot: 3/4" x 3/8". -- Dust Port Diameter: 4". -- 800 CFM min. Spindle Options: -- 1/2" Spindle for Models 4705 & 10047 Shaper $89.99 -- 3/4" Spindle for Models 4705 & 10047 Shaper $89.99 -- 1" Spindle for Model 4705 Shaper $99.99 -- 1/4" Collet for Models 4705 & 10047 Shaper $69.99 -- 1/2" Collet for Models 4705 & 10047 Shaper $59.99 -- 1-1/4" Spindle for Model 4705 Shaper $99.99 Optional collet for router bits available for special order, Model 4705 prices may vary.

OLIVER 5385 Single Head Wide Belt SANDER (37") 1-Head and 37" belt width Combination Sanding Head with rubber covered contact roll and adjustable finishing platen, 1/8" - 5" Thickness capacity, 36" width capacity.Specifications: -- 20 HP Main drive motor. -- 1 HP Variable speed (15 to 45 FPM). -- 1/4 HP Power raising and lowering conveyor bed motor. -- 37" X 75"; Abrasive belts for longer life and less loading.Features; -- Central control panel features digital thickness set-up control for accurate stock height and removal. -- Four post lift design assures accurate consistent results. -- Oscillating belt is controlled by an air sensor to prevent sanding lines. -- Finishing Platen is fully adjustable and can be removed. -- Multiple dust ports for efficient dust management. -- Independent motors run the sanding belt, feed conveyor, and table elevation for maximum power to each operation.
