Woodworking Equipment For Sale

20" wide Conveyorized Glue Applicator, model F-CGAP-20-10-12, 20" wide grooved rubber covered roller with stainless steel doctor blade. Large knobs for easy adjustment or removal of doctor blade. -- Conveyor has a 10' infeed and a 12' out feed using a wand activated Limit switch for automatically stopping the slat blade conveyor when stock reaches the RF Press or Clamp Carrier. -- Heavy Duty, 3-phase 0.25 HP motor drives the conveyor and glue roll; motor is equipped with an adjustable slip clutch to prevent damage in case of a material jam. -- All components are Heavy Duty for years of trouble free operation. The stainless steel glue pan and doctor blade are easily removed without tools for quick clean-up. -- Optional 20" wide hold-down roll for face gluing part # F-HDRL-20. Price $800 - please specify this option at time of order.

QUICK MACHINERY N-P80 Air Pod style Cold Press. -- Heavy Duty I-beam construction with machined steel plates for flat smooth pressing surface.Specifications: -- Platen pressing area size: 49" x 97" with end loading on 49" side. -- 80 PSI Platen pressure over the entire surface area with 102 PSI supply air pressure. Pressure is applied by 12.8" dia. air pods with 5.9" stroke; (28) air pods total for this size press. -- Air powered raise and lower idler rollers in the bed of the press for loading & unloading panels; raising & lowering of conveyor by control button on panel. -- Motorized Adjustable Daylight Opening from 2" to 40"; push button controls operate an electrically powered chain driven worm gear drive system for precise positioning of upper platen setting/opening. -- Controls: 60-Min cycle timers provide visual and audible signals at the end of each cycle and automatically releases platen air pressure at the end of each cycle if desired. -- Single platen 49" X 97" . -- The press model shown in pictures is a dual platen powered feed through end load press. -- Actual model is N-P80-04-08-EL-1PL-M-40-R-1Z

QUICK MACHINERY N-P80 Air Pod style Cold Press. -- Heavy Duty I-beam construction with machined steel plates for flat smooth pressing surface.Specifications: -- Platen pressing area size: 62" x 146" with end loading on 62" side. -- 80 PSI Platen pressure over the entire surface area with 105 PSI supply air pressure. Pressure is applied by (60) 12.8" dia. air pods with 5.9" stroke; -- Air powered raise and lower idler rollers in the bed of the press for loading & unloading panels; raising & lowering of conveyor by control button on panel. -- Motorized Adjustable Daylight Opening from 2" to 40"; push button controls operate an electrically powered chain driven worm gear drive system for precise positioning of upper platen setting/opening. -- Controls: 60-Min cycle timers provide visual and audible signals at the end of each cycle and automatically releases platen air pressure at the end of each cycle if desired. -- Single platen 62" X 146". (2) Air pressure zones for upper platen: (4' x 8' and 5' x 12') -- Optional powered roller tracks for an additional fee. -- The press model shown in pictures is a dual platen powered feed through end load press. -- Actual model is N-P80-05-12-EL-1PL-M-40-2Z

QUICK MACHINERY N-P50 Air Pod style Cold Press. -- Heavy Duty I-beam construction with machined steel plates for flat smooth pressing surface.Specifications: -- Platen pressing area size: 62" x 146" with side loading on 146" side (also available as end loading). -- 50 PSI Platen pressure over the entire surface area with 90 PSI supply air pressure. Pressure is applied by 12.8" dia. air pods with 5.9" stroke; (36) air pods total for this size press. -- (2) Pressure air pressure zones: 5' x 12' and 4' x 8'. -- Air powered raise and lower idler rollers in the bed of the press for loading & unloading panels; raising & lowering of idle conveyor roller tracks by control button on panel. -- Motorized Adjustable Daylight Opening from 2" to 40"; push button controls operate an electrically powered chain driven worm gear drive system for precise positioning of upper platen setting/opening. -- Controls: 60-Min cycle timers provide visual and audible signals at the end of each cycle and automatically releases platen air pressure at the end of each cycle if desired.

QUICK MACHINERY N-P50 Air Pod style Cold Press. -- Heavy Duty I-beam construction with machined steel plates for flat smooth pressing surface.Specifications: -- Platen pressing area size: 62" x 146" with side loading on 146" side. -- 50 PSI Platen pressure over the entire surface area with 93 PSI supply air pressure. Pressure is applied by 12.8" dia. air pods with 5.9" stroke; (36) air pods total for this size press. -- Air powered raise and lower idler rollers in the bed of the press for loading & unloading panels; raising & lowering of conveyor by control button on panel. -- Motorized Adjustable Daylight Opening from 2" to 40"; push button controls operate an electrically powered chain driven worm gear drive system for precise positioning of upper platen setting/opening. -- Controls: 60-Min cycle timers provide visual and audible signals at the end of each cycle and automatically releases platen air pressure at the end of each cycle if desired.Actual Model is a N-P50-05-12-SL-1PL-M-40-R-1Z.• Maximum platen pressure: 50 PSI at 93 PSI supply pressure• Lower platen dimensions: 5' x 12'• Side-loading design• Number of upper platens: 1• Upper platen dimensions: 5' x 12'• Vertical opening: Motorized adjustable from 2" to 40"• Lower platen roller tracks: Yes, non-powered roller tracks• Number of 12.8" diameter, 5.9" stroke air pods: 36• Number of air pressure zones: 1 (5' x 12' pressing)Optional powered roller tracks are available. -- The press model shown in pictures is a dual platen powered feed through end-load press.

QUICK L-HLPP-2-20-43-8-12 ...2-Sided Hydraulic Laminating Press: -- Number of working sections: (2) -- Working width, section #1: 6" and 8" -- Working width, section #2: 8", 10"; and 12" -- Maximum working length: 6,200mm (20.3') -- Maximum working height: 1,100mm (43.3") -- Pressure at the glue line: Up to 175 PSIMain Laminating Cylinders: -- Number of cylinders, section #1: (14) -- Number of cylinders, section #2: (21) -- Size of cylinders: 100 mm dia. x 80 mm strokeHolddown Cylinders: -- Number of cylinders, section #1: (14) -- Number of cylinders, section #2: (21) -- Size of cylinders: 40 mm dia. x 150 mm strokeLift Cylinders: -- Number of cylinders: (2) on each side = (4) -- Size of cylinders: 63 mm dia.Hydraulic Pump: -- Drive motor: 10 HP -- Maximum pressure: 140 kG/cm² -- Maximum Holddown Cylinder Pressure: 50 kG/cm² -- Maximum Side Lift Cylinder Pressure: 50 kG/cm² -- Shipped without hydraulic oil in the oil tank

QUICK MACHINERY N-P80 Air Pod style Cold Press -- Heavy Duty I-beam construction with machined steel plates for flat smooth pressing surface. -- Specifications: -- Platen pressing area size: 38" x 98"; with end loading on 37" side. -- 80 PSI Platen pressure over the entire surface area with 105 PSI supply air pressure. Pressure is applied by 12.8" dia. air pods with 5.9" stroke; -- Air powered raise and lower idler rollers in the bed of the press for loading & unloading panels; raising & lowering of conveyor by control button on panel. -- Motorized Adjustable Daylight Opening from 1" to 40"; push button controls operate an electrically powered chain driven worm gear drive system for precise positioning of upper platen setting/opening. -- Controls: 60-Min cycle timers provide visual and audible signals at the end of each cycle and automatically releases platen air pressure at the end of each cycle if desired. -- Single platen 38" X 98". -- Optional: powered roller tracksSpecifications:QUICK Laminating Pod PressN-P80-03-08-EL-1PL-M-40-R-1Z• Maximum platen pressure: 81 psi at 90 psi supply pressure• Lower platen dimensions: 3' x 8' (38" x 98")• End-loading or Side-loading: End-loading• Number of upper platens: 1• Upper platen(s) dimensions: 3' x 8' (38" x 98")• Vertical opening: Motorized adjustable from 2" to 40"• Lower platen roller tracks: Yes, Non-powered roller tracks• Number of 12.8" diameter, 5.9" stroke air pods: 24• Number of air pressure zones: 1 -- The press model shown in pictures is a dual platen powered feed through end-load press.

QUICK N-P50 Fixed Daylight Opening Air Pod PressThis Pod Press can produce a maximum 50 PSI platen pressure over the entire surface at 100 PSI supply air pressure. Press has a fixed vertical daylight opening of 44". The (18) 12.8" max. diameter air pods have 5.9" stroke.Material conveyance is via automatically extending and retracting (via pneumatic cylinders) non-powered roller tracks. A cycle timer provides visual and audible signals at the end of each cycle if desired, and also automatically releases platen air pressure at the end of each cycle, if desired.Specifications: -- Maximum platen pressure: 50 PSI at 100 PSI supply pressure. -- Lower platen dimensions: 4' x 8' -- End-loading or Side-loading: End-loading -- Number of upper platens: 1 -- Upper platen(s) dimensions: 4' x 8' -- Vertical opening: Fixed at 44" -- Lower platen Non-powered roller tracks. -- (18) 12.8" diameter, 5.9" stroke air pods. -- Number of air pressure zones: 1Lead Time: Approximately (12) weeks from time of order.Actual Model: N-P50-04-08-EL-1PL-F-44-R-1ZNOTE: Please let us know of any "Special or Specific" safety equipment requirements that you may have prior to order

QUICK MACHINERY N-P50 Air Pod style Cold Press. -- Heavy Duty I-beam construction with machined steel plates for flat smooth pressing surface.Specifications: -- Platen pressing area size: 51" x 149" (1300mm x 3800mm) with side loading on 149" side (also available as end loading). -- 50 PSI Platen pressure over the entire surface area with 90 PSI supply air pressure. Pressure is applied by 12.8" dia. air pods with 5.9" stroke; (36) air pods total for this size press. -- (2) Pressure air pressure zones: 4' x 12' and 4' x 8'. -- Air powered raise and lower idler rollers in the bed of the press for loading & unloading panels; raising & lowering of idle conveyor roller tracks by control button on panel. -- Motorized Adjustable Daylight Opening from 2" to 40"; push button controls operate an electrically powered chain driven worm gear drive system for precise positioning of upper platen setting/opening. -- Controls: 60-Min cycle timers provide visual and audible signals at the end of each cycle and automatically releases platen air pressure at the end of each cycle if desired.

QUICKWOOD - RO 800-1, ...Denibbing Sander.1-Head with 32" max. cap., 0" - 4" max. part thickness opening. Equipped with: -- (1) Carousel head with: (4) Rotating arbors mounted on a central rotating drive assembly, carousel rotation 2 - 20 RPM, 0.75 HP rotation drive. -- Arbor/spindles are: 11.4" Long; 350 - 1,150 RPM spindle speed with LED readout on control panel; 2.5 HP main motor; each arbor holds a combination of (25) "Quick-Discs" & (12) nylon brush loadings of 13-3/4" max. dia. -- Feed system with: (2) 2-3/8" Wide narrow conveyor belts and side guides (to keep panels from moving side-to-side), motorized width adjustment in-and-out from the center. -- Manual thickness opening 0" to 4". -- Variable feed speed from 6 - 36 FPM, 0.75 HP feed drive. Complete with: -- Control panel and (2) 6" dia. dust collection ports.

QUICKWOOD - Denibbing Sander with: (2) Brush Heads2-Head with: 32" Max. cap.; 0" - 4" max. part thickness opening. -- Equipped with: (2) Carousel heads; each with: (4) Rotating arbors mounted on a central rotating drive assembly; carousel rotation: 2 - 20 RPM; 3/4 HP Rotation drive. -- Arbor/spindles are: 11.4" Long; 350 - 1,150 RPM spindle speed with: LED Readout on control panel; 2-1/2 HP main motor; each arbor holds: combination of (25) "Quick-Discs" & (12) nylon brush loadings of 13-3/4" max. dia. -- Feed system with: 32" Wide vacuum conveyor belt; 5 HP pump; variable feed speed from: 6 - 36 FPM; 3/4 HP feed drive. - Complete with: Hinge mounted Operator Panel and (2) 6" dia. dust collection ports.

QUICKWOOD - PRO 1400 Verticale: 1,400 mm (55.12") Vertical Denibbing SanderEquipped with: -- (2) Carousels. Each with: Horizontal travel 13" with 0.45 kW (0.6 HP) - 1,710 RPM Motor; (8) 10"; dia. x 20"; W brush spindles; (4) 2.64 kW (3-1/2 HP) - 1,605 RPM Double spindle motors; 1.8 kW (2-1/2 HP) - 1,710 RPM Carousel motor.Machine dims.................(2) 69" x 96" x 93"; H Components.Machine skidded dims:..145" x 96" x 97"; H.Control console dims...:. 49" x 20" x 45" H.Control console dims with Pallet:..................65" x 40" x 50" H.

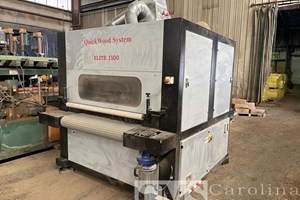

Quickwood Pro 1100 Sander

Quickwood RO 1300 Sander

8 or more brushes arranged at 360 ° with respect to the work pieces Adjustable inclination for the profile step QRC module for the super finishing of the flat parts in view

QUICKWOOD CD2-300 Moulding & Profile Sander or Denibber;4-Head Brush Loading Sander, 12" width and 4" height cap., for 3-sided sanding & denibbing. Head Configuration: -- (2) "BH300" Overhead rotating abrasive/brush heads, both arbors equipped with a combination of abrasive and brush loadings, 12" long arbors, 12" max. dia. sanding discs. -- 0.75 HP Motor drives each arbor with inverter for 200 - 1,200 RPM arbor rotation speed. -- Right & Left ("BH-140" & "BH-100" respectively) side mounted rotating abrasive/brush heads. -- Tilting heads and adjustable in-and-out, 6" long arbor, 8" dia. sanding discs, 0.5 HP motor each head. -- 0" - 4" Max. manual part height adjustment via hand wheel; 57-1/2" long roller conveyor with PVC covered rollers, variable feed speed 10 - 60 FPM. -- Infeed & outfeed overhead holddown rolls and (1) between the top heads. Includes centralized control panel, hubs, abrasive, & brush. -- Can also be ordered with just (2) top heads or (3) heads, ie. Left or Right. Call for separate prices.

Width Capacity: 1,100mm (43.3") Thickness Capacity: 100mm (3.93") Eight Variable Speed Brushing Heads on a Rotating Carousel Variable Rotation of Brush Heads: 300 - 1150 RPM Four 2 HP Brush Head Motors, Each Driving Two Heads Variable Rotation of Carousel: 3 - 16 RPM Carousel Drive Motor: 2 HP Thickness Adjustment Motor: 0.6 HP Variable Speed Feed from 6-36 FPM Feed Motor: 2 HP Touch-Screen User-Interface Internal Blower for Vacuum Bed, 5.3 HP Includes Two New Complete Loadings of Sandpaper One 100 Grit and One 120 Grit Voltage 220v, 3ph

QUINCY - QSVB-25ANN2F: Vacuum Pump25 HP "QSVB Series": 371 CFM, 29.9"HgV Rotary Screw Vacuum; positive lubrication fluid pump; 3″ inlet & 2″ exhaust port. -- Equipped with:Modulating inlet valve; temperature regulating valve; high discharge temperature shutdown system with manual reset. -- Complete with:Control panel; electrical enclosure; gauges; exhaust separation system; spin on fluid filter; (2) magnetic motor starter kits as pictured. GREEN one Model #PKT; serial #981113937. - GREY one Model #SK25; Serial #0101-2-SK25 KVAR54.NOTE: The Pump only has (6,935) total hours on the meter!

Raimann KM310 Rip Saw Per seller: The saw runs material. The variable infeed is stuck on one speed.

Raimann KM310M Rip Saw ValuRip Infeed System One moving Blade
