Woodworking Equipment For Sale

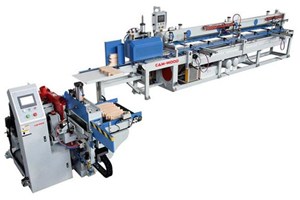

CAM-WOOD TYPE F1, MODEL FAH 8" X 40’ AUTOMATIC HORIZONTAL FINGER JOINT SYSTEM - SINGLE CHAIN TYPE (including Feeding System from Optimizing Saw)Technical Specifications: -- Working thickness: 17 mm to 60 mm (.66" to 2 3/8") -- Working width: 25 mm to 205 mm ( 1" to 8") -- Maximum finish length: 12 Meters ( 40') -- Glue type: PVAC -- Timber moisture: 8% to 12% -- Infeed quality must be S4S with tolerance +/- 02 mm, wood need 90° right angle and straight MECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 180 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Working size: Length 150 mm to 900 mm ( 6" to 35-7/16"); Width 25 to 205 mm (1" to 8") -- Speed: 70 m/Min ( 230 FPM) -- Infeed inverter : (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: -- Working size: Thickness 17 mm to 60 mm (5/8" to 2,3/8"); Width 25 mm to 205 mm (1" to 8") --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 10 to 90 m/Min (32 to 292 FPM) (H) MECHANICAL SPECIFICATIONS: 40’ (12 M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 8"; wide x 0.60"; to 2-3/8"; high x up to 40’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 10 m to 70 m/Min (32 to 227 FPM) --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high-speed oil tank) --Cycle Speed: 1 to 6 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 500 mm (20";) --Average block cross-

CAM-WOOD TYPE F1, MODEL FAH, 6"; X 20’ Horizontal Fully Automatic Finger Joint System Single Chain TypeMECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 150 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305mm) x 80 Tooth x 5mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Speed: 230 FPM -- Feed Motor: (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 30 to 300 FPM (H) MECHANICAL SPECIFICATIONS: 20’ (6.2M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 6"; wide x 0.60"; to 3"; high x up to 20’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 30 to 300 FPM --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high speed oil tank) --Cycle Speed: 1 to 8 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 20"; --A verage block cross section is 2"; x 4"; -- Chain speed at the Shaper sections is 150 lugs/Min -- Press capacity is (8) 20’ loads per minute (maximum) CAPACITY OF THE SHAPERS WHEN FINGER JOINTING 2"; X 4"; x 20" BLOCKS -- (120) Blocks per minute -- x 20"; Average infeed length -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 76,800 lineal feet per shift CAPACITY OF THE PRESS ASSEMBLING 20’ LENGTHS: -- (8) Assembled lengths per minute -- x 20’ Per minute -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 66,440 lineal feet per shift -- NOTE: If using the cutoff saw for multi-section pressin

CAM-WOOD TYPE F1, MODEL FAH 8" X 30’ HORIZONTAL FULLY AUTOMATIC FINGER JOINT SYSTEM - SINGLE CHAIN TYPEMECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 150 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305mm) x 80 Tooth x 5mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180mm) x 50 Tooth x 5mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Speed: 230 FPM -- Feed Motor: (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 30 to 300 FPM (H) MECHANICAL SPECIFICATIONS: 30’ (9.3M) ASSEMBLY PRESS: --Working dimension: 1"; to 8"; wide x 0.60"; to 2 3/8"; high x up to 30’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 30 to 300 FPM --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high speed oil tank) --Cycle Speed: 1 to 8 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 20"; --A verage block cross section is 2"; x 4"; -- Chain speed at the Shaper sections is 150 lugs/Min -- Press capacity is (8) 30’ loads per minute (maximum) CAPACITY OF THE SHAPERS WHEN FINGER JOINTING 2"; X 4"; x 20" BLOCKS -- (120) Blocks per minute -- x 20"; Average infeed length -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 76,800 lineal feet per shift CAPACITY OF THE PRESS ASSEMBLING 30’ LENGTHS: -- (8) Assembled lengths per minute -- x 20’ Per minute -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 66,440 lineal feet per shift -- NOTE: If using the cutoff saw for multi-section pressin

CAM-WOOD FJ-17 (FM) 6" X 16' Long Semi-Automatic Finger Jointer System(4) Version possible on this model. Choose the one that suits your needsTechnical Specifications:Incoming Block Requirements: -- Incoming block lengths No Limit (Manual Loaded). Blocks must be at least 50% longer than their width. -- Block thickness from 1/2"; to 3" -- Block width from 1"; to 6" -- Assembled lengths from 8’ to maximum 16’ or (20’ Options Add Extra ...$4,900.00) or 24’ (Options Add Extra ...$9,900.00) -- For use with PVAC adhesives Glue pump is not included -- Works equally well with soft and hardwood Blocks. Moisture content from 8 to 12% -- Blocks to be surfaced (4) sides through a Moulder or 4-sided Planer to ±0.2mm with 90° right angle cornersThis semi-automatic system is offered in (4) different versionsVersion 1: -- Finger Shaper (FSM-460A) + Conveyor (RO-62) x 2 + Assembly Press (FJ-500A) The price: $82,900.001. Semi-Auto Finger Shaper Process the finger at one side 2. Manually flip/turn to the other side and make fingers again at the same shaper,3. Manual blush applied the glue,4. Semi-Automatic finger jointer press The price: $82,900.00Version2: -- Finger Shaper (FSM-460A) + Conveyor (RO-62) x 2 + Manual Gluer (FSH-150) + Assembly Press (FJ-500A) 1. Semi-Auto Finger Shaper Process the finger at one side.2. Manually flip/turn to the other side and make fingers again at the same shaper,3. Manual Glue Spreader applied the glue,4. Semi-Automatic finger jointer pressThe price: $92,990Version 3: -- Finger Shaper with Gluer (FSM-621) + Conveyor (RO-62) x 2 + Assembly Press (FJ-500A) 1. Semi-Auto Finger Shaper Process the finger at one side.2. Manually flip/turn to the other side and make fingers again at the same shaper,3. Automatic Glue Spreader applied the glue at the second finger process,4. Semi-Automatic finger jointer press The price: ...$104,900Version 4:Finger Shaper (FSM-460A) + RO-62 x 3 + Finger Shaper with Gluer (FSM-621) + Assembly Press (FJ-500A)1. Semi-Auto Finger Shaper Process the finger at one side.2. Push to the next (2nd) Semi-automatic finger shaper with Auto Glue Spreader and applied the glue at the other side,3. Semi-Automatic finger jointer pressThe price: ...$ 143.900Description of Each Unit:FSM-460A Semi-auto finger shaper (Air-hydraulic type) -- Working timber width (Horizontal Direction); 1"; to 6"; -- Maximum timber total width fit on working table 18"; -- Maximum working height (Vertical direction); 4"; -- Maximum timber thickness (Height feed into assembly press); 3"; -- Working timber length; No Limit (Timber length must be at least 50% longer than the timber width to be processed.) -- Trim saw/Hogging blade 180 mm x 50T x 5 mm x 1 pcs. Trim/Hogging saw speed; 2,850 RPM -- Trim/Hogging saw motor 5 HP x 1 -- Finger shaper motor; 10 HP x 1 . Finger spindle Speed; 5,500 RPM. Spindle size; 50 mm, OD of finger cutter; OD160 mm -- Table movement by pneumatic–hydraulic cylinder -- Cycle time 2 to

CAM-WOOD - EX-ARES ...CNC Door Processing Machine Center for Pre-Hung Doors with Automatic Tool Changer. Distinctive design for Door Pre-Hang Processing. -- All the 5-side Project Processing -- Automatic Feed Through (Options with Auto Loading and Out-Feeding) -- Hinge Face Milling, Screw Hole Drilling -- Lock Bore Drilling -- Latch Face Milling, Latch Bore Drilling. FEATURES: -- DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications. -- Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can imported, modified, and edited from here to create a G-code. -- Horizontal and vertical spindle for top and side stock processing -- Machine designed ready for 3-D cutting usage and superior performance. -- Moving gantry construction for space saving. -- The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy. --Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes. -- Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision. -- The X & Y axis equipped with a precision rack & pinion driving system. The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.SPECIFICATIONS: -- Working size 51"; Width x 98"; Length x 7-7/8"; Height (Door Lock Maximum Depth 4-3/4";) -- Custom made door vacuum table (Optional Vacuum Pump) -- SYNTEC 60WA control with All in one PC Controller -- 9.0KW air cooling Spindle with 4 pcs ISO30 tools linear ATC for Top Side Milling, Drilling, Lock, Bore.. Processing -- 6.0KW double Side milling Spindle at X direction for X Axis Two Side, Milling, Drilling, Ball Catch, Split Line. Processing -- 6.0KW double milling spindle at Y direction, Two Side, Milling, Drilling, Hinge, Latch Hole, Face, Dead Ball, Processing -- 2.2KW 4 Side Milling Spindle for All the 4 Side, Small Holes, or Screw Hole Drilling process -- 1500W servo drive. -- Max travel speed 200 FPM (60m/min), Max working speed 50 fpm (15m/min) (According different processing material) -- Professional PTP table with German SCHMALZ Vacuum pads 6pcs -- 2M helical rack, 30 square rails & Ball screw -- Automatic control with Aluminum oil pipe Oil lubrication.OPTIONS: -- 10' table capacity ...............$US3,100. -- ARES Options for 3 Degrees Bevel.A.) Pre-set the Angle heads point to left or right side at tool rack. HSD Angle Head $US8,990.00 each (most time, it will need at least two units, preset to 3 degrees, one bigger cutter for routing, one small cutter to do re-fine the latch corner or drill the screw holes).B.) Upgrade to Italy HSD C Axis System add $US23,990.00. (Horizontal 360 Degrees turning, it can work on all the 4 door edges). Plus, HSD Angle Head $8,990.00 each (most time, it will need at least

CAM-WOOD "EXCEL" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.SERIES 408: $ 91,900SERIES 510: $ 96,900SERIES 512: $ 99,300Models Include (Table Sizes): 408 (4' x 8'), 510 (5' x 10'), 510 (5' x 12')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemAuto-Loading: Auto In-feed Loading Scissor Lift & Out-feed Conveyor TableSpindle: 9.0kW (12.8Hp) HSD Air-Cooled Spindle - 6,000-24,000 rpmBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: Servo-Motor and DriverY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: Rotary (12) Tools ISO30, ER32Inverter: 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionalDrill Bank: Includes (9) Tools HSDCAD/CAM Software: OptionalWorking Size:SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)SERIES 512: 63’’ (X) x 150’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408: 98’’ (X) x 433’’ (Y) x 71’’ (Z)SERIES 510: 110’’ (X) x 531’’ (Y) x 71’’ (Z)SERIES 512: 112’’ (X) x 603’’ (Y) x 71’’ (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408: 8,810 lbs / SERIES 510: 9,970 lbs / SERIES 512: 10,750 lbsFeatures Include: --Nesting Work for Automatic In-feed Loading w/Scissor Lift and Out-feed Unloading w/Conveyor Process. --Automatic (12) Tool Rotary Type Auto-Tool Changer for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by Brush-less Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --DNC is no longer required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress Relieved Prior to Finished Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Traverse a

CAM-WOOD EGS-108 Oscillating Edge Sander with End Sanding Kit.Features & Specifications: -- 6" Wide x 108" long abrasive belt. -- 6" x 40" Graphite covered platen. -- 3 HP Single-phase motor w/magnetic switch. -- 6" Diameter drive pulley. -- 7-3/4" x 37" Front table with a 6" vertical adjustment. -- End table for radius work with a 6" vertical adjustment. -- Heavy laminated tables, fabricated steel base and swing-away dust hood.

CAM-WOOD EGS-636 Oscillating Edge Sander with End Table.Features & Specifications:Sandpaper automatically oscillates up & down so it will not overheat to get longer life usage and better finish result. -- 13" x 18" End table mounted at left side of the machine to use as contour sanding. -- Heavy gauge sheet metal cabinets stand and table for heavy work. -- The height of front & back table is adjustable for 5". -- Easily adjustable belt tension device. -- Twin main working tables can be tilted up to 45 degrees reducing material burning and promotes longer belt life. -- The graphite pad lubricates the sanding belt and allows the belt to run cooler and smoother. -- All sealed long-life ball bearings and rubber contact motor pulley. -- Several typical profile blocks can be used for the edge profile sander. -- Powerful 5Sandpaper automatically oscillates up & down so it will not overheat to get longer life usage and better finish result. -- Several typical profile blocks can be used for the edge profile sander. -- Powerful industrial 5 HP motor for durability usage. -- Overload protect magnetic switch. -- 6" x 117" Belt size with a Working size of 6" x 36". -- Machine weight 760 Lbs.

CAM-WOOD EGS-948 Oscillating Edge Sander with End Table.Features: -- Sandpaper automatically oscillates up & down so it will not overheat to get longer life usage and better finish result. -- 13" x 18" End table mounted at left side of the machine to use as contour sanding. -- Heavy gauge sheet metal cabinets stand and table for heavy work. -- The height of front & back table is adjustable by 5". -- Easily adjustable belt tension device. -- Twin main working tables can be tilted up to 45° reducing material burning and promotes longer belt life. -- The graphite pad lubricates the sanding belt and allows the belt to run cooler and smoother. -- All sealed long-life ball bearings and rubber contact motor pulley. -- Several typical profile blocks can be used for the edge profile sander. -- Powerful industrial motor for durability usage. -- Overload protect magnetic switch.Specifications: -- Sanding Belt Size: 9" x 142". -- Main Working Table (2 Units) 10-1/2"; x 48";. -- Side Working Table: 13"; x 17";. -- Belt Linear Speed: 3,230 FPM. -- Belt Drive Motor: 7-1/2 HP, 3 Ph. -- Oscillating Motor: Belt drive motor. -- Net Weight. 1,260 Lbs

CAM-WOOD EB-K7PMX EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 60 mm (0.75" - 2.36") panel thickness cap. -- Minimum panel dimensions 160 mm long x 88.9 mm wide (6.3" x 3.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM. -- Top & Bottom Profile Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 25 - 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensure accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at additional cost to convert to desired alternate voltage requirements.

CAM-WOOD EB-L5 EDGEBANDER0.4 mm - 3 mm Edgebanding thickness capacity, 10 mm (3/8") - 50 mm (1.96") material thickness capacity, 63.5 mm (2.5") minimum part width, 160 mm (6.3") minimum part length. Equipped with: -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine. -- Teflon coated glue pot w/fast (10 - 12) Min heat-up time; 4-liter capacity. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled pressure section with (3) pressure rollers; 1st drive, (2) idle.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. Cutting group moves on rounded ways made of hardened steel, to guarantee high precision and reliability; cutting movement from the top of the panel. -- Top & Bottom Trim station with: (2) 0.75 HP (0.56 kW) - 12,000 RPM High-Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutterhead position by mechanical digital readouts, quick release (electrical & mechanical). Includes (2) 3 mm radius cutters. -- Top & Bottom Buffing unit with (2) 0.50 HP (0.37 kW) - 1,400 RPM motors. Feed & Holddown: -- Feed rate of 12 MPM (40 FPM); feed chain pads with replaceable rubberized surface inserts. -- Special design "track frame" to eliminate feed chain side-to-side movement after years of use. -- Rubberized holddown rollers with ball bearings for low friction and long life. -- Complete with: Sound enclosure protects the operator from noise and debris.

CAM-WOOD EB-L5PM EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 50 mm (0.75" - 2") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 63.5 mm wide x 160 mm long (2.5" x 6.3"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Motors. -- Top & Bottom Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 25 - 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensures accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at an added cost to convert to desired alternate voltage requirement.

CAM-WOOD DS 4080 NC Control Squaring Saw -- NC controlled cutting saw (4) blade heads for squaring up to 1,200 mm X 2,450 mm (47.2" X 96.5")Features: -- Automatic Cutting Cycle for all the 4 side with mass production capacity. -- Automatic width, length setting by Digital Key Pads. -- Variable Cutting Speed with Inverter. -- Saw head runs on ball bearings giving effortless and smooth movement. -- Heavy sheet metal frame and stand construction. -- Quick tilting positions stop at 45º, right and left. -- Saw head is firmly set at any angle desired. Safety saw blade guard. -- Anti-kickback attachment included. -- Full power industrial motor for durability usage. Overload protection switchTechnical Data: -- Maximum cutting/shaping length 2,450 mm (96.5") -- Minimum shaping length: 1,750 mm (68.9") -- Maximum cutting width 1,200 mm (47.2") -- Minimum shaping width: 600 mm (23.6") -- Saw motors (4) x 4 HP each -- Saw blade diameter 305 mm -- Inverted speed control of the saw movement driven by 1 HP motor from 10 FPM to 60 FPMFloor space requirement: 3,950 mm X 2,150 mm X 2,070 mm (155.5" X 86.6" X 81.5")

CAM-WOOD "DYNAMIC" CNC Routers w/ATC for "Nested Base Manufacturing" including Cabinets, Three-Dimensional Wood Processing, Wooden Doors, Furniture & Window Processing; as well as Plastic Processing and Engraving.SERIES 408: $ 60,090SERIES 510: $ 63,800SERIES 512: $ 65,080Models Include (Table Sizes): 408 (4' x 8'), 510 (5' x 10'), 510 (5' x 12')General Specs: Machine Gantry X Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Y Axis Square Rails Parallel Vertical Accuracy 0.001"; (0.03mm), Z Axis Ball Screw Parallel Vertical Accuracy 0.001"; (0.03mm), Re-Position Accuracy 0.001"; (0.02mm), Working Accuracy 0.004"; (0.10mm), Grating Ruler Travel Accuracy 0.002"; (0.05mm).Control System: SYNTEC Control SystemSpindle: 9.0kW (12.8Hp) HSD Air-Cooled Spindle - 6,000 - 24,000 rpmBed Frame: Heavy-Duty Metal WeldingTable: (6) Zone Vacuum TableDriving System: YASKAWA Servo Drive and MotorY Axis Driving System: Helical Rack & PinionX & Z Axis Driving System: HIWIN Ball-screw Axis Square Rail: HIWIN Linear Square RailATC: Rotary (12) Tools ISO30, ER32Inverter: 11 kWLimit Switch: OMRONElectrical Wiring: SIEMENSControl Switch: MOELLERTool Length Device: AutomaticVacuum Pump: OptionalDrill Bank: Includes (9) Tools HSDCAD/CAM Software: OptionalWorking Size:SERIES 408: 51’’ (X) x 98’’ (Y) x 7-3/4’’ (Z)SERIES 510: 63’’ (X) x 126’’ (Y) x 7-3/4’’ (Z)SERIES 512: 63’’ (X) x 150’’ (Y) x 7-3/4’’ (Z)Machine Size (L x W x H):SERIES 408: 87’’ (X) x 122’’ (Y) x 71’’ (Z)SERIES 510: 99’’ (X) x 149’’ (Y) x 71’’ (Z)SERIES 512: 99’’ (X) x 173’’ (Y) x 71’’ (Z)Max Travel Speed: 2 350 IPMMax Working Speed: 1 100 IPMMachine Net Weight: SERIES 408: 3,960 lbs / SERIES 510: 4,480 lbs / SERIES 512: 4,970 lbsFeatures Include: --Automatic (12) Tool Rotary Type Auto-Tool Changer for Increased Productivity. --All “Servo Motor"; Driving System: All Axes are Driven by Brush-Less Type, High Torque AC Servo Motors. --DSP CNC Controller is Setup to Accept Standard G-Code Programming Formats along with On-Board Conversational Applications. --Optional CAD/CAM System can Create and Edit Part Programs then Send to Machine for Easy Cutting. DXF Files can be Imported, Modified and Edited from here to Create a G-Code. --DNC is no Longer Required as the PC Directly Stores all Part Programs in a Text Editable File. --Machine Designed Ready for 3-D Cutting Usage and Superior Performance. --Moving Gantry Construction for Space Saving. --The Rigid Steel Frame Construction has been Stress-Relieved Prior to Finish Machining to Provide Repeatability and Accuracy. --Automatic Frequency Brake for the Spindle Allows Rapid Deceleration Resulting in Faster Tool Changes. --Linear Guides and Sliding Blocks are Pre-Loaded with Recirculation Bearings to Ensure Maximum Rapid Trav

CAM-WOOD WP-4 S2C-500-16 4-SIDED PLANEROutstanding Performance - Quality Components -- Floating bottom infeed rolls for smooth, positive feeding -- PLC controls with touch-screen interface for ease of operation -- Variable feed speeds by VFD. Controlled from touch screen -- Drive shaft and universal joint feed roll transmission for each feed roll -- Power elevation of overhead mechanism via touch screen control -- Thickness settings from touch screen control -- With cutterheads and carbide knives for straight knife work -- With spindles for easing top edges -- Tables, fences, etc. are precision ground and hard chromed to provide long life and smooth feeding -- Overhead mechanism travels up/down and is support by (6) hard chromed posts -- Motor Control Center with under voltage and overload protection; includes UL and CSA approved electrical componentsWorking Capacities: -- 19 3/4" wide x 16"; high -- Min. thickness: 3/4"; -- Min. width 4-3/4"; -- Max. depth of cut: 1/4"; all heads -- Max. length: Unlimited -- Min. length: 70"; for feed-thru; butt-feed down to 40". (40"; to 70"; may have minor inaccuracies at edge due the hold-down restrictions) -- Feed speeds from 20 to 65 FPMCutterhead Motors: -- 25 HP Top and Bottom (see optional equipment for larger motors) -- 20 HP Right & Left Side Heads (see optional equipment for larger motors) -- Includes Right & Left Spindles for eased edge at top of board; consists of (2) 1 HP floating spindles to accurately ease top edges. Profile knives in primary side heads ease bottom edges.Feed Works: -- (2) 5 HP VFD’s -- (1) motor drives top set and (1) motor drives the bottom set of feed rolls -- Boards synchronize top and bottom feed roll speed and torque Cutterheads and Spindles: -- Top and bottom spindles with 60mm (2.362";) spindle dia. Other diameters on request. -- Includes a set of (2) 4-knife x 25-1/2"; long x 5-1/2"; dia. spiral carbide cutterheads. -- Side heads with 1-1/4" spindle dia. Other diameters on request -- Includes a set of (2) 4-knife x 20"; long spiral carbide heads -- Includes (1) set per head: 15 x 15 x 3mm carbide knives with (4) cutting edges -- All spindles with hydro-lock outboard bearings -- Left & Right Side Heads can be used for profile work with owner provided tooling -- Eased Edge Spindles: 1-1/4"; dia. -- Eased Edge Cutting Circle: 4.9";Dust hoods: -- 8"; dia top and bottom head hoods; 6"; dia. side head hoodsOptional Equipment: -- Optional HP on Top & Bottom Heads, up to 40 HP, -- Optional HP on Right & Left, up to 30 HP, -- Electric Brakes for side spindles, -- Power raise/lower and auto-setting for side spindles, Machine Dimensions and Weight: -- 10’ long x 7-1/2’ wide x 6-1/2’ high x 20,000 Lbs.

CAM-WOOD WP-4S-500-2C 4-SIDED, 19-5/8" WIDE X UP TO 20" HIGH PLANER SPECIFICATIONS FOR 6"; X 19-5/8"; HEAVY-DUTY PLANER: -- Width Capacity from 2-3/4" to 19-5/8" -- Thickness Capacity from 3/4" to 6"; (see options for taller side spindles) -- Variable Feed Speeds from 18 to 75 FPM (higher on request) -- 25 HP Top and Bottom Spindle Motors -- 20 HP Left and Right Vertical Spindle Motors -- (2) 1/2 HP Left & Right Chamfer Motor -- (2) 7-1/2 HP Feed Motors -- Belt-driven, high speed, 7,000 RPM spindle speeds. -- TEFC motors with sealed-for-life ball bearings provide accurate, vibration-free spindle vibration. -- Top & Bottom Cutterhead Dia. 5" -- Right & Left Cutterhead Dia. 5" or 6" -- Top & Bottom Spindle Dia. 60 mm -- Right & Left Spindle Dia. 40 mm (1-13/16" available) -- Chamfer Spindle Dia. 30 mm -- Insert Cutter Size 15 x 15 x 2.5 mm -- (4) 6" Diameter Dust Hood -- Machine Size 110" x 86" x 94" x net 15,200 Lbs. Additional Equipment and Options: -- Right side fixed fence (no charge) -- Change side head spindle rotation to rotate with the direction of feed (no charge) -- 1-13/16" side spindle dia. (no charge) -- Top & bottom spindle rotation against the direction of feed (standard) -- Wired for 480-Volt operation (no charge). -- Pair Auto-Set and Power Raise/Lower of right and left side spindles (included). -- Pair Spindle Brake on right and left side spindles (included). -- 12"; High side spindle with outboard bearing, add $19,000 -- 16"; high side spindle with outboard bearing, add $25,500 -- 20"; high side spindle with outboard bearing, add 30,700. FEATURES: -- Compact construction, huge moulding or planing capacity, extremely flexible and high-performance design. -- Digital controller automatically sets thickness & width adjustment -- Rigidly mounted alloy steel spindles with outboard bearing support provide accurate vibration-free power transfer. -- Spindle height adjustment by precision rack & gear sets -- Beds and fences are precision ground then chrome-plated and polished to a smooth mirror finish. The wear resistant surfaces are easy to clean and maintain -- Variable speed invertor controls for smooth adjustment of feed rate depending on the material hardness, depth of cut & width will provide the best finish surface and fast cutting performance -- The floating powered feed rollers are driven by geared transmission boxes linked to the feed rolls by heavy-duty universal joint axels while firmly holding stock securely to the bed; feeds positively to provide a smooth, even feed rate during rough or finish planning -- The heavy-duty welded and heat treated steel frame supports the beds and helps dampen vibration while safeguarding future years of dependable service -- Industrial rated motors for maximum stock removal and feed rates -- Precision sealed, long-life bearings throughout -- Removable cutter heads are designed for convenient knife changing even on the on the bottom cutterhead -- Changing

CAM-WOOD MODEL WP-4S 650 2C 25" 4-SIDED PLANER WITH MOULDING CAPABILITIES: -- WP-4S2C-650-6 25"; wide x 6"; high 4-Side Planer $189,900 -- WP-4S2C-650-12 25"; wide x 12"; high 4-Side Planer $208,900 -- WP-4S2C-650-16 25"; wide x 16"; high 4-Side Planer $226,900 -- WP-4S2C-650-20 25"; wide x 20"; high 4-Side Planer $238,900Designed for heavy furniture, cabinet, flooring, intermittent planing millwork, and other industrial uses. Perfect Planer for S2S and S4S planing up to 16" high x 25" wide timbers, tongue & groove flooring, wall paneling, etc. up to approximately 75 FPM depending on depth of cuts and dimensions of parts.SPECIFICATIONS: -- Width capacity from 2-3/4"; to 25";. -- Thickness capacity from 3/4"; to 6";. (up to 16"; with O/B Bearings is optional) -- Feed speeds variable from 18 to 65 FPM -- 15 HP Bottom head motor (20 HP optional) -- 20 HP Top head motor (25 HP optional) -- 20 HP Left (outside) spindle motor -- 15 HP Right (inside) spindle motor -- 1/2 HP motors on right & left champhering (top eased edge) spindles -- 10 HP feed motor -- 5"; dia. top and bottom cutterheads -- 5"; or 6"; dia. right & left cutterheads -- 60 mm (2.362";) dia. spindles on top and bottom heads -- 40 mm (1.574";) dia. spindles on top and bottom heads -- 30 mm (1.181") champhering spindles -- 15 x 15 x 2.5 mm insert knives -- (4) Dust outlets, each 6"; diameter -- Planer measurements: 110"; long x 91"; wide x 94"; high -- Planer weighs 19,500 Lbs. FEATURES: -- Compact construction with planing and moulding capabilities; provides flexible performance at an affordable price -- Equipped with a digital controller to set thickness & width automatically -- Rigidly mounted alloy steel spindle with outboard bearing support for accurate, vibration-free planing surfaces on horizontal spindles -- Spindle height adjustment by precision rack & pinion gear sets. -- Bedplates are precision ground, chrome-plated and polished to a mirror finish; provide a smooth, wear-resistant surface -- Variable speed inverter control for smooth feed speed adjustment depending on lumber hardness, depth of cut & width. Speed adjusts to provide the best finish and highest speed for best overall performance. -- Feed rolls are driven by geared transmission boxes and drive shafts with heavy-duty universal joints and drive shafts; provide smooth, even feeding for rough or finish planing -- Heavy fabricated steel plate frame, heated and stress relieved for vibration-free finishes, supports the worktable and helps dampen vibration for a superior finish. Ensures years of dependable service -- Industrial-grade, standard off-the-shelf motors for maximum cutting capacity and ease of service -- Bearings are precision, sealed, long-life bearings for durability and service life -- Removable cutterheads on all spindles, designed for convenient knife changing or rotating, including the bottom head. -- Changing or rotating knives on the top head only requires r

CAM-WOOD WP-610A Single-Sided Planer 10 HP - 24" Cap. Features: -- 24" Spiral cutter head provides precise, efficient planing with low noise levels. -- Automatic digital thickness controller for quick & accurate setting. -- Motorized worktable raises & lowers by separate motor for more efficient operation. -- Specially designed infinitely variable feed system is powered by a separate motor and allows adjustment to the optimal feed rate for planing to a precise smooth finish on both hard or softwoods. -- The sectional infeed roller & anti-kickback device & chip breaker gives the operator greater safety. -- Up to 8"; thickness large cutting capacity. -- Exhaust dust hood with 4"; dia. outlet for proper chip extraction. -- The motorized worktable includes twin quick adjustable bed rollers that can be adjusted for rough & finish planing on damp or dry lumber ensuring a consistently smooth planed finish. -- Precision sealed long-life ball bearing. -- Industrial motor for powerful cutting capacity. Heavy gauge sheet metal frame and base for maintenance-free service.Specifications: -- Table area 25" x 28". -- Max. planing width 24". -- Feed Speed (Var.) 15 ~ 60 FPM. -- Max thickness 8'' and min. Planing Thickness 1/8". -- Elevation Motor 0.5 HP. -- Cutterhead Speed 5,500 RPM. -- Cutter head diameter 4-3/4", Spiral. -- Knife insert dimensions 14 mm x 14 mm. -- Max. Cutting Depth 5/16";. -- Feed Motor 1 HP. -- Cutterhead Motor 10 HP. -- G.W. 1,850 LBS / 2,000 Lbs.

CAM-WOOD WP-660A Single-Sided 15 HP, 26" PlanerFeatures: -- Spiral cutter-head with inserts provide precise, efficient planing with low noise levels. -- Automatic digital thickness controller for quick & accurate settings. -- The motorized worktable raises & lowers by a separate motor for more efficient operation. -- The specially designed infinitely variable feed system is powered by a separate motor and allows adjustment to the optimal feed rate for planing a precision smooth finish on both hard and softwoods. -- The sectional infeed roller & anti-kickback device & chip breaker provide greater safety for the operator -- Exhaust dust hood with 4"; dia. outlet for proper chip extraction. -- The motorized worktable includes quick adjustable twin bed rollers for rough & finish planning on damp or dry lumber ensuring a consistently smooth planed finish. -- Precision-sealed long-life ball bearing. -- Industrial motor for powerful cutting capacity. Heavy gauge sheet metal frame and base.Specifications: -- Table Area 35" x 27". -- Max. Planing Width 26". -- Max. Planing Thickness 11-3/4" -- Mini. Planing Thickness 3/16" -- Cutterhead Speed 5,500 RPM. -- Cutterhead Diameter 4-3/4" Spiral. -- Knife Dimensions 14 mm x 14 mm. -- Feeding Speed (Var.) 15 - 60 FPM. -- Max. Cutting Depth 3/8". -- Feed Motor 1 HP. -- Cutterhead Motor 15 HP, 3 Ph, 230 V. -- Table Elevation Motor 1 HP. -- Digital Thickness Control. -- Dust Hood Outlet 5".

CAM-WOOD WP-760 15 HP Single Sided 30" Planer Features: -- Spiral cutterhead provides precise, efficient planing with low noise levels. -- Automatic digital thickness controller for quick & accurate setting. -- Motorized worktable raises & lowers by separate motor for more efficient operation. -- Specially designed infinitely variable feed system is powered by a separate motor and allows adjustment to the exact feed rate and allows precision smooth finish planing on both hard or softwoods. -- The sectional infeed roller & anti-kickback device & chip breaker provides greater safety for the operator -- Exhaust dust hood with 4"; dia. outlet for proper chip extraction. -- The motorized worktable includes twin quick adjustable bed rollers that can be adjusted for rough & finish planing on damp or dry lumber ensuring a consistently smooth planed finish. -- Precision sealed long-life ball bearing. -- Industrial motor for powerful cutting capacity. Heavy gauge sheet metal frame and base for maintenance-free serviceSpecifications: -- Table Area 38" x 31" -- Max. Planing Width 30" -- Max. Planing Thickness 8" -- Mini. Planing Thickness 3/16" -- Cutterhead Speed 5,500 RPM -- Cutterhead Diameter 4-3/4" Spiral -- Knife Dimensions 14 mm x 14 mm -- Feeding Speed (Var.) 15 ~ 75 FPM -- Max. Cutting Depth 5/16" -- Feed Motor 2 HP -- Cutterhead Motor 15 HP, 3 Ph, 230 V -- Table Elevation Motor 1 HP -- Digital Thickness Control Yes -- Dust Hood Outlet 5"G.W. 2450 Lbs
