woodworking Equipment For Sale

1998 SCM TECH 30 Super Router

SCM TECH Z 30 CNC MACHINING CENTER (W/ATC/BORING): -- Specifications:Working Field "X" axis 120" (3,050 mm); "Y" axis 52.7" (1,340 mm) for routing & 44" (1,118 mm) for boring; "Z" axis stroke 7.8" (200 mm); max. material thickness 3.9" (100 mm). -- Positioning Speed:"X" & "Y" Axes are 197 FPM (60 MPM); "Z" axis is 72 FPM (22 MPM).Axes positioning by: AC Brushless motors and YASKAWA drives; high precision ball screw drive system in "X", "Y". "Z" Axes;All axes ride on prismatic guideways & sliding blocks. -- Worktable:(6) "TV" Tubeless mobile support rails, (2) vacuum pods per rail; (4) pneumatic lifter rails for heavy panels.(6) Pneumatic pop-up backstops, (6) pneumatic pop-up front stops; (2) pneumatic pop-up side stops.LED Display positioning assistance for the support rails & vacuum pods; (2) independent working fields. -- Boring Head:3 HP (2.2 kW) motor - 4,000 RPM; (15) independent vertical spindles: (8) Spindles in "X" & (7) spindles in "Y".(6) Horizontal spindles (2 + 2) in "X" & (1 + 1) in "Y-axis".(1) X-axis grooving saw with 100 mm dia. blade - 6,000 RPM. -- Machining:(1) 10 HP (7.5 kW) Electro-spindle router with: HSK F63 Adaptor; variable speed from 1,000 - 24,000 RPM, max. torque achieved at 12,000 RPM.Static inverter for stepless speed & rapid shutdown rotation.(1) 6-Position ATC tool plate mounted on the on the machine for "on the fly" ATC; max. tool weight is 8 kG (17.6 Lbs). -- Operator & Machine Control:PC Front-End with: SCM "UNIVERSAL K2" + "Xilog Plus" + Windows "XP" Pro Operating System; 15" CRT color display, CELERON 2 GHz processor, enclosed in air-conditioned cabinet. -- Complete with:(1) 100 m³/Hr Vacuum Pump; automatic lubrication system; "BUMP STOP" safety system. -- Actual Model is SCM TECH Z30 R6

SCMI - STARTECH 29: Construction Boring MachineSpecifications -- 29-Spindle boring head (aluminum alloy single block); drills vertically from top & horizontally from rear. -- Manual tilt with: Gas shock cylinder assist; positive stop at 45° for boring at an angle. -- 3 HP - 3,400 RPM Motor. Equipped with: -- 6-Position turret depth stop; 2-3/8" boring head stroke with: Digital readout setting; hydraulic brake for vertical "through boring." -- (3) Air holddown clamps; foot pedal operated. -- Index pins for: Line boring; side fences.

2019 SCM Stefani KDR with return conveyor.

SCM - OLIMPIC K230R EVO: Edgebander (w/Premilling) -- Specifications0.4mm to 3mm Edge thickness; panel thickness 8 mm to 50 mm (0.3" to 1.96"); minimum part width 60mm (2.36"); minimum part length 160 mm (6.30").Minimum distance between panels: 559 mm (22";); 29-1/2 FPM (98 MPM) Fixed feed speed; 1.0 HP (0.75 kW) feed drive.Premilling Station(2) 2.0 HP (1.5 kW) Motors to rectify/clean panels already sized. -- Adjustable infeed fence: Manually preset with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 kG TEFLON Coated glue pot; glue roller application system complete with: Automatic recycling device for unused glue.Digital thermostat adjustment for temperature control; pneumatic guillotine; heating time approx. (8 - 10) Min.3-Roll pressure unit with: Pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine.Workstations2-Motor front & rear End Trimming (1/2 HP - 12,000 RPM ea. motor.); tilts 0° - 15°; end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with: Quick release mount and plug-in motors for quick tooling changes.0.5 HP - 12.000 RPM Motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Top & bottom scraping unit with: Manual positioning. -- Top & bottom buffing unit (1/4 HP - 3,000 RPM motors); tilts up to 12°. Operator & Machine Control"ORION 1 Plus" Controller: Located at the infeed of the machine; capable of operating all the work units via soft touch buttons.It pneumatically tilts the end trim unit from the Control Panel; eliminates the use of micro switches, as well as controls the temperature of the glue.Control is tilted slightly upward for a more ergonomically friendly position for the Operator. -- Actual Model is: SCM OLIMPIC K230R EVO

SCMI T-130 Shaper -TL Tenoning Table Version w/STEFF 2048 FeederSpecifications: 1-1/4" Dia. spindle and a full set of throat plates, 9 HP belt drive motor with (5) spindle speeds of 3,000 - 4,500 - 6,000 - 7,000 & 10,000 RPM; -- 6" Max. cap. under nut; (5) table insert rings, 13-1/2" max. insert opening. -- 47" x 28-1/2" Cast Iron sliding table w/slot for miter gauge.Complete with: Reverse rotation switch, digital height readout, adjustable fence assembly, miter gauge, dust hood with 4" pipe connection. --Mechanical spindle brake, spindle locking foot pedal, TL tenoning table for tenoning-profiling.Includes: STEFF "2048"POWER FEEDER (230 V / 3 Phase), Operating Manual.

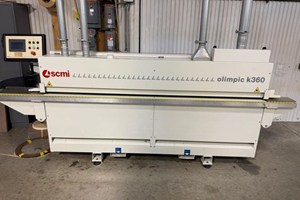

SCM - OLIMPIC K360 ERT HP SERVO: Compact Edgebander (w/Premill & Corner Rounding)Specifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width 65 mm & 140 mm min. length (2-3/8" & 5-1/2"); panel thickness: Min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP - 19,000 RPM; (1) with PLC controlled jump action & diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers: First larger; Teflon coated & powered. Workstations -- End Trimming Station. Front & rear: (2) x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with: Automatic swivel cylinder. -- Trimming Unit. Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings; Flush/bevel/radius trimming: (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Corner Rounding Unit. "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit. "RAS/V": Top/Bottom, manual preset up with digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit. Top/bottom: (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Operator Interface -- ORION "1 Plus" Controller. Fixed at infeed of machine with: "Touch Screen" control; softkeys; graphics; LCD display panel; handles most machine setup functions & workstations. Complete with & Features -- Servo-Controlled Electronic Axes. The HP Servo model allows: Electronic positioning of key stations through the touchscreen. This reduces setup time dramatically when switching between: 1 mm PVC; 3 mm PVC; Wood edging; different panel thicknesses. For a custom cabinet shop running mixed jobs daily, the Servo package can easily: Save 15 – 30 minutes of setup time per day compared with manually adjusted machines. -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support. -- Actual Model: SCM OLIMPIC K360 ERT HP SERVO

SCM OLIMPIC K 360 COMPACT EDGEBANDER WITH PRE-MILLING Specifications: -- Edge Capacity: 0.4 - 6 mm (0.016" - 1/4") for strip feeding. -- Panel Capacity: Min. width: 65 mm; min. length: 140 mm min. length (2-3/8" and 5-1/2"). - Panel thickness: Min./max.: 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- 2-Head Pre-milling station model (2.5 HP - 19,000 RPM motors ea.). -- Adjustable infeed fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP 19,000 RPM; (1) PLC controlled jump action and diamond cutterheads. -- Automatic strip & coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat up time approx.: 10 Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers; 1st larger Teflon coated and powered. Workstations: -- End Trimming Station - Front & rear: (2) x 1/4 HP - 12,000 RPM motors mounted on THK guides; swivels 0° - 15°; rapid set up between straight & angled cutting with the automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings: Flush. bevel, radius trimming; (2) x 0.7 HP - 12.000 RPM motors: Precision digital indicators for quick set up. -- Profile Scraping Unit "RAS/V": Top/Bottom; manual preset up with digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Buffing Unit: Top/Bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Complete with & Features: -- Feed speed: 36 FPM fixed; (1) x 2.0 HP Feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support.Condition: ATFS

SCM Olimpic K560 Automatic Edgebander: --Heavy-duty industrial edgebander designed for professional cabinet, millwork, door, panel-processing, and production applications. --Equipped with: --Automatic edge-feeding and gluing system for consistent edge application. --Automatic panel-feed system designed for continuous productions. --Work Stations: --Automatic end-trimming station. --Top and bottom buffing station for clean finished edge. --Complete with: --Operator control system for machine setup, adjustment and production control. --÷Machine specifications: --Manufacturer: SCM Group --Model: Olimpic K560 ÷Year: 2014 ÷Serial Number: AH/117660÷Electrical: 220V/3-Phase/60Hz÷Rated Current: 51 amps÷Machine Weight: 1,386kg (approximately 3,056lbs)÷Country of Manufacture: Italy --This SCM Olimpic K560 is a substantial production machine well suited for processing cabinet components, panels, doors and architectural millwork.

SCMI - SI 350 E: Sliding Table Saw with Motorized Blade adjustments and powered Rip Fence positioningSpecifications -- 3,200 mm (126") Stroke length; anodized aluminum 14-1/4" wide sliding table; 2-position table locks for easy panel loading in any position. -- 45° Tilting; 1" dia. main saw arbor; 350 mm (13-3/4") blade dia. cap. -- 11 HP Main saw self-braking motor; main blade speed of 4,000 RPM. -- 2.0 HP Scoring saw motor; 3/4" dia. arbor - 8,500 RPM. -- Electric control for: Blade group raise, lower and tilt; LED readouts (raise readout not functional), and separate controller to position rip fence accurately with: Fast/slow control to accomplish the left & right movement.Equipped with: -- Articulating overarm protection guard; Heavy-Duty tubular steel support; dust guard. -- 41" x 25" Fixed table size; square crosscut fence with: (2) stops; extension table with: Miter fence & sliding outrigger support.Includes: -- (1) 5" & (1) 4" Dust outlet; centralized control panel with magnetic controls; safety micro-switches on access panels & doors; extra blades.Approx. shipping dimensions: 14' L x 8-1/2' x W x 5' H; 3,000 Lbs.

SCM - OLIMPIC K 560 R HP SERVO: Edgebander w/Premill & Corner Rounding -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel CapacityMin. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station. (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine. For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect TEFLON glue pot for fast glue tanks change if needed. - Heat up time approx. (10) Min. -- Pressure Section. Manual digital positioning: TEFLON Coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station. Front & rear: (2) 1/2 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit. With: (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit. Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit. Eliminates any excess glue. -- Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled, adjustable top hold-down pressure beam. -- Automatic panel spacer to eliminate premature loading. -- Antiadhesive spray. -- Full sound enclosure cover & outboard panel support. -- Actual Model: SCM - OLIMPIC K 560 R HP SERVO.

SCM - OLIMPIC K360 ERT HP: Compact Edgebander (w/Premill & Corner Rounding)Specifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width 65 mm & 140 mm min. length (2-3/8" & 5-1/2"); panel thickness: Min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP - 19,000 RPM. -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers: First larger; Teflon coated & powered. Workstations -- End Trimming Station. Front & rear: (2) x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting. -- Trimming Unit. Flush/Bevel/Radius: Top/Bottom with pneumatic positioning for (3) settings; Flush/bevel/radius trimming: (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Corner Rounding Unit. "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit. "RAS/V": Top/Bottom, manual preset up with digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit. Top/bottom: (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Operator Interface -- ORION "1 Plus" Controller. Fixed at infeed of machine with: "Touch Screen" control; softkeys; graphics; LCD display panel.Complete with & Features -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam; full sound enclosure cover; outboard panel support. -- Actual Model: SCM OLIMPIC K360 ERT HP

SCM Sandy 10 -RCS-110 Wide Belt Sander (2) Heads43" Width cap. Drum, Combination HeadHead Configuration:1st. Head: 7" diameter corrugated metal roller for calibration 35 HP ( Drives both Heads )2nd Head: Combination head with 7" dia. contact roller (spiral grooved rubber covered); air/jump finishing platen controlled with timers to eliminate any rounding on leading & trailing edges of the panel, 2" wide platen.Specifications --103" long x 43" wide Abrasive belts --Air tracking, floating & rigid bed for sanding of veneers & solid panels; infeed & outfeed spring loaded holddown rolls -- Minimum workpiece length 16" --Thickness capacity 6.25". --Separate 2.5 H.P. variable speed feed motor delivering feed speeds from 15 to 70 FPMNote: The seller has 20 boxes of various sandpaper belts (80 – 150 grit) that will be included.

SCM SANDYA - 40 M3 135, ...3-Head Wide Belt Sander 52" Width cap. Drum, Drum, Combination HeadHead Configuration:1st Head: Steel Contact 22 kW Pneumatic blowdown and alignment.2nd Head : Rubber Contact 18.5 kW Pneumatic blowdown and alignment.3rd Head: Combination Platen 15 kW Pneumatic blowdown and alignment.Note:The SCM sander does not have a brush. After the 3rd head, it has this pneumatic blow-off bar with multiple blow-offs running the length of the sanders width. Sander can be seen under power if needed.Specifications: -- 53" x 103" Abrasive belts with electronic tracking. -- All heads with abrasive belt grit compensation. -- Conveyor belt feed with dual feed speed, 5 HP motor. -- Automatic part thickness adjustment. -- Motorized thickness opening via (4) precision conveyor bed jacks with LED readout. --0" - 7-7/8" opening. -- Equipped with & Features -- Outfeed rubber covered holddown rolls or shoes on all heads. -- Motor load meters. --Infeed and outfeed conveyor extensions. -- WYE-DELTA soft start.Note: The SANDYA model "40" is more or less the same as the SANDYA "30" but more Heavy Duty.

SCM - PRATIX S-15-C: Flat Table Machine (w/ATC/Boring) + Rake -- SpecificationsSingle 5' x 12' traveling "Bridge Gantry"; stationary aluminum dual vacuum table with: MATRIX Square grid pattern for fixturing parts.Grid pattern allows use of: Vacuum pods or closed cell rope gasketing material; use of spoil boards for "nested base machining".(8) Part location pop-up pins mounted on the table perimeter. -- Working Field"X" Axis: 145.11" (3,686 mm); "Y" axis: 61.2" (1,555 mm); "Z" axis stroke: 9.8" (250 mm); max. material thickness: 4" (100 mm). -- Positioning Speed"X" & "Y" Axis: 115 FPM (35 MPM); "Z" axis: 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis; ground ball screws "Z" axis; all axes ride on extra-large precision profile linear guideways. -- Boring Unit 3 HP (2.2 kW) - 6,000 RPM motor; (12) vertical spindles on 32 mm centers: (7) In "X" axis & (5) in "Y" axis. -- Machining(1) 11 HP (8.2 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds from: 1,500 - 24,000 RPM.(1) 14-Position ATC tool rack mounted to the machine base. -- Operator & Machine ControlPC Front-End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports; serial ports RS-232 & RS-242; Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers: Incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally equipped with:Onboard mini-CAD with built-in programming for writing: Circles, ellipses & angles with only a few keystrokes; onboard cycle optimization; onboard calculator; mirror imaging; and repeat imaging. -- Complete with:(2) 6.4 KW/8.5 HP Vacuum Pumps; external transformer 208/230/480 Volt; safety enclosure around the spindle carriage; tool length probe sensor; manual centralized lubrication.Includes: (1) Universal Remote Pendant; 7" color display: Allows for the effective management of all machine functions from manual Jog Mode to Loading & Execution of a program.Pendant is fitted with: USB Port to allow quick load & setup of new programs; safety "bump stop" bumpers; emergency stop rope & manuals. -- Options IncludeAdditional items pictured are included with this machine. -- Actual Model: SCM - PRATIX S-15-C

SCMI OLIMPICS1000 T-ERL EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) -- Specifications:Edge Capacity, 0.4 to15 mm (0.016to 5/8") for strip feeding. -- Panel Capacity, in. width50 mm and 140 mm min. length, (2.0" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). -- Equipped With:Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 5.25 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning and Diamond Cutter-heads. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station, VC/1000: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered.Workstations: End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000RPM motors mounted on THK guides, swivels 0³ - 15°, rapid set up between straight and angled cutting with the automatic swivel cylinder -- Flush Trimming Unit, RSP: Top/Bottom, 2 x 1.5HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit, RI/S: Programmable, servo motorpositioning,2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit, Round-K: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides,2 x0.8 HP - 12,000 RPM motor. Comes with (2) pre-set pneumatic positions to allow to go from thick to thin PVC automatically. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "Rca/2c": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12° -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick PVC edging materials that may be lost during the edge scraping process.Operator Interface:Startouch Controller,12" color touchscreen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules.Complete With & Features:Feed-speed,40/60 FPM, 1 x 2.5 HP feed drive motor,200 Hz frequency inverter for all trimming units. -- Electronic, programmable hold-down pressure beam positioning, lighted safety/sound enclosure cover and outboard panel support. -- Actual Model is SCM OLIMPICS1000 T-ERL

SCM SANDYA 15S (3) Head Wide Belt Sander42" Width cap, Drum, Drum, Combination HeadHead Configuration:1st Head: Steel contact roll, 7" dia., 35 HP motor;2nd Head: Rubber-covered contact roll, 24 HP motor3rd head: Combination head, rubber-covered contact roll (45 Shore) and 3" wide finishing platen, 17.4 HP motor.Specifications: -- 43" x 103" Abrasive belts -- Electronic tracking & pneumatic belt tensioning, abrasive belt grit compensation. -- Conveyor belt feed with dual feed speed, 4 HP motor -- Automatic part thickness adjustment -- Motorized thickness opening via (4) precision conveyor bed jacksEquipped With & Features: -- LED readout, 0" - 6-1/4" opening. -- Infeed & outfeed spring loaded rubber covered hold-down rollers -- Motor load meters -- Infeed and outfeed roller conveyor extensions.

SCM OLIMPIC K360 ERT HP: Compact Edgebander (w/Premill & Corner Rounding)Specifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width 65 mm & 140 mm min. length (2-3/8" & 5-1/2"); panel thickness: Min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable Infeed Fence: Manually preset with digital indicator, pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP - 19,000 RPM; (1) with PLC controlled jump action & diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers: First larger; Teflon coated & powered. Workstations -- End Trimming Station. Front & rear: (2) x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with: Automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings; Flush/bevel/radius trimming; (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Corner Rounding Unit "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit "RAS/V": Top/Bottom, manual preset up with digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit: Top/bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Operator Interface -- ORION "1 Plus" Controller. Fixed at infeed of machine with: "Touch Screen" control with soft keys, graphics, & LCD display panel; handles most machine setup functions & workstations. Complete with & Features -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam; full sound enclosure cover; outboard panel support. -- Actual Model: SCM OLIMPIC K360 ERT HP

SCM - ACTION TF 2500: Case Clamp (Automatic Feed Through) -- Specifications Max. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31.5") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 250 mm (9.8") depth. -- Working table height: 600 mm (23.6"). -- Max. Vertical pressing force: 1,500 kG (3,300 Lbs). Max. Side pressing force: 1,200 kG (2,640 Lbs).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator does is place the box onto the powered infeed belt to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC to program cycles. -- Rack & Pinion system; Brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM ACTION TF 2500

SCMI - Sandya 3S/ RCS: 37" Double Head Wide Belt Sander37" Width cap.; Drum, Combination Head.1st Head. 4-1/2" Diameter steel contact drum with: Manual grit set.2nd Head. 4-1/2" Rubber drum with: 2" Wide soft platen.Specifications -- 30 HP - 230 V - 3 Ph Drive. -- DELTA Soft start motor controls. -- Electrical requirements: 91 Amps. -- Anti-dubbing control of platen; rise-fall to protect leading & trailing edges of panels. -- Variable speed conveyor by: Inverter, 12 - 60 FPM with: Digital display for working height. -- Automatic thickness set up. -- 6-1/2" Max. thickness capacity.Equipped with & Features -- Automatic conveyor belt tracking (pneumatic cylinder). -- (2) Platens; soft (for veneer); semi-stiff (solid wood). -- 50 Durometer conveyor belt. -- 2-Roller infeed & outfeed roller tables. -- (4) Top & Bottom fastened jack screws. -- Manual adjustment of contact roller & platen positions; 1,800 CFM. (2) 5" Dust Ports.
