Door Machines For Sale

Accu-Systems MMTJ Door Machine

Machine for manufacturing mitered doors…cuts trims, drills and finger joints corners 3 HP saw with 400 mm blade (2) 7-1/2 HP shaping heads clockwise/counter clockwise PLC controlled

BUILDERS AUTOMATION (BAM) 2220 Stair Wedge Cutter. Automatically cuts wood wedges used to lock stair treads and risers into slots in stair stringers.. -- Equipped with: 10" Dia. saw blade with 1.5 HP direct drive motor, hopper feeds material automatically, air operated with 6 CFM compressed air requirement, 1.8 Sec/stroke. -- Features: Auto-shutoff feature and capability to cut glue blocks. -- Upright guide expandable to hold up to 40 pieces of wood at one time -- Rapid changeover to cut glue blocks for more efficient operation -- Once cycle started, hands-free use for labor-saving utilization -- Enables you to easily change size or angle without tools saving time and improving productivity -- Utilizes a 1.5 HP saw that automatically cuts pieces up to 9-1/2" W x 11-1/2" L -- Operator panel includes key start and e-stop controls for the saw motor and start/stop control for the pneumatic system that coordinates all machine motions -- Capable of producing wedges of varying thickness on alternate strokes of the saw -- Scrap material is ejected under the machine, and the wedges are discharged into user-supplied hoppers -- An included discharge chute diverter separates automatically and directs wedges of different thicknesses (produced on alternate saw strokes) into separate hoppers (user-supplied) -- Sawdust carried away from the saw guard pick-up through a 3" diameter hose -- Comes with manufacturer's standard 1-year warranty -- Complete with: Self-diagnostics, built-in starter, automatic shutoff feature, air filter & lubricator.

BUILDERS AUTOMATION MFSR CNC 5-Axis Multi-Function Stair Routing Machine, fully programmable.Specifications: -- Axis Configuration: 1.) X axis; 2.) Y axis; 3.) Top Z (top router depth control); 4.) Bottom Z (bottom router depth control); 5.) Axis A (advancing of board) -- Features: Programmable Touch Screen for simpler stair characteristic input by operator; Touch Screen for landing cut both top & bottom for open box & contemporary; Two (2) high frequency routers with 7.5 HP @ 24,000 RPM fan-cooled spindles that can accommodate shanks of ½" or 3/8" diameter.Accepts one or two stringers at a time -¾", 1", 1½" thick for a total of 3" maximum thickness and 7¾" to 15¾" wide; Extra wide ¾" guide rails for more bearing surface with a 3¼" high fence. -- Includes: (5) Cylinder clamps - 3 fixed and 2 adjustable for up to 2,950 Lbs of vertical stringer clamping force. Additional 1,180 Lbs horizontal clamp force for a total of 4,130 Lbs.; Self-centering feed system on linear bearings for better support and elimination of wear on the brass parts; Accommodates staircase angles from 20° to 45° and riser kickback from 5° to 11° with landing cut; Cuts up to ½" deep in yellow pine at the maximum rate of 20" per second and an open stringer in a single cut;Programmable to cut any combination of box, contemporary, or open stairs with landing cut; Completes the top and bottom landing cut without additional handling or manual sawing. Adjustable setting for wedge fit or material variances. -- Production rate: Approx. cycle time 10 Seconds per 7/11 tread in 1 or 2 stringers. -- Comes with: Dust collection cups on each router for clean efficient operation.Manufacturer's standard 1 year. -- Overall Dimensions/Weight: Measures approx. 8′ x 6′ 5″ x 7′ high; Gross weight approx. 3,500 pounds. -- Services required: Air requirements 15 CFM @ 110 psi, (minimum ¾" diameter unrestricted line);Electrical requirement 230 V, 3-phase at 70 Amps. -- Available Option: Extra wide, custom version that cuts down the middle of up to a 24" wide stringer, yielding two sets with no waste (except sawdust).

CAM-WOOD 86PAAU Raised Panel Door Machine machines entry door stile and rail door parts as well as cabinet door parts, chair legs and furniture parts, up to 86" length and 7" width.. One operator to machine profiles to the rail copes, stile and rail sticking and raised panels with rapid change over all on one machine for high productivity. Features Include: -- Hydraulic table movements from right to left to achieve powerful cutting and adjust cutting speed variability. Table movements in and out are pneumatic powered to follow a template sensitively. --One operator to machine all profiles for stiles and rails on one machine, along with raising all panels both edges top and bottom. -- Capacity for machining a 6" arch/oval on panels and rails, and raises both face on a raised panel at the same time (arc size varies depending on cutter diameter). -- Raise a curved panel up to 6" radius both on rails and panels. -- Hydraulic pump unit for accurate table speed control. -- Simple guide system follows templates for curved or arched profiles and is quickly repositioned for straight machining profiles. -- Cutterhead knives can be stacked on the same spindle to eliminate changing machines to machine door parts. -- Easy stop system for door stiles or rail lengths. Two separate stops work for rail/stile/panel arch cut positions. -- Heavy duty 10 HP motor, allows for high speed cutterhead to eliminate unnecessary sanding. -- Proximity switches control the cutting stroke. Linear guide rails and bearing for a lightweight & smooth slide. -- More than one part may be milled at one time. Pneumatic holddown cylinders hold parts tightly without slide during cutting. -- Easy positioning of parts on a precision ground, cast iron table ensures accurate stile rail and panel machining and alignments. -- Machines door stiles up to 86" in length.More Specifications: -- Spindle Motor 10 HP @ 7,000 RPM; Hydraulic Motor 1 HP; Feed Speed 0-60 FPM. -- Spindle Diameter 1-1/4"; Spindle Height 7"; Depth of Radius Cut 6";; Min. Radius Cut 6" (based on cutter diameter) machine door stiles up to 86" in length. Dust Hood is 4" dia. -- Dimension: Length 120";; Operating Length 228";; Width 48";; Height 48";. Weight 300 lbs. Air Supply Required 100 PSI -- Note: Delivery time about 10-12 weeks.

CAM-WOOD 102PAAU Raised Panel Door MachineMachines entry door stile and rail door parts as well as cabinet door parts, chair legs and furniture parts, up to 102" in length and 7" in width. One operator to machine profiles for the rail copes, stile and rail sticking and raised panels with rapid changeover, all on one machine with high productivity. Features Include: -- Hydraulic table movement from right to left to achieve powerful cutting and adjust cutting speed variability. Table movements in and out are pneumatically powered following a template with very high accuracy. -- One operator to machine all profiles for stiles and rails on one machine, along with raising all panels both edges top and bottom. -- Capacity for machining a 6" arch/oval on panels and rails, and raising both faces on a raised panel at the same time (arc size varies depending on cutter diameter). -- Raise a curved panel up to 6" radius both on rails and panels. -- Machines door stiles up to 102" in length.Technical Features: -- Hydraulic pump unit for accurate table speed control. -- Simple guide system follows templates for curved or arched profiles and is quickly repositioned for straight machining profiles. -- Cutterhead knives can be stacked on the same spindle to eliminate changing machines to machine door parts. -- Easy stop system for door stiles or rail lengths. Two separate stops work for rail/stile/panel arch cut positions. -- Heavy duty 15 HP motor, allows for high speed cutterhead to eliminate unnecessary sanding. -- Proximity switches control the cutting stroke. Linear guide rails and bearing for a lightweight & smooth slide. -- More than one part may be milled at one time. Pneumatic holddown cylinders hold parts tightly without slide during cutting. -- Easy positioning of parts on a precision ground, cast iron table ensures accurate stile rail and panel machining and alignments.More Specifications: -- Spindle Motor 15 HP @ 7,000 RPM; Hydraulic Motor 1 HP; Feed Speed 0-60 FPM. -- Spindle Diameter 1-1/4"; Spindle Height 7"; -- Depth of Radius Cut 6";; Min. Radius Cut 6" (based on cutter diameter). Dust Hood is 4" dia. Dimension: -- Machine Length 120";; Operating Length 228";; Width 48";; Height 48";, Weight 300 Lbs; Air Supply Required 100 PSINote: Delivery time about 10-12 weeks.

CAM-WOOD PT-48VAX Door Clamp (Single Sided). -- Work Space: 48" Max. width x 97" max. length, hydraulically operated.Specifications: -- Applies max. 11,000 PSI pressure from (2) sides; 90 PSI from holddown. -- Includes 5 HP hydraulic pressure system. -- Hydraulically operated assembly table; twin hydraulic cylinders for moveable rams at two sides pressing for max. assembly capacity. -- Easy adjustments of rams, makes changing sizes simple; separate controls for adjusting the each side of press rams. -- Fixed reference points for lower & left edges ensure 90° assembly of face frames; heavy gauge steel metal table & frame.NOTE: Also available as a 2-sided Clamp for ...$26,500.

CAM-WOOD PTX-2513 Entry Door/Window Hydraulic Assembly Press, 4' x 8'. Hydraulically operated. Solidly constructed and welded with great precision.Specifications: -- Working area:1300 mm (51") Max. width; 2500 mm (98") max. length. -- (2) Vertical cylinders, each of stroke 80 x 600st; (2) side cylinders, each of stroke 50 x 800st. -- Comes with: 2 HP hydraulic pump motor. -- Outer structure is made of two vertical beams which are individually located at the upper and the bottom side of the machine. The horizontal beams have vertical hydraulic cylinders thereby moving beams up and down to distribute the pressure evenly on the workpiece. The overhead push button operates the hydraulic motor. -- Stops (square blocks) are moved manually to set to the desired position. The mobile pressing platen of the square block and the horizontal upper beam can be moved by the vertical hydraulic cylinder. -- Equipped with: A pressure gauge and pressure control valve to regulate the vertical and horizontal hydraulic cylinders for precise, desired working pressure. -- Overall Dimensions/eight: 3000 x 1200 x 2200 mm (120 x 48 x 87"). Weight: 1200 Kg (2650 Lbs).NOTE: Also available in 5' x 10' Press for ...$26,500.

CAM-WOOD - EX-ARES ...CNC Door Processing Machine Center for Pre-Hung Doors with Automatic Tool Changer. Distinctive design for Door Pre-Hang Processing. -- All the 5-side Project Processing -- Automatic Feed Through (Options with Auto Loading and Out-Feeding) -- Hinge Face Milling, Screw Hole Drilling -- Lock Bore Drilling -- Latch Face Milling, Latch Bore Drilling. FEATURES: -- DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications. -- Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can imported, modified, and edited from here to create a G-code. -- Horizontal and vertical spindle for top and side stock processing -- Machine designed ready for 3-D cutting usage and superior performance. -- Moving gantry construction for space saving. -- The rigid steel frame construction has been stressed relieved prior to finish machining to provide repeatability and accuracy. --Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes. -- Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision. -- The X & Y axis equipped with a precision rack & pinion driving system. The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.SPECIFICATIONS: -- Working size 51"; Width x 98"; Length x 7-7/8"; Height (Door Lock Maximum Depth 4-3/4";) -- Custom made door vacuum table (Optional Vacuum Pump) -- SYNTEC 60WA control with All in one PC Controller -- 9.0KW air cooling Spindle with 4 pcs ISO30 tools linear ATC for Top Side Milling, Drilling, Lock, Bore.. Processing -- 6.0KW double Side milling Spindle at X direction for X Axis Two Side, Milling, Drilling, Ball Catch, Split Line. Processing -- 6.0KW double milling spindle at Y direction, Two Side, Milling, Drilling, Hinge, Latch Hole, Face, Dead Ball, Processing -- 2.2KW 4 Side Milling Spindle for All the 4 Side, Small Holes, or Screw Hole Drilling process -- 1500W servo drive. -- Max travel speed 200 FPM (60m/min), Max working speed 50 fpm (15m/min) (According different processing material) -- Professional PTP table with German SCHMALZ Vacuum pads 6pcs -- 2M helical rack, 30 square rails & Ball screw -- Automatic control with Aluminum oil pipe Oil lubrication.OPTIONS: -- 10' table capacity ...............$US3,100. -- ARES Options for 3 Degrees Bevel.A.) Pre-set the Angle heads point to left or right side at tool rack. HSD Angle Head $US8,990.00 each (most time, it will need at least two units, preset to 3 degrees, one bigger cutter for routing, one small cutter to do re-fine the latch corner or drill the screw holes).B.) Upgrade to Italy HSD C Axis System add $US23,990.00. (Horizontal 360 Degrees turning, it can work on all the 4 door edges). Plus, HSD Angle Head $8,990.00 each (most time, it will need at least

CAM-WOOD DS 4080 NC Control Squaring Saw -- NC controlled cutting saw (4) blade heads for squaring up to 1,200 mm X 2,450 mm (47.2" X 96.5")Features: -- Automatic Cutting Cycle for all the 4 side with mass production capacity. -- Automatic width, length setting by Digital Key Pads. -- Variable Cutting Speed with Inverter. -- Saw head runs on ball bearings giving effortless and smooth movement. -- Heavy sheet metal frame and stand construction. -- Quick tilting positions stop at 45º, right and left. -- Saw head is firmly set at any angle desired. Safety saw blade guard. -- Anti-kickback attachment included. -- Full power industrial motor for durability usage. Overload protection switchTechnical Data: -- Maximum cutting/shaping length 2,450 mm (96.5") -- Minimum shaping length: 1,750 mm (68.9") -- Maximum cutting width 1,200 mm (47.2") -- Minimum shaping width: 600 mm (23.6") -- Saw motors (4) x 4 HP each -- Saw blade diameter 305 mm -- Inverted speed control of the saw movement driven by 1 HP motor from 10 FPM to 60 FPMFloor space requirement: 3,950 mm X 2,150 mm X 2,070 mm (155.5" X 86.6" X 81.5")

COMEVA - NICRON 2C, ...CNC Door Machining Center with ATC and Flat Table for NestingSimple, robust, fast, and versatile CNC that can meet all your needs milling, drilling, trimming etc. passage and entry doors. Using available CAD software, it can also machine any designs such as raised panels on entry doors or special bevels on door jambs. - Equipped with a Flat Table compatible with nesting, Router milling motor, Double-End horizontal milling motor to work on edges of all types of doors is added to "free space" location. Also (see options below) for machining the hinges on door jambsMachine Specifications. Head Composition: -- Milling Router with Tool Changer capability, working in conjunction with the 6-position tool rack. This Router can machine the door knob/plate openings, rebate on edge of door frame. -- (1) Double-End horizontal Router Head: The Double-End spindle has one of the outputs with a cutter for machining the hinges and the second output has cutter for milling of the door latch opening.Worktable: -- REXILON Nesting type flat table slotted for vacuum distribution and with (12) pneumatic reference stops. -- Tool changer with 6-position tool rack on one side of table. -- (4) Independent vacuum zones; Working area is 2,600 x 1,300 x 200 mm (102" x 51" x 7.8"). -- Workholding can be achieved with zoned vacuum table (for milling on the top surface of doors and wider door jambs, raised vacuum cups for edge of doors and machining of hinges on door jambs (with optional jamb fixture device below).Control & Software: -- Mobile CNC control panel for all axes control c/w display, keyboard, and mouse. -- Powerful CNC Controller for machining control on all axes, reference stops, vacuum zones, and working groups; -- CADCAM Software is UCAMAM V11 (standard version) with: Postprocessor (which translates to language of machine) drawings from images such as BMP, JPG, TIF, GIF, PNG, as well as vector files from any format ADOBE Illustrator, DXF (CAD), EPS, PLT, TXT. Draw with this software directly and has auto-nesting to optimize use of the material.Drives & Speeds: -- ATC Router is 9 kW, 12,000 - 18,000 RPM with DELTA Inverter. -- Horizontal double-end unit is: 2.2 kW, 12,000 RPM. -- X & Y-Axe Speeds are: 10 MPM (30 MPM with safety barrier, faster speeds available); Z-Axis is 10 MPM. Other Machine Composition. -- Piston Stops: (12) Divided into (4) fields. -- Lineal Guides: H/Win 20 mm wide. -- Lubrication System: Central - manual. -- Vacuum Pump: 160 CBM/Hr, 7.5 HP. -- Standard machine voltage: 220 V, 50 - 60 Hz, 3-Ph (Transformers available). -- Overall Dimensions & Weight: 3,900 x 2,150 x 2,100 mm (154" x 85" x 83"); Weight: 2,300 kG (5,000 Lbs).Optional: - CE regulation (Light barrier and perimeter fencing ): ....................3,100 Euro- Raised (50 mm) Vacuum Cups. Recommend (8) @ 165 Euro......1

COMEVA - NICRON DOOR PRO, ...CNC Door/Jamb Machining Center with Automatic Tool ChangerGantry style flexible Door CNC Machining Center which can machine Hinges, Locks, Grooves, Door Face Patterns and many similar applications. The advantage of this machine over the NICRON DOOR C is this model can also resize the doors and its ability to machine the top/bottom of doors with the 90° rotation feature. It also has a floating head for grooving designs on the door faces while compensating for uneven door surfaces. Specifications: -- Max. working area - door length on X-Axis is 118.1" (3,000 mm). Max. X-axis speed of 230 FPM (70 MPM). -- Max. door width on Y-Axis is 51.18" (1,300 mm). Max. Y-axis speed of 230 FPM (70 MPM). -- Max. travel on Z-Axis is 7.87" (200 mm). Max Z-axis speed of 98 FPM (30 MPM).Working Heads: -- The machine is equipped with: (1) 9 kW Vertical router head with a 5-position Automatic Tool Changer (ATC); (1) 3.5 kW Horizontal head with double-end output spindles and 0° - 90° rotation; (1) 3.5 kW Horizontal motor for the lock milling, and a 0.37 kW floating head motor for grooving patterns on the door face. All drives are powered by Servo motors, X- & Y-Axis movement are via Rack & Pinion; Z-movement is with a recirculating ball-shaft.Working table: -- Table work area is 51.1" x 118.1" (1,300 x 3,000 mm). Table equipped with: (2) Adjustable width bars and (6) suction cups Load wheels, regulated by (5) reference pistons that rise & fall to secure the workpieces. The bars have integral suction cups powered by a VENTURI vacuum system. To work with doors, the machine is equipped with stops and gaskets for securing the door. Stops are mobile, and they can be used to hold doors and other parts.Operator Control Panel/CNC: -- Floor-standing operator panel is mounted on casters and houses the PC & OSAI CNC control hardware. PC motherboard is an ''INTEL Atom" 1.6 GHz CPU, modular system that offers a solution for the control of Servo drives and distributed input/output modules in a digital field bus and integrated II/O's. The dual-axes gantry has a Velocity-Feed-Forward function (VFF) that tries to look ahead with 256 precalculated blocks. It also incorporates a firmness control (Jerk) of the axes through advanced algorithms as well as tool store management & tool life. Advanced NC control powered by OSAI which is set up to control the Interpolated axes and all machine functions.COMEVA Software: Specially developed COMEVA DOORS software allows the machining of the main designs of hinges and slots you may find all over the market, including the machining on the upper side/edge of the door. Software carries a series of predesigned macros that help the operator when performing the different operations, thus speeding up various job designs. The software carries out a special program of parametric macros for doors/door frames.Includes: -- Centralized machine lubrication system. Owner’s Manual with schematics software on USB

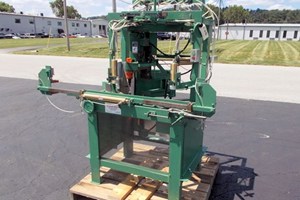

COMEVA - G-300, ...4-Axes CNC Controlled Door Frame/Jamb Milling Machine: Designed for cutting and milling the stiles and rails (headers) of door frames/jambs using a saw blade which rotates from +/- 45° & 90° straight cuts (rabbet-step cuts) and a router head for the milling pockets of all types of hinges and locks. --Specifications: Max. frame length of 118.1" (3,000 mm); max. frame thickness of 1.18" (30 mm); max. frame width of 9.84" (250 mm). Saw cut positions at +45°, 90°, -45°. Saw blade diameter of 11.81" - 12.28" (300 - 314 mm).Milling Group: Cutting and milling with (4) axes, X, Y, Z, & A , each with Servo motors controlled by CNC. Components from reputable manufacturers for guaranteed reliability, performance and quality. 1.5 kW - 18,000 RPM Router motor and 4kW - 5,640 RPM saw motor. X-Axis reaches a speed up to 290 FPM (90 MPM)COMEVA Software: -- Specially developed COMEVA DOORS software allows the machining of the main designs of hinges and slots you may find all over the market, including the machining on the upper side/edge of the door. Software carries a series of predesigned macros that help the operator when performing the different operations, thus speeding up various job design. Software carries out a special program of parametric macros for doors/door frames. This software is normally installed in user's own PC.NC Control: NC Controls for X, Y, Z & A-axis for tool positioning & processing. Axis movement via hardened round ways & ground ball screws. Advanced NC control powered by OSAI which is set up to control the (4) Interpolated axes. Comes with a PC with 19" display.Rails//Workholding: (4) Sliding rail units with (4) pneumatic fixturing clamps (aluminum and plastic) that can be moved for all frame sizes. (2) Side pistons put both frame stiles and the head rail in the correct position before starting the cycle. -- Includes: Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Overall machine dimensions: 134" x 99" x 63" high (3,400 x 25 mm x 1,600 mm) -- Engineered & Manufactured by COMEVA S.L, in Spain.

COMEVA C-600 TOP CNC Door Milling Machine with (7) Axes and Rotary style (ATC) Automatic Tool Changer. The faster and more versatile version of the COMEVA NICRON DOOR models which can perform two jobs simultaneously on the door, ie. mill the hinges and machining the lock at the same time.Milling all types of hinges, including security locks and the recess for the bezel, the longitudinal recess for safety lock, front holes for knob handle, lock, digital locks, peepholes, machined holes or windows (stained glass), and floating probe. Operations performed in minimal time via two separate working channels. Will machine the top and bottom, resize, and bevel doors. Also available with optional loading and unloading of doors. -- Construction: Heavy duty Bridge configuration with two drives, one on end of the Gantry which ensures maximum reliability in the movement of the machine without any oscillation at minimum clearances. Top quality component brands for all linear guides, bearings, brushless servo and reducer. -- General Specifications: Maximum door length 118.1" (3,000 mm). Maximum door width 51.18" (1,300 mm); Minimum door width 15.75" (400 mm). Max door thickness 3.15" (80 mm). Gantry movement, the X axis, max. speed is up to 230 FPM (70 m/Min). Machine features (7) interpolated axes with (2) channels that work independently. -- Horizontal Heads - Hinge & Lock Milling: (2) high frequency motors at 2 HP (1.5KW) on the left and right side. -- Horizontal heads - Top and Bottom of doors: Top/bottom of doors is achieved with one 3 HP (2.2 KW) double-end head which swivels 180°. -- Vertical Milling Router: HSD Motor with ISO 30 ATC of 12 HP (9 KW) for routing hole for handle, crank, standard lock, security lock, electronic locks for hotels/commercial doors; milling or grooving work on the upper side of the door, with upper sensor for automatic measurement.The main milling router with variable speed from 1,000 to 24,000 RPM from the CNC programmable. Ceramic bearings are installed and it has right-left turn. The 10-position ATC is a the Rotary style mounted on the vertical head. -- Vertical Floating Motor: Vertical group also has a floating milling motor head for machining lines or groves top face of the door. Motor is 0.5 HP (0.37 KW). -- Vacuum Unit: BECKER vacuum producer at 100 m³/Hr. -- Production capacity: C-600 max. productivity can be less than one minute per door. Machine has an automatic calibration and automatic detection system of the door, plus roller guides to help load the door.The horizontal working groups on both sides (hinge and lock) work simultaneously allowing time for milling standard doors below (1) minute, approximately. -- Numerical Control/CAD Software: Advanced numerical control type S500 ETX 800 LX AMD PC (or equal) for the control of its (7) interpolated axes. It comes with a 19" display screen. The included COMEVA DOOR software is a special purpose package designed to facilitate the machining of all door ele

COMEVA BR-605E 5-Axes CNC Controlled Door Frame Milling Machine with ATC: Designed for cutting and milling wood and aluminum stiles and rails (headers) of door frames/jambs using a saw blade which rotates approx. 270° (universal) for straight cuts (rabbet-step cuts), router for the milling pockets of all types of hinges and locks, and other tooling stored in the approx (8) Position Rotary Tool Magazine. -- Specifications: Frame length is 15.72" (450 mm) to unlimited; Maximum frame thickness of 2.36" (60 mm); Door frame width from 2.36" (60 mm) to 7.08" (180 mm). Saw cut positions at almost any angle. Saw blade diameter approx. 12".Universal Milling Group: HITECO 11.4 HP (8.5 KW) 24,000 RPM 5-axes head. Cutting and milling with axes, X, Y, Z, A (for parts feeder) and B Universal rotation. with servo motors controlled by CNC.Feed Servomotor: Automatic parts feeding system composed of (2) movable clamps driven by servomotors for continuous operation. Reduces loading/unloading times.Controller/COMEVA Software:: -- OSAI (open series) CNC controls its (7) Interpolated axes. Intuitive graphical interface with 19" display. Built-in barcode scanner/reader. -- Specially developed CAD COMEVA DOOR 4.0 software allows the machining of the main designs of hinges and slots you may find all over the market. Software carries a series of predesigned macros that help the operator when performing different operations, thus speeding up various job designs. The software carries out a special program of parametric macros for frames. -- Includes: Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Engineered & Manufactured by COMEVA S.L, in Spain.

COMEVA C-400 B Programmable European Door Milling Machine: Specifications: -- Maximum door length, X-Axis 96" (2,440 mm). Maximum machining length from center to center of the farthest slots is 74.8" (1900 mm) based on a 120 mm hinge length. -- Working field Y-Axis 23.6" - 39.3" (600- 1,000 mm) min/max door width. -- Working field "Z" axis 1.18" - 2.36" (30 - 60 mm) min/max door thickness. Positioning: -- NC Controlled working table for X-, Y- & Z-axis part positioning & processing. X- Y- & Z- Axis movement via hardened round ways & ground ball screws.Work Table: -- (2) NC Controlled extruded aluminum support rails with (6) Non-Marking manually positioned pneumatic panel clamps. -- (1) NC Controlled extruded aluminum support table for "Hinge Plate" router spindles. Machining: -- (4) Manually adjusted 0.5 HP (0.37 kW), 12,000 RPM air-cooled "Hinge Plate" router spindles with ERC 32 collets, RH rotation. -- (1) NC Controlled 3 HP (2.2 kW) air-cooled 12,000 RPM horizontal "Case Lock" router spindles with ERC 32 collets, RH rotation. -- (2) NC Controlled 2 HP (1.5 kW) air-cooled 12,000 RPM vertical "Hardware" router spindles with ERC 32 collets, RH rotation.Operator & Machine Control: -- Separate control console with "ADTECH CNC 4640" Controller with numerical and function keyboard; -- Monitor displays programming graphics, machine data & subroutines, runs production programs while programming and editing -- Programming storage for 30 individual programs. -- Includes: Owner’s Manual with mechanical & electrical schematics. -- Engineered & Manufactured by COMEVA S.L, in Spain.

COMEVA - C-250, ...Programmable Door Milling Machine Specifications: -- Working field "X-axis" 90.55" (2,300 mm) max. door length. -- Working field "Y-axis" 23.6" - 39.3" (600 - 1,000 mm) min/max. door width. -- Working field "Z-axis" 1.18" - 2.36" (30 - 60 mm) min/max. door thickness. -- Positioning:NC Controlled working table for "X", "Y", and "Z" part positioning & processing."X", "Y", and "Z" Axis movement via hardened round ways & ground ball screws. -- Worktables:(2) NC Controlled extruded aluminum support rails with: (4) Non-marking manually positioned pneumatic panel clamps.(1) NC Controlled extruded aluminum support table for "Hinge Plate" router spindles -- Machining: (4) NC Controlled 0.5 HP (0.37 kW), 12,000 RPM air cooled "Hinge Plate" router spindles with: ERC 32 Collets & manual spacing adjustment, RH rotation.(1) NC Controlled 3 HP (2.2 kW) air-cooled 12,000 RPM horizontal "Case Lock" router spindles with ERC 32 collets, RH rotation.(1) NC Controlled 2 HP (1.5 kW) air-cooled 12,000 RPM vertical "Hardware" router spindles with ERC 32 collets, RH rotation. -- Operator & Machine Control: Separate control console with: "DELTA" 12" TFT touch screen control with numerical and function keyboard;Monitor displays programming graphics, machine data & subroutines, runs production programs while programming, and editing.Programming storage for (30) individual programs. -- Complete with: 1-Year Mfg. Warranty, User's operator/maintenance manuals & backup disks. -- Available Options at additional cost:Additional 0.5 HP (0.37 kW), 12,000 RPM air-cooled "Hinge Plate" router spindles with ERC 32 collets = $ 1,976.00 each.Additional 2 HP (1.5 kW) air-cooled 12,000 RPM vertical "Hardware" router spindles with ERC 32 collets = $ 3,240.00 each.Actual Model is COMEVA - C-250, ...CNC DOOR MILLING MACHINEIncludes: Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts.

COMEVA - C-400 B Programmable, ...European Door Milling Machine: Specifications: -- Max. door length X-Axis 96" (2,440 mm); max. machining length from center-to-center of the farthest slots is 74.8" (1,900 mm) based on a 120 mm hinge length. -- Working field Y-Axis 23.6" - 39.3" (600 - 1,000 mm) min/max. door width. -- Working field "Z-axis" 1.18" - 2.36" (30 - 60 mm) min/max. door thickness. Positioning: -- NC Controlled working table for X-, Y- & Z-axis part positioning & processing; X- Y- & Z-Axis movement via hardened round ways & ground ball screws.Worktable: -- (2) NC Controlled extruded aluminum support rails with (6) Non-Marking manually positioned pneumatic panel clamps. -- (1) NC Controlled extruded aluminum support table for "Hinge Plate" router spindles. Machining: -- (4) Manually adjusted 0.5 HP (0.37 kW), 12,000 RPM air cooled "Hinge Plate" router spindles with ERC 32 collets, RH rotation. -- (1) NC Controlled 3 HP (2.2 kW) air cooled 12,000 RPM horizontal "Case Lock" router spindles with ERC 32 collets, RH rotation. -- (2) NC Controlled 2 HP (1.5 kW) air cooled 12,000 RPM vertical "Hardware" router spindles with ERC 32 collets, RH rotation.Operator & Machine Control: -- Separate control console with: "ADTECH CNC 4640" Controllers touch screen control with numerical and function keyboard. -- Monitor displays programming graphics, machine data & subroutines; runs production programs while programming and editing. -- Programming storage for (30) individual programs. -- Includes: Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts.Available Options at additional cost (when ordered with machine from the factory): -- Additional 0.5 HP (0.37 kW), 12,000 RPM air-cooled "Hinge Plate" router spindles with ERC 32 collets at ...$ 1,976.00 each. -- Engineered & Manufactured by COMEVA S.L, in Spain.

COMEVA NICRON CNC Door Machining Center: Flexible Door Machining Center to machine Hinges, Locks, Grooves, etc. A device to allow machining of door jambs is an option available. Also vertical top router head with Automatic Tool Changer is available. See options below.Specifications: -- Max. door length, X-Axis 102.3" (2,600 mm). -- Max. door width, Y-Axis 47.2" (1,200 mm). -- Max. travel on Z-Axis 7.87" (200 mm)Working Heads: -- The machine is equipped with a (2) motors/heads 5 HP (3.5 kW) - 12,000 RPM each, routing/milling units: (1) vertical unit and (1) horizontal double spindle head.Working table: -- Table dimensions: 51.2" x 102,3" (1,300 x 2,600 mm). -- Manual table loading system with vacuum cup hold-down for the doors. For the optional jamb (door frame) table fixturing includes an air cylinder clamping system.Operator & Machine Control: -- Separate mobile control panel with powerful CNC to handle all the functions of the machine. -- Includes the unique COMEVA DOOR Software specially designed for machining of doors. It controls the movements of all axes, reference stops, vacuum zones and workgroups. It is user-friendly with macros(subroutines) for most of the hinges/locks on the market so operator can input the job parameters instead of complicated programs.Complete with: -- Users operator/maintenance manuals & back up disks.Engineered & Manufactured by COMEVA S.L, in Spain. - Stated price includes Machine (Jamb device not included), Software and Safety Barrier.Includes: Owner’s Manual with schematics; covered by a 1-Year Factory Warranty on parts.

COMEVA - NICRON DOOR C, ...CNC Door Machining Center with Automatic Tool Changer Flexible Door CNC Machining Center that can machine: Hinges, Locks, Door Face Patterns and many similar applications. A device to allow machining of door jambs on the same machine is an available option. See options below. -- Working Heads: -- (2) Heads; (1) Vertical with 12 HP (9 KW) - 12,000 RPM routing/milling units: and (1) Horizontal - double spindle (opposing spindles) unit, 5 HP (3.5 KW). -- Working table: Rails with suction cups holddown. -- Working area:: 43.3" x 125.98" (1,100 x 3,200 mm). -- Manual table loading system with vacuum cups for the doors. For the optional Jambs (door frame) table fixturing includes an air cylinder clamping system. Working Height is 220 mm (8.7"). -- Includes: Servomotors for gantry feed; 100 FPM (30 MPM.) axes locating movement with SI lineal guides; ( (4) Piston stops. Auto Lubrication system; Venturi for suction cups. Operator & Machine Control: -- Separate mobile control panel with powerful CNC to handle all the functions of the machine. -- Includes the unique COMEVA DOOR Software specially designed for machining of doors. It controls the movements of all axes, reference stops, vacuum zones, and workgroups. It is user-friendly with: Macros (subroutines) for most of the hinges/locks on the market so operator can input the job parameters instead of complicated programs. -- COMEVA DOOR PRO is additional CAD/CAM type software with capability to design your own CAD programs and post processor to load into machine. This software would be loaded on users own PC. -- Comes with: Owner’s Manual with schematics software disc/USB; covered by a 1-Year Factory Warranty on parts (Electrical components carry six months warranty). Also includes safety light/barrier meeting CE standards. -- OPTIONS: Increase door width capacity(Y-Axis) from 43.3" (1,100 mm) to 47.2" (1,200 mm) door width.. Also available with or without the door jamb fixture. With this device, the jambs are mounted on the same table and machined as a separate operation before or after the doors. -- This "new" model NICRON DOOR C is a similar machine (to NICRON DOOR, see DM-300044), but the vertical head is capable of working as an Automatic Tool Changer (ATC). A tool rack holding up to (6) different tools is added at the end of the worktable and is programmable via the same CNC controller. -- Machine dimensions 2100 x 3900 x 2100 mm (83" x 154" x 83"). Gross weight; 6450 Lbs (2,390 Kgs.). --Engineered & Manufactured by COMEVA S.L, in Spain.
