Dust Collection Systems For Sale

TORIT-DONALDSON ADMC AD8 DRYFLO Cartridge Dust Collector. A Mist collector designed for long-lasting high collection efficiency capture of coolant and machining oil mists in metalworking applications. Even smaller amounts of dust can be filtered in the dirty air stream. -- DRYFLO is a proprietary cartridge which outperforms electrostatic precipitators and mist collectors utilizing standard HVAC envelope and cassette filters. Filter unit features a unique air-side filter retention system allowing for quick filter changes with minimal worker contact with collected oil. -- Also feature three-stage Filtration via a.) prefilter, b.) wrap allowing, c.) the filter cartridge to drain and coalesce smaller coolant mist droplets in to larger droplets. Plus optional fourth stage HEPA filters available for applications where smoke exists or additional efficiency of discharge air is required. -- Overall data: Capable of 17,600 CFM; (8) Filter Cartridges, 1,760 sq. ft. of filter area, -- Complete with: Ground mounted fan powered by a 40 HP motor, belt-driven. Fan includes a variable volume inlet. In prior application clean air was not retruned to building. -- Blower currently setup for approx. 15,000 CFM with 40 HP, Baldor Super-E, 324T frame, 1.780 RPM motor. -- Enclosure dimensions: 133" long, 68" deep, 160" high. Filter weight is 7,300 lbs.

DONALDSON-TORIT - 484RFW10. Filter Unit with: Rotary Airlock & Transfer Blower. -- Approx. 60,000 CFM @ 9.5:1 Air-to-cloth ratio; 158" dia. round baghouse with: (484) Cloth filter bags of 10' length (3" x 6" oval bags provide for radial movement of bag during cleaning for longer life); 6,297 sq./ft. of filter. -- Supplied with: IAP - 542-B Blower. Includes: 200 HP TEFC motor; installed & rated for: 61,000 CFM @ 15"SP, BHP 188 @ 1,142 RPM. Pipe at fan inlet is about 57" dia. -- Controls Include: SAFTRONICS Soft Start. -- Complete with CHICAGO Blower Transfer fan: Blows discharge for bottom of Rotary Airlock to a storage bin. -- Designed for: Filtration media; cleaning via: 7-1/2 HP on board pump (ground mounted) for: Reverse air cleaning.Return air outlet & 48" x 48" inlet for dust-laden air. -- Rotating cleaning air manifold driven by: 0.33 HP Motor; (1) NEMA 9: Solenoid & diaphragm valve; control pulse jets of air to: Clean each row of bags; galvanized steel bag frames with: Positive bag bolt down to: Eliminate leakage & ride up of bags once installed; walk-in access door on platform at top. -- (4) Explosion Doors. Lot of pipes; interior & exterior pipe from filter to fan; fan discharge fitting.

DONALDSON-TORIT - 376RFW-10 or 12: Dust Collector45,000 CFM @ 9.7:1 Air-to-cloth ratio; 140" dia. round baghouse with: (376) Filter bags of 10' length (oval bags provide for radial movement of bag during cleaning for longer life); total 4,632 sq./ft. filter area. -- Filtration media cleaning via: Floor mounted 7-1/2 HP medium pressure Air Pump (eliminates the need for compressed air; can be susceptible to condensation & freezing); 36" x 65" return air outlet; 48" x 48" inlet for dust laden air. -- Includes: Rotating cleaning air manifold driven by 1/3 HP motor; (1) NEMA-9 solenoid & diaphragm valve, which rotates over the bag openings; walk-in plenum for bag access/maintenance. -- Galvanized steel bag frames with: Positive bag bolt down to eliminate leakage; ride up of bags once installed; walk-in access door at top of ladder. -- Equipped with: Structural steel support; maintenance platform; caged ladder; bolt-on involute arm; explosion doors (need to be replaced). -- Includes. Backward inclined FAN EQUIPMENT: Size 7 BCS floor-mounted Fan set at 45,000 CFM @ 15" SP; belt driven at 1,485 RPM; powered by a 200 HP TEFC Motor via OMRON/IDM E7 Series Inverter. -- 24" Rotary Air Lock at the bottom of the 60° hopper. -- Complete with: Pictured electrical controls are included. -- NOTE: New 200 HP electrical motor was replaced recently. -- Unit had an accidental fire at bottom section near Hopper causing the explosion doors to burst. Unit still working as they are not returning the air. Can be sold with or without replacement of doors; cost of which is negotiable. -- Professional dismantling and rigging available at extra cost. Please call!

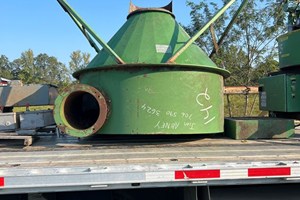

New Cyclones

Dust Surge Bins and Auger Feeders

Dust Surge Bins and Auger Feeders

Reconditioned flex tip rotary valve

Heavy Duty Steel Main Dust Storage Hopper Bin

Approx 12' Cyclone & Air Lock

Multi-Clone Dust Collection System

This unit was blowing dust to a large baghouse in a large facility. There is also a 75 HP blower and baghouse available at the same location. Piping is available. Unit will be loaded on the truck.

Complete Dust Collecting System in Place yet

10 HP Dust Fan with ductwork 230/460 volt 3-phase

40 hp Sawdust Blower

Baghouse (Green) W/ 200HP Blower, 75HP Blower, Catwalk and Steps, down and ready to Load
