Dust Collection Systems For Sale

New in the crate - Ready to ship! The ICON class dust system from Coral comes in 1-5 bag systems ranging from 1,400-3,800 CFM. - Easy installation! - Plug & Play setup - 3-10 HP Available!

In stock and ready to ship! ICON Pro Series from Coral - Integrated Fan - Easy installation - Plug and play! - 2900-3500 CFM - 5.5-7.5 HP

Coral - GAM/2C: Dust Collector -- Free-standing, self-contained Collector; base mounted: 5-1/2 HP - 3,420 RPM Motor.Equipped with: -- (2) Upper filter bags; (2) large collector bags; approx. 3,500 CFM; 117 sq./ft. filter area; approx. 50 cu./ft. collection cap. -- Complete with: 12" Dia. inlet; mounted on steel fabricated base w/wheels.

6 ft diameter stainless steel cyclone, Stainless 6ft dust cyclone 6ft diameter, dust inlet 17” x 16”, top outlet 32”, bottom outlet 20”, overall length 16ft, Inlet and or outlet may not be stainless, contact us for details. Price with shipping is available.

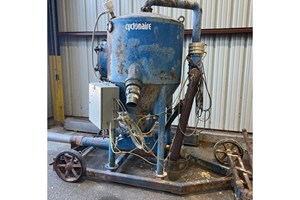

Cyclonaire HV30-1677L Material Conveyance System.

DENRAY 3660B Down Draft Sanding TableConvenient 36" x 60" table with a 36" working height with DENRAY's Pulse jet Cleaning System. -- Rated at 3,400 CFM for fast, easy removal of dust. -- 2 HP 3-phase motor. -- Self-contained system with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 microns. -- No duct work, no loss of conditioned air. Sound level 74 dBA. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board with rubberized surface. -- Also available in 115 V and 220 V single phase

DENRAY 3672 B Downdraft Sanding Table.Convenient 36" x 72" Table, comfortable 36" working height w/ DENRAY's Pulse Jet Cleaning System. -- Rated at 3,500 CFM. -- 2 HP, 3-Phase motor with magnetic starter. -- Self-contained system with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 microns. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface. -- Space-saving design with no duct work, no loss of conditioned air. -- Sound level at 78 dBA. -- Available options include: Exhaust chimney, exhaust mufflers to reduce sound level to 10 - 12 dba, casters and filter cleaning auto timer.

DENRAY 9600 Down Draft Sanding Table: Extra long 48" x 96" table with a 36" working height. -- Rated at 4,300 CFM with 3 HP motor. -- This model features the Tube Filtration System which cleans with a 99% capture rate at 1 micron. -- Includes: (4) Swivel casters, including (2) that lock in place. -- No duct work, no loss of conditioned air. -- Comfortable 1-1/8" thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface.

DENRAY 2800 Down Draft TableConvenient size 28" x 48" table. -- 2,800 CFM Rating at 1" static with 1-1/2 HP motor. -- Space-saving self-contained unit with no ductwork and no loss of conditioned air. Tube filter system cleans with 99% capture rate at 1 micron. -- Comfortable 36" working height. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick steel-reinforced MDF board and rubberized surface. -- (4) 4" Swivel casters with (2) that lock. -- Options available; Exhaust Muffler to reduce sound level 10 - 12 dBA, Magnehelic Gauges, HEPA Filter Banks, 3-Sided 20" Shields and Odor Control Filters. -- Also available in 230V, 460V and 575V, 3-Ph

DENRAY 2872 Down Draft TableLarge work surface on this 28" x 72" table (overall). -- Rated at 3,400 CFM, with 2 HP motor and magnetic starter. -- Space-saving self-contained unit w/built-in dust drawer. -- Features; New Tube Filtration System which cleans with a 99% capture rate at 1 micron. -- Quiet operation at only 77 dBA sound level. -- Comfortable 34-1/2" working height. -- 3/4" Thick steel-reinforced MDF board worktable with "non-marring" rubberized surface. -- Easy manual filter cleaning. -- (4) Casters, (2) of which lock in place. -- 115 Volt receptacle with 8' cord. -- Available options; Exhaust Mufflers to reduce sound 10 - 12 dBA, Magnehelic Gauges, HEPA Filter Banks, 3-Sided 20" shields and Odor Control Filters. -- Also available in 230V, 460V and 575V, 3-PH which includes magnetic starter.

DENRAY 9600 B Down Draft Sanding TableExtra large 48" x 96" table; Comfortable 36" working height. -- Powerful system with 4,800 CFM rating. -- 5 HP Motor with magnetic starter. -- Space-saving self-contained unit w/built-in dust drawers and high efficiency cartridge filters. -- No duct work, no loss of conditioned air. -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface. -- Fully enclosed unit. -- "Self-Cleaning" System with push button start to force compressed air from a storage tank into the filters and force dust into the dust drawer. -- Floor level air exhaust that can be directed away from operator. -- Quiet operation with only 82 dB. -- Available options; (4) Swivel casters with (2) that lock in place, Auto-Self cleaning timer or muffler.

DENRAY 7200 B DOWN DRAFT TABLELarge 48" x 72" Table. -- 3,900 CFM rating after filters. -- 5 HP Motor w/magnetic starter. -- Space-saving fully self-contained unit: No duct work, no loss of conditioned air. Contains (2) cartridge filters that clean to 0.5 microns. -- Comfortable working height 36". -- 1-1/8" Thick hardwood frame worktable with 3/4" thick MDF board and rubberized surface. -- "Self-Cleaning" System with push button start to force compressed air from a storage tank into the filters and force dust into the dust drawer. -- Floor level air exhaust which can be directed away from the operator. -- 84 dBA Sound level. -- Options include; Timer to automatically clean filters without operator, (4) swivel casters (2) that lock into place, noise reducing muffler (Reduces volume by 10 to 12 dBA),Unit also available in 220 V single-phase.

DENRAY 3444B SUPER Downdraft Sanding TableThis model is similar to the 3444B, but contains a larger fan and motor, along with our typical rails and tops found on our larger tables. There are no intake dust ports or vise due to these modifications. The 3444B Super comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with casters, Denray's "Jet Pulse" push button cleaning, and a rubber coated top.Standard Features: -- 34" x 44" Table top. -- (4) Height options available, 27", 31.5", 32" and 37". -- 2 HP, 3-Ph Blower motor, single phase available. -- Rated at 3,000 CFM. -- (4) Casters, (2) locking. -- 70 Decibels sound level. -- 16.5" Fan. Available Options: -- Explosion Proof Motor (3 Phase only). -- Magnehelic Gauge. -- Light Bar. -- Auto-timer. -- Muffler (reduces sound level 10-12 dbs.). -- 100% Spunbond Polyester Filters. -- Carbon Filter Bank (odor only) or HEPA Filter bank. -- HDPE Plastic Tabletop. -- Hydraulic Height Adjustment. -- Larger Motor/Fan Upgrade.

DENRAY 2872 B Down Draft Sanding TableThis model is great for medium sized jobs, and can be used for plastics, woods and finishing materials. The 2872B comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with Denray's "Jet Pulse" push-button cleaning, rubber coated top, along with motor access on the left end and filter access on the right end.Large work surface on this 28" x 72" table with DENRAY'S Pulse Jet Cleaning System. -- Rated at 3,000 CFM, after filters, with 2 HP motor and magnetic starter. -- Space-saving self-contained unit w/built-in dust drawer. -- High efficiency cartridge filters (180 sq. ft. of cloth area) that clean dirty air to .5-micron. -- Includes: Push Button cleaning -- Quiet operation at only 74 dBA sound level. -- Comfortable 36" working height. -- 3/4" Thick steel-reinforced MDF board worktable with "non-marring" rubberized surface. -- This machine can be used in heavy wood, finishes, solid surfaces and stone type materials. -- Available options: -- Explosion Proof Motor (3 Phase only). -- Light Bar. -- Casters. -- Auto-timer. -- Muffler (reduces sound level 10-12 dbs.). -- 100% Spunbond Polyester FiltersCarbon Filter Bank (odor only). -- HEPA Filter bank. --Three-sided Hinged Safety Shield. -- Magnehelic Gauge. -- HDPE Plastic Tabletop. -- Hydraulic Height AdjustmentAlso available in 230V, 460V and 575V 3 Ph..

DIXIE - 15 HP: Dust Collector Specifications -- 15 HP Motor. -- 1,760 RPM. -- Air Pulse filter bag cleaning System. -- (2) Bottom outlets. -- 15" Diameter: Inlet pipe size. -- Wall-mounted motor control station. -- Overall Collector footprint: 90" Wide x 67" deep (101" with rear-mounted fan) x 122" high.

DONALDSON/TORIT - WSO 20: 1,230 CFM, 3 HP Floor Mounted Mist Collector with After-FilterSpecifications -- Filter height: 20".Complete with: -- Top-Mounted after-filter.

DONALDSON/TORIT - DRYFLO DMC-C: 3 HP Mist CollectorSpecifications -- Filter area: 13 m² (42 sq./ft.).

Donaldson Torit 2DF8 cartridge dust collector Pulse jet cleaning Torit Downflo 2 DF 8 Pulse jet cartridge dust collector Nominal airflow range CFM 1,020 to 6,300 Filter area: 1,520 sq.ft. Voltage: 208-460 DOES NOT HAVE THE SUPPORT LEGS Several different fan types, sizes and HP available Demonstration video of fan running upon request Dismantled & stored in warehouse for prompt delivery Prior use on wood dust inside of a building Several other larger and smaller dust collectors in our warehouse Contact us for pricing including freight upon request

DONALDSON / TORIT DWST6-5 Cartridge Dust CollectorDownflo® WorkStations (DWST) fit anywhere on the plant floor and apply NO restrictions to worker movements or visibility. The full line of WorkStations are designed specifically for those in-plant areas where dirty and/or noisy operations are out in the open—grinding, sanding, chipping, batch mixing or welding. The DWST delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledge less construction is often a requirement. Specifications: -- (5) Module System, each with 10 HP motor, 7,000 CFM. -- (4) Ultra-Web cartridges. -- Pulse-cleaning manifolds and ventures, (2) dust drawers. -- (1) Acoustical panel per module. Louvers mounted on lower section of unit.Includes: -- (1) IEC control panel includes 460-volt motor starters, circuit protection for each motor, transformer, programmable logic controller. -- Magnehelic gauge mounted in a panel door, start/stop buttons, and a through-the-door disconnect switch. -- Pulse cleaning can be continuous or after-shift. -- All components are IEC rated. The enclosure is rated Type 12. -- 1"; Compressed Air Regulator with Filter Separator and Gauge, Black Iron Fittings, and Black Iron Piping Required for Cleaning System. -- Provides a 1"; Common Connection Point for Design Shutters to Tie into with Existing Compressed Air System.

Donaldson Torit Modular Baghouse Model 162MBT10 24,000 CFM
