Woodworking Equipment For Sale

Cefla Rotostain 2000

CEFLA "ROTOSTAIN RT 2000 10 + 10 Rotary Stain Machine with: -- 20 Guns; utilized for automatic application of stain material on workpieces; the "Roto-Stain ROT 10 + 10" represents a new generation Spray Machine from CEFLA, the leader in CEFLA "ROTOSTAIN RT 2000 10 + 10 Rotary Stain Machine with: -- 20 Guns; utilized for automatic application of stain material on workpieces; the "Roto-Stain 2000 10 + 10" represents a new generation Spray Machine from CEFLA, the leader in technology development for spraying applications. -- The "Roto-Stain 2000 10 + 10" incorporates CEFLA's previous innovative developments into a machine with maximum capabilities (line speed and production output) for stain application. -- Continuous 65" width carbon fiber belt enables the recovery of over sprayed coating material for reuse. -- Cefla's patented conveyor belt system for coating recovery and belt cleaning is controlled by the PLC and recovers approximately 98% of the coating material deposited on the belt, which is then automatically cleaned with "Coating Appropriate Solvents" -- The automatic air flow system monitors and maintains consistent air flow/pressurization through spray booth. When filters become too plugged to maintain sufficient air flow, system operation is ceased --electronic control unit utilizes a 60 cell photodiode bar to monitor and regulate spray application, further maximizing application transfer efficiency -- Spraying is performed through a rotary system designed for the installation of ten plus ten (10 + 10) guns in (2) coating supply circuits with recycle.TECHNICAL SPECIFICATIONS: Working width from 0 - 1300mm ( 0 - 51") Minimum workpiece length 305mm (12") Speed range from 2 - 11 m/min (6.6 - 36 ft/min) Power consumption 10.7 kW Compressed air required 50 NI/min (1.8 cfm) Exhausted solvent /air mix 10000 mc/h (5886 cfm)

Cefla Sorbini T/20-3-STP Triple Head Print & UV Line (3) Print Head System (2) IR Ovens Available Immediately

CEFLA TNS 3650/RBT BELT CONVEYOR146"L x 60" belt conveyor. 0.75 kW motorNOTE: Will need a new belt, not included in the price.

CEFLA TR3500/CT RUBBER ROLLER CONVEYOR48" infeed/outfeed power conveyor, 140" long, rubber roller conveyor.

CEFLA TRC 2000 POWERED ROLLER CONVEYOR72"L x 60"W rubberized roller conveyor with .75kw motor

CEFLA TRC 2500 ROLLER CONVEYOR105"L x 60"W Rubberized roller conveyor with a .75kw motor

CEFLA 5 Ft. Wide Single Lamp UV OvenGreat for handing those "extra wide" Panels!Features: -- UV-R Super Focus: This configuration is suitable for reducing the heating effect of the lamps on artifacts sensitive to high temperatures (e.g. resinous wood). -- The particular shape of the lamp parabolas focuses the UV ray beam at the same point of the panel, allowing to reduce significantly reducing the number of lamps needed to dry the paint and avoiding the dispersion of rays, also guaranteeing significant savings in terms of space and energy consumption. -- This configuration can be integrated with the "SMART-THICK" system for adjusting the thickness of the pieces in line, usually on roller application lines.UV-R SP: Allows the cross-linking of the paint applied even on the edges of the pieces, thanks to the use of inclined lamps and a greater energy impact of the lamps themselves on the edges.UV-R: Equipped with an electronic system for regulating the power of each lamp; it also allows you to automatically activate the energy-saving function by checking the presence of material under each lamp.The Electrical Panel is integrated into the machine body and does not require additional spaces in the line layout.

Cefla and Delle Vedove Finishing Line

CEFLA EASY 2000D Reciprocating Feed Through Sprayer and Vertical Oven Finishing Line:This line is still in operation with the original owners, it have never run full time, there are weeks when it is 1 day per week. It is recommended with a line of this age to do a full recondition prior to or as it is being installed. If that is not possible, it is still running and can be seen that way. CEFLA Complete 52" (1,300 mm) Finishing Line with: SORBINI Panel Cleaner, "EASY D 2000 W" Reciprocating Sprayer, Conveyor(s), and CEFLA Hot Water Vertical Oven. The line is composed of the following:001) Belt conveyor CEFLA "TN 2500"002) Panel cleaning / brushing machine SORBINI "VS 33"003) Automatic spraying machine CEFLA "EASY 2000 DRY SYSTEM" with pressurized cabin004) Transfer conveyor005) CEFLA PIEFFE PF2 VL/6 7500 pass through oven006) Vertical Oven, (3) chambers with belts CEFLA "VN 2000"007) Unloading Conveyors

CEFLA EASY 2000/D Automatic Spray Finishing Machine: 2010 CEFLA "EASY 2000 D" Reciprocating Sprayer: -- Sprayer fabricated using coated sheet panels, uses a Centrifugal fan for intake of room air to upper air diffusion hood inside of cabin to pressurize the spray area. -- Conveyor speeds variable from 2 - 8 MPM. Belt width capable to carry 1,600 mm (5') wide charge through the machine. -- Machine is PLC Controlled. The Superior Coating application is achieved by utilizing a "back spray" technique. The machine uses a slide-out material recovery system consisting of (2) rollers. -- Infeed & outfeed Conveyors with lift cylinders. -- Includes: (2) Reciprocating arms traveling on polished rods, hydraulic shock absorber provides smooth operation. -- Parts are read at the Infeed of the Conveyor by a photodiode light bar that reads the size of the part and sends that information to the PLC to control the Spray Gun action. -- Machine is equipped with (2) paint circuits.THIS MACHINE IS CURRENTLY BEING RECONDITIONED WITH OUR SUPPLIER IN ITALY AND WILL BE AVAILABLE APRIL 2025.

CEFLA KLEENSPRAY 12 Reciprocating Spray Line;The "Kleenspray 12" Reciprocating Automatic Spraying system is mainly based on the use of a closed continuous CFB belt conveying the panels to & through the spray area. The design has many advanced mechanical solutions to allow considerable advantages.KLEENSPRAY Technical Features: -- Non pressurized spray cabin, "Paper Belt Overspray Capturing" lacquer system; microprocessor unit for spraying operation control. -- 5-Edge coating, 51" max. width, 76" long spray enclosure. -- Gun Carrier: Reciprocating-type linear Gun Carrier with (4) guns; includes (1) station with "(4) guns, stainless steel material handling pumps", clamps & brackets for free height and angle settings. -- Supporting trolleys driven by toothed timing belts with brushless motor with electronic control, reciprocating slider, automatic reversal of gun angle on each stroke to cover panel edges, with variable speed; (3) lacquer feeding circuits. -- Light barrier gun control: Photo cell sensors send material size to the programmable controller which opens and closes the guns. -- Conveyor System: "Paper Roll" continuous collection belt with rollup collection paper area, with long life and easily removable infeed roller section with electronic reading barrier consisting of (60) photo diodes and outfeed roller. -- Booth Enclosure: Made of sandwich paneling with glazed elements; port for access to the spray guns units. The machine is particularly suitable for the application of waterborne drying lacquers; these products assure minimum environmental impact. Please Note: (4) Spray guns for UV paint& (4) guns for regular paint are included.Line Includes. -- VENJACOB Oven following the KLEENSPRAY. 600V/3/50-60 Hz. 230Vac/24Vdc. Control Voltage Max capacity 25 KW. Nominal Load 40 Amps.Year of Construction 2001. S/N 20104593 -- BURKLE UV Curing oven following the oven. Type TRUV2. (2) UV Lamp. Electrical 600/480V/360 Hz Control Voltage 24 Vdc. Nominal Power 49.5 HP.Nominal Current 99.8 Amps. S/n 010458-01. -- Pumps and pneumatic components. -- The panel cleaner shown at the start of the line is NOT INCLUDED.

CEHISA EP-7 EDGEBANDER1/4" Cap. edge thickness; min. panel size: length 4-3/4", width 3" and thickness 3/8", unlimited length & width; PLC controlled operation.Equipped with: -- Automatic strip feed & coil feed magazine, compact Hot Melt glue system, heats up in (7 - 10) Min, optional Heavy Duty guillotine for 3 mm thick PVC, 3-roll pressure section. Work Stations: -- Single motor end trim (0.3 HP), motor tilts 0° - 10° -- Top & bottom flush & bevel trim unit (0.75 HP ea. motor), tilts 0° - 20° -- Feed speeds of 33 FPM and a 1 HP feed drive.Complete with: Digital counters, sound enclosure, frequency inverter, telescoping outboard panel support & used tooling.

CEHISA PRO 10 .EDGEBANDER (W/PREMILL): -- Features: Pre-milling Station with: 2 x 1.5 kW (2.0 HP) 12,000 RPM motors; standard equipped with diamond cutters. Both spindles pneumatically controlled. -- Automatic Edge Magazine: For coiled material up to 3 mm thickness, strip feed magazine for up to 5 mm (3/16") solid wood banding. -- Quick Melt Glue System: 10 - 15 Min. heat up time, auto-temperature drop. Glue Tank is coated with nonstick material, quick change mechanism for easy maintenance and/or color change. -- Pressure Section: (1) Large dia. driven and (2) idle rollers. Digital readout and pneumatic positioning selectable from controller touchscreen. -- Edgebanding Workstations. End Trimming Station: Double motor front & rear, 2 x 0.35 kW (0.5 HP) - 12,000 RPM. -- Edge Trimming Station: Top & bottom flush/bevel/radius trimming, (2) 0.35 kW (0.5 HP) - 12,000 RPM motors, tiltable 0° - 20°, pneumatic exclusion from operator panel. -- Profile Scraping Unit: For thick PVC/ABS radius scraping, pneumatic in/out positioning from control panel with chip collection box. -- Flat Glue Scraper: To remove potential glue squeeze out. -- Buffing Unit: Top/Bottom, (2) 0.12 kW (1/8 HP) - 1,650 RPM motors, tilting horizontally and vertically. -- Controller: "Unitronics V350" Controller with color touchscreen, memory up to (20) programs. -- Equipped with: Feed Speed: 9 & 14 MPM (29 & 46 FPM). -- Power hold-down beam, workpiece support outrigger, safety & sound enclosure. -- Included Options:RIEPE non-stick Spray System. -- Actual Model is: CEHISA PRO 10

CEHISA PRO-12 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Features: Pre-Milling Station with:2 x 1.5 Kw (2.0 HP) 12,000 RPM motors, standard equipped with diamond cutters. Both spindles pneumatically controlled. -- Spray agent unit for top and bottom with (2) sprayer and (2) reservoir -- Automatic Edge Magazine: For coiled material up to 3 mm thickness, strip feed magazine for up to 5 mm (3/16") solid wood banding. -- Quick Melt Glue System, MR-5:10 - 15 min. heat-up time, auto temperature drop. Glue Tank is coated with nonstick material, quick-change mechanism for easy maintenance and/or color change. -- Pressure Section:(1) Large dia. driven and (2) idle rollers. Digital read-out and pneumatic positioning selectable from controller touch screen.Edgebanding Workstations: -- End Trimming Station, V-7: Double motor front & rear, 2 x 0.35 Kw (0.5 HP) - 12,000 RPM. -- Edge Trimming Station, BC-5: Top & bottom flush/bevel/radius trimming, 2 x 0.55 Kw (0.75 HP) - 12,000 RPM, tiltable 0° - 10°, pneumatic exclusion from operator panel. -- Corner Rounding Unit, FD-50: To process overhanging edges and trimming around the leading & trailing edge, 1 x 0.27 Kw (0.36 HP). -- Profile Scraping Unit, R-8: For thick PVC/ABS radius scraping, pneumatic in/out positioning from control panel with chip collection box. -- Flat Glue Scraper, RR-7: To remove potential glue squeeze-out. -- Buffing Unit, PC-9: with spry mist unit top/bottom Top/Bottom, 2 x 0.12 Kw (1/8 HP) - 1,650 RPM motors, tilting horizontally and vertically. -- Operator Interface:PLC Microprocessor control with color touch screen, memory up to 20 programs.Equipped With:Feed Speed, 9 - 14 MPM (29' to 45 FPM), -- Power hold-down beam, work-piece support outrigger, safety & sound enclosure. Included Options:Riepe, non-stick spray system. -- Nesting Tracer Shoes for top/bottom trimmers

CEHISA - PRO-9, ...Edgebander Single-Phase Electrical!Single-sided Edgebander with: End trim; top/bottom trimming; scraping; buffing.Specifications: -- 0.4 - 3 mm Edge thickness cap., -- Teflon coated glue pot system. -- Automatic magazine for strip & coil feed; Heavy-Duty guillotine for up to 3 mm thick PVC. -- (2) roll pressure zone with (1) motorized and (1) idle roller. Workstations: -- Double-motor end trim station; 0.33 HP - 12,000 RPM ea. motor. -- Top & bottom flush/bevel trim; bevels 0° - 20°; 0.45 HP ea. motor. -- Top & bottom PVC profile scraper; up to 3 mm radius. -- Last Station: Top & bottom buffing unit; 3/4 HP motors. -- Electronic braking on trim motors; digital readout on top/bottom trim. -- Feed speed: 33 FPM & 1 HP feed drive. -- Sound enclosure. -- Outboard panel support. -- Frequency converter. -- Digital readouts for trimmer adjustments. -- Sound enclosure.

CEMCO 3 Head Industrial Sander. Running when removed from location.

(14) spindles with 1-1/2 hp motors on each. On/off switch for each motor. chucks adjust to grip up to 1/2” bit stroke adjustable from 4” to 10” 121” x 39-1/2” table with (4) hold downs Adjustable speed hydraulic feed 230 volt 3 phase

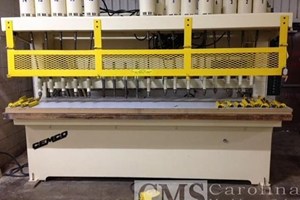

CEMCO SBV-120 Vertical Boring MachineSpecifications: -- 113" x 22" boring area Capacity, (14) 1.5 HP - 1,800 RPM motors driving (14) spindles, on/off switch controls for all motors -- Spindle nose with chuck 5/65" - 1/2" capacity -- 121" x 30.5" table size, (4) Spring loaded hold downs, -- 6" Spindle stroke adjustment with min. of 4" to max. of 10" between spindle nose and tabletop. -- Spindle assemblies advance hydraulically at 0 - 30 strokes/Min with single or continuous stroke -- 2 HP hydraulic feed pump w/variable speed control.Also included: -- 4 CHIP BLOW OFFS WITH INDIVIDUAL ON/OFF POSITIONS -- INSTRUCTION MANUAL/PARTS LIST -- DRILLING SAFETY GUARDS -- EMERGENGY STOP CABLE AND EMERGENCY STOP BUTTONFLOOR SPACE FOOT PRINT: 48: X 121"

CEMCO MBV 54 Vertical Boring Machine54" x 15" Cast iron table with wooden top,Equipped With:(2) Universal spindles with movable spindle supports,(3) 2 HP - 1,725 RPM direct drive spindle motors,36" Stationary table height; 6" Max. vertical stroke, spindles advance hydraulically at 0 - 30 strokes/Min;Foot pedal actuated w/single cycle & continuous automatic modes;2 HP hydraulic feed pump, 12-gal. hydraulic pump system;Note: Riggers are required for loading
