Woodworking Equipment For Sale

--This machine is in an Auction on exfactoryauctions.com--NO RESERVE-- (2 Available) BIESSE SKIPPER 100 2-Head CNC Machining Center, with Infeed & Outfeed Tables – Seller states that machine was run (2) shifts from 2005 - 2021, then only a few hours per day since! Specifications: Flexible "Top & Bottom" Machining Center that uses an innovative panel handling system. Working Capacity: "X" Axis 3,000 mm (118.11"), "Y" Axis 1,000 mm (39.37"), Max. part thickness 60 mm (2.36"). Min. workable part size: "X" Axis 90 mm (3.54"), "Y" Axis 70 mm (2.76"), & "Z" Axis 8 mm (0.31"). Work Table: Left-hand infeed & Right-hand outfeed, Each with 20-1/2” x 66” x 35-1/2” H infeed & outfeed areas with Fixed caster-type conveyor rails. Positioning Speed: "X" Axis 120 MPM (393 FPM), "Y" Axis 90 MPM (295 FPM), "Z" Axis 30 MPM (98 FPM). Boring Units: (1) Top & (1) Bottom boring blocks, Each with: 3 kW (4 HP) Motor, Boring spindle speed 4,000 RPM, (29) Vertical spindles with (17) "X" Axis & (12) "Y" Axis, (10) Horizontal spindles with (4 + 4) "X" Axis & (1 + 1) "Y" Axis, & (1) "X" Axis Grooving saw with 3 kW (4 HP) Motor, Blade speed 5,000 RPM, & Blade diameter 150 mm (5.91"). Machining: (1) Top & (1) Bottom 3.5 kW (4-3/4 HP) Electrospindles, Each with: Variable spindle speeds 7,000 - 18,000 RPM, Right-hand/Left-hand rotation, HSK D-50 Adapters for Manual push-button quick tool change, ERC-32 Toolholders & RC-32 Collets. Operator & Machine Control: Mobile Control Console, with PC-Based Control, 18" LCD Monitor, BIESSE "WORKS" + "WINDOWS" Operating system. Pedestal & Pendant controls. Equipped with: Universal transformer, 200 - 600 V, 50/60 Cy, 3-Ph., Automatic lubrication system for guides & ways, Sound hood, 79" H Safety fence with Lock-out door, & TAPESWITCH "CONTROLMAT CKP" 24" x 72" Heavy-duty ribbed pressure-sensitive safety mat. Complete with: 7’ x 9’ x 35-1/2” H Infeed Table, with Rails & Pusher. 6-1/2’ x 8’ x 35-1/2” H Outfeed Table, with Transfer Belts. Handheld Bar Code Reader. Dust Manifold. Dimensions including Safety Fence: 307" x 184" x 98" H.

Working Capacity: "X axis 125.9" (3,200 mm), "Y" axis 52" (1,320 mm), "Z" axis stroke 13.7" (350 mm), max material thickness 9.6" (245 mm). Positioning speed:"X" 262 FPM (80 MPM), "Y" Axis 196 FPM (60 MPM), "Z" axis 98 FPM (30 MPM) AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. Work Table:(6) Tube-less panel supports with lifting bars for heavy panels, (3) ATS vacuum pods per panel support (6) Pneumatic back stops, (6) pneumatic front stops, (2) pneumatic side stops & (2) pneumatic central stops. Boring Unit:4 HP (3 kW) motor with variable speed from 1,500 - 7,500 RPM; (18) "Quick Change" independent vertical spindles with (9) spindles in "X" axis & (9) spindles in "Y" axis;(8) horizontal boring spindles with (2+2) in "X" axis & (2+2) in "Y" axis;(1) 0° - 90° NC controlled "X"-"Y" Axis grooving saw for max 200 mm dia saw blade. Machining:(1) 17 HP (13 kW) Liquid Cooled "HSD" electro-spindle router with HSK F63 adaptor, variable speed from 3,000 - 22,000 RPM;(26) Total ATC positions with (1) 8-Position ATC tool plate located on the machine head for "on the fly" ATC Operator & Machine Control:PC Front End: Biesse "BH 600" + BiesseWORKS Advanced + WINDOWS "XP" operating system,15" TFT monitor, full standard keyboard & mouse, CD ROM disk drives,RS 232 & USB ports, Ethernet connection, specific function controls & and internet trouble shooting capabilities;Control cabinet with air conditioning & dust free environment. "Biesse WORKS" is a multitask operating system, input/output modules, axes override, 4-axes interpolation, diagnostic graphics aid for programming, machine data & tool management. Complete with:(1) 250 m³/Hr vacuum pump; automatic lubrication system; original documentation; hand held pendant; safety fences & mats; scrap conveyor;

BIESSE - ROXYL 5.5: Edgebander (w/Premill & Corner Rounding)SpecificationsEdgebanding Cap. - Edge thickness for strips: Min./max.: 0.4 - 22 mm (0.02" - 0.87"); coiled material from: 0.4 - 3 mm (0.02 - 0.12"); panel thickness from: 10 - 60 mm (0.39 - 2.36"); workpiece width; Min.: 85 mm (3.34"); workpiece length min.: 140 mm (5.51"); feed speeds: 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). Machine Interface -- "Roxyl-Matic" Automated machine setup; MS/Windows XP Operating System; floppy drive; 4 GB HD; USB port, keyboard, and mouse interface. -- Flat-Screen (17") with Color graphics interface: Programs can be easily created & recalled at will; graphic interface makes programming easy: Icon of each unit may be brought up on the screen to show the Operator the status of the unit & parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine Infeed Configuration -- Premilling Station "FL-502". (2) LH & RH Rotating NC controlled spindles with: Automatic center positioning. -- Anti-Adhesive: "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to workpiece surfaces. -- Infrared Heating Lamp. Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine. Automatic for processing coiled & strip edgebanding material. -- Pressure Section Servo controlled programmable pressure section with: (1) Large driven roller and (4) idle rollers.Gluing System -- EVA (Hot Melt) "QM-705" Quick premelting granulate with: Glue roller applicator to cover conventional edgebanding material. Workstations -- End Trimming Unit "IN-801": Front & Rear trimming motors; unipoint swivel: 0° - 15° Bevel; programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors. -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled: (2) Servo motors (one for horizontal tool position; one for tool up/down position); uses combination bevel/radius/flush insert knives; prepositioning of motors by pneumatic air cylinders. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling. -- Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit "RCC-701": Flat top/bottom; digital positioning indicators; pneumatic controlled for in/out position. -- Buffing Station "SP-501" Top & Bottom buffing motors with: 150 mm (6") Cloth buffing wheel diameter; adjusts in multiple directions. -- Edge Reactivation Unit "PH-700": Top/Bottom hot air blowers to restore original color to profile scraped PVC edge material.Complete with: -- Top Pressure Beam with: Driven flat belt & programmable height positioning.Includes: Multi-Tap Transformer. - Sound Hoods with interior lights. - Outboard panel support.

BIESSE ROVER - A 3.30: CNC Machining Center (w/ATC/Boring) -- SPECIFICATIONSWorking cap. - "X" Axis: 118" (3,000 mm) any unit; "Y" Axis: For routing, 45.2" (1,150 mm; "Y" Axis for: Boring; 49.6" (1,260 mm); "Z" Axis stroke: 7.8" (198 mm); max. material thickness: 5.9" (150 mm). -- Positioning Speed Both "X & Y" Axis is: 262 FPM (80 MPM); "Z": 111 FPM (34 MPM); helical rack & pinion drive: On "X" axis; precision ball screw on: "Y & Z" Axes. -- Worktable (6) Support rails with: (3) Vacuum pods per rail; (6) pop-up back stops, (4) pop-up side-stops; (2) independent working areas.Prepared for (optional) "quick fit" vacuum outlets for: Optional clamping of small or awkward shaped parts; each work zone with (1) "Quick connect" vacuum outlet: For custom vacuum fixtures. -- Boring Unit(14) Independent vertical boring spindles forming an L-configuration with: (7) Spindles in "X" Axis & (7) spindles in "Y" Axis.(6) Horizontal spindles with: (2 + 2) in "X" axis; (1 + 1) in "Y" Axis; (1) "X" Axis grooving saw for: Max. 120 mm dia. blade. -- Machining (1) 9.5 HP (7 kW) Vertically mounted HSD electrospindle router with: HSK F63 Adaptor.Inverter driven 1,000 - 24,000 RPM with: Max. torque from 12,000 - 24,000 RPM. (1) 18-Position "Ride-Along", "on the fly" automatic tool changer. -- Operator & Machine ControlPC Front-End with: BIESSE "XP600" + Windows "XP" + BIESSE "WORKS" Operating System.INTEL "Celeron" 2.0 GHz Processor; 4 GB Hard drive; 15" color monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 serial port; (1) 1.44 MB floppy disk drive.BiesseWORKS: An easy CAD program that can be done from the office or at the machine; Operating System: Real-Time multitask processing; programs can be transferred via diskette or downloaded by wire. -- Complete with: (1) 250 M³/Hr Vacuum Pump; 11 KVA stabilized autotransformer for voltages between: 220 - 600 Volts. Equipped with: Centralized manual Lubrication System for guides & ball screw; built-in 1,500 W air conditioner for constant temperature & dust-free environment. Emergency stop rope & sound absorbing protective head enclosure with: Debris curtain around bottom edge. -- Actual model: BIESSE ROVER - A 3.30

BIESSE0 - Levia 110: 43" 2-Head Wide Belt SanderWidth cap: 43"; Drum: Combination Head.Head configurations1st Head: 5" diameter steel contact roll2nd Head 5" diameter rubber drum 45 shore with 2 1/2" wide platenSpecification -- Width cap 43" -- 1st Head: Steel contact roll, 30 HP motor. -- 2nd Head: Combination head with a rubber covered contact roll and finishing platen 24 HP motor. -- 43" x 85" abrasive belts, electronic abrasive belt tracking, abrasive belt grit compensation on both heads with 4-position turret stop. -- Conveyor belt feed, 10 - 40 FPM variable feed speed with inverter control from control panel, 1.5 HP feed drive,Equipped with & Features -- Automatic conveyor belt tracking, -- 0" - 7-7/8" motorized thickness adjustment with LED readout. -- Automatic part thickness adjustment, -- Infeed and outfeed rubber covered holddown rolls. infeed panel -- Over-thickness" sensor, -- Electronic brakes on both sanding head motors. -- Infeed emergency stop, -- 3-Roll infeed extension -- Twin motor load meter.

BIESSE - ROXYL 5.5: Edgebander (w/Premill & Corner Rounding)SpecificationsEdgebanding Capacity: Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"); coiled material from: 0.4 - 3 mm (0.02 - 0.12"); panel thickness from: 10 - 60 mm (0.39 - 2.36"); workpiece width min.: 85 mm (3.34"); workpiece length min.: 140 mm (5.51"); feed speeds: 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). Machine Interface -- "Roxyl-Matic" Automated machine setup, MS/Windows XP Operating System; floppy drive; 4 GB HD; USB port, keyboard, and mouse interface. -- Flat-Screen (17") with Color graphics interface: Programs can be easily created & recalled at will; graphic interface makes programming easy: Icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine Infeed Configuration -- Premilling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning. -- Anti-Adhesive "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to work piece surfaces. -- Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine: Automatic for processing coiled and strip edgebanding material. -- Pressure Section: Servo controlled programmable pressure section with: (1) Large driven roller and (4) idle rollers.Gluing System -- EVA (Hot Melt) "QM-705" Quick premelting granulate with: Glue roller applicator to cover conventional edgebanding material. Workstations -- End Trimming Unit "IN-801": Front & rear trimming motors; uni-point swivel: 0° - 15° Bevel; programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors. -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled; (2) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-positioning of motors by pneumatic air cylinders. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling. -- Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit "RCC-701": Flat top/bottom; digital positioning indicators; pneumatic controlled for in/out position. -- Buffing Station "SP-501" Top & Bottom buffing motors with: 150 mm (6") Cloth buffing wheel diameter; adjusts in multiple directions. -- Edge Reactivation Unit "PH-700": Top/Bottom hot air blowers to restore original color to profile scraped PVC edge material.Complete with: -- Top Pressure Beam with: Driven flat belt and programmable height positioning.Includes" Multi-Tap Transformer. - Sound Hoods with interior lights. - Outboard panel support.

BIESSEROVER B 4.40 CNC MACHINING CENTER (W/ATC/BORING)Specifications: -- Working cap "X" Axis 143.3" (3,640 mm), "Y" axis 51.4" (1,306 mm), "Z" axis stroke is 8.8" (225 mm), max. material thickness 7"(180 mm). -- Positioning Speed: "X" & "Y" axis is 262 FPM (80 MPM), "Z" axis is 98 FPM (30 MPM); helical rack and pinion drive on "X" axis & ballscrew on "Y" & "Z" axis. -- Work Table: (6) Panel support rails with (4) lifting bars to assist with panel loading/unloading, digital display readouts for rail & pod placement according to the programs, (3) Vacuum pods per panel support, (2) independent working areas with pop-up locating pins for positioning of parts on the worktable -- Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with (1) "quick connect" vacuum outlet for custom vacuum fixtures. -- Boring unit: (24) Independent vertical boring spindles with (14) spindles in "X" axis & (10) spindles in "Y" axis, (10) horizontal spindles with (3+3) in "X" axis & (2+2) in "Y" axis, (1) "X" axis grooving saw with 120 mm dia blade. -- Machining unit: (1) 16 HP (12 kW) Vertically mounted HSD "Electro-spindle" router with ISO 30 adapter, inverter driven 1,000 - 20,000 RPM with max. torque from 12,000 - 20,000 RPM -- (1) 12-position ride-along ATC for "on the fly" tool change. -- Operator & Machine Control: PC Front End with: Biesse "XP 600" + BiesseWORKS Advanced + Windows "XP" operating system, INTEL "Celeron" 2.0 GHZ processor; 4 GB Hard drive; 15" color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port, USB ports, CD ROM & 1.44MB disk drives -- Separate control panel with built-in 1,500 W air conditioner for constant temperature & dust-free environment, 11 KVA Stabilized auto-transformer for voltages between 200 - 600 Volts. -- Complete With: (1) 100 M3/Hr Vacuum Pump, Centralized manual lubrication system for guides & ball screw, emergency stop rope, safety mat protection barrier & sound absorbing protective head enclosure with debris curtain around bottom edge.

BIESSE - SKIPPER 100 L: CNC Machining Center (2-Head) -- SpecificationsFlexible "Top & Bottom" Machining Center that uses an innovative Panel Handling System. -- Workable Part SizeX-Axis: 118" (3,000 mm); Y-axis: 39.4" (1,000 mm); max. part thickness: 2.4" (60 mm).Min. X-axis workable part size: 3-1/2" (90 mm); Y-axis: 2.7" (70 mm); Z-axis: 0.3" (8 mm). -- WorktableAutomatic LH Infeed Transfer Conveyor with: Belts & rollers; automatic RH outfeed transfer conveyor with: Belts & rollers; infeed/outfeed table is "robot ready". -- Positioning SpeedX-Axis: 394 FPM (120 MPM); Y-axis: 295 FPM (MPM); Z-axis: 98 FPM (30 MPM). -- Boring Units (1) Top mounted boring block: 4.2 HP (3 kW); 4,000 RPM; (29) vertical spindles; (17) spindles in X-axis & (12) spindles in Y-axis. -- (10) Horizontal spindles: (4 + 4) Spindles in X-axis; (1 + 1) horizontal spindles in Y-axis. -- (1) X-Axis grooving saw with: 2.2 HP (1.7 kW) motor - 5,000 RPM; 150 mm dia. blade. -- (1) Bottom mounted boring block: 4.2 HP (3 kW) - 4,000 RPM; (29) vertical spindles; (17) spindles in X-axis; (12) spindles in Y-axis. -- (10) Horizontal spindles: (4 + 4) Spindles in X-axis; (1 + 1) horizontal spindles in Y-axis. -- (1) X-Axis grooving saw with: 2.2 HP (1.7 kW) motor - 5,000 RPM; 150 mm dia. blade. -- Machining(1) Top mounted 4.8 HP (3.5 kW) electrospindle; 7,000 - 18,000 RPM with: RH/LH rotation; HSK D-50 adaptors for manual push button "quick-tool" change; ERC-32 tool holders; RC-32 collets. -- (1) Bottom mounted 4.8 HP (3.5 kW) electrospindle: 7,000 - 18,000 RPM with: RH/LH Rotation; HSK D-50 adaptors for manual push button "quick-tool" change; ERC-32 tool holders & RC-32 collets. -- Operator InterfacePC Front-End with: BIESSE "NC 1000" + Windows "BIESSE Work" Operating System; 15" color monitor; international keyboard with soft-touch keypad; industrial mouse.RS-232 serial ports for possible downloading from an office PC; USB ports; (1) 48x CD ROM drive; all mounted in a separate control console with: Built-in 1,500 W air conditioner for constant temperature & dust-free environment. -- Complete with:Universal transformer for voltages from: 200 - 600 Volts, 50/60 Hz, 3-Phase; automatic lubrication system for guides & ways; sound enclosure and complete set of safety fences/devices; machine docs & manuals. -- Options include:"BiesseWORKS Advanced" Office version with: (2) Hardware keys; pneumatic part clamping with motorized infeed & outfeed transfer conveyors.Software Disclaimer: EX-FACTORY INC. Offers NO warranty or support, written or implied, concerning any/all "optional" or "additional" manufacturer or 3rd party software supplied with this machine. All software related issues including relicensing fees/requirements/functionality & training is ultimately the sole responsibility of the "Buyer".Bottom spindle or drive needs to be repaired NOTE: Teardown and loading not included.

BIESSE AKRON 440 AX EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications Material infeed for strips & coiled edge material like: PVC, ABS, veneer, and solid wood. -- Edge & Workpiece Capacity: 0.4 - 3 mm (0.016 - 0.12") Edge; 10 - 60 mm (0.39 - 2.36") panel thickness; 140 mm (5-1/2") min. panel length, and 85 mm (3.3") min. width. -- Working Units:Premilling Station: (2) 3 kW (4 HP) - 150 Hz, 9,000 RPM Motors; equipped with: Panel blow off device; SIKO digital counters for adjustments. -- EVA Gluing Unit: Edge Feeding & Pressing Unit; automatic loading of tape in rolls and strips; quick-change glue pot system. -- Pressure Section: (1) Large 150 mm dia. driven; (5) idle pressure rollers. -- Feed Speeds: Operating feed speeds: 12 & 18 MPM (39 & 60 FPM). -- Workstations: Double motor End Trim; tiltable from 0° - 15°; each motor: 0.8 kW (1 HP) - 12,000 RPM; sliding in a slicing motion on a 45° precision guide bar with oversized bearing blocks. -- Top & Bottom Trimming: (2) Motors, 0.65 kW (0.87 HP) each; "Pro-Nesting" copiers; cutters: R=2 mm. -- Fine Trim/Corner Rounding Unit: (2) Motors; each 0.65 kW (0.87 HP) - 12,000 RPM; motors carry out Corner Rounding and Top & Bottom Trimming on panel edge with: PVC, ABS, etc. material; wood edge banding up to 3 mm max. edge thickness. -- Top & Bottom Flat Glue Scrapper: To remove potential glue squeeze out. -- Buffing Station: Top & Bottom; (2) motors; each 0.37 kW (0.5 HP) - 2,800 RPM. -- Operator Interface:Operator Control Panel; "HDI" high definition touchscreen control; Windows XP-based. -- User-friendly graphic user interface with: Diagnostic and assisted maintenance. -- USB and Ethernet port; 1.44 MB floppy drive, automatic or manual startup. -- Complete with:High frequency motors (200 Hz): Padded sound enclosure. -- Top pressure beam with staggered double row holddown wheels mounted on ball bearings. -- Actual Model: BIESSE AKRON 440 AX

BIESSE ROVER A 2231 G FT FLAT TABLE MACHINE (W/LOADING, UNLOADING): -- Specifications:7' x 10' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working Capacity: "X" Axis 122 (3,100 mm), "Y" axis 86.6" (2,200 mm), "Z" axis stroke is 12.7" (325 mm), max. material thickness 4.7" (120 mm). -- Positioning Speed: "X" axis 262 FPM (80 MPM), "Y" axis 197 FPM (60 MPM), "Z" axis 66 FPM (20 MPM). All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. "X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws. -- Work area:Flat table design with HI-FLOW, multi-zone Matrix" grid Phenolic surface for "Nested Base Manufacturing".Automatic NC controlled zoning of the vacuum table with (9) individual zones.(2) Pneumatic "side" pop-up reference stops, (4) pneumatic "back" pop-up reference stops, & (6) pneumatic "front" pop-up reference stops.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) Motor, variable speed up to 6,000 RPM: Boring block with (10) independent vertical spindles, (7) in "X" axis & (3) in "Y" axis;(1) "X" axis grooving saw for max 120 mm dia blade. -- Machining:(1) 18 HP (13.2 kW) Air cooled HSD Electro Spindle with HSK 63 adaptor, variable speed from 1,000 - 20,000 RPM.(1) 8-position ATC tool changer plate located at the back of the machine base.NC controlled presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front-End with: BIESSE XP 660 + BiesseWORKS + WINDOWS WRT operating system.17" TFT Flat screen monitor; server, full keyboard, & mouse all mounted on a mobile cart; Ethernet connection capabilities.BiesseWORKS Graphic interface makes full use of the operating methods typical of the WINDOWS operating system: Assisted graphic editor used to program machining operations; programming, and guided creation of parametric macros.Import of CAD and other external software files in DXF & CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with:(1) 900 m³/Hr Vacuum Pump; Safety mats & fencing; Tool touch-off probe for automatic program update according to the tool length.Automatic Lubrication System for linear guides, rack & recirculating ball screw. Tele-Service capabilities. -- Options Include: (1) NC Controlled infeed Scissor Lift table with vacuum loading; (1) Rake system; (1) NC controlled & powered belt outfeed table with vacuum sweeping system; (1) Additional NC controlled powered belt outfeed table; Bar code label printer. -- Actual Model is BIESSE ROVER A 2231 G FT

BIESSE - ELIX B: CNC Bore, Glue, and Dowel InserterBIESSE Drill & Dowel Inserter features: Single spindle for drilling; dowel insertion unit; glue injecting unit installed on a carriage moving in the X-axis.Position for drilling dowel insertion provided through simple programs through the NC control or third-party software. Operator Control interface is: Intuitive, user-friendly, and very easy to use. -- Specifications Max. parts length: 1,300 mm (51";); min. parts length:120 mm (4.7";); parts thickness: 10 - 40 mm (0.4"; to 1-1/2";). -- Positioning Speed "X" & "Y" Axis positioning speed: 40 MPM (131 FPM); "Z" axis has manual adjustment with: Max stroke of 40 mm (1.57").The working unit's travel on Precision machine ground ball screws; powered by brushless AC Servo motors. -- Worktable(4) Working Zones with: Center fence position in up mode; (2) large work zones in down position; (4) hold-down cylinders. -- Boring UnitDrilling Unit. High-speed unit with: 6,000 RPM spindle; max. drilling depth of 30 mm (1-1/4"); max. drill bit dia.: 12 mm (0.47"); manual adjustment of depth with: Digital indicator. -- Dowel Insertion UnitDowel prepositioning ensures high repeatability of inserting dowels for each hole; distance between the dowel insertion unit and the drilling spindle: 32 mm (1.3") for simultaneous drilling; dowel insertion when holes are spaced at 32 mm; standard dowel dimensions: 8 x 30 mm; Max. dowel projection: 14 mm (0.551"). Glue Tank: Holds up to 8 liters (3.1 gallons) of glue; max. glue density: 900 CPS. - Glue inserting unit: Flow sensor and electronic adjustment of the amount of glue. -- Operator InterfaceIndustrial Numerical Control with: Extremely simple Program Editor; macro & parametric programming. Icon driven. -- Includes: Original Factory Machine Documentation. -- Actual Model: BIESSE ELIX B

BIESSE - ROVER A 3.65 FT: Flat Table Machine (w/ATC/Boring) -- Specifications4' x 21.3' with (2) 10' Long Flat Table Workstations: "GANTRY TYPE" "Phenolic" Table machine for Nested Base Manufacturing. -- Working Capacity"X" Axis: 254" (6,450 mm); Any unit; "Y" Axis: For routing; 51" (1,290 mm); "Y" Axis: Vertical drilling, 57" (1,436 mm); "Z" Axis: Stroke, 7.9" (200 mm); max. material thickness: 6.2" (160 mm). -- Positioning Speed"X" & "Y" Axis: 262 FPM (80 MPM); "Z" Axis: 82 FPM (25 MPM); helical rack & pinion drive on "X" Axis; ball screw: "Y" & "Z" Axis. -- WorktableFlat table designed for: "Nested Base Manufacturing", (2) independent vacuum zones and working areas.(16) External pop-up reference pins with: (2) On RH side; (2) on the LH side; plus (6) on the front of the table & (6) on the back of the table.Prepared for (optional); "Quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with: (1) "Quick connect" vacuum outlet for custom vacuum fixtures. -- Boring UnitBoring Head with: (7) Independent vertical boring spindles in "X" axis. -- Machining(1) 16.1 HP (12 kW) Liquid-cooled electrospindle with: HSK F63 Adaptor; 14 kW inverter; 1,000 - 24,000 RPM with max. torque from: 12,000 - 24,000 RPM.(1) 10-Position "Ride-Along"; gantry mounted automatic tool changer. -- Operator InterfacePC Front-end with: BIESSE "XP600" + "BiesseWorks" + Windows "XP Professional" Operating System; 15" color monitor; international keyboard; soft touch keypad; Industrial mouse; RS-232 serial port; (1) 1.44 MB; CD ROM disk drive.BiesseWorks: Easy Operating System for real-time multitask processing; programs can be transferred via diskette or downloading by wire (is possible).Components housed: 1,500-Watt Air conditioner control cabinet for constant temperature control & dust free environment. -- Complete with:(1) 300 cbm/Hr Vacuum pumps; centralized manual lubrication system for guides & ball screw; safety mats; Emergency Stop rope; protective head enclosure with debris curtain around bottom edge. -- Actual Model: BIESSE ROVER A 3.65 FTNOTE: Machine runs, was in use until taken from production. It has had occasional program stoppage mid run, once reset runs well quite a few cycles before stoppage.

BIESSE - AKRON 1130 J: Edgebander (w/Premill & Corner Rounding) -- SpecificationsWorking Capacity Edgebanding thickness: 0.4 - 3 mm Capacity; min. panel width: 85 mm (3.3"); min. panel length: 140 mm (5-1/2"); panel thickness: 10 - 50 mm (0.39" - 1.96"). - Feed Speed: 9 MPM (30 FPM).Front-End Equipped with: -- Premilling Unit "RT01" with: "Auto Set" Automatic intervention; Strip & Coil Edge magazine; automatic shear type guillotine. -- Hot Melt Glue System: Teflon coated glue pot; digital thermostats with automatic kickdown when machine is in idle mode.Pressure Section with: (1) Large dia. "nonstick" coated drive roller & (1) TEFLON plated idle roller. Workstations -- "IT01" End Trimming Unit. Single motor end trimming unit with: Linear bearing support. -- "RT01" Premilling Unit. Asymmetrical diamond tools; max. height = 55 mm. -- "RF01" Tilting Fine Trimming Unit. Multiprofile cutters for: Flush trimming; 25° chamfer & 3 mm radius trimming. -- "AR01" Corner Rounding Unit. Single motor corner rounding unit with: 3 mm Radius tooling. -- RB01 Unit. Profile Scraping; Top & Bottom 3 mm thick PVC banding. -- "RC01" Flat Scraping Unit. Top & Bottom glue scraping. -- "SZ01" Buffing Unit. Top & Bottom buffing unit; 1/2 HP (0.37 kW) - 2,800 RPM motors; units tilt 0° - 30°.Operator & Machine Control -- BIESSE "SMART TOUCH 7": User-Friendly touchscreen control panel for workstations.Includes: Insulated sound enclosure over all trim stations with: Split dust hood; viewing windows.

BIESSE - STREAM A 6.5: Edgebander w/Premill & Corner Rounding + NC Axis PackageFeatures -- "NC Axis Package". The machine adapts to the process being executed based on the edge's thickness and material.Machine management: 100% Touch with no need for external devices. - "Intelligent" language management.Easy program management and usability with rapid transition from one machining operation to the next. Specifications -- Edgebanding CapacityEdge thickness for strips: Min./max. 0.4 - 22 mm (0.02" - 0.87"); coiled material: 0.4 - 3 mm (0.02 - 0.12").Panel thickness: 10 - 60 mm (0.39 - 2.36"); Workpiece width: Min. of 85 mm (3.34"); workpiece length: Min. 140 mm (5.51").Feed speeds: 12 - 18 - 20 - 25 MPM (39 - 59 - 65 - 82 FPM).Machine Infeed Configuration -- Premilling Station: FL 502(2) 3.5 kW (4.7 HP) - 12,000 RPM Motors; LH & RH counterrotating spindles; NC (Servo) controlled with: Automatic intervention that guarantees a perfect base for gluing. -- Anti-Adhesive: VC 710Automatic Spray Unit with: Glue release agent preventing glue from adhering to workpiece's surfaces. -- Infrared Heating Lamp: PH 700Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine(1) Coil/position magazine for processing coiled & strip edgebanding material in real time. -- Pressure SectionServo Controlled programmable pressure section with: (1) Large driven roller and (4) idle rollers.Gluing System w/Premelter -- EVA (Hot Melt) Quick premelting granulate with: Glue roller applicator to cover conventional edgebanding material. Workstations -- End Trimming: IT 90SFront & rear linear end trimmer with: Tilt function for high speeds; (2) 0.65 kW (0.87 HP) - 12,000 RPM motors. Machine axis movement on linear tracks allow the achievement of very high processing speeds.Copying & tracing system guarantees optimal finish quality, also on high gloss edges with film. -- Flush/Bevel Trimming Unit: RF 400Top & Bottom flush or bevel trims with: (2) "Quick Change" 2 kW (2.7 HP) - 12,000 RPM motors. -- Fine Trimming Unit: RF 12(2) 0.65 kW (0.8 HP) - 12,000 RPM Motors; (2) Servo motors for tool positioning (one for horizontal tool position; one for up/down tool position).Prepositioning of motors by pneumatic air cylinders while using a combination bevel/radius/flush insert knives.Absolute machining flexibility thanks to the full adjustment of the machine according to the required edge thickness. -- Corner Rounding Unit: AR 30(2) 0.65 kW (0.8 HP) - 12,000 RPM Motors for front/back corner and upper & lower edge profiling.The controlled axis on the Corner Rounding unit supports the management of infinite machining settings. -- Profile Scraping Unit: RB 02Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit: RCC 701: Flat, top/bottom, digital positioning indicators, pneumatically controlled for in/out position. -- Buffing Station: SZ30: Top & Bottom buffing motors: 0.37

BIESSE ROVER S FT 1536 FLAT TABLE MACHINE (W/LOADING/UNLOADING): 5' x 12' "Matrix" grid phenolic surface for "Nested Base Manufacturing" -- Working capacity:"X" Axis 148.2" (3,765 mm), "Y" axis 61.4" (1,560 mm), "Z" axis stroke is 20.2" (515 mm), max. material thickness 10" (250 mm). -- Positioning Speed:"X" & "Y" Axis 197 FPM (60 MPM), "Z" axis 82 FPM (25 MPM)."X" & "Y" Axes use a precision rack & pinion system, "Z" axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. -- Work area:Flat table design with "Matrix" grid phenolic surface for "Nested Base Manufacturing",The machine has (2) working areas with 2-left origins, 2-right origins, 1 front origin & 1 rear origin.(14) External pneumatic pop-up stops with (2 LH + 2 RH) rear stops, (3 LH + 3 RH) front stops & (2 LH +2 RH) side stops for material positioning.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 4 HP (3 kW) motor with variable speed up to 6,000 RPM: Boring unit with (18) independent vertical spindles, (9) in "X" axis & (9) in "Y" axis. -- Machining:(1) 17.5 HP (13 kW) Liquid cooled "HSD Electro-Spindle" with HSK F63 adaptor, RH & LH rotation; variable speed from 1,000 - 18,000 RPM.(1) 12-Position Revolving tool changer for "on the fly "ATC", (110 mm) max tool dia. per position & 16.5 Lbs (7.5 kG) max. weight per tool (including aggregates). NC controlled Tool Touch-off probe for the measurement of the tool length, max 5.1" (130 mm) tool dia. -- Operator & Machine Control:PC Front End with: Biesse "BH 660" + "Biesse WORKS " + WINDOWS "WRT" (Windows Real-Time) operating system.Air-Conditioned control cabinet, 21.5" BTouch LCD Flat screen monitor; server, full keyboard & mouse all mounted in an air-conditioned, dust free control cabinet.Intel(R) Core i7 CPU; 8 GB RAM memory; 128 SSD GB hard disk superior; Dedicated graphic card; DVD burner; USB ports; Ethernet card for network connection capabilities."bSUITE" 3.0" Graphic interface makes full use of the operating methods typical of the Windows operating system: assisted graphic editor used to program machining operations; programming and guided creation of parametric macros.Import of CAD and other external software files in DXF and CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with:(1) 300 / 360 m³/Hr (50Hz / 60Hz) "BUSH" vacuum pumps; Lubrication System for linear guides, pads and re-circulating ball screw.Universal Autotransformer for voltages between 200 - 600 V, 50/60 Hz; Tele-Service capabilities; Perimeter Safety System & fencing; -- Options Include: (1) NC Controlled infeed Scissor Lift table. (1) Vacuum loading device. &#9

BIESSE AKRON 1330 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications: Computer controlled interface for workstations with servos and pneumatic positioning devices. Programmable selections for 1-touch changeover between edgebanding types and thicknesses.Top Pressure Beam with automatic adjustment from the machine control. -- Working Capacity: Edgebanding thickness, 0.4 - 5 mm capacity. Min. panel width 85 mm (3.3"); min. panel length 140 mm (5.5"); panel thickness 10 - 50 mm (0.39" - 1.96").3 HP (2.2 kW) Variable Feed Speed from 10 - 20 MPM (32 - 65 FPM).Front-End Equipped With: -- Pre-milling Unit with "Auto-set" automatic intervention, Strip & Coil Edge magazine, automatic shear type guillotine. -- Hot-Melt Glue System: Teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode.Pressure Section with (1) large dia. "non-stick" coated drive roller & (5) Teflon plated idle rollers with servo positioning NC controlled material thickness adjustment.Workstations: -- End Trimming Unit:NC controlled end trimming unit, 0.33 HP (0.24 kW) - 12,000 RPM motors.Motors travel on (2) straight slides and pneumatic tilt 0° - 15° on horizontal. plane -- Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit: NC Controlled 2-motor Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit, 0.3 HP (0.24 kW) - 12,000 RPM.Servo driven positioning of motors for different edge trimming profiles & positions. -- Corner Rounding Unit:2-motor 0.3 HP (0.24 kW) - 12,000 RPM motors for trimming leading & trailing upper & lower edge/corners with "Fast Position",Unit can be used as a second top & bottom fine trimmer as well. -- Profile Scraping Unit:Top & bottom 2 mm or 3 mm thick PVC banding, digitals for horiz. adjustments. -- Flat Scraping Unit:Top & bottom glue scraping unit. -- Buffing Unit: Top & bottom Buffing Unit, 0.5 HP (0.37 kW) - 2,800 RPM motors), units tilt 0° - 30°Operator & Machine Control: -- Biesse SMART TOUCH 7" + Windows operating system, user friendly touchscreen control panel for workstations, rotating operator control panel w/keypad and LCD readout.Graphic 7" display touch screen. High-resolution screen for defined and intuitive images and text. Integrated 4GB hard disk for filing media files and the programs back up.USB port for managing in a simple and efficient way multimedia files, programs and updates. Ethernet port for connecting the machine to the net.Complete With: -- Insulated sound enclosure over all trim stations with split dust hood, viewing windows. -- Actual Model is BIESSE AKRON 1330 A

BIESSE AKRON 1440 SINGLE SIDE EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + with "PUR & EVA" TECHNOLOGY: -- Specifications: Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material.Working Capacity: -- Min. panel height: 10 mm; Max. panel height: 60 mm; Height of edgebanding material: 14 - 64 mm; Thickness of edgebanding material in rolls: 0.4 - 3 mm; Thickness of edgebanding in strips: 0.4 - 10 mm.Min. panel protrusion from the track: 25 mm; Panel length: 140 - 3200 mm; Min. panel width (with length 140 mm): 85 mm; Min. panel width (with length 250 mm): 50 mm.Multi-Feed speed 8-12-15 &18 MPM.Glue & Pressure Section: -- Infrared lamp IRL 700; Gluing unit Quickmelt QM 703 EVA melting glue & PUR glue. -- Automatic edge feed; Cutter knife; Pressure zone with 1-Drive & 2 pressure rollers.Working Units: -- Pre-milling unit with 2 x 0,8 kW, 12000 RPM motors, front/rear inclination 0° -15°. -- RT 02; Gluing, edge feeding, and pressing unit VC-511. -- End trimming unit with 2 x 0,8 kW, 12000 RPM, front/rear, inclination 0° -15°. -- Fine trimming unit 2 × 0,6 kW, 12000 RPM top/bottom. -- (2) Multifunction Corner Rounding unit, 0,65 kW each, for Corner Rounding, Straight Work pieces, Post and Soft-Forming 90° -180° degrees. -- Edge scraper unit; -- Glue scraper unit; -- Buffing unit 2 × 0,37 kW motors. Machine Features: -- Belt pressure beam. The top presser comprises a rubber belt with a stain-proof coating. The thrust exercised on the panel is provided by springs housed on techno polymer connecting rods. -- Auto adjustment of in feed fence. -- Automatic track lubrication system with dynamic track absorption. -- Manual infeed system for narrow pieces. -- One coil automatic edge feeding. -- Hybrid gluing head for granulated EVA and Polyurethane glue. -- Pre-Melter TM10 for Polyurethane glue in cartridges. On-demand top-loading pre-melter for PUR glues. -- Adaptive infra-red lamp to heat up the panel side before the glue application, in order to optimize the adhesion process. -- Independent pneumatic exclusion of the top/bottom fine trimming unit. Operator & Machine Control: -- Biesse, Windows-based "SMART TOUCH" control & operating system. -- Easy program management and usability. Rapid transition from one machining operation to the next. Modern, intuitive graphic interface.Complete With: -- Sliding unit for corner rounding unit, for the application of sliding liquid before the corner rounding unit. -- Cleaning unit LPT02 to apply a cleaning liquid of the glued edge, giving a perfect polishing of the edge. -- Actual Model is BIESSE AKRON 1440 NOTE: Was previously attached to & used with a 2014 Thomas Return Conveyor, see EXF Listing ..."FR-010329"

BIESSE - AKRON 1440A: Single Side Edgebander (Premill & Corner Rounding) + with "PUR & EVA" Technology -- SpecificationsLatest Technology combines: Productivity, efficiency, and flexibility for all types of edgebanding material."AirForce" Emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. The layer is activated & bonds the banding to the panel fibers. This technology allows changes based on banding colors without any setup.Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important. Also featured is a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Working Capacity: -- Min. panel height: 10 mm; Max. panel height: 60 mm; height of edgebanding material: 14 - 64 mm; thickness of edgebanding material in rolls: 0.4 - 3 mm; thickness of edgebanding in strips: 0.4 - 10 mm.Min. panel protrusion from the track: 25 mm; Panel length: 140 - 3,200 mm; min. panel width (with length 140 mm): 85 mm; min. panel width (with length 250 mm): 50 mm.Multi-feed speed: 8 - 12 - 15 & 18 MPM.Glue & Pressure Section -- Infrared Lamp: IRL 700; Gluing unit: Quickmelt "QM 703" EVA melting glue. -- "QC" (Quick Change) Glue container for EVA and/or PUR glue processing. -- "QM 703" EVA Pre-melting glue container for EVA gluing unit only, PUR glue is melted in the Glue Pot only. Automatic edge feed; cutter knife; pressure zone with: (1) Drive & (2) pressure rollers.Working Units -- Premilling unit with: 2 x 0.8 kW - 12,000 RPM motors; front/rear inclination: 0° - 15°. -- "RT 02" Gluing, edge feeding, and pressing unit VC-511. End trimming unit with: 2 x 0.8 kW - 12,000 RPM; front/rear; inclination: 0° - 15°. -- Fine Trimming unit: 2 × 0.6 kW - 12,000 RPM Top/bottom. (2) Multifunction Corner Rounding units: 0.65 kW Each for corner rounding; straight workpieces; post & soft forming: 90° -180°. -- Edge scraper unit.Glue scraper unit. -- Buffing unit: 2 × 0.37 kW Motors. Machine Features -- Belt pressure beam: Top presser comprises a rubber belt with a stain-proof coating. -- The thrust exercised on the panel is provided by: Springs housed on techno polymer connecting rods. -- Auto. adjustment of feed fence. -- Automatic track lubrication system with: Dynamic track absorption. Manual infeed system: For narrow pieces. -- (1) Coil automatic edge feeding. -- Hybrid gluing head for: Granulated EVA & Polyurethane (PUR) glue. -- Adaptive infrared lamp to heat up the panel side before the glue application to optimize the adhesion process. -- Independent pneumatic exclusion of the top/bottom fine trimming unit. Operator & Machine Control -- BIESSE Windows-Based "SMART TOUCH" control & Operating System. -- Easy program management & usability; rapid transition from: (1) Machining operation to the next: Modern, intuitive graphic interface.Complete with: -- Sliding unit

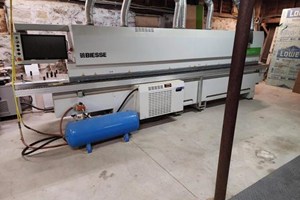

BIESSE - AKRON 1440: Single Side Edgebander (w/Premill & Corner Rounding) + with PUR & EVA Technology -- SpecificationsLatest Technology combines: Productivity, efficiency, and flexibility for all types of edgebanding material.Working Capacity -- Min. panel height: 10 mm; Max. panel height: 60 mm; height of edgebanding material: 14 - 64 mm; thickness of edgebanding material in rolls: 0.4 - 3 mm; thickness of edgebanding in strips: 0.4 - 10 mm.Min. panel protrusion from the track: 25 mm; panel length: 140 - 3,200 mm; min. panel width with 140 mm length: 85 mm; min. panel width with 250 mm length: 50 mm.Multi-feed speed: 8 - 12 - 15 &18 MPM.Glue & Pressure Section -- Infrared Lamp: IRL 700; Gluing unit: Quickmelt "QM 703" EVA melting glue. -- (2) "QC" (Quick Change) Glue container for EVA and/or PUR glue processing. -- "QM 703" EVA Pre-melting glue container for EVA gluing unit only, PUR glue is melted in the Glue Pot only. -- Automatic edge feed; cutter knife; pressure zone with: (1) Drive & (2) pressure rollers.Working Units -- Premilling unit with: 2 x 0.8 kW - 12,000 RPM motors; front/rear inclination: 0° - 15°. -- "RT 02" Gluing, edge feeding, and pressing unit VC-511. -- End trimming unit with: 2 x 0.8 kW - 12,000 RPM; front/rear; inclination: 0° - 15°. -- Fine Trimming unit: 2 × 0.6 kW - 12,000 RPM Top/bottom. -- (2) Multifunction Corner Rounding units: 0.65 kW Each for corner rounding; straight workpieces; post & soft forming: 90° -180°. -- Edge scraper unit. -- Glue scraper unit. -- Buffing unit: 2 × 0.37 kW Motors. Machine Features -- Belt pressure beam: Top presser comprises a rubber belt with a stain-proof coating. -- The thrust exercised on the panel is provided by: Springs housed on techno polymer connecting rods. -- Auto. adjustment of feed fence. -- Automatic track lubrication system with: Dynamic track absorption. -- Manual infeed system: For narrow pieces. -- (1) Coil automatic edge feeding. -- Hybrid gluing head for: Granulated EVA & Polyurethane (PUR) glue. -- Adaptive infrared lamp to heat up the panel side before the glue application to optimize the adhesion process. -- Independent pneumatic exclusion of the top/bottom fine trimming unit. Operator & Machine Control -- BIESSE Windows-Based "SMART TOUCH" control & Operating System. -- Easy program management & usability; rapid transition from: (1) Machining operation to the next: Modern, intuitive graphic interface.Complete with: -- Sliding unit for corner rounding unit for the application of: Sliding liquid before the corner rounding unit. -- Cleaning unit "LPT02" Applies a cleaning liquid of the glued edge, providing a perfect polishing of the edge. 230/460/575 V Multi-Tap transformer. -- Actual Model: BIESSE AKRON 1440A

Biesse Akron 1440A Edgebander
