Woodworking Equipment For Sale

NORTHTECH NT-EV-920RC Dual Head Wide Belt Sander2-Head Wide Belt Sanding Machine with 37" capacity. Specifications: -- First head 8-1/4" Dia. grooved rubber contact roll, with 20 HP motor. -- Second head: Combination finishing platen with grooved rubber roller and polishing pad, with 15 HP motor. -- Two (2) infeed and outfeed spring loaded holddown rollers; 2 HP variable speed feed drive. -- Sanding belt size: 37" X 85" and with electronic belt tracking. -- Motorized opening between conveyor bed and sanding heads. -- Ammeters for measuring motor loads. -- Includes spare abrasive belts.

NORTHTECH NT-KL-43-RC Wide Belt Sander (2) Heads;43" width cap. Drum, Combination Head.Head Configuration:1st Head: Rubber-covered contact drum with 25 HP motor2nd Head: Combination head with a rubber-covered contact drum and 2-1/4" wide finishing platen, 20 HP motor.Specifications: -- Thickness opening with PLC control, (DP-525 controller) keypad entry automatically adjusts to any thickness with LED readout. -- 37" x 75" Abrasive belts, TRU-TRAK solid state abrasive belt tracking. -- Variable feed drive 13 - 49 FPM, 2 HP motor. -- Endless belt conveyor, infeed and outfeed rubber covered pinch rolls. -- Complete with: 0" - 6" Automatic part thickness set up.Equipped with & Features: -- Infeed and outfeed rubber covered spring loaded holddown rolls. -- Feed emergency stops at infeed. -- Disc brakes on sanding heads, electrical interlocks on main access doors, and motor load meters. -- Note: Year of manufacturing has to be verified.

NORTHTECH - NT-SL2000XL, ...Straight Line Rip SawSpecifications: -- 20 HP Direct Drive Straight Line Rip Saw. -- 2" Arbor. -- Distance from column to blade: 18 in. -- Saw blade size: 10" - 14". -- 3-1/8" Cutting capacity. -- Glue Line Saw. -- Feed Motor: 1.5 HP. -- Feed Speed: 20 - 105 FPM.

Northtech NT SLR-16SC Precision 16″ Straight Line Rip Saw FEED SYSTEM --Saw motor: 15HP, 3PH 230/460V -- Feed: 1.5HP variable from 40′ – 120′ FPMPRODUCT DIMENSIONS -- Min. thickness: 3/16″ -- Max depth of cut: 4-1/16″ with 16"; Blade -- Max depth of cut: 3-1/16"; with 14"; BladeSpecifications: -- Direct Drive = Direct Drive -- Feed Hp. = 1.5 Hp. -- Feed System = 4"; Split Chain with True Trac -- Feed Speed = 40-120 FPM -- Assisted Start = Wye Delt"; -- Throat Capacity = 18-1/4"; -- Min. Length = 12"; 2nd Roller to Kickback -- Min. Thickness = 3/16″ -- Max. Thickness = 4-1/16"; W/ 16"; BladeGlue Line Rip = Guaranteed 12′ 4/4 stock @ 50 FPMEquipped with & Features -- Blade Size = 14"; Tungsten Carbide Tipped -- Dust Collection = 1417 Total CFM -- Dust Port Out = 4"; Top 6"; Bottom -- Arbor Diameter = 2″ Arbor -- Idle Rollers = (8) Idle Rollers -- Hold Down Style = 8 Spring Loaded Hold Downs -- Kickback Finger = (59) Lower (32) Top -- Automatic Mechanical Oiler -- Low Oil Warning = Low Oil Shut-off -- Laser = 100mw Laser Light & Mount Bracket

NORTHTECH - SRS-12: Straight Line Rip-SawSpecifications --15 HP Motor; 1" dia. saw arbor; speed of 4,500 RPM, 8". -- Max. blade cap.: 12". -- Max. depth of cut: 3-5/16". -- Part length: 8" Min. -- Distance between saw & column: 18"; 60" W x 33" table. -- Feed & Chain: 2 HP Feed drive motor; variable feed speeds of: 59 - 72 - 91 - 111 & 137 FPM. -- 7" Wide double chain; with automatic chain lubrication.Equipped with & Feature: -- Top pressure system with: (6) Spring loaded holddown rollers. -- Double row antikickback fingers. -- Adjustable infeed fence. -- Safety side guard. -- 4" Dia. dust hood outlet. -- Push-button controls. -- Magnetic starters. - Overhead post for laser mounting.

NORTHTECH - NT-KL-920-PRK- B & NT-KL-920 PRK-U, ...Top & Bottom 3-Head Planer Sander3-Head bottom with: Planer, drum and platen; 3-head top with: Planer, drum, and platen 920 mm (36") wide.Capacity: 36" x 5" thickness.SpecificationsBottom Machine Model: "NT-KL-920 PPR". -- Infeed driven Conveyor: 37" x 72" Long. -- 1st Head: Spiral cutterhead; (8) rows of 15 x 15 x 2.5 mm inserts carbide knives; (4) sides for rotation; low tool cost.Cutterhead: 175 mm (7") Dia. and 50 HP motor. Segmented chip breaker before the cutterhead. -- 2nd Head: Contact roller; (280 mm) 11" in dia.; 70 durometers, powered by a 40 HP motor; running at 3,600 FPM belt speed.Sanding belt size: 85" x 37". -- 3rd Head: 3-1/4" Pneumatic Polishing Platen; engineered as a combination station, air-cushioned & adjustable in pressure to various grits and materials application. Powered by a 30 HP motor. -- Lifting & lowering conveyor bed; 1-1/2 HP motor (includes auto. thickness setup device). -- Variable speed: 7.5 HP; inverter duty motor integrated with an AC inverter (VFD); control providing variable feed rate from 15 - 70 FPM for heavy calibration; LED readout feed speed indicator. -- Microprocessor Control for: Conveyor bed positioning to high precision via keypad entry. -- Automatic electronic preset panel thickness gauge/micrometer. -- Automatic Air Jet blast cleaning system on both sanding heads.Top Machine Model: NT-KL-920 PRR-U -- 1st Head - Spiral Cutterhead: (8) Rows of 15 x 15 x 2.5 mm inserts carbide knives; (4) sides for rotation; low tool cost.Cutterhead: 7" (175 mm) Dia.; 50 HP motor.Segmented Chip Breaker: Before the cutterhead. -- 2nd Head - Contact Roller: 11" (280 mm) Dia.; 70 durometers; powered by 40 HP motor; running at 3,600 FPM belt speed.Sanding belt size: 85" x 37". -- 3rd Head - 3-1/4" Pneumatic Polishing Platen: Engineered as combination station; air-cushioned & adjustable in pressure to various grits and materials application; powered by 30 HP motor. -- Lifting & lowering Conveyor Bed: Motor 1.5 HP (includes auto. thickness setup device). -- Variable speed 7.5 HP inverter duty motor; integrated with AC inverter (VFD) control; variable feed rate: 15 to 70 FPM for heavy calibration; LED readout feed speed indicator. -- Microprocessor Control: For conveyor bed positioning to high precision via keypad entry. -- Automatic electronic preset panel thickness gauge/micrometer. -- Automatic Air Jet blast cleaning system on both sanding heads. -- Powered dropdown Conveyor between Bottom & Top machine.Features (includes both machines) -- Massive monoblock base: 3/4" Thick plate steel weldments. -- Large dia. roller hold-downs; ball bearing supported; 65 duro UV rubber are standard features. -- Automatic soft start of main motors (Y-Delta). -- Disc braking/emergency shut down protection for: Sanding belt breaking, non-tensioned sanding belt; and mistracking of sand belt. -- All motors & electrics are CE-approved. -- Electronic oscillating belt tracking system. -- Au

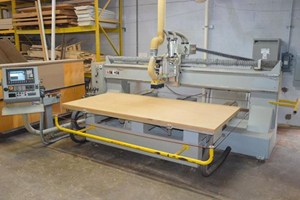

NORTHWOOD NW-105 NT 5' x 10' CNC Router, with ATC, Boring – 4,535 Hrs. only!Specifications: -- Table size 60" x 120" x 34" H, with Table thickness 1-1/2". -- Positioning speed 2,500 IPM.Equipped with: -- Moving cast-aluminum single-zone vacuum table, with Front-to-back configuration & (3) Pop-up location pins. -- HSD "ES 619" 8 kW (10-3/4 HP) - 24,000 RPM SK-30 Air-cooled electrospindle; Variable spindle speeds to 24,000 RPM. -- 8-Position Pneumatically-actuated tool changer, & Tool pre-setter.Features: -- Boring unit, with (13) Pneumatically-actuated Vertical spindles, (8) in X-Axis & (5) in Y-Axis, with 1.7 kW (2.25 HP) - 3,490 RPM Motor. -- All Axes with THK Precision contour linear guideways. -- X & Y-Axes with Closed loop AC Servo drives & Precision ground ball screws. -- Extra heavy-duty bridge.Operator Control: -- SIEMENS "SINUMERIK" CNC Touchpad Control, with 12" Display, RS-232 Port, & Remote pendant control with Touchpad.Complete with: -- Safety device. -- Documentation. -- 45 kVA 480/208Y/120 Transformer. -- (8) Toolholders.NOTE: No Vacuum Pump.

NOVY 1872V Multi Spindle Vertical Boring Machine 12 Spindles Vertical boring machineSpecifications: -- Table Hardwood 18" X 72' -- Table stroke 0"- 6" -- (12) Spindles in line at 5" center to center, spindle nose with 0" to 1/2" chuck -- (2) drive motor 2 HP with magnetic starter -- (4) Spring loaded hold down -- Savety guard -- Foot swtich

OAKLEY H-5 Double Sided Edge Sander. -- General Specs: With 7.5 HP -1,800 RPM TEFC motor; (2) 8-1/2" x 57-1/2" Cast Iron platens; 8" x 164" abrasive belt, 4,680 FPM belt speed. -- Equipped with: One 11" x 62" Cast iron side table on one side and (1) 19" x 64" cast table on the other side, (1) cast iron radius tilting end table, end table tilts 0 ° - 45°; 6" vertical table travel w/hand wheel adjustment. -- Features: Rubber covered direct drive pulley and idler pulley,Complete with: Magnetic starter with overload protection, (8) dead head radius ends with graphite covering, and (1) steel covered spare head roll.

Oakley Edge Sander

OGAM PO/M Straight Line Rip Saw;Specifications: -- 20 HP Main motor. -- 24"; throat capacity. -- Max. cutting height: with 12" blade 3", with 16" blade 4". -- Min. diameter of circular saw blades: 8". -- Max. dia. of circular saw blades: 16". -- Min. length of working pieces: 10". -- Variable feed speed from 50 -154 Ft./minute. -- Feeding belt width: 11". -- Spindle Speed: 4,500 RPM. -- 36"; x 60"; table.Equipped with & Features: -- Fence and rail system with one stop. -- Infeed table row of anti-kick back fingers. -- Steel smooth top hold down roller. -- Top row of anti-kick back fingers. -- Steel smooth top hold down roller. -- Split hold down steel smooth roller around blade. -- Split hold down steel smooth roller around blade. -- Steel smooth top hold down roller. -- Chain is in excellent condition!

OGDEN PUR LAMINATING LINE for Engineered FlooringSystem consists of:POS 1. PLYWOOD HOPPER FEEDER Plywood boards (two-track or single-track) are loaded vertically into the hopper and push-fed from the hopper into the Roll Coater where the rolls from the Coater take over feeding the plywood. The plywood hopper feeder is centered to the press; adjustments of the fence are via hand crank where both sides of the fence move simultaneously. The hand crank has a digital indicator to assist the operator in the width setup. Specifications:Length 4 ft to 8 ftWidth with single track 6" to 12"; tolerance of +/- 1/64";Width with double track 3" to 7" tolerance of +/- 1/64";Hopper capacity height 16";Pass line-height 37"; POS 2. DRUM MELTER Drum melter melts the glue which is contained in a 55-gallon drum, it pumps the glue out through heated hoses and delivers the glue to the roll coater. The roll coater sends the drum melter signals when to pump glue and when to run the pump off, a signal is sent according to glue level height. POS 3. TOP HEAD PUR ROLL-COATER Roll coater to apply hot melt PUR glue to the top of the Substrate. Roll coater will be equipped with wheel casters in order to move the unit out of the line for cleaning. Touch Screen Control panel for the coater is mounted on the left-hand side when facing the in-feed of the unit. Adjustment of doctor roller will be with hand wheel (not powered) and mechanical digital display in increments of 0.001" in relationship to application roller. Adjustment of the coating roller will be powered and will include a hand wheel with a mechanical digital display in increments of 0.001" Roll coater is equipped with a fume extraction hood which is located above the roll coater. Feed speed 20 - 250 FPMMin coater length 21"Maximum thickness 4"Minimum thickness 3/8"Effective coating width 14"Doctor roller ground chromeCoating roller silicone, 60 durometerVoltage 480 VPass line height 37"; POS 4. PLYWOOD TRANSFER CONVEYOR Conveyor length 20’Veneer lengths 2’ to 12’ ’Width with single track 7" to 12"; tolerance of +/- 1/64";Width with double track 3" to 7" tolerance of +/- 1/64";Pass line-height 37";Feed speed range from 20 to 250 FPMPop up gate will be installed to st

Ogden SL3660 RFS

Ogden PUR Laminating Line - Hopper Feeder - Glue Applicator - Drum Melter - Substrate Transfer - Roll Press - CRP14 - Manual Cut Off Saw

Oliver model M-5360.002 25″ double head wide belt sander.Head configuration1st Head; Drum2nd head: Combination HeadSpecifications -- 25" Width capacity -- Belt length is 75″.Equipped with & Features -- Operators manual, -- Misc supplies, and several extra belts.

OLIVER 5390 Dual Head Wide Belt Sander1/8" to 6" Thickness capacity 36" Width capacity.Equipped with: -- 20 HP main drive motor, 2 HP variable conveyor feed 15 to 49 FPM.Head configuration: -- 1st Head: Contact drum -- 2nd Head: Roller and PlatenFeatures: -- Digital thickness controller w/ thousandth's jog feature. -- Omron electronic eye sanding belt tracking. -- Variable speed drive 15 to 49 FPM -- Power raising and lowering of the conveyor with digital thickness set-upSpecification: -- Max. width cap 36" -- Feed motor 2 HP -- Elevation motor 0.5 HP -- Max. thickness 6" -- Min. thickness 1/8" -- Contact drum 1st head 8" dia. -- Roller drum on 2nd head 4.75" dia. with 2" wide finishing Platen -- CFM requirements 3600 -- Feed speeds 15 - 49 FPM -- Belt size 37" x 60".

OLIVER 17"; SWING FLOOR DRILL PRESS17" Floor model Drill Press with a durable cast iron head, table and base.Equipped with: -- 3/4 HP motor, 240 to 3,400 RPM motor drives (16) different speeds making it suitable for heavy industrial use. -- The spindle is equipped with a heavy duty 5/8" capacity drill chuck on a MT-2 Morse taper. -- Spindle travel 3-1/8" -- Large 12" x 12" table with clamping slots. -- Rack and pinion system makes it easy to adjust the table up and down.

OLIVER 5385 Single Head Wide Belt SANDER (37") 1-Head and 37" belt width Combination Sanding Head with rubber covered contact roll and adjustable finishing platen, 1/8" - 5" Thickness capacity, 36" width capacity.Specifications: -- 20 HP Main drive motor. -- 1 HP Variable speed (15 to 45 FPM). -- 1/4 HP Power raising and lowering conveyor bed motor. -- 37" X 75"; Abrasive belts for longer life and less loading.Features; -- Central control panel features digital thickness set-up control for accurate stock height and removal. -- Four post lift design assures accurate consistent results. -- Oscillating belt is controlled by an air sensor to prevent sanding lines. -- Finishing Platen is fully adjustable and can be removed. -- Multiple dust ports for efficient dust management. -- Independent motors run the sanding belt, feed conveyor, and table elevation for maximum power to each operation.

Oliver bandsaw circle cutter, 36" wheels, stored inside

Oliver 36" Band Resaw
