Gang Rip Saws For Sale

LHI MODEL RFPR ROLL FEED PANEL RIP SAWWith the following Standard and Optional Equipment: -- Roll Feed Panel Rip Saw - 72" Arbor - 50 HP motor -- 10 to 80 FPM (4-speed programmable or potentiometer) -- (8) Polyurethane feed rollers -- 10" Dia. blades (thickness-1/8" to 1-1/4") Infeed Scissors Lift 4,500 Lbs capacity -- 4' x 8' top -- (3) 2"; x 3"; support tubes for fork access -- 110 VAC / 1-Ph power unit -- Foot pedal control -- Automatic up-indexingOutfeed Scissors Lift 4,500 Lbs capacity -- 4' x 8' top -- (3) Support ramp/cross-bars to allow for access -- Auto down indexing -- 110 VAC / 1 Ph power unit -- Foot pedal controlSawblades: -- (10) 10" x 40T x 4-3/16 Bore, TGC Blades -- (10) Blade Collars, 3-15/16" ID x 4.18" bore x 1.25" wide Quick-change arbor setup with the second arbor: -- Arbor change cart (included with the arbor setup that comes with the saw to allow roll-out) Second Arbor Setup Includes: -- Cart -- Blade Box -- Arbor, Bearing -- Sheave -- Throat Plate Rack -- (6) Throat Plates Quick Change Kit: -- Belt Guide -- Belt Tensioner -- Hyd. Arbor Lock Quick Change Kit permits the operator to release the belt and unlock the arbor from the front side of the machine. Without the kit, the operator must open the rear guard to remove the belt and unlock the arbor -- (10) Blades for the second setup -- (10) Collars for the second setup 16-week ESTIMATED delivery: -- Delivery assumes order and down payment are received within (1) week of the date of quotation. Installation technical assistance for $115/Hr plus travel time and expenses Customer responsible for rigging Quote assumes customer will deliver material for testing (if required) Warranty: (1) Year mechanical parts (electrical controls excluded) This quotation is valid for 30 days. ESTIMATED DELIVERY DATE:The delivery date is quoted as 'estimated' because the equipment we manufacture is built to order and to our customer's specifications. This estimate is made under the assumption that there will be no interruptions of labor, material shortages, or any environmental or other unforeseen circumstances. LHI is not responsible for any installation or production costs resulting from actual delivery dates which exceed the quoted estimated delivery dates. Accurate dates for the delivery will not be available until the equipment is in the manufacturing phase. If there are custom features for the quoted equipment then accurate delivery dates will be available when testing is complete. Please consult with the factory for updates to the expected delivery date.NOTE: PRICING DOES NOT REFLECT FACTORY'S 7% MATERIALS SURCHARGE

LHI MODEL RFPR ROLL FEED PANEL RIP SAW WITH THE FOLLOWING STANDARD AND SPECIAL EQUIPMENT: Specifications: -- 72" Useable Arbor and 50 HP Arbor Motor -- 14 - 80 FPM Variable Speed Feed Rate (4-speed programmable or potentiometer) -- (8) Polyurethane feed rollers -- Arranged for 14" dia. blades and 4"; max cutting thickness -- Single Point Thickness Adjustment from 1/2" to 4" -- Arbor Quick-Change KitComplete with: -- Additional Arbor Setup, Includes: Cart, Blade Box, Arbor, Bearings, Sheave, Throat Plate Rack, and (6) Throat Plates -- (15) Blade Collars: 3-15/16" ID x 4.18" bore x 1.25" wide -- (15) 14" Carbide Tipped Blades: 40 Tooth with 4.188 bore -- Delivery ESTIMATED at (14) weeks; assumes order and down payment are received within (30) days of the date of this quotation. -- Technical Installation assistance - $125/Hr plus travel time and expenses -- Buyer is responsible for rigging -- Quote assumes customer will deliver material for testing (if required) -- Warranty: 1 Year mechanical parts (electrical controls excluded) -- This quotation is valid for 30 days.

LHI RFPR ROLL FEED PANEL RIPPER - "BUILT TO ORDER SYSTEM" with the following equipment: -- Ripsaw: -- 72" Arbor - 50 HP arbore motor and 14 to 80 FPM Variable Speed Feed Rate (4-speed programmable via VFD) -- (8) Polyurethane Feed Rollers -- Arranged for 10" dia. blades to rip panel thickness from 1/8" to 1-1/2"; -- Single Point Thickness Adjustment -- Quick-Change Arbor Kit Additional Arbor Setup Including: -- (1) Arbor Cart, (1) Blade Box, (1) Arbor Shaft, (1 set) Bearings, (1) Arbor Sheave, and (1) Throat Plate Rack Automatic Infeed System: -- 4,500 Lbs. Capacity Hydraulic Scissors Lift with (4) loading ramps to feed and align 4’ x 8’ sheets into Panel Saw -- 110VAC/1PH Scissors Lift power unit -- Auto-Cycling Rake Feeder -- 6’ Line-Up Conveyor With Power Pinch WheelOutfeed Scissors Lift: -- 4,500 Lb. Capacity Hydraulic Scissors Lift with 4' x 8' top, (3) support ramps/cross-bars to allow fork access -- 110VAC / 1Phase power unit -- Auto Down Indexing -- Auxiliary Foot Pedal Control Blades, Collars and Throat Plates: 10" x 40T x 4 3/16 Bore, TGC, $105 eachBlade Collars: 3-15/16" ID x 4.18" bore x 1.25" wide, $135 eachAluminum Throat Plates, $35 each TERMS AND CONDITIONS: -- Delivery: 16-18 Week ESTIMATED delivery date assumes your order is received within one week of date of this quotation. -- A 5% Tooling & Steel Surcharge to be added to the machinery price when the total is known -- Installation technical assistance, $125/hr. plus travel time and expenses (if required) -- Customer responsible for own rigging -- Quote assumes customer will deliver material for testing (if required) -- Warranty: 1-year mechanical parts (electrical controls excluded) -- FOB: Shannon, MS 38868. ESTIMATED SHIPPING DATE: 16 TO 18-WEEKS --The delivery date is quoted as “estimated"; because the equipment manufactured is built to our customer's specifications. This estimate is made under the assumption that there will be no interruptions of labor, material shortages, or any environmental or other unforeseen circumstances. -- LHI is not responsible for any installation or production costs resulting from actual delivery dates which exceed the quoted estimated delivery dates. Accurate dates for the delivery will not be available until the equipment is in the manufacturing phase. If there are custom features for the quoted equipment then accurate delivery dates will be available when testing is complete. Please consult with the factory for updates to the expected delivery date.NOTE: PRICING DOES NOT REFLECT FACTORY'S 10% MATERIALS SURCHARGE

LHI AUTOMATIC RAKE FEEDER with the following equipment: -- Panel Feeder with up to 18' Long x 5' Wide x 1" Thick Sheet Capacity (with 4' min. sheet length) -- Feeder loads from right side when viewed from the End of the Scissors Lift -- Auto-cycle for Rake Feeder -- 6' Line-Up conveyor with Fence & Powered Pinch Wheel -- 8000 Lbs. Tandem Scissors Lift with 5' x 17' top, 600-Volt, 3-phase, 2 HP motor -- 5-Section Gravity Rollers on Scissors Lifts -- 12' Powered 5 Strand Chain Conveyor Feeds Tilt Lift w/forward/ reverse, jog controls -- Wired for 600-Volt/3-Phase/60-Cycle Operation (other voltages available) -- Arranged for Customer Provided MultiScore Panel Ripper with right side arbor loading

LHI PIGTAIL Crosscut saw with conveyor and air stopSpecifications -- 62" Cut width --Saw motor 5 HP -- 14 FT gravity conveyor cutting surface -- Cam Lock adjustable stop -- Power feed wheel for rip saw infeed assist -- Blade dia. 12"Equipped with and Features -- 4,500 lb lift with loading ramps 1 HP, 30" X 72" platform -- 4,500 lb Outfeed lift with 3 ramps, 48" X 96" Platform, Auto down indexing -- 10" X 40T X 4-3/16" , 30 Blades -- 3-15/16" ID x 4.18" bore x 1.25" wide 30 collars -- 32 Throat Plates

LHI 72" RFPR Wide Arbor Roll Feed Gang Panel Ripper with Custom 5' x 16' Automated Infeed -- Specifications: -- Panel Ripper with 30 HP Arbor Motor; 1/8" min. to 1-1/4" max. material thickness and 72" cutting width. -- Machine configured for arbor removal from the right side of the Saw when facing the Saw's Infeed (opposite of standard) -- Electricals arranged for 600-volt/60-cycle/3-Phase operation -- 10" Dia. blade design will cut thru max. 1-1/4" thickness; -- 3-15/16" dia. arbor with 72" of usable width cutting capacity, min. panel length 30". -- 1-15/16" FAFNIR arbor bearings; with (8) steel feed rollers on 6" centers; fixed feed speed of 80 FPM -- 47-1/4" working (passline) height -- (1) Arbor Cart is included -- (2) 4" Dia. dust collection ports on top and (1) 8" dust collection port on bottom. Recommended 1,500 CFM Includes the Following Optional Items: -- 5-Strand powered Chain Deck; 12' long; arranged to feed 5' x 16' packages onto the Scissors Lift. Complete with controls for forward, reverse, and jog. -- 5-Sections of Gravity Rollers on Scissors Lift Deck -- 8,000 lbs. Infeed Tandem Scissors Lift with 5' x 17' Deck and 2-HP, 3-Phase Motor. Lift includes a backstop for initial alignment at the Rake Feeder -- (8) Polyurethane Feed Rollers on 6" centers -- Variable Feed Speeds from 10 to 80 FPM. -- Rake Feeder for 16' long panels -- Auto-cycle for Rake Feeder. -- 6' Line Up Conveyor with Fence and Powered Pinch Roll Included Tooling: -- (36) Standard Saw Collars for Ripping -- (72) Standard 10" Sawblades for Ripping (Includes a spare set) -- (37) Standard Throat Plates for RippingQuick Setup Kit Included, Contains the Following -- Belt guide -- Belt Tensioner -- Hydraulic Arbor LockAdditional Arbor Setup Included. Contains the Following: -- Includes cart, blade box, arbor, bearing, sheave, throat plate rack, and(6) throat plates -- Blade Box -- Arbor -- Bearings -- Sheave -- Throat Plate Rack -- (6) Throat Plates SYSTEM TOTAL ............….……$174,495 7% ($12,214) materials surcharge on $174,495 = $186,709

LHI MBR-10 ROLL FEED GANG RIPSAW: Saw arbor with 25 HP arbor motor (30 HP and 40 HP available, see Options for pricing).Specifications: -- 1-15/16" Saw arbor bearings and 10" usable arbor. 12" useable arbor available. Uses 12" dia. x 1-3/4" bore saw blades. -- 1/8" to 2" Max. cutting depth on hardwoods and softwoods; 18" minimum stock length; 17" maximum stock width; removable and replaceable phenolic throat plates. -- Unique “swing down arbor frame"; for easy and fast blade changing. Blades are positioned using spacers.Feed system with: -- (2) 1 HP Feed motors with constant feed speed to be determined from thickness of wood, type of wood, and maximum number blades (average speed is set at 80 FPM). -- (6) Non-marking steel drive rollers; top and bottom rolls are powered for superior feeding capabilities; hand crank for easy feed roll height adjustment. -- Includes safe, fully enclosed belt and chain guards and double anti-kickback device. Features: -- Simple design, low cost, high performance. -- High production, fast setup, workhorse. -- Off-The-Shelf Parts are found locally for ease of maintenance.Options: -- 30 HP arbor motor & starter, add $1,150, -- 40 HP arbor motor and starter, add $2,300, -- Variable Speed Drive with speeds from 10 to 100 FPM, add $2,450. -- 12" Useable arbor space, add $2,950. -- 12" x 24T Blade,1.75" Bore, $115 each. -- 12" x 30T Blade,1.75" Bore, $165NOTE: PRICING DOES NOT REFLECT Mfg's 7% MATERIALS SURCHARGE

Lico Rip System with 5-Moving Blades Includes: Infeed, tilt hoist, unscrambler, Lico infeed, 125 HP gang, outfeed tunnel, 75' sort chain Lateral Scanners High speed roller gang with (5) shifting blades: Up to 500 FPM Two Scanmeg scanners Singulating infeed Saw infeed fence Hogging blade to remove inside edging Outside edging falls off and into shredder New system upgrades in 2018

This system was purchased used and never put into service.

Mattison 404 Rip Saw Seller was using until they upgraded to a gang rip. Ready to ship.

Madison 202 Straight Line Rip Saw

The Rip Saw is still in good running condition and still in use.

Mereen Johnson Model 312 Rip Saw Includes: New pads for the chain Includes: Twistlock Collar Mounted Saw Blades Available approx May 1, 2024

Mereen Johnson 424DC 24" Wide Arbor 75 HP Motor (460v/3Ph) 3 HP Feed Speed Variable Feed Speed Air loaded pressure rollers

Mereen Johnson Model 312 DC SR1R Rip Saw 600 V/3 PH/60 Cy

Mereen Johnson 424 DC/SR4 Gang Rip Saw with Automated Infeed with multiple lasers manufacturer’s specs to be confirmed 24” width capacity 3-1/2” thickness capacity 75 HP main motor 3 hp feed motor feed rete 30-245 fpm

These two rip saws were removed from service in working condition some time ago. The seller purchased them and never installed them. They have been in storage the whole time.

Mereen Johnson 424 DC Gang Rip Outfeed Rollers

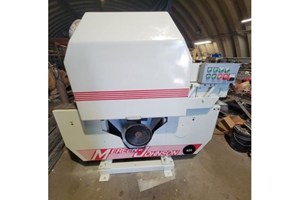

MEREEN-JOHNSON 424 DC GANG RIP SAW 24 inch width capacity 75 HP arbor motor- 3600 RPM direct drive 5 HP variable speed feed ( new belt ) Four ( 4 ) kick-back finger sets : ( Two ( 2 ) top in-feed, One ( 1 ) bottom in-feed, One ( 1 ) top out-feed ) A new out-board arbor bearing assembly New set of alum bars and rubber slats installed It is wired 480 volts 3 phase . The serial no. is MJ-4709 One saw sleeve and set of spacers ( 6 saw blades ) Cleaned, painted, and checked.

Mereen Johnson 431 DC
