Woodworking Equipment For Sale

CEFLA TRC 2000 POWERED ROLLER CONVEYOR72"L x 60"W rubberized roller conveyor with .75kw motor

CEFLA TRC 2500 ROLLER CONVEYOR105"L x 60"W Rubberized roller conveyor with a .75kw motor

CEFLA EASY 2000/D Automatic Spray Finishing Machine: 2010 CEFLA "EASY 2000 D" Reciprocating Sprayer: -- Sprayer fabricated using coated sheet panels, uses a Centrifugal fan for intake of room air to upper air diffusion hood inside of cabin to pressurize the spray area. -- Conveyor speeds variable from 2 - 8 MPM. Belt width capable to carry 1,600 mm (5') wide charge through the machine. -- Machine is PLC Controlled. The Superior Coating application is achieved by utilizing a "back spray" technique. The machine uses a slide-out material recovery system consisting of (2) rollers. -- Infeed & outfeed Conveyors with lift cylinders. -- Includes: (2) Reciprocating arms traveling on polished rods, hydraulic shock absorber provides smooth operation. -- Parts are read at the Infeed of the Conveyor by a photodiode light bar that reads the size of the part and sends that information to the PLC to control the Spray Gun action. -- Machine is equipped with (2) paint circuits.THIS MACHINE IS CURRENTLY BEING RECONDITIONED WITH OUR SUPPLIER IN ITALY AND WILL BE AVAILABLE APRIL 2025.

CEFLA PRIMA 1,300 mm (51.18") W Single-Arm Automatic Oscillating Spray Coating System, with (4) Spray Guns & (2) PumpsSpecifications: -- For water or solvent-based coating of wood, plastic, glass, & metal. -- Feeds right-to-left. -- Working width 1300 mm (51.18"), Min. panel length 250 mm (9.84"). Max. panel thickness 60 mm (2.36"). -- Paper roll width 1520 mm (59.84"), Paper roll length: 2400 M (7,874'), Paper roll dia. 520 mm (20.47"). -- Conveyor speeds 1 - 3 MPM (3 - 10 FPM). -- Chamber size 11’ W x 6’ L x 3-1/2’ H.Equipped with: -- Heavy-duty spray arm, with (4) C.A. TECHNOLOGIES "BOBCAT "66-250" Automatic air assisted airless spray guns with Max. fluid pressure 2,500 PSI, (2) High pressure feeding circuits, & Electronically-controlled oscillation speed. -- 11’ L Disposable paper-covered vacuum belt conveyor, with 2-1/4"; Dia. Infeed & Outfeed rollers on 4-3/8"; Centers, & Vacuum unit. -- Automatic paper payoff & take-up system, with Unwinder with adjustable mechanical brake & Winder with Air motor. -- Automatic panel shape & panel detection system. -- Removable overspray tanks with Filters. -- Natural air inlet, with 2-Stage Large-surface dry filters. -- 4.6 kW (6 HP) High efficiency exhaust fan. -- Dual chamber lights. -- Control, with PLC, SCHNEIDER ELECTRIC "MAGELIS" Graphic Terminal with 6" Color LCD touchscreen, & Diagnostics.Complete with: -- Manual. -- (2) C.A. TECHNOLOGIES "C-20 70-1500" 2 GPM 20:1 Cart-Mounted Stainless Steel Fine Finish Pumps, Each with Fluid volume 2 GPM at 60 Cycles/Min, Max. fluid pressure 2,000 PSI, Max. air pressure 100 PSI, & 5 Gallon Siphon hose assembly. -- C.A. TECHNOLOGIES "54-405" 5 Gallon Pail-Mounted Stainless Steel Mixer. -- 60"; W x 3’ L x 36"; H Infeed & Outfeed Motorized Roller Conveyors, Each with 1-7/8"; Dia. Coated rollers on 4"; Centers & 1/4 HP - 1,700 RPM Motor.

CEFLA KLEENSPRAY 12 Reciprocating Spray Line;The "Kleenspray 12" Reciprocating Automatic Spraying system is mainly based on the use of a closed continuous CFB belt conveying the panels to & through the spray area. The design has many advanced mechanical solutions to allow considerable advantages.KLEENSPRAY Technical Features: -- Non pressurized spray cabin, "Paper Belt Overspray Capturing" lacquer system; microprocessor unit for spraying operation control. -- 5-Edge coating, 51" max. width, 76" long spray enclosure. -- Gun Carrier: Reciprocating-type linear Gun Carrier with (4) guns; includes (1) station with "(4) guns, stainless steel material handling pumps", clamps & brackets for free height and angle settings. -- Supporting trolleys driven by toothed timing belts with brushless motor with electronic control, reciprocating slider, automatic reversal of gun angle on each stroke to cover panel edges, with variable speed; (3) lacquer feeding circuits. -- Light barrier gun control: Photo cell sensors send material size to the programmable controller which opens and closes the guns. -- Conveyor System: "Paper Roll" continuous collection belt with rollup collection paper area, with long life and easily removable infeed roller section with electronic reading barrier consisting of (60) photo diodes and outfeed roller. -- Booth Enclosure: Made of sandwich paneling with glazed elements; port for access to the spray guns units. The machine is particularly suitable for the application of waterborne drying lacquers; these products assure minimum environmental impact. Please Note: (4) Spray guns for UV paint& (4) guns for regular paint are included.Line Includes. -- VENJACOB Oven following the KLEENSPRAY. 600V/3/50-60 Hz. 230Vac/24Vdc. Control Voltage Max capacity 25 KW. Nominal Load 40 Amps.Year of Construction 2001. S/N 20104593 -- BURKLE UV Curing oven following the oven. Type TRUV2. (2) UV Lamp. Electrical 600/480V/360 Hz Control Voltage 24 Vdc. Nominal Power 49.5 HP.Nominal Current 99.8 Amps. S/n 010458-01. -- Pumps and pneumatic components. -- The panel cleaner shown at the start of the line is NOT INCLUDED.

Cefla Rotostain 2000

Cefla and Delle Vedove Finishing Line

CEFLA 5 Ft. Wide Single Lamp UV OvenGreat for handing those "extra wide" Panels!Features: -- UV-R Super Focus: This configuration is suitable for reducing the heating effect of the lamps on artifacts sensitive to high temperatures (e.g. resinous wood). -- The particular shape of the lamp parabolas focuses the UV ray beam at the same point of the panel, allowing to reduce significantly reducing the number of lamps needed to dry the paint and avoiding the dispersion of rays, also guaranteeing significant savings in terms of space and energy consumption. -- This configuration can be integrated with the "SMART-THICK" system for adjusting the thickness of the pieces in line, usually on roller application lines.UV-R SP: Allows the cross-linking of the paint applied even on the edges of the pieces, thanks to the use of inclined lamps and a greater energy impact of the lamps themselves on the edges.UV-R: Equipped with an electronic system for regulating the power of each lamp; it also allows you to automatically activate the energy-saving function by checking the presence of material under each lamp.The Electrical Panel is integrated into the machine body and does not require additional spaces in the line layout.

CEFLA - MITO, ...Complete Spraying System with SORBINI Cleaning Brush.Reciprocating Feed Through System for Waterborne & Solvent-Borne Coatings: The max. flexibility and technology for the continuous spraying of any kind of raised panels.Features: -- Machine designed with a solid structure: LASER 3D; full accessibility, thanks to the wide use of glass superficies, access doors, and extractable parts. -- Conveying System with: CFB Belt with sealed edge, driven by inverter. -- Axis driven by the powerful brushless motor and by a sophisticated toothed belt handling system, with recycling sphere bearings. The best performances in speed, acceleration, and the softness in guns motion allows to achieve the max. application quality. -- The central axis holds: (1) Gun supporting arm (removable), equipped with quick-release (predisposed for max. 4 guns); complete with: Manual height adjustment, (3) high pressure lacquer feeding circuits with recycle; lacquer filters with stainless steel fittings. -- Exclusive pressurization flows analysis and sophisticated air diffusion plenum with double fan for air intake and filtration results in: Higher lacquer saving, better machine cleaning. Circulation provided by floor mounted MZ RLQ 560, Direct-drive 4 KW , 1755 RPM motor. -- Tanks with supporting areas for filters by COLUMBUS or ANDREAS-type filters.Electronic Scanner for: Shape reading and workpieces positioning; max. efficiency in managing the guns' spraying.TECHNICAL FEATURES:Total length of the machine: 4,650 mmTotal width of the machine: 3,850 mm (4,210 mm with fan)Machine structure height: 2,500 mmElectronic control unit with: PLC and software for machine managing.Main control cabinet: Pressurized, placed at the machine infeed, along the service side complete of cable and wiring system for connection to all the users.Spraying parameters management is operated by PLC:Working programs setup, measurements of the lacquered surface & lacquer consumption, 5" color touchscreen display for diagnostic and control; possibility to exchange data from and to PLC managing complete Lines.Possibility to manage pumps for color change/washing (up to 4 pumps). -- Comes with: 2006 SORBINI/CEFLA VS/33-ACT-F, 460/3/60 Panel Cleaning Brush with brush for the top roll followed by a nozzle blow off station. (1) Head, 53" width cap. Top brush head; features timed rotating air blowers, air liner blower with nozzles. Upper mounted Anti-static ionization bar; 400 RPM brush speed.With CEFLA TM 3000, 600/3/60 V, infeed belt conveyor. -- Line is disconnected/dismantled per last (8) photos.

CEFLA EASY 2000D Reciprocating Feed Through Sprayer and Vertical Oven Finishing Line:This line is still in operation with the original owners, it have never run full time, there are weeks when it is 1 day per week. It is recommended with a line of this age to do a full recondition prior to or as it is being installed. If that is not possible, it is still running and can be seen that way. CEFLA Complete 52" (1,300 mm) Finishing Line with: SORBINI Panel Cleaner, "EASY D 2000 W" Reciprocating Sprayer, Conveyor(s), and CEFLA Hot Water Vertical Oven. The line is composed of the following:001) Belt conveyor CEFLA "TN 2500"002) Panel cleaning / brushing machine SORBINI "VS 33"003) Automatic spraying machine CEFLA "EASY 2000 DRY SYSTEM" with pressurized cabin004) Transfer conveyor005) CEFLA PIEFFE PF2 VL/6 7500 pass through oven006) Vertical Oven, (3) chambers with belts CEFLA "VN 2000"007) Unloading Conveyors

CEHISA EP-7 EDGEBANDER1/4" Cap. edge thickness; min. panel size: length 4-3/4", width 3" and thickness 3/8", unlimited length & width; PLC controlled operation.Equipped with: -- Automatic strip feed & coil feed magazine, compact Hot Melt glue system, heats up in (7 - 10) Min, optional Heavy Duty guillotine for 3 mm thick PVC, 3-roll pressure section. Work Stations: -- Single motor end trim (0.3 HP), motor tilts 0° - 10° -- Top & bottom flush & bevel trim unit (0.75 HP ea. motor), tilts 0° - 20° -- Feed speeds of 33 FPM and a 1 HP feed drive.Complete with: Digital counters, sound enclosure, frequency inverter, telescoping outboard panel support & used tooling.

CEHISA PRO 10 .EDGEBANDER (W/PREMILL): -- Features: Pre-milling Station with: 2 x 1.5 kW (2.0 HP) 12,000 RPM motors; standard equipped with diamond cutters. Both spindles pneumatically controlled. -- Automatic Edge Magazine: For coiled material up to 3 mm thickness, strip feed magazine for up to 5 mm (3/16") solid wood banding. -- Quick Melt Glue System: 10 - 15 Min. heat up time, auto-temperature drop. Glue Tank is coated with nonstick material, quick change mechanism for easy maintenance and/or color change. -- Pressure Section: (1) Large dia. driven and (2) idle rollers. Digital readout and pneumatic positioning selectable from controller touchscreen. -- Edgebanding Workstations. End Trimming Station: Double motor front & rear, 2 x 0.35 kW (0.5 HP) - 12,000 RPM. -- Edge Trimming Station: Top & bottom flush/bevel/radius trimming, (2) 0.35 kW (0.5 HP) - 12,000 RPM motors, tiltable 0° - 20°, pneumatic exclusion from operator panel. -- Profile Scraping Unit: For thick PVC/ABS radius scraping, pneumatic in/out positioning from control panel with chip collection box. -- Flat Glue Scraper: To remove potential glue squeeze out. -- Buffing Unit: Top/Bottom, (2) 0.12 kW (1/8 HP) - 1,650 RPM motors, tilting horizontally and vertically. -- Controller: "Unitronics V350" Controller with color touchscreen, memory up to (20) programs. -- Equipped with: Feed Speed: 9 & 14 MPM (29 & 46 FPM). -- Power hold-down beam, workpiece support outrigger, safety & sound enclosure. -- Included Options:RIEPE non-stick Spray System. -- Actual Model is: CEHISA PRO 10

CEHISA PRO-12 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Features: Pre-Milling Station with:2 x 1.5 Kw (2.0 HP) 12,000 RPM motors, standard equipped with diamond cutters. Both spindles pneumatically controlled. -- Spray agent unit for top and bottom with (2) sprayer and (2) reservoir -- Automatic Edge Magazine: For coiled material up to 3 mm thickness, strip feed magazine for up to 5 mm (3/16") solid wood banding. -- Quick Melt Glue System, MR-5:10 - 15 min. heat-up time, auto temperature drop. Glue Tank is coated with nonstick material, quick-change mechanism for easy maintenance and/or color change. -- Pressure Section:(1) Large dia. driven and (2) idle rollers. Digital read-out and pneumatic positioning selectable from controller touch screen.Edgebanding Workstations: -- End Trimming Station, V-7: Double motor front & rear, 2 x 0.35 Kw (0.5 HP) - 12,000 RPM. -- Edge Trimming Station, BC-5: Top & bottom flush/bevel/radius trimming, 2 x 0.55 Kw (0.75 HP) - 12,000 RPM, tiltable 0° - 10°, pneumatic exclusion from operator panel. -- Corner Rounding Unit, FD-50: To process overhanging edges and trimming around the leading & trailing edge, 1 x 0.27 Kw (0.36 HP). -- Profile Scraping Unit, R-8: For thick PVC/ABS radius scraping, pneumatic in/out positioning from control panel with chip collection box. -- Flat Glue Scraper, RR-7: To remove potential glue squeeze-out. -- Buffing Unit, PC-9: with spry mist unit top/bottom Top/Bottom, 2 x 0.12 Kw (1/8 HP) - 1,650 RPM motors, tilting horizontally and vertically. -- Operator Interface:PLC Microprocessor control with color touch screen, memory up to 20 programs.Equipped With:Feed Speed, 9 - 14 MPM (29' to 45 FPM), -- Power hold-down beam, work-piece support outrigger, safety & sound enclosure. Included Options:Riepe, non-stick spray system. -- Nesting Tracer Shoes for top/bottom trimmers

CEHISA - PRO-9, ...Edgebander Single-Phase Electrical!Single-sided Edgebander with: End trim; top/bottom trimming; scraping; buffing.Specifications: -- 0.4 - 3 mm Edge thickness cap., -- Teflon coated glue pot system. -- Automatic magazine for strip & coil feed; Heavy-Duty guillotine for up to 3 mm thick PVC. -- (2) roll pressure zone with (1) motorized and (1) idle roller. Workstations: -- Double-motor end trim station; 0.33 HP - 12,000 RPM ea. motor. -- Top & bottom flush/bevel trim; bevels 0° - 20°; 0.45 HP ea. motor. -- Top & bottom PVC profile scraper; up to 3 mm radius. -- Last Station: Top & bottom buffing unit; 3/4 HP motors. -- Electronic braking on trim motors; digital readout on top/bottom trim. -- Feed speed: 33 FPM & 1 HP feed drive. -- Sound enclosure. -- Outboard panel support. -- Frequency converter. -- Digital readouts for trimmer adjustments. -- Sound enclosure.

(14) spindles with 1-1/2 hp motors on each. On/off switch for each motor. chucks adjust to grip up to 1/2” bit stroke adjustable from 4” to 10” 121” x 39-1/2” table with (4) hold downs Adjustable speed hydraulic feed 230 volt 3 phase

CEMCO SBV-120 Vertical Boring MachineSpecifications: -- 113" x 22" boring area Capacity, (14) 1.5 HP - 1,800 RPM motors driving (14) spindles, on/off switch controls for all motors -- Spindle nose with chuck 5/65" - 1/2" capacity -- 121" x 30.5" table size, (4) Spring loaded hold downs, -- 6" Spindle stroke adjustment with min. of 4" to max. of 10" between spindle nose and tabletop. -- Spindle assemblies advance hydraulically at 0 - 30 strokes/Min with single or continuous stroke -- 2 HP hydraulic feed pump w/variable speed control.Also included: -- 4 CHIP BLOW OFFS WITH INDIVIDUAL ON/OFF POSITIONS -- INSTRUCTION MANUAL/PARTS LIST -- DRILLING SAFETY GUARDS -- EMERGENGY STOP CABLE AND EMERGENCY STOP BUTTONFLOOR SPACE FOOT PRINT: 48: X 121"

CEMCO MBV 54 Vertical Boring Machine54" x 15" Cast iron table with wooden top,Equipped With:(2) Universal spindles with movable spindle supports,(3) 2 HP - 1,725 RPM direct drive spindle motors,36" Stationary table height; 6" Max. vertical stroke, spindles advance hydraulically at 0 - 30 strokes/Min;Foot pedal actuated w/single cycle & continuous automatic modes;2 HP hydraulic feed pump, 12-gal. hydraulic pump system;Note: Riggers are required for loading

CEMCO - 4000, ...2-Head Wide Belt Sander38" Width cap. - Drum, Platen configuration.Head Configuration:1st Head: 40 HP -1,780 RPM rubber contact drum head.2nd Head: 30 HP - 1,775 RPM platen style head.Specifications: -- 3 HP 230/460/60/3 Feed motor with TOSHIBA VFD controls. -- 15 - 60 FPM Conveyor feed speed . -- 30 HP - 3,525 RPM Vacuum blower. -- Vacuum type rubber conveyor feed belt. -- Push button controls and amp meters. -- Electric ProScale digital thickness readout. -- YASKAWA Varispeed F7.Equipped with & Features: -- VFD abrasive belt drive system. -- Outfeed workpiece dust cleaning enclosure.Includes: Replacement abrasive belts and belt racks.

- Width capacity 53”. Drum, Drum, Combination Head (see sander specs - Head 1: Rubber covered contact roll, 10” dia, 65 shore adjustable with dial - Head 2: Rubber covered contact roll, 10” dia, 65 shore adjustable w/dial - Head 3: Combination head, (2) 5-1/2” finishing drums w/platen - 440 V, 60 cy, 3 Phase - Year 2000, Good Condition - Warehoused after plant shut down factory in 2013 - Have manuals /spec sheets - Machine weighs app 6000#’s. - Buyer must pay for riggers to load onto truck. (our forklifts can’t pick it up)

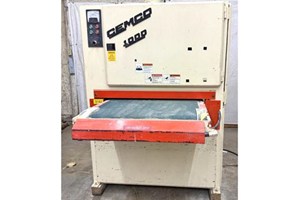

CEMCO 1000 Series Single Head Wide Belt Sander; 36" Width capacity; 1/8" to 6" thickness capability; combination sanding head.Equipped with: -- 5-1/2" Rubber covered contact roller and independently adjustable 3-1/2" polishing platen with 20 HP main drive abrasive belt motor. -- 37" x 60" Abrasive belt size, electric eye tracking. -- 1 HP variable speed feed 15 - 60 FPM; Power raising and lowering of the conveyor bed 0" - 6" part thickness opening of conveyor bed by (4) 5-ton lifting jacks. -- Double infeed & outfeed rubber covered holddown rollers, -- 26" Infeed conveyor & 20" outfeed conveyor.
