Woodworking Equipment For Sale

HOLZMA HPP 250 38/38 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 149.6" (3,800 mm) Cutting length & pull-back; 2.95" (75 mm) saw blade projection; 18 HP (13.5 kW) - 4,700 RPM main saw motor, 350 mm main saw dia; 1.5 HP (1.1 kW) - 5,100 RPM scoring motors, 200 mm scoring saw dia.;NC controlled scoring saw adjustment from "CADMATIC" control. -- Saw carriage: Variable travel speed from 16 - 328 FPM (5 - 100 MPM), constant return of 328 FPM (100 MPM). -- Pusher Fence:Electronically controlled overhead program fence, rack & pinion driven on both sides; forward speed capacity 197 FPM (60 MPM);(5) Gripper clamps, 1st (3) clamps with (2) fingers & others with (1) finger; clamps open up to 3.2" (80 mm). -- Operator & Machine Control:PC Front-End with: HOLZMA "CADMATIC 4" Practive Controller+ Windows Operating System "designed for industrial environments"; virtually unlimited cutting dimensions memory;17" TFT Flat screen monitor, DVD ROM drive, RS-232 port, USB port, analog modem, online operation from an office PC is possible."Real-Time" Cutting sequences with 2-D moving graphics; high-tech error diagnostics with true photos & video clips for immediate identification of the source problem. -- Complete with:HOLZMA Patent: Automatic "CENTRIC" full cutting length side pressure device with front & rear forks holding ripped strips squarely against the right angle fence (reduces cycle time ...25% compared to conventional systems)."POWER-LOCK" quick-change saw blade system; (3) front air floatation tables 71" x 24" (1,800 x 600 mm). -- Options Include:Holzlink software with information handling package to print labels from CabinetWare, Label Printer,230 V Transformer & 10-sets main & scoring blade. (5 blade sets sharpened only one time). --Actual model is HOLZMA HPP 250/38/38 OPTIMAT.

As Taken From Service: Includes return conveyor

Optimat KFL 526/6/A3/30 Wiring Diagram: 0-202-09-5610 SOO Supply: 480Y277 3 Phase - 60HZ Largest Motor: 13A Largest Heater: 8A Enclosure Type: 12

Optimat KFL 526/6/A3/30 Wiring Diagram: 0-202-09-6535 Supply: 480y/277V 3 Phase - 60HZ Largest Motor: 13A Largest Heater: 6A Enclosure: 12

Homag KAL 310 Ligmatech Return Conveyor Grooving unit

HOMAG KAL 310/7/A3/S2 EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING)Working Capacity: -- Edgebanding thickness in rolls (min/max) 0.3 - 3 mm. -- Panels thickness (min/max) mm 12 - 60 (1/2" through 2-3/8"). -- Feed speed (adjustable) 18 - 25 MPM (59 to 82 FPM). Front-End Equipped: -- In-feed fence, manual digital positioning. -- Pre-Milling Unit (vertical joint trimmers) (2) x 3 Kw each. -- Lamps to pre-heat the work pieces edge. -- Edge Magazine, vertical coil cart with 2 positions. -- Gluing Unit QA 34, EVA (Hot Melt) -- Side Pressure Zone, (3) rollers, adjustable by N.C. servo motor. Working Units: -- End Trimming Unit HL 81 Motors, 2 x Kw 0.22 (0.50 HP) -- Pre-Rough Trimming Unit: Top/Bottom, 2 x 0.55 Kw. (0.75 HP) 12,000 RPM motors, none tilt with digital indicator positioning. -- Multi Function Unit FK 11: Profile Contour Trimming, 2 x 0.4 Kw, 12000 RPM motors, for linear top/bottom edge trimming and vertical front/back corner rounding. -- Profile Edge Scraping Unit:Pneumatic in/out and manual digital indicator positioning. -- Glue Scraper:Top/Bottom, flat panel surface glue scraper. -- Buffing Unit: Top/Bottom oscillating buffing motors 2 x 0.25 Kw (0.35 HP).Operator & Machine Control: -- HOMATIC NC 21 controller, flat color LCD screen with keyboard and mouse input. Complete With: -- Top pressure system with rubber belt. -- Panel Support Outrigger. -- Sound and safety hoods over all working stations. Actual Model is HOMAG KAL 310/7/A3/S2

HOMAG AMBITION 2274 (KAL 370/6/A3) EDGEBANDER (W/PRE-MILL): -- Specifications: Working Capacity: Coiled stock min/max Edge thickness 0.3 - 3 mm (0.011. - 0.118"), Strip material min/max Edge Thickness 0.4 - 1 mm (0.016 - 0.039"),Panel stock min/max thickness 8 - 60 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18").Minimum workpiece width: 2.36" (60 mm) with workpiece thickness ≤ 22 mm) & 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units:Top/Bottom spraying device prior to workpiece pre-milling. Designed for applying a separating agent, for easier cleaning of any residual glue on the panel. -- In-Feed Fence: Pre-heated manually adjustable in-feed fence with digital indicators. -- Pre-Milling Station:(2) 2.2 HP (3.0 kW) - 150 Hz, 9,000 RPM vertical jointing spindle motors; equipped with panel blow-off device and SIKO digital counters for adjustments. -- Panel Pre-Heat Unit: Quartz lamp for heating substrate edge before glue application. -- Edge Magazine:A multi-purpose 2-coil magazine expands capability by running coiled material & strips. Maximum roll diameter: 400 mm & 830 mm.Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panelon the edgebanding. -- Gluing System Homag Quickmelt: QA 3 - Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gatesLower melting unit equipped with automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast five-minute (5) heat-up time. -- Pressure Section: Programmable (Servo), automatic pressure zone adjustment, (1) large 150 mm dia. driven & (4) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used.Workstations: -- End Trimming Unit:(2) 1 HP (0.8 kW) - 200 Hz, 12,000 RPM Motor ea. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. Programmable (Servo). -- Rough/Pre-Trimming Unit:(2) 0.55 kW 0.74 HP (0.55 kW) - 12,000 RPM Motors, tilting range +/- 1° & counter-rotating to machine feed to prevent blowout & .Height adjustment synchronized with the top pressure-beam .With digital counters. -- Scraping Unit:Top & bottom for thick PVC/ABS, electro-pneumatic positioning & pneumatically activated. Pneumatically-controlled blow off nozzles. Height adjustment synchronized with top pressure beam. -- Flat Glue Scraper Unit:Top & bottom to remove potential glue squeeze-out, electro-pneumatic positioning in and out of the processing area & electro-pneumatically activated height adjustment synchronized with top pressure beam. -- Buffing Unit:Top & bottom edge buffing/polishing. Operator & Machine Control: -- Power Touch Control Multi-Touch Screen C

HOMAG - KAL 210 AMBITION 2262: Edgebander (w/Premill & Corner Rounding) -- SpecificationsCoiled stock min./max. Edge thickness: 0.3 - 3 mm (0.012. - 0.118"); strip material min./max. edge thickness: 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min./max. thickness:12 - 40 mm (0.472" - 1.574"); panel overhang: 30 mm (1.18"). -- Infeed Fence. Adjustable infeed fence with: Manual digital indicator positioning. -- Premilling Station: (2) 3.0 kW (4.0 HP) 150 Hz - 9,000 RPM Motors; equipped with: Trimming column, (2) horizontal & cross slides with: Spindle adjustment; electropneumatic horizontal jump movement of the 1st motor.Includes: Electronic frequency inverter for control of motor speed & braking; (2) dust extraction hoods; air jet panel blow off device, & SIKO digital counters for adjustments. -- Panel Preheater: Brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multipurpose Magazine: 2-Coil magazine expands capability by running coiled material & strips; magazine height adjustment allows for greater usage of varying panel heights by raising & lowering the magazine table, allowing the Operator to center the panel on the edgebanding. -- Gluing System (EVA - Hot Melt): QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper & lower unit.34 mm Dia. Glue Roller": Allows excellent control of temperature for optimum bonding results with individual adjustment for: Leading & trailing glue gates; lower melting unit equipped with: Automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo); (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers; pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 kW (1.0 HP) x (2) 200 Hz - 12,000 RPM Motors to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & Bottom Flush Trimming Unit. Top & Bottom: 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; height adjustment with the top pressure beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit: FF 12. Multifunction 0.4 kW (0.54 HP) x (2) - 12,000 RPM motor to fine trim the edge overhangs at the workpiece upper & lower edge, as well as trimming around the front & rear vertical edge. - Max. feed speed: 20 MPM (65.6 FPM). -- Profile/Bevel Scraping Unit PN 10. Top & Bottom for: Thick PVC/ABS; pneumatically activated/adjustment. -- Flat Glue Scraper Unit. Top & Bottom: Pneumatically activated to remove potential glue squeezeout. -- Buffing Unit FA 11. Top & Bottom: Edge buffing/polishing; pneumatically activated. -- Operator & Machine ControlHOMATIC - PC 22: Power Control w/Touchscreen. Controller functions in Windows environment and features: Keypad w/LCD flatscreen display, fault diagnostic, OS9 real-time Operating System.Handheld remote c

HOMAG - OPTIMAT KDF 440C: Special RH Feed Direction Edgebander w/Premilling & Corner Rounding (aka BRANDT - KDF 440C)Specifications: Premilling & Corner Rounding; HIGHFLEX Automated package. -- Edge & Workpiece Capacity: 0.4 - 8 mm (0.016 - 5/16") Edge; 8 - 60 mm (5/16 - 2-3/8") panel thickness; 160 mm (6-3/8") min. panel length; 70 mm (2-3/4") min. panel width.Equipped with: -- Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chipfree & clean panel edges. Equipped with diamond cutterheads -- Infeed Fence with: Servo motor positioning. -- Infrared Radiant Quartz Heating Unit between: Glue roller and pressure section. -- Automatic Edge Magazine: Strip & coil stock; strips: 0.4 mm - 8 mm (0.016 - 5/16"); coils up to 3 mm PVC; "HD" guillotine "Quick Change" Glue Tank for maintenance & glue color change. -- Pressure Section: 1st Roller driven plus: (3) Idle rollers; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable 8 - 14 MPM (26 - 46 FPM); 11 MPM (36 FPM) when using contour trimming. -- BRANDT "Power Touch Control"; memory: 256 MB RAM; 1 GB flash card drive; Operator control panel: 22" Color HD widescreen; soft keypad; internal modem for remote diagnostic link.Workstations -- End Trimming -- (2) Motor @ 0.35 kW (1/2 HP) - 12,000 RPM; automatic chamfer from control panel 0°- 15°. -- Flush/Bevel-Fine/Radius Trimming Unit: Top/Bottom (2) motors; 0.55 kW (3/4 HP) - 12,000 RPM; auto. tilt positioning; 0° - 25° with combination flush/radius/chamfer cutterheads; horizontal & vertical tracing wheels.Equipped with: Brushless multiaxis Servo motors for positioning of work unit & horizontal copy wheels for quick changeover. Includes: (3) Positioning options: Profile-1, Profile-2; flush trimming -- Corner Rounding Unit(1) Motor: 0.35 kW (1/2 HP) - 12,000 RPM for leading & trailing edges vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness -- Scraping, multi-profile (PVC): Top/Bottom with (2) profiles.1 mm & 2 mm or 3 mm instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels. - PVC scrape collection box. -- Scraping Glue Unit: Flush Top/Bottom on panel surface with floating insert knives. -- Buffing Unit: Top/Bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM. -- RIEPE anti-adhesion and RIEPE detergent.Complete with: -- Motorized, programmable holddown pressure beam; padded sound enclosure and used tooling. -- Actual Model: RH Feed HOMAG - OPTIMAT KDF 440C (aka BRANDT - KDF 440C, but branded HOMAG).

HOMAG - AMBITION 2480: Edgebander (w/Premill & Corner Rounding) -- SpecificationsWorking Capacity. Coiled stock: Min./max. edge thickness 0.3 - 3 mm (0.011. - 0.118").Strip material min./max. Edge Thickness: 0.3 - 20 mm (0.011 - 0.78").Solid Wood Material min./max. Edge Thickness: 0.6 - 20 mm (0.024 - 0.78").Panel stock min/max thickness: 8 - 60 mm (0.472" - 1.574"); panel overhang: 30 mm (1.18").Min. workpiece width 2.36" (60 mm) with workpiece thickness ≤ 22 mm; 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units Top/Bottom spraying device prior to workpiece premilling. Designed for applying a separating agent for: Easier cleaning of any residual glue on the panel. -- Infeed FencePreheated, manually adjustable infeed fence with: Digital indicators. -- Premilling Station(2) 2.2 HP (3.0 kW) - 150 Hz - 9,000 RPM: Vertical jointing spindle motors; equipped with: Panel blow off device & SIKO digital counters for adjustments. -- Preheat UnitQuartz lamp for: Heating substrate edge before glue application. -- Edge MagazineMultipurpose 2-coil magazine expands capability by: Running coiled material & strips. Max. roll diameter: 400 mm & 830 mm.Magazine height adjustment. Allows greater usage of varying panel heights by raising & lowering the magazine table; allows the Operator to center the panelon the edgebanding. -- Gluing System: HOMAG Quickmelt Premelting Unit. QA 3: Quick Melt Overhead Unit & Heated roller applicator; digitally displayed thermostat for both upper & lower unit. 34 mm Dia. Glue Roller. Allows excellent control of temperature for: Optimum bonding results with individual adjustment for leading & trailing glue gates.Lower melting unit equipped with: Automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast 5-minute heat up time. -- Pressure SectionProgrammable (Servo). Automatic pressure zone adjustment: (1) Large 150 mm dia. driven; (4) 70 mm dia. idle rollers; pneumatic pressure control depending on edgebanding material used.Workstations -- End Trimming Unit: PK 25(2) 1 HP (0.8 kW) - 200 Hz - 12,000 RPM Motor ea.: Cuts excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. - Programmable (Servo). -- Rough/Pre-Trimming Unit - BF 10(2) 0.55 kW (0.74 HP) - 12,000 RPM Motors; tilting range: +/- 1° & Counterrotating to machine feed to prevent blowout.Height adjustment synchronized with: The top pressure-beam. -- 4-Motor Corner Rounding Unit: FF 32(4) 0.54 HP (0.4 kW) - 12,000 RPM; Motors to fine trim the edge overhangs at the workpiece front & rear vertical edge.Max. feed speed: 20 MPM (66 FPM) when using "Corner Rounding Unit". -- Open Space -- Profile/Bevel Scraping Unit PN 10Top & Bottom for thick PVC/ABS; electro-pneumatic positioning & pneumatically activated. Pneumatically controlled blow off nozzles. Height adjustment synchronized with: Top pressure beam. -- Flat Glue Scraper Uni

HOMAG KAL 210 AMBITION 2260 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Coiled stock min/max. Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max. thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two 3.0 kW (4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column, (2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor.Includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, an air-jet panel blow-off device & SIKO digital counters for adjustments. -- Panel Pre-Heater: the Pre-heater brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multi-Purpose Magazine: 2-Coil magazine expands capability by running coiled material & strips, magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates, lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 LBS/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo), (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 KW (1.0 HP) x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & bottom Flush Trimming Unit: Top & bottom, 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit FF 12: Multi-function 0.4 KW (0.54 HP) x 2 - 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper & lower edge, as well as trimming around the front & rear vertical edge. Max. feed speed 20 MPM (65.6 FPM) -- Profile/Bevel Scraping Unit PN 10: Top & bottom for thick PVC/ABS, pneumatically activated/adjustment. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit FA 11: Top & bottom edge buffing/polishing, pneumatically activated. -- Operator & Machine Control:HOMATIC PC 22 Power Control w/Touch Screen: Controller functions in Windows environment and features: Keypad w/LCD flat-screen display, fault diagnostic, OS9 real-time operating syst

HOMAG OPTIMAT KAL 210/7/A20/S2 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Working Capacity: Edge thickness cap.: 0.4 - 20 mm; min. panel width: 55 mm (2-1/4"); panel thickness: 12 - 60 mm; min. edge length: 7.8". -- Infeed Section:(2) Premilling heads, each with 3 kW - 6,000 RPM motor, (1) with jump control; chip blowoff unit after last head; SIKO digitals for horizontal & turret for vertical adjustments; -- Preheating infeed fence for panel edge. -- Automatic 2-coil feed magazine for coil material up to 3 mm thickness; strip feed magazine for up to 20 mm (3/4") solid wood banding. -- "QA 34 Quick Melt" Glue system per melt hopper feeder & roller applicator (reversible); pneumatic pressure roll section with (1) large dia. driven & (6) idle rollers. -- Workstations:Double motor front & rear end trim: 0.7 HP - 12,000 RPM Motor ea.; pneumatic chamfer setting. -- Top & bottom rough trims: 2 HP - 12,000 RPM motor ea. -- Top & bottom profile trim units: For leading & trailing edge, (4) 0.6 HP - 12,000 RPM motors; up to 4 mm edge thickness: All trim station motors are: 200 Cy - HF and equipped w/electronic brakes. -- Profile tracing from: Top, bottom and side for chamfering or rounding of pretrimmed PVC edges; pneumatically controlled blowing nozzles. -- Max. edge thickness: 3 mm (1/8"); panel thickness: 12 - 60 mm (15/32" to 2-3/8"); unit laterally adjustable by max. 50 mm (1-31/32"); Collection box for PVC shavings. -- Height adjustment with top pressure beam without tools; manually adjustable with digital mechanical counters. -- Profile Edge Scraping Unit with: Electropneumatic adjustment. -- Top & Bottom buffing unit. -- Feed & Holddown System:Motorized top pressure beam with powered V-belt holddown. -- 80 mm Wide Heavy-Duty feed chain w/rubber pads, automatic chain track lubrication system. -- 5 HP Feed drive for variable feed speed of 23 - 98 FPM. -- Operator & Machine Control:HOMATIC "PC 22", 2 GHz CPU with 512 MB RAM, USB port; functions in XP Windows environment. Keypad with TFT flat screen LCD display, onscreen fault diagnostic, part & lineal feet/meter tracking, etc. Diagnostic analysis from HOMAG via Modem fault diagnostic is possible. -- Complete with:SIKO Digital adjustments on: Top & Bottom trim, fine trim, and scraper stations; 10 KVA - 200 Cy frequency converter, electronic DC brakes on all trim motors. -- Sound cabins for all trim workstations; adjustable outboard panel support with floor supports. -- Actual Model is Optimat KAL 210/7/A20.S2.NOTE: Seller states that the Edgebander was in use until recently. The Corner Rounding stations are no longer in working condition

HOMAG - OPTIMAT KDF 440C: Special RH Feed Direction Edgebander w/Premilling, Corner Rounding & Return Conveyor (aka BRANDT - KDF 440C)Specifications: Premilling & Corner Rounding; HIGHFLEX Automated package. -- Edge & Workpiece Capacity: 0.4 - 8 mm (0.016 - 5/16") Edge; 8 - 60 mm (5/16 - 2-3/8") panel thickness; 160 mm (6-3/8") min. panel length; 70 mm (2-3/4") min. panel width.Equipped with: -- Premilling Station:(2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip free & clean panel edges. Equipped with diamond cutterheads -- Infeed Fence with: Servo motor positioning. -- Infrared Radiant Quartz Heating Unit between Glue roller and pressure section. -- Automatic Edge Magazine: Strip & coil stock; strips: 0.4 mm - 8 mm (0.016 - 5/16"); coils up to 3 mm PVC; "HD" guillotine "Quick Change" Glue Tank for maintenance & glue color change. -- Pressure Section: 1st Roller driven plus: (3) Idle rollers; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable 8 - 14 MPM (26 - 46 FPM); 11 MPM (36 FPM) when using contour trimming. -- BRANDT "Power Touch Control"; memory: 256 MB RAM; 1 GB flash card drive; Operator control panel: 22" Color HD widescreen; soft keypad; internal modem for remote diagnostic link.Workstations -- End Trimming:(2) Motor @ 0.35 kW (1/2 HP) - 12,000 RPM; automatic chamfer from control panel 0°- 15°. -- Flush/Bevel-Fine/Radius Trimming Unit:Top/Bottom (2) motors; 0.55 kW (3/4 HP) - 12,000 RPM; auto. tilt positioning; 0° - 25° with combination flush/radius/chamfer cutterheads; horizontal & vertical tracing wheels. Equipped with: Brushless multi-axis Servo motors for positioning of work unit & horizontal copy wheels for quick changeover. Includes: (3) Positioning options: Profile-1, Profile-2; flush trimming -- Corner Rounding Unit:(1) Motor: 0.35 kW (1/2 HP) - 12,000 RPM for leading & trailing edges vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness -- Scraping, multi-profile (PVC): Top/Bottom with (2) profiles. 1 mm & 2 mm or 3 mm instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels. - PVC scrape collection box. -- Scraping Glue Unit:Flush Top/Bottom on panel surface with floating insert knives. -- Buffing Unit: Top/Bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM. -- RIEPE anti-adhesion and RIEPE detergent. -- Complete with:Motorized, programmable hold-down pressure beam; padded sound enclosure and used tooling. -- Options Include:Homag Return Conveyor as pictured. -- Actual Model: RH Feed HOMAG - OPTIMAT KDF 440C (aka BRANDT - KDF 440C, but branded HOMAG).

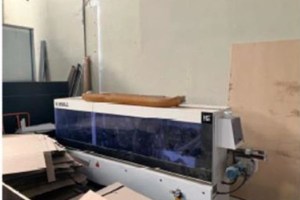

HOMAG S-200 (OPTIMAT KDF 130C): Edgebander (w/Premill & Corner Rounding) +"AIR TEC" EVA/PUR. -- Specifications0.3 - 3 mm (0.016 - 0.11") Edge; 8 -60 mm (0.312 - 2.375") panel thickness; 160 mm (6.375") min. panel length; 70 mm (2-3/4") min. panel width. -- Equipped with:Separating/cleaning agent spraying units. -- Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges. -- 100 mm Dia. diamond cutterheads. -- Integrated heated glue roller. -- AirTec Reactivation unit for: Zero edge finish. -- Automatic Edge Magazine for: Strip & coil stock; up to3 mm PVC. -- "Heavy-Duty" Guillotine. -- EVA "Quick-Change" glue pot & roller application unit. -- Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled. -- Feed Speed: 8 MPM. (26 FPM). -- Operator InterfaceHOMAG "easyTouch" Operator Interface with: 7" Graphic color touch display & soft keypad; intuitive, user-oriented navigation. -- (20) Storable programs guarantee flexibility when processing a wide variety of edge materials and changing customer requirements. -- Clear overview of the help & assistant functions, including the glue pot temperature or troubleshooting in plain text. -- Workstations End Trimming: (2) Motors each @ 0.35 kW (1/2 HP) 12,000 RPM; automatic chamfer from control panel 0° - 15°. -- Flush/Bevel-Fine/Radius Trimming Unit. (2) Motors: Top/Bottom; 0.55 kW (3/4 HP) - 12,000 RPM; 0° - 25° auto-tilt positioning from control panel with combination flush/radius/chamfer cutterheads. -- Includes (3) positioning options: Profile 1, Profile 2, & Profile 3: Flush trimming. -- Corner Rounding Unit. (1) Motor 0.35 kW (1/2 HP) - 12,000 RPM with: Automatic adjustment from control panel for: 1-Mil, 2-mil & 3-mil thickness. -- For leading & trailing edges, vertical corner rounding of panels: Ether radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- Scraping, multi-profile (PVC) Top/Bottom with (2) profiles: (1) 1 mm, 2 mm, or 3 mm in place of (2) 2 mm positioning of vertical & horizontal copy wheels. PVC scrape collection box. -- Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM. -- Complete withMotorized hold-down pressure beam; padded sound enclosure, isolation transformer for multiple input voltages, used tooling, and original factory documentation. -- Actual Model is: HOMAG EDGETEQ S-200 (OPTIMAT KDF 130 C)NOTE: Owner States "Our objective is to be completely transparent with potential buyers and clearly state that the equipment is being offeredas-is, currently dismantled and stored." Buyers seriously interested can arrange an inspection at our warehouse, in FL, as they sit, in storage.

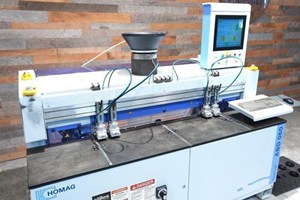

HOMAG - ABD 060/12/NA - CNC Bore, Glue & Dowel Inserter -- Specifications(1) Horizontal drilling head with: (3) Independent spindles on 32 mm centers; Servo control of: "X", "Y" & "Z" Axes; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working CapacityMaterial size: 20 mm - 1,250 mm (3/4" - 49") long; 50 mm - 800 mm (1.97" - 31-1/2") wide; 10 mm - 60 mm (0.4" - 2.4") thick.Machine is currently set up for: 8 mm Dia.; 30 or 35 mm long dowels (additional dowel sizes are optional). -- Work Area(2) Separate working fields with: (4) Pneumatic top clamps can process up to (4) parts independently on the left hand, right hand or center stops.Work can be loaded in: (1) Field while being machined in the other to allow fast production of varying parts. -- Operator InterfacePC Front-End with HOMAG - Power Control PC 85T; WoodWOP 5.0 Operating System with: Graphic programming & error messaging.17" TFT Flat screen monitor; CD-RW drive; 1.44 MB floppy drive; standard keyboard & mouse; software allows program design with automatic mirror image by use of an active center stop: Located 600 mm (23.6") from zero. -- Complete with: All manuals, documentation & program disk provided with machine. -- Actual Model: HOMAG - ABD 060/12/NA.

HOMAG ABD-060/12/NA - CNC Bore, Glue & Dowel Inserter: -- Specifications(1) Horizontal drilling head with: (3) Independent spindles on 32 mm centers; Servo control of: "X", "Y" & "Z" Axes; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working CapacityMaterial size: 20 mm - 1,250 mm (3/4" - 49") long; 50 mm - 800 mm (1.97" - 31-1/2") wide; 10 mm - 60 mm (0.4" - 2.4") thick.Machine is currently set up for: 8 mm Dia.; 30 or 35 mm long dowels (additional dowel sizes are optional). -- Work Area(2) Separate working fields with: (4) Pneumatic top clamps can process up to (4) parts independently on the left hand, right hand or center stops.Work can be loaded in: (1) Field while being machined in the other to allow fast production of varying parts. -- Operator InterfacePC Front-End with HOMAG - Power Control PC 85T; WoodWOP 5.0 Operating System with: Graphic programming & error messaging.17" TFT Flat screen monitor; CD-RW drive; 1.44 MB floppy drive; standard keyboard & mouse; software allows program design with automatic mirror image by use of an active center stop: Located 600 mm (23.6") from zero. -- Complete with: All manuals, documentation & program disk provided with machine. -- Actual Model: HOMAG ABD-060/12/NA

HOMAG - BHT 500: CNC Through-Feed Machining Center (2-Head) + BARGSTEADT Stacker -- SpecificationsHOMAG "BHT 500" CNC 2-Head Through-Feed PtP Machining Center: -- Working Capacity Single panel processing: "X" Axis 98.4" (2,500 mm); "Y" axis 55.4" (1,406 mm); "Z" axis 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness.(2) Panel processing: "X" Axis 98.4" (2,500 mm); Y" Axis 23.6" + 23.6" (600 + 600 mm); 1/2" - "2.36" (12 - 60 mm) min./max. panel thickness. -- Positioning SpeedVertical boring unit(s) Positioning speed: "X" Axis 328 FPM (100 MPM); "Y" axis 230 FPM (70 MPM); "'Z" axis 82 FPM (25 MPM).Panel transfer belt variable feed speed from: 0 - 295 FPM (0 - 90 MPM). -- Horizontal Through-Feed Boring Units(2) 2 HP (1.5 kW) Motors (1-motor each side) with: Variable rotation speeds up to 9,000 RPM. (2) 19-Spindle LH units, (38) total LH spindles; (2) 19-spindle RH units, (38) total RH spindles; spindle are on 32 mm centers.LH Horizontal drilling support is fixed; RH support motorized & equipped with: LED Indicator for precision positioning, pneumatic locking, and individual adjustment for positioning according to the panel size. -- Horizontal PTP Boring UnitsCNC Controlled horizontal PtP boring units with: (2 + 2) spindles in the "Y" axis on each boring head; (8) "Y" axis spindles total) -- Vertical PTP Boring Units(2) 4 HP (3 kW) Motors (1-motor each head) with: Variable rotation speed; up to 9,000 RPM.(2) Independently controlled top mounted CNC PtP boring/grooving heads; each head with: (30) Independent vertical spindles; spindle are on 32 mm centers. -- Grooving Saws(2) 2 HP (1.5 kW) Motors (1-motor each head); "X" axis grooving saw with: Variable rotation speed up to 12,000 RPM & 100 mm dia. blade. -- Operator InterfaceIPC with: HOMAG "Power Control 85T" + WoodWOP + Windows "XP" Operating System; icon driven software with: Graphical interface allows Operator to quickly & efficiently create programs & diagnose malfunctions in simple terminology. 17" TFT Color monitor; multitask Operating System; input/output modules; axes override; 4-axis interpolation; diagnostic graphics aide for programming; machine data & tool management. -- Options Include: BARGSTEADT - "TBH 250/QL/25/12": Vacuum Stacker Device.Work cap. "X" Axis 98.4" (2,500 mm), "Y" axis 55" (1,400 mm), 2.3" (60 mm) Max. panel thickness.High-speed workpiece stack exchange with a cycle time of 35 seconds; thin work piece device for panels from 8 mm thick. -- Actual Model is HOMAG BHT 500

HOMAG CENTATEQ T-700/PROFI (BOF 712/32/18/A) TWIN POD SHUTTLE TABLE MACHINE (W/ATC/BORING): -- Specifications Twin Pod Shuttle Table, Bridge Gantry machine with: NC Controlled, User-Friendly support rails & vacuum pods. -- Working Area:"X" Axis is 126" (3,200 mm, "Y" axis 72" (1,828 mm), "Z" axis stroke Routing is 12.8" (325 mm), "Z" axis stroke Boring is 7.3" (185 mm) max. material thickness of 4" (100 mm). -- Positioning Speed"X" & "Y" Axes 426 FPM (130 MPM); "Z" axis is 66 FPM (20 MPM); machine head travels on THK linear motion guides on all axes. -- Worktable x 2Twin Pod Table "Bridge Gantry" machine with: NC Controlled, User-Friendly support rails & vacuum pods, with electronic surveillance of all vacuum rails/pods/stops.(2) Independent 10.5' x 6' working areas, for Pendulum processing during loading & offloading of the materials being processed. -- Boring Unit x 2(1) 3 HP (2.3 kW) Motor; variable speed from 1,500 - 7,500 RPM; (21) independent "Quick Change" vertical spindles; (13) in "X" axis & (8) in "Y" axis.10-Horizontal Spindles; (3+3 in X axis & ( 2+2) in Y axis. (1) 100 mm X-Axis Saw slot. -- Machining x 2(1) 20 HP (15 kW) Air-Cooled, high-speed constant duty Router with HSK F63 adaptor & tool length "touch off" probe.Programmable speed from 1,250 - 24,000 RPM; constant torque achieved at 9,000 RPM, RH or LH rotation.Router is powered by a 14 kW frequency inverter; integrated air jet blow off located in the extraction hood.(1) 10-Position ATC plate mounted at the back of the machine. -- Operator Interface:PC87 Front-End with: "Power Control with PowerTouch2" + Windows© 10 + woodWOP7 Operating System.21" TFT Color graphic touchscreen for data entry; PC 85T hand control pendant; INTEL Core 2 Duo Processor; 1 SATA 160 GB hard disk CD R/W drives.Ethernet Connection 10/100 MBIT RJ45 (without switch) for LAN connection to office PC; USB ports & central USB connection at the operating panel.BECKHOFF Programmable logic control for (3/4) axes; linear, circular & helical interpolation.The machine control is contained on a separate freestanding console that can be placed at either the LH or RH side of the machine. woodWOP can be programmed offline with the same intuitive icon-driven software that the Operator has on the machine controller. -- Shuttle Tables x 2Manual LH & RH facing/loading & automatic shuttle into & out of the working field. Integrated dust/scrap/chip conveyor to clean/remove material form the work/processing area. -- Complete with (2) 100 m³/Hr Vacuum Pump: All zone perimeter Safety System. -- Actual Model is: HOMAG - CENTATEQ T-700/PROFI (BOF 712/32/18/A).This machine is New, NEVER INSTALLED!!

HOMAG BAZ 211 VENTURE 21M Machining Center W "C" Axis -- Maximum Working field: X-Axis 3,225 mm (126.9"), Y-axis 1,500 mm (59"), Z-axis stroke 300 mm (11.8"), max work piece thickness 60 mm (2.4"). -- X-axis travel speed 80 MPM (262 FPM), -- Y-axis travel speed 60 MPM (197 FPM), -- Z-axis 40 MPM (131 FPM), AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Working area: Working tables consist of (6) adjustable support rails, (2) vacuum cups per rail; laser unit to aid in the quick positioning of the vacuum cups. -- Machining unit: (1) 14.75 HP (11 kW) liquid cooled electro-spindle router (1,500 - 18,000 RPM), "HSK F63" quick change tooling; 12-position ATC automatic tool changer, "C" axis for 360ø horizontal processing. -- Drilling Unit: Vertical drilling head with (17) individual vertical spindles, 11-spindles in "X", 7-spindles in "Y", spindles on 32 mm centers. (1) saw blade aggregate, 125 mm dia; (1) 4-spindle lock case horizontal trimming unit aggregate. -- "POWER CONTROL PC 85" Numerical control with: "WOODWOP + BAZ" interface software, "WINDOWS NT"; icon driven with a graphical interface to allow the operator to quickly and efficiently create programs. -- Includes: 144 MB Disk drive, CD ROM drive, 12" color LCD monitor. -- Features: RS-422 Serial & USB connection to PC (up to 300 meters), (2) line adaptors RS-232 & 485.2 with 9-25 pin and card for RS-232 line (cable not included). -- Features: Multitask operating system, input/output modules, axes override, 4-axis interpolation, "WOOD SCOUT" diagnostic graphics aid for programming, machine data & tool management. -- Editor Module for PC with same look and functionality of software on the machine, allows transmission of programs and work lists; Required office PC configuration (not included): Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card. Complete with: -- ELMO 100 cm/h vacuum pump; perimeter protection cage; user & maintance manuals on CD with wiring diagrams and operation of Numerical Control. -- "C" Axis -- Actual Model is BAZ 211 VENTURE 21M.Riggers are required for tear down and loading

HOMAG DRILLTEQ V-310 CNC Machining Center (Vertical, W/ATC/Boring): -- Specifications:Flexible "Vertical" Machining Center with "ATC" that uses less than 11-meter² of valuable floor space in addition to an innovative panel handling system. -- Working Capacity:Max. workable part size for "X" axis is 120" (3,050 mm), "Y" axis 49.2" (1,250 mm), and max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm), "Y" axis 1.97" (50 mm), min. part thickness of 0.31" (8 mm). Max. workpiece weight 132 LBS (60kg)LH or RH infeed & outfeed. -- Positioning Speed:The V-310 can reach vector speeds of 210 FPM (64 MPM) in "X" & "Y" axis, & 66 FPM (20 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring unit BHV310:(1) 3 HP (2.3 kW), variable speed from 1,500 - 7,500 RPM motor. Boring Head with (12) independent Vertical spindles, (6) Horizontal spindles with (2+2) in "X" axis & (1) in "Y" axis. (1) "X" / "Y" 90° grooving saw, 125 mm saw blade dia. -- Machining:(1) 13.4 HP (10 kW) Air cooled Electro spindle router with HSK-F63 adaptor, variable speed from 6,000 - 24,000 RPM. (1) 8-position ATC tool rack mounted on the side of the machine base for easy access. -- Operator Interface:HOMAG "powerTouch2" + Windows + WoodWOP operating system; "IntelCore 2 DUO" Processor. 21" TFT Monitor with pop up keyboard display, Industrial keyboard & mouse, Serial ports, USB ports, modem, Ethernet connection. Real-time multitask processing. -- Complete with:Pneumatic part clamping; sound enclosure and safeSCAN safety technology. -- Actual Model is HOMAG DRILLTEQ V-310
