Woodworking Equipment For Sale

KUNDIG DUPLEX 53-RC-E Wide Belt Sander (2) Heads; 52" Width cap. Drum, Combination Head.Head Configuration1st Head: 7-1/4" Dia. rubber covered contact roll, 25 HP motor.2nd Head: Combination head with rubber covered contact roll and segmented finishing platen, infeed sensors sense the panel and electronically control the platen height with timers, variable edge control can also be set, 20 HP motor.Specifications: Abrasive belt size 54" x 75" with air tensioning and electronic abrasive belt tracking, both heads with abrasive grit thickness adjustment, 2 HP Variable feed drive. -- Conveyor belt speeds 9 - 45 FPM, controlled by electronic inverter & adjustable on the control panel; infeed & outfeed rubber covered holddown rollers.Equipped with & Features: -- Workpiece thickness cap. 1/8" - 6-1/4", motorized thickness adjustment with LED readout. -- A joystick controls the conveyor opening and start/stop of the feed, automatic "over-thickness" protection and automatic conveyor belt tracking. -- Constant passline of conveyor height at 35". -- Air blow off of second head abrasive belt. -- Emergency stop button, motor load meters, magnetic controls.NOTE from the seller: There is a small leak in the air bladder . The sander has 6,541 working hours

KUNDIG - 2-43: 2-Head Wide Belt Sander43" Width cap.; Drum; Combination Head.Head Configuration1st Head. Spiral rubber-covered contact roll; 6-1/4" dia. (80-Shore); 25 HP motor.2nd Head. Combination head with: 6-1/4" Dia. rubber-covered contact roll (50-Shore); 3-1/8" wide "air inflatable/cushioned" finishing platen; 20 HP motor.Specifications -- Abrasive belt size 43" x 75" with: Air tensioning & electronic abrasive belt tracking. -- Conveyor belt feed with: 1 HP Variable feed drive; 9 - 45 FPM feed speed with an inverter. -- Infeed & outfeed rubber-covered holddown rollers. -- 1/8" - 7" Max. motorized thickness opening.Equipped with & Features -- LED Readout of thickness; part "over thickness" protection. -- Automatic conveyor belt tracking. -- Emergency stop button; motor load meters; magnetic controls.

KUNDIG - 2-43: 2-Head Wide Belt Sander43" Width cap. Drum, Combination Head.Head Configuration 1st Head. Spiral rubber covered contact roll, 6-1/4" dia. (80-Shore),2nd Head. Combination head: 6-1/4" Dia. rubber-covered contact roll (50-Shore; 3-1/8" wide "air inflatable/cushioned" finishing platen. Specifications -- Abrasive belt size: 43" x 75"; with air tensioning & electronic abrasive belt tracking. -- Conveyor belt feed: 1 HP Variable feed drive; 9 - 45 FPM feed speed with an inverter. -- Infeed & outfeed rubber-covered holddown rollers. -- 1/8" - 7" Max. motorized thickness opening.Equipped with & Features -- LED Readout: Thickness;, part "over-thickness" protection. -- Automatic conveyor belt tracking. -- Emergency stop button; motor load meters; magnetic controls. -- CONSTANT PASS LINENOTE from Seller: Low hours! Completely & professionally cleaned upon taking out of service. Runs great. Condition: EXCELLENT!

KUNDIG OPTIQ 2-43 DUAL HEAD WIDE BELT SANDER2-Head, 43" width cap. - 1st Head: steel contact roll, 6-1/4" Dia., 25 HP motor. -- 2nd Head: Combination head with 6-1/4" dia. rubber covered contact roll 50-Shore) and 3-1/8" wide finishing platen, 15 HP motor. -- Abrasive belt size 43" x 75", with air tensioning & electronic abrasive belt tracking, conveyor belt feed with 1 HP variable feed drive, 9 - 45 FPM feed speed with inverter, infeed & outfeed rubber covered holddown rollers. -- 1/8" - 7" Max. motorized thickness opening, LED readout of thickness, part "over-thickness" protection, automatic conveyor belt tracking. -- Features: Emergency stop button, motor load meters, magnetic controls.

LA NUOVA SCOLPITRICE 201-16 Multi-Spindle Carving Machine.(16) Cutter Stations, 55" max. workpiece length,Specifications: -- (16) Dual carving spindle heads, 8" between spindles, 20" max. working diameter. -- Each head has a roughing & finishing spindle, all heads swivel 360° with pneumatic locking. -- Upper carriage controlled by (2) High Frequency changers allowing (2) motor speeds of 12,000 & 18,000 RPM. -- Pneumatic chucking of material, stock turns 360°. Copy stylus of hardened and ground steel, adjustable for depth on either side. -- Traverse feed of carving heads was patented and requires no maintenance. -- Includes: Lot of tooling. Table for flat/horizontal copying.Note: Machine completely gone over and all heads rebuilt in 2011 and used sparingly since.Actual model is 201-16.

LA SCOLPITRICE 201-16 Multi-Spindle Carving Machine.(16) Cutter Stations, 55" max. workpiece length,Specifications: -- (16) Dual carving spindle heads, 8" between spindles, 20" max. working diameter. -- Each head has a roughing & finishing spindle, all heads swivel 360° with pneumatic locking. -- Upper carriage controlled by (2) High Frequency changers allowing (2) motor speeds of 12,000 & 18,000 RPM. -- Pneumatic chucking of material, stock turns 360°. Copy stylus of hardened and ground steel, adjustable for depth on either side. -- Traverse feed of carving heads was patented and requires no maintenance. -- Includes: Table for Flat Work (2,000 mm); Rotary Device (1400mm); Automatic Chucking;Pneumatic; Clamping of Motor Carrier Shaft; (6) Sets of carving Bits with stylusActual model is 201-16.

LACEY-HARMER E-LINE Self-contained Visible Diode Laser End ShooterEconomical self-contained Visible Diode Laser; optics housed in a sealed cell to provide added protection against contaminants and moisture; nickel plated housing. -- Specifications: 100 Millampere operating current, -20° - +40° C operating temperature, 90 V for 250 nano-Sec mechanical stock. Beam angle with 5 mW - 15 mW output, 636 nm wave length. -- Options: 36" Long Diode Array Stand adjustable up to 90° from mounting surface, lines move easily and parallel to each other, micro-adjustment to make lines parallel, no tools needed -- Projects a line from approx. 12' to 15' depending on area lighting -- Consisting of two parts; (1) crossbar style mounting bracket, please add...$ 143; (2) axis slide brackets for easy positioning, add...$ 125 each or alteratively a simple universal stationary mounting bracket add...$ 30.

LAGUNA S-45T SLIDING TABLE, TILTING SPINDLE SHAPERThe Laguna S-45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Specifications: -- 5HP 1 Phase motor. -- Spindle Tilt: 45° Backwards, 10° Forward. -- Sliding Table: 10-1/4″ x 39″. -- Sliding Table Stroke: 18-3/4″. -- Main Table Incl. S/T: 39-1/2″ x 31-5/8″ -- Tenoning Table:13-3/4″ x 18-1/2″ -- Spindle Speeds: 3000/4000/6000/8000/10000 RPMIncludes: 4 Roll 8 Speed Feeder

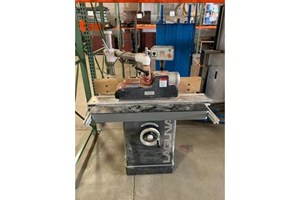

LAGUNA PRO SHAPER SINGLE PHASE SHAPER The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines.Specifications: -- 5HP 1 Phase 220V. -- Table size: 39-5/16″ x 31-7/16″ x 3-1/2″, -- Spindle travel: 4″ -- Spindle Sizes: 3/4″ and 1-1/4″Includes: 4 Roll 8 Speed Feeder

Laguna Swift CNC Router 5x10 Table Dual vacuum pumps 6-Vacuum zones 3 HP Spindle: 18,000 RPM

LAGUNA SMART SHOP MT Elite 5' X 10' CNC Router w/ ATC:60" x 120" Moving gantry, fixed table design in a front-to-back configuration with a 6-zone vacuum table with manual controls. -- Specifications: Machine travel 61" x 121" x 12" axis clearance under the gantry, Speeds of 2,000 IPM rapid travel with 1,800 IPM max. cutting speed. -- Equipped with:(1) 12 HP HSD Electrospindle, 6,000 - 24,000 RPM Range, Ceramic Spindle Bearings.(1) 8-Position Automatic Tool Changer Rack.Includes assorted tool holders, collets, collet nuts & tools. -- All axesRide on 25 mm heavy-duty HiWin HG Series linear bearings and rails on all axis rack. "Helical" rack-and-pinion drives on "X" and "Y" axis, and precision-ground ball screw drive on "Z" axis.Gantry is driven on each end (two "helical" rack-and-pinion drives on "Y" axis). -- Control:FANUC Industrial Control, a state-of-the-art control system designed for precision machining applications. With its advanced features and intuitive interface, the control provides unmatched accuracy, speed, and flexibility for a wide range of machining operations.Runs industry standard G-Code that can be created from any CAM software package. Program transfer to the controller can be accomplished with USB, or via Ethernet transfer. -- Complete with:Expandable control system for custom applications, Spindle speed control through programming, Manual overrides of spindle speed and feed speeds during run.Tool Touch-Off Probe, Centralized lubrication system for all axes. (2) Vacuum Pump blowers with Vacuum monitoring gauge, assorted tool holders.

LAGUNA SMART SHOP 2 PRO CNC Router, 5' X 10' with ATC & 82 Hours Only! (Purchased & Delivered in March 2024):60" x 120" Moving gantry, fixed table design in a front-to-back configuration with a 6-zone vacuum table with T-slot table including manual controls. -- Specifications: Machine travel 61" x 121" x 9.5" axis travel with 12" clearance under the gantry, Speeds of 900 IPM rapid travel with 600 IPM max. cutting speed. -- Equipped with:(1) 9.6 kW (12.87 HP) Electrospindle ISO-30 (ATC), 5,000 - 24,000 RPM Range, Ceramic Spindle Bearings supported by Automatic Tool Changer with (8) tool position tool rack; Includes assorted ISO-30 tool holders, collets, and precision collet nuts. -- All axesRide on 25 mm heavy-duty HiWin HG Series linear bearings and rails on all axis rack. "Helical" rack-and-pinion drives on "X" and "Y" axis, and precision-ground ball screw drive on "Z" axis. Gantry is driven on each end (two "helical" rack-and-pinion drives on "Y" axis). -- Control:SYNTEC TECHNOLOGY controller and drive components for easy diagnosis and exceptional reliability. Machine features the networking, connectivity and online troubleshooting typically found in Windows environments without the Windows baggage. -- Runs industry standard G-CodeThat can be created from any CAM software package. Program transfer to the controller can be accomplished with USB, or via Ethernet transfer. -- Complete with:Expandable control system for custom applications, Spindle speed control through programming, Manual overrides of spindle speed and feed speeds during run. -- Centralized lubrication system for all axis. -- (2) 7.5 kW (10.06 HP) Vacuum Pump blowers with Vacuum monitoring gauge, assorted tool holders. -- LAGUNA "CFLUX:3" 3 HP Cyclone Dust Collector.

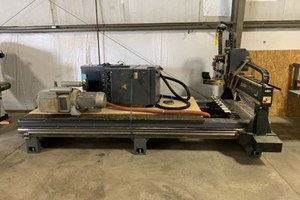

LAGUNA - SMART SHOP II 510 - 5' x10' CNC Router with ATC: -- Specifications60" x 120" Moving gantry; fixed table design in a front-to-back configuration with: 6-Zone vacuum table including manual controls. -- 12" Z-Axis Stroke; 9-1/2" Z-axis clearance under the gantry; speeds: 900 IPM rapid travel with 600 IPM max. cutting speed. -- Equipped with:(1) 12 HP HSD Electrospindle ISO-30 (ATC); 6,000 - 24,000 RPM range; ceramic spindle bearings supported by: Automatic Tool Changer with 8-tool position tool rack. -- All axes ride on 25 mm Heavy-Duty HiWin HG Series; linear bearings & rails on all axes' rack; Helical rack & pinion drives on: "X" & "Y" axis; precision ground ball screw drive: On "Z" axis. -- Gantry: Driven on each end; (2) "helical" rack & pinion drives on "Y" axis. -- Controller & Software"SYNTEC" Control System matched controller & drive components for easy diagnosis and exceptional reliability. -- Runs Industry Standard G-Code: Can be created from any CAM software package; program transfer to the controller can be accomplished with USB or via Ethernet transfer. -- Expandable control system for: Custom applications; spindle speed control through programming; manual overrides of spindle speed, feed speeds during run; centralized lubrication system for all axes. -- Complete with: --(1) 2022 10 HP BECKER Vacuum Pump. -- Options Include:(1) Laguna Tflux-10 3-Phase, 10 HP, Cyclone Industrial Dust Collector, as pictured. -- Box of misc. items as pictured.

1- 5mm Boring and Inserting Unit with Vibratory Hopper 1-8mm Boring and Inserting Unit with Vibratory Hopper Power: 208v-220v, 3 Phase, 30 Amps 96? Maximum Work Zone 4 zone stops 3-Axis Control For Positioning Weight 6,000lbs Solid One-Piece Welded Tubular Steel Frame Footprint (L x W x H): 135? x 45? x 82? Shipping Dimensions (L x W x H): 42.3? x 49? x 43? Shipping Weight: 7500 lbs

LAGUNA BM23E-2 ... Double Row Line Borer(2) 23-Spindle heads on 32 mm centers, (2) 3 HP motors, drills vertically from bottom.Specifications: -- Distance between first and last spindle 851 mm (33.50"). -- Spacing between zero and max. on the first head 0 - 4". Min. distance between two heads 7.25". Max. boring line spacing to the second head 24". -- 2,800 RPM spindle speed; collets accept 10 mm shank bits. -- Heavy overhead material holddown system with (4) pneumatic material clamps. -- (2) independent air throttles to control the drill-heads upstroke speed.Complete with: -- "Set screw" drill adapters, "quick set" system for depth of drilling. -- Extension fence with (3) flip-stops and foot pedal control.

Hot Air Edgebander for Preglued banding 0.4 - 1.5 mm thickness Automatic cutoff for up to 1/32" Coil feed with manual feed for strips Panel thickness 10-50mm Front and rear end trim Top/bottom trim

Laguna Bandt 4 Edgebander Machine is 6 months old Extremely low hours - Buyer upgraded to a larger machine!

LAGUNA - SMARTSHOP LD 4: "Lock Dowel" Boring-Mortising & InsertingSmartShop LD4 Machine: This budget friendly machine was designed specifically for the rapid prototyping of cabinetry. It is a CNC Router that drills & inserts fasteners for: Drawers; closets; desks; cabinets; ...and so much more. It can even handle processing real hardwood.It may look very intimidating, but the "LD4" is actually quite easy to learn. It is constructed out on (1) welded piece of tubular steel, and it weighs approx. 6,000 pounds.It has: Built-in Dust Collector; dual precision Spindles that produce: 2 HP; (8) pneumatic/adjustable clamps; dual vibratory hoppers & inserters.SMARTSHOP LDR is also compatible with: Windows Operating System that allows you to create any kind of design you want.Specifications -- Max. material length: 95". -- (3) Axis positioning. -- Requires no glue or case clamp for assembly. -- (2) Spindles for; Drilling or routing 5 & 8 mm diameter. -- Up to: (4) Working zones. -- (2) Vibrating hopper feed system for: Type "C" & "H" Lock Dowel clips. -- (8) Pneumatic holddowns. -- Laser reading of panel length & thickness. -- Bar code reader.

Laguna - Pinnacle: Hydraulic Copy Lathe -- 52" Between centers with: 16" Max. copy dia. (13" copy dia. with hydraulic tracer). This machine has: Removable 24" gap section on the bed allowing: Max. 48" dia. for bowls/tables, etc. -- Includes: Standard Head Stock thread: 45 x 4.5 mm (adapters avail.); Morse Taper #3 on: Head & tail stock; electronic variable speed control; reverse, In-head indexing face plate (i.e., for fluting). -- Features. Added 24" extension (ordered from LAGUNA; allows turning long columns or architectural turnings). -- Optional items included on this machine: Copy device; Spiral device, manual tracer; hydraulic Copy Tracer; Power Feeder; square stock steady rest.

LANCASTER - 1861-B: Clamp Assembly 2-Way Two-Way Frame Clamping machineSpecifications -- Motorized open/close of main jaws via 1/2 HP motor. -- Max. clamping capacity: 52" Tall x 56" W; minimum: 15" Tall x 11" W. -- (1) 6" Bore; 2" stroke pneumatic cylinders for main jaw clamp.2) 4" Bore; 2" stroke pneumatic cylinders for auxiliary jaws. -- Push button controls for: Open/close and cycle. Control valves on each cylinder for operator control. -- Clamp mounted on: 30° Angle with: Clamp assembly mounted. -- Jaws: Precision machined cast iron.
